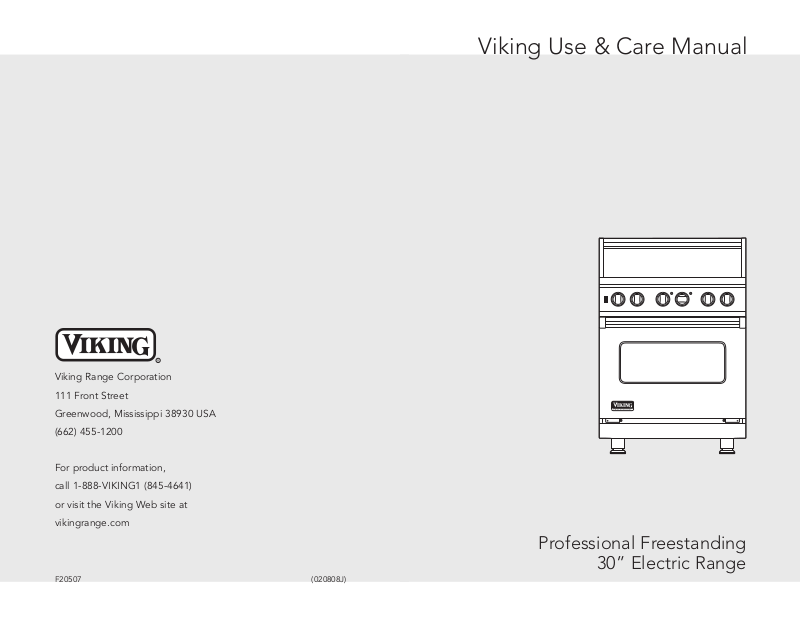

Professional Freestanding

30” Electric Range

Congratulations

Table of Contents

Congratulations and welcome to the elite world of Viking ownership. We hope you will enjoy and appreciate the care and attention we have put into every detail of your new, state-of-the-art self-cleaning range.

Your Viking range is designed to offer years of reliable service. This Use and Care Manual will provide you with the information you need to become familiar with your product’s care and operation.

Your complete satisfaction is our ultimate goal. If you have any questions or comments about this product, please contact the dealer from whom you purchased it, or contact our Consumer Support Center at 1-888-VIKING1 (845-4641).

We appreciate your choice of a Viking range and hope that you will again select our products for your other major appliance needs.

For more information about the complete and growing selection of Viking products, contact your dealer or visit us online at www.vikingrange.com.

Getting Started

Warnings ____________________________________________ 4 Before Using Range ________________________________ 13

Product Controls

Range Features ____________________________________14 Oven Functions and Settings _______________________15

Operation

Surface Operation _________________________________16

Surface Heat Settings ____________________________16 Cooking Vessels _________________________________17

Oven Features _____________________________________17

Rack Positions ___________________________________17

Using the Oven ____________________________________18

Preheat __________________________________________18 Conventional and Convection Cooking __________19

Baking _____________________________________________21

BAKE (Two-Element Bake) _______________________21 CONV BAKE (Convection Bake)__________________21 TRU CONV (TruConvec™) _______________________22

Roasting ___________________________________________ 26

CONV ROAST (Convection Roast) _______________26

Broiling ____________________________________________30

CONV BROIL (Convection Broil) _________________ 30 HI BROIL ________________________________________30 MED BROIL _____________________________________ 30

LOW BROIL _____________________________________31 Convection Dehydrate _____________________________ 34 Convection Defrost ________________________________ 34 Cooking Substitutes Charts ________________________35

Product Care

Cleaning and Maintenance _________________________ 36 Self-Clean Cycle ___________________________________41 Replacing Oven Lights _____________________________ 43 Door Removal _____________________________________ 44 Door Replacement and Adjustment ________________45 Troubleshooting ___________________________________ 46 Service Information ________________________________47 Warranty ___________________________________________48

Getting Started

WARNING

DANGER

WARNING

CAUTION

Warnings

Warning and Important Safety Instructions appearing in this

Getting Started

manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating this appliance.

Always contact the manufacturer about problems or conditions you do not understand.

Recognize Safety Symbols, Words, Labels

Hazards or unsafe practices which WILL result

in severe personal injury or death

Tipping hazard.

To reduce the risk of the appliance tipping,

it must be secured by a properly installed anti-tip bracket(s). To make sure the bracket has been installed properly, look behind the range with a flashlight to verify proper installation engaged in the rear top left corner of the range.

• THIS RANGE CAN TIP.

• INJURIES TO PERSONS CAN RESULT.

• INSTALL ANTI-TIP DEVICE PACKED WITH RANGE.

• SEE INSTALLATION INSTRUCTIONS.

Hazards or unsafe practices which COULD

result in death or severe personal injury

Hazards or unsafe practices which COULD result

in minor personal injury or property damage.

All safety messages will identify the hazard, tell you

how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Read and follow all instructions before using this appliance

to prevent the potential risk of fire, electric shock, personal injury or damage to the appliance as a result of improper usage of the appliance. Use appliance only for its intended purpose as described in this manual.

To ensure proper and safe operation: Appliance must be properly installed and grounded by a qualified technician. DO NOT attempt to adjust, repair, service, or replace any part of your appliance unless it is specifically recommended in this manual. All other servicing should be referred to a qualified servicer.

To avoid risk of property damage, personal injury or death; follow information in this manual exactly to prevent a fire or explosion,

DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any appliance.

Warnings

Getting Started

To Prevent Fire or Smoke Damage

Getting Started

• Be sure all packing materials are removed from the appliance before operating it.

• Keep area around appliance clear and free from combustible materials, gasoline, and other flammable vapors and materials.

• If appliance is installed near a window, proper precautions should be taken to prevent curtains from blowing over burners. NEVER leave any items on the rangetop. The hot air from the vent

• may ignite flammable items and may increase pressure in closed containers which may cause them to burst.

• Many aerosol-type spray cans are EXPLOSIVE when exposed to heat and may be highly flammable. Avoid their use or storage near an appliance.

• Many plastics are vulnerable to heat. Keep plastics away from parts of the appliance that may become warm or hot. DO NOT leave plastic items on the rangetop as they may melt or soften if left too close to the vent or a surface element.

• Combustible items (paper, plastic, etc.) may ignite and metallic items may become hot and cause burns. over hot foods. herbs, breads, mushrooms, etc; fire hazard.

DO NOT

leave oven unsupervised when drying

DO NOT

pour spirits

In Case of Fire

Turn off appliance and ventilating hood to avoid spreading the flame. Extinguish flame then turn on hood to remove smoke and odor.

• Cooking Surface: Smother fire or flame in a pan with a lid or cookie sheet.

• NEVER pick up or move a flaming pan.

• Oven: Smother fire or flame by closing the oven door. DO NOT use water on grease fires. Use baking soda, a dry

chemical or foam-type extinguisher to smother fire or flame.

Child Safety

• To eliminate the hazard of reaching over hot surface elements, cabinet storage should not be provided directly above a unit. If storage is provided, it should be limited to items which are used infrequently and which are safely stored in an area subjected to heat from an appliance. Temperatures may be unsafe for some items, such as volatile liquids, cleaners or aerosol sprays.

• NEVER leave children alone or unsupervised near the appliance when it is in use or is still hot.

• NEVER allow children to sit or stand on any part of the appliance as they could be injured or burned.

Child Safety (cont.)

• DO NOT store items of interest to children over the unit. Children climbing to reach items could be seriously injured.

• Children must be taught that the appliance and utensils in it can be hot. Let hot utensils cool in a safe place, out of reach of small children. Children should be taught that an appliance is not a toy. Children should not be allowed to play with controls or other parts of the appliance.

Cooking Safety

• ALWAYS place a pan on a surface element before turning it on. Be sure you know which knob controls which surface element. Make sure the correct element is turned on. When cooking is completed, turn element off before removing pan.

• NEVER leave a surface cooking operation unattended especially when using a high heat setting or when deep fat frying. Boilovers cause smoking and greasy spillovers may ignite. Clean up greasy spills as soon as possible. DO NOT use high heat for extended cooking operations.

• NEVER heat an unopened container on the surface element or in the oven. Pressure build-up may cause container to burst resulting in serious personal injury or damage to the appliance.

• Use dry, sturdy pot-holders. Damp pot-holders may cause burns from steam. Dishtowels or other substitutes should NEVER be used as potholders because they can trail across hot surface elements and ignite or get caught on appliance parts.

• ALWAYS let quantities of hot fat used for deep fat frying cool before attempting to move or handle.

• DO NOT let cooking grease or other flammable materials accumulate in or near the appliance, hood or vent fan. Clean hood frequently to prevent grease from accumulating on hood or filter. When flaming foods under the hood turn the fan off.

• NEVER wear garments made of flammable material or loose fitting or long-sleeved apparel while cooking. Clothing may ignite or catch utensil handles.

• ALWAYS place oven racks in the desired positions while oven is cool. Slide oven rack out to add or remove food, using dry, sturdy potholders. Always avoid reaching into the oven to add or remove food. If a rack must be moved while hot, use a dry potholder.

• ALWAYS turn the oven off at the end of cooking.

• Use care when opening the oven door. Let hot air or steam escape before moving or replacing food.

Warnings

CAUTION

Getting Started

Cooking Safety

Getting Started

• NEVER use aluminum foil to cover oven racks or oven bottom. This could result in risk of electric shock, fire, or damage to the appliance. Use foil only as directed in this guide.

• PREPARED FOOD WARNING: instructions. If a plastic frozen food container and/or its cover distorts, warps, or is otherwise damaged during cooking, immediately discard the food and its container. The food could be contaminated

• If you are “flaming” liquor or other spirits under an exhaust, TURN THE FAN OFF. The draft could cause the flames to spread out of control.

(cont.)

Follow food manufacturer's

Utensil Safety

• Use pans with flat bottoms and handles that are easily grasped and stay cool. Avoid using unstable, warped, easily tipped or loose-handled pans. Also avoid using pans, especially small pans, with heavy handles as they could be unstable and easily tip. Pans that are heavy to move when filled with food may also be hazardous.

• Be sure utensil is large enough to properly contain food and avoid boilovers. Pan size is particularly important in deep fat frying. Be sure pan will accommodate the volume of food that is to be added as well as the bubble action of fat.

• To minimize burns, ignition of flammable materials and spillage due to unintentional contact with the utensil, DO NOT extend handles over adjacent burners. ALWAYS turn pan handles toward the side or back of the appliance, not out into the room where they are easily hit or reached by small children.

• NEVER let a pan boil dry as this could damage the utensil and the appliance.

•

Follow the manufacturer's directions when using oven cooking bags.

• Only certain types of glass, glass/ceramic, ceramic or glazed utensils are suitable for rangetop surface or oven usage without breaking due to the sudden change in temperature. Follow manufacturer's instructions when using glass.

• This appliance has been tested for safe performance using conventional cookware. DO NOT use any devices or accessories that are not specifically recommended in this guide. DO NOT use eyelid covers for the surface units, stovetop grills, or add-on oven convection systems. The use of devices or accessories that are not expressly recommended in this manual can create serious safety hazards, result in performance problems, and reduce the life of the components of the appliance.

Utensil Safety

To avoid risk of property damage, DO NOT use cast iron cookware. Cast iron retains heat and may result in damaging the rangetop.

Heating Elements and Glass Ceramic Cooking Surfaces

• Surface areas on or adjacent to the unit may be hot enough to cause burns.

• NEVER touch oven heating elements, areas near elements, or interior surfaces of oven.

• Heating elements may be hot even though they are dark in color. Areas near elements and interior surfaces of an oven may become hot enough to cause burns. During and after use, DO NOT touch or let clothing or other

• flammable material contact surface of unit or areas near unit, heating elements, or interior surfaces of oven until they have had sufficient time to cool.

• DO NOT COOK ON BROKEN COOKING SURFACE – If cooking surface should break, cleaning solutions and spillovers may penetrate the broken cooking surface and create a risk of electric shock. Contact a qualified technician immediately.

Cleaning Safety

• Turn off all controls and wait for appliance parts to cool before touching or cleaning them. DO NOT touch the surface elements or surrounding areas until they have had sufficient time to cool.

• Clean appliance with caution. Use care to avoid steam burns if a wet sponge or cloth is used to wipe spills on a hot surface. Some cleaners can produce noxious fumes if applied to a hot surface.

Self-Clean Oven

•

Clean only parts listed in this guide. DO NOT clean door gasket. The door gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket. DO NOT use oven cleaners of any kind in or around any part of the self-clean oven.

• Before self-cleaning the oven, remove broiler pan, oven racks and other utensils and wipe up excessive spillovers to prevent excessive smoke, flare-ups or flaming.

• This range features a cooling fan which operates automatically during a clean cycle. If the fan does not turn on, cancel the clean operation and contact an authorized servicer.

(cont.)

Getting Started

WARNING

CAUTION

WARNING

NOTICE

CAUTION

Warnings

• It is normal for the rangetop cooking surface of the range to

Getting Started

become hot during a self-clean cycle. Therefore, touching the rangetop cooking surface during a clean cycle should be avoided.

Important Safety Notice and Warning

The California Safe Drinking Water and Toxic Enforcement Act of 1986 (Proposition 65) requires the Governor of California to publish a list of substances known to the State of California to cause cancer or reproductive harm, and requires businesses to warn customers of potential exposures to such substances. Users of this appliance are hereby warned that when the oven is engaged in the self-clean cycle, there may be some low-level exposure to some of the listed substances, including carbon monoxide. Exposure to these substances can be minimized by properly venting the oven to the outdoors by opening the windows and/or door in the room where the appliance is located during the self-clean cycle.

Important notice regarding pet birds: NEVER keep pet birds in the kitchen or in rooms where the fumes from

the kitchen could reach. Birds have a very sensitive respiratory system. Fumes released during an oven self-cleaning cycle may be harmful or fatal to birds. Fumes released due to overheated cooking oil, fat,

To avoid risk of injury or death, space heater to heat or warm a room to prevent potential hazard to the user and damage to the appliance. Also, DO NOT use the rangetop or oven as a storage area for food or cooking utensils.

NEVER use appliance as a

ELECTRICAL SHOCK HAZARD

To avoid risk of injury or death,

hot oven light bulb with a damp cloth as the bulb could break. Should the bulb break, disconnect power to the appliance before removing bulb to avoid electrical shock.

DO NOT

touch a

BURN OR ELECTRICAL SHOCK HAZARD

To avoid risk of injury or death, Make sure all controls are OFF and oven is COOL before cleaning. Failure to do so can result in burns or electrical shock.

To avoid sickness and food waste, DO NOT allow defrosted food to remain in the oven for more than two hours.

margarine and overheated non-stick cookware may be equally harmful

About Your Appliance

• For proper oven performance and operation, DO NOT block or obstruct the oven vent duct located on the right side of the air grille.

• Avoid touching oven vent area while oven is on and for several minutes after oven is turned off. When the oven is in use, the vent and surrounding area become hot enough to cause burns. After oven is turned off, DO NOT touch the oven vent or surrounding areas until they have had sufficient time to cool.

• Other potentially hot surfaces include rangetop, areas facing the rangetop, oven vent, surfaces near the vent opening, oven door, areas around the oven door and oven window.

• The misuse of oven doors (e.g. stepping, sitting, or leaning on them) can result in potential hazards and/or injuries.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

DO NOT turn the temperature control on during defrosting. Turning the convection fan on will accelerate the natural defrosting of the food without the heat.

BURN HAZARD

To avoid risk of injury, DO NOT touch the glass. The oven door, especially the glass, can get hot during usage.

Getting Started

CAUTION

WARNING

CAUTION

Warnings

Getting Started

This range features a self-cleaning cycle. During this cycle, the oven reaches elevated temperatures in order to burn off soil and deposits. A powder ash residue is left in the bottom of the oven after completion of the self-clean cycle.

NOTE: DO NOT use commercial oven cleaners inside the oven. Use of these cleaners can produce hazardous fumes or can damage the porcelain finishes. DO NOT line the oven with aluminum foil or other materials. These items can melt or burn during a self-clean cycle, causing permanent damage to the oven.

DO NOT touch the exterior portions of the oven after self-cleaning cycle has begun, since some parts become extremely hot to the touch!

During the first few times the self-cleaning feature is used, there may be some odor and smoking from the “curing” of the binder in the high-density insulation used in the oven. When the insulation is thoroughly cured, this odor will disappear. During subsequent self-cleaning cycles, you may sense an odor characteristic of high temperatures.

KEEP THE KITCHEN WELL-VENTED DURING THE SELF-CLEAN CYCLE.

Before Using Range

All products are wiped clean with solvents at the factory to remove any visible signs of dirt, oil, and grease which may have remained from the manufacturing process. Before starting to cook, clean the range thoroughly with hot, soapy water. There may be some burn off and odors on first use of the appliance–this is normal.

Glass Rangetop

Clean your glass top before the first time you use it. A thorough cleaning with a glass top cleaner is recommended.

Oven

IMPORTANT! Before first use, wipe interior with soapy water and dry thoroughly. Then set the oven selector to bake, the thermostat to 450°F, and operate for an hour.

All models include:

• A broad range of baking and broiling modes—up to eight cooking modes in all—to make even your most challenging baking projects a success

• Strong, wear-resistant glass ceramic surface for excellent cleanability

• Split baking and broiling elements—which reduces preheating time and provides greater control and more even heating

FIRE HAZARD

You must carefully check the food during the dehydration process to ensure that it does not catch fire.

BURN HAZARD

When self-cleaning, surfaces may get hotter than usual, therefore, children should be kept away.

FALLING HAZARD

DO NOT store items of interest to children over the

unit. Children climbing to reach items could be seriously injured.

• A reversing fan which is two times larger than most on the market—this allows you to cook foods more thoroughly and evenly—even when baking large quantities

• Four convection modes offering greater air circulation to shorten cooking times and cook foods more evenly

• Three broiling modes including a new low-broil mode for delicate broiling and top-browning

• A profiled, concealed bake element for easier cleaning

• This appliance is certified by Star-K to meet strict regulations in conjunction with specific instructions found on www.star-k.org

Range Features

LEAN OVEN

QuickCook Elements Thermal-Convection

URFACE

21 3 4 5 6 7

Product Controls

1. Interior oven light switch

2. Left rear element control knob

3. Left front element control knob

4. Oven function selector knob

5. Oven temperature control knob

6. Right rear element control knob

7. Right front element control knob

8. 8”H. stainless steel backguard

9. Dual element 9” 2,500-watt/6” 1,000-watt element

10. One 6-1/2” 1,500-watt element

11. 800-watt “bridge” element between right front and right

12. Two 7” 1,800-watt elements

13. Identification plate

14. Two standard heavy-duty tilt-proof racks/One heavy-duty

15. Broiler pan (located inside oven)

rear elements

TruGlide rack. Six rack positions

Oven Functions and Settings

BAKE (Two-Element Bake)

Use this setting for baking, roasting, and casseroles.

CONV BAKE (Convection Bake)

Use this setting to bake and roast foods at the same time with minimal taste transfer.

TRU CONV (TruConvec™)

Use this bake setting for multi-rack baking of breads, cakes, and cookies. (up to six racks of cookies at once)

Product Controls

CONV ROAST (Convection Roast)

Use this setting for roasting whole turkeys, whole chickens, hams, etc.

CONV BROIL (Convection Broil)

Use this setting to broil thick cuts of meat.

HI BROIL

Use this setting for broiling dark meats at 1” thickness or less when rare or medium doneness is desired.

MED BROIL

Use this setting for broiling white meats such as chicken or meats greater than 1” thick that would be over-browned in high broil.

LOW BROIL

Use this setting for delicate broiling such as meringue.

SELF CLEAN

Use this function to clean oven.

Convection Dehydration (TRU CONV)

Use this function to dehydrate fruits and vegetables.

Convection Defrost (TRU CONV)

Use this function to defrost foods.

Note: For more information on oven functions see “Operation” section.

Broil element

Oven light

6 5 4 3 2 1

TruConvec™ element (behind baffle)

One TruGlide™

rack

Two tilt-proof

racks

Concealed bake element

Oven light

Surface Operation

Operation

Single Front or Rear Element

Push in and turn the control knob counterclockwise to the desired setting. The element will cycle on and off to maintain the desired heat setting. When finished, turn all controls to “OFF.”

Rear and Bridge Element

Push in and turn the right rear control knob clockwise to the desired setting. The rear element and the bridge element will cycle on and off to maintain the desired heat setting. When finished, turn all controls “OFF.”

Hot Surface Indicator Lights

The range has four hot surface indicator lights. They are located in the center of the glass rangetop. The hot surface indicator light will glow red when the corresponding element is heated. The light will remain on after turning off the control knob until the corresponding element has cooled to a safe temperature.

Surface Cooking Tips

• The minimum pot or pan (vessel) diameter recommended is 6” (15 cm). Use of pots or pans as small as 4” (10 cm) is possible but not recommended.

Surface Heat Settings

Heat Setting Use

Simmer

Low Med Low

Med

Med High

High

Note: The above information is given as a guide only. You may need to vary the heat settings to suit your personal requirements.

Melting small quantities Steaming rice Simmering sauces

Melting large quantities Low-temperature frying (eggs, etc.)

Simmering large quantities Heating milk, cream sauces, gravies, and puddings

Sauteing and browning, braising, and pan-frying Maintaining slow boil on large quantities

High-temperature frying Pan broiling Maintaining fast boil on large quantities

Boiling water quickly Deep-fat frying in large utensil

Cooking Vessels

Each cook has his or her own preference for the particular cooking vessels that are most appropriate for the type of cooking being done. Any and all cooking vessels are suitable for use in the range and it is not necessary to replace your present domestic vessels with commercial cookware. This a matter of personal choice. As with any cookware, yours should be in good condition and free from excessive dents on the bottom to provide maximum performance and convenience.

Note: When using big pots, it is recommended to use the front elements. There is more room in the front and potential cleanup of rear of appliance due to staining or discoloration will be minimized.

Oven Features

Operation

Rack Positions

Each oven is equipped with three tilt-proof racks. All ovens have six rack positions. Position 6 is the farthest from the oven bottom. Position 1 is the closest to the oven bottom. The racks can be easily removed and arranged at various levels. For best results with conventional baking, DO NOT use more than one rack at a time. It is also recommended, when using two racks, to bake with the racks in positions 2 and 4 or positions 3 and 5.

Using the Oven

Preheat

For best results, it is extremely important that you preheat your oven to the desired cooking temperature before placing food items in the oven to begin cooking. In many cooking modes, partial power from the broiler is used to bring the oven to the preheat temperature. Therefore, placing food items in the oven during the preheat mode is not recommended. The Viking Rapid Ready™ Preheat System is engineered so that

Conventional and Convection Cooking

Because of variations in food density, surface texture and consistency, some foods may be prepared more successfully using the conventional bake setting. For this reason, conventional baking is recommended when preparing baked goods such as custard. The user may find other foods that are also prepared more consistently in conventional bake. This is perfectly normal. Convection cooking is a cooking technique which utilizes fan forced air to circulate heat throughout the entire oven creating the optimum cooking environment. Cooking with convection is intended when performing multi-rack baking and for

baking heavier foods. the oven is brought to the desired set temperature in a manner which will provide the optimum cooking environment based on the selected cooking mode in the shortest possible time.

Conventional and Convection Cooking Tips

• As a general rule, to convert conventional recipes to convection recipes, reduce the temperature by 25˚ F (-3.9˚ C) and the cooking

For instance, the preheat mode for TruConvec™ is designed to be brought up to the set point temperature in a different manner than the preheat mode for conventional bake. This is because TruConvec is designed for multi-rack baking. So it is extremely critical that all rack positions have reached the desired cooking temperature. As a result, it is normal for oven to take slightly longer for the oven to preheat to 350°F in TruConvec mode when compared to the amount of time it takes to preheat the oven cavity to 350°F in conventional bake mode.

time by approximately 10 to 15%.

• Cooking times for standard baking and convection baking will be the same. However, if using convection to cook a single item or smaller load, then it is possible to have 10-15% reduction in cooking time. (Remember convection cooking is designed for multi-rack baking or cooking large loads.)

• If cooking items which require longer than 45 minutes, then it is possible to see a 10-15% reduction in cooking time. This is especially true for large items cooked in the convection roast

Also, preheat time can vary based on some external factors such as room temperature and power supply. A significantly colder room temperature or a power supply less than 240 VAC can lengthen the time it takes for the oven to reach the desired set temperature.

Operation

function.

• A major benefit of convection cooking is the ability to prepare foods in quantity. The uniform air circulation makes this possible. Foods that can be prepared on two of three racks at the same time include: pizza, cakes, cookies, biscuits, muffins, rolls, and frozen convenience foods.

Operation

• For three-rack baking, use any combination of rack positions 2, 3, 4, and 5. For two-rack baking, use rack positions 2 and 4 or positions 3 and 5. Remember that the racks are numbered from bottom to top.

See “Oven Features” illustration.

• Items cooked in a convection function can be easily over baked. This being the case, it is usually a good idea to pull items out of the oven just before they seem to be done. Items will continue to cook right after they are set out of the oven.

two-element bake

convection bake

Using the Oven

Baking

Conventional and Convection Cooking Tips (cont.)

• Some recipes, especially those that are homemade, may require adjustment and testing when converting from standard to convection modes. If unsure how to convert a recipe, begin by preparing the recipe in conventional bake. After achieving acceptable results, follow the convection guidelines listed for the similar food type. If the food is not prepared to your satisfaction during this first convection trial, adjust only one recipe variable at a time (cooking time, rack position, or temperature) and repeat the convection test. Continue adjusting one recipe variable at a time until satisfactory results are achieved.

roasting is particularly suitable for dishes that require a high

Pan Placement Tips

• When using large (15" x 13") flat pans or trays that cover most of the rack, rack positions 2 or 3 produce the best results.

• When baking on more than one rack, it is recommended to use one of the convection modes and the 2nd and 4th positions or the 3rd and 5th positions for more even baking. When baking on three racks, use any combination of positions 2, 3, 4, and 5 for more consistent results.

• Stagger pans in opposite directions when two racks and several pans are used in conventional bake. If possible, no pan should be directly above another.

• Allow 1 to 2 inches of air space around all sides of each pan for even air circulation.

Single Rack Pan

Placement

Operation

Multiple Rack Pan

Placement

temperature. Use this setting for baking, roasting, and casseroles.

temperature throughout the oven cavity and eliminates the hot and cold spots found in conventional ovens. A major benefit of convection baking is the ability to prepare food in quantity using multiple racks—a feature not possible in a standard oven.

BAKE (Two-Element Bake)

Full power heat is radiated from the bake element in the bottom of the oven cavity and supplemental heat is radiated from the broil element. This function is recommended for single rack baking. Many cookbooks contain recipes to be cooked in the conventional manner. Conventional baking/

CONV BAKE (Convection Bake)

The bottom element operates at full power, and the top broil element operates at supplemental power. The heated air is circulated by the motorized fan in the rear of the oven providing a more even heat distribution. This even circulation of air equalizes the

Operation

When roasting using this setting, cool air is quickly replaced, searing meats on the outside and retaining more juices and natural flavor on the inside with less shrinkage. With this heating method, foods can be baked and roasted at the same time with minimal taste transfer, even when different dishes are involved, such as cakes, fish or meat. The hot air system is especially economical when thawing frozen food. Use this setting for baking and roasting.

TruConvec™

Baking

TRU CONV (TruConvec™)

The rear element only operates at full power. There is no direct heat from the bottom or top elements. The motorized fan in the rear of the oven circulates air in the oven cavity for even heating. Use this setting for foods that require gentle cooking such as pastries, souffles, yeast breads, quick breads and cakes. Breads, cookies, and other baked goods come out evenly textured with golden crusts. No special bakeware is required. Use this function for single rack baking, multiple rack baking, roasting, and preparation of complete meals. This setting is also recommended when baking large quantities of baked goods at one time.

Baking Tips

• Make sure the oven racks are in the desired positions before turning

the oven on.

•

DO NOT open the oven door frequently during baking. If you must

open the door, the best time is during the last quarter of the baking time.

• Bake to shortest time suggested and check for doneness before

adding more time. For baked goods, a stainless steel knife placed in the center of the product should come clean when done.

•Use the pan size and type recommended by the recipe to ensure

best results. Cakes, quick breads, muffins, and cookies should be

Operation

baked in shiny, reflective pans for light, golden crusts. Avoid the use of old, darkened pans. Warped, dented, stainless steel and tincoated pans heat unevenly and will not give uniform baking results.

Food Pan Size Position Temp

BREADS

Biscuits Cookie sheet 3 or 4 400˚ F (204.4˚ C) 8 - 10 Yeast loaf Loaf pan 3 or 4 375 Yeast rolls Cookie sheet 3 or 4 400 Nut bread Loaf pan 3 or 4 375 Cornbread 8" x 8" 3 or 4 400 Gingerbread 8" x 8" 3 or 4 350 Muffins Muffin tin 3 or 4 375 Corn muffins Muffin tin 3 or 4 375

CAKES

Angel food Tube pan 3 or 4 375 Bundt Tube pan 3 or 4 350 Cupcakes Muffin pan 3 or 4 350 Layer, sheet 13" x 9" 3 or 4 350 Layer, two 9" round 3 or 4 350 Pound Loaf pan 3 or 4 350

Brownies 13" x 9" 3 or 4 350 Choc. chip Cookie sheet 3 or 4 375 Sugar Cookie sheet 3 or 4 350

PASTRY

Cream puffs Cookie sheet 3 or 4 400

PIES

Crust, unfilled 9" round 3 or 4 425 Crust, filled 9" round 3 or 4 375 Lemon meringue 9" round 3 or 4 350 Pumpkin 9" round 3 or 4 350 Custard 6 - 4 oz cups 3 or 4 350

ENTREES

Egg rolls Cookie sheet 3 or 4 400 Fish sticks Cookie sheet 3 or 4 425 Lasagna, frz Cookie sheet 3 or 4 375 Pot pie Cookie sheet 3 or 4 400 Gr. peppers stuffed Quiche 9" round 3 or 4 400 Pizza, 12" Cookie sheet 3 or 4 400

Mac. & cheese, frz

VEGETABLES

Baked potatoes On rack 3 or 4 375 Spinach souffle 1 qt. casserole 3 or 4 350 Squash Cookie sheet 3 or 4 375 French fries Cookie sheet 3 or 4 425

Baking Chart

Single Rack Time

13" x 9" 3 or 4 375

Cookie sheet 3 or 4 375

˚ F (190.6˚ C) ˚ F (204.4˚ C) ˚ F(190.6˚ C) ˚ F (204.4˚ C) ˚ F (176.7˚ C) ˚ F (190.6˚ C) ˚ F (190.6˚ C)

˚ F (190.6˚ C) ˚ F (176.7˚ C) ˚ F (176.7˚ C) ˚ F (176.7˚ C) ˚ F (176.7˚ C) ˚ F (176.7˚ C)

˚ F (176.7˚ C) ˚ F (190.6˚ C) ˚ F (176.7˚ C)

˚ F (204.4˚ C)

˚ F (218.3˚ C) ˚ F (190.6˚ C) ˚ F (176.7˚ C) ˚ F (176.7˚ C) ˚ F (176.7˚ C)

˚ F (204.4˚ C) ˚ F (218.3˚ C) ˚ F (190.6˚ C) ˚ F (204.4˚ C) ˚ F (190.6˚ C) ˚ F (204.4˚ C) ˚ F (204.4˚ C)

˚ F (190.6˚ C)

˚ F (190.6˚ C) ˚ F (176.7˚ C) ˚ F (190.6˚ C) ˚ F (218.3˚ C)

(min)

30 - 35 12 - 15 30 - 35 20 - 25 35 - 40 15 - 20 15 - 20

35 - 45 45 - 55 16 - 20 40 - 50 30 - 35 60 - 65

25 - 30 12 - 15 10 - 12

30 - 35

Operation

10 - 12 55 - 60 12 - 15 40 - 45 35 - 40

12 - 15 18 - 21 65 - 70 35 - 40 65 - 70 25 - 30 15 - 20

60 - 65

60 - 65 45 - 50 50 - 55 15 - 20

Note: The above information is given as a guide only.

Baking

Solving Baking Problems

Convection Baking Chart

Food Pan Size Position Temp

BREADS

Biscuits Cookie sheet 2 & 4 Yeast loaf Loaf pan 2 & 4 Yeast rolls Cookie sheet 2 & 4 Nut bread Loaf pan 2 & 4 Cornbread 8" x 8" 2 & 4 Gingerbread 8" x 8" 2 & 4 Muffins Muffin tin 2 & 4 Corn muffins Muffin tin 2 & 4

CAKES

Angel food Tube pan 3 or 4 325 Bundt Tube pan 3 or 4 325 Cupcakes Muffin pan 2 & 4 325 Layer, sheet 13" x 9" 2 & 4 325 Layer, two 9" round 2 & 4 325 Pound Loaf pan 2 & 4 325

Brownies 13" x 9" 2 & 4 325 Choc. chip Cookie sheet 2,3,& 4 350 Sugar Cookie sheet 2,3,& 4 325

PASTRY

Cream puffs Cookie sheet 2 & 4 375

PIES

Crust, unfilled 9" round 2 & 4 400 Crust, filled 9" round 2 & 4 350 Lemon meringue 9" round 2 & 4 325

Operation

Pumpkin 9" round 2 & 4 325 Custard 6 - 4 oz cups 2 & 4 325

ENTREES

Egg rolls Cookie sheet 2 & 4 375 Fish sticks Cookie sheet 2 & 4 400 Lasagna, frz Cookie sheet 2 & 4 350 Pot pie Cookie sheet 2 & 4 375 Gr. peppers stuffed Quiche 9" round 2 & 4 375 Pizza, 12" Cookie sheet 2 & 4 375

Mac. & cheese, frz

VEGETABLES

Baked potatoes On rack 3 or 4 350 Spinach souffle 1 qt. casserole 3 or 4 325 Squash Cookie sheet 3 or 4 350 French fries Cookie sheet 3 or 4 400

13" x 9" 2 & 4 350

Cookie sheet 3 or 4 350

Single Rack Time

375

˚ F (190.6˚ C) 7 - 9

350

˚ F (176.7˚ C) 20 - 25

375

˚ F (190.6˚ C) 11 - 13

350

˚ F (176.7˚ C) 20 - 25

375

˚ F (190.6˚ C) 15 - 20

325

˚ F (162.8˚ C) 30 - 35

350

˚ F (176.7˚ C) 12 - 15

350

˚ F (176.7˚ C) 0 - 12

˚ F (162.8˚ C) ˚ F (162.8˚ C) ˚ F (162.8˚ C) ˚ F (162.8˚ C) ˚ F (162.8˚ C) ˚ F (162.8˚ C)

˚ F (162.8˚ C) ˚ F (176.7˚ C) ˚ F (162.8˚ C)

˚ F (190.6˚ C)

˚ F (204.4˚ C) ˚ F (176.7˚ C) ˚ F (162.8˚ C) ˚ F (162.8˚ C) ˚ F (162.8˚ C)

˚ F (190.6˚ C) ˚ F (204.4˚ C) ˚ F (176.7˚ C) ˚ F (190.6˚ C) ˚ F (176.7˚ C) ˚ F (190.6˚ C) ˚ F (190.6˚ C)

˚ F (176.7˚ C)

˚ F (176.7˚ C) ˚ F (162.8˚ C) ˚ F (176.7˚ C) ˚ F (204.4˚ C)

(min)

30 - 35 35 - 40 15 - 17 30 - 32 25 - 30

5 - 50

20 -25

7 -10

9-10

4 - 27

7 - 9

50 - 55

4 - 5 35 - 45 30 - 35

8 - 10

13 -16 60 - 65 10 - 12 45 - 50 20 - 25 10 - 12

45 - 50

45 - 50 35 - 40 40 - 45 10 - 15

Baking problems can occur for many reasons. Check the chart below for the causes and remedies for the most common problems. It is important to remember that the temperature setting and cooking times you are accustomed to using with your previous oven may vary slightly from those required with this oven. If you find this to be true, it is necessary to adjust your recipes and cooking times accordingly.

Common Baking Problems/Remedies

Problems Cause Remedy

Cakes burned on the 1. Oven was too hot 1. Reduce temperature sides or not done in center

Cakes crack on top 1. Batter too thick 1. Follow recipe

Cakes are not level 1. Batter uneven 1. Distribute batter even

Food too brown on 1. Oven door opened 1. Use door window to bottom too often check food

Food too brown on 1. Rack position too high 1. Use recom. rack position top

Cookies too flat 1. Hot cookie sheet 1. Allow sheet to cool

Pies burned around 1. Oven too hot 1. Reduce temperature edges

Pies too light on top 1. Oven not hot enough 1. Increase temperature

2. Wrong pan size 2. Use recom. pan size

3. Too many pans 3. Reduce no. of pans

Add liquid

2. Oven too hot 2. Reduce temperature

3. Wrong pan size 3. Use recom. pan size

2. Oven or rack not level 2. Level oven or rack

3. Pan was warped 3. Use proper pan

2. Dark pans being used 2. Use shiny pans

Incorrect rack position3.Use recom. rack position

4. Wrong bake setting 4. Adjust to conventional

5. Pan too large 5. Use proper pan

2. Oven not preheated 2. Allow oven to preheat

3. Sides of pan too high 3. Use proper pans

2. Too many pans used 2. Reduce no. of pans

3. Oven not preheated 3. Allow oven to preheat

2. Too many pans used 2. Reduce no. of pans

Oven not preheated

or convection setting as needed

between batches

Allow oven to preheat

Operation

Note: The above information is given as a guide only.

Roasting

convection roast

CONV ROAST* (Convection Roast)

The convection element runs in conjuction with the inner and outer broil elements. The reversible convection fan runs at a higher speed in each direction. This transfer of heat (mainly from the convection element) seals moisture inside of large roasts. A time savings is gained over existing, single fan convection roast modes. Use this setting for whole turkeys, whole chickens, hams, etc.

*Note: This function uses a high-speed convection fan for optimum cooking performance. Some noise may be noticed from this high fan speed. This is normal.

Note: You can also roast foods using bake settings. See the “Baking” section for additional information.

Roasting Tips (cont.)

• When using a meat thermometer, insert the probe halfway into the center of the thickest portion of the meat. (For poultry insert the thermometer probe between the body and leg into the thickest part of the inner thigh.) The tip of the probe should not touch bone, fat, or gristle to ensure an accurate reading. Check the meat temperature halfway through the recommended roasting time. After reading the thermometer once, insert it the meat, then take a second reading. If the second temperature registers below the first, continue cooking the meat.

• Roasting times always vary according to the size, shape and quality of meats and poultry. Less tender cuts of meat are best prepared in the conventional bake setting and may require moist cooking techniques. Remove roasted meats from the oven when the thermometer registers 5˚ F (-15˚ C) to 10˚ F (-12˚ C) lower than the desired doneness. The meat will continue to cook after removal from the oven. Allow roasts to stand 15 to 20 minutes after roasting in order to make carving easier.

⁄2 inch (1.3 cm) further into

Roasting Tips

ALWAYS use the broiler pan and grid supplied with each oven. The

hot air must be allowed to circulate around the item being roasted. Do not cover what is being roasted. Convection roasting seals in juices quickly for a moist, tender product. Poultry will have a light, crispy skin and meats will be browned, not dry or burned. Cook meats and poultry directly from the refrigerator. There is no need for meat or

Operation

poultry to stand at room temperature.

• As a general rule, to convert conventional recipes to convection recipes, reduce the temperature by 25˚ F (-3.9˚ C) and the cooking time by approximately 10 to 15%.

• ALWAYS roast meats fat side up in a shallow pan using a roasting rack. No basting is required when the fat side is up. DO NOT add water to the pan as this will cause a steamed effect. Roasting is a dry heat process.

• Poultry should be placed breast side up on a rack in a shallow pan. Brush poultry with melted butter, margarine, or oil before and during roasting.

• For convection roasting, DO NOT use pans with tall sides as this will interfere with the circulation of heated air over the food.

• If using a cooking bag, foil tent, or other cover, use the conventional bake setting rather than either convection setting.

Operation

Roasting

Conventional Roasting Chart

(when using the Bake or Convection Bake setting)

Time

Internal

Food Weight Temp (min/lb) Temp

BEEF

Rib roast

Rare 4 - 6 lbs 325˚ F (162.8˚ C) 25 140˚ F (60.0˚ C) Medium 4 - 6 lbs 325˚ F (162.8˚ C) 30 155˚ F (68.3˚ C) Well done 4 - 6 lbs 325˚ F (162.8˚ C) 40 170˚ F (76.7˚ C)

Rump roast

Medium 4 - 6 lbs 325˚ F (162.8˚ C) 25 155˚ F (68.3˚ C) Well done 4 - 6 lbs 325˚ F (162.8˚ C) 30 170˚ F (76.7˚ C)

Tip roast

Medium 3 - 4 lbs 325˚ F (162.8˚ C) 35 155˚ F (68.3˚ C) Well done 3 - 4 lbs 325˚ F (162.8˚ C) 40 170˚ F (76.7˚ C)

LAMB

Lamb leg 3 - 5 lbs 325˚ F (162.8˚ C) 30 180˚ F (82.2˚ C)

PORK

Pork loin 3 - 5 lbs 325˚ F (162.8˚ C) 35 180˚ F (82.2˚ C) Pork chops 1 -1 1/4lbs 350˚ F (176.7˚ C) 55 - 60 N/A

1" thick Ham, fully 5 lbs 325˚ F (162.8˚ C) 18 130˚ F (54.4˚ C)

cooked

POULTRY

Chicken, whole 3 - 4 lbs 375˚ F (190.6˚ C) 30 180˚ F (82.2˚ C) Turkey, 12 - 16 lbs 325˚ F (162.8˚ C) 16 - 20 180˚ F (82.2˚ C)

Operation

unstuffed Turkey 20 - 24 lbs 325˚ F (162.8˚ C) 16 - 20 180˚ F (82.2˚ C) Turkey, stuffed 12 - 16 lbs 325˚ F (162.8˚ C) 17 - 21 180˚ F (82.2˚ C) Turkey, stuffed 20 - 24 lbs 325˚ F (162.8˚ C) 17 - 21 180˚ F (82.2˚ C) Turkey breast 4 - 6 lbs 325˚ F (162.8˚ C) 20 180˚ F (82.2˚ C)

total time

Food Weight Temp (min/lb) Temp

BEEF

Rib roast

Rare 4 - 6 lbs 325˚ F (162.8˚ C) 25 140˚ F (60.0˚ C) Medium 4 - 6 lbs 325˚ F (162.8˚ C) 24 155˚ F (68.3˚ C) Well done 4 - 6 lbs 325˚ F (162.8˚ C) 30 170˚ F (76.7˚ C)

Rump roast

Medium 4 - 6 lbs 325˚ F (162.8˚ C) 20 155˚ F (68.3˚ C) Well done 4 - 6 lbs 325˚ F (162.8˚ C) 24 170˚ F (76.7˚ C)

Tip roast

Medium 3 - 4 lbs 325˚ F (162.8˚ C) 30 155˚ F (68.3˚ C) Well done 3 - 4 lbs 325˚ F (162.8˚ C) 35 170˚ F (76.7˚ C)

LAMB

Lamb leg 3 - 5 lbs 325˚ F (162.8˚ C) 30 180˚ F (82.2˚ C)

PORK

Pork loin 3 - 5 lbs 325˚ F (162.8˚ C) 30 180˚ F (82.2˚ C) Pork chops 1 -1 1/4lbs 325˚ F (162.8˚ C) 45 - 50 N/A

1" thick Ham, fully 5 lbs 325˚ F (162.8˚ C) 15 130˚ F (54.4˚ C)

cooked

POULTRY

Chicken, whole 3-4 lbs 350 (176.7 C) 25 180˚ F (82.2˚ C) Turkey, 12 - 16 lbs 325˚ F (162.8˚ C) 11 180˚ F (82.2˚ C)

unstuffed Turkey 20 - 24 lbs 325˚ F (162.8˚ C) 11 180˚ F (82.2˚ C) Turkey, stuffed 12 - 16 lbs 325˚ F (162.8˚ C) 9 - 10 180˚ F (82.2˚ C) Turkey, stuffed 20 - 24 lbs 325˚ F (162.8˚ C) 9 - 10 180˚ F (82.2˚ C) Turkey breast 4 - 6 lbs 325˚ F (162.8˚ C) 20 180˚ F (82.2˚ C)

Note: The above information is given as a guide only.

Convection Roasting Chart

Time

total time

Internal

Operation

Note: The above information is given as a guide only.

low broil

Broiling

convection broil

high broil

medium broil

CONV BROIL* (Convection Broil)

The top element operates at full power. This function is exactly the same as regular broiling with the additional benefit of air circulation by the motorized fan in the rear of the oven. Smoke is reduced since the airflow also reduces peak temperatures on the food. Use this setting for broiling thick cuts of meats.

*Note: This function uses a high-speed convection fan for optimum cooking performance. Some noise may be noticed from this high fan speed. This is normal.

HI BROIL

Heat radiates from both broil elements, located in the top of the oven cavity, at full power. The distance between the foods and the broil elements determines broiling speed. For fast broiling, food may be as close as 2 inches (5 cm) to the broil element or on the top rack. Fast broiling is best for meats where rare to medium

Operation

doneness is desired. Use this setting for broiling small and average cuts of meat.

LOW BROIL

This mode uses only a fraction of the available power to the inner broil element for delicate top-browning. The inner broil element is on for only part of the time. Use this setting to gently brown meringue on racks 3 or 4 in 3-4 minutes.

Broiling Instructions

Broiling is a dry-heat cooking method using direct or radiant heat. It is used for small, individualized cuts such as steaks, chops, and patties. Broiling speed is determined by the distance between the food and the broil element. Choose the rack position based on desired results.

Conventional broiling (LOW, MED or HI BROIL) is most successful for cuts of meat 1-2 inches thick and is also more suitable for flat pieces of meat.

Convection broiling has the advantage of broiling food slightly quicker than conventional. Convection broiling of meats produces better results, especially for thick cuts. The meat sears on the outside and retains more juices and natural flavor inside with less shrinkage.

1. Arrange the oven rack in the desired position before turning

broiler on.

2. Center the food on cold broiler pan and grid supplied with your

oven. Place broiler pan in oven.

Operation

MED BROIL

Inner and outer broil elements pulse on and off to produce less heat for slow broiling. Allow about 4 inches (10 cm) between the top surface of the food and the broil element. Slow broiling is best for chicken and ham in order to broil food without over-browning it. Use this setting for broiling small and average cuts of meat.

3. Set the oven function selector to desired broiling function and the

temperature control knob to “Broil”.

4. Close the door. There is not a detent to hold the door in the open

broil stop position. With open door broiling the broil element does not cycle on and off. With closed door broiling the broil element might cycle on and off if an extended broiling time is required. A built-in smoke "eliminator" in the top of the oven helps reduce smoke and odors.

Broiling

Broiling Tips

• ALWAYS use a broiler pan and grid for broiling. They are designed to provide drainage of excess liquid and fat away from the cooking surface to help prevent splatter, smoke, and fire.

• To keep meat from curling, slit fatty edge.

• Brush chicken and fish with butter several times as they broil to prevent drying out. To prevent sticking, lightly grease broiler tray.

• Broil on first side for slightly more than half the recommended time, season, and turn. Season second side just before removing.

•

ALWAYS pull rack out to stop position before turning or

removing food.

• Use tongs or a spatula to turn meats. Never pierce meat with a fork, as this allows the juices to escape.

• Remove the broiler pan from the oven when you remove the food. Drippings will bake onto the pan if it is left in the heated oven after broiling. While pan is hot, place damp paper towel over grid. Drizzle with liquid dishwashing detergent and pour water over grid. This will make cleaning of the pan easier, or the broiler pan can be lined with aluminum foil to make cleaning easier. Be sure the foil extends up the side of the pan. Although it is not recommended, the grid can also be covered with foil. Be sure to slit openings to conform with the openings in the grid so melted fat can drain through to prevent spattering, smoking, or the possibility of grease fire.

Operation

Type and Time Cut of Meat Weight Setting Rack (min)

BEEF

Sirloin, 1"

Rare 12 oz Conventional Broil 57 Medium 12 oz Conventional Broil 59 Well done 12 oz Conventional Broil 5 11

T-Bone, 3/4"

Rare 10 oz Conventional Broil 55 Medium 10 oz Conventional Broil 57 Well done 10 oz Conventional Broil 59

Hamburger, 1/2"

Rare 1/4 lb. Convection Broil 54 Medium 1/4 lb. Convection Broil 57 Well done 1/4 lb. Convection Broil 59

CHICKEN

Bnls breast 1 lb. Convection Broil 4 18 Bone-in breast 2 - 2 1/2 lb. Conventional Broil 4 20 Chicken pieces 2 - 2 1/2 lb. Convection Broil 4 18 (min/lb)

HAM

Ham slice, 1" 1 lb. Conventional Broil 4 22

LAMB

Rib chops, 1" 12 oz. Convection Broil 57 Shoulder 1 lb. Convection Broil 56

PORK

Loin chops, 3/4" 1 lb. Convection Broil 4 14 Bacon Conventional Broil 4 6

FISH

Salmon steak 1 lb. Convection Broil 57 Fillets 1 lb. Convection Broil 56

Broiling Chart

Operation

Note: The above information is given as a guide only.

Convection Dehydrate/Defrost

WARNING

NOTICE

CAUTION

Cooking Substitutes Charts

Convection Dehydrate

This oven is designed not only to cook, but also to dehydrate fruits and vegetables.

1. Prepare the food as recommended.

2. Arrange the food on drying racks (not included with the oven; contact a local store handling speciality cooking utensils).

3. Set the appropriate low temperature and turn the selector to

“TRU CONV”.

FIRE HAZARD

You must carefully check the food during the dehydration process to ensure that it does not catch fire.

Convection Defrost

1. Place the frozen food on a baking sheet.

2. Set the temperature control to “OFF”.

3. Turn the selector to “TRU CONV”.

In many cases, a recipe requires an ingredient which is not readily available or calls for a unit of measure that is not easily recognized. The following charts have been provided as useful guides in these situations.

Ingredient Substitutes

Recipe calls for: Substitute with:

1 tbsp. cornstarch 2 tbsp. flour (thickening)

1 whole egg

1 c. whole milk

1 oz. unsweetened chocolate

1 tbsp. baking powder

1/2 c. butter

1 c. dairy sour cream

2 egg yolks plus 1 tbsp. water

1 c. skim milk plus 2 tbsp. margarine or 1/2 c. evaporated milk plus 1/2 c. water

3 tbsp. cocoa powder plus 1 tbsp. margarine

1/2 tsp. cream of tartar plus 1/4 tsp. baking soda

7 tbsp. margarine or shortening

1 tbsp. lemon juice plus 1 c. evaporated milk

Canned Food Sizes

Can Size Contents Can Size Contents

8 oz. 1 c.

Picnic

No. 300

No. 1 tall

1-3/4 c.

2 c.

No. 303

No. 2

No. 3

No. 10

2 c.

2-1/2 c.

4 c.

12 c.

Operation

To avoid sickness and food waste, DO NOT allow defrosted food to

Operation

remain in the oven for more than two hours.

DO NOT turn the temperature control on during defrosting. Turning the convection fan on will accelerate the natural defrosting of the food without the heat.

Measure Equivalent Metric*

1 tbsp. 3 tsp 15 mL

2 tbsp. 1 oz 30 mL

1 jig.

1/4 c.

1/3 c. 1/2 c.

1 c.

1 pt. 2 c. 30 g 1 lb. 16 oz 454 g

2.21 lb. 35.3 oz 1 kg

Note: Rounded for easier measuring.

Kitchen Equivalent and Metrics

1-1/2 oz 45 mL

4 tbsp. 60 mL

5 tbsp. plus 1 tsp. 80 mL 8 tbsp. 125 mL

16 tbsp. 250 mL

Cleaning and Maintenance

Any piece of equipment works better and lasts longer when maintained properly and kept clean. Cooking equipment is no exception. Your range must be kept clean and maintained properly. Make sure all controls are in the “OFF” position. Disconnect power if you are going to clean thoroughly with water.

Glass Ceramic Top

Cleaning of glass ceramic tops is different from cleaning a standard porcelain finish. To maintain and protect the surface of your new glass ceramic top, follow these basic steps:

For normal light soil: Rub a few drops of a glass ceramic creame to the cool soiled area using a damp paper towel. Wipe until all soil and creame are removed. Frequent cleaning leaves a protective coating which is essential in preventing scratches and abrasions.

For heavy, burned soil:

1. Apply a few drops of glass ceramic cleaning creame to the cool soiled area.

2. Using a damp paper towel, rub creame into burned on area.

3. Carefully scrape remaining soil with a razor scraper. Hold the scraper at a 300 angle against the ceramic surface.

4. If any soil remains, repeat the steps listed above. For additional protection, after all soil has been removed, polish the entire surface with the cleaning creame.

5. Buff with a dry paper towel. As the cleaning creame cleans, it leaves a protective coating on the glass surface. This coating helps to prevent build-up of mineral deposits (water spots) and will make future cleaning easier. Dishwashing detergents remove this protective coating and therefore make the glass ceramic top more susceptible to staining.

Cleaning Problems on Glass Ceramic Top

Problem

Brown streaks and specks

Blackened burned on spots

Fine brown/gray lines or fine scratches or abrasions which have collected soil

Smearing or streaking

Cause To Prevent To Remove

Cleaning with sponge or cloth containing soilladen detergent water.

Spatters or spillovers onto a hot cooking area or accidental melting of a plastic film, such as a bread.

Coarse particles (salt, sugar) can get caught on the bottom of cookware and become embedded into top. Using abrasive cleaning materials. Scratches from rough ceramic glass, or ceramic coated cookware.

Use of too much cleaning creame or use of a soiled dishcloth.

Use cleaning creame with clean damp paper towel.

Wipe all spillovers as soon as it is safe and to not put plastic items on a warm cooking area.

Wipe the bottom of cookware before cooking. Clean top daily with cleaning creame. Do not use ceramic or ceramic coated cookware.

Use a small amount of creame. Rinse throughly before drying. Use only paper towels or nylon scrub pad or brush.

Use a light application of cleaning creame with a clean damp paper towel.

Clean area with cleaning creame and a damp paper towel, nonabrasive nylon pad or scouring brush. If burn-on is not removed, cool cooktop, and carefully scrape area with a single edged razor blade held at a 30° angle.

Fine scratches are not removable but can be minimized by daily use of cleaning creame.

Dampen paper towel with a mixture of vinegar and water and wipe surface. Wipe area with damp paper towel or lint free cloth.

Product Care

PPrroodduucctt CCaarree

Cleaning and Maintenance

Cleaning Problems on Glass Ceramic Top (cont.)

Problem

Metal markings silver/gray marks

Hard water spots

Pitting or flaking

Cause To Prevent To Remove

Sliding or scraping metal utensils on glasstop.

Condensation from cooking may cause minerals found in water and acids to drip on glasstop and cause gray deposits. The spots are often so thin they appear to be in or the glasstop.

Boil over of sugar syrup on glasstop. This can cause pitting if not removed immediately.

Do not slide metal objects across top.

Make sure the bottom of utensils are dry before cooking. Daily use of cleaning creame will help keep top free from hard water mineral deposits and food discoloration.

Watch sugar and syrups carefully to avoid boilovers.

Remove metal marks before the glasstop is used again. Apply cleaning creame with a damp paper towel and scrub with a nylon scrub pad or brush. Rinse thoroughly and dry.

Mix cleaning creame with water and apply a thick paste to stained area. Scrub vigorously. If stain is not removed, reapply cleaner and repeat process. Also try cleaning procedure for smearing and streaking.

Turn element to LO; using several paper towels to wipe the spill immediately. Let glasstop cool and carefully scrape off remainder of burnoff with a single edged razor held at a 30° angle.

Control Panel

DO NOT use any cleaners containing ammonia or abrasives. They could

remove the graphics from the control panel. Use hot, soapy water and a soft clean cloth.

Oven Surfaces

Several different finishes have been used in your electric oven. Cleaning instructions for each surface are given below. The oven features a self-clean cycle for the oven interior. See the “Self-Clean Cycle” section for complete instructions. NEVER USE AMMONIA, STEEL WOOL PADS OR ABRASIVE CLOTHS, CLEANSERS, OVEN CLEANERS, OR ABRASIVE POWDERS. THEY CAN PERMANENTLY DAMAGE YOUR OVEN.

Control Knobs

MAKE SURE ALL CONTROL KNOBS POINT TO THE “OFF” POSITION BEFORE REMOVING. Pull the knobs straight off. Wash in detergent and warm water. Dry completely and replace by pushing firmly onto stem.

Stainless Steel Parts

All stainless steel body parts should be wiped regularly with hot soapy water at the end of each cooling period and with a liquid cleaner designed for that material when soapy water will not do the job. DO NOT use steel wool, abrasive cloths, cleansers, or powders. If necessary, scrape stainless steel to remove encrusted materials, soak the area with hot towels to loosen the material, then use a wooden or nylon spatula or scraper. DO NOT use a metal knife, spatula, or any other metal tool to scrape stainless steel. DO NOT permit citrus or tomato juice to remain on stainless steel surface, as citric acid will permanently discolor stainless steel. Wipe up any spills immediately.

PPrroodduucctt CCaarree

Product Care

WARNING

DANGER

CAUTION

WARNING

Cleaning and Maintenance

WARNING

DANGER

CAUTION

Self-Clean Cycle

Brass Parts

All special ordered brass parts are coated with an epoxy coating.

To avoid the risk of property damage, DO NOT USE BRASS CLEANERS OR ABRASIVE CLEANERS ON ANY BRASS PARTS. All brass body parts should be wiped regularly with hot soapy water. When hot soapy water will not do the job, use every day household cleaners that are not abrasive.

Broiler Pan and Grid

Clean with detergent and hot water. For stubborn spots, use a soap-filled steel wool pad.

Oven Racks

Clean with detergent and hot water. Stubborn spots can be scoured with a soap-filled steel wool pad. DO NOT CLEAN THE OVEN RACKS OR RACK SUPPORT USING THE SELF-CLEAN CYCLE. They could sustain damage due to the extreme heat of the self-clean cycle.

Power Failure

No attempt should be made to operate the appliance during a power failure. Make sure the oven control is in the “OFF” position.

Momentary power failure can occur unnoticed. The range is affected only when the power is interrupted. When it comes back on, the range will function properly without any adjustments. A “brown-out” may or may not affect range operation, depending on how severe the power loss is. If the range is in the self-clean cycle when the power failure occurs, wait until power is restored and allow door to unlock automatically. Turn all controls off and restart self-clean cycle again, according to instructions.

This oven features an automatic pyrolytic self-cleaning cycle. During this cycle, the oven reaches elevated temperatures in order to burn off soil and deposits. An integral smoke eliminator helps reduce odors associated with the soil burn-off. A powder ash residue is left in the bottom of the oven after completion of the self-clean cycle. The door latch is automatically activated after selecting the self-clean setting. The latch ensures that the door cannot be opened while the oven interior is at clean temperatures.

Before starting the Self-Clean cycle:

1. Remove the oven racks, and any other items/utensils from the oven. The high heat generated during the cleaning cycle can discolor, warp, and damage these items. DO NOT use foil or liners in the oven. During the self-clean cycle foil can burn or melt and damage the oven surface.

2. Wipe off any large spills from the oven bottom and sides. NEVER use oven cleaners inside a self-cleaning oven or on raised portions of the door.

3. Some areas of the oven must be cleaned by hand before the cycle begins. Soils in these areas will be baked on and very difficult to clean if not removed first. Clean the door up to the gasket, the door frame, and up to 2 inches inside the frame with detergent and hot water. Rinse thoroughly and dry.

BURN OR ELECTRICAL SHOCK HAZARD

Make sure all controls are OFF and oven is COOL before cleaning. Failure to do so can result in burns or electrical shock.

DO NOT touch the exterior portions of the oven after self-cleaning cycle has begun, since some parts become extremely hot to the touch! During

Product Care

the first few times the self-cleaning feature is used, there may be some odor and smoking from the curing of the binder in the high-density insulation used in the oven. When the insulation is thoroughly cured, this odor will disappear. During subsequent self-cleaning cycles, you may sense an odor characteristic of high temperatures. Keep the kitchen well-vented during the self-cleaning cycle.

PPrroodduucctt CCaarree

WARNING

DANGER

CAUTION

Self-Clean Cycle

To start the Self-Clean cycle:

1. Close the door completely.

Replacing Oven Lights

2. Turn the oven selector knob clockwise to the “SELF CLEAN” mode.

3. Turn the temperature control knob past the clean setting until the knob stops. At this time, the clean indicator light will come on. Within 30 seconds the automatic door latch engages and the oven indicator light comes on. The oven indicator light will remain on until the oven reaches the self-clean temperature and will then cycle on and off during the selfclean cycle. When the oven reaches the elevated temperature needed for self-clean, the door lock indicator light comes on.

4. The door lock indicator light will remain on until the self-clean is completed or interrupted and the oven temperature drops to a safe temperature. A complete cycle is approximately 3-1/2 hours with an additional 30 minutes needed for the oven to cool down enough for the door latch to disengage.

Note: A fan noise will be heard during the self-clean cycle and will continue to run for the 3-1/2 hour duration of the self-clean cycle.

5. When the cycle is completed, turn both the oven selector and temperature control knob to the “OFF” position. When the oven has completely cooled, open door and remove any ash from the oven surfaces with a damp cloth.

To stop the Self-Clean cycle:

To cancel or interrupt the self-cleaning cycle, turn both the temperature control knob and the oven function selector knob to “OFF”. When the oven temperature drops to a safe temperature, the automatic door latch will release and the oven door can be opened. When the oven has completely cooled, remove any ash from the oven surfaces with a damp sponge or cloth.

ELECTRICAL SHOCK HAZARD

Disconnect the electric power at the main fuse or circuit breaker before replacing bulb.

To avoid risk of personal injury, DO NOT touch bulb with bare hands. Clean off any signs of oil from the bulb and handle with a soft cloth.

1. Unsnap glass light cover using a screwdriver in the access groove.

access

groove

2. Firmly grasp light bulb and pull out.

light

bulb

3. Replace with halogen bulb using volt and wattage requirements listed on glass cover.

4. Replace the light cover by snapping glass cover onto metal box.

glass light

cover

5. Reconnect power at the main fuse or circuit breaker.

Product Care

Door Removal

WARNING

TO PREVENT PERSONAL INJURY

Before removing the doors, make sure the pins are properly installed in the hinges. Failure to do so can result in personal injury to hands and/or fingers.

Door Replacement and Adjustment

Remove hinge trim screws

and hinge trim.

Open door completely.

Place pin in pin hole.

Close until pins stop door.

Reinstall door to range.

Remove pins from hole in hinges.

Open door completely.

Reinstall hinge trim.

Close door.

Product Care

Lift door up and out.

If the door needs to be adjusted, loosen hinge

trim screws (see step 2). Adjust the screws

located between the door and kickplate

using a 5/32” hex head allen wrench. After

adjustment, tighten hinge trim screws.

Product Care

Troubleshooting

Service Information

Problem

Range will not function.

Oven does not operate in self-clean.

Oven is not clean after selfclean cycle.

Broil does not work.

Door will not open.

Oven light will not work.

Possible Cause and/or Remedy

Range is not connected to electrical power: Have electrician check power circuit breaker, wiring, and fuses.

Door is not shut tight enough for automatic door latch to lock.

Temperature control knob not rotated all the way past clean until it stops.

Temperature control knob is rotated too far past broil position.

Oven is still in self-clean mode. If oven is hot, door latch will release when safe temperature is reached.

Light bulb is burned out.

Range is not connected to power.

If service is required, call your dealer or authorized service agency. The name of the authorized service agency can be obtained from the dealer or distributor in your area.

Have the following information readily available.

• Model number

• Serial number

• Date purchased

• Name of dealer from whom purchased

Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Viking Range Corporation at 1-888-VIKING1 (845-4641), or write to:

VIKING RANGE CORPORATION

PREFERRED SERVICE

1803 Hwy 82W

Greenwood, Mississippi 38930 USA

Record the information indicated below. You will need it if service is ever required. The model and serial number for your range can be found by opening door and looking under the control panel.

Model no. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _Serial no. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Date of purchase _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Date installed _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Dealer’s name _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Address _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

If service requires installation of parts, use only authorized parts to insure protection under the warranty.

Keep this manual for future reference.

Product Care

Warranty

LECTRIC RANGE WARRANTY

ONE YEAR FULL WARRANTY

Electric Freestanding electric ranges and all of their component parts, except as detailed below*

arranted to be free from defective materials or workmanship in normal household use for a period of twelve

12) months from the date of original retail purchase. Viking Range Corporation, warrantor, agrees to repair or

( replace, at its option, any part which fails or is found to be defective during the warranty period.

*Painted and decorative items are warranted to be free from defective materials or workmanship for a period of ninety (90) days from the date of original retail purchase. ANY DEFECTS MUST BE REPORTED TO THE

ELLING DEALER WITHIN NINETY (90) DAYS FROM DATE OF ORIGINAL RETAIL PURCHASE.

Viking Range Corporation uses the most up-to-date processes and best materials available to produce all color finishes.

owever, slight color variation may be noticed because of the inherent differences in painted parts and porcelain parts

H as well as differences in kitchen lighting, product locations, and other factors.

FIVE YEAR LIMITED WARRANTY

ny halogen element, bake element, broil element, or convection cook element which fails due to defective

A materials or workmanship in normal household use during the second through fifth year from the date of original retail purchase will be repaired or replaced, free of charge for the part itself, with the owner paying all

ther costs, including labor.

EN YEAR LIMITED WARRANTY

Any porcelain oven or porcelain inner door panel which rusts through due to defective material or workmanship in normal household use during the second through the tenth year from the date of original

etail purchase will be repaired or replaced, free of charge for the part itself, with the owner paying all other

r costs, including labor.

NINETY (90) DAY RESIDENTIAL PLUS WARRANTY

This warranty applies to applications where use of the product extends beyond normal residential use. Examples are, but not limited to, bed and breakfasts, fire stations, private clubs, churches, etc. This warranty excludes all commercial locations such as restaurants, food service locations and institiutional food service locations.

This warranty extends to the original purchaser of the product warranted here under and to each transferee owner of the product during the term of the warranty.

This warranty shall apply to products purchased and located in the United States and Canada. Products must be purchased in the country where service is requested. Warranty labor shall be performed by an authorized Viking Range Corporation service agency or representative. Warranty shall not apply to items damaged when using the self-clean cycle such as oven racks and rack supports not removed during teh self-clean cycle. Warranty shall not apply to damage resulting from abuse, accident, natural disaster, loss of electrical power to the product for any reason, alteration, outdoor use, improper installation, improper operation, or repair or service of the product by anyone other than an authorized Viking Range Corporation service agency or representative. This warranty does not apply to commercial usage. consequential or incidental damage whether arising out of breach of warranty, breach of contract, or otherwise. Some jurisdictions do not allow the exclusion or limitation of incidental of consequential damages, so the above limitation or exclusion may not apply to you.

Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof of purchase upon request, and making the appliance reasonably accessible for service. If the product or one of its component parts contains a defect or malfunction during the warranty period, after a reasonable number of attempts by the warrantor to remedy the defects or malfunctions, the owner is entitled to either a refund or replacement of the product or its component part or parts. Warrantor’s liability on any claim of any kind, with respect to the goods or services covered hereunder, shall in no case exceed the price of the goods or service or part thereof which gives rise to the claim.

WARRANTY SERVICE

Under the terms of this warranty, service must be performed by a factory authorized Viking Range Corporation service agent or representative. Service will be provided during normal business hours, and labor performed at overtime or premium rates shall not be covered by this warranty. To obtain warranty service, contact the dealer from whom the product was purchased, an authorized Viking Range Corporation service agent, or Viking Range Corporation. Provide model and serial number and date of original purchase. For the name of your nearest authorized Viking Range Corporation service agency, call the dealer from whom the product was purchased or Viking Range Corporation. IMPORTANT: Retain proof of original purchase to establish warranty period.

The return of the Owner Registration Card is not a condition of warranty coverage. return the Owner Registration Card so that Viking Range Corporation can contact you should any question of safety arise which could affect you.

Any implied warranties of merchantability and fitness applicable to the above described halogen element, bake element, broil element, convection cook element, porcelain oven, or porcelain inner door panel are limited in duration to the period of coverage of the applicable express written limited warranties set forth above. Some jurisdictions DO NOT allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which may vary from jurisdiction to jurisdiction.

Product Care

Specifications subject to change without notice.

Warrantor is not responsible for

You should, however,

, are

Notes

_____________________________________________________________________________________________________

____________________________________________________________________________________________________

_____________________________________________________________________________________________________

____________________________________________________________________________________________________

_____________________________________________________________________________________________________

Notes

_____________________________________________________________________________________________________

____________________________________________________________________________________________________

_____________________________________________________________________________________________________

____________________________________________________________________________________________________

_____________________________________________________________________________________________________

Viking F20507 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
