Viking Installation Guide
U
L
C
U
L
Viking Range Corporation
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
For product information,
call 1-888-VIKING1 (845-4641)
or visit the Viking Web site at
Freestanding Bottom-Mount/
vikingrange.com
French Door Bottom-Mount
Side-By-Side Refrigerator/Freezer
F20481
13040803
(120507J)
Table of Contents
Warnings & Important Information____________________________________________________________3
Professional
Dimensions (36” Bottom-Mount & French Door Bottom-Mount) __________________________6
Specifications (36” Bottom-Mount & French Door Bottom-Mount) ________________________7
Dimensions (36” Side-By-Side & Side-By-Side with Dispenser) ____________________________8
Specifications (36” Side-By-Side & Side-By-Side with Dispenser) __________________________9
Designer
Dimensions (36” Bottom-Mount & French Door Bottom-Mount) _________________________10
Specifications (36” Bottom-Mount & French Door Bottom-Mount) _______________________11
Dimensions (36” Side-By-Side & Side-By-Side with Dispenser)___________________________12
Specifications (36” Side-By-Side & Side-By-Side with Dispenser)_________________________13
Water Line & Electrical Location _____________________________________________________________14
Important Safety Instructions ________________________________________________________________15
Proper Disposal _____________________________________________________________________________16
General Information_________________________________________________________________________17
Unpacking & Moving____________________________________________________________________17
Water Supply Requirements _____________________________________________________________19
Door & Drawer Removal
Bottom-Mount (Door) ___________________________________________________________________20
French Door Bottom-Mount (Door) ______________________________________________________21
Bottom-Mount (Drawer) _________________________________________________________________23
Side-By-Side (Door) _____________________________________________________________________24
Door & Drawer Reinstallation
Bottom-Mount (Door) ___________________________________________________________________27
French Door Bottom-Mount (Door) ______________________________________________________28
Bottom-Mount (Drawer) _________________________________________________________________29
Side-By-Side (Door) _____________________________________________________________________30
Installation
Connect to Water Supply _______________________________________________________________32
Leveling (Bottom Mount & French Door Bottom-Mount)_________________________________34
Leveling (Side-By-Side)__________________________________________________________________35
Door Leveling (Side-By-Side & Bottom-Mount) __________________________________________36
Complete the Installation _______________________________________________________________37
Water Filter (Dispenser Models) _________________________________________________________38
Performance Checklist ______________________________________________________________________39
Service & Registration_______________________________________________________________________40
IMPORTANT–Please Read and Follow!
It is the customer’s responsibility to:
• Contact a qualified electrical installer.
• Read all instructions before using the
refrigerator.
• Observe all local codes and ordinances.
Install refrigerator according to installation
instructions. All connections for water,
electrical power and grounding must
comply with local codes and be made by
licensed personnel when required.
• Do not modify plug on power cord. If plug
does not fit electrical outlet, have proper
outlet installed by a qualified technician.
Replace worn power cords and/or loose
plugs.
• Assure that the electrical installation is
adequate and in conformance with the
National Electrical Code, ANSI/NFPA
70-latest edition or Canadian Electrical
Code C22.1-1998 and C22.2 No. 0-M91
(or latest edition), and all local codes and
ordinances. (115 volt, 60-Hz, 15 amp,
fused, electrical supply is required. It is
required that a separate circuit serving only
this appliance be provided. This appliance
is equipped with a power supply cord
having a 3-prong grounding plug. To
minimize possible shock hazard, the cord
must be plugged into a mating 3-prong,
grounding type wall receptacle. If a 2prong receptacle is encountered, the
customer must contact a qualified
electrical installer to have it replaced with a
properly grounded 3-prong receptacle. Do
not use an extension cord or adapter
plug.)
• Do not tamper with refrigerator controls.
• Do not service or replace any part of
refrigerator unless specifically
recommended in Use & Care or Installation
Instructions. Do not attempt service if
instructions are not understood or if they
are beyond personal skill level.
• Always disconnect refrigerator from
electrical supply before attempting to
change light bulbs, clean, or service the
refrigerator. Disconnect the power cord by
grasping the plug, not the cord.
• Always read and follow manufacturer’s
storage and ideal environment instructions
for items being stored in refrigerator.
• Never allow children to operate, play with,
crawl inside or stand on any part of the
refrigerator.
• Never clean refrigerator parts with
flammable fluids. The fumes can create a
fire hazard or explosion.
• Clean up spills or water leakage associated
with water installation.
• Keep your refrigerator in good condition.
Bumping or dropping refrigerator can
damage refrigerator or cause refrigerator
to malfunction or leak. If damage occurs,
have refrigerator checked by qualified
service technician.
• Do not ground to a gas line or cold-water
pipe.
• Do not remove warning tag from power
cord.
• Refrigerator is designed to operate on a
separate 115 volt, 15 amp., 60 cycle line.
2
3
WARNING
IMPORTANT–Please Read and Follow!
DANGER
WARNING
WARNING
WARNING
WARNING
WARNING
Your safety and the safety of others is
very important.
We have provided many important safety
messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the safety alert symbol. This
symbol alerts you to hazards that
can kill or hurt you and others.
All safety messages will be preceded by the safety
alert symbol and the word “DANGER” or
“WARNING”. These words mean:
You can be killed or seriously injured if you
don’t immediately follow instructions.
You can be killed or seriously injured if
you don’t follow instructions.
All safety messages will tell you what the
potential hazard is, tell you how to reduce
the chance of injury, and tell you what can
happen if the instructions are not followed.
Remove doors from your old refrigerator.
Failure to do so can result in death or
brain damage.
Suffocation Hazard
IMPORTANT–Please Read and Follow!
Explosion Hazard
Keep flammable materials and vapors,
such as gasoline, away from refrigerator.
Failure to do so can result in death,
explosion, or fire.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Disconnect power before removing doors.
Failure to do so can result in death or
electrical shock.
Electrical Shock Hazard
Use two or more people to move and
install refrigerator.
Failure to do so can result in back or
other injury.
Excessive Weight Hazard
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can
result in death, fire, or electrical shock.
54
41-1
/
8
”
(
1
0
4
.
5
cm
)
24
”
(
61
.
0
c
m)
70-1/
8”
(
17
8.
1
c
m
)
mi
n
.
to
70-7/
8”
(
18
0.
0
c
m
)
ma
x
.
7
1
-7
/
8
”
(
18
2.
6
cm
)
mi
n
.
to
7
2
-5
/
8
”
(
18
4.
5
cm
)
m
a
x
.
3
5
-7
/
8
”
(9
1
.1 c
m
)
w/s
i
d
e
p
a
n
el
s
a
c
ces
s
o
ry
35-5/
8”
(9
0
.5
c
m)
23-
1/
2”
(59
.7
c
m
)
28-3/
4”
(7
3
.0
c
m)
26-
3/
4”
(6
7
.
9
cm
)
4
1
-1
/
8
”
(
10
4
.5
c
m)
24
”
(
61
.
0
c
m
)
7
0
-
1
/
8”
(
17
8
.
1
c
m)
mi
n
.
to
7
0
-
7
/
8”
(
18
0
.
0
c
m
)
max
.
71
-
7/
8
”
(
18
2.
6
cm
)
m
i
n
.
t
o
72
-
5/
8
”
(
18
4.
5
cm
)
m
a
x
.
3
5-
7
/
8
”
(
91
.
1
c
m
)
w
/si
d
e p
an
e
ls
a
c
ces
s
o
r
y
3
5-5
/8”
(90
.5 c
m
)
23
-
1
/2”
(59
.7 c
m
)
2
6
-
3
/4”
(6
7
.9
c
m
)
2
8
-
3
/
4
”
(
73
.
0
c
m
)
Dimensions (Professional Bottom-Mount)
Specifications (Professional Bottom-Mount)
36” Professional
Description
36” Bottom-Mount
VCBF036 VCFF036
Overall width 35-5/8” (90.5 cm)
Addition of side panels: 35-7/8” (91.1 cm)
Overall height 70-1/8” (178.1 cm) min. to 70-7/8” (180.0 cm) max.
Addition of top grilles: 71-7/8” (182.6 cm) min. to 72-5/8” (184.5 cm) max.
Overall depth from rear To front edge of side trim: 23-1/2” (59.7 cm)
36” Professional French Door
To front edge of top grille: 26-3/4” (67.9 cm)
To front of handle endcap: 28-3/4” (73.0 cm)
Cutout height 70-1/2” (179.0 cm)
Addition of top grilles: 72” (182.9 cm)
Cutout width 36” (91.4 cm)
Cutout depth 24” (61.0 cm)
Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
Maximum amp usage 7.9 amps
Inlet water requirements 1/4” copper tubing inlet waterline; minimum 35 psi; maximum 120 psi
Overall interior capacities
Refrigerator
Freezer
Total capacity
Approximate shipping weight 327 lbs. (148.7 kg)
NOTE: When installing into a cutout, the edge of the door must be 2-7/8” (7.3 cm) from the
adjacent countertop/cabinet.
Bottom-Mount
14.4 cu. ft. (407 liters)
5.5 cu. ft. (156 liters)
19.9 cu. ft. (563 liters)
French Door Bottom-Mount
14.1 cu. ft. (399 liters)
5.5 cu. ft. (156 liters)
19.6 cu. ft. (555 liters)
6
7
70-1/
2”
(
17
9.
0
c
m
)
mi
n
.
to
71-1/
4”
(
18
1.
0
c
m
)
ma
x
.
7
1
-
7
/
8
”
(
18
2
.
6
c
m)
mi
n
.
to
7
2
-
5
/
8
”
(
18
4
.
5
c
m)
max
.
3
5
-7
/
8
”
(9
1
.1 c
m)
w/s
i
d
e
p
a
n
e
l
a
c
ce
s
s
o
ry
35-5/
8”
(9
0
.5
c
m)
23-1/
2”
(5
9
.7
c
m)
28-3/
4”
(7
3
.0
c
m)
26-3/
4”
(
67
.
9
cm)
7
0
-1
/
2
”
(
17
9.
0
cm
)
mi
n
.
to
7
1
-1
/
4
”
(
18
1.
0
cm
)
ma
x
.
71
-
7/
8
”
(
18
2.
6
cm
)
m
i
n
.
t
o
72
-
5/
8
”
(
18
4.
5
cm
)
m
a
x
.
3
5-
7
/
8”
(
91
.
1
c
m
)
w
/
s
id
e
p
ane
l
a
c
c
es
s
o
r
y
3
5
-5
/
8
”
(90
.5 c
m
)
2
3-1
/2”
(59
.7 c
m
)
2
8
-3
/
4
”
(
73
.
0
c
m)
2
6-
3
/4
”
(6
7
.9
c
m
)
Dimensions (Professional Side-By-Side)
Specifications (Professional Side-By-Side)
36” Professional
Description
36” Side-By-Side
VCSF036 VCSF036D
Overall width 35-5/8” (90.5 cm)
Addition of side panels: 35-7/8” (91.1 cm)
Overall height 70-1/2” (179.0 cm) min. to 71-1/4” (181.0 cm) max.
Addition of top grilles: 71-7/8” (182.6 cm) min. to 72-5/8” (184.5 cm) max.
36” Professional
with Dispenser
Overall depth from rear To front edge of side trim: 23-1/2” (59.7 cm)
To front edge of top grille: 26-3/4” (67.9 cm)
To front of handle endcap: 28-3/4” (73.0 cm)
Cutout height 70-1/2” (179.0 cm)
Addition of top grilles: 72” (182.9 cm)
Cutout width 36” (91.4 cm)
Cutout depth 24” (61.0 cm)
Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
Maximum amp usage 7.8 amps 9.4 amps
Inlet water requirements 1/4” copper tubing inlet waterline; minimum 35 psi; maximum 120 psi
Overall interior capacities
Refrigerator
Freezer
Total capacity
Approximate shipping weight 314 lbs. (141.3 kg)
NOTE: When installing into a cutout, the edge of the door must be 2-7/8” (7.3 cm) from the
adjacent countertop/cabinet.
13.5 cu. ft. (382 liters)
8.0 cu. ft. (226 liters)
21.5 cu. ft. (608 liters)
13.5 cu. ft. (382 liters)
8.1 cu. ft. (229 liters)
21.6 cu. ft. (611 liters)
8
9
41-1
/
8
”
(
1
0
4
.
5
cm
)
24
”
(
61
.
0
c
m)
70-1/
8”
(
17
8.
1
c
m
)
mi
n
.
to
70-7/
8”
(
18
0.
0
c
m
)
ma
x
.
7
1
-
7
/
8
”
(
18
2
.
6
c
m)
mi
n
.
to
7
2
-
5
/
8
”
(
18
4
.
5
c
m)
m
ax
.
3
5
-7
/
8
”
(9
1
.1 c
m
)
w/s
i
d
e
p
a
n
el
s
a
c
ce
s
s
o
ry
35-5/
8”
(9
0
.5
c
m)
23-
1/
2”
(59
.7
c
m
)
26-
3/
4”
(
67
.9
c
m
)
4
1
-1
/
8
”
(
10
4.
5
cm
)
24
”
(
61
.
0
c
m)
7
0
-1
/
8
”
(
17
8.
1
cm
)
mi
n
.
to
7
0
-7
/
8
”
(
18
0.
0
cm
)
ma
x
.
71
-
7/
8
”
(
18
2.
6
cm
)
m
i
n
.
t
o
72
-
5/
8
”
(
18
4.
5
cm
)
ma
x
.
3
5-
7
/
8”
(
91
.
1
c
m
)
w
/
s
i
d
e
p
a
n
els
a
c
c
e
s
s
o
r
y
3
5-5
/
8
”
(90
.5 c
m
)
2
3-1
/2”
(59
.
7 c
m
)
2
6-
3
/4
”
(6
7
.9
c
m
)
28-3/
4”
(7
3
.0
c
m)
Dimensions (Designer Bottom-Mount)
Specifications (Designer Bottom-Mount)
36” Designer
Description
36” Bottom-Mount
DDFB036 DDFF036
Overall width 35-5/8” (90.5 cm)
Addition of side panels: 35-7/8” (91.1 cm)
Overall height 70-1/8” (178.1 cm) min. to 70-7/8” (180.0 cm) max.
Addition of top grilles: 71-7/8” (182.6 cm) min. to 72-5/8” (184.5 cm) max.
Overall depth from rear To front edge of side trim: 23-1/2” (59.7 cm)
36” Designer French Door
To front edge of top grille: 26-3/4” (67.9 cm)
To front of handle endcap: 28-3/8” (72.1 cm)
Cutout height 70-1/2” (179.0 cm)
Cutout width 36” (91.4 cm)
Cutout depth 24” (61.0 cm)
Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
Maximum amp usage 7.9 amps
Inlet water requirements 1/4” copper tubing inlet waterline; minimum 35 psi; maximum 120 psi
Overall interior capacities
Refrigerator
Freezer
Total capacity
Approximate shipping weight 327 lbs. (148.7 kg)
NOTE: When installing into a cutout, the edge of the door must be 2-7/8” (7.3 cm) from the
adjacent countertop/cabinet.
Bottom-Mount
14.4 cu. ft. (407 liters)
5.5 cu. ft. (156 liters)
19.9 cu. ft. (563 liters)
French Door Bottom-Mount
14.1 cu. ft. (399 liters)
5.5 cu. ft. (156 liters)
19.6 cu. ft. (555 liters)
10
11
70-1/
8”
(
17
8.
1
c
m
)
mi
n
.
to
70-7/
8”
(
18
0.
0
c
m
)
ma
x
.
7
1
-
7
/
8
”
(
18
2
.
6
c
m)
mi
n
.
to
7
2
-
5
/
8
”
(
18
4
.
5
c
m)
max
.
3
5
-7
/
8
”
(9
1
.1 c
m)
w/s
i
d
e
p
a
n
e
l
a
c
ce
ss
o
ry
35-5/
8”
(9
0
.5
c
m)
23-1/
2”
(5
9
.7
c
m)
28-3/
8”
(7
2
.1
c
m)
26-3/
4”
(
67
.9
cm)
7
0
-1
/
8
”
(
17
8.
1
cm
)
mi
n
.
to
7
0
-7
/
8
”
(
18
0.
0
cm
)
ma
x
71
-
7/
8
”
(
18
2.
6
cm
)
m
i
n
.
t
o
72
-
5/
8
”
(
18
4.
5
cm
)
ma
x.
3
5-
7
/
8”
(
91
.
1
c
m
)
w
/
s
id
e
p
ane
l
a
c
c
es
s
o
r
y
3
5
-5
/
8
”
(90
.5 c
m
)
2
3-
1
/2”
(59
.7 c
m
)
2
6-
3/4
”
(6
7
.9
c
m
)
2
8
-3
/
8
”
(
72
.
1
c
m)
Dimensions (Designer Side-By-Side)
Specifications (Designer Side-By-Side)
36” Designer
Description
36” Side-By-Side
DDSF036 DDSF036D
Overall width 35-5/8” (90.5 cm)
Addition of side panels: 35-7/8” (91.1 cm)
Overall height 70-1/2” (179.0 cm) min. to 71-1/4” (181.0 cm) max.
36” Designer
with Dispenser
Overall depth from rear To front edge of side trim: 23-1/2” (59.7 cm)
Addition of top grilles: 71-7/8” (182.6 cm) min. to 72-5/8” (184.5 cm) max.
To front edge of top grille: 26-3/4” (67.9 cm)
To front of handle endcap: 28-3/8” (72.1 cm)
Cutout height 70-1/2” (179.0 cm)
Addition of top grilles: 72” (182.9 cm)
Cutout width 36” (91.4 cm)
Cutout depth 24” (61.0 cm)
Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
Maximum amp usage 7.8 amps 9.4 amps
Inlet water requirements 1/4” copper tubing inlet waterline; minimum 35 psi; maximum 120 psi
Overall interior capacities
Refrigerator
Freezer
Total capacity
Approximate shipping weight 314 lbs. (141.3 kg)
NOTE: When installing into a cutout, the edge of the door must be 2-7/8” (7.3 cm) from the
adjacent countertop/cabinet.
13.5 cu. ft. (382 liters)
8.0 cu. ft. (226 liters)
21.5 cu. ft. (608 liters)
13.5 cu. ft. (382 liters)
8.1 cu. ft. (229 liters)
21.6 cu. ft. (611 liters)
12
13
70-1/2”
(179.1 cm)
cutout without
addition of
tops/grilles
72”
(182.9 cm)
cutout with
addition of
tops/grilles
26”
(66.0 cm)
24”
(61.0 cm)
min.
36”
(91.4 cm)
14”
(35.6 cm)
Water line
location
Recommended
receptacle location
20”
(50.8 cm)
20”
(50.8 cm)
36”
(91.4 cm)
42”
(106.7 cm)
26”
(66.0 cm)
Water Line & Electrical Location
Important Safety Instructions
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the
refrigerator, follow basic precautions, including the following:
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Disconnect power before servicing.
• Replace all parts and panels before operating.
• Remove doors from your old refrigerator.
• Use nonflammable cleaner.
• Keep flammable materials and vapors, such as gasoline, away from refrigerator.
• Use two or more people to move and install refrigerator.
• Disconnect power before installing ice maker (on ice maker kit ready models only).
SAVE THESE INSTRUCTIONS
14
15
Proper Disposal (of old refrigerator)
WARNING
WARNING
WARNING
General Information
Suffocation Hazard
Remove doors from your old refrigerator.
Failure to do so can result in death or brain damage.
IMPORTANT:
Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still
dangerous - even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please
follow these instructions to help prevent accidents.
Before You Throw Away Your Old Refrigerator or Freezer:
• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.
Unpacking Unit
Your refrigerator was packed carefully for
shipment. Remove and discard all packaging
and tape. Do not remove the model/serial
number label.
Excessive Weight Hazard
Use two or more people to move and
install refrigerator.
Failure to do so can result in back or other
injury.
When moving Your Refrigerator:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to
protect the floor. Always pull the refrigerator
straight out when moving it. Do not wiggle or
“walk” the refrigerator when trying to move it,
as floor damage could occur.
Location
• Do not install where the temperature falls
below 55°F (13°C) or rises above 110°F
(43°C). Malfunctions can occur at these
temperatures.
• Refrigerator is designed for indoor
household application only.
Measuring the Opening
When installing your refrigerator, measure
carefully. Allow 1/2” (1.3 cm) space at top
and 1/2” (1.3 cm) behind the machine
compartment cover (located in the rear) for
proper air circulation. Sub-flooring or floor
coverings (i.e. carpet, tile, wood floors,
rugs) may make your opening smaller than
anticipated. Some clearance may be gained by
using the leveling procedure under “Leveling”.
When installing your refrigerator next to a
fixed wall, leave 2 7/8” (7.3 cm) minimum on
the hinge side to allow for the door to swing
open.
Explosion Hazard
Keep flammable materials and vapors,
such as gasoline, away from refrigerator.
Failure to do so can result in death,
explosion, or fire.
• Do not install refrigerator near oven, radiator
or other heat sources. If not possible, shield
refrigerator material.
16 17
General Information
WARNING
General Information
Moving Unit
• NEVER transport the refrigerator on its side. If
an upright position is not possible, lay the
refrigerator on its back. Allow refrigerator to
sit upright for approximately 30 minutes
before plugging it in to assure oil returns to
the compressor. Plugging the refrigerator in
immediately may cause damage to internal
parts.
• Use an appliance dolly when moving
refrigerator. ALWAYS truck refrigerator from
its side or back - NEVER from its front.
• Protect outside finish of refrigerator during
transport by wrapping cabinet in blankets
or inserting padding between the refrigerator
and dolly.
• Secure refrigerator to dolly firmly with straps
or bungee cords. Thread straps through
handles when possible. Do not overtighten.
Overtightening restraints may dent or
damage outside finish.
Electrical Requirements
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can
result in death, fire, or electrical shock.
Before you move your refrigerator to its final
location, it is important to make sure you
have the proper electrical connection.
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only 15- or 20-amp
fused, grounded electrical supply is required.
It is recommended that a separate circuit
serving only your refrigerator be provided.
Use an outlet that cannot be turned of by a
switch. Do not use an extension cord.
Water Supply Requirements
A cold water supply with water pressure of
between 35 and 120 psi (241 and 827 kPa) is
required to operate the water dispenser and
ice maker. If you have questions about your
water pressure, call a licensed, qualified
plumber.
Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water
supply coming out of a reverse osmosis
system going to the water inlet valve of the
refrigerator needs to be between 35 and
120 psi (241 and 827 kPa).
If a reverse osmosis water filtration system is
connected to your cold water supply, the
water pressure to the reverse osmosis
system needs to be a minimum of 40 to 60
psi (276 to 414 kPa).
If the water pressure to the reverse osmosis
system is less than 40 to 60 psi (276 to 414
kPa):
• Check to see whether the sediment filter in
the reverse osmosis system is blocked.
Replace the filter if necessary.
• Allow the storage tank on the reverse
osmosis system to refill afer heavy usage.
• If your refrigerator has a water filter, it may
further reduce the water pressure when
used in conjunction with a reverse osmosis
system. Remove the water filter.
If you have questions about your water
pressure, call a licensed, qualified plumber.
NOTE: Before performing any type of
installation, cleaning, or removing a light
bulb, turn the refrigerator OFF. Press the
freezer Down Arrow control until a dash (-)
appears in both the Freezer and Refrigerator
displays. Disconnect the refrigerator from the
electrical source. When you are finished,
reconnect the refrigerator to the electrical
source and reset the temperature controls to
the desired setting.
1918
Some installations require
door/drawer removal to transport
the refrigerator to its final location.
Make sure power cord
is disconnected from
power source.
1
2
Some installations require
door/drawer removal to transport
the refrigerator to its final location.
Make sure power cord
is disconnected from
power source.
1
2
3
4
5
WARNING
Door and Drawer Removal
WARNING
Door Removal (Bottom-Mount)
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or
electrical shock.
Remove toe grille.
Remove screws to remove center hinge.
Retain screws for later use
Door Removal (French Door Bottom-Mount)
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or
electrical shock.
Remove top hinge cover from refrigerator door.
Retain screw and cover for later use.
Unscrew 5/16” hex head screws from top hinge and
remove hinge. Retain all screws for later use.
20
Lift refrigerator door from center hinge pin.
Remove plastic sleeve, if present.
Remove toe grille. Grasp firmly and pull outward to
unclip.
Remove top hinge covers from refrigerator doors.
Retain screws and covers for later use.
21
1
2
3
4
Freezer Drawer Removal (Bottom-Mount)
6
7
8
4
5
3
Unscrew 5/16” hex head screws from right top hinge
and remove hinge. Retain all screws for later use.
Disconnect wire harness on top of left side refrigerator door
top hinge. Release two-pin connector by pressing junction
point with a flat blade screwdriver or fingernail. Green ground
wire remains attached to the hinge.
Lift right side refrigerator door from center hinge pin.
Remove door closure from center hinge pin on the
right side. Retain for later use.
Unscrew 5/16” hex head screws from left top hinge.
Retain all screws for later use.
Pull drawer open to full extension.
Lift drawer front upward and off the screws.
Loosen the four screws attaching the drawer glides to
the drawer front on both sides.
NOTE: Loosen screws three to four turns. Keep the
screws in the drawer front.
Push both rails back in.
Lift left side refrigerator door, along with top hinge,
from center hinge pin.
22
Remove screws to remove right and left hinges.
Retain all screws for later use.
23
5
6
7
1
8
9
Some installations require
door/drawer removal to transport
the refrigerator to its final location.
Make sure power cord
is disconnected from
power source.
1
2
3
Door Removal (Side-By-Side)
WARNING
4
10
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or
electrical shock.
Remove toe grille. Grasp firmly and pull outward to
unclip.
Open both doors 180°, or as wide as possible.
Remove top hinge covers by removing Phillips screws.
Lift right side refrigerator door from hinge pin. Remove
door closure from hinge pin on the right side. Retain
for later use.
Unscrew 5/16” hex head screws from right top hinge
and remove hinge. Retain all screws for later use.
Disconnect wire harness on top of left side refrigerator
door top hinge. Release two-pin connector by pressing
junction point with a flat blade screwdriver or fingernail.
Green ground wire remains attached to the hinge.
NOTE: For refrigerators in operation, shut off water before
removing water line from the door. Push in white collar and
hold. Pull the door-side tube from the connector.
24
Close doors.
Unscrew 5/16” hex head screws from left top hinge.
Retain all screws for later use.
Lift left side refrigerator door, along with top hinge,
from hinge pin.
25
11
5
6
1
2
3
4

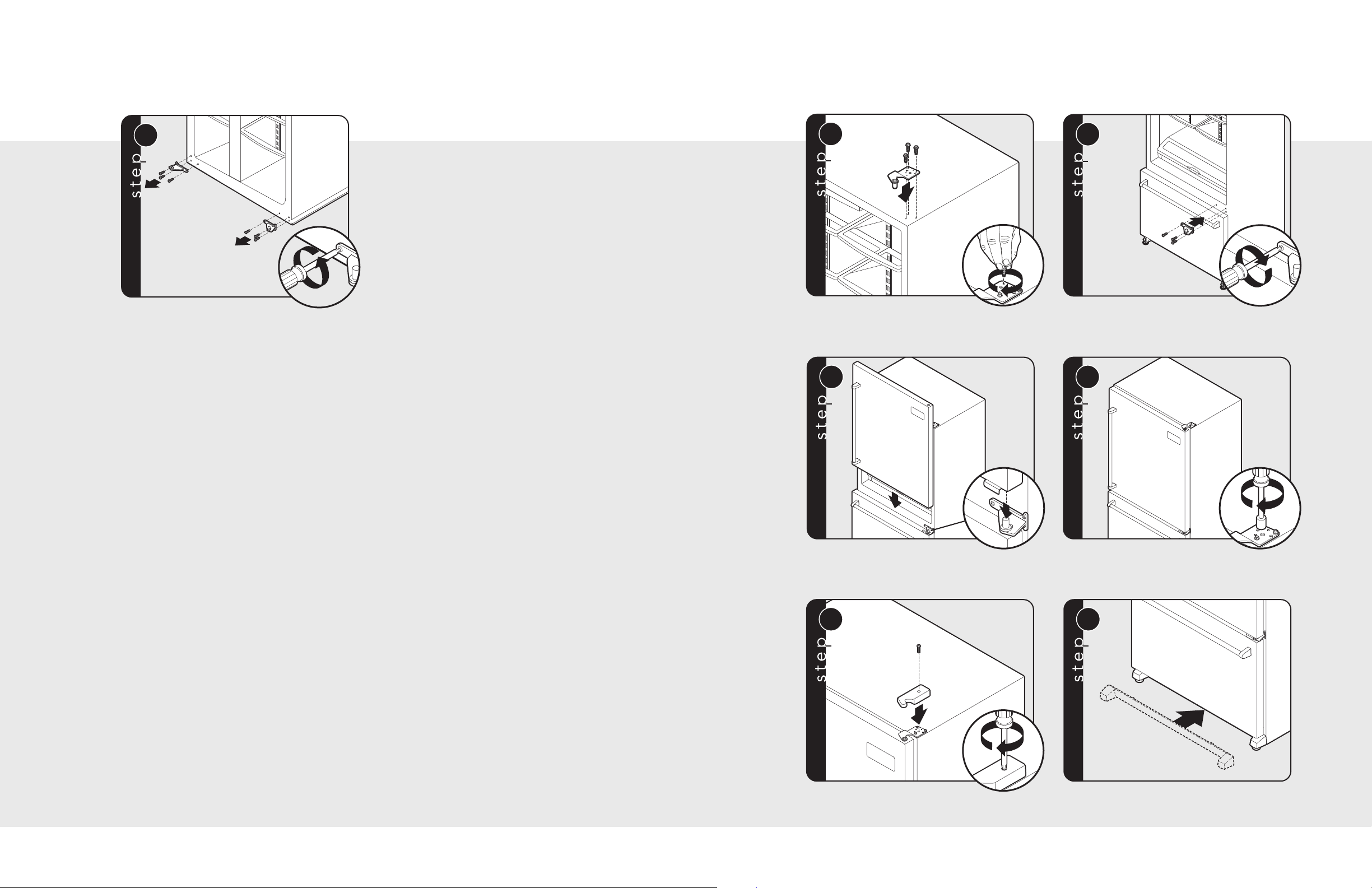

Door Reinstallation (Bottom-Mount)
Remove screws to remove right and left hinges. Retain
all screws for later use.
Install top hinge loosely with 5/16” hex head screws.
Place hinge side of refrigerator door on center
hinge pin.
Install center hinge with Phillips screws.
While holding refrigerator door upright, tighten down
top hinge with 5/16” hex head drive.
Replace hinge cover.
Replace toe grille.
2726
1
Door Reinstallation (French Door Bottom-Mount)
2
3
4
5
6
1
2
3
4
5
Freezer Drawer Reinstallation (Bottom-Mount)
Install center hinges with Phillips screws.
Install top hinges loosely with 5/16” hex head screws.
Place hinge side of refrigerator doors on center
hinge pins.
While holding refrigerator doors upright, tighten down
top hinges with 5/16” hex head driver.
Pull both rails out to full extension.
Pull the drawer brackets toward you to position the
screw in the bottom of the drawer front into the
brackets. Repeat for both sides of drawer.
Insert the screws in the top of the drawer front into the
slots in the drawer brackets.
Completely tighten the four screws on both sides of
drawer.
Reconnect two-pin connector.
Replace top hinge covers.
Push drawer closed.
2928
7
8
9
1
2
3
4
5
6
Door Reinstallation (Side-By-Side)
Install hinges with Phillips screws.
Install top hinges loosely with 5/16” hex head screws.
Place hinge side of refrigerator doors on hinge pins.
While holding refrigerator doors upright, tighten down
top hinges with 5/16” hex head driver.
Open doors as wide as possible.
Replace toe grille. Align the toe grille mounting clips
with the lower cabinet slots. Push the toe grille firmly
until it snaps into place.
Firmly push tube 5/8” into the connector. Use lines on
the tube as a guide for full insertion. NOTE: If water line
tube end is damaged, cut off 5/8” before reconnecting.
If leaking occurs, reconnect the line.
Reconnect two-pin connector.
30
Replace top hinge covers.
31
5
6
1
2
7
8
2
4”
di
a.
(
6
0
.9
c
m
)
m
i
n
.
2
4”
di
a.
(
6
0
.9
c
m
)
m
i
n
.
1
2
Installation
3
Brass nut
Sleeve
4
Connect to Water Supply
Materials Needed
• 1/4” outer diameter flexible copper tubing
• Shut-off valve (requires a 1/4” hole to be drilled into water supply line before valve
attachment)
• 2 adjustable wrenches
• 1/4” hex nut driver
NOTE: Use copper tubing only for installation. Plastic is less durable and can cause damage.
Add 8 feet to tubing length needed to reach water supply for creation of service loop.
Slide brass nut over sleeve and screw nut into inlet
port. Place adjustable wrench on nut attached to plastic
waterline and maintain position.
Using second adjustable wrench, turn the lower nut
counterclockwise and fully tighten the upper nut in
place. IMPORTANT: Do not overtighten. Cross
threading may occur.
Create service loop with copper tubing (minimum 2
feet diameter). Avoid kinks in the copper tubing when
bending the service loop. Do not use plastic tubing.
Place brass nut and sleeve on copper tube end as
illustrated. Remember: Do not use old sleeve. The nut
and the sleeve are provided in the consumer literature
packet.
Remove plastic cap from water valve inlet port.
Place end of copper tubing into water valve inlet port.
Shape tubing slightly. Do not kink—so that tubing
feeds straight into inlet port.
32
Pull on tubing to confirm connection is secure.
Connect tubing to frame with tubing clamp.
Turn on water supply. Check for leaks and correct if
necessary. Monitor water connection for 24 hours. Correct
leaks if necessary.
33
1
2
A
AAA
BBB
B
3
4
1
A
2
A
3
4
Leveling (Bottom-Mount & French Door Bottom-Mount)
To protect property and refrigerator from damage, observe the following:
• Protect vinyl or other flooring with cardboard, rugs, or other protective material.
• Do not use power tools when performing leveling procedure.
Leveling (Side-By-Side)
o protect property and refrigerator from damage, observe the following:
T
• Protect vinyl or other flooring with cardboard, rugs, or other protective material.
• Do not use power tools when performing leveling procedure.
Materials Needed
• 3/8” hex head driver
• 1/4” hex head driver
• Carpenter’s level
To enhance the appearance and maintain performance, the refrigerator should be level.
NOTE: Complete any required panel installation and/or water supply connection before
leveling. Refrigerator should be in permanent location prior to leveling.
Remove toe grill. Grasp firmly and pull outward
to unclip.
To raise the front of the unit, turn the leveler foot screw
clockwise. To raise the rear of the unit, use a 3/8” hex
head driver to turn each of the adjustment screws (A)
clockwise (French Door models only).
NOTE: Having someone push against the top of the refrigerator
takes some weight off the leveler foot screws.
Materials Needed
• 3/8” hex head driver
• Carpenter’s level—To enhance the appearance and maintain performance, the refrigerator should
be level.
• Stabalizing legs are stored in the freezer basket. Install Stabalizing legs by tipping refigerator back
slightly and screwing the legs in clockwise.
NOTE: Complete any required panel installation and/or water supply connection before
leveling. Refrigerator should be in permanent location prior to leveling.
Remove toe grille.
Grasp firmly and pull outward to unclip.
Using hex head driver, turn the front adjustment screws
“A” on each side to raise or lower the front of the
refrigerator.
To lower the front of the unit, turn the leveler foot screw
counterclockwise. To lower the rear of the unit, use a 3/8”
hex head driver to turn each of the adjustment screws (A)
counterclockwise (French Door models only).
NOTE: It may take several turns of the leveler foot screw to
adjust the tilt of the refrigerator.
Replace toe grill. Align the toe grille mounting clips
with the lower cabinet slots. Push the toe grille firmly
until it snaps into place. Check for level.
34
Using the hex head driver, turn each of the adjustment
screws “B” to raise or lower the rear of the refrigerator.
Using the carpenter’s level, make sure front of
refrigerator is 1/4” (.06 cm) or approximately half a
bubble higher than back of refrigerator.
35
3
5
6
Check that refrigerator is level from side to side.
7
A
AAA
8
1
2
A
AAA
WARNING
Turn stabilizing legs clockwise until firmly
against floor.
Check with level to verify 1/4” tilt to the back for
proper door closure.
Complete the Installation
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Turn adjustment screws “A” counter clockwise to allow
the full weight of the refrigerator to rest on the
stabilizing legs.
Replace the toe grille. Align the toe grille mounting
clips with the lower cabinet slots. Push the toe grille
firmly until it snaps into place.
Door Leveling (Side-By-Side & French Door Bottom-Mount)
Determine which door needs to be raised.
Turn front roller adjustment screws “A” clockwise to
raise front corner of door.
36
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can
result in death, fire, or electrical shock.
1. Plug into a grounded 3 prong outlet.
NOTE: Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice
produced. Allow 3 days to completely fill the ice container.
37
1
2
1
2
1
2
3
4
Side-By-Side
Bottom-Mount
Water Filter Installation (If Applicable)
Performance Checklist
Locate water filter compartment. The compartment is
located in the upper right corner of the refrigerator. Push
tab on compartment to release latch and pull downward.
Insert filter cartridge into filter housing. Rotate
clockwise gently until filter stops.
Close water filter door.
Unscrew and remove cover.
NOTE: Allow 1-2 minute delay in water dispersal to
allow internal water tank to fill.
Flush air from the system by running water through the
dispenser continuously for 3 minutes.
h Plug-in unit and verify operation.
h Connect water supply (if applicable).
• Verify icemaker bail arm is down.
• Verify dispenser operation
(if applicable).
h Align/square door(s).
h Verify drain pan properly installed and no
leaks on water connection.
h Remove internal packaging and labels
and wipe unit down.
Installer’s information:
Installer’s name:_____________________________
Installer’s company:_________________________
Date: ________________________________________
38
39
Service & Registration
Only authorized replacement parts may be
used in performing service on the appliance.
Do not repair or replace any part of the
appliance unless specifically recommended in
the manual. All other servicing should be
referred to a qualified technician.
Record the following information indicated
below. You will need it if service is ever required.
The serial number and model number for your
appliance are located on the identification plate
mounted on the left wall of the refrigerator
section of the unit.
Model number
_________________________________________
Serial number
_________________________________________
Date of purchase
_________________________________________
Date installed
_________________________________________
Dealer's name
_________________________________________
Address
_________________________________________
4140
