VVCCSSBB PPRROOFFEESSSSIIOONNAALL SSEERRIIEESS
BBUUIILLTT--IINN RREEFFRRIIGGEERRAATTOORR//FFRREEEEZZEERR WWAARRRRAANNTTYY
TTWWOO YYEEAARR FFUULLLL WWAARRRRAANNTTYY
Built-in refrigerators/freezers and all of their components and accessories, except as detailed below*, are warranted to be
free from defects in material or workmanship under normal household use for a period of two (2) years from the date of
original retail purchase. Viking Range Corporation, warrantor, agrees to repair or replace, at its option, any part which fails
or is found to be defective during the warranty period
*Painted and decorative items are warranted to free from defective materials or workmanship for a period of ninety (90)
days from the date of original retail purchase. ANY DEFECTS MUST BE REPORTED TO THE SELLING DEALER WITHIN
NINETY (90) DAYS FROM DATE OF ORIGINAL RETAIL PURCHASE.
SSIIXX YYEEAARR FFUULLLL WWAARRRRAANNTTYY
Any sealed refrigeration system component, as listed below, or any automatic ice maker is warranted to be free from
defective materials or workmanship in normal household use during the third through the sixth year from the date of
original retail purchase. Viking Range Corporation, warrantor, agrees to repair or replace, at its option, any part which fails
or is found to be defective during the warranty period.
SSeeaalleedd RReeffrriiggeerraattiioonn SSyysstteemm CCoommppoonneennttss::
Compressor, Evaporator,
Condenser, Connecting Tubing, Dryer/Strainer
TTWWEELLVVEE YYEEAARR LLIIMMIITTEEDD WWAARRRRAANNTTYY
Any sealed refrigeration system component, as listed above, which fails due to defective materials or workmanship in
normal household use during the seventh through the twelfth year from the date of original retail purchase will be
repaired or replaced, free of charge for the part itself, with the owner paying all other costs, including labor.
This warranty extends to the original purchaser of the product warranted hereunder and to each transferee owner of the
product during the term of the warranty.
This warranty shall apply to products purchased and located in the United States and Canada. Pr
oducts must be
purchased in the country where service is requested. Warranty labor shall be performed by an authorized Viking Range
Corporation service agency or representative. Warranty shall not apply to damage resulting from abuse, accident, natural
disaster, loss of electrical power to the product for any reason, alteration, improper installation, improper operation or
repair or service to the product by anyone other than an authorized Viking Range Corporation service agency or
representative. Warranty shall not apply to damage resulting from indoor units being used in outdoor situations. This
warranty does not apply to commercial usage. Warrantor is not responsible for consequential or incidental damage
whether arising out of breach of warranty, breach of contract, or otherwise. Some jurisdictions do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof of purchase
upon request, and making the appliance reasonably accessible for service. If the product or one of its component parts
contains a defect or malfunction during the warranty period, after a reasonable number of attempts by the warrantor to
remedy the defects or malfunctions, the owner is entitled to either a refund or replacement of the product or its
component part or parts. Replacement of a component part includes its free installation. Warrantor’s liability on any claim
of any kind, with respect to the goods or services covered hereunder, shall in no case exceed the price of the goods or
service or part there of which gives rise to the claim.
WWAARRRRAANNTTYY SSEERRVVIICCEE::
Under the terms of this warranty, service must be performed by a factory authorized Viking Range
Corporation service agent or representative. Service will be provided during normal business hours, and labor performed
at overtime or premium rates shall not be covered by this warranty. To obtain warranty service, contact the dealer from
whom the product was purchased, an authorized Viking Range Corporation service agent, or Viking Range Corporation.
Provide model and serial number and date of original purchase. For the name of your nearest authorized Viking Range
Corporation service agency, call the dealer from whom the product was purchased or Viking Range Corporation.
IIMMPPOORRTTAANNTT::
Retain proof of original purchase to establish warranty period.
The r
eturn of the Owner Registration Card is not a condition of warranty coverage. You, however, should return the
Owner Registration Card so that Viking Range Corporation can contact you should any question of safety arise which
could affect you.
Any implied warranties of merchantability and fitness applicable to the above described undercounter wine cooler are
limited in duration to the period of coverage of the applicable express written limited warranties set forth above. Some
jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
This warranty gives you specific rights, and you may also have other rights which may vary from jurisdiction to jurisdiction.
Viking Range Corporation
111 Front Street
Greenwood, Mississippi (MS) 38930 USA • (662) 455-1200
Specifications subject to change without notice
For more product information, call 1-888-VIKING1(845-4641), or visit our web site at
http://www.vikingrange.com
Viking Range Corporation
use & care manual
built-in 48” w. side-by-side
refrigerator/freezer
F20000D
(M0703VR)
3
IImmppoorrttaanntt SSaaffeettyy IInnssttrruuccttiioonnss
•Read all instructions before using
the refrigerator.
•Never allow children to operate,
play with, or crawl inside the
refrigerator.
•Never clean refrigerator parts with
flammable fluids. The fumes can
create a fire hazard or explosion.
•Always turn the power on/off
switch (located behind the air
grille on top right side) to the OFF
position before attempting to
change light bulbs, clean, or
service the refrigerator.
--SSAAVVEE TTHHEESSEE IINNSSTTRRUUCCTTIIOONNSS--
TToo rreedduuccee tthhee rriisskk ooff ffiirree,, eelleeccttrriicc
sshhoocckk,, oorr iinnjjuurryy wwhheenn uussiinngg yyoouurr
rreeffrriiggeerraattoorr,, ffoollllooww tthheessee bbaassiicc
pprreeccaauuttiioonnss::
••FFOORR YYOOUURR SSAAFFEETTYY••
DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER
APPLIANCE. THE FUMES CAN
CREATE A FIRE HAZARD OR
EXPLOSION.
2
CCoonnggrraattuullaattiioonnss
.. .. ..
Your purchase of this product attests to the importance you
place upon the quality and performance of the major appliances you
use. With minimal care, as outlined in this guide, this product is
designed to provide you with years of dependable service. Please take
the few minutes necessary to learn the proper and efficient use and
care of this quality product.
We appreciate your choosing a Viking Range Corporation
product, and hope that you will again select our products for your
other major appliance needs.
TTaabbllee ooff CCoonntteennttss
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Proper Disposal of Your Old Refrigerator . . . . . . . . . . . . . . . . . . . 5
Features of Your Refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Before Using Your Refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Electronic Temperature Settings. . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using Your Refrigerator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Using the Automatic Ice Maker . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Ice and Water Dispenser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Understanding Sounds You May Hear . . . . . . . . . . . . . . . . . . . . . 25
Power Interruptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Food Storage Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Rear Cover
YYoouurr ssaaffeettyy iiss iimmppoorrttaanntt ttoo uuss..
This use and care manual contains
safety symbols and statements. Please pay special attention to these
symbols and follow any instructions given.
This symbol alerts you to hazards such as fire,
electrical shock or other injuries.
WARNING
5
4
SSaaffeettyy//IInnssttaallllaattiioonn TTiippss
•Install and level the refrigerator on a floor that will hold the weight
and in an area suitable for its size and use.
•Do not install the refrigerator near an oven, radiator, or other heat
source.
•Do not use the refrigerator in an area where the room temperature
will fall below 55
0
F (130C).
•Keep the refrigerator out of the weather.
•Connect the refrigerator only to the proper kind of outlet, with the
correct electrical supply and grounding. (Refer to the Electrical
Requirements section of the Installation Instructions.)
•Use the refrigerator only of the uses described in this manual.
•Properly maintain the refrigerator.
•Be sure the refrigerator is not used by anyone unable to operate it
properly.
RRiisskk ooff CChhiilldd EEnnttrraappmmeenntt
BBEEFFOORREE YYOOUU TTHHRROOWW AAWWAAYY YYOOUURR
OOLLDD RREEFFRRIIGGEERRAATTOORR OORR FFRREEEEZZEERR::
•Take off the doors.
•Leave the shelves in place so that
children may not easily climb inside.
IIMMPPOORRTTAANNTT::
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still dangerous... even
if they will sit for “just a few days.”
PPrrooppeerr DDiissppoossaall ooff YYoouurr OOlldd RReeffrriiggeerraattoorr
EELLEECCTTRRIICCAALL SSHHOOCCKK HHAAZZAARRDD
PPlluugg iinnttoo aa ggrroouunnddeedd 33--pprroonngg oouuttlleett.. IIff aa 22--
pprroonngg wwaallll rreecceeppttaaccllee iiss eennccoouunntteerreedd,,
ccoonnttaacctt aa qquuaalliiffiieedd eelleeccttrriicciiaann
DDoo nnoott rreemmoovvee ggrroouunndd pprroonngg.. UUnniitt mmuusstt bbee
ggrroouunnddeedd aatt aallll ttiimmeess..
DDoo nnoott uussee aann aaddaapptteerr..
DDoo nnoott uussee aann eexxtteennssiioonn ccoorrdd..
FFaaiilluurree ttoo ffoollllooww tthheessee iinnssttrruuccttiioonnss ccaann rreessuulltt
iinn ddeeaatthh,, ffiirree,, oorr eelleeccttrriiccaall sshhoocckk..
DANGER
7
6
1. Electronic controls
2. Dairy compartment (2)
3. Adjustable door bins (4)
4. Meat SavorTM/Produce Drawer (1)
5. Moisture-controlled produce
drawers (2)
6. Ice bucket (1)
7. Non-adjusting freezer shelf (1)
8. Deli compartment drawers (2)
9. Spillproof shelves (5)
10. Adjustable freezer shelves (3)
11. Adjustable freezer door bins (4)
12. Glide-out freezer baskets (2)
13. Lights
1. Electronic controls
2. Dairy compartment (2)
3. Adjustable door bins (4)
4. Meat SavorTM/Produce Drawer (1)
5. Moisture-controlled produce
drawers (2)
6. Water Filter
7. Deli compartment drawers (2)
8. Spillproof shelves (5)
9. Adjustable freezer shelves (3)
10. Non-Adjustable freezer shelf
11. Adjustable freezer door bins (3)
12. Glide-out freezer baskets (1)
13. Ice and Water Dispenser
14. Ice and Storage Bucket
15. Lights
FFeeaattuurreess ooff YYoouurr RReeffrriiggeerraattoorr
7
6
2
3
8
13
9
10
11
1
5
4
12
NNoonn--DDiissppeennsseerr UUnniitt
DDiissppeennsseerr UUnniitt
11
9
14
13
1
2
3
7
8
15
5
4
6
12
11
13
9
EElleeccttrroonniicc TTeemmppeerraattuurree SSeettttiinnggss
The electronic controls are located behind the refrigerator door above
the refrigerator section. Press
Display On
pad to activate control
panel. All other pads except for
Alarm Off
pad, remain inactive until
Display On
pad is pressed. Once activated, pads remain
programmable for at least 10 minutes.
Refrigerator and freezer controls are preset at the mid setting, (5 bars
are displayed). Wait 24 hours after connecting power for refrigerator
and freezer sections to reach this setting. After 24 hours, adjust
controls as desired. 1 bar displayed is the warmest setting and 9 bars
displayed is coldest setting.
•To adjust refrigerator or freezer temperature, press
Display On
pad
then
Ref Temp
pad or
Freezer Temp
pad. Press
Higher Temp
pad
or
Lower Temp
pad to adjust temperature setting 1 level at a time.
Holding down
Higher Temp
pad or
Lower Temp
pad adjusts
temperature more than 1 level at a time
EEnnttrryy TToonnee
Entry tone is the “beep” heard when a pad is pressed and command is
read and accepted.
•Deactivate entry tone by pressing and holding
Display On
pad for
3 to 5 seconds. Three short beeps indicate instructions were
accepted.
•Activate entry tone by pressing and holding
Display On
pad for 3
to 5 seconds.
MMaaxx RReeffrriiggeerraattoorr MMooddee
Max refrigerator mode adjusts refrigerator temperature to the coldest
setting for 10 hours. Then the refrigerator temperatures automatically
return to previous setting.
•Activate max refrigerator mode by pressing
Display On
pad then
Max Ref
pad. Indicator light will glow.
•Deactivate max refrigerator mode before automatic reset by
pressing
Display On
pad then the
Max Ref
pad.
8
BBeeffoorree UUssiinngg YYoouurr RReeffrriiggeerraattoorr
To obtain the best possible results from your refrigerator, it is important
that you operate it properly. This section tells you how to set the
temperature controls, how to operate the features in your refrigerator,
and how to save energy.
UUssiinngg tthhee ppoowweerr oonn//ooffff sswwiittcchh ((ppoowweerr iinntteerrrruupptteerr sswwiittcchh))
The power on/off switch is located behind the top grille. It is used to
turn the power to the refrigerator off when cleaning it or changing the
light bulbs. The refrigerator is shipped with the power interrupter
switch on.
To turn power off:
1. Remove center grille blade.
2. Press power on/off switch to the OFF position.
To turn power on:
1. Press power on/off switch to the ON position.
2. Replace center grille blade.
IIMMPPOORRTTAANNTT::
Be sure the power on/off switch is in the ON position
after cleaning the refrigerator or changing light bulbs.
UUssiinngg tthhee sshhoowwrroooomm sswwiittcchh
The showroom switch allows electronic controls and interior lights to
function independently of refrigeration system. Showroom switch is
located behind the top grille to the right of the control panel. The
refrigerator is shipped with the showroom switch in the run position.
Showroom switch
on - full cooling
power to
refrigerator.
Showroom switch
off - no cooling in
refrigerator (power
only to lights and
electronic controls).
Showroom
switch
Power
switch
11
10
DDiissppllaayy LLiigghhttss
•Deactivate temperature display lights by pressing
Display On
pad
then pressing
Display Off
pad.
•Activate temperture display lights by pressing
Display On
pad.
MMaaxx FFrreeeezzeerr MMooddee
Max freezer mode adjusts freezer temperature to the coldest setting for
24 hours. Then freezer temperatures automatically return to the
previous setting.
•Activate max freezer mode by pressing
Display On
pad then
Max
Frz
pad. Indicator light will glow.
•Deactivate max freezer mode before automatic reset by pressing
Display On
pad then the
Max Frz
pad.
DDoooorr OOppeenn AAllaarrmm
Door open alarm sounds and indicator light blinks if either door is
open for more than 3 minutes.
•Deactivate door open alarm by pressing
Alarm Off
pad or closing
either door.
HHiigghh TTeemmppeerraattuurree AAllaarrmm
High temperature alarm sounds and indicator light glows if refrigerator
or freezer temperature is high for 2 hours. A blinking light signals
affected compartment. Alarm ends when proper temperature is
reached.
•Deactivate high temperature alarm by pressing
Alarm Off
TThheerrmmiissttoorr AAllaarrmm
Thermistor electronically senses refrigerator and freezer temperatures.
Thermistor alarm sounds and indicator lights scroll if refrigerator or
freezer thermistor is still not operating properly. The alarm can be
deactivated by pressing
Alarm Off
on control panel
IIff tthheerrmmiissttoorr aallaarrmm ssoouunnddss,, ccoonnttaacctt aann aauutthhoorriizzeedd VViikkiinngg RRaannggee
CCoorrppoorraattiioonn tteecchhnniicciiaann iimmmmeeddiiaatteellyy..
If
Alarm Off
pad is pressed,
thermistor control retests to confirm situation has been corrected.
Alarm will sound again if thermistor is still not operating properly.
HHoolliiddaayy MMooddee FFeeaattuurree ffoorr SSaabbbbaatthh OObbsseerrvvaannccee
Before the Holiday mode is engaged, the bale arm of the ice maker
needs to be raised until it clicks into the detent. This turns off the
power to the ice maker.
MMooddee EEnnttrryy
: To enter Holiday Mode the user must press and hold
DISPLAY ON and then DISPLAY OFF for 3 seconds. The control shall
beep 3 times and light the 3 right blue squares to alert the user that
Holiday mode has been entered. When the control enters Holiday
mode it will disable the interior lights, display (excluding the 3 right
hand side lit blue squares), and alarm enunciators.
PPoowweerr LLoossss
: If in Holiday Mode and the control experiences a Long
Power Loss, it will return to Holiday Mode when power is regained.
EExxiittiinngg HHoolliiddaayy MMooddee
:
To exit Holiday Mode the user will again
press and hold
Display On
and then
Display Off
for 3 sec and 3 beeps
shall alert the user the Holiday Mode has been exited. The control shall
return to Normal Mode. Once the unit is back in the Normal mode,
the bale arm of the ice maker needs to pushed downward until it is no
longer in the detent. This will restore power to the ice maker.
13
12
SSppiillllpprrooooff SShheellvveess
Spillproof shelves are constructed of polypropylene molded around the
glass and metal rail. Therefore, the spillproof shelves are completely
encapsulated and liquids cannot seep under the glass. This localizes
spills and makes cleanup easier. Spillproof shelves also adjust to meet
individual storage needs.
NNOOTTEE:: FFooooddss//bbeevveerraaggeess ppllaacceedd oonn
uuppppeerrmmoosstt sshheellff uunnddeerr aaiirr vveenntt mmaayy ffrreeeezzee..
SShheellff AAddjjuussttmmeenntt
Adjust the shelves to match the
way you use your refrigerator.
To remove shelves:
1. Tilt shelf up at front, releasing
hooks from shelf support.
2. Pull shelf straight out.
To replace shelves:
1. Guide the rear hooks of shelf
into slots in the shelf
supports.
2. Tilt shelf up at front until hooks drop into slots. Lower front of shelf
to level position.
CCaauuttiioonn
To avoid personal injury and property damage, confirm shelf is
secure before placing items on shelf
CCaauuttiioonn
To avoid personal injury or property damage, handle tempered
glass shelves carefully. Shelves may break suddenly if nicked,
scratched, or exposed to sudden temperature change.
Wine
trivets
UUssiinngg tthhee WWiinnee TTrriivveettss
There are two interlocking wine
trivets. Place in the refrigerator
with the raised edge at the back.
Place wine bottles in the trivets
horizontally. Wine trivets can be
interlocked to pyramid up to six
bottles.
SSeettttiinngg tthhee CCoonnttrroollss
Set controls precisely with a household thermometer that includes
temperatures between -5
o
to 50oF (-21oto 10oC).
FFrreeeezzeerr
Put thermometer snugly between frozen packages in freezer section.
Wait 5-8 hours. If freezer temperature is not 0
o
to 2oF (-17oto -16oC),
adjust control, 1 number at a time. Check again after 5-8 hours.
RReeffrriiggeerraattoorr
Put thermometer in a glass of water in middle of refrigerator section.
Wait 5-8 hours. If refrigerator temperature is not 38
o
to 40oF (3oto 4oC),
adjust control, 1 number at a time. Check again after 5-8 hours.
UUssiinngg YYoouurr RReeffrriiggeerraattoorr
UUssiinngg tthhee eegggg bbiinn

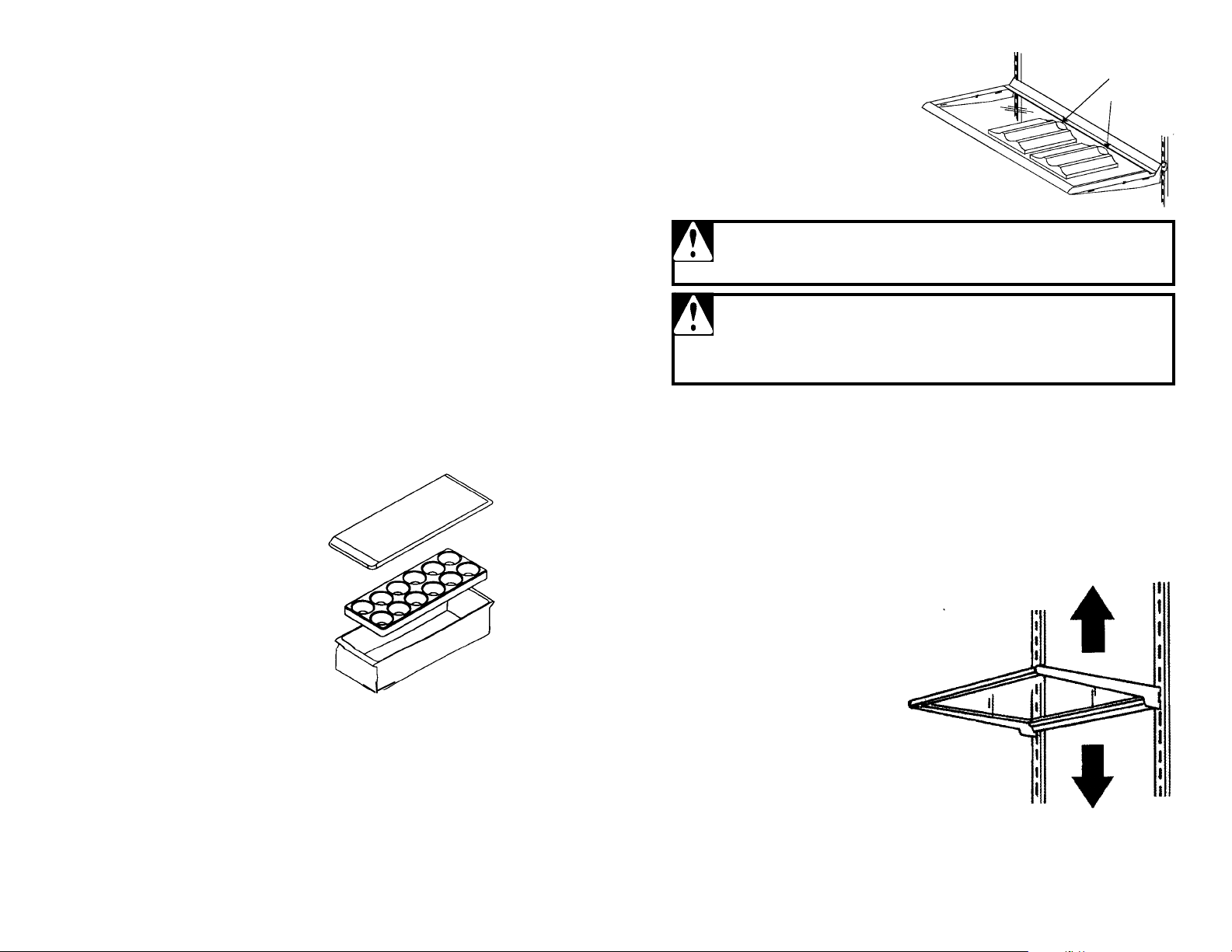

The egg bin has three pieces - the lid, the egg tray, and the bin. Use
the egg bin to hold one, or two dozen eggs.
To hold one dozen eggs:
Place a dozen eggs into the egg
carrier. Then place the egg carrier
into the bin and cover with the lid.
To hold two dozen eggs:
Place two dozen eggs loose in the
bin and cover them with the lid.
Use the carrier to transport eggs
between the bin and your cooking
area.
When the egg tray is removed, the
bin will accept items such as a standard egg carton, ice, etc.
Lid
Egg
tray
Bin
15
14
CChhiillll ZZoonnee
The Chill Zone features 2 moisture-controlled produce drawers and the
MEAT SAVOR™/PRODUCE drawer. Freezer air circulating in the Chill
Zone is contained by gaskets in the shelf above the drawers. This area
keeps food up to 3 - 5
0
F (-16 - -310C) colder than refrigerator
temperature.
The temperature control is located to the right of the MEAT
SAVOR™/PRODUCE drawer underneath the lid. Control adjusts
amount of freezer air circulating in this area. Slide control down for
normal refrigerator temperature and up for colder temperatures.
MMooiissttuurree--CCoonnttrroolllleedd PPrroodduuccee DDrraawweerrss
The moisture control on the produce drawers gives you the ability to
change the amount of moisture or humidity in the produce drawer.
The clear top section allows you to see into the drawer without
opening it.
The moisture control is located underneath the front trim. Slide the
control to a higher setting for storing deli items and produce with
leaves such as lettuce, spinach, or cabbage. Slide the control to a
lower setting for storing fruits and vegetables with skins such as apples,
corn, or tomatoes. See “Food Storage Guide” (pg. 22) for more
information on storing foods properly.
1. Remove drawer by lifting and
pulling out. Remove shelf by
lifting front, releasing hooks from
shelf support then pulling out.
Remove one drawer with 90
o
door opening. Center glide
support will slide out for removal
of second drawer.
2. Replace shelf by inserting hooks
into shelf support and lowering
front. Replace drawer by sliding
in.
MMOOIISSTTUURREE CCOONNTTRROOLL
LLOOWW HHIIGGHH
DDoooorr BBiinn AAddjjuussttmmeenntt
Door bins hold two-liter bottles
and can be placed in any
position on the refrigerator door.
To remove:
1. Grasp door bin.
2. Lift bin up and pull out.
To replace:
1. Place door bin over glides in
refrigerator door.
2. Push door bin down to lock
into place.
DDaaiirryy CCoommppaarrttmmeennttss
Dairy compartment doors are surrounded by gaskets for a tighter seal
which allow items to stay fresh longer. Dairy compartments also adjust
to meet individual storage needs.
To remove:
1. Grasp dairy compartment.
2. Lift compartment up and pull out.
To replace:
1. Place dairy ocompartment over
glides in refrigerator door.
2. Push compartment down to lock
into place.
17
16
After ice is formed, the ice
maker drops ice cubes into the
ice bucket. During ice
production, the ice maker arm
raises and lowers. When the
ice bucket is full, the ice maker
arm turns ice maker off. To
manually stop ice production,
raise the ice maker arm. A
definite click is heard when
proper position is reached. In
non-dispensing models, ice maker will not function unless ice bin is
pushed all the way back into position.
SSoollvviinngg ccoommmmoonn iiccee mmaakkeerr pprroobblleemmss
PPrroobblleemm PPoossssiibbllee CCaauussee//SSoolluuttiioonn
Ice crescents attached at This is normal. They break apart easily.
corners Shake bin occasionally to keep cubes
separated.
Ice maker will not operate •On/Off lever is in the OFF (up)
or ice is not made fast position. Lower lever to ON (down)
enough. position.
•Freezer is not cold enough. Adjust
temperature controls and wait 24
hours.
Off-taste or odor in ice •New plumbing connections can cause
discolored or off-flavored ice.
Discard the first three harvests of ice.
•Cubes are stored too long. Throw
them away and make a new supply.
•Food is not wrapped properly.
•Freezer and ice bin need to be
cleaned.
•Water may contain minerals. A filter
may be needed to remove them.
MMEEAATT SSAAVVOORR™™//PPRROODDUUCCEE DDrraawweerr
As the MEAT SAVOR™/PRODUCE drawer glides forward on an inner
and outer track, the lid raises for easy access of items. The MEAT
SAVOR™/PRODUCE drawer holds extra-large deli trays, wine bottles,
etc. The lid can also be removed and the drawer repositioned for tall
items such as tiered cakes, flower arrangements, etc.
TThhee ccoovveerr iiss nnoott
ddeessiiggnneedd ffoorr uussee aass aa sshheellff wwhheenn tthhee ddrraawweerr iiss rreeppoossiittiioonneedd..
CCaauuttiioonn
To avoid damage to ice maker, observe the following:
•Do not force ice maker arm down or up past stop position.
•Do not place or store anything in ice bucket.
UUssiinngg tthhee AAuuttoommaattiicc IIccee MMaakkeerr
The ice maker and slide-out ice bucket are not adjustable. The ice
bucket slides forward for easy access of ice. The ice maker will not
produce ice when the ice bucket is not in place. After the freezer
section reaches normal temperature, the ice maker fills with water and
begins operating. Allow 24-48 hours after installation before first
harvest of ice. Discard the first 3 harvests of ice after initially
connecting refrigeration to household water supply and after extended
periods of non-use. The ice maker produces 7 to 9 batches of ice in a
24 hour period under ideal conditions.
TToo rreemmoovvee tthhee ddrraawweerr::
1. Roll drawer out to the stop.
2. Remove lid by lifting back to release hooks then pulling out.
Remove drawer by lifting slightly.
3. Pull drawer out the rest of the way.
TToo rreeppllaaccee::
1. Position drawer rollers behind the
track roller.
2. Push drawer up and onto track.
Slide drawer back slightly.
3. Replace cover by inserting hooks
into drawer then placing back and
front down.
4. Slide drawer back until it stops.
FFrreeeezzeerr FFeeaattuurreess
19
18
“Snow” may form on door and ice chute when repeatedly dispensing
crushed ice. Allow “snow” to evaporate or wipe dry. NOTE: The ice
and water dispenser will shut off if the refrigerator or freezer door has
been left ajar for ten minutes. Operation will resume when the door is
closed.
RReemmoovviinngg IIccee BBuucckkeett
•Remove ice bucket by lifting bucket and pulling out.
•Replace ice bucket by sliding in until bucket locks in place. Ice bucket
must be locked in place for proper ice dispensing. If freezer door
does not close, bucket is not in proper location
WWaatteerr FFiilltteerr ((ssoommee mmooddeellss))
WWAARRNNIINNGG
To avoid serious illness or death, do not use unit where water is
unsafe or of unknown quality without adequate disinfection
before or after use of filter.
CCaauuttiioonn
•Be sure to have replacement cartridges available when filter
change is required.
•If water filtration system has been allowed to freeze, replace
filter cartridge.
•If system has not been used for several months, and water
has unpleasant taste or odor, flush system by dispensing 2-3
glasses of water. If unpleasant taste or odor persists, change
filter cartridge.
IIccee aanndd WWaatteerr DDiissppeennsseerr ((ssoommee mmooddeellss))
CCaauuttiioonn
To avoid personal injury or property damage, observe the
following:
•Do not operate dispenser with freezer door open.
•Do not put fingers, hands, or any foreign object into
dispenser opening.
•Do not use sharp objects to break ice.
CCaauuttiioonn
To avoid property damage, do not dispense ice directly into a
thin glass, fine china, or delicate crystal.
WWaatteerr DDiissppeennsseerr OOppeerraattiioonn
It takes approximately 1 minute after initially connecting refrigerator to
household water supply before water dispenses. Discard first 10 to 14
containers of water after initially connecting refrigerator to household
water supply and after extended periods of non-use.
Dispense water by pressing sturdy wide-mouth container against water
dispensing pad. Stop water dispensing by releasing pressure on pad.
A small amount of water may continue to fall. Spill shelf is not selfdraining. Large spills should be wiped dry.
IIccee DDiissppeennsseerr OOppeerraattiioonn
Select cubed or crushed mode by sliding lever on dispenser panel.
Dispense ice by pressing wide-mouth container against ice dispenser
pad. Stop ice dispensing by releasing pressure on pad before
container is full. Some ice will continue
to fall. Do not remove container until
last of ice falls.
IIMMPPOORRTTAANNTT:: RReedduuccee
sspprraayyiinngg ooff ccrruusshheedd iiccee bbyy hhoollddiinngg wwiiddee--
mmoouutthh ccoonnttaaiinneerr ddiirreeccttllyy uunnddeerr iiccee cchhuuttee
aanndd aass hhiigghh ppoossssiibbllee iinn ddiissppeennsseerr aarreeaa..
If dispensing ice continuously, dispenser
motor is designed to shut off after 3 to 5
minutes. Motor resets after 3 minutes
and dispensing can continue. A slight
delay occurs when switching between
cubed and crushed modes. Pieces of
crushed ice will vary in size and shape.
IInnssttaalllliinngg tthhee WWaatteerr FFiilltteerr
1. Locate water filter connection under the Meat SavorTM/Produce
Drawer. (See drawing)
2. Insert cartridge into filter head and rotate gently clockwise until filter
stops.
3. Flush air from the system by running
water through the dispenser
continuously for 2 minutes. If water
spurts occur, continue to run water
until steady. Additional flushing may
be required in areas with poor
quality water. NOTE: Allow 1-2
minute delay in water dispersal to
allow internal water tank to fill.
IIccee ppaadd
WWaatteerr
ppaadd
SSlliiddiinngg lleevveerr
21
20
CClleeaanniinngg && MMaaiinntteennaannccee
Your refrigerator is built to give you many years of dependable service.
However, there are a few things you can do to help extend its product
life. This section tells you how to clean your refrigerator and what to
do when going on vacation, moving, or during a power outage.
WWAARRNNIINNGG
To avoid electrical shock which can cause severe personal injury
or death, turn power disconnect switch to OFF before cleaning.
After cleaning, return power disconnect switch to ON position.
IInntteerriioorr SSuurrffaacceess
Wash surfaces with 4 tablespoons baking soda dissolved in 1 quart
warm water and a soft, clean cloth. Rinse surfaces with warm water.
Dry with a soft clean cloth.
DDoo nnoott uussee tthhee ffoolllloowwiinngg ttoo cclleeaann iinntteerriioorr ssuurrffaacceess::
•abrasive or harsh cleaners, ammonia, chlorine bleach
•concentrated detergents or solvents
•metal scouring pads
These items can scratch, crack and discolor surfaces.
DDoo nnoott ppllaaccee iiccee bbuucckkeett oorr sshheellvveess iinn ddiisshhwwaasshheerr..
GGllaassss SShheellvveess
Remove shelf by lifting front, releasing hooks from metal track then
pulling out. Place shelf on a towel. Allow shelf to adjust to room
temperature before cleaning.
TToo cclleeaann ccrreevviicceess::
1. Dilute mild detergent and brush solution into crevices using a
plastic bristle brush. Let set for 5 minutes.
2. Spray warm water into crevices using faucet spray attachment.
3. Dry shelf thoroughly and replace shelf by inserting hooks into metal
track and lowering front.
CCAAUUTTIIOONN
To avoid personal injury or property damage, handle tempered
glass shelves carefully. Shelves may break suddenly if nicked,
scratched, or exposed to sudden temperature changes.
CCAAUUTTIIOONN
To avoid personal injury or property damage, read and follow all
cleaning product manufacturer’s directions.
RReeppllaacciinngg WWaatteerr FFiilltteerr
IIMMPPOORRTTAANNTT::
Air trapped in water filtration system may cause water
and cartridge to eject. Use caution when removing.
1. Turn filter cartridge counterclockwise until it releases from filter
head.
2. Drain water from filter into sink and dispose of cartridge.
3. Wipe up excess water at filter location and continue with steps 2
and 3 under “Installing Water Filter”.
WWhheenn ttoo CChhaannggee tthhee WWaatteerr FFiilltteerr
The water filter should be changed approximately every 9 months or
after 750 gallons of water used (whichever comes first). Replace
cartridge when flow becomes too slow.
IIMMPPOORRTTAANNTT::
Condition of water and amount used determines life
span of water filter cartridge. If water use is high, or if water is of poor
quality, replacement may need to be more frequent.
HHooww ttoo OOrrddeerr RReeppllaacceemmeenntt FFiilltteerr CCaarrttrriiddggeess
Replacement filters are available through your local Viking Range
Dealer. You may also order filters by calling Viking Range Preferred
Service at 1-888-845-4641, or online at www.vikingrange.com.
DDoooorr GGaasskkeettss
Clean door gaskets every 3 months using same procedures as stated
for interior surfaces. Apply a light film of petroleum jelly to keep
gaskets pliable.
23
22
BBuurrnn HHaazzaarrdd
DDoo nnoott ttoouucchh ccoonnddeennsseerr ccooiillss
nneeaarr ddeeffrroosstt ppaann..
DDooiinngg ssoo ccaann rreessuulltt iinn bbuurrnnss..
EElleeccttrriiccaall SShhoocckk HHaazzaarrdd
DDiissccoonnnneecctt ppoowweerr oorr ttuurrnn
ppoowweerr ddiissccoonnnneecctt sswwiittcchh ttoo
OOFFFF ppoossiittiioonn bbeeffoorree rreemmoovviinngg
ttoopp
grille
.. FFaaiilluurree ttoo ddoo ssoo ccaann
rreessuulltt iinn ddeeaatthh oorr eelleeccttrriiccaall
sshhoocckk
DDeeffrroosstt PPaann
To prevent condensation from
overflowing, check defrost pan
periodically. The defrost pan is
located behind the kickplate. To
remove defrost pan, remove (4)
screws in the kickplate. Clean the
pan and replace.
DDoooorr SSttoopp AAddjjuussttmmeenntt
1. Remove center grille louver from
top air grille.
2. Remove top air grille by removing
(4) 1/4” screws with an 8” long
magnetic 1/4” nut driver. Pull
assembly forward.
3. Open refrigerator door so door
stop arm and shoulder screw are
accessible. Shoulder screws
should be in 110
o
door opening
position.
4. Remove shoulder screw and place
shoulder screw in the 90
o
or 120
o
door opening position.
5. Replace air grille assembly.
FFrreeeezzeerr DDoooorr
RReeffrriiggeerraattoorr DDoooorr
CClleeaanniinngg CChhaarrtt
PPaarrtt WWhhaatt ttoo UUssee HHooww ttoo CClleeaann
Removable parts Sponge or cloth with mild Hand wash,
(shelves, drawers) detergent and warm water. rinse, and
dry thoroughly.
Front Door panels
•Stainless steel Stainless steel cleaner Wipe with soft
cloth.
•Painted Sponge or cloth with mild Hand wash,
detergent and warm water. rinse, and
dry thoroughly
Interior walls Sponge, soft cloth or paper Hand wash,
(allow freezer to towel with baking soda or rinse, and
warm up so cloth or mild detergent and dry thoroughly.
will not stick) warm water.
Door liners and Sponge, soft cloth or paper Wash, wipe
gaskets towel with mild detergent and dry
and warm water.
DDoo nnoott
thoroughly.
uussee cclleeaanniinngg wwaaxxeess,,
ccoonncceennttrraatteedd ddeetteerrggeennttss,,
oorr cclleeaanneerrss ccoonnttaaiinniinngg
cchhlloorriinnee bblleeaacchh..
Plastic parts Soft, clean sponge or soft Wash, wipe
(covers, panels) clean cloth with mild and dry
detergent and warm water thoroughly.
DDoo nnoott uussee ppaappeerr ttoowweellss,,
wwiinnddooww sspprraayyss,, oorr ssccoouurriinngg
ppaaddss.. TThheessee ccaann ssccrraattcchh
aanndd ddaammaaggee tthhee ffiinniisshh..
Condenser Coil Vacuum cleaner with Vacuum coils
extended narrow when dusty or
attachment dirty.
25
SSaavviinngg EEnneerrggyy
You can help your refrigerator use less electricity.
•Clean the condenser coil regularly.
•Open the door as few times as possible. Think about what you need
before you open the door. Get everything out at one time. Keep
food organized so you will not have to search for what you want.
Close door as soon as food is removed.
•Don’t overcrowd the refrigerator so air movement is blocked.
•Don’t set the refrigerator and freezer to temperature colder than
necessary.
UUnnddeerrssttaannddiinngg SSoouunnddss YYoouu MMaayy HHeeaarr
Your new refrigerator may make different sounds than your old one.
Hard surfaces, such as the ceilings, walls, and cabinets around the
refrigerator can make sounds seem louder. These sounds are normal
and will soon become familiar. These sounds also indicate refrigerator
is operating and performing as designed.
•
FFrreeeezzeerr aanndd ffrreesshh ffoooodd ffaann --
air rushes and whirls.
•
SSeeaalleedd ssyysstteemm --
(evaporator and heat exchanger) refrigerant flow
gurgles, pops or sounds like boiling water.
•
DDeeffrroosstt hheeaatteerr --
sizzles, hisses or pops.
•
CCoonnddeennsseerr ffaann --
air rushes and whirls.
•
CCoommpprreessssoorr --
has a high pitched hum or pulsating sound.
•
IIccee ccuubbeess --
from ice maker drop into ice bucket.
•
IIccee mmaakkeerr vvaallvvee hhooookkuupp --
buzzes when ice maker fills with water. This
occurs whether or not refrigerator is connected to water supply. If
refrigerator is not connected to water supply, stop sound by raising
ice maker arm to OFF position.
•Foam insulation is very energy efficient and has excellent insulating
capabilities. However, foam insulation is not as sound absorbent as
previously used fiberglass insulation.
24
LLoowweerr LLiigghhtt BBuullbbss ((RReeffrriiggeerraattoorr aanndd
FFrreeeezzeerr))
1. Disconnect power at breaker or
turn power disconnect switch to
off.
2. Bulb is removed by removing 1/4”
hex head screw from bottom of
cover. Tilt cover up and pull out.
3. Remove bulb by turning bulb
counterclockwise. Replace bulb
with 40-watt incandescent,
medium base tubular.
4. Reconnect power or turn power disconnect switch to on position.
Light bulb
Light bulb
cover
UUppppeerr LLiigghhtt BBuullbb
1. Disconnect power at breaker or turn power disconnect switch to
OFF position.
2. Remove light cover by removing screws. Cover drops down.
Replace bulb with an
incandescent, medium
base tubular bulb with a
maximum of 40 watts.
3. Replace cover by holding
cover against interior wall.
Insert and tighten screws.
4. Reconnect power or turn
power disconnect switch
to ON position.
Tubular Bulb
Cover
CCAAUUTTIIOONN
To avoid personal injury or damage, observe the following:
•Allow light bulb to cool.
•Wear gloves when replacing light bulb.
CChhaannggiinngg tthhee lliigghhtt bbuullbbss
EElleeccttrriiccaall SShhoocckk HHaazzaarrdd
DDiissccoonnnneecctt ppoowweerr aatt bbrreeaakkeerr oorr
ttuurrnn ppoowweerr ddiissccoonnnneecctt sswwiittcchh ttoo
OOFFFF ppoossiittiioonn bbeeffoorree rreemmoovviinngg aa
lliigghhtt bbuullbb.. FFaaiilluurree ttoo ddoo ssoo ccaann
rreessuulltt iinn ddeeaatthh oorr eelleeccttrriiccaall
sshhoocckk
27
26
LLeeaaffyy VVeeggeettaabblleess
Remove store wrapping. Tear off bruised and discolored areas. Wash in
cold water and drain. Place in plastic bag or plastic container and store
in produce drawer.
VVeeggeettaabblleess wwiitthh SSkkiinnss ((ccaarrrroottss,, ppeeppppeerrss,, eettcc..))
Store in plastic bags or plastic containers.
FFrruuiitt
Wash, let dry and store in plastic bags. Do not wash or hull berries until
they are ready to use. Sort and keep berries in original container in
produce drawer, or store in loosely closed paper bag on a refrigerator
shelf.
EEggggss
Store without washing in original carton or in provided egg bin.
MMiillkk
Wipe milk cartons. For best storage, place milk on interior shelf.
BBuutttteerr oorr MMaarrggaarriinnee
Keep opened butter in covered dish or closed compartment. When
storing in freezer, wrap in freezer packaging.
LLeeffttoovveerrss
Cover leftovers with plastic wrap, aluminum foil, or store in plastic
containers with tight lids.
MMeeaatt
Store meat in original wrapping as long as it is airtight and moistureproof. Rewrap if necessary. See below for recommended storage times.
When storing meat longer than the recommended times, freeze the
meat.
Chicken 1-2 days Bacon 5-7 days
Ground Beef 1-2 days Cold Cuts 3-5 days
Steaks/Roasts 3-5 days Variety Meats 1-2 days
Cured Meats 7-10 days
NNOOTTEE::
Use fresh fish and shellfish the same day as purchased.
PPoowweerr IInntteerrrruuppttiioonnss
1. If service will be interrupted 24 hours or less,
kkeeeepp ddoooorrss cclloosseedd..
This helps food stay frozen.
2. If service will be interrupted longer than 24 hours:
(a) Remove all frozen food and store in frozen food locker.
OORR
(b) Place 2 lbs. of dry ice in the freezer for every cubic foot of
freezer space. This will keep food frozen for 2 to 4 days. Wear
gloves to protect your hands from dry ice burns.
OORR
(c) If neither a food locker or dry ice is available, use or can
perishable food at once.
VVaaccaattiioonn TTiippss
SShhoorrtt VVaaccaattiioonnss
No need to shut off the refrigerator if you will be away for less than
four weeks.
1. Use any perishables.
2. Freeze other items.
3. Raise the signal arm in the automatic ice maker to the OFF (up)
position and shut off water supply to the ice maker.
LLoonngg VVaaccaattiioonnss
If you will be away for a month or more:
1. Remove all food from the refrigerator and freezer sections.
2. Turn the power disconnect switch to the OFF position.
3. Clean the refrigerator and door gaskets according to the “Cleaning
and Maintenance” section on page 16.
4. Prop doors open with rubber or woods blocks so air can circulate
inside. This will keep odor and mold from building up.
5. Raise the signal arm in the automatic ice maker to the OFF (up)
position and shut off water supply to the ice maker.
FFoooodd SSttoorraaggee GGuuiiddee
There is a correct way to package and store refrigerated or frozen food.
To keep food fresher longer follow these recommendations:
SSttoorriinngg FFrreesshh FFoooodd
Wrap or store food in the refrigerator in airtight and moisture-proof
material. This prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date to ensure freshness.
29
28
TTrroouubblleesshhoooottiinngg
Performance problems are often minor and can be fixed without tools.
Listed in this chart are the most common problems consumers run into
with their appliances. Please read through this and see if it can solve
your problem before calling for service.
PPrroobblleemm CChheecckk tthhee ffoolllloowwiinngg
Refrigerator will not Is the power cord plugged into a live
operate circuit with the proper voltage?
Has a household fuse blown or circuit breaker
tripped? Is the power switch in the ON
position?
Refrigerator makes See “Understanding the sounds you
unfamiliar sounds may hear” for descriptions of normal sounds
and what makes them.
Water in the defrost This is normal in hot, muggy weather. Make
pan sure the pan is level so it does not overflow.
Ice Maker will not Is the freezer cold enough to make ice? It
operate could take overnight for the freezer to reach
the proper temperature. Is the signal arm in
the ON (down) position? Is the water valve
turned on? Is water getting to the water
valve? Check water line for leaks.
Lights do not work Has a household fuse blown or circuit breaker
tripped? Is a bulb burned out?
Motor seems to run The motor naturally runs longer on hot days, if
too long the room is too warm, if a large amount of
food has been added, or if the doors are
opened often.
Ice and water Has either the refrigerator or freezer door been
dispenser will not left ajar for ten minutes or more?
operate
SSttoorriinngg FFrroozzeenn FFoooodd
PPaacckkaaggiinngg ffoooodd ffoorr ffrreeeezziinngg
The secret of successful freezing is in the packaging. The way you
close and seal the package must not allow air or moisture in or out.
Packaging done in any other way could compromise the quality of the
frozen foods
DDoo nnoott uussee::
•Bread wrappers
•Non-polyethylene plastic containers
•Containers without lids.
•Wax paper or wax-coated freezer wrap
•Thin, semi-permeable wrap
Recommended packaging:
•Rigid plastic containers with tight-fitting lids
•Straight-sided canning/freezing jars
•Heavy-duty aluminum foil
•Plastic-coated paper
•Non-permeable plastic wraps (made from saran film)
•Zip-top freezer bags
Follow package or container instructions for proper freezing methods.
FFrreeeezziinngg FFooooddss
Do not expect your freezer to quick-freeze any large quantity of food.
Do not load more than 2-3 pounds of unfrozen food per cubic foot
within 24 hours. Leave enough space for air to circulate around
packages. Be careful to leave enough room at the front so the door
can close tightly.
A full freezer stays cold longer than a partly filled one. A freezer full of
meat stays cold longer than a freezer full of baked goods. If food
contains ice crystals, it may be safely refrozen, although the quality and
flavor may be affected. If the condition of the food is poor, or if you
feel it is unsafe, dispose of it.
Storage times will vary according to the quality of food, the type of
packaging or wrap used (airtight and moisture-proof), and the storage
temperature, which should be 0 - 2
o
F (-18 to -17oC).
31
30
SSeerrvviiccee IInnffoorrmmaattiioonn
If service is required after checking the troubleshooting guide:
1. Call your dealer or authorized service agency. The name of the
authorized service agency can be obtained from the dealer or
distributor in your area.
2. Have the following information readily available:
•Model Number
•Serial Number
•Date of Purchase
•Name of dealer from whom purchased
3. Clearly describe the problem that you are having.
If you are unable to obtain the name of an authorized service agency,
or if you continue to have service problems, contact Viking Range
Corporation at (888) 845-4641 or write to:
VVIIKKIINNGG RRAANNGGEE CCOORRPPOORRAATTIIOONN
PPRREEFFEERRRREEDD SSEERRVVIICCEE
111 Front Street
Greenwood, Mississippi (MS) 38930 USA
Record the following information indicated below. You will need it if
service is ever required. The serial number and model number for your
refrigerator is located on the left wall of the the refrigerator section.
Model Number Serial Number
Date of Purchase Date Installed
Dealer’s Name
Address
If service requires installation of parts, use only authorized parts to
ensure protection under the warranty.
PPlleeaassee rreettaaiinn tthhee mmaannuuaall ffoorr ffuuttuurree rreeffeerreennccee
