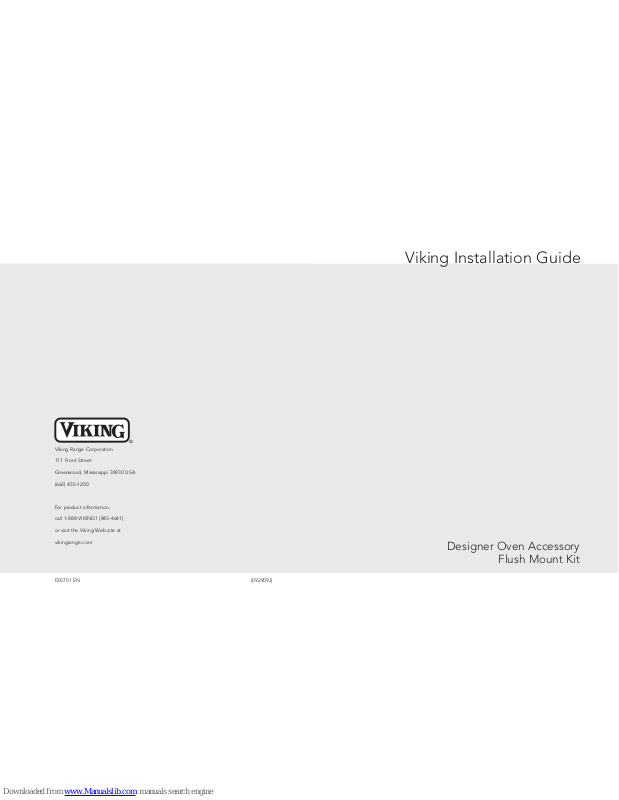

Viking Installation Guide
Designer Oven Accessory
Flush Mount Kit
Page 2
2 3
Removing Existing Trim
Removing Existing Trim
Remove the two existing side trim pieces from the oven. There should be one trim piece on
each side of the oven.
NOTE: Keep the screws that are left after removing the existing side trim pieces. These
screws will be used to install the flush mount accessory trim pieces.
DSOE
Single Oven
DDOE
Double Oven
Page 3
54
Installing Flush Mount Trim
Installing Flush Mount Trim

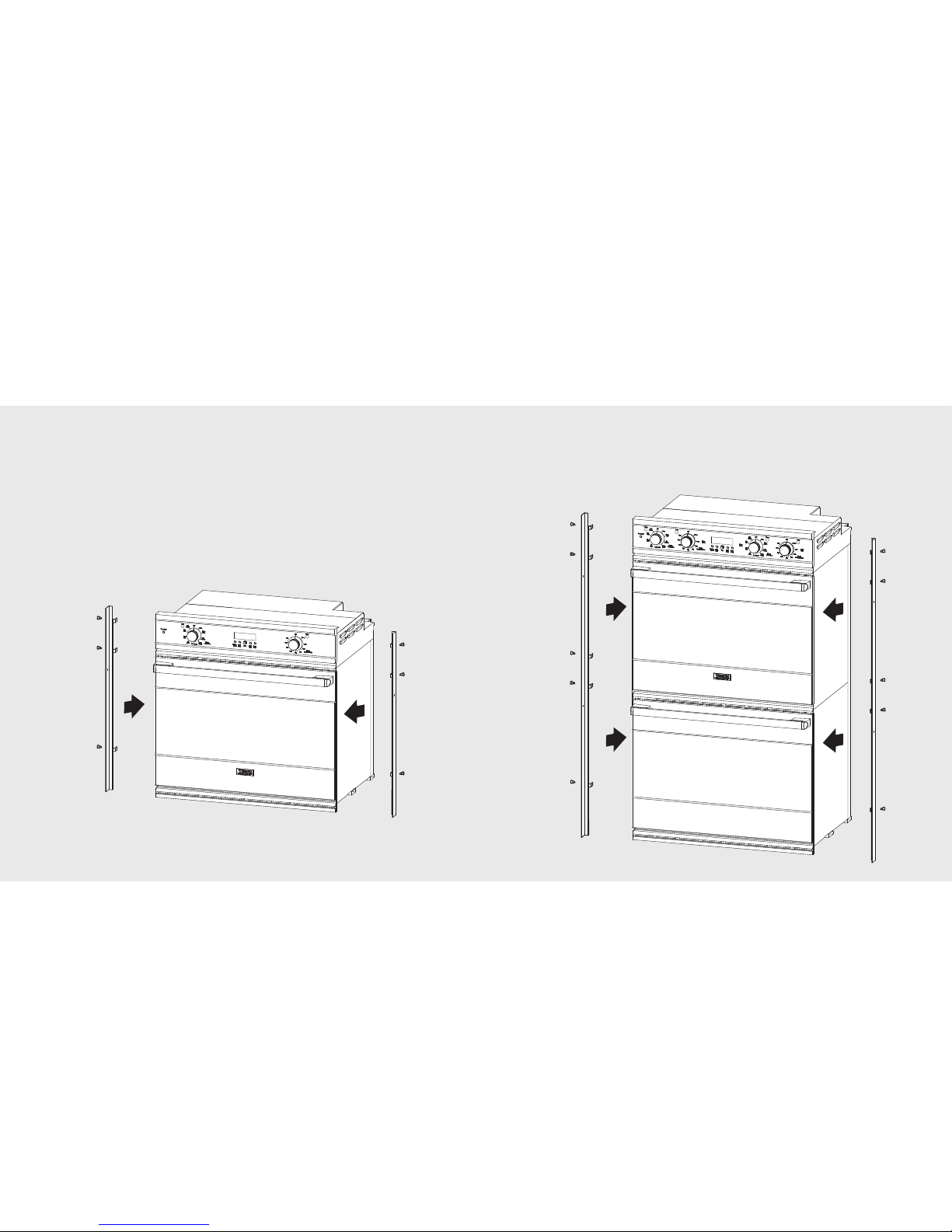

After removing the existing side trim pieces, install the two flush mount trim pieces to the oven.
1. Remove the protective plastic from the flush mount trim pieces.
2. Install the two flush mount trim pieces to the oven (see diagram for single and double oven
installation.)
NOTE: There will be a designated right and left hand side flush mount trim piece. Install
the corresponding trim piece on the correct side, as they are not interchangeable.
3. After installing the flush mount trim pieces, the oven can be installed in the cutout.
DSOE
Single Oven
DDOE
Double Oven
