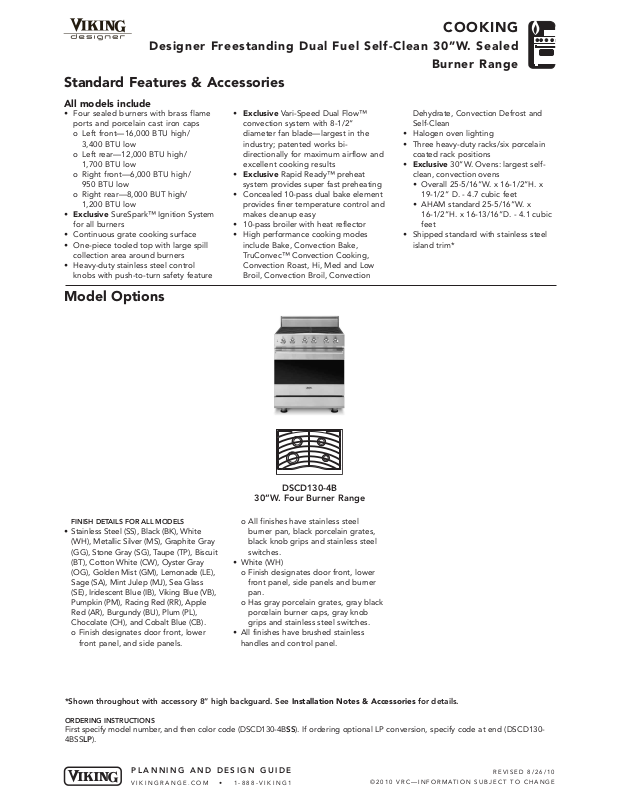

Viking DSCD130- 4BSSLP User Manual

Designer Freestanding Dual Fuel Self-Clean 30”W. Sealed

Standard Features & Accessories

All models include

• Four sealed burners with brass flame
ports and porcelain cast iron caps
o Left front—16,000 BTU high/

3,400 BTU low

o Left rear—12,000 BTU high/

1,700 BTU low

o Right front—6,000 BTU high/

950 BTU low

o Right rear—8,000 BUT high/

1,200 BTU low

• Exclusive SureSpark™ Ignition System
for all burners

• Continuous grate cooking surface

• One-piece tooled top with large spill
collection area around burners

• Heavy-duty stainless steel control
knobs with push-to-turn safety feature

• Exclusive Vari-Speed Dual Flow™
convection system with 8-1/2”
diameter fan blade—largest in the
industry; patented works bi­directionally for maximum airflow and
excellent cooking results

• Exclusive Rapid Ready™ preheat
system provides super fast preheating

• Concealed 10-pass dual bake element
provides finer temperature control and
makes cleanup easy

• 10-pass broiler with heat reflector

• High performance cooking modes
include Bake, Convection Bake,
TruConvec™ Convection Cooking,
Convection Roast, Hi, Med and Low
Broil, Convection Broil, Convection

Model Options

COOKING

Burner Range

Dehydrate, Convection Defrost and
Self-Clean

• Halogen oven lighting

• Three heavy-duty racks/six porcelain
coated rack positions

• Exclusive 30”W. Ovens: largest self­clean, convection ovens

• Overall 25-5/16”W. x 16-1/2”H. x

19-1/2” D. - 4.7 cubic feet

• AHAM standard 25-5/16”W. x

16-1/2”H. x 16-13/16”D. - 4.1 cubic
feet

• Shipped standard with stainless steel
island trim*

DSCD130-4B

30”W. Four Burner Range

FINISH DETAILS FOR ALL MODELS

• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
o Finish designates door front, lower

front panel, and side panels.

*Shown throughout with accessory 8” high backguard. See Installation Notes & Accessories for details.

ORDERING INSTRUCTIONS

First specify model number, and then color code (DSCD130-4BSS). If ordering optional LP conversion, specify code at end (DSCD130­4BSSLP).

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C OM • 1 - 8 8 8 - V I K I N G 1

o All finishes have stainless steel

burner pan, black porcelain grates,
black knob grips and stainless steel
switches.

• White (WH)
o Finish designates door front, lower

front panel, side panels and burner
pan.

o Has gray porcelain grates, gray black

porcelain burner caps, gray knob
grips and stainless steel switches.

• All finishes have brushed stainless
handles and control panel.

R E V I S E D 8 / 2 6 / 1 0

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

35-7/8”

(91.1 cm) min.

to

37”

(94 cm) max.

25-3/4” (65.4 cm)

45” (114.3 cm)

19-1/4”

(48.9 cm)

24” (61.0 cm)

25” (63.5 cm)

28-1/4” (

71.8 cm)

6”

(15.2 cm)

25” (63.5 cm)

1-1/2”

(

3.8 cm)

2

6-1/2”

(67.3 cm)

3

5

-

7

/

8

”

(

9

1

.

1

c

m

)

m

i

n

.

t

o

3

7

”

(

9

4

c

m

)

m

a

x

.

2

9

-

7

/8

”

(

7

5

.

9

c

m

)

COOKING

Designer Freestanding Dual Fuel Self-Clean 30”W. Sealed

Burner Range

Please see



Installation Notes &

Accessories

for important

installation

information

including

backguard, high-

shelf, island trim,

and curb base front.

ALL MODELS

Star-K Kosher
Certification for
use on the Jewish
Sabbath or Jewish
holidays

Dimensions & Specifications

PRODUCT DIMENSIONS & DOOR SWING

DSCD130-4B

30”W. Four Burner Range

DSCD130-4B

Overall width 29-7/8” (75.9 cm)
Overall height

Base height

To top of side trim 35-7/8” (91.1 cm) min. to 37” (94.0 cm) max.
Legs adjust (with “spindles” fully extended) 1-1/8” (2.9 cm)

Additions to base height

To top of island trim Add 0” (0.0 cm)
To top of 6” backguard Add 6” (15.2 cm)
To top of high-shelf Add 18-3/16” (46.2 cm)

Overall depth (from rear)

Oven

To front of side panel 25” (63.5 cm)
To front of door 25-3/4” (65.4 cm)
To front of landing edge 26-1/2” (67.3 cm)
To front of door handle 28-1/4” (71.8 cm)

Interior width 25-5/16” (64.6 cm)
Interior height 16-1/2” (41.9 cm)
Interior depth Overall – 19-1/2” (49.5 cm)/AHAM – 16-13/16” (42.7 cm)
Overall interior size Overall – 4.7 cu. ft./AHAM – 4.1 cu. ft.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

R E V I S E D 8 / 2 6 / 1 0

Designer Freestanding Dual Fuel Self-Clean 30”W. Sealed

4

2”

m

i

n

.

(

1

0

6

.

7

c

m

)

13”

m

a

x

.

(

3

3

.

0

c

m

)

6

” m

i

n

.

(

1

5

.

2

c

m)

1

8

”

m

i

n

.

(

4

5

.

7

c

m

)

3

/

8

”

(

0

.

9

5

c

m

)

3

6

”

(

9

1

.

4

c

m

)

A

(o

p

e

n

i

n

g w

i

d

t

h

)

Dimensions & Specifications

CLEARANCE DIMENSIONS

COOKING

Burner Range

Minimum clearances from adjacent
combustible construction

• Cooking surface and below, i.e.,
36” (91.4 cm) and below

o Sides—0”
o Rear—0” with 8” backguard or

high-shelf; 0” with island trim
and non-combustible rear wall;
6” (15.2 cm) with island trim
and combustible rear wall

o Top grate support—36” (91.4 cm)

• Above cooking surface, i.e., above

36” (91.4 cm)
o Sides—6” (15.2 cm)
o Within 6” (15.2 cm) side clearance,

wall cabinets no deeper than 13”
(33.0 cm) must be minimum 18”
(45.7 cm) above cooking surface

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

Range
Width

30” 30” (76.2 cm)

“A”

Dimension

o Wall cabinets directly above product

must be minimum 42” (106.7 cm) for
sealed top burners above cooking
surface

• Use range only with factory supplied
legs

1.This range may be installed directly
adjacent to existing 36” (91.4 cm) high
base cabinets. Important: The top
grate support must be 3/8” (0.95 cm)
above the adjacent base cabinet
countertop. This may be accomplished
by raising the unit using the
adjustment spindles on the legs.

2.The range cannot be installed directly
adjacent to sidewalls, tall cabinets, tall
appliances, or other side vertical
surfaces above 36” (91.4 cm) high.

There must be a minimum of
6” (15.2 cm) side clearance from the
range to such combustible surfaces
above the 36” (91.4 cm) counter height.

3.Within the 6” (15.2 cm) side clearance
to combustible vertical surfaces above
36” (91.4 cm), the maximum wall
cabinet depth must be 13” (33.0 cm)
and wall cabinets within this 6” (15.2
cm) side clearance must be 18” (45.7
cm) above the 36” (91.4 cm) high
countertop.

4.Wall cabinets above the range must be
a minimum of 42” (106.7 cm) above
the range cooking surface for the full
width of the range. This minimum
height requirement does not apply if a
rangehood is installed over the
cooking surface.

R E V I S E D 8 / 2 6 / 1 0

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

2” dia.

(5.1 cm)

3-1/8”

(7.9 cm)

2-1/2”

(6.4 cm)

1-7/8”

(4.8 cm)

29-1/4”

(79.3 cm)

24-7/8”

(63.2 cm)

Gas or electrical
connection in
this area

Gas connection
in this area

3-1/2”

(8.9 cm)

32”

(81.3 cm)

COOKING

Designer Freestanding Dual Fuel Self-Clean 30”W. Sealed

Burner Range

UTILITY

REQU IR EMENT S

GAS

• Shipped natural
gas standard;
field convert to
LP/propane with
optional accessory
kit or order as LP
by adding LP
after color code

• Accepts standard
residential 1/2” ID
gas service line

• Gas manifold
pressure
o Natural gas 5.0”

W.C.P.

o LP/Propane

10.0” W.C.P.

ELECTRICAL

• 240-208 VAC 60

Hz electrical
connection box on
product, connect
with locally supplied
3-wire, flexible cord
or “pigtail” rated 40
amp. 125-250 VAC
minimum. Cord
must be agency
approved for use
with household
electric ranges.

Installation Requirements

ACCESS REQUIREMENTS

DSCD130-4B

30”W. Four Burner Range

• Maximum amp
usage—

o

30”W. 4B—
240V - 25.4 amp
208V - 22.9 amp

PLUMBING

Not applicable

Surface burner rating

Left front 16,000 BTU Nat. (4.7 kW)/15,500 BTU LP (4.5 kW)
Left rear 12,000 BTU Nat. (3.5 kW)/11,500 BTU LP (3.4 kW)
Center
Right rear 8,000 BTU Nat. (2.0 kW)/7,500 BTU LP (1.9 kW)
Right front 6,000 BTU Nat. (1.5 kW)/5,500 BTU LP (1.4 kW)

** Top of grates should be 3/8” (1.0 cm) above countertop.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

Note: Ground plug and electrical wire toward the direction of the electrical outlet.

DSCD130-4B

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

R E V I S E D 8 / 2 6 / 1 0

COOKING

Designer Freestanding Dual Fuel Self-Clean 30”W. Sealed

Burner Range

Installation Notes & Accessories



A backguard, high-shelf, or island trim must be used for all installations.

Island Trim

• Stainless Steel (SS)
Coordinates with all finishes

•

• For island/peninsula installation

• Can replace backguard if wall is non-combustible

• Included and shipped automatically with the 30”W. range

Model Description Approx. ship wt. lbs. (kg)

S30TII 30”W. island trim 11 (5.0)

D

6”H. Backguard

• Stainless Steel (SS)

• Coordinates with all finishes

Model Description Approx. ship wt. lbs. (kg)

DS30BG6 30”W. backguard 14 (6.3)

10”H. Backguard

• Stainless Steel (SS)

• Coordinates with all finishes

Model Description Approx. ship wt. lbs. (kg)

S30BG10 30”W. backguard 18 (8.1)

D

High-shelf

• Stainless Steel (SS)

• Coordinates with all finishes

Model Description Approx. ship wt. lbs. (kg)

DS30HS24 30”W. high-shelf 45 (20.3)

Countertop Side Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• One pair of trim

• Installs on side of unit; overlaps countertop

Model Description Approx. ship wt. lbs. (kg)

P24CST 24”D. side trim 2 (0.9)

Countertop Rear Trim

• Stainless Steel (SS)

• Coordinates with all finishes

Model Description Approx. ship wt. lbs. (kg)

P30CRT 30”W. countertop rear trim 2 (0.9)

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

R E V I S E D 8 / 2 6 / 1 0

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

COOKING

Designer Freestanding Dual Fuel Self-Clean 30”W. Sealed

Burner Range

Installation Notes & Accessories



Curb Base Front Custom Curb Base Front

• Stainless Steel (SS) • Remove stainless steel front and recycle

• Coordinates with all finishes
Front only

•

• Conceals range legs • Completely assembled

•

Completely assembled • Easily clips onto range legs after range is installed

•

Easily clips onto range legs after range is installed

Model Description Approx. ship wt. lbs. (kg)

P30CBF4 30”W. curb base front 9 (4.1)

LP/Propane Conversion Kit

• Allows for field conversion of range from natural gas to LP

Model Description Approx. ship wt. lbs. (kg)

PKDDF Natural to LP/propane conversion kit 2 (0.9)

L

•

Conceals range legs

•

ttach locally supplied trim

A

•

Provides drop-in range look

Compliance Information

WARRANTY INFORMATION*

• One-year full warranty—complete product

• Ten-year limited warranty—porcelain oven and porcelain inner door panel

• Five-year limited warranty—surface burners, griddle burners, grill burners, and oven burner

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items

* For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

R E V I S E D 8 / 2 6 / 1 0
