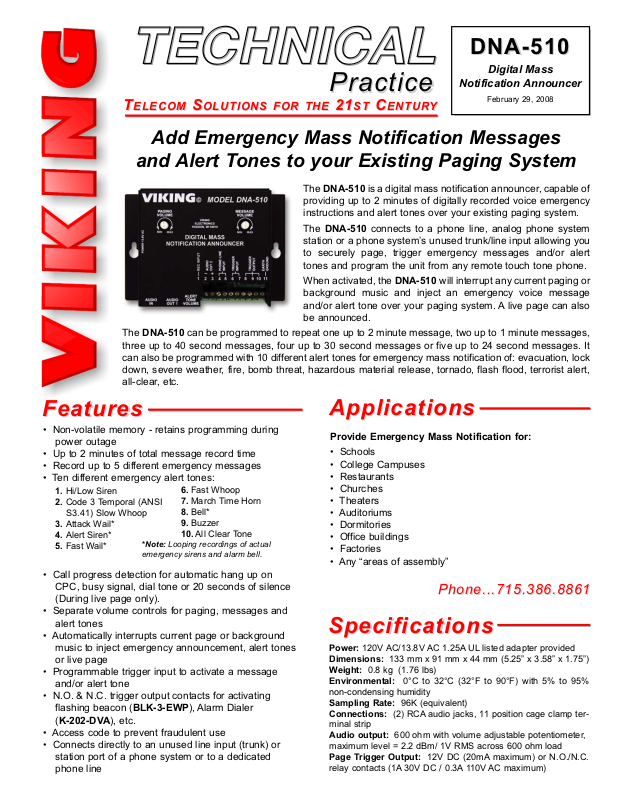

TECHNICAL

TECHNICAL

DNA-510

DNA-510

Digital Mass

Notification Announcer

February 29, 2008

PPhhoonnee......771155..338866..8888661

1

Power: 120V AC/13.8V AC 1.25A UL listed adapter provided
Dimensions: 133 mm x 91 mm x 44 mm (5.25” x 3.58” x 1.75”)
Weight: 0.8 kg (1.76 lbs)
Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95%

non-condensing humidity

Sampling Rate: 96K (equivalent)
Connections: (2) RCA audio jacks, 11 position cage clamp ter-

minal strip
Audio output: 600 ohm with volume adjustable potentiometer,
maximum level = 2.2 dBm/ 1V RMS across 600 ohm load
Page Trigger Output: 12V DC (20mA maximum) or N.O./N.C.
relay contacts (1A 30V DC / 0.3A 110V AC maximum)

Add Emergency Mass Notification Messages

and Alert Tones to your Existing Paging System

SSppeecciiffiiccaattiioonns

s

FFeeaattuurrees

s

• Non-volatile memory - retains programming during
power outage

• Up to 2 minutes of total message record time

• Record up to 5 different emergency messages

• Ten different emergency alert tones:

• Call progress detection for automatic hang up on
CPC, busy signal, dial tone or 20 seconds of silence
(During live page only).

• Separate volume controls for paging, messages and
alert tones

• Automatically interrupts current page or background
music to inject emergency announcement, alert tones
or live page

• Programmable trigger input to activate a message
and/or alert tone

• N.O. & N.C. trigger output contacts for activating
flashing beacon (BLK-3-EWP), Alarm Dialer
(K-202-DVA), etc.

• Access code to prevent fraudulent use

• Connects directly to an unused line input (trunk) or
station port of a phone system or to a dedicated
phone line

The DNA-510 is a digital mass notification announcer, capable of
providing up to 2 minutes of digitally recorded voice emergency
instructions and alert tones over your existing paging system.

The DNA-510 connects to a phone line, analog phone system
station or a phone system’s unused trunk/line input allowing you
to securely page, trigger emergency messages and/or alert
tones and program the unit from any remote touch tone phone.

When activated, the DNA-510 will interrupt any current paging or
background music and inject an emergency voice message
and/or alert tone over your paging system. A live page can also
be announced.

The DNA-510 can be programmed to repeat one up to 2 minute message, two up to 1 minute messages,
three up to 40 second messages, four up to 30 second messages or five up to 24 second messages. It
can also be programmed with 10 different alert tones for emergency mass notification of: evacuation, lock
down, severe weather, fire, bomb threat, hazardous material release, tornado, flash flood, terrorist alert,
all-clear, etc.

Provide Emergency Mass Notification for:

• Schools

• College Campuses

• Restaurants

• Churches

• Theaters

• Auditoriums

• Dormitories

• Office buildings

• Factories

• Any “areas of assembly”

AApppplliiccaattiioonns

s

1. Hi/Low Siren

2. Code 3 Temporal (ANSI

S3.41) Slow Whoop

3. Attack Wail*

4. Alert Siren*

5. Fast Wail*

6. Fast Whoop

7. March Time Horn

8. Bell*

9. Buzzer

10. All Clear Tone

*Note: Looping recordings of actual
emergency sirens and alarm bell.

IF YOU HAVE A PROBLEM WITH A VIKING PRODUCT, PLEASE CONTACT: VIKING TECHNICAL SUPPORT AT [phone]

Our Technical Support Department is available for assistance Monday 8am - 4pm and Tuesday through Friday 8am - 5pm central time. So that we can give you better service, before you call please:

1. Know the model number, the serial number and what software version you have (see serial label).

2. Have your Technical Practice in front of you.

3. It is best if you are on site.

RETURNING PRODUCT FOR EXCHANGE

The following procedure is for equipment that has failed out-of-box (within 10 days of purchase):

1. Customer must contact Viking’s Technical Support at 715-386-8666 to determine possible causes for the problem. The

customer MUST be able to step through recommended tests for diagnosis.

2. If the Technical Support Product Specialist determines that the equipment is defective based on the customer's input
and troubleshooting, a Return Authorization (R.A.) number will be issued. This number is valid for fourteen (14)
calendar days from the date of issue.

3. After obtaining the R.A. number, return the approved equipment to your distributor, referencing the R.A. number. Your
distributor will then replace the product over the counter at no charge. The distributor will then return the product to
Viking using the same R.A. number.

4. The distributor will NOT exchange this product without first obtaining the R.A. number from you. If you haven't
followed the steps listed in 1, 2 and 3, be aware that you will have to pay a restocking charge.

RETURNING PRODUCT FOR REPAIR

The following procedure is for equipment that needs repair:

1. Customer must contact Viking's Technical Support Department at 715-386-8666 to obtain a Return Authorization (RA)

number. The customer MUST have a complete description of the problem, with all pertinent information regarding the
defect, such as options set, conditions, symptoms, methods to duplicate problem, frequency of failure, etc.

2. Packing: Return equipment in original box or in proper packing so that damage will not occur while in transit. Static
sensitive equipment such as a circuit board should be in an anti-static bag, sandwiched between foam and individual­ly boxed. All equipment should be wrapped to avoid packing material lodging in or sticking to the equipment. Include
ALL parts of the equipment. C.O.D. or freight collect shipments cannot be accepted. Ship cartons prepaid to:

Viking Electronics, 1531 Industrial Street, Hudson, WI 54016

3. Return shipping address: Be sure to include your return shipping address inside the box. We cannot ship to a PO Box.

4. RA number on carton: In large printing, write the R.A. number on the outside of each carton being returned.

FFeeaattuurreessOOvveerrvviieew

w

the necessary modifications to maintain uninterrupted service.
If trouble is experienced with the DNA-510, for repair or warranty information, please contact:

Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI 54016 [phone]

If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the
equipment until the problem is resolved.

Connection to Party Line Service is subject to State Tariffs. Contact the state public utility commission, public service com­mission or corporation commission for information.

WHEN PROGRAMMING EMERGENCY NUMBERS AND (OR) MAKING TEST CALLS TO EMERGENCY NUMBERS:

Remain on the line and briefly explain to the dispatcher the reason for the call. Perform such activities in the off-peak
hours, such as early morning or late evenings.

It is recommended that the customer install an AC surge arrester in the AC outlet to which this device is connected. This
is to avoid damaging the equipment caused by local lightning strikes and other electrical surges.

PART 15 LIMITATIONS

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radi­ate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.

FCC REQUIREMENTS

This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the side of this
equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If
requested, this number must be provided to the telephone company.

The REN is used to determine the number of devices that may be connected to a telephone line. Excessive REN's on a
telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of
the REN's should not exceed five (5.0) To be certain of the number of devices that may be connected to a line, as deter­mined by the total REN's, contact the local telephone company. For products approved after July 23, 2001, the REN for
this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the
REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.

The plug used to connect this equipment to the premises wiring and telephone network must comply with the applicable
FCC Part 68 rules and requirements adopted by the ACTA. If your home has specially wired alarm equipment connected
to the telephone line, ensure the installation of this DNA-510 does not disable your alarm equipment. If you have ques­tions about what will disable alarm equipment, consult your telephone company or a qualified installer.

If the DNA-510 causes harm to the telephone network, the telephone company will notify you in advance that temporary
discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the cus­tomer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is nec­essary.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the
operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make

LIMITED WARRANTY

Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of one year from the date of purchase from any authorized Viking distributor or 18 months from the date manu­factured, which ever is greater. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016. Customer must contact Viking's
Technical Support Department at 715-386-8666 to obtain a Return Authorization (R.A.) number.

This warranty does not cover any damage to the product due to lightning, over voltage, under voltage, accident, misuse, abuse, negligence or any damage caused by use of the product by the purchaser or others.

NO OTHER WARRANTIES

. VIKING MAKES NO WARRANTIES RELATING TO ITS PRODUCTS OTHER THAN AS DESCRIBED ABOVE AND DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTIES OR MERCHANTABILITY OR FIT-

NESS FOR ANY PARTICULAR PURPOSE.

EXCLUSION OF CONSEQUENTIAL DAMAGES

. VIKING SHALL NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE TO PURCHASER, OR ANY OTHER PARTY, FOR CONSEQUENTIAL, INCIDENTAL, SPECIAL OR EXEMPLARY DAM-

AGES ARISING OUT OF OR RELATED TO THE SALE OR USE OF THE PRODUCT SOLD HEREUNDER.

EXCLUSIVE REMEDY AND LIMITATION OF LIABILITY. WHETHER IN AN ACTION BASED ON CONTRACT, TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR ANY OTHER LEGAL THEORY, ANY LIABILITY OF VIKING SHALL

BE LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT, OR AT VIKING'S OPTION, REFUND OF THE PURCHASE PRICE AS THE EXCLUSIVE REMEDY AND ANY LIABILITY OF VIKING SHALL BE SO LIMITED.

IT IS EXPRESSLY UNDERSTOOD AND AGREED THAT EACH AND EVERY PROVISION OF THIS AGREEMENT WHICH PROVIDES FOR DISCLAIMER OF WARRANTIES, EXCLUSION OF CONSEQUENTIAL DAMAGES, AND EXCLU­SIVE REMEDY AND LIMITATION OF LIABILITY, ARE SEVERABLE FROM ANY OTHER PROVISION AND EACH PROVISION IS A SEPARABLE AND INDEPENDENT ELEMENT OF RISK ALLOCATION AND IS INTENDED TO BE ENFORCED
AS SUCH.

p

2

Paging Volume Control - To adjust audio
output level of "live" paging. Note: This does not

control the paging volume from your phone system's

aging port.

Power Input - Connect to provided 13.8V AC

1.25A adapter.

Audio Loop Input - Line level pre-amp input for
non-emergency paging, background music etc.
(RCA type connector)

Audio Loop Output 1 - Line level output to paging amplifier
(RCA type connector, also available on screw terminals
2 & 3 "Audio Out 2".

Alert Tone Volume Control - To adjust audio output level of synthesized alert
tones (hi/low, code 3 whoop, fast whoop, march time horn, buzzer, all clear)

1 & 2: Optional Message Record Input - Connect to output of tape player,
PC sound card, etc. to record professional messages or unique alert tones.
Note: This is optional, normal recording is done via telephone.

2 & 3: Audio Loop Out 2 - Same as Audio Loop Out 1 but uses screw
terminal connections. See Audio Loop Out 1 (above).

VIKING

PAGING

VOLUME

MIN

MAX

DIGITAL MASS

POWER 13.8V AC

AUDIOINAUDIO

NOTIFICATION ANNOUNCER

ALERT

TONE

VOLUME

OUT 1

MODEL DNA-510

©

MESSAGE

INPUT

PHONE LINE

VOLUME

MIN

INPUT

TRIGGER

MAX

TRIGGER

VIKING

ELECTRONICS

HUDSON, WI 54016

OUT 2

REC INPUT

AUDIO

1234567891011

OUTPUT

GROUND

EARTH

Message Volume Control - To adjust audio output

level of recorded messages and pre-recorded alert
tones (attack wail, alert siren, fast wail, bell)

Power Indicator LED

Mode Switch - Set to "Ring Trip" when connect-

ing to a phone system's unused station port or
dedicated phone line. Set to "Trunk" when
connecting to a phone system's unused line
(trunk) input port.

Page Active LED

Dip Switches - See Programming section F.

JP5 Trigger Output Selection - See
Programming section K.

11: Optional Earth Ground (see **Note, pg 3)

Page Trigger Output (see Programming, K)

10: N.C. Relay Contact
9: + 12VDC / COM Relay Contact
8: - Neg / N.O. Relay Contact

6 & 7: Trigger Input - Can be configured as

normally open, normally closed or disabled.
Momentary or continuous contact.

4 & 5: Phone Line Input - Connect to a ded­icated phone line or phone system's unused
analog station port or unused line (trunk) input.
See "Mode Switch" above.

IInnssttaallllaattiioonnaannddAApppplliiccaattiioonns

s

3

This application will allow you to control the DNA-510 from any telephone on your phone system. You can simply access the phone
system’s line the DNA-510 is connected to or call the phone system extension or dedicated POTS line it is connected to. The unit
will automatically answer allowing you to enter a touch tone command to interrupt standard paging or background music and
announce a live emergency page, start a emergency pre-recorded message or start one of ten different alert tones. Note: Place

mode switch in “Trunk” position when connecting to a phone system’s unused line input. Place mode switch in “Ring Trip” position
when connecting to a phone system’s unused station port or dedicated phone line.

IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges from both the AC outlet and the telephone line.
It is recommended that a surge protector be installed to protect against such surges. Contact Panamax at [phone] or Electronic
Specialists Inc. at [phone].

!

A. Connecting to a Phone Systems Unused Line (Trunk) Input, Unused Analog Station Port or

to a Dedicated (POTS) Line

This application will allow you to control the DNA-510 from one or more dedicated (standard analog) telephones. You can simply
come off-hook with any phone and enter a touch tone command to interrupt standard paging or background music and announce
a live emergency page, start a emergency pre-recorded message or start one of ten different alert tones. Note: Place the mode

switch in the “Trunk” position.

B. Connecting to One or More Dedicated Telephones

* Caution: Uninterrupted Power Supply (UPS) recommended.
UPS should have sufficient backup time to allow for emer­gency communication during a power outage. Maximum power
consumption: DNA-510: 10 watts, PA-30: 50 watts.

Dedicated Telephones

DIGITAL MASS

NOTIFICATION ANNOUNCER

VIKING

ELECTRONICS

HUDSON, WI 54016

VIKING

©

MODEL DNA-510

POWER 13.8V AC

1234567891011

AUDIO

PHONE LINE

OUT 2

INPUT

TRIGGER

INPUT

TRIGGER

OUTPUT

EARTH

REC INPUT

GROUND

PAGING

VOLUME

MESSAGE

VOLUME

MAX

MIN

MAX

MIN

AUDIOINAUDIO

OUT 1

ALERT

TONE

VOLUME

*13.8V AC

Adapter

(included)

*UPS

120V AC

To External Trigger (Example: Fire Alarm

Control Panel Trigger Relay Output)

**Earth Ground

(optional)

Paging Amplifier

(not included)

SPKR

Out

+ -

SPKR

Out

+ -

Paging

Input

Page

Trigger

Input

Background

Music Input

Mode Switch

(see Note above)

Trun k

*UPS

120V AC

Page Trigger Output

Selection (J5 Jumper)

1 2 3 4

OR

= Dry Contact

= 12VDC

1 2 3 4

Pin 9: +

Pin 8: -

To control optional strobe
light (Example: Viking model

BLK-3-EWP)

120V AC

- or -

** Note: To increase surge protection, fasten a wire from the screw
terminal to Earth Ground (grounding rod, water pipe, etc.)

** Note: To increase surge protection, fasten a wire from the screw terminal to Earth Ground (grounding rod, water pipe, etc.)

* Caution: Uninterrupted Power

Supply (UPS) recommended. UPS
should have sufficient backup time
to allow for emergency communica­tion during a power outage.
Maximum power consumption:
DNA-510: 10 watts.

*See caution below

120V AC

Dedicated (POTS)

Phone Line

*UPS

Phone System's

Unused Phone

Line Input

(Trunk Port) or

Unused Analog

Station Port

*13.8V AC

Adapter

(included)

VIKING

PAGI NG

VOLUME

MIN

MAX

NOTIFICATION ANNOUNCER

POWER 13.8V AC

ALERT

OUT 1

TONE

VOLUME

AUDIOINAUDIO

MODEL DNA-510

©

VIKING

ELECTRONICS

HUDSON, WI 54016

DIGITAL MASS

REC INPUT

1234567891011

AUDIO

OUT 2

INPUT

PHONE LINE

MESSAGE

VOLUME

MIN

INPUT

TRIGGER

MAX

OUTPUT

GROUND

TRIGGER

EARTH

**Earth Ground (optional)

Mode Switch

(see Note above)

Ring

Trip

Set all PA-30 Dip
Switches to OFF

Page Trigger Output

Selection (J5 Jumper)

1 2 3 4

Trun k

123on4

= Dry Contact

Page Audio Out

Optional Page Trigger Contact

or

Up to (15) 8 Ohm Speakers

To External Trigger (Example: Fire Alarm
Control Panel Trigger Relay Output)

(Viking Model 25AE

shown, not included)

Up to (15) more 8 Ohm Speakers

(Viking Model 30AE shown, not included)

Model PA-30 (not included)

VIKING

30 WATT TELECOM

600 OHM

SPKRS

LED1

600 OHM
OUTPUT

PAGING AMPLIFIER

OUTPUT

789101112

C

AUX IN

PWR 15 VAC

70V OUT

SPKRS

123456

C

+ SPKR - + SPKR -

70V OUT

MODEL PA-30

©

VIKING

ELECTRONICS

HUDSON, WI 54016

PAGE

CONTACT

AUX IN

PAGE IN

13 14 15 16 17

LED3

LED2

LED4
C

C

123on4

PAGE

RINGING

PAGE IN

CONTACT

Audio out to
additional PA-30's
(Connect multiple
PA-30's to drive
additional speakers.
See the PA-30
Technical Practice)

Optional Background Music

Source (not included)

MASTER
VOLUME

MIN MAX

LOUD RINGING

LINE IN

CONTACT

LED5

C

CC NT

LINE

NIGHT

CLOSURE

TRANSFER

BACKGROUND

MUSIC IN

3.5mm
plug
