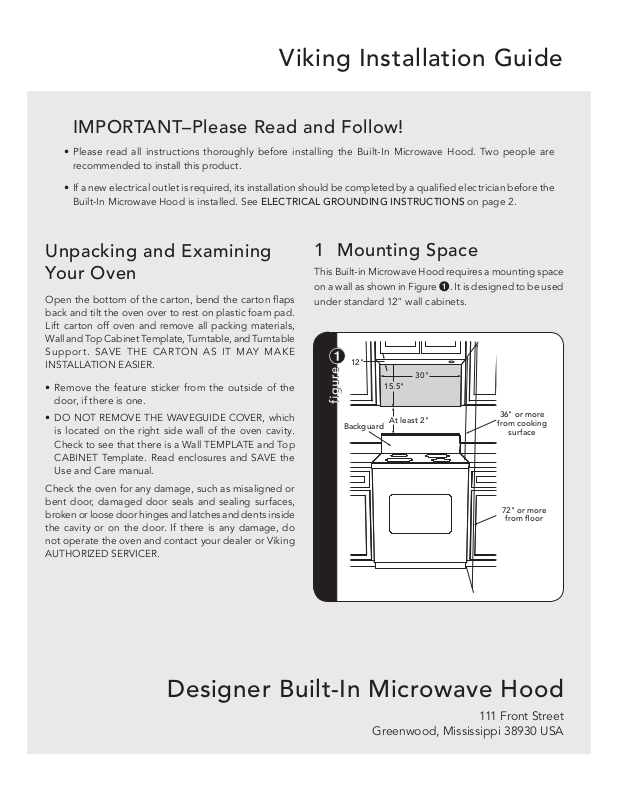

Viking Installation Guide
IMPORTANT–Please Read and Follow!
•Please read all instructions thoroughly before installing the Built-In Microwave Hood. Two people are recommended to install this product.
•If a new electrical outlet is required, its installation should be completed by a qualified electrician before the Built-In Microwave Hood is installed. See ELECTRICAL GROUNDING INSTRUCTIONS on page 2.
Unpacking and Examining
Your Oven
Open the bottom of the carton, bend the carton flaps back and tilt the oven over to rest on plastic foam pad. Lift carton off oven and remove all packing materials, Wall and Top Cabinet Template, Turntable, and Turntable Support. SAVE THE CARTON AS IT MAY MAKE INSTALLATION EASIER.
•Remove the feature sticker from the outside of the door, if there is one.
•DO NOT REMOVE THE WAVEGUIDE COVER, which is located on the right side wall of the oven cavity. Check to see that there is a Wall TEMPLATE and Top CABINET Template. Read enclosures and SAVE the Use and Care manual.
Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surfaces, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact your dealer or Viking AUTHORIZED SERVICER.
1 Mounting Space
This Built-in Microwave Hood requires a mounting space on a wall as shown in Figure 1. It is designed to be used under standard 12" wall cabinets.
1 12" |
|
|
|
|
30" |
|
|
|
15.5" |
|
|
|
At least 2" |
36" or more |
|
Backguard |
from cooking |
||
|
|||
|
surface |
||
|
|
72" or more
from floor
Designer Built-In Microwave Hood
111 Front Street
Greenwood, Mississippi 38930 USA
2 Wall Construction
This Built-in Microwave Hood should be mounted against and supported by a flat vertical wall. The wall must be flat for proper installation. If the wall is not flat, use spacers to fill in the gaps. Wall construction should be a minimum of 2” x 4” wood studding and 3/8” or more thick dry wall or plaster/lath. The mounting surfaces must be capable of supporting a weight of 110 pounds—the oven and contents—AND the weight of all items which would normally be stored in the top cabinet above the unit. The unit should be attached to a minimum of one 2” x 4” wall stud.
To find the location of the studs, one of the following methods may be used:
•Use a stud finder, a magnetic device which locates the nails in the stud.
•Use a hammer to tap lightly across the mounting surface to find a solid sound. This will indicate stud location.
The center of the stud can be located by probing the wall with a small nail to find the edges of the stud and then placing a mark halfway between the edges. The center of any adjacent studs will normally be 16” or 24” to either side of this mark.
3ELECTRICAL GROUNDING
INSTRUCTIONS
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current.
WARNING: Improper use of the grounding plug can result in a risk of electric shock.
ELECTRICAL REQUIREMENTS
The oven is equipped with a 3-prong grounding plug. DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE GROUNDING PIN FROM THE PLUG.
DO NOT USE AN EXTENSION CORD.
If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.
The Power Supply Cord and plug must be connected to a separate 120 Volt AC, 60 Hz, 15 Amp, or more branch circuit, single grounded receptacle. The receptacle should be located inside the cabinet directly above the Built-in Microwave Hood mounting location as shown in figure 2.
NOTE:
•If you have any questions about the grounding or electrical instructions, consult a qualified electrician or serviceperson.
•Neither Viking nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedures.
figure |
Ground |
|
Receptacle |
||
|
||
|
*Opening for |
|
|
Power Cord |
IMPORTANT: * Power cord opening for metal cabinets: Deburr opening to remove rough edges.
RADIO OR TV INTERFERENCE
Should there be any interference caused by the Built-in Microwave Hood to your radio or TV, check that the oven is on a different electrical circuit, relocate the radio or TV as far away from the oven as feasible or check position and signal of receiving antenna.
E2
4 Hood Exhaust Duct |
5 Tools Recommended for |
|
Installation |
When the hood is vented to the outside, a hood exhaust duct is required. All ductwork must be metal; absolutely do not use plastic duct. Check that all connections are made securely. Please read the following carefully:
EXHAUST CONNECTION: The hood exhaust has been designed to connect to a standard 3-1/4" x 10" rectangular duct. If round duct is required, a rectangular- to-round adapter must be used.
REAR EXHAUST: If a rear or horizontal exhaust is to be used, care should be taken to align the exhaust with the space between the studs, or wall should be prepared at the time it is constructed by leaving enough space between wall studs to accommodate exhaust.
MAXIMUM DUCT LENGTH: For satisfactory air movement, the total duct length of 3-1/4" x 10" rectangular or 6" diameter round duct should not exceed 140 feet.
Elbows, adapters, wall caps, roof caps, etc. present additional resistance to air flow and are equivalent to a section of straight duct which is longer than their actual physical size. When calculating the total length, add the equivalent lengths of all transitions and adapters plus the length of all straight duct sections. Figure 3 shows the approximate feet of equivalent length of some typical ductwork parts. Use the values in parentheses for calculating air flow resistance equivalent, which should total less than 140 feet.
figure
• |
Phillips Screwdriver |
• |
Pencil |
• |
Electric Drill |
• |
Measure |
• |
Scissors |
• |
Tape |
• Saw to cut exhaust |
• |
1/2", 5/8" and |
|
|
opening (if needed) |
|
3/32" Drill Bits |
6 Installation Hardware
The INSTALLATION HARDWARE items 1 - 5 are in a small bag. Items 6 - 9 are packed separately. All items are in a small carton packed below the oven.
Item |
Part Name & Code |
QTY |
|
|
|
1 |
Wood Screw 5 X 35 mm |
4 |
|
|
|
2 |
Toggle Bolt with nuts #10 - 24 x 50 mm |
4 |
|
|
|
3 |
Top Cabinet Screw 5 x 85 mm |
2 |
|
|
|
4 |
Tapping Screw 4 x 12 mm |
1 |
|
|
|
5 |
Flat Washer 30 mm diameter |
2 |
|
|
|
6 |
Rear Cushion |
1 |
|
|
|
7 |
Exhaust Damper Assembly |
1 |
|
|
|
8 |
Scale Plate |
2 |
|
|
|
9 |
Grease Filter |
2 |
|
|
|
Parts Included
Parts shown not to common scale.
E3
7 Preparation of the Oven
Separate mounting plate from oven by removing two screws. See illustration below. Save these screws for use in section Mounting Oven to Wall, figure /.
4
figure |
Mounting |
|
Plate |
Back of Microwave
8 Ventilation System (Preparing
Oven for Installation)
This Built-in Microwave Hood is designed for adaptation to three types of hood ventilation systems. Select the type required for your installation.
RECIRCULATING — non-vented, ductless.
Follow installation procedure (A). Recirculating requires the use of the Charcoal Filter, which has already been installed in the oven.
HORIZONTAL EXHAUST — outside ventilation. Follow installation procedure (B).
VERTICAL EXHAUST — outside ventilation. Follow installation procedure (C).
(A) Recirculating: Non-Vented, Ductless
Operation
•The unit is shipped assembled for recirculating.
•The Exhaust Damper Assembly 7 is NOT REQUIRED
for recirculating operation.
(B) Horizontal Exhaust: Outside
Ventilation
5
figure
1) HORIZONTAL EXHAUST: Remove 2 screws from back edge and 3 screws from the top center of Fan Cover Bracket. Save 2 screws to be used later and discard remaining 3. Remove Fan Cover Bracket by sliding it in the opposite direction of the arrow on the Fan Cover Bracket.
6 |
Hood Fan Unit |
|
|
figure |
|
2) HORIZONTAL EXHAUST: Lift Hood Fan Unit carefully and slip wires out of cavity.
• CAUTION: Do not pull or stretch hood fan wiring.
7 |
(A) Rotate 180˚ |
figure |
(B) |
|
3) HORIZONTAL EXHAUST: Rotate the Hood Fan Unit 180˚ so that the fan blade openings are facing the back of the oven. See Figure 7 (A). Replace Hood Fan Unit into the oven. Be careful not to pinch the wire and the Hood Fan Unit. See Figure 7 (B).
E4
8 Ventilation System (Preparing
Oven for Installation)
8Save fan cover bracket for
figure |
future instructions. |
|
4) HORIZONTAL EXHAUST: Put the wire back into the cavity. The Fan Cover Bracket and Exhaust Damper Assembly are mounted to the wall. Follow instructions on
WALL TEMPLATE provided.
(C) Vertical Exhaust: Outside
Ventilation
9 figure
1) VERTICAL EXHAUST: Remove and save 2 screws from back edge and 3 screws from the top center of the Fan Cover Bracket. Remove Fan Cover Bracket by sliding it in the opposite direction of the arrow on the Fan Cover Bracket.
! figure
2) VERTICAL EXHAUST: Lift Hood Fan Unit carefully and slip wires out of cavity.
• CAUTION: Do not pull or stretch hood fan wiring.
"
figure |
(A) Rotate |
(B) |
|
||
|
|
|
|
90˚ |
|
3) VERTICAL EXHAUST: Rotate the Hood Fan Unit 90˚ so that the fan blade openings are facing the top of the oven. See (A). Replace Hood Fan Unit into the oven. Be careful not to pinch the lead wire between the inner bracket and the Hood Fan Unit. Put the lead wire into Wire Box. See (B).
Replace the Fan Cover Bracket by sliding it into the slits in the same direction as the arrow on the Fan Cover Bracket. Make sure the fan blades are visible through the top openings in the oven before proceeding.
E5
8 Ventilation System (Preparing
Oven for Installation)
#
figure
4) VERTICAL EXHAUST: Attach the Fan Cover Bracket to unit with the 2 screws from back edge and 3 screws from the top center of the Fan Cover Bracket, which were removed in Step 1. The Hood Fan Unit is now rotated for vertical exhaust operation.
$
figure |
7 Exhaust Damper |
|
|
|
Assembly |
5) VERTICAL EXHAUST: Attach the Exhaust Damper Assembly to the fan cover on the top of the outercase cabinet by sliding it into the slits in the same direction as the arrow. Use 1 Tapping Screw 4 x 12 mm 4 from the INSTALLATION HARDWARE and tighten into place.
9 Oven Installation
THISOVENCANNOTBEPROPERLYINSTALLEDWITHOUT REFERRING TO THE MOUNTING INSTRUCTIONS FOUND ON WALL AND TOP CABINET TEMPLATES.
The next step is to read and follow mounting information on wall and top cabinet templates. This oven must be attached to at least one wall stud. See WALL CONSTRUCTION.
When done with templates, proceed to mounting scale plate section.
Mounting Scale Plate
%
figure
8 Scale Plates
Mounting Plate
OVEN INSTALLATION: The Scale Plates are used to help locate the mounting plate. Attach 2 Scale Plates 8 with tape (not included). See Figure % and WALL TEMPLATE for locations. After securing the mounting plate, remove and discard the Scale Plates.
Mounting Plate
&
figure |
Toggle Bolt |
|
Mounting Plate
1) MOUNTING PLATE: Separate 4 Toggle Bolts 2, packed in the INSTALLATION HARDWARE, from the Toggle Nuts. Match 5/8” holes (not in studs), drilled through WALL TEMPLATE into wall to corresponding holes on Mounting Plate. Insert Toggle Bolts into matched openings on Mounting Plate. Put Toggle Nuts on Toggle Bolts.
E6
9 Oven Installation
( |
Space more |
|
figure |
||
than wall |
||
|
||
|
thickness |
Wall
2) MOUNTING PLATE: Position the Mounting Plate with the Toggle Bolts attached at the wall location and insert Toggle Nuts and Bolts through the holes in the wall with
the Toggle Nuts closed. Use Wood Screws 1to attach the Mounting Plate to studs.
10 Mounting Oven to the Wall
Utilization of the carton may make installation easier.
~
figure |
|
Top Side |
Cutting Line |
|
1) MOUNTING OVEN TO THE WALL: Place carton upside down.
NOTE: Before insertion, be sure you leave a space more than the thickness of the wall between the Mounting Plate and the end of each of the Toggle Nuts (in the closed position). If you do not leave enough space, the Toggle Nut will not be able to open on the other side of the wall. Also, once a Toggle Nut opens, it cannot be withdrawn from the hole; therefore make sure all of the Toggles are in the correct position before insertion.
)
figure
3) MOUNTING PLATE: Align the Mounting Plate carefully and hold in position while tightening Toggle Bolts. Pull Toggle Bolt toward you and turn clockwise to tighten.
+ |
(A) |
figure |
|
(B)
2) MOUNTING OVEN TO THE WALL: Using cutting line around the carton, cut into two pieces (A) and (B).
,
figure
3) MOUNTING OVEN TO THE WALL: Position oven to assist in mounting to the wall.
E7
10 Mounting Oven to the Wall
Two people are recommended to attach the Built-in Microwave Hood to the Mounting Plate.
-
figure
4) MOUNTING OVEN TO THE WALL: Thread the Power Supply Cord through the hole made in the bottom of the top cabinet. Lift and tilt the oven forward. Hook the back bottom of the oven to the bottom of the Mounting Plate. Lift the front of the oven up to the bottom of the cabinet. Keep the Power Supply Cord tight to avoid interference with mounting the oven flush with the bottom of the cabinet.
.
figure |
3 |
|
|
|
5 |
5) MOUNTING OVEN TO THE WALL: Use the two Top Cabinet Screws 3and two Flat Washers 5, supplied in the INSTALLATION HARDWARE, to attach the unit to the top cabinet. Tighten until the top of the oven is right against the bottom of the cabinet.
/
figure
9 |
Bottom Plate |
|
Screws |
6) MOUNTING OVEN TO THE WALL: Attach the two Bottom Plate Screws saved from section PREPARATION OF THE OVEN, Figure 4. Install the two Grease Filters 9.
Viking Range Corporation 111 Front Street
Greenwood, Mississippi 38930 USA (662) 455-1200
For product information,
call 1-888-VIKING1 (845-4641) or visit the Viking Web site at vikingrange.com
F20628
Checklist for Installation
•Make sure the unit has been installed according to all of the Installation Instructions and the Wall and Top Cabinet Templates.
•Plug in the power cord.
•Keep the Use & Care Manual and Installation Manual.
TINSLB002MRR0
E8
