Designer Built-In Gas 30”/36”W. Cooktop
Standard Features & Accessories
Both models include
• Dimensioned to fit the majority of
similarly sized cooktop cutouts
• Sealed burners with brass flame ports
and porcelain/cast iron caps
• One-piece tooled top with large spill
collection area around burners
• Heavy-duty stainless steel control
knobs with childproof, push-to-turn
safety feature
4B model includes
• Four burners
o Left front—14,000 BTU high/2,000
BTU low
o Left rear—12,000 BTU high/1,700
BTU low
o Right rear—8,000 BTU high/1,200
BTU low
o Right front—6,000 BTU high/950
BTU low
Model Options
COOKING
5B model includes
• Six burners
o Left front—12,000 BTU high/1,700
BTU low
o Left rear—10,000 BTU high/1,500
BTU low
o Center—14,000 BTU high/2,000
BTU low
o Right rear—8,000 BTU high/1,200
BTU low
o Right front—6,000 BTU high/950
BTU low
30”W. Four-Burner Cooktop
DGSU101-4B
FINISH DETAILS FOR BOTH MODELS
• Stainless Steel (SS), Black (BK), White
(WH)
o Finish designates top. Black porcelain
grates, porcelain burner caps, and
knob grips.
• White (WH)
o Finish designates top. Gray porcelain
grates, porcelain burner caps, and
knob grips.
36”W. Five-Burner Cooktop
DGSU161-5B
ORDERING INSTRUCTIONS
First specify model number, and then color code (DGSU101-4BSS). If ordering optional brass trim, specify code at end (DGSU101-4BSSBR).
If ordering optional LP conversion, specify code at end (
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C OM • 1 - 8 8 8 - V I K I N G 1
DGSU101-4B
SSBRLP).
R E V I S E D 5 / 1 1 / 1 1
© 2 0 1 1 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E
21”
(
5
3
.
3
cm
)
30-3
/
4
”
(
78
.
1cm
)
30-
3
/4
”
(
7
8
.
1
cm
)
4-3/
8
”
(
11
.
1
cm
)
4-3/
8”
(
1
1
.
1
c
m)
21”
(
5
3
.
3)
36-3
/4
”
(
93
.
3
c
m
)
36-3
/
4
”
(
93
.
3
c
m
)
4
-
3
/
8
”
( 1
1
.
1 c
m
)
4-3/
8
”
( 1
1.
1 c
m
)
COOKING
3-1/8”
(7.9 cm)
3-1/8”
(7.9 cm)
4-3/8”
(11.1 cm)
1-3/4”
(4.5 cm)
4-3/8”
(11.1 cm)
1-3/4”
(4.5 cm)
Designer Built-In Gas 30”/36”W. Cooktop
Please see Notes
✪
&
Accessories
for important
installation
information,
including conversion
kits.
Dimensions & Specifications
OVERALL PRODUCT DIMENSIONS
DGSU101-4B
30”W. Four-Burner
Cooktop
DGSU161-5B
36"W. Five-Burner
Cooktop
30”W. Models 36”W. Models
FRONT VIEW FRONT VIEW
Overall width 30-3/4” (78.1 cm) 36-3/4” (93.3 cm)
Overall height (top of grate to bottom) 4-3/8" (11.1 cm)
Overall depth (from rear) 21” (53.3 cm)
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
DGSU101-4B DGSU161-5B
© 2 0 1 1 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E
R E V I S E D 5 / 1 1 / 1 1
2-
1
/
2”
(
6.
4 c
m)
3
6
”
min.
(
91.
4
cm
)
3
-1
/
8”
(
7
.
9
c
m
)
36”
min.
(
9
1.
4
cm
)
1
8
”
m
i
n
.
(45
.
7
cm
)
1
3”
m
ax
.
(
3
3
.
0
cm
)
8”m
i
n
.
(
2
0
.
3
cm
)
Dimensions & Specifications

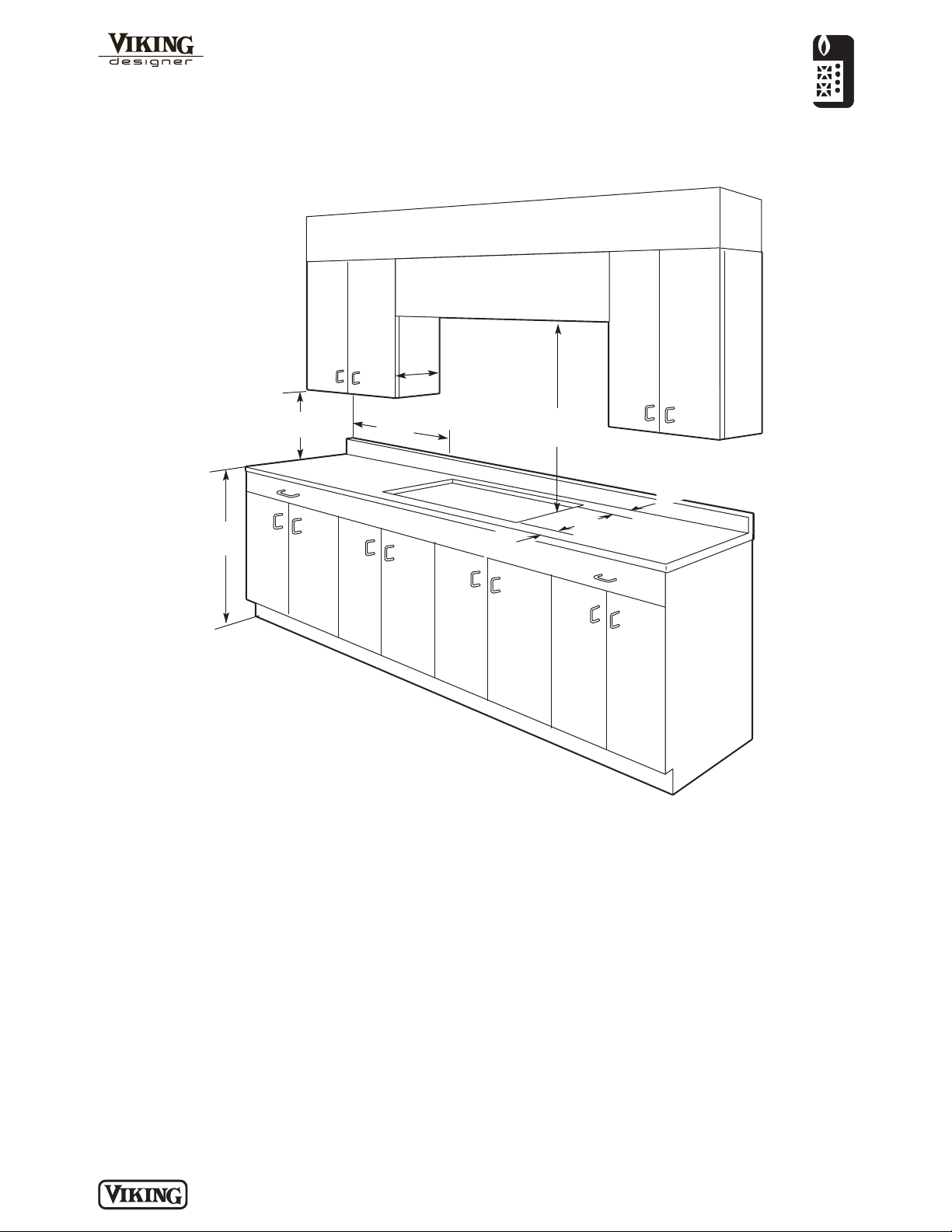

CLEARANCE DIMENSIONS
COOKING
Designer Built-In Gas 30”/36”W. Cooktop
Minimum clearances from adjacent
combustible construction
• Sides—8” (20.3 cm)
• Rear—2-1/2” (6.4 cm) min.
• Within 8” (20.3 cm) side clearance; wall
cabinets no deeper than 13” (33.0 cm)
• Must be minimum 18” (45.7 cm) above
countertop
• Wall cabinets directly above cooktop
must be minimum 36” (91.4cm) above
the countertop.
1.The cooktop may be installed directly
to existing base cabinets.
2.The cooktop cannot be installed
directly adjacent to sidewalls, tall
cabinets, tall appliances, or other side
vertical surfaces above 36” (91.4 cm)
high. There must be a minimum of 8”
(20.3 cm) side clearance from the
cooktop to such combustible surfaces
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
above the 36” (91.4 cm) counter height.
3.Within the 8” (20.3 cm) side clearance
to combustible vertical surfaces above
36” (91.4 cm), the maximum wall
cabinet depth must be 13” (33.0 cm)
and wall cabinets within this 8” (20.3
cm) side clearance must be 18” (45.7
cm) above the 36” (91.4 cm) high
countertop.
4.Wall cabinet above the cooktop must
be a minimum of 36” (91.4 cm) above
the countertop for a full width of the
cooktop. This minimum height
requirement does not apply if a
rangehood is installed over the
cooking surface.
5.A 120-volt wall receptacle should be
located approximately 6” (15.2 cm)
below the countertop cutout and 12”
(30.5 cm) from the right side of the
cutout.
The bottom of the hood should be 30”
(76.2 cm) min. to 36” (91.4 cm) above
the countertop. This would typically
result in the bottom of the hood being
66”(167.6 cm) to 72” (182.9 cm) above
the floor. Refer to the rangehood
installation instructions for further
information.
Warning
The use of cabinets for storage above
the appliance may result in a potential
burn hazard. If a cabinet storage is to be
provided the risk can be reduced by
installing a rangehood that projects
horizontally a minimum of 5" (12.7 cm)
beyond the bottom of the cabinets.
R E V I S E D 5 / 1 1 / 1 1
© 2 0 1 1 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E
Cutout opening
2
9-1/8”
(73.9 cm) min.
to
29-7/8”
(75.9 cm) max.
29-1/8”
(73.9 cm)
27”
(68.6 cm)
1
-1/16”
(2.7 cm)
1-1/16”
(2.7 cm)
2-1/4”
(5.7 cm)
20-1/8”
(
51.1 cm)
m
ax.
19-3/4”
(
50.2 cm)
min.
20-5/8”
(52.4 cm)
Cutout opening
20-1/8”
(51.1 cm)
max.
19-3/4”
(50.2 cm)
m
in.
34-7/8”
(88.6 cm) min.
t
o
35-7/8”
(91.1 cm) max.
34-7/8”
(88.6 cm)
33”
(83.8 cm))
15/16”
(
2.4 cm)
15/16”
(2.4 cm)
2-1/4”
(5.7 cm)
20-5/8”
(52.4 cm)
COOKING
Designer Built-In Gas 30”/36”W. Cooktop
UTILITY
REQU IR EMENT S
GAS
Shipped natural gas
•
tandard; to field
s
convert from natural
or LP/Propane, the
rifice spuds and
o
egulator must be
r
physically changed.
o Order conversion
it DLPK to convert
k
LP/propane. Highly
recommend
rdering Nat. or LP
o
odels.
m
• Accepts standard
residential 1/2”
1.3 cm) ID gas
(
service line
• Gas manifold
pressure
o Natural gas 5.0”
W.C.P.
o LP/propane 10.0”
W.C.P.
Installation Requirements
ACCESS REQUIREMENTS
DGSU101-4B
30”W. Four-Burner
Cooktop
30”W. Cutout 36”W. Cutout
36"W. Five-Burner
DGSU161-5B
Cooktop
ELECTRICAL
• 4-foot (121.9 cm)
cord included with
cooktop
• 3-wire with
ground/3-prong plug
• 120 V/60 Hz
• Maximum amp
usage—2.0
30”W. Cutout w/Downdraft 36”W. Cutout w/Downdraft
PLUMBING
Not applicable
Cutout width 29-1/8” (74.0 cm) min. to 29-7/8” (75.9 cm) max. 34-7/8” (88.6 cm) min. to 35-7/8” (91.1 cm) max.
DGSU101-4B DGSU161-5B
Cutout height 3-1/8” (7.9 cm) min.*
Cutout depth 19-3/4” (50.2 cm) min. to 20-1/8” (51.1cm) max.
Surface burner rating
Left front 14,000 BTU Nat. (4.1 kW)/13,500 BTU LP (4.0 kW) 12,000 BTU Nat. (3.5 kW)/11,500 BTU LP (2.8 kW)
Left rear 12,000 BTU Nat. (3.5 kW)/11,500 BTU LP (2.8 kW) 10,000 BTU Nat./LP (2.9 kW)
Right rear 8,000 BTU Nat./LP (2.1 kW)
Right front 6,000 BTU Nat./LP (1.8 kW)
Center 14,000 BTU Nat. (4.1 kW)/13,500 BTU LP (4.0 kW)
*Top of grate support should be 3/8” (1.0 cm) above countertop.
**There must be a 1” (2.5 cm) clearance under counter on all 4 sides of the cooktop.
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E V I S E D 5 / 1 1 / 1 1
© 2 0 1 1 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E
COOKING
Designer Built-In Gas 30”/36”W. Cooktop
Installation Notes & Accessories
✪
Conversion Kits
• For field conversion between gas fuel types
• Kit includes all hardware necessary to convert a 30”W. or 36”W. DGSU cooktop
Model Description Approx. ship wt. lbs. (kg)
LPKPDC Natural to LP/propane conversion kit 1 (0.5)
NKPDC LP/propane to natural conversion kit 1 (0.5)
Compliance Information
WARRANTY INFORMATION*
• One-year full warranty—complete product
• Five-year limited warranty—surface burners
• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items
* For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
© 2 0 1 1 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E
R E V I S E D 5 / 1 1 / 1 1
