Viking DEWD102SS, DFWD101, DFWD171, VEWD527SS, VEWD536SS Specification Sheet

...

Download

Page 1

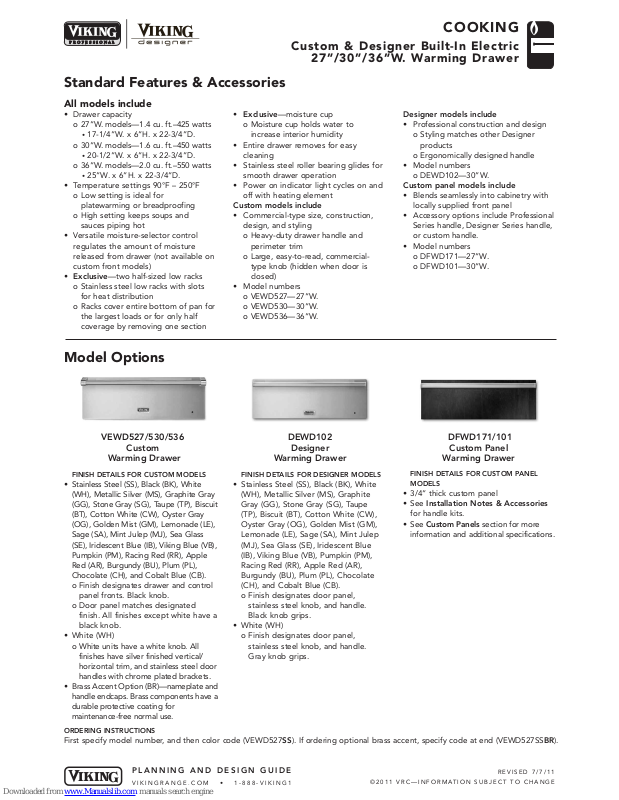

Standard Features & Accessories

All models include

• Drawer capacity o 27”W. models—1.4 cu. ft.–425 watts

• 17-1/4”W. x 6”H. x 22-3/4”D.

o 30”W. models—1.6 cu. ft.–450 watts

• 20-1/2”W. x 6”H. x 22-3/4”D.

o 36”W. models—2.0 cu. ft.–550 watts

• 25”W. x 6”H. x 22-3/4”D.

• Temperature settings 90°F – 250°F o Low setting is ideal for

platewarming or breadproofing

o High setting keeps soups and

sauces piping hot

• Versatile moisture-selector control regulates the amount of moisture released from drawer (not available on custom front models)

• Exclusive—two half-sized low racks o Stainless steel low racks with slots

for heat distribution

o Racks cover entire bottom of pan for

the largest loads or for only half coverage by removing one section

• Exclusive—moisture cup o Moisture cup holds water to

increase interior humidity

• Entire drawer removes for easy cleaning

• Stainless steel roller bearing glides for smooth drawer operation

• Power on indicator light cycles on and off with heating element

Custom models include

• Commercial-type size, construction, design, and styling o Heavy-duty drawer handle and

perimeter trim

o Large, easy-to-read, commercial-

type knob (hidden when door is closed)

• Model numbers o VEWD527—27”W. o VEWD530—30”W. o VEWD536—36”W.

COOKING

Custom & Designer Built-In Electric

27”/30”/36”W. Warming Drawer

Designer models include

• Professional construction and design o Styling matches other Designer

products

o Ergonomically designed handle

• Model numbers o DEWD102—30”W.

Custom panel models include

• Blends seamlessly into cabinetry with locally supplied front panel

• Accessory options include Professional Series handle, Designer Series handle, or custom handle.

• Model numbers o DFWD171—27”W. o DFWD101—30”W.

Model Options

VEWD527/530/536

Custom

Warming Drawer

FINISH DETAILS FOR CUSTOM MODELS

• Stainless Steel (SS), Black (BK), White (WH), Metallic Silver (MS), Graphite Gray (GG), Stone Gray (SG), Taupe (TP), Biscuit (BT), Cotton White (CW), Oyster Gray (OG), Golden Mist (GM), Lemonade (LE), Sage (SA), Mint Julep (MJ), Sea Glass (SE), Iridescent Blue (IB), Viking Blue (VB), Pumpkin (PM), Racing Red (RR), Apple Red (AR), Burgundy (BU), Plum (PL), Chocolate (CH), and Cobalt Blue (CB). o Finish designates drawer and control

panel fronts. Black knob.

o Door panel matches designated

finish. All finishes except white have a black knob.

• White (WH) o White units have a white knob. All

finishes have silver finished vertical/ horizontal trim, and stainless steel door handles with chrome plated brackets.

• Brass Accent Option (BR)—nameplate and handle endcaps. Brass components have a durable protective coating for maintenance-free normal use.

ORDERING INSTRUCTIONS

First specify model number, and then color code (VEWD527SS). If ordering optional brass accent, specify code at end (VEWD527SSBR).

FINISH DETAILS FOR DESIGNER MODELS

stainless steel knob, and handle. Black knob grips.

• White (WH) o Finish designates door panel,

stainless steel knob, and handle. Gray knob grips.

DEWD102

Designer

Warming Drawer

DFWD171/101

Custom Panel

Warming Drawer

FINISH DETAILS FOR CUSTOM PANEL MODELS

• 3/4” thick custom panel

• See Installation Notes & Accessories for handle kits.

• See Custom Panels section for more information and additional specifications.

P L A N N I N G A N D DE S I G N GU I D E

V I KI N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

R E V I S E D 7 / 7 / 1 1

Page 2

COOKING

”

(

)

”

(

)

”

(

)

”

(

)

”

(

)

”

(

)

”

(

)

”

(

4 c

)

27-3/4”

(70.5 cm)

23-1/4”

(59.1 cm)

1-3/8”

(

3.5 cm)

6-3/4”

(67.9 cm)

”

(

)

”

(

)

”

(

)

27-7/16”

(69.7 cm)

23-7/16”

(59.5 cm)

1-5/8”

(4.1 cm)

22-15/16”

(

58.3 cm)

23-1/4”

(58.7 cm)

23-1/4”

(58.7 cm)

Custom & Designer Built-In Electric

27”/30”/36”W. Warming Drawer

Please see

✪

Installation Notes

and Accessories for

important information,

including handle kits

and pan/lid set.

Dimensions & Specifications

PRODUCT DIMENSIONS & DOOR SWING

VEWD527/530/536

Custom

Warming Drawer

CUSTOM

DEWD102

Designer

Warming Drawer

DFWD171/101

Custom Panel

Warming Drawer

DESIGNER

CUSTOM PANEL

VEWD527/530/536 DEWD102 DFWD171/101

Overall width (A) 26-1/2” (67.3 cm)/29-1/2” (74.9 cm)/ 29-1/2” (74.9 cm) 26” (66.0 cm)/

35-3/8” (89.9 cm) 29” (73.7 cm) Overall height (from bottom) 10-1/4” (26.0 cm) 10” (25.4 cm) 10-1/2” (26.7 cm) Overall depth (from rear)

To end of handle 27-3/4” (70.5 cm) 27-7/16” (69.7 cm) N/A With drawer fully extended 51-3/8” (130.5 cm) 50-7/8” (129.2 cm) 46-1/2” (118.1 cm)

Interior width 17-1/4” (43.8 cm)/20-1/2” (52.1 cm)/ 20-1/2” (52.1 cm) 17-1/4” (43.8 cm)/

25” (63.5 cm) 20-1/2” (52.1 cm) Interior height 6” (15.2 cm) Interior depth 22-3/4” (27.8 cm) Approx. ship weight 80 lbs. (36.0 kg)/90 lbs. (40.5 kg)/ 90 lbs. (40.5 kg) 80 lbs. (36.0 kg)/

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 88 8 - V I K I N G 1

110 lbs. (49.5 kg) 90 lbs. (40.5 kg)

R E V I S E D 7 / 7 / 1 1

Page 3

”

(

)

”

(

)

”

(

)

COOKING

Custom & Designer Built-In Electric

27”/30”/36”W. Warming Drawer

UTILIT Y

REQUI RE MENTS

GAS

Not applicable

•

ELECTRICAL

• Hardwire direct with eparate 15-amp

s minimum 2-wire with ground circuit 120 VAC/50 – 60 Hz

•

Maximum amp

•

usage— o 27”W. models—3.6

425 watts)

(

o 30”W. models—3.8

(450 watts)

o 36”W. models—4.6

(550 watts)

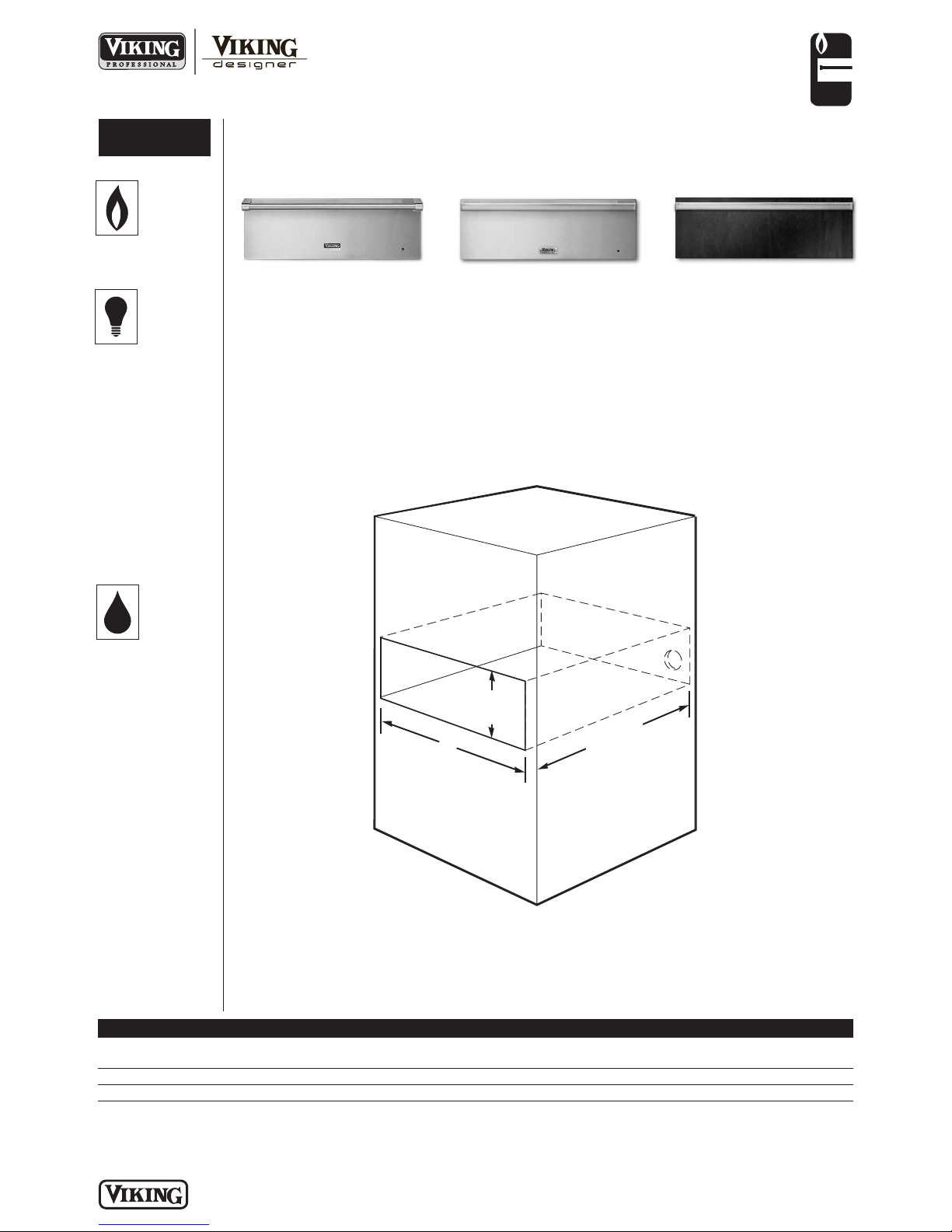

Installation Requirements

ACCESS REQUIREMENTS

VEWD527/530/536

Custom

Warming Drawer

DEWD102

Designer

DFWD171/101

Custom Panel

Warming Drawer

PLUMBING

Not applicable

Cutout width (A) 25-1/4” (64.1 cm)/28-1/4” (71.8 cm)/ 28-1/4” (71.8 cm) 25-1/4” (64.1 cm)/

Cutout height 9-1/4” (23.5 cm) 9-1/4” (23.5 cm) 9-5/8” (24.4 cm) Cutout depth 23-1/2” (59.7 cm)*

* Standard Mount - 23-1/2” (59.7 cm)

Flush Mount - 25-1/8” (63.8 cm) Use trim piece included with product.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 88 8 - V I K I N G 1

VEWD527/530/536 DEWD102 DFWD171/101

34” (86.4 cm) 28-1/4” (71.8 cm)

R E V I S E D 7 / 7 / 1 1

Page 4

COOKING

Custom & Designer Built-In Electric

27”/30”/36”W. Warming Drawer

Installation Notes & Accessories

✪

Handle Kits

• For use with custom panel (DFWD) warming drawers

• For use on locally supplied custom panels

Handles allow custom panel products to coordinate with other Custom & Designer products

•

• Kit includes one handle and installation hardware

Model Description Approx. ship wt. lbs. (kg)

HK23-SS Custom handle for DFWD171/101 (Stainless Steel) 5 (2.3)

DHK23-SS Designer handle for DFWD171 (Stainless Steel) 5 (2.3)

DHK29-SS Designer handle for DFWD101 (Stainless Steel) 5 (2.3)

Pan/Lid Set

• Five heavy-gauge stainless steel commercial pans with lids

o Two 2-1/2”D. by 12”L. by 7”W. pans o Two 4”D. by 12”L. by 7”W. pans o One 4”D. by 12”L. by 10-1/2”W. pan

Model Description Approx. ship wt. lbs. (kg)

AN-VEWD Pans/lids 10 (4.5)

Compliance Information

WARRANTY INFORMATION*

• Three-year full warranty—complete product (Professional Series)

• One-year full warranty—complete product (Designer Series)

• Five-year limited warranty—electric elements (Professional and Designer)

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items (Professional and Designer)

*For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 88 8 - V I K I N G 1

R E V I S E D 7 / 7 / 1 1
