Standard Features & Accessories
Models include
• Total capacity—19.6 cu. ft. (545.7 L)
• 72”H./24”D.
• “Cabinet depth” design (24”D. side
panels) integrates with surrounding
cabinetry—fit for replacement of most
existing appliances
• Electronic controls with digital
readouts maintain the temperature
selection
• Frost-free refrigerator
o Capacity—14.1 cu. ft. (399 lit.)
o Four slide-out adjustable tempered
glass spillproof shelves
o One stationary glass shelf
o Temperature adjustable Meat
Savor™/produce drawer
o Two moisture adjustable see-
through produce drawers
o In-the-door dairy compartment
with cover
o Five large door bins (two bins store
gallon containers)
o Internal filtered water dispensing
o Water filter indicator light
(illuminates when filter needs to be
replaced)
o See-through egg bin with carrier
holds up to 24 eggs
o Glass butter tray with cover
• Frost-free freezer
o Capacity—5.5 cu. ft. (156 lit.)
o Adaptive defrost
o Factory-installed automatic ice
maker
o Two slide-out baskets
o Max ice feature
REFRIGERATION
Freestanding 36”W. French-Door
Bottom-Mount Refrigerator/Free zer
• Open door alarm sounds to warn that
door has been ajar for five minutes
• High temperature alarm
• Gray exterior cabinet (VCFF)
Model Options
FINISH DETAILS FOR BOTH MODELS
• Stainless Steel (SS)
• Finish code designates door fronts.
Black cabinet sides and top.
VCFF136*
Professional
DDFF036*
Designer
*Shown throughout with top grille kits. See Installation Notes & Accessories for details.
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C OM • 1 - 8 8 8 - V I K I N G 1
R E L E A S E D 4 / 1 / 0 9
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
Page 2
REFRIGERATION
2
3
-
1
/
2
”
(
5
9
.
7
c
m
)
2
8
-
3
/
4
”
(
7
3
.
0
c
m
)
7
0
-
1
/
8
”
(
1
7
8
.
1
c
m
)
7
1
-
7
/
8
”
(
1
8
2
.
6
c
m
w
i
t
h
t
o
p
g
r
i
l
l
e
/
t
op
a
cc
e
s
s
or
y
3
5-
5
/
8
”
(
9
0
.
5
c
m
)
3
5
-
7
/
8
”
(
9
1
.
1
c
m
)
w
/
s
i
d
e
p
a
n
e
l
a
c
ce
s
s
o
r
y
2
6
-
3
/
4
”
(
6
7
.
9
c
m
)
4
1
-
1
/
8
”
(
1
0
4
.
5
c
m
)
2
4
”
(
6
1
.
0
c
m
)
2
3
-
1
/
2
”
(
5
9
.
7
c
m
)
2
8
-
3
/
8
”
(
7
2
.
1
c
m
)
7
0-
1
/
8
”
(
1
7
8
.
1
c
m
)
7
1
-
7
/
8
”
(
1
8
2
.
6
c
m
)
w
i
t
h
t
op
g
ri
l
l
e
/
t
o
p
a
c
ce
s
s
o
r
y
3
5
-
5
/
8
”
(
9
0
.
5
c
m
)
3
5-
7
/
8
”
(
9
1
.
1
c
m
)
w
/
s
i
d
e
p
a
n
e
l
a
c
ce
s
s
o
r
y
2
6
-
3
/
4
”
(
6
7
.
9
c
m
)
4
1
-
1
/
8
”
(
1
0
4
.
5
c
m
)
2
4
”
(
6
1
.
0
c
m
)
Freestanding 36”W. French-Door
Bottom-Mount Refrigerator/Free zer
Please see
!
Installation Notes &
Accessories
for important
information,
including water
filter, handle, trim
and top grille kits.
Dimensions & Specifications
PRODUCT DIMENSIONS
VCFF136
Professional
DDFF036
Designer
Overall width 35-5/8” (90.5 cm)
Addition of side panels 35-7/8” (91.1 cm)
Overall height (from bottom) 70-1/8” (178.1 cm)
Addition of tops/grilles 71-7/8” (182.6 cm)
PROFESSIONAL DESIGNER
Overall depth (from rear)
To front of door 26-3/4” (67.9 cm)
To front of handle 28-3/4” (73.0 cm) 28-3/8” (72.1 cm)
Approx. ship weight 327 lbs. (148.7 kg)
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
VCFF136 DDFF036
R E L E A S E D 4 / 1 / 0 9
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
Page 3
35-5/8”
(90.5 cm)
42-7/8”
(109.0 cm)
90.0°90.0°
42-7/8”
(109.0 cm)
2-1/8”
(5.4 cm)
2-1/8”
(5.4 cm)
Dimensions & Specifications
35-5/8”
(90.5 cm)
42-7/8”
(109.0 cm)
2-1/2”
(6.4 cm)
2-1/2”
(6.4 cm)
90.0°90.0°
42-7/8”
(109.0 cm)

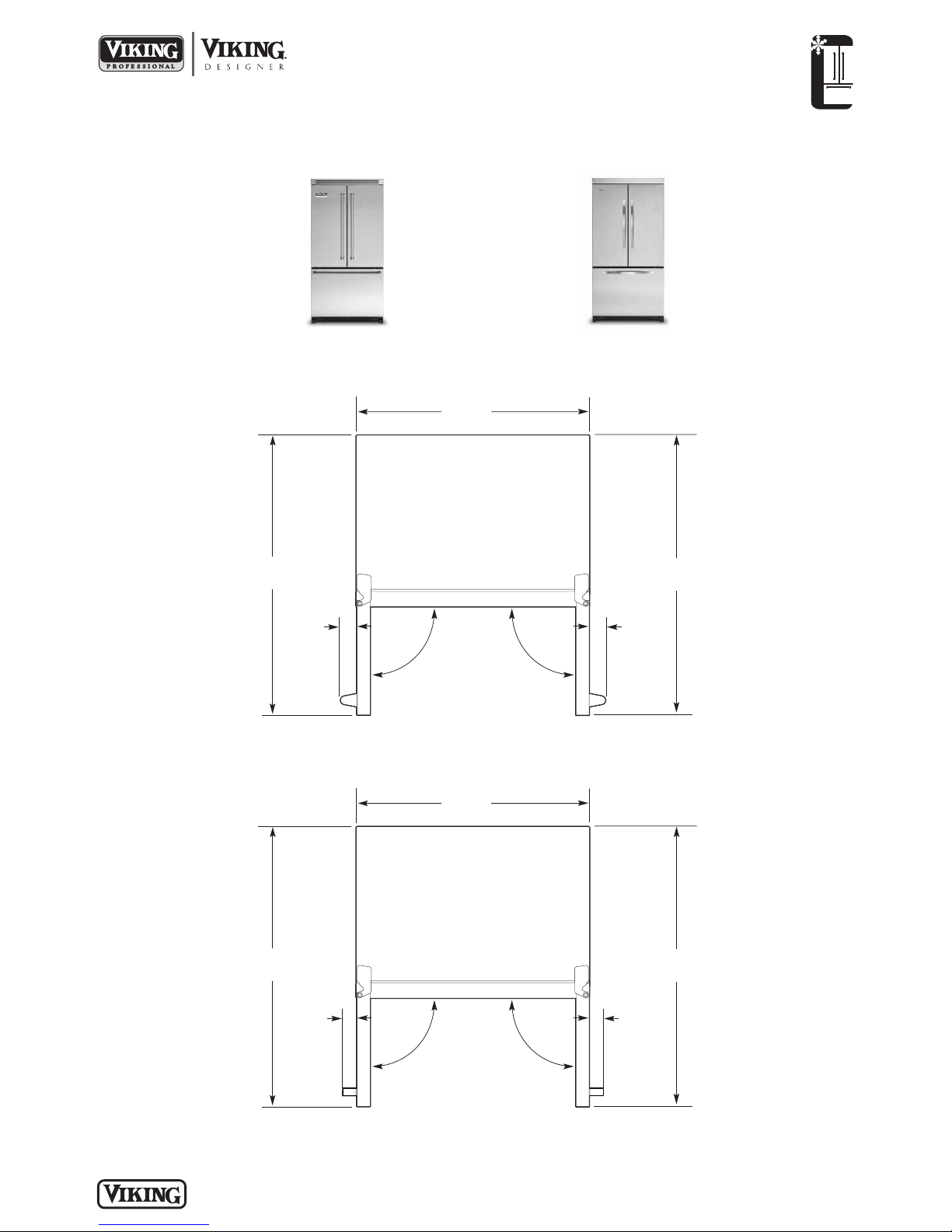

DOOR SWING
REFRIGERATION
Freestanding 36”W. French-Door
Bottom-Mount Refrigerator/Free zer
VCFF136
Professional
PROFESSIONAL
DDFF036
Designer
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
DESIGNER
R E L E A S E D 4 / 1 / 0 9
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
Page 4
REFRIGERATION
70-1/2”
(179.1 cm)
cutout without
addition of
tops/grilles
72”
(182.9 cm)
cutout with
addition of
tops/grilles
26”
(66.0 cm)
24”
(61.0 cm)
min.
36”
(91.4 cm)
14”
(35.6 cm)

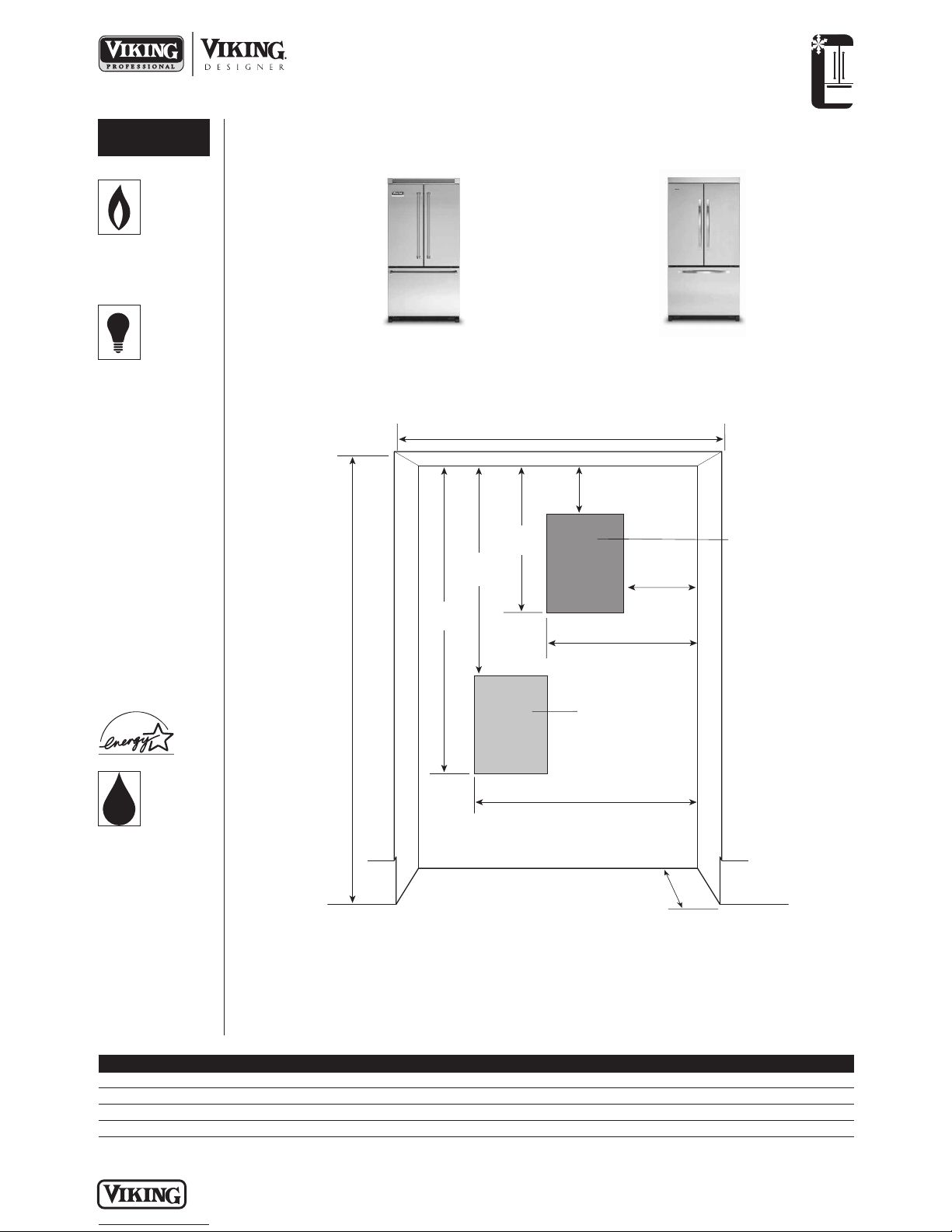

Water line
location
Recommended
receptacle location
20”
(50.8 cm)
20”
(50.8 cm)
36”
(91.4 cm)
42”
(106.7 cm)
26”
(66.0 cm)
Freestanding 36”W. French-Door
Bottom-Mount Refrigerator/Free zer
UTILITY
REQU IR EMENT S
GAS
Not applicable
ELECTRICAL
• Three-wire cord
with grounded
three-prong plug
attached to
product. Do not
use an extension
cord or adapter
plug for a
two-prong
receptacle—call a
qualified electrical
installer.
o 115V/60 Hz; 15
amp dedicated
circuit
o Maximum amp
usage—7.9
o Estimated
energy usage—
451 kWh/year
Installation Requirements
ACCESS REQUIREMENTS
VCFF136
Professional
DDFF036
Designer
PLUMBING
• Inlet waterline
requirements—
1/4” copper
tubing
o 35 psi min.;
100 psi max.
Cutout width 36” (91.4 cm)
Cutout height 70-1/2” (179.0 cm)
Addition of tops/grilles 72” (182.9 cm)
Cutout depth 24” (61.0 cm)
When installing into a cutout, the edge of the door must be 2-7/8” (7.3 cm) from the adjacent countertop cabinet.
Allow 1/2” (1.3 cm) space at top and 1/2” (1.3 cm) behind the machine compartment cover (located in the
rear) for proper air circulation. Sub-flooring or floor coverings (i.e. carpet, tile, wood floors, rugs) may make
your opening smaller than anticipated. Some clearance may be gained by using the leveling procedure under
Leveling in the Installation Guide.
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
All models
R E L E A S E D 4 / 1 / 0 9
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
Page 5
REFRIGERATION
Freestanding 36”W. French-Door
Bot tom-Mount Refrigerator/Fre ezer
Installation Notes & Accessories
Installation Notes & Accessories
!
!
Side Trim Kit
• Stainless Steel finish
• Provides ”built-in” look when used with a top grille kit
Model Description Approx. ship wt. lbs. (kg)
FRSTKF French door bottom-mount side trim kit 13 (5.9)
Top Grille Kits
• Stainless Steel finish
• Provides ”built-in” look when used with a side trim kit; provides “wrapped” look when used with side panel and top kits
Model Description Approx. ship wt. lbs. (kg)
FRGKFS Professional french door bottom-mount grille kit 10 (4.5)
P
FRGKFS Designer french door bottom-mount grille kit 10 (4.5)
D
Side Panel Kit
• Stainless Steel finish
• Provides ”wrapped” look when used with top grille and top kits
• Side panel kits include panels for both sides
Model Description Approx. ship wt. lbs. (kg)
FRSPKF French door bottom-mount side panel kit 60 (27.0)
Top Kit
• Stainless steel finish
• Provides ”wrapped” look when used with side panel and top grille kits
Model Description Approx. ship wt. lbs. (kg)
FRTOP French door bottom-mount top kit 19 (8.6)
Replacement Water Filter
• Replaces water filter cartridges supplied with freestanding refrigerator/freezers
• Reduces sediment, bad taste and odor
• Reduces cysts, particulates, turbidity, lead, chlorine, atrazine and lindane
• NSF certified
• Ready to install—no assembly required
Model Description Approx. ship wt. lbs. (kg)
RWF-FR Replacement water filter 5 (2.3)
Brass Handle Kits
• Replaces handles supplied with unit for brass trim
• French door kits include three handles
Model Description Approx. ship wt. lbs. (kg)
PFRHKFBR Professional french door handle kit 15 (6.8)
DFRHKFBR Designer french door handle kit 15 (6.8)
Compliance Information
WARRANTY SUMMARY*
• Two-year full warranty—complete unit
• Six-year full warranty—sealed refrigeration system (includes compressor, condenser,
dryer/strainer, evaporator, and connecting tubing)
• Twelve-year limited warranty—sealed refrigeration system
• Ninety-day limited warranty—cosmetic parts such as glass, painted items, and decorative items
*For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E L E A S E D 4 / 1 / 0 9
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
