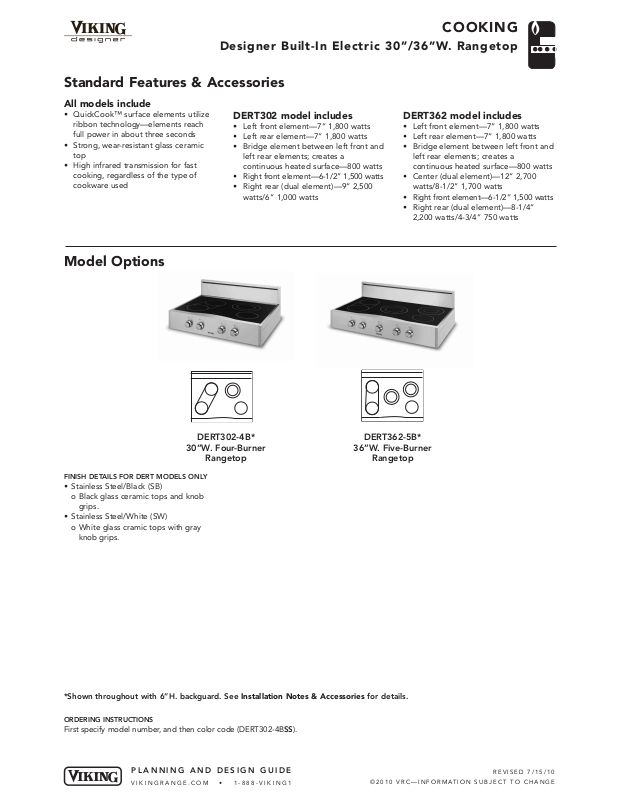

Viking DERT302 User Manual

Designer Built-In Electric 30”/36”W. Rangetop

Standard Features & Accessories

All models include

• QuickCook™ surface elements utilize
ribbon technology—elements reach
full power in about three seconds

• Strong, wear-resistant glass ceramic
top

• High infrared transmission for fast
cooking, regardless of the type of
cookware used

ERT302 model includes

D

• Left front element—7” 1,800 watts

• Left rear element—7” 1,800 watts

• Bridge element between left front and
left rear elements; creates a
continuous heated surface—800 watts

• Right front element—6-1/2” 1,500 watts

• Right rear (dual element)—9” 2,500
watts/6” 1,000 watts

Model Options

COOKING

ERT362 model includes

D

• Left front element—7” 1,800 watts

• Left rear element—7” 1,800 watts

• Bridge element between left front and
left rear elements; creates a
continuous heated surface—800 watts

• Center (dual element)—12” 2,700
watts/8-1/2” 1,700 watts

• Right front element—6-1/2” 1,500 watts

• Right rear (dual element)—8-1/4”
2,200 watts/4-3/4” 750 watts

DERT302-4B*

30”W. Four-Burner

Rangetop

FINISH DETAILS FOR DERT MODELS ONLY

• Stainless Steel/Black (SB)
o Black glass ceramic tops and knob

grips.

• Stainless Steel/White (SW)
o White glass cramic tops with gray

knob grips.

*Shown throughout with 6”H. backguard. See Installation Notes & Accessories for details.

ORDERING INSTRUCTIONS

First specify model number, and then color code (DERT302-4BSS).

DERT362-5B*

36”W. Five-Burner

Rangetop

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C OM • 1 - 8 8 8 - V I K I N G 1

R E V I S E D 7 / 1 5 / 1 0

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

3

5

-

7

/

8

”

(

9

1

.

1

c

m

)

1

2

-

1

/

8

”

(

3

0

.

8

c

m

)

2

4

-

7

/

1

6

”

(

6

2

.

1

c

m

)

6

-

1

/

8

”

(

1

5

.

6

c

m

)

COOKING

2

9

-

7

/

8

”

(

7

5

.

9

c

m

)

2

4

-

7

/

1

6

”

(

6

2

.

1

c

m

)

1

2

-

1

/

8

”

(

3

0

.

8

c

m

)

6

-

1

/

8

”

(

1

5

.

6

c

m

)

6-1/8”

(15.6 cm)

1-5/8”

(4.1 cm)

26-1/8” (66.4 cm)

27-5/8” (70.2 cm)

(from front of knob
to back of rangetop)

Designer Built-In Electric 30”/36”W. Rangetop

Please see



Installation Notes &

Accessories

for important

installation

information,

including

backguard, high-

shelf, and island

trim.

Dimensions & Specifications

PRODUCT DIMENSIONS

DERT302-4B

30”W. Four-Burner

Rangetop

DERT362-5B

36”W. Five-Burner

Rangetop

30”W. MODEL 36”W. MODEL

DERT302-4B DERT362-5B

Overall width 29-7/8” (75.9 cm) 35-7/8” (91.1 cm)
Overall height (from bottom)

To top of glass frame 6-1/8” (15.6 cm)
To top of island trim 6-1/8” (15.6 cm)
To top of 6” backguard 12-1/8” (30.8 cm)
To top of high shelf 29-5/8” (75.2 cm)

Overall depth (from rear)

To end of side panel 24-7/16” (62.1 cm)
To end of control panels 26-1/8” (66.35 cm)
To end of knobs 27-5/8” (70.2 cm)

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

R E V I S E D 7 / 1 5 / 1 0

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

Designer Built-In Electric 30”/36”W. Rangetop

A
30” 30” (76.2 cm)
36“ 36” (91.4 cm)

1

8

”

m

i

n

.

(

4

5

.

7

c

m

)

3

6

”

(

9

1

.

4

c

m)

6

”

m

i

n

.

(

1

5

.

2

c

m

)

A

2

4

-

7

/

1

6

”

(

6

2

.

1

c

m

)

1

3

”

m

a

x

.

(

3

3

.

0

c

m

)

4

2

”

m

i

n

.

(

1

0

6

.

7

c

m

)

5

-

3

/

4

”

(

1

4

.

6

c

m

)

Dimensions & Specifications

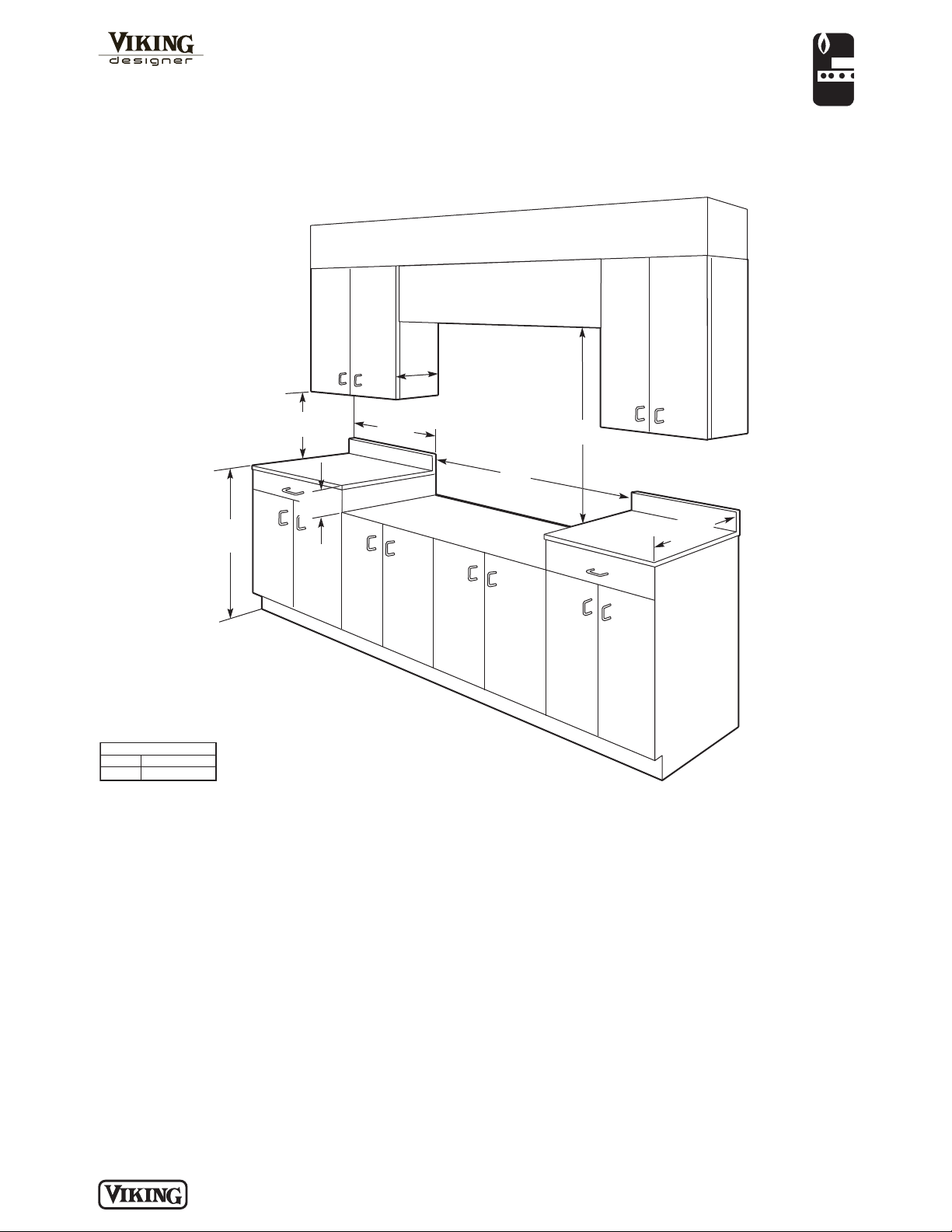

CLEARANCE DIMENSIONS

COOKING

Minimum clearances from adjacent
combustible construction*

• Cooking surface and below, i.e., 36”
(91.4 cm) and below
o Sides—0”
o Rear—0” with backguard or high-

shelf; 0” with island trim and non­combustible rear wall; 6” (15.2 cm)
with island trim and combustible rear
wall.

o Top grate support—36” (91.4 cm)

• Above cooking surface, i.e., above 36”
(91.4 cm)
o Sides—6” (15.2 cm)
o Within 6” (15.2 cm) side clearance,

wall cabinets no deeper than 13”
(33.0 cm) must be minimum 18”
(45.7 cm) above cooking surface.

o Wall cabinets directly above product

must be minimum 36” (91.4 cm) for
open top burners above cooking
surface.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

Do not install two or more units
side-by-side.

1. This rangetop may be installed directly
adjacent to existing 36” (91.4 cm) high
base cabinets. Important: The top
grate support must be 3/8” (0.95 cm)
above the adjacent base cabinet
countertop.

2. The rangetop cannot be installed
directly adjacent to sidewalls, tall
cabinets, tall appliances, or other side
vertical surfaces above 36” (91.4 cm)
high. There must be a minimum of 6”
(15.2 cm) side clearance from the
rangetop to such combustible surfaces
above the 36” (91.4 cm) counter
height.

3. Within the 6” (15.2 cm) side clearance
to combustible vertical surfaces above
36” (91.4 cm), the maximum wall
cabinet depth must be 13” (33.0 cm)
and wall cabinets within this 6” 15.2

cm) side clearance must be 18” 45.7
cm) above the 36” (91.4 cm) high
countertop.

4. Wall cabinets above the rangetop
must be a minimum of 42” (106.7 cm)
above the rangetop cooking surface
for the full width of the rangetop. This
minimum height requirement does not
apply if a rangehood is installed over
the cooking surface.

R E V I S E D 7 / 1 5 / 1 0

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

3/

4”

(

1

.

9

c

m)

m

i

n

.

2

4

-

7

/1

6

”

(6

2

.

1

c

m)

COOKING

Designer Built-In Electric 30”/36”W. Rangetop

UTILITY

REQU IR EMENT S

AS

G

Not applicable

•

ELECTRICAL

Electrical

•
connection—40
amp. Three-wire,

40/208V, 60Hz. Unit

2

s equipped with No.

i
10 ground wire in
conduit. Should be

used separately.

f

• Check your national
and local codes
regarding this unit.

• Four-foot (121.9 cm)
cord included with
range; three-wire
with ground/three­prong plug

• Maximum amp
usage—
o DERT 30"
o 240V—35.0
o 208V—30.3
o DERT 36”
o 240V—45.0
o 208V—40.0

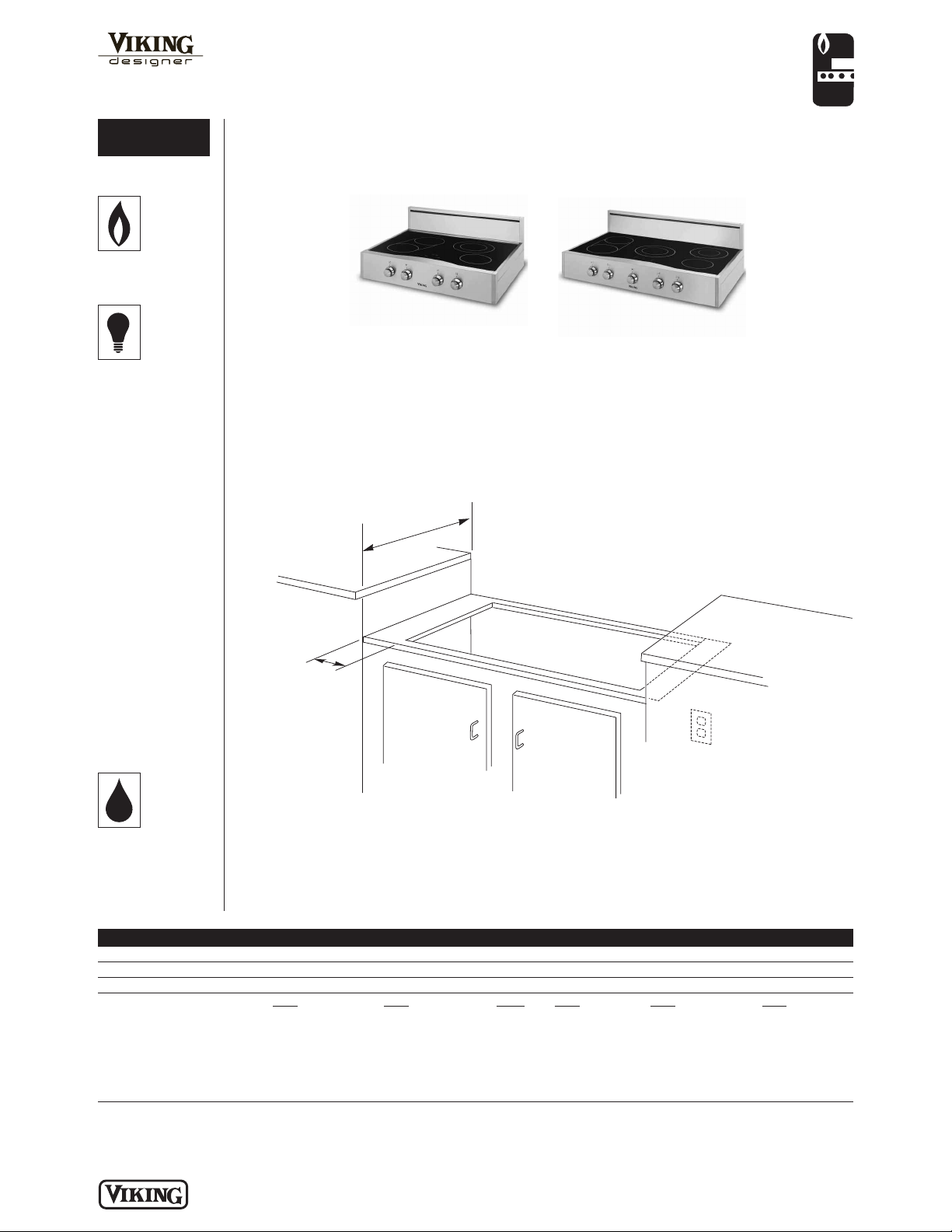

Installation Requirements

ACCESS REQUIREMENTS

DERT302-4B

30”W. Four-Burner

Rangetop

DERT362-5B

36”W. Five-Burner

Rangetop

PLUMBING

Not applicable

Cutout width 30” (76.2 cm) 36” (91.4 cm)
Cutout height 5-3/4” (14.6 cm) 5-3/4” (14.6 cm)
Cutout depth 24-7/16” (62.1 cm)
Surface element rating 240V

Left front 1,800 watts 1,350 watts 1,800 watts 1,350 watts
Bridge 800 watts 600 watts
Left rear 1,800 watts 1,350 watts 1,800 watts 1,350 watts
Center (dual element) N/A 2,700/1,700 watts 2,025/1,275 watts
Right front 1,500 watts 1,125 watts 1,500 watts 1,125 watts
Right rear (dual element) 2,500/1,000 watts 1,875/750 watts 2,200/750 watts 1,650 watts

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

DERT302-4B DERT362-5B

208V 240V 208V 240V 208V

R E V I S E D 7 / 1 5 / 1 0

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

COOKING

Designer Built-In Electric 30”/36”W. Rangetop

Installation Notes & Accessories



A backguard, high-shelf, or island trim must be used for all installations.

6”H. Backguard

• Stainless Steel (SS)

Coordinates with all finishes

•

Model Description Approx. ship wt. lbs. (kg)

S30BG6 30”W. backguard 14 (6.3)

D

S36BG6 36”W. backguard 14 (6.3)

D

10”H. Backguard

• Stainless Steel (SS)

• Coordinates with all finishes

Model Description Approx. ship wt. lbs. (kg)

DS36BG10 36”W. backguard 17 (7.7)

High-shelf

• Stainless Steel (SS)

• Coordinates with all finishes

• Shelf comes attached to a 24”H. backguard

Model Description Approx. ship wt. lbs. (kg)

S30HS24 30”W. high-shelf 45 (20.3)

D

S36HS24 36”W. high-shelf 50 (22.5)

D

Island Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• For island/peninsula installation

• Can replace backguard if wall is non-combustible

Model Description Approx. ship wt. lbs. (kg)

DS30TII 30”W. island trim 10 (4.5)
DS36TII 36”W. island trim 11 (5.0)

Countertop Side Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• Installs on side of unit; overlaps countertop

• One pair of trim

Model Description Approx. ship wt. lbs. (kg)

DS24CST Side trim 2 (0.9)

Countertop Rear Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• Installs on rear of unit; overlaps countertop

Model Description Approx. ship wt. lbs. (kg)

P30CRT 30”W. Countertop Rear Trim 2 (0.9)
P36CRT 36”W. Countertop Rear Trim 2 (0.9)

Compliance Information

WARRANTY INFORMATION*

• One-year full warranty—complete product

• Five-year limited warranty—all electric elements/oven elements

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items

* For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.
