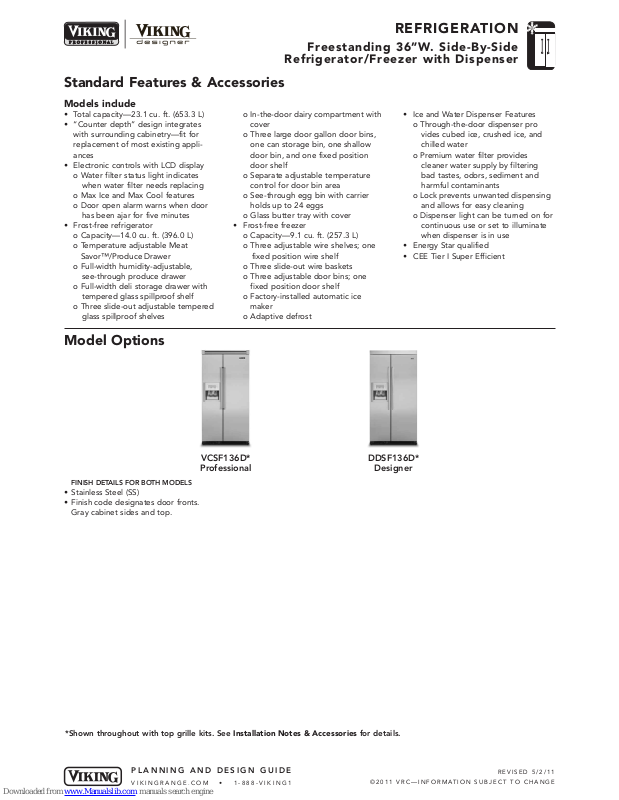

Page 1
Standard Features & Accessories
Models include
• Total capacity—23.1 cu. ft. (653.3 L)
• “Counter depth” design integrates
with surrounding cabinetry—fit for
replacement of most existing appliances
• Electronic controls with LCD display
o Water filter status light indicates
when water filter needs replacing
o Max Ice and Max Cool features
o Door open alarm warns when door
has been ajar for five minutes
• Frost-free refrigerator
o Capacity—14.0 cu. ft. (396.0 L)
o Temperature adjustable Meat
Savor™/Produce Drawer
o Full-width humidity-adjustable,
see-through produce drawer
o Full-width deli storage drawer with
tempered glass spillproof shelf
o Three slide-out adjustable tempered
glass spillproof shelves
o In-the-door dairy compartment with
cover
o Three large door gallon door bins,
one can storage bin, one shallow
door bin, and one fixed position
door shelf
o Separate adjustable temperature
control for door bin area
o See-through egg bin with carrier
holds up to 24 eggs
o Glass butter tray with cover
• Frost-free freezer
o Capacity—9.1 cu. ft. (257.3 L)
o Three adjustable wire shelves; one
fixed position wire shelf
o Three slide-out wire baskets
o Three adjustable door bins; one
fixed position door shelf
o Factory-installed automatic ice
maker
o Adaptive defrost
REFRIGERATION
Freestanding 36”W. Side-By-Side
Refrigerator/Freezer with Dispenser
• Ice and Water Dispenser Features
o Through-the-door dispenser pro
vides cubed ice, crushed ice, and
chilled water
o Premium water filter provides
cleaner water supply by filtering
bad tastes, odors, sediment and
harmful contaminants
o Lock prevents unwanted dispensing
and allows for easy cleaning
o Dispenser light can be turned on for
continuous use or set to illuminate
when dispenser is in use
• Energy Star qualified
• CEE Tier I Super Efficient
Model Options
FINISH DETAILS FOR BOTH MODELS
• Stainless Steel (SS)
• Finish code designates door fronts.
Gray cabinet sides and top.
VCSF136D*
Professional
DDSF136D*
Designer
*Shown throughout with top grille kits. See Installation Notes & Accessories for details.
P L AN N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E V I S E D 5 / 2 / 1 1
© 2 0 1 1 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E
Page 2
REFRIGERATION
2
4
”
(
6
1
.
0
c
m
)
3
0
”
(
7
6
.
2
c
m
)
6
8
-
1
/
2
”
(
1
7
4
.
0
c
m
)
7
1
-
7
/
8
”
(
1
8
2
.
6
c
m
)
w
i
t
h
t
o
p
g
r
i
l
l
e
/
t
o
p
a
c
c
e
s
s
o
r
y
3
5
-
5
/
8
”
(
9
0
.
5
c
m
)
3
5
-
7
/
8
”
(
9
1
.
1
c
m
)
w
/
s
i
d
e
p
a
n
e
l
a
c
c
e
s
s
o
r
y
2
7
-
1
/
2
”
(
6
9
.
9
c
m
)
2
4
”
(
6
1
.
0
c
m
)
3
0
”
(
7
6
.
2
c
m
)
6
8
-
1
/
2
”
(
1
7
4
.
0
c
m
)
7
1
-
7
/
8
”
(
1
8
2
.
6
c
m
)
w
i
t
h
t
o
p
g
r
i
l
l
e
/
t
o
p
a
c
c
e
s
s
o
r
y
3
5
-
5
/
8
”
(
9
0
.
5
c
m
)
3
5
-
7
/
8
”
(
9
1
.
1
c
m
)
w
/
s
i
d
e
p
a
n
e
l
a
c
c
e
s
s
o
r
y
2
7
-
1
/
2
”
(
6
9
.
9
c
m
)
Freestanding 36”W. Side-By-Side
Refrigerator/Freezer with Dispenser
Please see
✪
Installation Notes &
Accessories
for important
information,
including water
filter, handle, trim
and top grille kits.
Dimensions & Specifications
PRODUCT DIMENSIONS
VCSF136D
Professional
DDSF136D
Designer
PROFESSIONAL
Overall width 35-5/8” (90.5 cm)
Addition of side panels 35-7/8” (91.1 cm)
Overall height (from bottom) 68-1/2” (174.0 cm)
Addition of tops/grilles 71-7/8” (182.6 cm)
Overall depth (from rear)
To front of door 27-1/2” (69.9 cm)
To front of handle 30” (76.2 cm)
Approx. ship weight 304 lbs. (136.8 kg)
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
DESIGNER
VCSF136D/DDSF136D
R E V I S E D 5 / 2 / 1 1
© 2 0 1 1 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E
Page 3
3
5-5/8”
(90.5 cm)
41-3/4”
(106.0 cm)
2-1/2”
(6.4 cm)
2-1/2”
(6.4 cm)
90.0°90.0°
45-1/2”
(115.6 cm)
Dimensions & Specifications
35-5/8”
(90.5 cm)
41-3/4”
(106.0 cm)
2-1/2”
(6.4 cm)
2-1/2”
(6.4 cm)
90.0°90.0°
45-1/2”
(115.6 cm)
DOOR SWING
REFRIGERATION
Freestanding 36”W. Side-By-Side
Refrigerator/Freezer with Dispenser
VCSF136D
Professional
PROFESSIONAL
DDSF136D
Designer
DESIGNER
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E V I S E D 5 / 2 / 1 1
© 2 0 1 1 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E
Page 4
69”
(175.3 cm)
cutout without
addition of
tops/grilles
72”
(182.9 cm)
cutout with
addition of
tops/grilles
26-1/2”
(67.3 cm)
24-1/2”
(62.2 cm)
min.
36”
(91.4 cm)
14”
(35.6 cm)
Water line
location
Recommended
receptacle location
20”
(50.8 cm)
20”
(50.8 cm)
56-1/2”
(143.5 cm)
61-1/2”
(156.2cm)
26”
(66.0cm)
21-1/2”
(54.6 cm)
REFRIGERATION
Freestanding 36”W. Side-By-Side
Refrigerator/Freezer with Dispenser
UTILITY
REQUIREMENTS
GAS
Not applicable
ELECTRICAL
• Three-wire cord
with grounded
three-prong plug
attached to
product. Do not
use an extension
cord or adapter
plug for a two-
prong receptacle—call a qualified electrical
installer.
• 115V/60 Hz; 15
amp dedicated
circuit
• Maximum amp
usage—6.5
• Estimated energy
usage—557
kWh/year
Installation Requirements
ACCESS REQUIREMENTS
VCSF136D
Professional
DDSF136D
Designer
PLUMBING
• Inlet waterline
requirements—
1/4” copper
When installing into a cutout, the edge of the door must be 2-7/8” (7.3 cm) from the adjacent countertop cabinet.
Allow 1/2” (1.3 cm) space at top and 1/2” (1.3 cm) behind the machine compartment cover (located in the
rear) for proper air circulation. Sub-flooring or floor coverings (i.e. carpet, tile, wood floors, rugs) may make
your opening smaller than anticipated.
tubing
• 30 psi min.;
120 psi max.
Cutout width 36” (91.4 cm)
Cutout height 69” (175.3 cm)
Addition of tops/grilles 72” (182.9 cm)
Cutout depth 24-1/2” (62.2 cm)
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
All models
R E V I S E D 5 / 2 / 1 1
© 2 0 1 1 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E
Page 5
REFRIGERATION
Freestanding 36”W. Side-By-Side
Refrigerator/Freezer with Dispenser
✪ Installation Notes & Accessories
Side Trim Kit
• Stainless steel finish
• Provides ”built-in” look when used with a top grille kit
Model Description Approx. ship wt. lbs. (kg)
RSTKS2 Side-by-side side trim kit 13 (5.9)
F
Top Grille Kits
• Stainless steel finish
• Provides ”built-in” look when used with a side trim kit; provides “wrapped” look when used with side panel and top kits
Model Description Approx. ship wt. lbs. (kg)
PFRGKS2 Professional side-by-side grille kit 10 (4.5)
DFRGKS2 Designer side-by-side grille kit 10 (4.5)
Side Panel Kit
• Stainless steel finish
• Provides ”wrapped” look when used with top grille and top kits
• Side panel kits include panels for both sides
Model Description Approx. ship wt. lbs. (kg)
RSPKS2 Side-by-side side panel kit 60 (27.0)
F
Top Kit
• Stainless steel finish
• Provides ”wrapped” look when used with side panel and top grille kits
Model Description Approx. ship wt. lbs. (kg)
FRTOPS2 Side-by-side top kit 19 (8.6)
Replacement Water Filters
• Replaces water filter cartridges supplied with freestanding refrigerator/freezers
• Reduces sediment, bad taste and odor
• Reduces cysts, particulates, turbidity, lead, chlorine, atrazine and lindane
• NSF certified
• Ready to install—no assembly required
Model Description Approx. ship wt. lbs. (kg)
RWF-FRSXS Replacement water filters 5 (2.3)
Compliance Information
WARRANTY SUMMARY*
• Three-year full warranty—complete unit (Professional)
• Two-year full warranty—complete unit (Designer)
• Six-year full warranty—sealed refrigeration system
• Twelve-year limited warranty—sealed refrigeration system (includes compressor, condenser,
dryer/strainer, evaporator, and connecting tubing)
• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items (Professional and Designer)
*For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E V I S E D 5 / 2 / 1 1
© 2 0 1 1 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E
