Viking VCSF, DDSF Installation Manual

Viking Installation Guide

Viking Range Corporation

111 Front Street

Greenwood, Mississippi 38930 USA

Freestanding Side-By-Side

Refrigerator/Freezer

Listed

2

IIMMPPOORRTTAANNTT SSAAFFEETTYY IINNSSTTRRUUCCTTIIOONNSS

YYoouurr ssaaffeettyy aanndd tthhee ssaaffeettyy ooff ootthheerrss iiss vveerryy iimmppoorrttaanntt..

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to hazards that can kill or hurt you and others. All safety messages will be
preceded by the safety alert symbol and the word “DANGER” , “WARNING” or “CAUTION”.
These words mean:

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions
are not followed.

Immediate hazards which

WWIILLLL

result in severe personal injury or death.

Hazards or unsafe practices which

CCOOUULLDD

result in severe personal injury or death.

DANGER

WARNING

To reduce the risk of fire, electric shock, serious injury or death when using your refrigerator, follow these basic
precautions, including the following:

Hazards or unsafe practices which

CCOOUULLDD

result in minor personal injury or property damage.

CAUTION

WARNING

.•Read all instructions before using the refrigerator.

•Observe all local codes and ordinances. Install refrigerator according to Installation Instructions. All connections for
water, electrical power and grounding must comply with local codes and be made by licensed personnel when
required.

•Do not modify plug on power cord. If plug does not fit electrical outlet, have proper outlet installed by a qualified
technician. Replace worn power cords and/or loose plugs.

•Do not ground to a gas line or cold-water pipe.

•Do not remove warning tag from power cord

•Refrigerator is designed to operate on a separate 115 volt, 15 amp., 60 cycle line.

•Do not tamper with refrigerator controls.

•Do not service or replace any part of refrigerator unless specifically recommended in Use & Care or Installation.
Instructions. Do not attempt service if instructions are not understood or if they are beyond personal skill level.

•Always disconnect refrigerator from electrical supply before attempting to change light bulbs, clean, or service the
refrigerator. Disconnect the power cord by grasping the plug, not the cord.

•Always read and follow manufacturer’s storage and ideal environment instructions for items being stored in refrigerator.

•Never allow children to operate, play with, crawl inside or stand on any part the refrigerator.

•Never clean refrigerator parts with flammable fluids. The fumes can create a fire hazard or explosion.

•Clean up spills or water leakage associated with water installation.

•Keep your refrigerator in good condition. Bumping or dropping refrigerator can damage refrigerator or cause
refrigerator to malfunction or leak. If damage occurs, have refrigerator checked by qualified service technician.

--SSAAVVEE TTHHEESSEE IINNSSTTRRUUCCTTIIOONNSS--

GGEENNEERRAALL IINNFFOORRMMAATTIIOONN

IIMMPPOORRTTAANNTT -- PPLLEEAASSEE RREEAADD AANNDD FFOOLLLLOOWW

Make sure that incoming voltage is the same as unit rating. An electric rating plate specifying voltage, frequency and wattage
amperage is attached to the product.

To reduce the risk of fire, electric shock, or injury to persons, installation work and electrical wiring must be done by qualified
people in accordance with all applicable codes and standards, including fire-rated construction.

The installer should leave these instructions with the consumer who should retain them for local inspector’s use and for
future reference.

3

BBAASSIICC SSPPEECCIIFFIICCAATTIIOONNSS AANNDD DDIIMMEENNSSIIOONNSS
FFrreeeessttaannddiinngg SSiiddee--BByy--SSiiddee RReeffrriiggeerraattoorr//FFrreeeezzeerr

DDEESSCCRRIIPPTTIIOONN VVCC//DDDDSSFF
Overall Width 35 5/8” (90.5 cm)

Addition of side panels: 35 7/8” (91.1 cm)

Overall Height from Bottom 70” (178.0 cm)

Addition of tops/grilles: 71 7/8” (182.6 cm)
Overall Depth from Rear To front of door: 26 3/4” (67.9 cm)
Cutout Width 36” (91.4 cm)
Cutout Height 70 1/2” (179.0 cm)

Addition of tops/grilles 72” (182.9 cm)
Cutout Depth 24” (61.0 cm)
Electrical Requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with grounded

3-prong plug attached to product.
Maximum Amp Usage Non-Dispenser - 7.8 amps Dispenser - 9.4 amps
Inlet Water Requirements 1/4” copper tubing inlet waterline; minimum 35 psi; maximum 100 psi
Overall Interior Capacities Dispenser Units

Non Dispenser Units

•Refrigerator 13.5 cu. ft. (382 liters) 13.5 cu. ft. (382 liters)

•Freezer 8.1 cu. ft. (229 liters) 8.0 cu. ft. (226 liters)

•Total Capacity 21.6 cu. ft. (611 liters) 21.5 cu. ft. (608 liters)

Approximate Shipping Weight 314 lbs. (141.3 kg)

DANGER

RRiisskk ooff CChhiilldd EEnnttrraappmmeenntt
BBEEFFOORREE YYOOUU TTHHRROOWW AAWWAAYY YYOOUURR OOLLDD
RREEFFRRIIGGEERRAATTOORR OORR FFRREEEEZZEERR::

•Take off the doors.

•Leave the shelves in place so that children

may not easily climb inside.

IIMMPPOORRTTAANNTT::

Child entrapment and
suffocation are not problems of the past.
Junked or abandoned refrigerators are still
dangerous... even if they will sit for “just a few
days.”

IItt iiss tthhee ccuussttoommeerr’’ss rreessppoonnssiibbiilliittyy ttoo::

•contact a qualified electrical installer.

•assure that the electrical installation is adequate and in conformance with the National Electrical Code, ANSI/NFPA
70-latest edition or Canadian Electrical Code C22.1-1998 and C22.2 No. 0-M91 (or latest edition), and all local codes
and ordinances. (115 volt, 60-Hz, 15 amp, fused, electrical supply is required. It is required that a separate circuit
serving only this appliance be provided. This appliance is equipped with a power supply cord having a 3-prong
grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-prong, grounding­type wall receptacle. If a 2-prong receptacle is encountered, the customer must contact a qualified electrical installer
to have it replaced with a properly grounded 3-prong receptacle. Do not use an extension cord or adapter plug.)

EELLEECCTTRRIICCAALL SSHHOOCCKK HHAAZZAARRDD
PPlluugg iinnttoo aa ggrroouunnddeedd 33--pprroonngg oouuttlleett..
DDOO NNOOTT rreemmoovvee ggrroouunndd pplluugg..
DDOO NNOOTT uussee aann aaddaapptteerr..
DDOO NNOOTT uussee aann eexxtteennssiioonn ccoorrdd..
FFaaiilluurree ttoo ffoollllooww tthheessee iinnssttrruuccttiioonnss
ccoouulldd rreessuulltt iinn ffiirree oorr eelleeccttrriiccaall sshhoocckk..

WARNING

Power cord with 3-prong
grounding plug

Grounding-type wall
receptacle

**WWhheenn iinnssttaalllliinngg iinnttoo aa ccuuttoouutt,, tthhee eeddggee ooff tthhee ddoooorr mmuusstt bbee 22 77//88”” ((77..33 ccmm)) ffffrroomm tthhee aaddjjaacceenntt ccoouunntteerrttoopp//ccaabbiinneett..

4

IINNSSTTAALLLLAATTIIOONN

Your refrigerator was packed carefully for shipment. Remove and discard all packaging and tape. Do not remove the
model/serial number label.

LLooccaattiioonn

•Do not install refrigerator near oven, radiator or other heat source. If not possible, shield refrigerator with cabinet
material.

•Do not install where the temperature falls below 55

o

F (13oC) or rises above 110oF (43oC). Malfunction may occur at

these temperatures.

•Refrigerator is designed for indoor household application only.

MMeeaassuurriinngg tthhee OOppeenniinngg

When installing your refrigerator, measure carefully. Allow 1/2” (1.3 cm) space at top and 1/2” (1.3 cm) behind the
machine compartment cover (located in the rear) for proper air circulation. Sub-flooring or floor coverings (i.e. carpet,
tile, wood floors, rugs) may make your opening smaller than anticipated. Some clearance may be gained by using the
leveling procedure under “LEVELING”.

TTrraannssppoorrttiinngg YYoouurr RReeffrriiggeerraattoorr

•

NNEEVVEERR

transport refrigerator on its side. If an upright position is not possible, lay refrigerator on its back. Allow
refrigerator to sit upright for approximately 30 minutes before plugging it in to assure oil returns to the compressor.
Plugging the refrigerator in immediately may cause damage to internal parts.

•Use an appliance dolly when moving refrigerator.

AALLWWAAYYSS

truck refrigerator from its side or back -

NNEEVVEERR

from its

front.

•Protect outside finish of refrigerator during transport by wrapping cabinet in blankets or inserting padding between
the refrigerator and dolly.

•Secure refrigerator to dolly firmly with straps or bungee cords. Thread straps through handles when possible. Do not
overtighten. Overtightening restraints may dent or damage outside finish.

DDoooorr aanndd HHiinnggee RReemmoovvaall

Some installations require door removal to transport the refrigerator to its final location.

DANGER

To avoid electrical shock which can cause severe personal injury or
death, observe the following:

•Disconnect power to refrigerator before removing doors or
drawer. Connect power only after replacing doors or drawer.

•Green ground wire must be attached to top hinge while
performing door removal and replacement.

•Tape decorative panels (select models) securely into place before
removing door handles.

CAUTION

To avoid property damage observe the
following:

•Protect vinyl or other flooring with cardboard,
rugs or other protective material, prior to
moving refrigerator.

•

DDoo NNoott

adjust refrigerator to be any shorter
than 68 1/2” tall (minus hinge and cap). Doing
so may damage underside components.

1. Unplug power cord from power source.

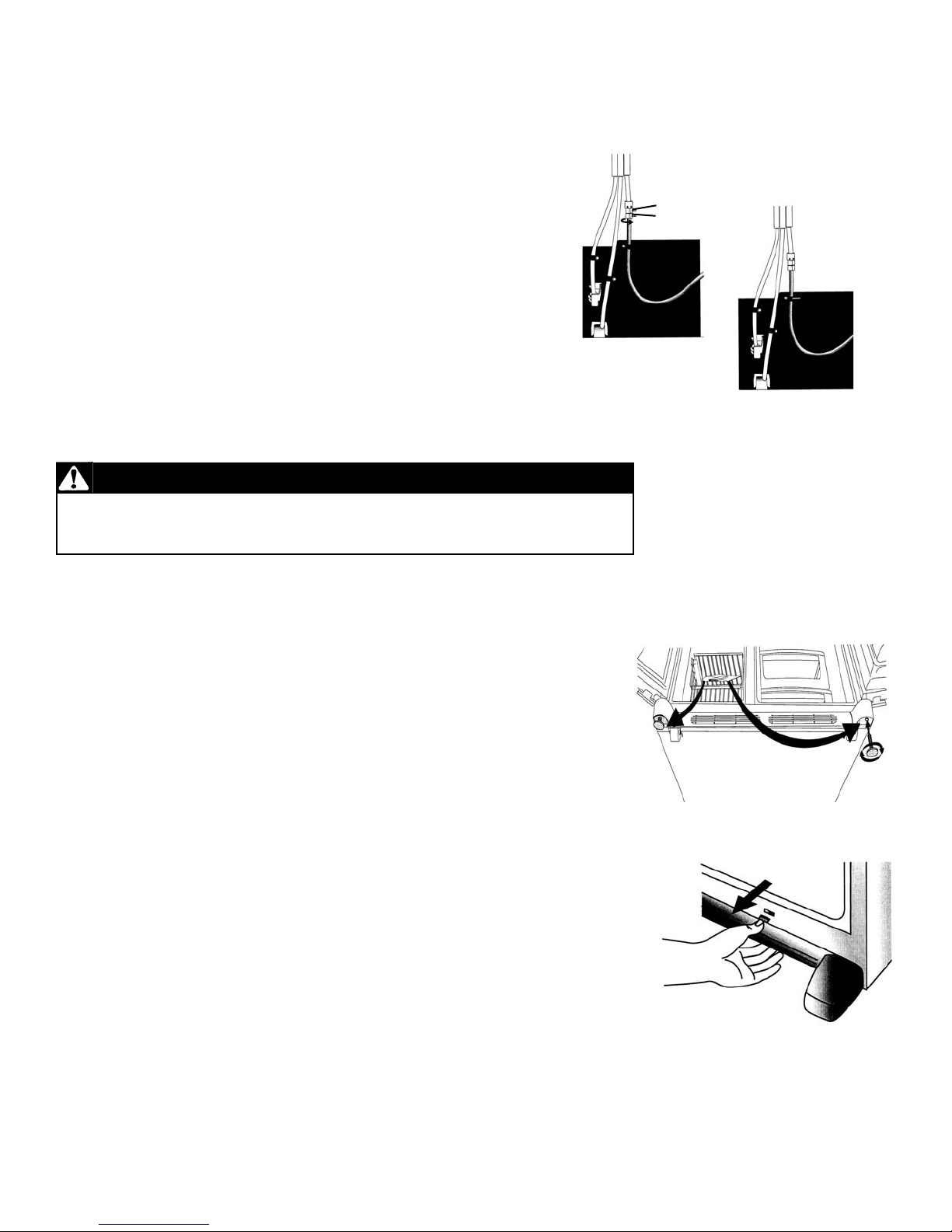

2. Remove toe grille. Open both doors 180

o

, or as wide as possible.

NNOOTTEE::

For refrigerators in operation, shut off water before removing water line from the door.

TToo ddiissccoonnnneecctt tthhee WWaatteerr LLiinnee::

•Push in white collar “A” and hold.

•Pull the door-side tube from the connector “B”. See figure 1.

TToo RReeccoonnnneecctt tthhee WWaatteerr LLiinnee::

•Firmly push tube 5/8” into the connector. Use lines on the tube as a
guide for full insertion.

•If tube end is damaged, cut off 5/8” before reconnecting.

•If leaking occurs, reconnect the line.

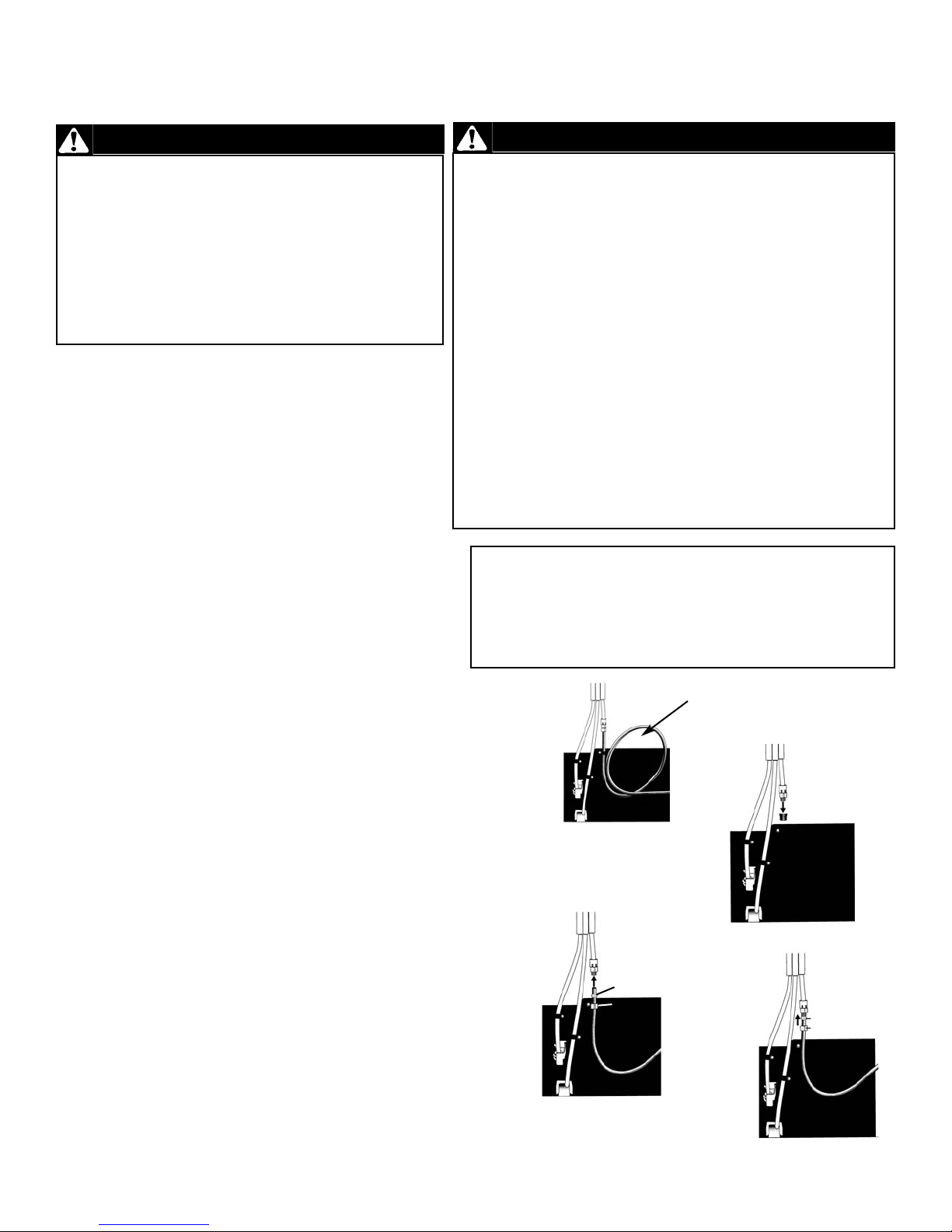

Figure 1

5

RReeppllaacciinngg tthhee DDoooorrss

To replace the doors, follow the steps in

Door and Hinge Removal

in reverse order.

IIMMPPOORRTTAANNTT::

If water line tube

end is damaged, cut off 5/8” before reconnecting.

When reinstalling bottom hinges, install the screws in the sequence shown below for both hinges

IINNSSTTAALLLLAATTIIOONN

3. Close doors.

4. Remove top hinge covers by removing Phillips screws.

5. Unscrew 5/16” hex head screws from top hinges. (See figure 2.)

6.

FFoorr iiccee aanndd wwaatteerr ddiissppeennssiinngg mmooddeellss oonnllyy::
Detach main wire connector harness. Do not remove
screw connecting green ground wire. (See figure 3).

To detach main wire harness, use a flat blade tool or fingernail to press junction
point between two connectors to release. (See figure 4).

7. Remove top hinges along with doors. (See figure 5).

Figure 2

Figure 4

Figure 5

Figure 3

11

22

11

22

33

44

33

44
