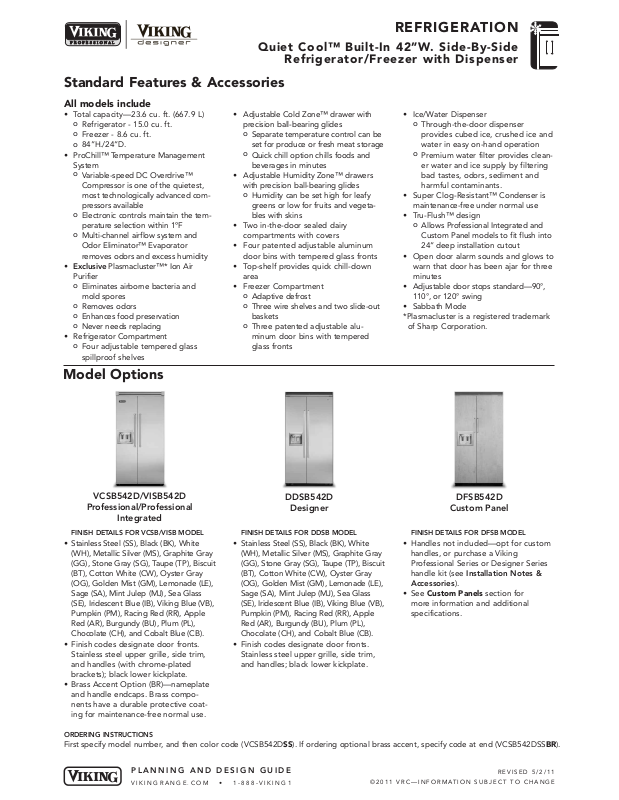

Quiet Cool™ Built-In 42”W. Side-By-Side
Standard Features & Accessories
All models include
• Total capacity—23.6 cu. ft. (667.9 L)
o
Refrigerator - 15.0 cu. ft.
o
Freezer - 8.6 cu. ft.
o 84”H./24”D.
• ProChill™ Temperature Management
System
o
Variable-speed DC Overdrive™
Compressor is one of the quietest,
most technologically advanced compressors available
o
Electronic controls maintain the temperature selection within 1ºF
o
Multi-channel airflow system and
Odor Eliminator™ Evaporator
removes odors and excess humidity
• Exclusive Plasmacluster™* Ion Air
Purifier
o
Eliminates airborne bacteria and
mold spores
o
Removes odors
o
Enhances food preservation
o
Never needs replacing
• Refrigerator Compartment
o
Four adjustable tempered glass
spillproof shelves
• Adjustable Cold Zone™ drawer with
precision ball-bearing glides
o
Separate temperature control can be
set for produce or fresh meat storage
o
Quick chill option chills foods and
beverages in minutes
• Adjustable Humidity Zone™ drawers
with precision ball-bearing glides
o
Humidity can be set high for leafy
greens or low for fruits and vegetables with skins
• Two in-the-door sealed dairy
compartments with covers
• Four patented adjustable aluminum
door bins with tempered glass fronts
• Top-shelf provides quick chill-down
area
• Freezer Compartment
o
Adaptive defrost
o
Three wire shelves and two slide-out
baskets
o
Three patented adjustable aluminum door bins with tempered
glass fronts
REFRIGERATION
Refrigerator/Freezer with Dispenser
• Ice/Water Dispenser
o
Through-the-door dispenser
provides cubed ice, crushed ice and
water in easy on-hand operation
o
Premium water filter provides cleaner water and ice supply by filtering
bad tastes, odors, sediment and
harmful contaminants.
• Super Clog-Resistant™ Condenser is
maintenance-free under normal use

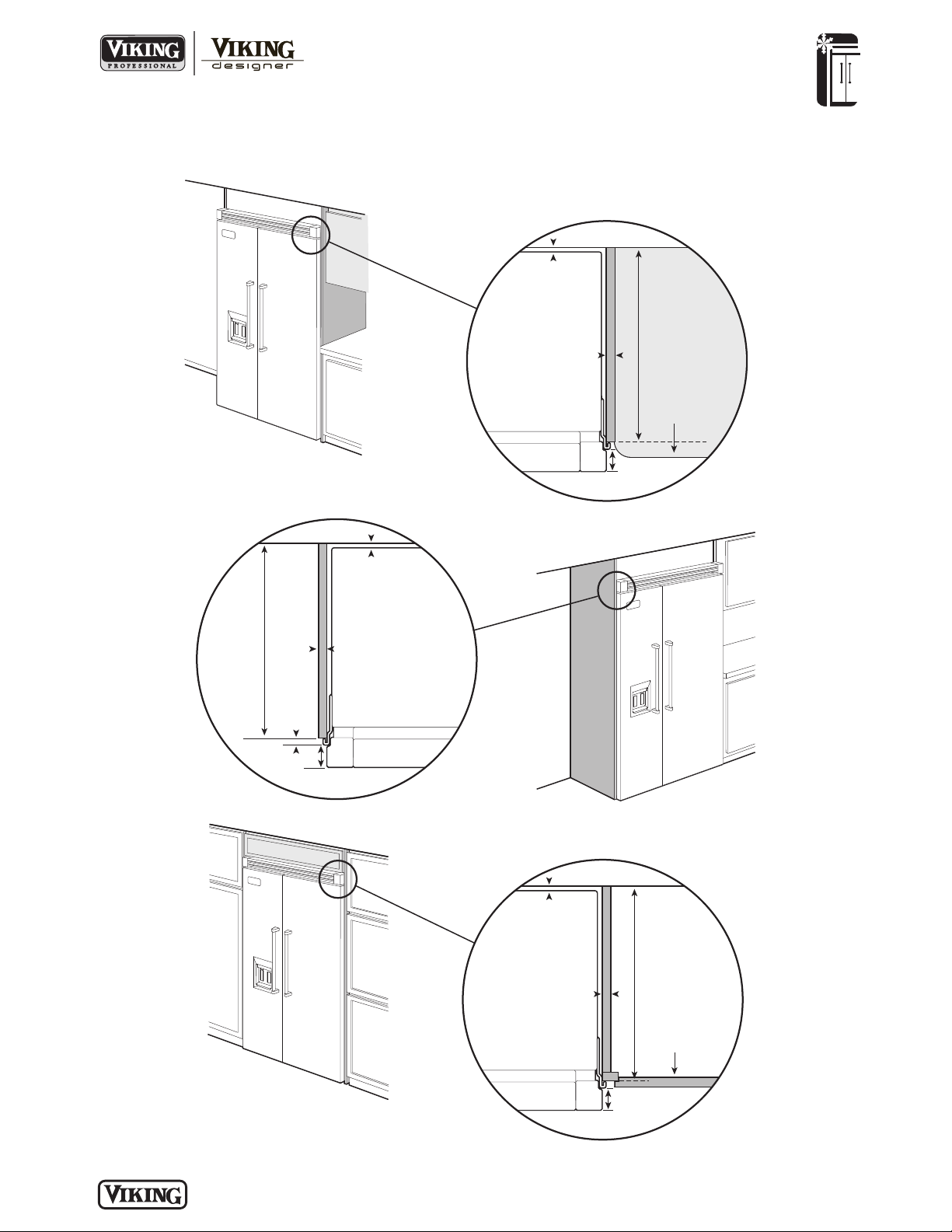

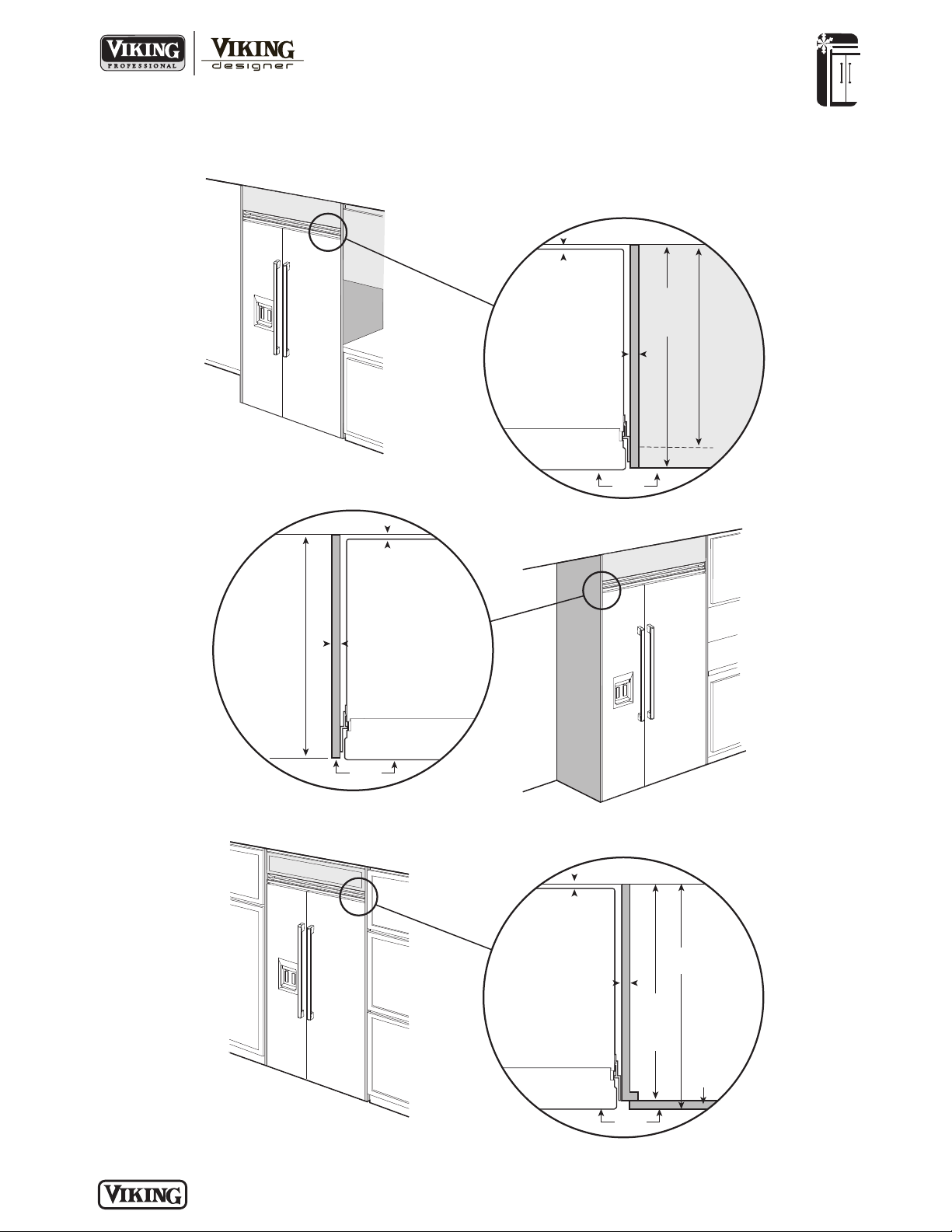

• Tru-Flush™ design
o
Allows Professional Integrated and
Custom Panel models to fit flush into
24” deep installation cutout
• Open door alarm sounds and glows to
warn that door has been ajar for three
minutes

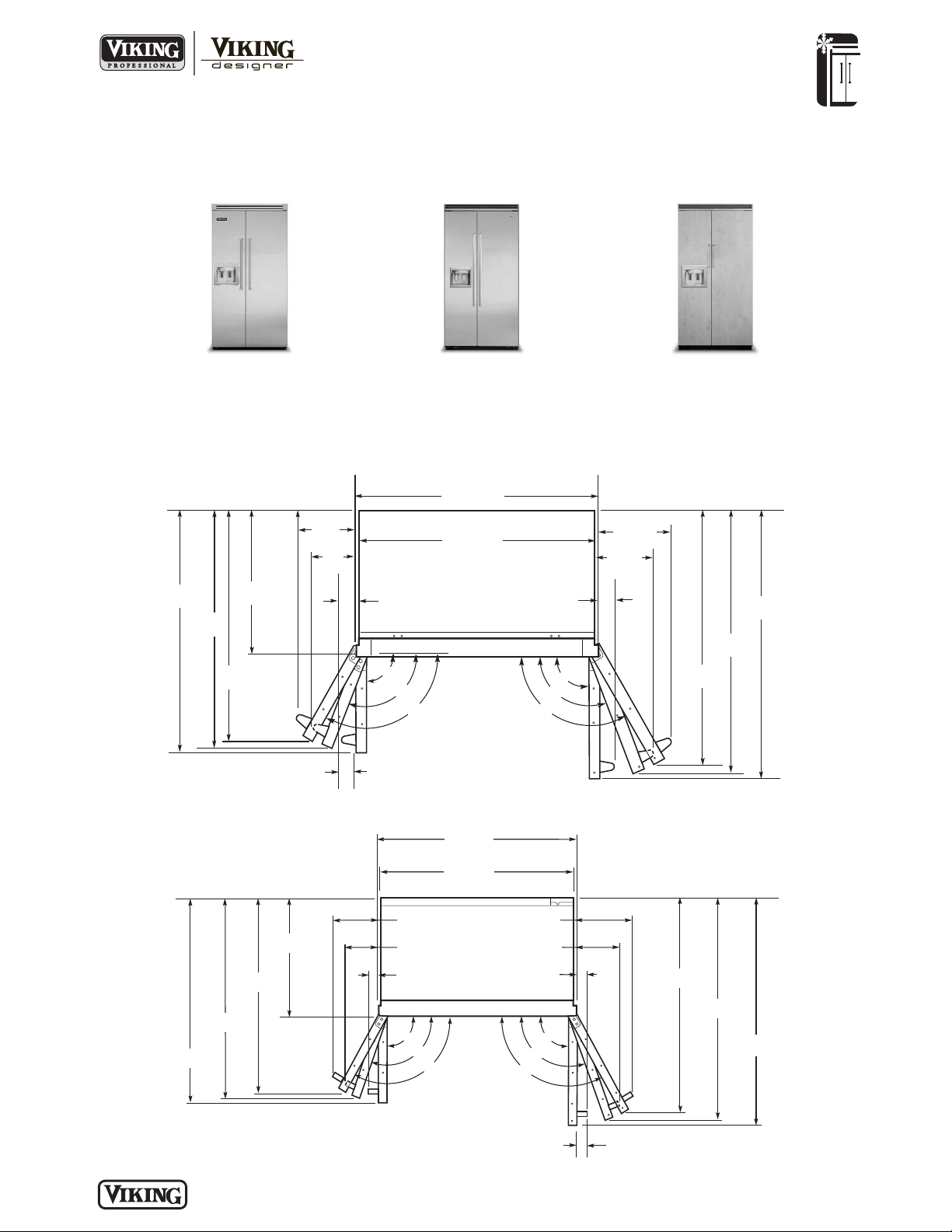

• Adjustable door stops standard—90°,
110°, or 120° swing
• Sabbath Mode
*Plasmacluster is a registered trademark
of Sharp Corporation.

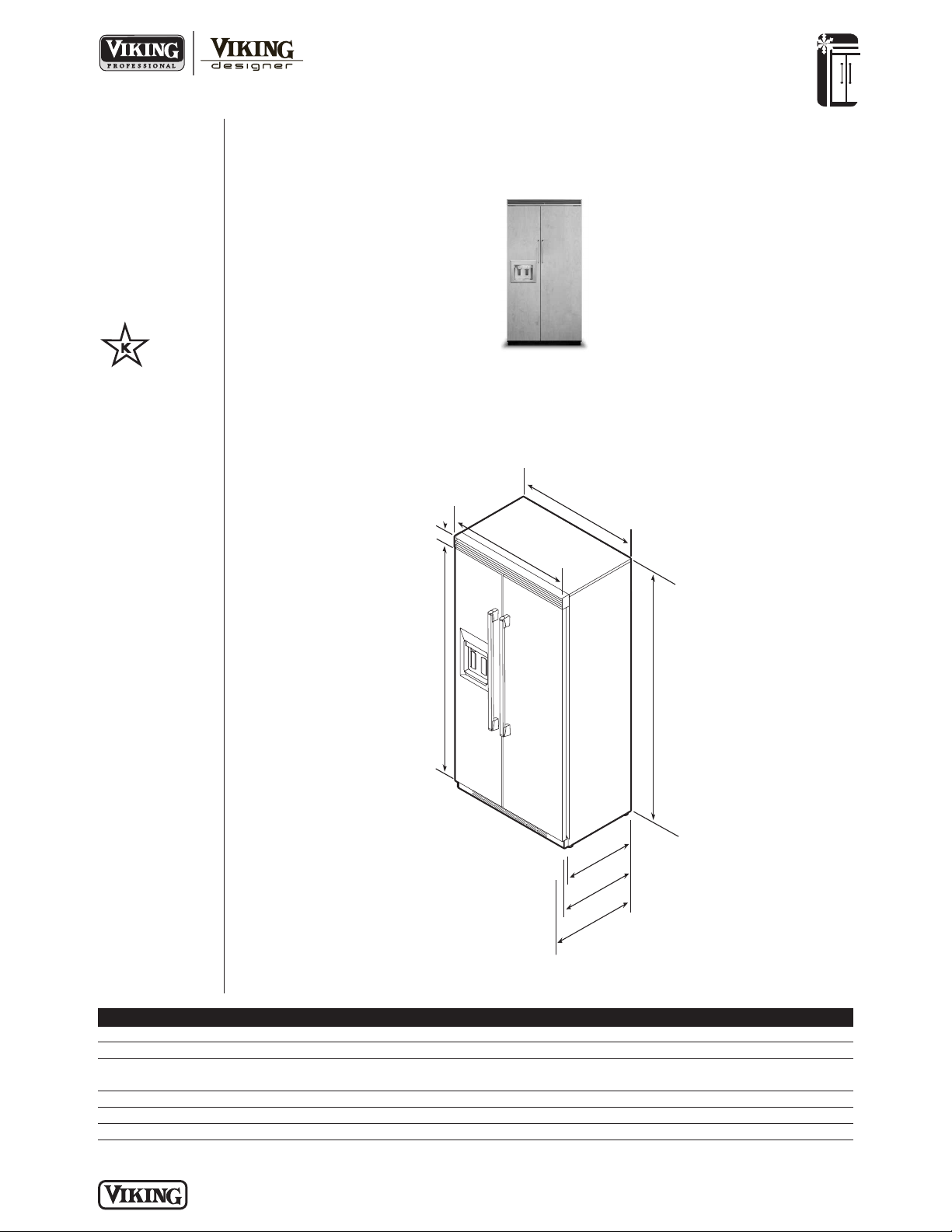

Model Options
VCSB542D/VISB542D
Professional/Professional
Integrated
FINISH DETAILS FOR VCSB/VISB MODEL
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
• Finish codes designate door fronts.
Stainless steel upper grille, side trim,
and handles (with chrome-plated
brackets); black lower kickplate.
• Brass Accent Option (BR)—nameplate
and handle endcaps. Brass components have a durable protective coating for maintenance-free normal use.
DDSB542D
Designer
FINISH DETAILS FOR DDSB MODEL
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
• Finish codes designate door fronts.
Stainless steel upper grille, side trim,
and handles; black lower kickplate.
DFSB542D
Custom Panel
FINISH DETAILS FOR DFSB MODEL
• Handles not included—opt for custom
handles, or purchase a Viking
Professional Series or Designer Series
handle kit (see Installation Notes &
Accessories).
• See Custom Panels section for
more information and additional
specifications.
ORDERING INSTRUCTIONS
First specify model number, and then color code (VCSB542DSS). If ordering optional brass accent, specify code at end (VCSB542DSSBR).
