2

AACCCCEESSSS CCOONNTTRROOLL OOVVEERRVVIIEEWW

More than just an intercom...

Security is on everyone’s mind today and that always means placing some restrictions
on who can enter a building. Your customers will most likely be letting in the majority of
people who arrive at their door. But you wouldn’t know that from reading the ads in
security magazines. Those ads tell you to install a high-tech system for every door
entry/access application.

In most residential and business applications, the callers at the doors are most likely to
be clients, friends, a delivery driver, or the dreaded door-to-door solicitor. Your
customers want a system that allows them to screen visitors and open doors and gates
with minimum intrusion into their daily lives and business operations.

So, how do you select a door entry/access system that provides the proper level of
security for your kind of customer? Read this guide. It’s designed to help you understand
the terminology, system design, installation practices, and available options for
residential and small business door entry and access systems.

Understanding Viking’s Systems

Viking offers a wide range of entry systems, from free standing single door entry systems
to fully integrated multi-unit apartment entry systems. The chart below and the following
sections will explain the different types of Viking entry systems and specific applications.

Model
ES-1

Doorboxes

C-1000B

C-2000A

K-1900-3

C-3000

C-4000

AES-2000

3

Page

4

5

6

7

8

8

9

11

Description

Stand-alone door entry system to operate a doorstrike or
magnetic lock, compatible with Viking’s HID-1 and HID-2.

Designed for use with single or multi-line phones or Viking’s
C-1000B controller.

Controls 1-2 Viking doorboxes, answer and open a door from
a Touch Tone phone, also allows CCTV monitoring.

Full-feature door entry system for up to 4 doors or gates,
answer and open doors from a Touch Tone phone, compatible
with Viking’s VC-1000 for CCTV monitoring.

Apartment entry system for up to 150 units, provides keyless
entry and allows tenants to “buzz” in visitors via phone.

Apartment entry system with no C.O. lines required, still allows
tenants to “buzz” in visitors, 12 units (expandable to 96).

Apartment/Office entry system for up to 250 tenants, up to 4
doors or gates may be used, allows keyless or prox-card
entry, compatible with Viking’s HID-1 and HID-2.

Accessible entry system for people with sensory and physical
impairments, allows keyless or prox card entry for up to 75
tenants, expandable to 525 tenants.

SSTTAANNDD-AALLOONNEE DDOOOORR EENNTTRRYY SSYYSSTTEEMM

Viking’s ES-1 is a door entry controller designed to operate a door strike or magnetic
lock upon receiving a valid card read and/or keyless entry code from Wiegand devices.
One ES-1, one or two Wiegand devices and a door strike or magnetic lock of your
choice is required for each entry point.

The ES-1 is compatible with Viking’s HID-1 Proximity Card Reader and/or the Viking’s
HID-2 Wiegand Output Keypad (see page 12) or any card reader, RF transmitter or
digital keypad that outputs the 26-bit Wiegand format. Up to 250 valid Wiegand codes
can be programmed into the ES-1.

HID-1

Swipe card or enter
keyless entry code

ES-1

Entry Point

VIKING

BZZZZ

Door Strike Activates

DDOOOORR EENNTTRRYY PPHHOONNEESS

Fax back No. 193

Viking’s E-40 Series of Entry
Phones are compact, weather
and vandal resistant,
telephone line powered
speaker phones designed to
provide two-way handsfree
communication. The E-40's
compact size allows it to be
mounted in a standard single
gang electrical box.

E-40-PB E-40-BN E-40-SS

The E-40 is available in three different attractive finishes to match your door hardware,
light fixtures, etc. The E-40-PB has a Polished Brass faceplate with an extremely durable
U.V. resistant high gloss clear powder paint coating to prevent tarnishing. The E-40-BN
has a stainless steel faceplate with Oil Rubbed Bronze (dark brown) color extremely
durable U.V. resistant matte finish powder paint. The E-40-SS has a durable Stainless
Steel faceplate with a brushed (satin) finish.

One to four E-40 entry phones can share a single phone line with house or small
business telephones when used with a Viking model C-2000A Advanced Door/Gate and
Entry Phone Controller (see page 7).

Fax back No. 187

4

VIKING

DDOOOORRBBOOXXEESS

Viking’s self-contained doorboxes are universal! They are built with all of the supporting
communications electronics inside the doorbox itself to provide ringing, talk battery and
speakerphone operation. The best part is that they work with all phone systems: single
line phones, multi-line phones, No-KSU, Key, and PABX. They are available in a variety
of styles, providing not only different decor features, but varying levels of vandal
resistance as well. Vandal resistance is a very important consideration, especially in
commercial applications. See Viking’s selection of doorboxes below.

W-1000 W-2000A W-3000

Fax back No. 170

Fax back No. 170

Fax back No. 180

Using Viking Doorboxes with a Dedicated Phone

A self contained Viking doorbox can be mounted at the door and be wired directly to a
dedicated standard single line phone. The phone can only communicate with the
doorbox.

For example: a doorbox is installed at a company receiving door. It is wired directly to
a single line phone or the base station of a portable phone in the shipping department.
A portable phone allows personnel to answer the doorbox from anywhere within the
radius of the base station. A delivery driver pushes the button on the doorbox and it rings
the attached phone and provides talk battery. Shipping personnel answer the door
simply by picking up the dedicated phone. The speakerphone in the doorbox allows the
driver to talk hands-free.

What you have at this point is essentially a private network between the driver at the door
and the shipping employee answering the dedicated phone. No other phone users can
access the doorbox. The doorbox also works in reverse. In the same example, shipping
personnel can pick up the dedicated phone and listen to activity near the outside
doorbox. In reverse mode the doorbox does not require push button activation to work.

Shipping and

Receiving

Entrance

5

W-2000A
Doorbox

You’re picking
up a package?

Shipping and

Receiving
Personnel

Using Viking Doorboxes in Multiple Line Applications

Using the same self-contained Viking doorbox described in the last section, wire the talk
pair into an unused trunk input of a multiple-line (No KSU) telephone, PABX, or Key
system. The doorbox in this application acts as if it is an ordinary phone line. The
doorbox generates ring voltage and talk battery into the multiple-line telephone, PABX,
or Key system. Depending on programming, the PABX or Key system can route the call
to a specific phone or to all phones in the system. For example: If the doorbox is
connected to the previously unused Line 4 input of a KSU and Line 4 is then
programmed to ring on all phones, the doorbox ring signal would cause all the phones
to ring and the Line 4 light to flash. In this example, any employee could answer the
doorbox from any phone in the system. To be trunk compatible, a doorbox must provide
ring voltage and talk battery.

Incoming

C.O. Lines

Model W-1000

SEE

OPEN

Line 1
Line 2
Line 3

Doorbox

Who’s at the Door, ANSWER

the Door... All with a Viking Doorbox!

The C-1000B door entry controller allows Viking doorboxes to share a

regular phone line, even if the phone line is in use. It also provides relay

contacts for door and gate opening systems-relays that are activated by a

Touch Tone security code from the user. When a visitor activates the doorbox,
the C-1000B passes the doorbox ring to all premise phones. If the line is in use, the C­1000B initiates a call waiting tone into the conversation. Using Touch Tone commands,
the user can switch between their phone call and the visitor at the door and operate
relays for door strikes and gate openers. With this type of system, users no longer have
to get up to answer the door or open the door.

PABX/KSU

Key Phone

Line 1
Line 2
Line 3
Line 4 Doorbox

the Door and

Fax back No. 168

Front
Door

Back
Door

W-2000A
Doorbox

W-1000

Doorbox

BZZZZ

C-1000B

Controller

Premise

Phones

C.O. Lines

Demarcation

Incoming

CCTV

Monitor

BEEP!

Hold on,

someone’s at

the door...

Press:

#

to put the call on
hold and connect
with the doorbox.

Hi Sue - I’ll

buzz you in.

Press:

to activate the

doorstrike relay.

4

4

6

FFUULLLL-FFEEAATTUURREE DDOOOORR EENNTTRRYY SSYYSSTTEEMM

The most fully featured of all the systems, the C-2000A operates over a

regular phone line and provides Caller ID and Call Waiting ID to identify

which door phone is calling. If the phone line is in use, the C-2000A

initiates a distinctive beep to alert the user that the waiting call is from a door
phone. Using Touch Tone commands, the user can alternate between the phone call and
the visitor at the door.

An auxiliary set of relay contacts is provided to activate cameras or lighting. Finally, the
C-2000A provides the connection of a dry contact closure device such as a garage door
opener keypad, or a logic input to operate the auxiliary relay.

CCTV Monitor

*

VC-1000

*

Front

Door

Gate

*

K-1700-3

*

E-20A

Fax back No. 156

Do you have an

appointment to see

Mr. Smith?

Back
Door

Service

Entrance

VIKING

*

E-10

*

K-1700-3

Premise Phones

C-2000A

Controller

Incoming
C.O. Lines

CCTV camera switching requires one or two Viking VC-1000

*

Controllers. See page 12 for additional information.

AAPPAARRTTMMEENNTT EENNTTRRYY SSYYSSTTEEMMSS

Caller ID

You’ve seen them everywhere, a lobby phone with a built-in dialer to call tenants. The
concept isn’t new. However, the older systems have become favorite targets for vandals
and dial tone pirates. Because these older systems provide phone company dial tone at
the lobby phone, pirates using Touch Tone generators can place long distance phone
calls and stick the building owner with the charges. A worse scenario happens when
vandals pry these older systems off the wall, exposing door strike contacts. A quick short
across the contacts and the vandals have access to the building.

7

The newer apartment entry systems locate operational electronics and relays inside the
building. The controller interfaces between the lobby phone and phone line, providing
an artificial dial tone at the lobby phone. Users cannot tell the difference and vandals
can’t perpetrate toll fraud. That’s because the controller electronics cannot be fooled by
Touch Tone generators or savvy hook-flash experts.

The C-3000 and K-1900-3 also offer a keyless entry feature (see page 9). Tenants can
enter a security code into the lobby keypad and unlock the front door without fumbling
for keys.

Lobby
Phone

Fax back No. 312

BZZZZ

K-1900-3

Controller

The K-1900-3 will call the
specified tenant. You can
converse with the tenant. The
tenant may then enter a code
to activate the door strike.

Hello?

Press the
Call Button.

When you hear the dial tone,
enter the tenant code.

Press:

1 2

(Programmable 1-3 digits)

Door Strike

Activates

Press:

to activate the doorstrike relay.

(Programmable 2 digits)

Hold on, I’ll

buzz you in.

0 2

Apartment Entry System with No C.O. Line

The C-3000 allows you to connect 12 apartments to two entry phones (or any touch tone
phone). The C-3000 rings apartment phones or provides a call waiting tone. Tenants
can “buzz” in the visitor from their touch tone phone. Eliminates the monthly expense of
a phone line and adding call waiting to the apartment phones. Two door strike contacts
are provided. Expandable to 96 apartments with additional C-3000 controllers.

C-3000 Controller

Entry

Phone 1

K-1700-3

12 Incoming

C.O. Lines

Entry

Phone 2

K-1700-3

To Apartment

Phones 1-12

Fax back No. 162

8

Four Door Keyless Entry or Proxcard Entry System

The C-4000 provides 4 door entry points and keyless entry (or optional card readers)
for up to 250 apartments or offices. The C-4000 uses 26-bit Wiegand card readers,
keypads or converts Touch Tone phones into multi-number auto dialers that will store up
to 250 telephone numbers in non-volatile memory. Use with Viking’s K-1700-3 or K­1900-8 phones to provide vandal resistant handsfree or handset communication from
entry points to apartments or offices.

When a call initiated by the C-4000 is answered by an apartment or business tenant, a
built-in contact closure may be activated to control an electric gate or door strike. Up to

250 keyless entry codes may also be programmed,

Entry

Point 1

K-1700-3

providing tenants with keyless entry. Viking HID-1 card
readers (see page 12) may be added for proximity card
entry or HID-2 potted keypads (see page 12).

HID-1

HID-1

K-1900-8

K-1700-3

Entry

Point 4

Entry

Point 2

Entry

Point 3

Fax back No. 164

C.O. Line or Analog

PABX/KSU Station

Data Logging

Apartment

Phone

HID-1

HID-2

Data Logging allows the
landlord to access data
about entry point activity.

EENNTTRRYY SSYYSSTTEEMM FFEEAATTUURREESS

Keyless Entry Feature

Viking’s C-2000A, C-3000, C-4000, ES-1, and K-1900-3 offer keyless entry which
allows residents or tenants to let themselves in. This feature works particularly well when
the user wants to grant access only to authorized persons. The keyless entry feature will
work differently for each door entry controller. Below is an example of the C-2000A
controller and the K-1700-3 door entry phone using the keyless entry feature.

BZZZZ

Press the
Call Button.

9

Dial Tone

When you hear the

dial tone - enter #,

then the code.

Press: then enter the

#

Code:

1 2 3 4

(Programmable 1-6 digits)

The Door Strike

Activates

Privacy Feature (Celebrity Screening)

Only Viking’s C-2000A controller provides the celebrity screening feature for screening
out nuisance calls at the door phones. With this feature activated, a visitor must enter a
private number at the door phone before the system will ring onto the phone line.

RING

Press the
Call Button.

Dial Tone

When you hear the dial

tone - enter the code.

Code:

1 2 3 4

(Programmable 1-6 digits)

Only when the CORRECT

code is entered, will the

premise phones ring.

Standard and Distinctive Ringing

The W-3000 doorbox, C-1000B and C-2000A controllers can be programmed to
provide a distinctive ring cadence to differentiate a door call from an ordinary phone
call. The distinctive ringing feature can be used with a dedicated phone, a multiple line
KSU-less phone, or household phones attached to the C-1000B and C-2000A
controllers. Since most KSU and PABX systems cannot regenerate a distinctive ring input,
this feature will not work with those systems.

Push-To-Talk

Speakerphone operation reduces vandalism commonly associated with handsets and
cords. However, in noisy environments, speakerphone circuitry has difficulty switching
between send and receive modes. The result is known as “clipping,” where portions of
the conversation are lost. In these high background noise applications, your customer
needs a doorbox that can be converted to push-to-talk operation. The W-3000 self­contained doorbox can be programmed to provide push-to-talk operation.

Distance from Phones

Many installers are asked to install doorboxes at driveway gates. These gates can be
quite a distance from the business or residence phones. In these applications you need
a doorbox with enough power to span the distance without substantial signal loss. Most
quality doorboxes allow you a distance of up to 6,300 feet.

Surface Mount and Pedestal Mount Options

All Viking flush mount doorboxes and door phones can be converted to surface mount
by using an optional VE-Series backbox. All Viking backboxes utilize heavy duty steel

construction and black powder painted techniques for vandal resistance
and long life. VE-Series backboxes will mount to standard single gang

electrical boxes or Viking’s gooseneck
pedestals. For more information on Viking
backboxes, see page 14.

10

High Ring Equivalency Number (REN)

This is the amount of energy required to ring a phone. A standard telephone with a
mechanical bell usually requires 1 REN. Electronic ringers generally consume less power.
REN is important in doorbox applications when the doorbox must ring several single line
or multiple line phones. Doorboxes with low REN may not be able to ring more than one
or two phones. In most residential applications you want a system with a high REN.
However, REN is less important when connecting to a PABX or Key system, since these
systems use incoming ring voltage only as a trigger to regenerate a new ring signal
within the PABX or Key system. Viking doorboxes provide 3.0 REN. The C-2000A
controller provides 8.0 REN. For even more REN, add the Viking RG-10A Ring Booster.
The RG-10A provides 15 REN, enough to ring at least 15 phones.

VIKING

AES-2000S Surface Mount

Fax back No. 202

The built in directory can support up to 525 tenant names and phone numbers and will
dial a pre-programmed phone number upon selection of a tenant. Once two-way
communication has been established, the tenant can activate a remote door strike by
entering a Touch Tone command. A second relay is also provided to operate an
automatic door. The AES-2000 will also support keyless entry at the door via its built-in
keypad. The unit is available in flush (AES-2000F) and surface mount (AES-2000S)
configurations and features a highly vandal resistant housing.

’’SS AACCCCEESSSSIIBBLLEE EENNTTRRYY SSYYSSTTEEMM

The AES-2000 Accessible Entry System provides
both audio and visual assistance for those with
disabilities.

The LCD display with large 1/2” tall characters
is back-lit and will display a directory of tenants
as well as directions and prompts. A built in
voice recorder and announcer can also provide
a supporting audio message. When the EZ™
Access button is pressed, instructions on how to
use the system are both displayed and
announced.

Add Access Entry Points to

VIKING

’s AES-2000

Up to 32 additional points of entry can be added
to Viking’s model AES-2000 Accessible Entry
System. One ES-3, one Wiegand device and a
door strike or magnetic lock of your choice is
required for each additional entry point.

Fax back No. 195

11

PPRROOXXIIMMIITTYY CCAARRDD AACCCCEESSSSOORRIIEESS

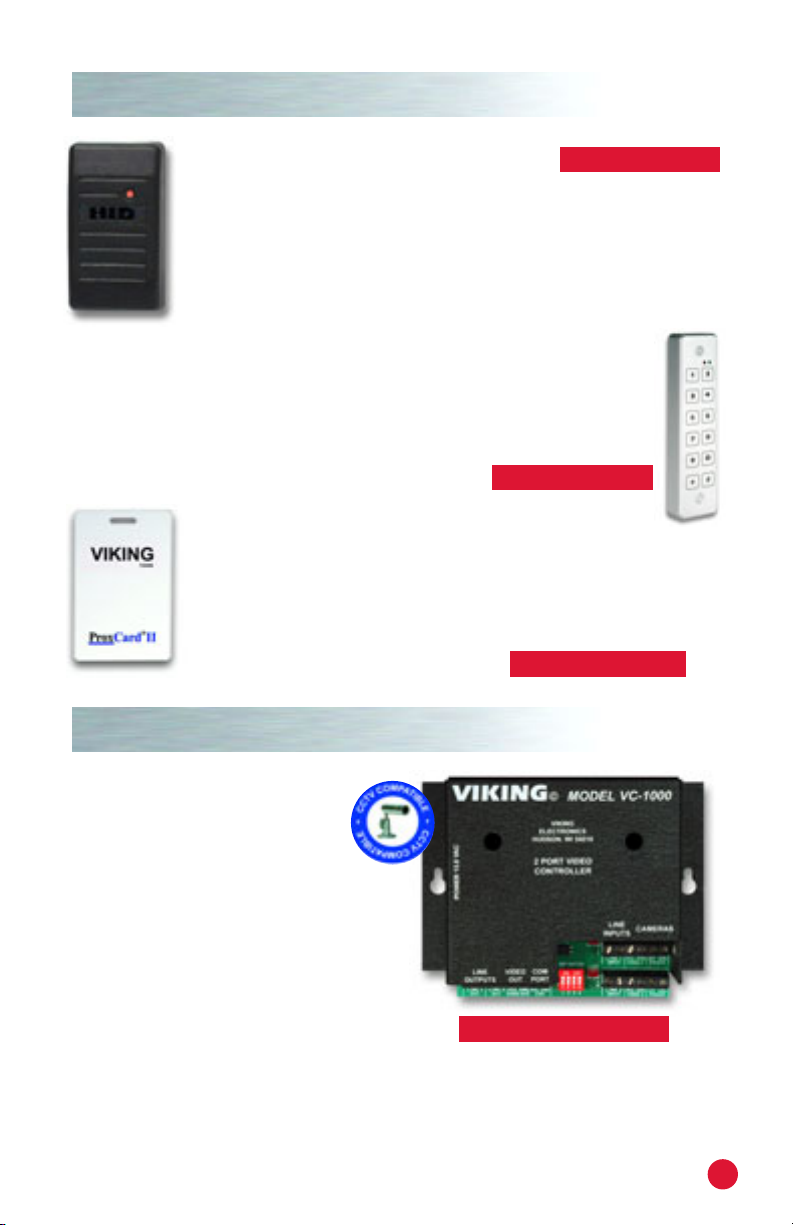

HID-1 Proximity Card Reader

The HID-1 Proxy Card Reader allows proxy card entry for select Viking
apartment or office entry systems. Using the HID-1 Proxy Card Reader
instead of keyless entry codes, allows the building manager to monitor
the number of people that can let themselves into the building. The HID­1 features standard 26-bit Wiegand interfacing and a potted enclosure
with pigtail connection for indoor/outdoor applications.

Fax back No. 197

HID-2 Keypad with Wiegand Output

The HID-2 Keypad with Wiegand output allows keyless entry for select Viking
apartment or office entry systems. The HID-2 Keypad features standard 26-bit
Wiegand interfacing, a metal enclosure with potted electronics and a pigtail
connection for indoor or outdoor applications.

Fax back No. 199

Pre-Programmed Proximity Cards

The PROXCARD is a non-contact security card that can be placed in
front of the Viking HID-1 Card Reader to allow entrance into a secured
area. The cards are made from 0.075” thick plastic and resist bending
and folding. A slot is provided at one end to allow a strap to be added
for creating a “dog tag” style neck strap.

Fax back No. 198

DDOOOORR EENNTTRRYY WWIITTHH CCCCTTVV CCOONNTTRROOLL

Viking’s VC-1000 Programmable
CCTV Camera Controller consists of
two telco interface modules each
linked to a CCTV camera input and a
combiner for output to a video monitor,
television or VCR.

Unlike passive or manual CCTV camera
switchers, the VC-1000 continuously
monitors for activity on its telco line circuits
and instantly switches to the appropriate
camera when activity is detected.

During periods of inactivity, the VC-1000 can be programmed to provide no video
output, output camera 1, output the last camera activated, or output the cameras
sequentially. Two VC-1000’s can be stacked to cover four zones. Programming is done
easily using dip switches.

Fax back No. 185

12

EENNHHAANNCCEEDD WWEEAATTHHEERR PPRROOTTEECCTTIIOONN ((EEWWPP))

Viking has developed an Enhanced Weather
Protection (EWP) system for selected emergency
and entry phones. EWP is designed for phones
that are mounted outside, in salty ocean air,
high humidity, exposed to corrosive elements or
vehicle exhaust. The electronics are completely
encapsulated in a urethane material. In
addition, the EWP products have mylar
speakers, closed cell foam gaskets, sealed DIP
switches, trim POTs, push button switches,
microphone and LED connections. Tip and ring
connections are filled with anti-corrosive gel.

EWP Available on These Select Models...

Viking emergency phone with EWP

shown operating under water!

Fax back No. 859

Model
BLK-3-EWP
E-10/20A-EWP
E-1600A-EWP
E-1600-03B-EWP
E-1600-20A-EWP
E-1600-45A-EWP
E-1600-50A-EWP
E-1600-52A-EWP
E-1600-55A-EWP
E-1600A-BLT-EWP
E-1600A-TP-EWP
E-30-EWP
K-1700-3-EWP
W-1000/2000A-EWP
W-3000-EWP

Fax Back #

653
210
215
215
215
215
215
215
215
217
218
212
157
170
180

Description
Line Status Strobe Light Kit
Speaker Phones
ADA Compliant Handsfree Emergency Phone
ADA Compliant Handsfree Emergency Phone
ADA Compliant Handsfree Emergency Phone
ADA Compliant Handsfree Emergency Phone
ADA Compliant Emergency Phone Kit
ADA Compliant Emergency Phone Kit
Universal Emergency Phone Kit
Emergency Tower Phone with Strobe Light
ADA Compliant Handsfree Emergency Phone
Stainless Steel Handsfree Phone
Stainless Steel Handsfree Phone with Keypad
Handsfree Doorboxes
Vandal-Resistant Stainless Steel Doorbox

DDOOOORR EENNTTRRYY AACCCCEESSSSOORRIIEESS

Remote DTMF Controllers

The RC-2A Remote Controller provides
remote relay operation for 1 relay from
any standard Touch Tone telephone.
Can be installed in series with Viking
doorboxes. For applications that require

Fax back No. 160 Fax back No. 165

up to 3 relays, use Viking’s RC-3.

13

Backboxes and Gooseneck Pedestals

Viking’s VE-5x5, VE-6x7 and VE-5x10 backboxes add vandal and
weather resistance, as well as versatility to many Viking products.

The VE-Series backboxes are black powder painted steel, weather
resistant boxes designed to be surface mounted to a single gang box, a
wall or a gooseneck pedestal.

Viking’s gooseneck pedestals are designed to be used in
conjunction with any of the VE-Series backboxes.

The VE-GNP is a 4 foot tall gooseneck pedestal for

pedestrian or car applications. The VE-GNP-2 is
a 6 foot tall gooseneck pedestal with dual

heights to allow easy
access for either car or
truck applications.

VE-5x10 VE-6x7 VE-5x5

VE-GNP-2

Fax back No. 424

VE-GNP

Add Panel Lighting to Your Viking Doorbox or Entry Phone

The VE-LIGHT kit adds bright LED illumination to any doorbox or entry phone that is

housed in a Viking VE-5x5 or VE-6x7 enclosure. The stainless steel
bracket is easily mounted using existing holes and hardware. Two
bright white LEDs are used as the light source, so there are no
filaments to break or bulbs to burn out.

Fax back No. 428

If used with the W-1000 or W-3000, the VE-LIGHT can be wired
directly to the AC power input of the doorbox, or use the included

VE-LIGHT (shown

with W-3000)

12 volt power supply. Any power source between 12 and 24 volts,
AC or DC can be used to supply the VE-LIGHT with power.

Enclosures for Installing Viking Products Outdoors

The VE-9x12 and VE-9x20 provide the
ultimate in weather protection for your Viking
product! These enclosures are constructed of
cast aluminum and are made for years of
outdoor service. The door is
labeled “TELEPHONE” and
has a gasket seal and drip
guard to keep out the
harshest weather. The VE­9x12 allows you to choose
between two internal mount­ing adapter panels.

Fax back No. 413

14

Viking’s Professional Digital Announcers

VIKING’s Access Control Phones,

Doorboxes and Accessories

Call oour FFax BBack SSystem tto gget iinstant iinformation oon VViking pproducts,

24 hhours aa dday, 3365 ddays aa yyea

WW-11000000

- Handsfree doorbox,

flush mount, black powder
painted aluminum.

Fax bback NNo. 1170

KK-11770000-33 -

stainless steel speaker phone with
keypad. Designed especially for
apartment and door entry
applications. Phone line powered.

Vandal resistant

Fax bback NNo. 1157

WW-22000000AA

surface mount, durable plastic
construction.

- Handsfree doorbox,

Fax bback NNo. 1170 Fax bback NNo. 1180

HHIIDD-22

keypad. Beeper and LEDs show status. Standard 26-bit
Wiegand interface.

r: 7715-3386-44345.

WW-33000000

- Handsfree doorbox,

flush mount, vandal-resistant
stainless steel.

- Vandal resistant potted aluminum Wiegand

Fax bback NNo. 1199

HHIIDD-11

- Proximity card reader. Potted

enclosure for indoor and outdoor
applications. Standard 26-bit
Wiegand interface. Compatible with
Viking Proxcards (below).

Fax bback NNo. 1197

PPRROOXXCCAARRDD

Pre-programmed
proximity cards.
No magnetic
strips or batteries
to wear out.
Credit card size.

-

Fax bback NNo. 1198

VVCC-11000000 -

Viking door entry phones.
Automatically switches TV or
monitor to appropriate CCTV
area when a doorstrike is
activated. Monitors 2 CCTV
areas, expandable to 4 areas.

CCTV controller for

Fax bback NNo. 1185

© 2005, Viking Electronics, Hudson, WI. All Rights Reserved

CC-11000000BB -

CCTV camera controller. Allows
single line phones or phone
systems to share a phone line
with 1 or 2 doorboxes. Operate
doorstrikes or gate openers and
provide CCTV camera switching.

Door entry and

Fax bback NNo. 1168

Telecom & Security Solutions

for the 21st Century!

VIKING

ELECTRONICS

Fax Back: 715-386-4345

Phone: [phone]

E-mail: [e-mail]

Visit Our Web Site:

http://www.VikingElectronics.com
