Viking B30BG6 User Manual

Standard Features & Accessories

All models include

• Exclusive VSH™ Pro Sealed Burner
System (VariSimmer™ to High)—
combination of patented burner and
top design provide ease of cleaning
plus superior performance at simmer
and high

• Exclusive VariSimmer setting for all
burners

• Exclusive tooled and porcelainized
cooking surface contains spills for easy
cleaning

• Brass sealed burners with
porcelain/cast iron caps and automatic
ignition/re-ignition

• Durable knobs with childproof,
push-to-turn safety feature

30”W. 4B model includes

• Four 15,000 BTU burners

• Center grate allows movement of
cooking vessels across entire top
surface

36”W. 6B model includes

• Six 15,000 BTU burners

Model Options

COOKING

Professional Built-In Gas 30”/36”W.

Sealed Burner Rangetop

36”W. 4G model includes

• Four 15,000 BTU burners

• 12”W. thermostatically controlled steel
griddle/simmer plate

• Drip tray with roller bearing glides and
two-quart drip pan

36”W. 4Q model includes

• Four 15,000 BTU burners

• 12"W. grill with flavor generator plates
and automatic ignition/re-ignition

• Drip tray with roller bearing glides and
two-quart drip pan

VGRT302-4B*

30”W. Four-Burner

Rangetop

FINISH DETAILS FOR ALL MODELS

• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite
Gray (GG), Stone Gray (SG), Taupe (TP),
Biscuit (BT), Cotton White (CW), Oyster
Gray (OG), Golden Mist (GM),
Lemonade (LE), Sage (SA), Mint Julep
(MJ), Sea Glass (SE), Iridescent Blue (IB),
Viking Blue (VB), Pumpkin (PM), Racing
Red (RR), Apple Red (AR), Burgundy
(BU), Plum (PL), Chocolate (CH), and
Cobalt Blue (CB).
o Finish designates color of enamel

control panel.

o Units have black porcelain grates,

black porcelain burner caps, black
porcelain grate support/burner bowls
and black knobs.

*Shown throughout with 6”H. backguard. See Installation Notes & Accessories for details.

VGRT362-6B*

36”W. Six-Burner

36”W. Four-Burner/

Rangetop

• White (WH)
o White finishes have white enamel

control panels, black porcelain
grates, black porcelain burner caps,
white porcelain grate support/burner
bowls and white knobs.

• All finishes have stainless steel drip tray
pull, and landing ledge.

• Brass Trim Option (BR)—nameplate,

drip tray pull, knob bezels and grate
support side trim. Brass components
have a durable protective coating for
maintenance-free normal use.

VGRT362-4G*

Griddle Rangetop

VGRT362-4Q*

36”W. Four-Burner/

Grill Rangetop

ORDERING INSTRUCTIONS

First specify model number, and then color code (VGRT302-4BSS). If ordering optional brass trim, specify code at end (VGRT302-4BSSBR).
If ordering optional LP conversion, specify code at end (

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C OM • 1 - 8 8 8 - V I K I N G 1

VGRT302-4B

SSBRLP).

R E V I S E D 1 / 1 5 / 0 9

© 2 0 0 9 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

COOKING

2

4

”

(

6

1

c

m

)

2

9

-

7

/

8

”

(

7

5

.

9

c

m

)

1

3

-

7

/

8

”

(

3

5

.

2

c

m

)

2

4

”

(

6

1

c

m

)

3

5

-

7

/

8

”

(

9

1

.

1

c

m

)

1

3

-

7

/

8

”

(

3

5

.

2

c

m

)

7-7/8”

(19.9 cm)

25-3/4” (65.4 cm)

27-3/4” (70.5 cm)

9-1/8”

(23.2 cm)

Professional Built-In Gas 30”/36”W.

Sealed Burner Rangetop

Please see



Installation Notes &

Accessories

for important

installation

information,

including

backguard, high-

shelf, and island

trim.

ALL MODELS

Star-K Kosher
Certification for
use on the Jewish
Sabbath or Jewish
holidays

Dimensions & Specifications

PRODUCT DIMENSIONS

VGRT302-4B

30”W. Four-Burner

Rangetop

VGRT362-6B

36”W. Six-Burner

Rangetop

VGRT362-4G

36”W. Four-Burner/

Griddle Rangetop

VGRT362-4Q

36”W. Four-Burner/

Grill Rangetop

30”W. Models 36”W. Models

*Top of grate support should be 3/8” (1.0 cm) above countertop.

Overall width 29-7/8” (75.9 cm) 35-7/8” (91.1 cm)
Overall height (from bottom)

Overall depth (from rear)

To top of grate 9-1/8” 23.2 cm)
To top of side trim 7-7/8” (19.9 cm)*
To top of island trim 8-7/8” (22.5 cm)
To top of 6” backguard 13-7/8” (35.2 cm)
To top of 10” backguard N/A 17-7/8” (45.4 cm)

To top of high shelf 31-3/8” (79.7 cm)

To end of side panel 24” (61.0 cm)
To end of control panel 25-3/4” (65.4 cm)
To end of knobs 27-3/4” (70.5 cm)

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

VGRT302 VGRT362

© 2 0 0 9 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

R E V I S E D 1 / 1 5 / 0 9

7

-

5

/

8

”

(

1

9

.

4

c

m

)

3

6

”

(

9

1

.

4

c

m

)

A
30” 30” (76.2 cm)
36“ 36” (91.4 cm)

A

4

2

”

m

i

n

.

*

(

1

0

6

.

7

c

m

)

1

8

”

m

i

n

.

(

4

5

.

7

c

m

)

6

”

m

i

n

.

(

1

5

.

2

c

m

)

1

3

”

m

a

x

.

(

3

3

.

0

c

m

)

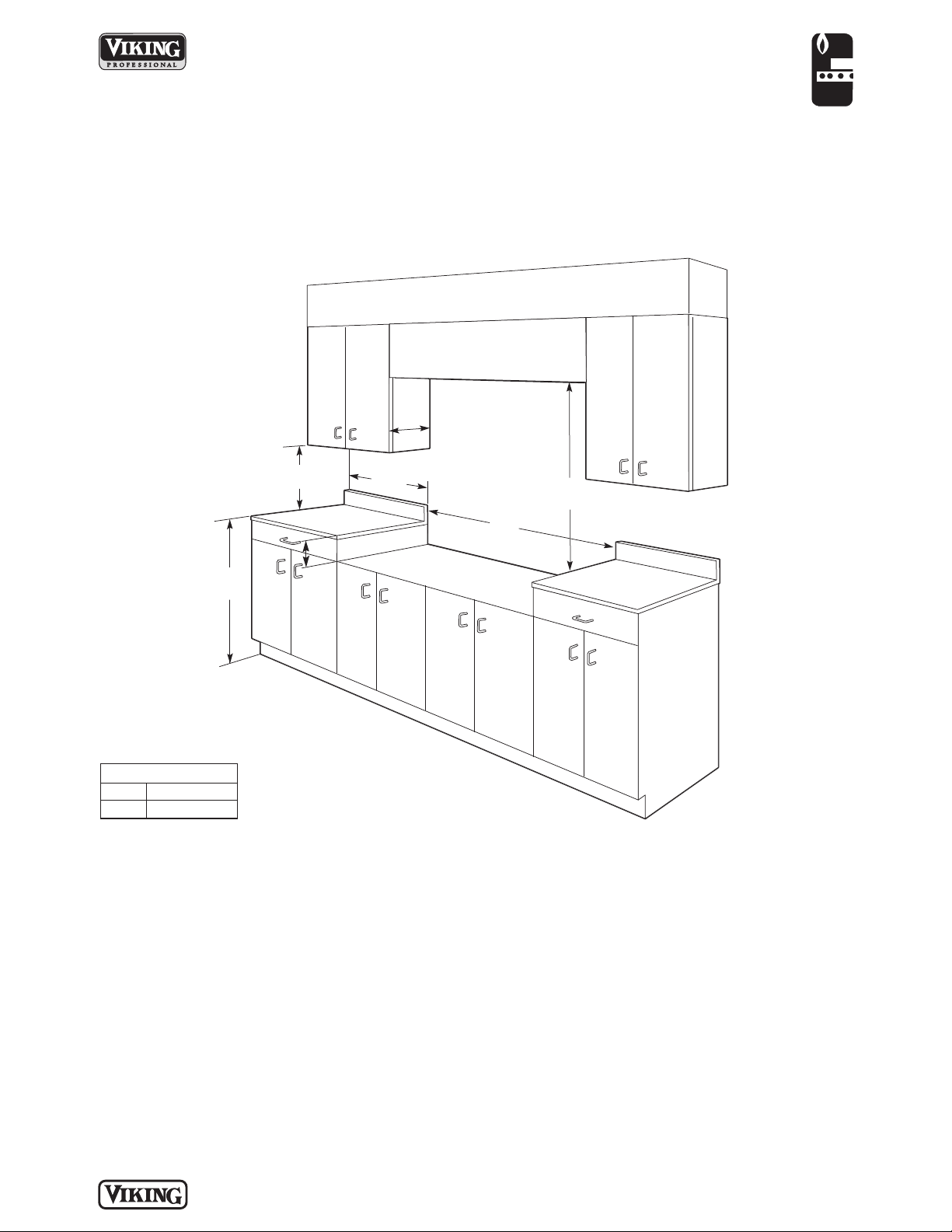

Dimensions & Specifications

CLEARANCE DIMENSIONS

COOKING

Professional Built-In Gas 30”/36”W.

Sealed Burner Rangetop

Minimum clearances from adjacent
combustible construction

• Cooking surface and below, i.e., 36”
(91.4 cm) and below
o Sides—0”
o Rear

o Top grate support—36” (91.4 cm)

• 0” with backguard or high-shelf

• 0” with island trim and non-

combustible rear wall

• 6” (15.2 cm) with island trim and

combustible rear wall.

Important: The top grate support
must be 3/8” (0.95 cm) above the

adjacent base cabinet countertop.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

• Above cooking surface, i.e., above 36”
(91.4 cm)
o Sides—6” (15.2 cm)
o Within 6”(15.2 cm) side clearance,

wall cabinets no deeper than 13”
(33.0 cm) must be minimum 18”
(45.7 cm) above cooking surface.

• Wall cabinets directly above product

must be minimum 42” (106.7 cm)
above cooking surface.

* This minimum height requirement does

not apply if a rangehood is installed
over the cooking surface.

Do not install two or more units
side-by-side.

R E V I S E D 1 / 1 5 / 0 9

© 2 0 0 9 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

COOKING

24”

(

6

1

c

m

)

m

i

n

.

2

5-

3/

4”

(

6

5

.

4

c

m

)

m

a

x

.

3

/

4

”

(

1

.

9

c

m

)

m

i

n

.

2

-

1

/

4”

(

5

.

7

c

m

)

3

”

(

7

.

6

c

m

)

7

-

5

/

8

”

*

*

(

1

9

.

4

c

m

)

*

Professional Built-In Gas 30”/36”W.

Sealed Burner Rangetop

UTILITY

REQU IR EMENT S

GAS

o Shipped natural

gas standard;
convert to
LP/propane with
standard convertible
regulator

o Accepts standard

residential 1/2”
(1.3 cm) ID gas
service line

o Gas manifold

pressure

o Natural gas 5.0”

W.C.P.

o LP/Propane

10.0" W.C.P.

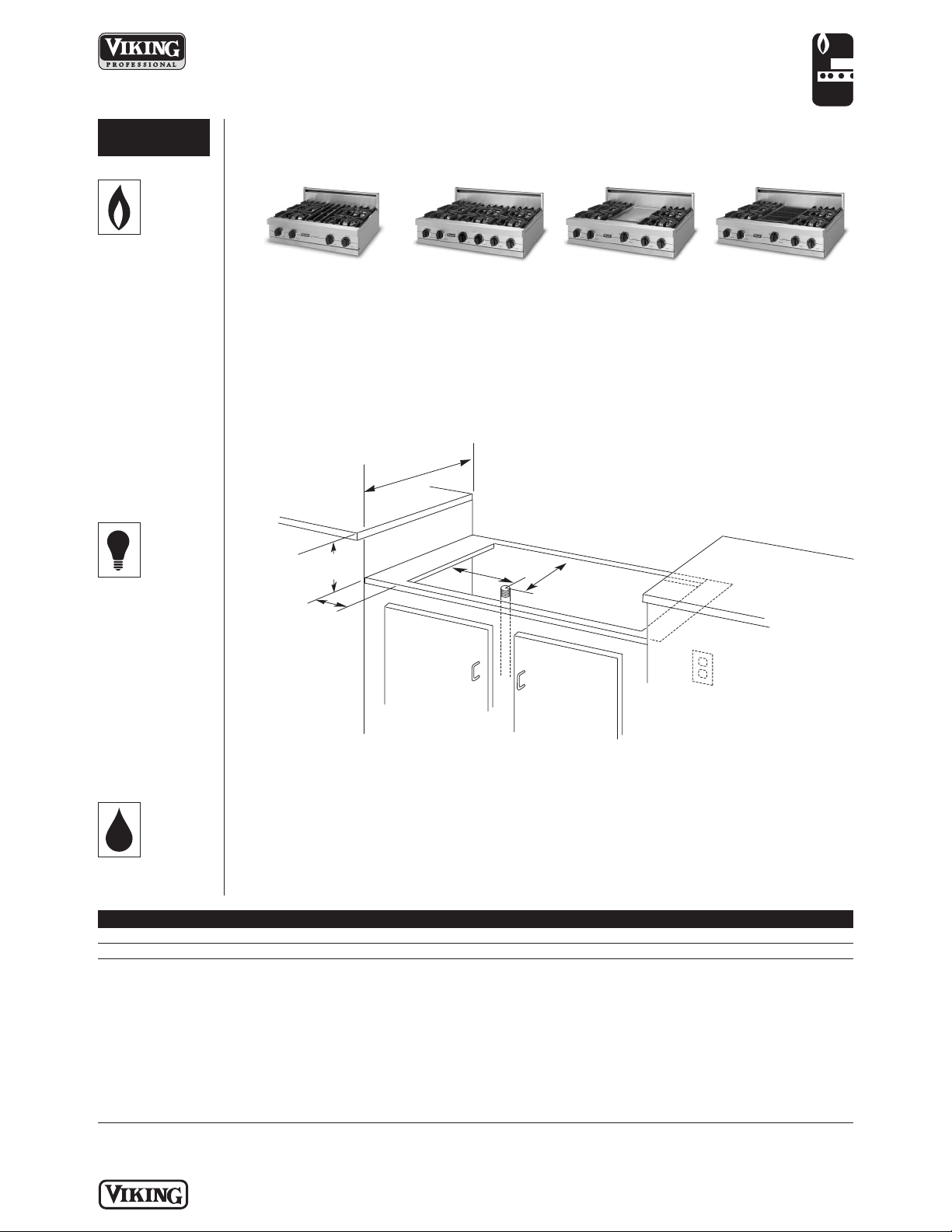

Installation Requirements

ACCESS REQUIREMENTS

VGRT302-4B

30”W. Four-Burner

Rangetop

VGRT362-6B

36”W. Six-Burner

Rangetop

VGRT362-4G

36”W. Four-Burner/

Griddle Rangetop

VGRT362-4Q

36”W. Four-Burner/

Grill Rangetop

ELECTRICAL

• Four-foot (121.9
cm) cord included
with rangetop

• Three-wire with
ground/three­prong plug

• 120 V/60 Hz

• Max. amp usage—
o 4B—0.3
o 6B—0.6
o 4G—3.9
o 4Q—0.6

PLUMBING

Not applicable

*120 VAC/50 Hz within 48” (121.9 cm) of right rear of rangetop.

VGRT302-4B VGRT362-6B VGRT362-4G VGRT362-4Q

Cutout width 30” (76.2 cm) 36” (91.4 cm) 36” (91.4 cm) 36” (91.4 cm)

Cutout height 7-5/8” (19.4 cm)**

Cutout depth 24” (61.0 cm) min. to 25-3/4” (65.4 cm) max.

Surface burner rating

**Top of grate support should be 3/8” (1.0 cm) above countertop.

Four grated burners 15,000 BTU Nat. (4.4 kW)/ 15,000 BTU Nat. (4.4 kW)/ 15,000 BTU Nat. (4.4 kW)/

13,500 BTU LP (4.0 kW) 13,500 BTU LP (4.0 kW) 13,500 BTU LP (4.0 kW)

Six grated burners 15,000 BTU Nat. (4.4 kW)/

One griddle 15,000 BTU Nat. (4.4 kW)/

One grill 18,000 BTU Nat. (5.3 kW)/

13,500 BTU LP (4.0 kW)

13,500 BTU LP (4.0 kW)

16,000 BTU LP (4.7 kW)

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

R E V I S E D 1 / 1 5 / 0 9

© 2 0 0 9 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

COOKING

Professional Built-In Gas 30”/36”W.

Sealed Burner Rangetop

Installation Notes & Accessories



A backguard, high-shelf, or island trim must be used for all installations.

6”H. Backguard

• Stainless Steel (SS)

Coordinates with all finishes

•

Model Description Approx. ship wt. lbs. (kg)

B30BG6 30”W. backguard 14 (6.3)
B36BG6 36”W. backguard 17 (7.7)

10”H. Backguard

• Stainless Steel (SS)

• Coordinates with all finishes

Model Description Approx. ship wt. lbs. (kg)

B36BG10 36”W. backguard 20 (9.0)

High-shelf

• Stainless Steel (SS)

• Coordinates with all finishes

• Shelf comes attached to a 24”H. backguard

Model Description Approx. ship wt. lbs. (kg)

30HS24 30”W. high-shelf 45 (20.3)

B

36HS24 36”W. high-shelf 50 (22.5)

B

Island Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• For island/peninsula installation

• Can replace backguard if wall is non-combustible

Model Description Approx. ship wt. lbs. (kg)

B30TII 30”W. island trim 10 (4.5)
B36TII 36”W. island trim 11 (5.0)

Countertop Side Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• Installs on side of unit; overlaps countertop

• One pair of trim

Model Description Approx. ship wt. lbs. (kg)

TE24CST Side trim 2 (0.9)

LP/Propane Conversion Kit

• Allows for field conversion of range from natural gas to LP

Model Description Approx. ship wt. lbs. (kg)

LPKPDF Natural to LP/propane conversion kit 2 (0.9)

Compliance Information

WARRANTY INFORMATION*

• One-year full warranty—complete product

• Ten-year limited warranty—surface burners, griddle burners and grill burners

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items

* For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

© 2 0 0 9 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

R E V I S E D 1 / 1 5 / 0 9
