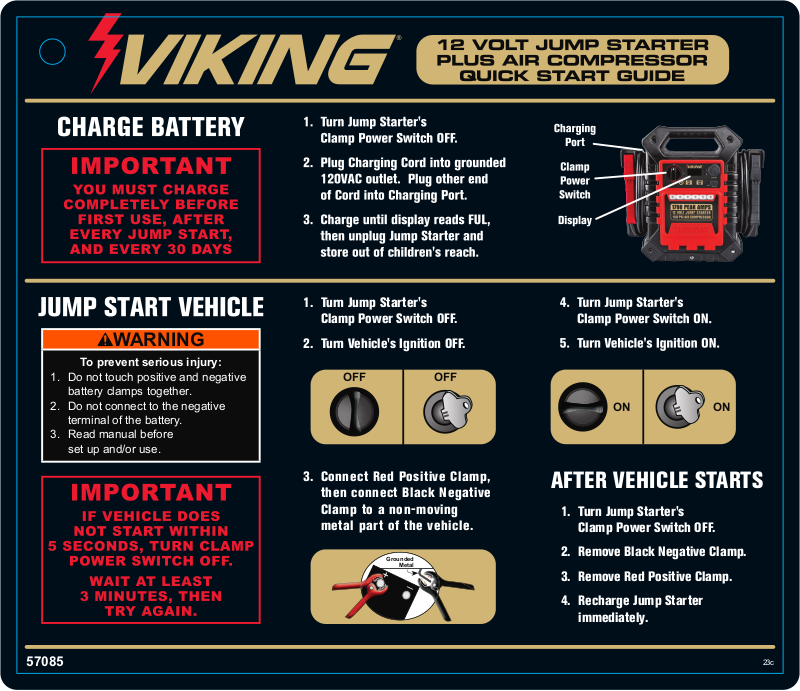

Page 1
WARNING
To prevent serious injury:
1. Do not touch positive and negative
battery clamps together.
2. Do not connect to the negative
terminal of the battery.
3. Read manual before
set up and/or use.
1. Turn Jump Starter's
Clamp Power Switch OFF.
2. Turn Vehicle's Ignition OFF.
OFFOFF
3. Connect Red Positive Clamp,
then connect Black Negative
Clamp to a non-moving
metal part of the vehicle.
Grounded
Metal
+
_
ON
ON
AFTER VEHICLE STARTS
1. Turn Jump Starter's
Clamp Power Switch OFF.
2. Remove Black Negative Clamp.
3. Remove Red Positive Clamp.
4. Recharge Jump Starter
immediately.
57085
23c
Page 2
Typical DC Appliances & Run Times
Appliance Est. Power
• Fluorescent Light
• Cell Phone
• Fan
• Depth Finder
• Video Recorder
• Spotlight
• Small Power Tool
• Bilge Pump
• Electric Cooler
• Air Compressor
(Watts)
4 50
9 26
15 14
24 8
48 3
80 2
Est. Lifetime
(Hours)
WARNING
To prevent serious injury: 1. Check the proper inflation level of the object
being inflated. 2. Monitor the Air Pressure Gauge. 3. Do not overinflate.
57085
DUTY CYCLE: 15 min on, 30 min off
1. Remove Air Hose and install
adapter as needed.
2. Press TEST/AIR button on front
until -C- appears on display.
3. Attach Inflator, then set
pressure on Pressure Gauge.
4. To begin inflation, open Air Switch
cover on back and turn Switch on.
5. Compressor will shut off when
pressure has been reached.
6. Turn Air Switch off.
7. Press TEST/AIR button to turn
off Compressor power.
23c
