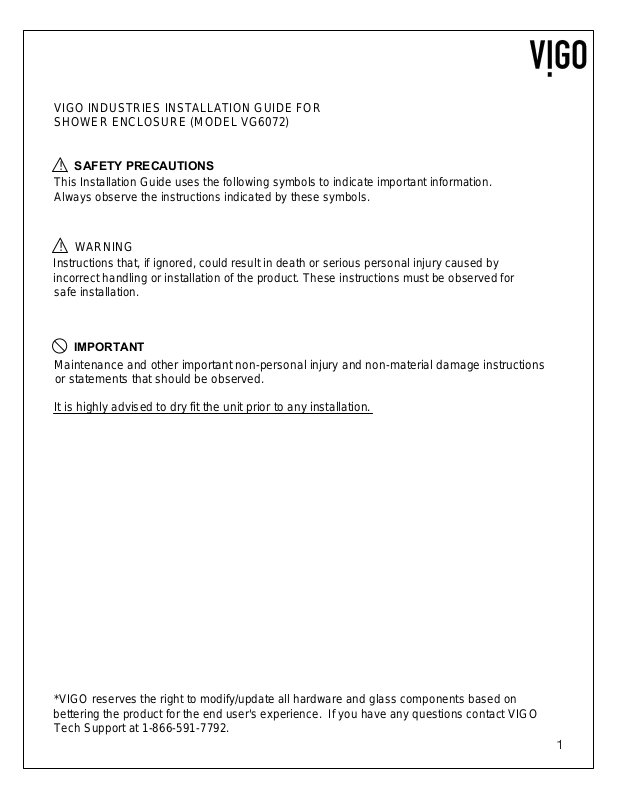

VIGO INDUSTRIES INSTALLATION GUIDE FOR

SHOWER ENCLOSURE (MODEL VG6072)

!SAFETY PRECAUTIONS

This Installation Guide uses the following symbols to indicate important information. Always observe the instructions indicated by these symbols.

!WARNING

Instructions that, if ignored, could result in death or serious personal injury caused by incorrect handling or installation of the product. These instructions must be observed for safe installation.

IMPORTANT

Maintenance and other important non-personal injury and non-material damage instructions or statements that should be observed.

It is highly advised to dry fit the unit prior to any installation.

*VIGO reserves the right to modify/update all hardware and glass components based on bettering the product for the end user's experience. If you have any questions contact VIGO Tech Support at 1-866-591-7792.

1

MODEL VG6072 SOHO

INSTALLATION INSTRUCTIONS FOR SHOWER DOOR

PLEASE READ INSTRUCTIONS BEFORE PROCEEDING

Parts List

1.Door (1pc)

2.Hinge (2pc)

3.Split wall side seal strip (1pc)

4.Door bottom seal strip (1pc + 1pc is extra)

5.Handle assembly (1pc)

6.Vertical track (1pc)

7.Hex screw 1 5/8" (4pc)

8.White plastic anchor (4pc)

9.Phillips screw 1 1/4" (4pc)

10.Door magnetic seal strip (2pc)

11.Green plastic anchor (4pc)

12.Screw covers (8pc)

1

8

10

6 2

7

9

5

11

2

3

9

11

4

GLASS THICKNESS:8mm / 5/16"

NOTE: INSTALLATION MUST BE DONE BY A QUALIFIED, LICENSED CONTRACTOR.

2



1. DOOR

2. HINGE ASSEMBLY

3. SPLIT WALL SIDE

4. DOOR BOTTOM

5. DOOR HANDLE



98075

SEAL STRIP

96022

SEAL STRIP

96018

98076

97029-24



















97029-26













97029-28













97029-30













6. VERTICAL TRACK

7. HEX SCREW 1 5/8"

8. WHITE PLASTIC

9. PHILLIPS SCREW

10. DOOR MAGNETIC





ANCHOR



1 1/4"

98077ST

SEAL STRIP

98074

98039



98038











96020













11. GREEN PLASTIC

12. SCREW COVER











ANCHOR













98037

98040































MODEL

DIMENSION "A"

HEIGHT*

#1- DOOR (97029)

































24X70

24" - 24 1/2"

70 5/8"

22 1/4" X 70"

































26X70

26" - 26 1/2"

70 5/8"

24 1/4" X 70"











































28X70

28" - 28 1/2"

70 5/8"

26 1/4" X 70"







































A



30X70

30" - 30 1/2"

70 5/8"

28 1/4" X 70"



















































Product lines may change, contact your Vigo representative at 1-866-591-7792 or visit our website at www.vigoindustries.com for the most up to date product line information.

3

MODEL VG6072

! WARNING

WE STRONGLY RECOMMEND THAT A LICENSED PROFESSIONAL INSTALL THIS SHOWER CABIN AND INCLUDE THE ASSISTANCE OF A SECOND PERSON TO INSTALL THE DOOR UNIT.

INSTALLATION OF THE SHOWER DOORS BY AN INEXPERIENCED PERSON MAY RESULT IN GLASS BREAKAGE AND, CONSEQUENTLY, CAUSE PERSONAL INJURY OR DEATH.

Handle fragile items with care to prevent injury or material damage.

Glass on panels and doors is tempered glass and must never be cut to prevent personal injury.

Always rest glass on a level surface

BEFORE STARTING

Compare items on your invoice with what you have received. Carefully review the Parts List on page 2. If any items are missing contact Vigo Industries at 1-866-591-7792. Please check our website at www.vigoindustries.com for additional information or instructional videos.

REQUIRED TOOLS

Square and/or Phillips #1 and #2 screwdriver

Flat head screwdriver

Electric drill plus 1/8", 5/16", 1/4" and 3/16" drill bits (depending on wall)

Level

Measuring tape

Pencil (non-permanent)

Clear silicone caulking

Utility knife

Shims (not provided)

IMPORTANT

Fiberglass, acrylic or sheetrock construction might not be sufficiently strong enough to support the shower door enclosure. You should use the wood framing from behind the face edge of the stall to provide a secure mounting to the door. Apply a bead of silicone between the walls and base of the stall.

For optimum performance, you should install the shower door perfectly level on a level surface.

When installing use heavy duty gloves.

FOR THE MATTE GLASS MODELS: Oil secretions from skin will leave transparent spots on the matte side of the glass. Use a degreasing, non-abrasive cleaner to remove these secretions. The same will happen if you get silicone on the matte glass. Use a silicone remover to remove these stains.

IMPORTANT:

THE CLEAR GLASS MODEL HAS A REVERSIBLE DOOR AND CAN BE INSTALLED TO THE RIGHT OR LEFT SIDE. (SEE CONFIGURATION DIAGRAM BELOW)

DOOR PANEL

DOOR

DOOR

DOOR PANEL



RIGHT CORNER



LEFT CORNER

INSTALLATION

FIG. 1A (GLASS CONFIGURATION DIAGRAM)

INSTALLATION







4

MODEL VG6072

PREPARATION STEPS TO FOLLOW BEFORE INSTALLATION

1.Remove the plastic layer from the base border (if needed). Do NOT remove the plastic layer off the plastic platform of the base/tub.

2.Properly apply silicone to the wall and base joints.

3.Measure your opening to determine if your unit will fit properly. See the chart below to determine the dimensions.

MODEL

OPENING DIMENSION





24X70

24" - 24 1/2"





26X70

26" - 26 1/2"





28X70

28" - 28 1/2"





30X70

30" - 30 1/2"





IMPORTANT

Ensure that there is sufficient structural support behind the shower wall to hold the weight of the shower door. If there is insufficient support, then reinforce the shower walls with wooden studs prior to shower door installation. [SEE FIG.1B]

STUD

FIG.1B

!CAUTION

GASKETS NEED TO BE IN BETWEEN ALL GLASS AND METAL CONTACT. FAILURE TO DO SO CAN LEAD TO BREAKAGE AND POTENTIAL BODILY HARM.

5

MODEL VG6072

Vigo VG6072ARBCL26, VG6072CHCL26, VG6072CHCL30, VG6072STCL30, VG6072STCL28 Specifications

INSTALLATION STEPS

A.INSTALLING THE SPLIT WALL SIDE SEAL STRIP

1.Clean all glass panel edges receiving seal

strips with rubbing alcohol. Cut and install





A1

the seal strip (#3) according to the seal strip





diagram, making sure that the longer of the





LONGER FLANGE



3

SHOULD BE ON THE

flanges is on the inside of the shower.



INSIDE OF THE SHOWER







NOTE: If the seal strips are not flat, use a hair

3



1





dryer to apply minimal heat and press the seal







strip back into position.













1



HINGE







OUTLINE







3



1

B.HINGE INSTALLATION

1.Clean the glass surface where the hinges (#2) are to be installed with rubbing alcohol.

Position hinges on the door glass panel (#1). Place gaskets on each side of the door glass panel. Screw the hinges to the door glass panel with the hex key (supplied).

! There is a 1/2" adjustment in the glass holes where the hinges are installed. You may need to adjust your hinges more than once to close your unit opening properly.

MODEL VG6072

1 B1

THIN GASKETS

PLATE

HEX SCREWS

THIN GASKETS

PLATE

HEX SCREWS

VIEW FROM INSIDE OF THE CABIN

6
