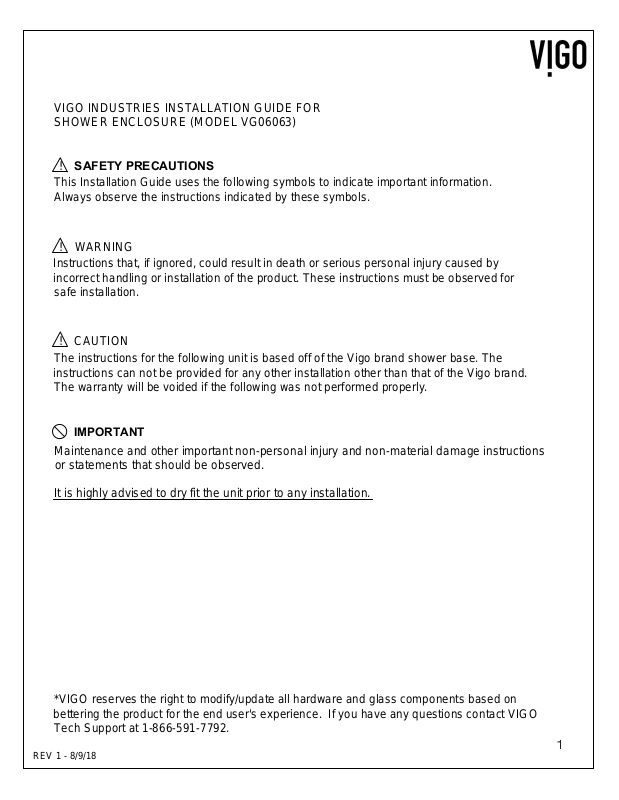

VIGO INDUSTRIES INSTALLATION GUIDE FOR

SHOWER ENCLOSURE (MODEL VG06063)

!SAFETY PRECAUTIONS

This Installation Guide uses the following symbols to indicate important information. Always observe the instructions indicated by these symbols.

!WARNING

Instructions that, if ignored, could result in death or serious personal injury caused by incorrect handling or installation of the product. These instructions must be observed for safe installation.

!CAUTION

The instructions for the following unit is based off of the Vigo brand shower base. The instructions can not be provided for any other installation other than that of the Vigo brand. The warranty will be voided if the following was not performed properly.

IMPORTANT

Maintenance and other important non-personal injury and non-material damage instructions or statements that should be observed.

It is highly advised to dry fit the unit prior to any installation.

*VIGO reserves the right to modify/update all hardware and glass components based on bettering the product for the end user's experience. If you have any questions contact VIGO Tech Support at 1-866-591-7792.

1

REV 1 - 8/9/18

MODEL VG06063 GEMINI

INSTALLATION INSTRUCTIONS FOR SHOWER ENCLOSURE

PLEASE READ INSTRUCTIONS BEFORE PROCEEDING

	Parts List		12.	Door (2 pc)
	1.	Wall connector (2pc)	13.	Door side seal strip (2pc + 1pc is extra)
	2.	Structural arm (2pc)	14.	Door bottom seal strip (2pc + 1pc is extra)
	3.	Support assembly (2pc)	15.	Hex screws 1 1/8" (4pc)
	4.	Side glass panel with hinge slots (2pc)	16.	Hex screws 1 5/8" (8pc)
	5.	Side seal strip (2pc)	17.	Phillips screws 3/4" (8pc)
	6.	Glass support (4pc)	18.	Plastic anchors green (12pc)
	7.	Hinge (4pc)	19.	Plastic anchors white (8pc)
	8.	Bottom rail (3 pc)	20. Hex screw covers (32pc)
	9.	Door magnetic seal strip (2pc)	21. Clear PVC shim (1pack)
1	10. Bottom corner joint (2 pc)		22. Allen key pack (1 pack)
	11. Handle assembly (2 sets)
2
3				18
4
				15
5
				19

6			9
	12	11
13
7		4	13
19
			14
8			16
18

17 10

GLASS THICKNESS 3/8"

NOTE: INSTALLATION MUST BE DONE BY A QUALIFIED, LICENSED PROFESSIONAL.

2

1.	WALL CONNECTOR	2. STRUCTURAL ARM	3. SUPPORT			4. SIDE PANEL	5. SIDE SEAL STRIP
	98001			ASSEMBLY		97001-42
		98002-42		98003		97001-47	96001
		98002-47
6. GLASS SUPPORT		7. HINGE ASSEMBLY	8.	BOTTOM RAIL	9. MAGNETIC SEAL STRIP		10.CORNER JOINT
	98004	98015		95001-42		96011	94001
				95001-47
11.	DOOR HANDLE	12. DOOR	13. DOOR SIDE SEAL		14. DOOR BOTTOM SEAL		15. HEX SCREW 1 1/8"
	ASSEMBLY	97002-12		STRIP		STRIP
	98014
						96004	96035
				96003
16. HEX SCREW 1 5/8"		17. PHILLIPS SCREW 3/4"	18. PLASTIC ANCHOR			19. PLASTIC ANCHOR	20. HEX SCREW COVER
	98039	98033		98037		98038	96040
21. CLEAR PVC SHIM		22. ALLEN KEY PACK
	MISC	MISC
						B
					A	C
						B
						A

*- GLASS AND HARDWARE ONLY (FULLY INSTALLED)

MODEL	DIM. "A"	DIM. "B"	DIM. "C"	HEIGHT	#4- SIDE GLASS	#12DOOR (97002)	DOOR OPENING
					PANEL (97001)		WIDTH
47 X 47	45 5/8"	26 5/8"	26 7/8"	73 3/8"	26"x71 5/8"	12 5/8"x70 3/8"	26 1/2"
42 X 42	40"	21 1/8"	26 7/8"	73 3/8"	20 1/2"x71 5/8"	12 5/8"x70 3/8"	26 1/2"

A, B & C DIMENSIONS WERE MEASURED AFTER SHOWER ENCLOSURE WAS COMPLETELY

INSTALLED

Product lines may change, contact your Vigo representative at 1-866-591-7792 or visit our website at www.vigoindustries.com for the most up to date product line information.

3

MODEL VG06063

! WARNING

WE STRONGLY RECOMMEND THAT A LICENSED PROFESSIONAL INSTALL THIS SHOWER ENCLOSURE AND INCLUDE THE ASSISTANCE OF A SECOND PERSON TO INSTALL THE DOOR UNIT.

INSTALLATION OF THE SHOWER DOORS BY AN INEXPERIENCED PERSON MAY RESULT IN GLASS BREAKAGE AND, CONSEQUENTLY, CAUSE PERSONAL INJURY OR DEATH.

-Handle fragile items with care to prevent personal injury or material damage.

-The glass panels are tempered and cannot be cut. Never attempt to do so.

-Always rest glass on a level surface

BEFORE STARTING

Compare items on your invoice with what you have received. Carefully review the Packing List on page 2. If any items are missing contact Vigo Industries at 1-866-591-7792. Please check our website at www.vigoindustries.com for additional information or instructional videos.

REQUIRED TOOLS

Square and/or Phillips #1 and #2 screwdriver

Flat head screwdriver

Electric drill plus 1/32", 3/32", 1/8" and 3/16" drill bit (depending on wall)

Level

Measuring tape

Pencil (non-permanent)

Clear silicone caulking

Utility knife

!WARNING

Handle fragile items with care to prevent injury or material damage.

Glass on panels and doors is tempered glass and must never be cut to prevent personal injury.

IMPORTANT

Fiberglass, acrylic or sheetrock construction might not be sufficiently strong enough to support the shower door enclosure. You should use the wood framing studs from behind the face edge of the stall to provide a secure mounting to the door. Apply a bead of silicone between the walls and base of the stall.

For optimum performance, you should install the shower door perfectly level on a level surface. Failure to do so will lead to water leakage and potential property damage.

When installing use heavy duty gloves.

IMPORTANT:

THE CLEAR GLASS MODEL HAS A REVERSIBLE DOOR AND CAN BE INSTALLED TO THE RIGHT OR LEFT SIDE. (SEE CONFIGURATION DIAGRAM BELOW)

12

4

4

SIDE GLASS		DOOR PANELS			SIDE GLASS
PANEL					PANEL

FIG. 1A (GLASS CONFIGURATION DIAGRAM)

4

MODEL VG06063

PREPARATION STEPS TO FOLLOW BEFORE INSTALLATION

1.Remove the plastic layer from the base border (if needed). Do NOT remove the plastic layer off the plastic platform of the base.

2.Properly apply silicone to the wall and base joints.

3.Make sure to read corresponding base instructions carefully prior to install on the Vigo Brand Shower Door System. Failure to do so can cause water leakage and bodily harm.

IMPORTANT

To prevent damage to the finish, you should protect the shower cabin bottom with a cardboard protector before beginning the installation.

Ensure that there is sufficient structural support behind the shower wall to hold the weight of the shower door. If there is insufficient support, then reinforce the shower walls with wooden studs prior to shower door installation. [SEE FIG.1]

STUD

FIG.1

!CAUTION

GASKETS NEED TO BE IN BETWEEN ALL GLASS AND METAL CONTACT. FAILURE TO DO SO CAN LEAD TO BREAKAGE AND POTENTIAL BODILY HARM.

5

MODEL VG06063

INSTALLATION STEPS

A.INSTALLING THE BOTTOM RAIL

1.Remove the aluminum cover from the front piece of the bottom rail by sliding it out.

A1

ALUMINUM COVER

INSIDE

OUTSIDE

2.Remove top of the corner joint. Slide the bottom corner joint (2 pieces) (#10) onto the bottom rail (3 pieces) (#8).

3.Align the bottom rail and corner joint to the desired position on the shower base. Prior to drilling, dry fit everything making sure that everything is straight, level and plum. Distance "A" and "B" should be the same distance from the corner of the wall to the bottom rail. Pre-drill for sinkers and tap sinkers. Cut excess sinker off with hacksaw or sharp blade. Dip screws in silicone and screw corner joints and rails down. Silicone tops of screws.

A2

		THIS EDGE LOOKS
		INSIDE OF THE SHOWER
	8	TOP REMOVES TO
		INSTALL 3/4" SCREW

10

THIS EDGE LOOKS

OUTSIDE OF THE SHOWER

A3

A

B

17

6

MODEL VG06063

4.Seal the bottom rail with clear silicone caulk and center its sides to the base.

5.Clip the aluminum cover to the front piece of the bottom rail making sure the lower side faces the inside of the shower. Silicone the underneath portion of the corner joint caps and put them on the corner joints.

A4

A

B

8

A5

ALUMINUM COVER

INSIDE

OUTSIDE

INSIDE

CORNER JOINT

CAP

OUTSIDE

7
