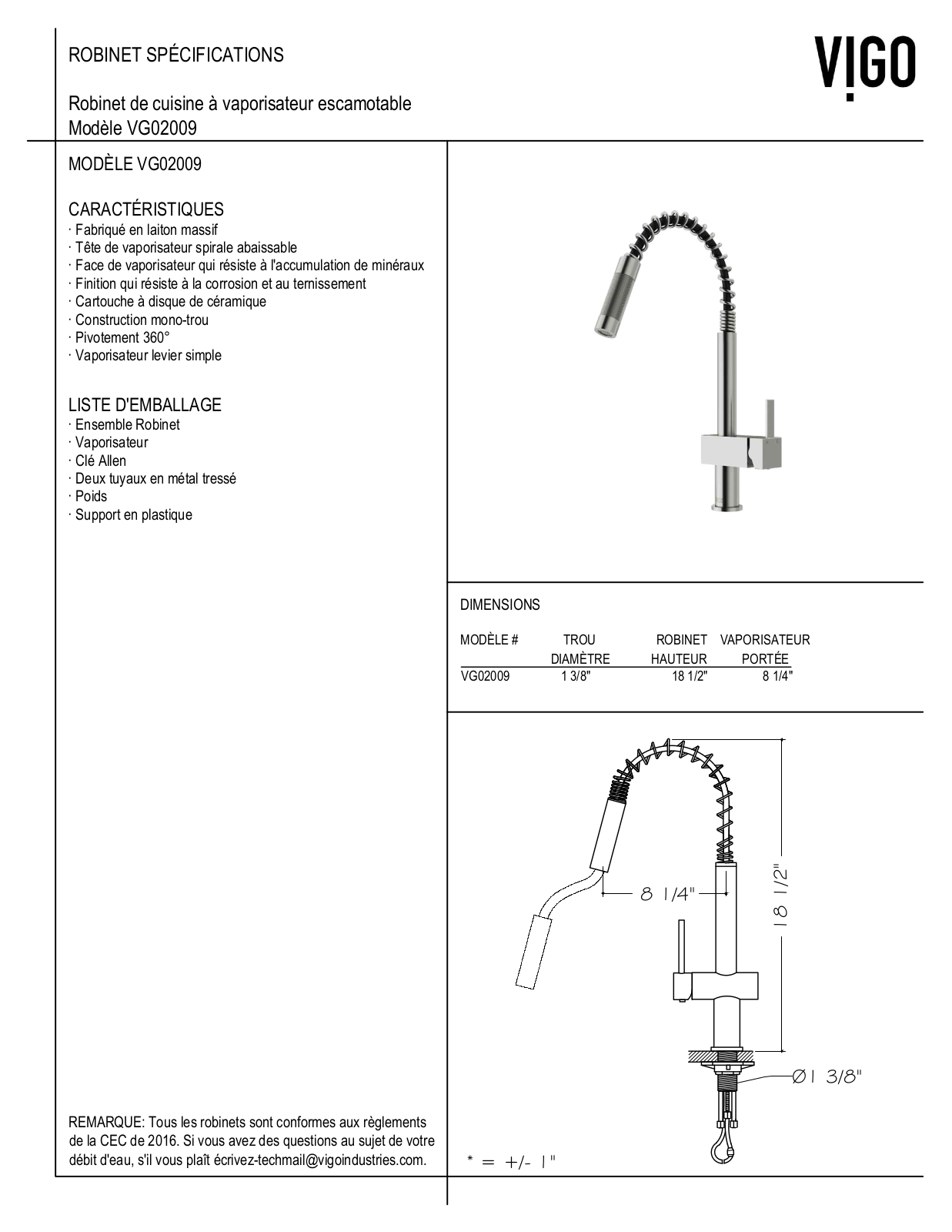

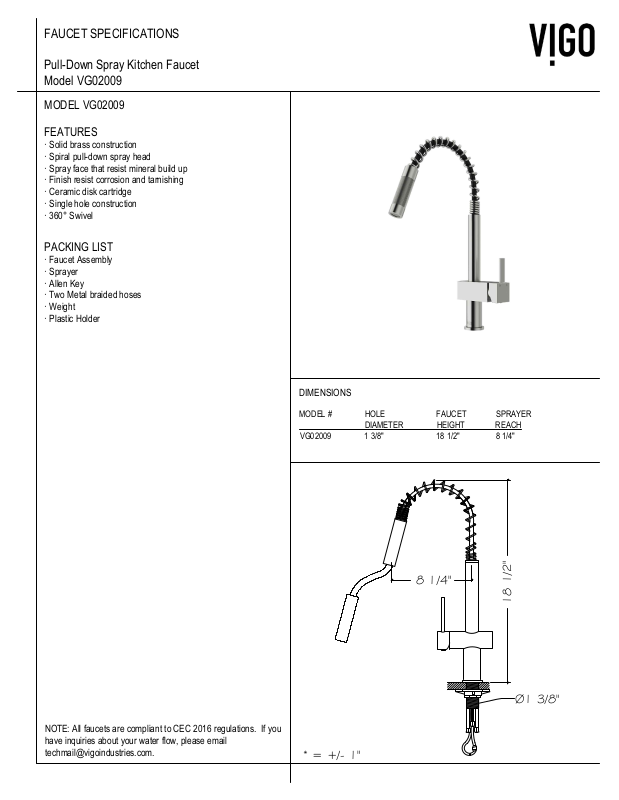

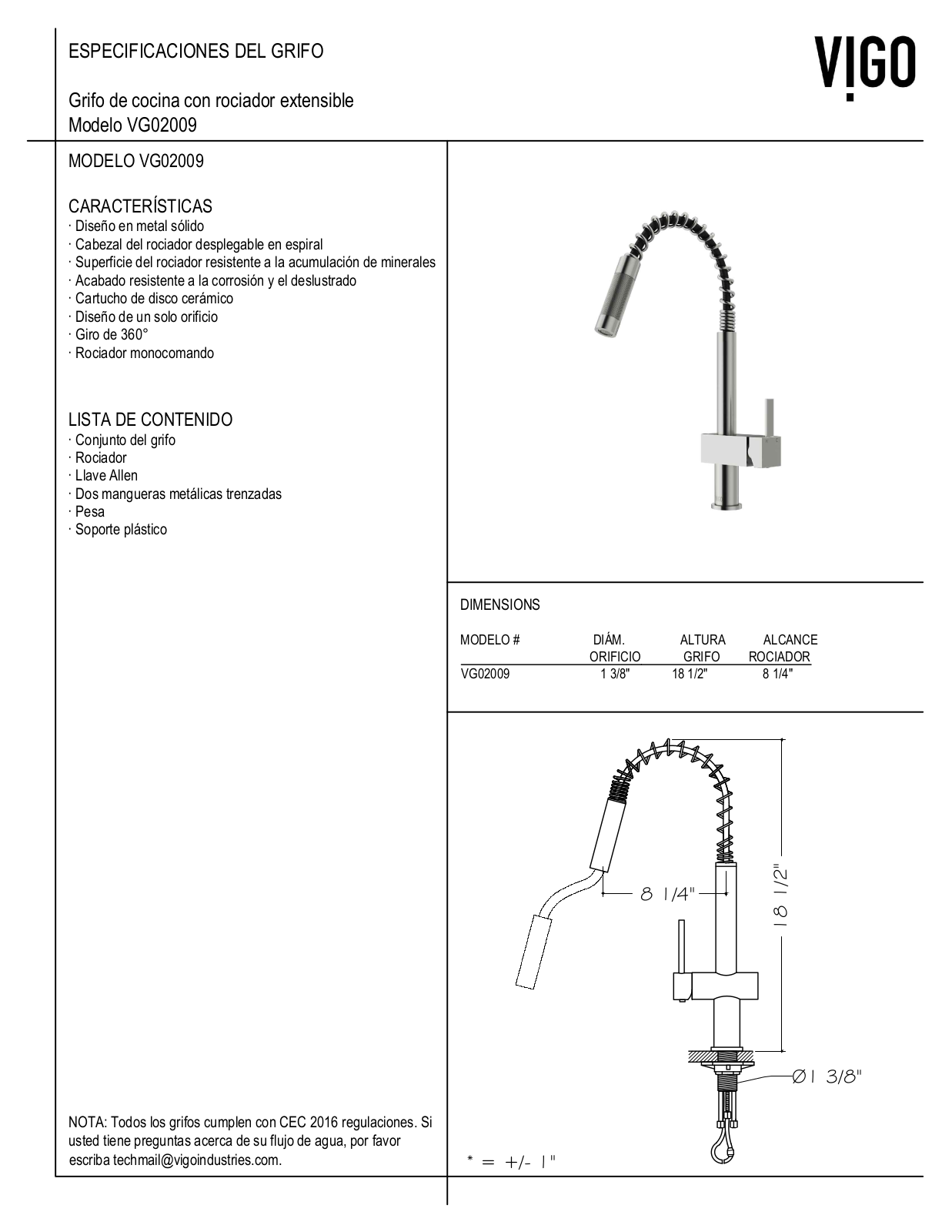

FAUCET SPECIFICATIONS

Pull-Down Spray Kitchen Faucet

Model VG02009

MODEL VG02009

FEATURES

PACKING LIST

DIMENSIONS

MODEL #

HOLE

FAUCET

SPRAYER





DIAMETER

HEIGHT

REACH



VG02009

1 3/8"

18 1/2"

8 1/4"

















8 1/4"

1/2"

18



1 3/8"

NOTE: All faucets are compliant to CEC 2016 regulations. If you



have inquiries about your water flow, please email



techmail@vigoindustries.com.

* = +/- 1"

Vigo VG02009STK2 Specifications

8 1/4"

1/2"



18









11/4"





10"

5"





3 5/8"



1 3/4"

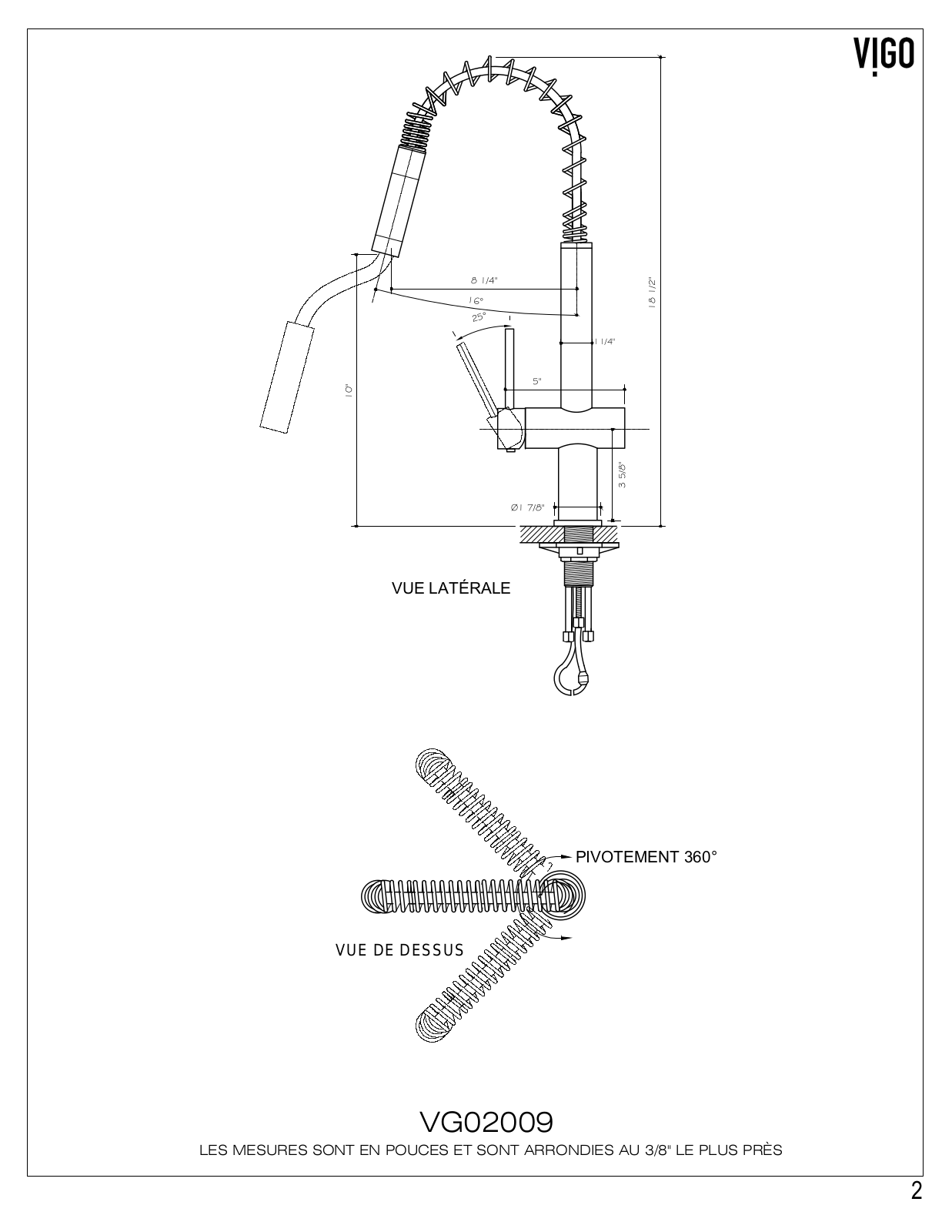

SIDE VIEW

FRONT VIEW

SPRAY HOSE

TOP VIEW

VG02009

THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 3/8"

2

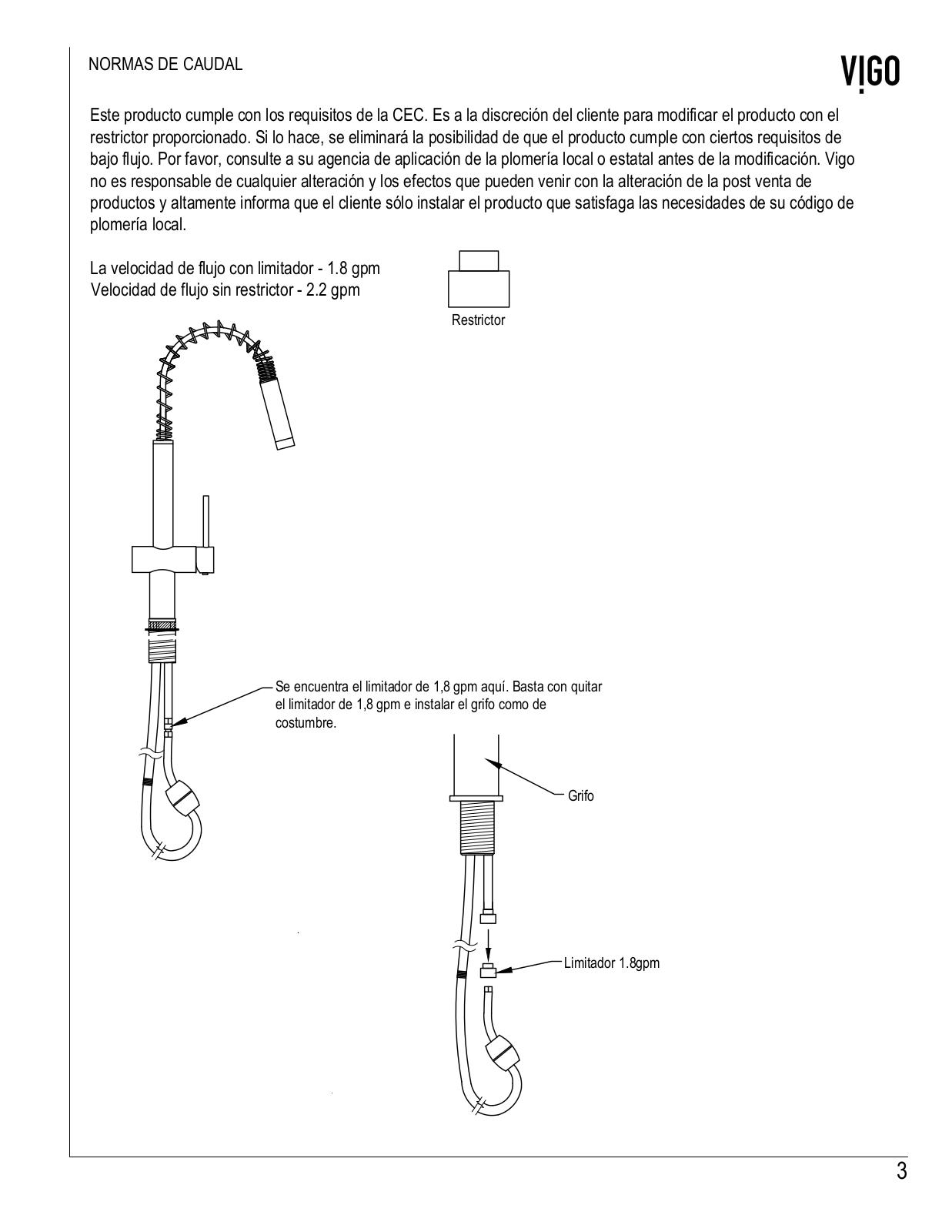

FLOW RATE REGULATIONS

This product meets the CEC requirements. It is up to the discretion of the client to modify the product with the provided restrictor. Doing so will remove the ability for the product to meet certain low flow standards. Please talk to your local or statewide plumbing enforcement agency prior to modifying. Vigo is not responsible for any alterations and the affects that may come with altering the product post sale and highly advises that the client only install the product that meets the needs of their local plumbing code.

Flow rate with restrictor - 1.8 gpm

Flow rate without restrictor - 2.2 gpm

Restrictor

You will find the 1.8 gpm restrictor here. Simply remove the 1.8 gpm restrictor and install the faucet as usual.

Faucet

1.8gpm restrictor

3

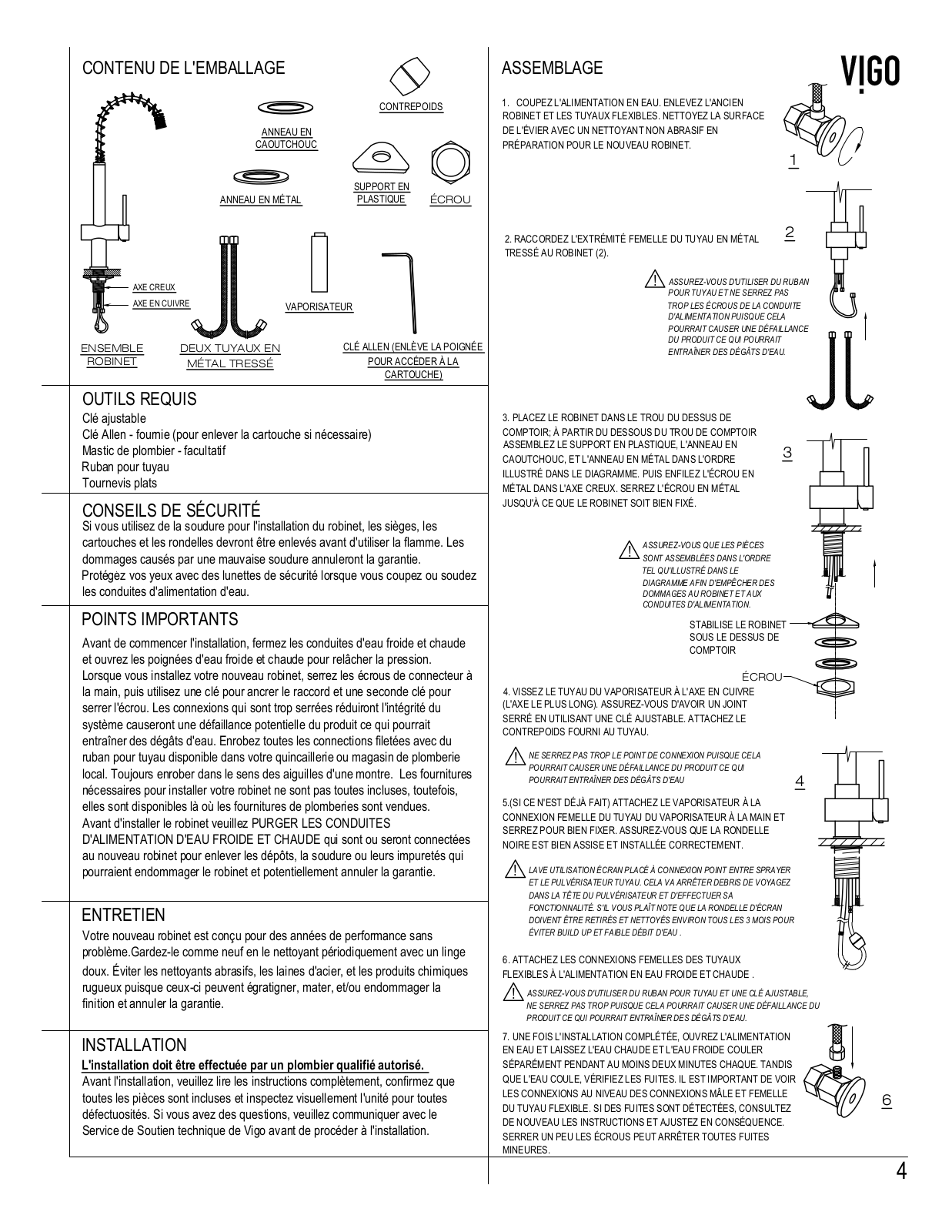

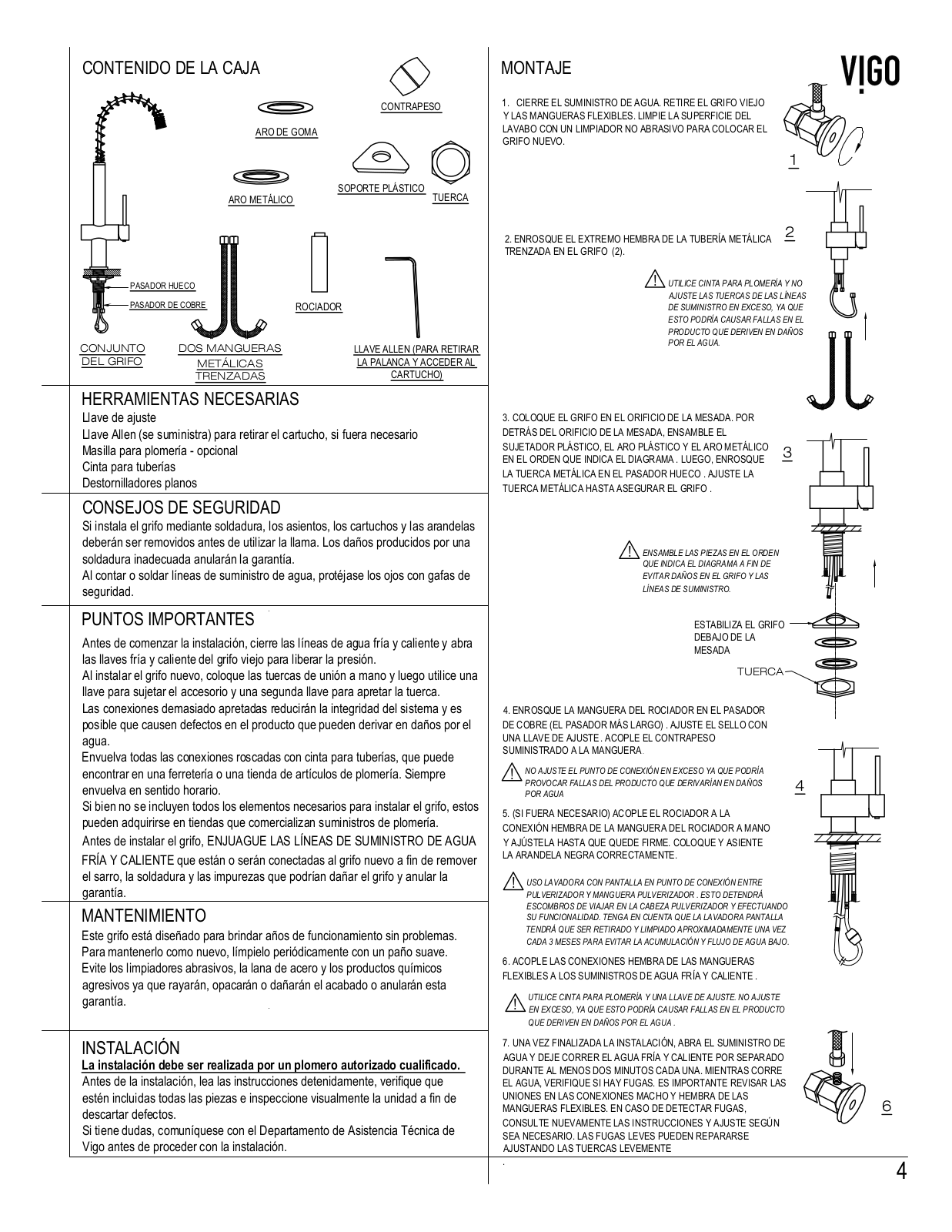

PACKAGE CONTENTS



ASSEMBLY





COUNTERWEIGHT

1. SHUT OFF WATER SUPPLY. REMOVE THE OLD FAUCET





AND FLEXIBLE HOSES. CLEAN SINK SURFACE WITH A NON









RUBBER RING



ABRASIVE CLEANER IN PREPARATION FOR THE NEW FAUCET.









1

METAL RING

PLASTIC HOLDER





NUT









2. THREAD FEMALE END OF METAL BRAIDED HOSE TO THE

2





FAUCET (2).



HOLLOW PIN



! ENSURE THAT YOU USE PIPE TAPE





AND DO NOT OVER TIGHTEN THE

COPPER PIN

SPRAYER

SUPPLY LINE NUTS AS THIS COULD





CAUSE PRODUCT FAILURE LEADING





TO WATER DAMAGE.

FAUCET

TWO METAL

ALLEN KEY (REMOVES HANDLE

ASSEMBLY

BRAIDED HOSES

TO ACCESS CARTRIDGE)





REQUIRED TOOLS





Adjustable wrench

3. POSITION THE FAUCET IN THE COUNTERTOP HOLE, FROM



Allen key - supplied (to remove cartridge if needed)

BENEATH THE COUNTERTOP HOLE ASSEMBLE THE PLASTIC



Plumber's putty - optional

HOLDER, RUBBER RING, AND METAL RING IN THE ORDER

3

DEPICTED IN THE DIAGRAM. THEN THREAD METAL NUT ONTO

Pipe tape

HOLLOW PIN. TIGHTEN THE METAL NUT UNTIL FAUCET IS



Flat screwdrivers

SECURE.



SAFETY TIPS





If you use soldering for the installation of the faucet, the seats, cartridges and





washers will have to be removed before using flame. Damage caused by

! ENSURE THAT PARTS ARE



improper soldering will void the warranty.



ASSEMBLED IN THE ORDER AS



Protect your eyes with safety glasses when cutting or soldering water supply

DEPICTED IN DIAGRAM TO PREVENT



lines.

DAMAGE TO FAUCET AND SUPPLY



LINES.



IMPORTANT POINTS

STABILIZES FAUCET

Prior to beginning installation, turn off the cold and hot water lines and open the

UNDER COUNTERTOP

hot and cold knobs on the old faucet to release pressure.

NUT



When installing your new faucet, turn the connector nuts finger-tight, then use



one wrench to anchor the fitting and a second wrench to tighten the nut.





Connections that are too tight will reduce the integrity of the system and

4. SCREW SPRAY HOSE TO THE COPPER PIN (THE LONGEST



potentially cause product failure which could lead to water damage.

PIN). MAKE SURE TO HAVE A TIGHT SEAL USING ADJUSTABLE



Wrap all threaded connections with pipe tape available at your local hardware or

WRENCH. ATTACH SUPPLIED COUNTERWEIGHT TO THE HOSE.



plumbing supply store. Always wrap in a clockwise direction.

! DO NOT OVER TIGHTEN CONNECT

4

Not all necessary supplies to install your faucet are included, however, they are

POINT AS THIS COULD CAUSE

available wherever plumbing supplies are sold.

PRODUCT FAILURE LEADING TO



WATER DAMAGE



Prior to installing the faucet please FLUSH THE HOT AND COLD WATER

5. (IF NOT DONE ALREADY) ATTACH SPRAYER TO FEMALE



SUPPLY LINES that are or will be connected to the new faucet to remove scale,



solder or their impurities which could damage the faucet and potentially void the

CONNECTION OF SPRAYER HOSE BY HAND AND TIGHTEN



UNTIL SECURE. MAKE SURE THE BLACK WASHER WITH



warranty.

SCREEN IS SEATED AND INSTALLED PROPERLY.





! USE WASHER WITH SCREEN AT CONNECTION POINT BETWEEN SPRAYER



AND SPRAYER HOSE. THIS WILL STOP DEBRIS FROM TRAVELING INTO THE

MAINTENANCE

SPRAYER HEAD AND EFFECTING ITS FUNCTIONALITY. PLEASE NOTE THAT

THE SCREEN WASHER WILL NEED TO BE REMOVED AND CLEANED



APPROXIMATELY ONCE EVERY 3 MONTHS TO AVOID BUILD UP AND LOW

Your new faucet is designed for years of trouble-free performance.

WATER FLOW.



Keep it looking new by cleaning it periodically with a soft cloth. Avoid abrasive

6. ATTACH THE FEMALE CONNECTIONS OF THE FLEXIBLE HOSES TO

cleaners, steel wool and harsh chemicals as these will scratch, dull, and/or

THE COLD AND HOT WATER SUPPLY .



damage the finish and void the warranty.

! ENSURE THAT YOU USE PIPE TAPE



AND ADJUSTABLE WRENCH, DO NOT



OVER TIGHTEN AS THIS COULD



CAUSE PRODUCT FAILURE LEADING

INSTALLATION

TO WATER DAMAGE.



7. AFTER INSTALLATION IS COMPLETE, TURN ON THE WATER



Installation must be done by a qualified licensed plumber.

SUPPLY AND ALLOW BOTH HOT AND COLD WATER TO RUN



Prior to installation please read the instructions thoroughly, confirm that all parts

SEPARATELY FOR AT LEAST TWO MINUTE EACH. WHILE



WATER IS RUNNING, CHECK FOR LEAKS. IT IS IMPORTANT TO



are included and visually inspect the unit for any defects.

6

VIEW THE CONNECTIONS AT THE MALE AND FEMALE FLEXIBLE

If you have any questions please contact the Vigo Technical Support

HOSE CONNECTIONS. IF LEAKS ARE DETECTED, REFER BACK



Department before proceeding with installation.

TO THE INSTRUCTIONS AND ADJUST ACCORDINGLY.





TIGHTENING NUTS SLIGHTLY MAY STOP ANY MINOR LEAKS.



4

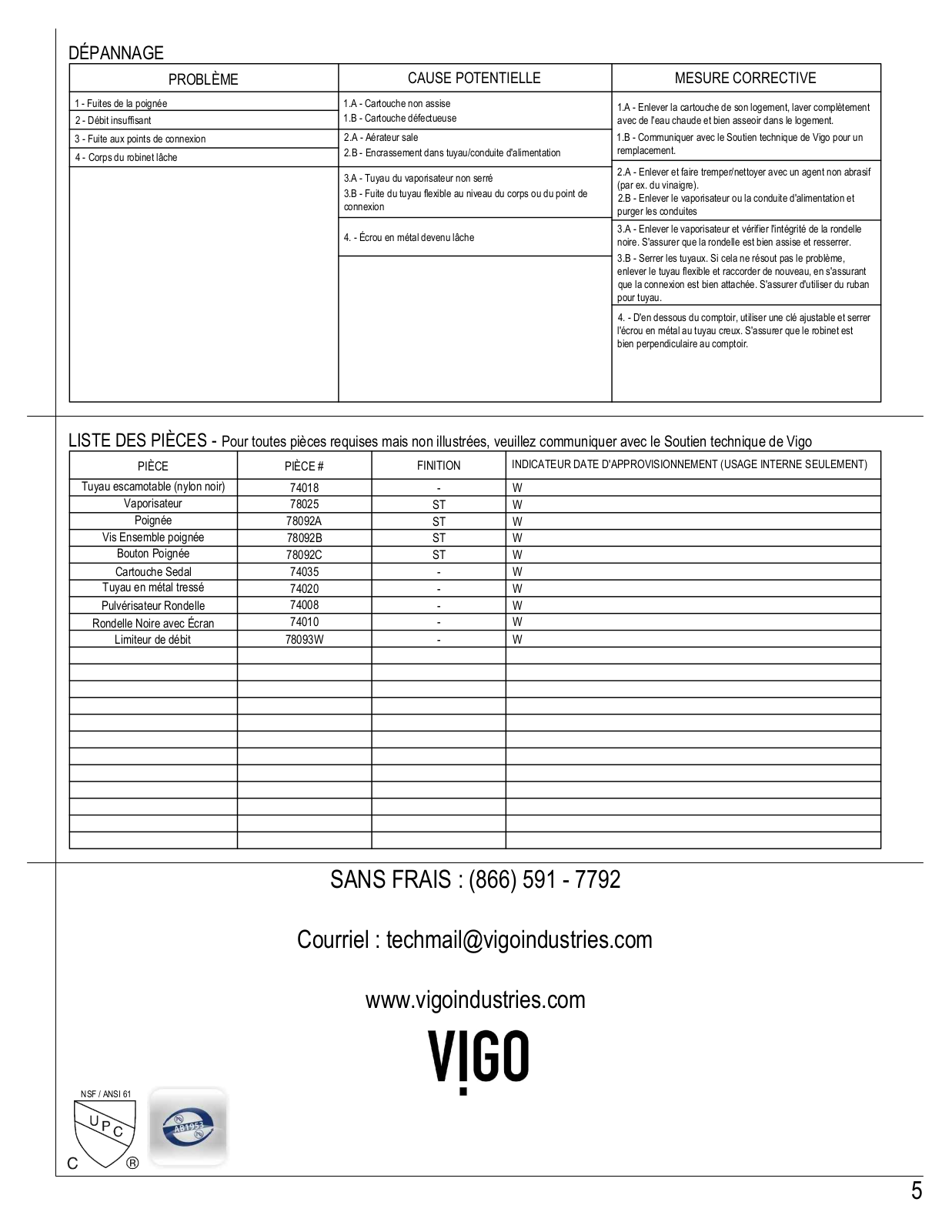

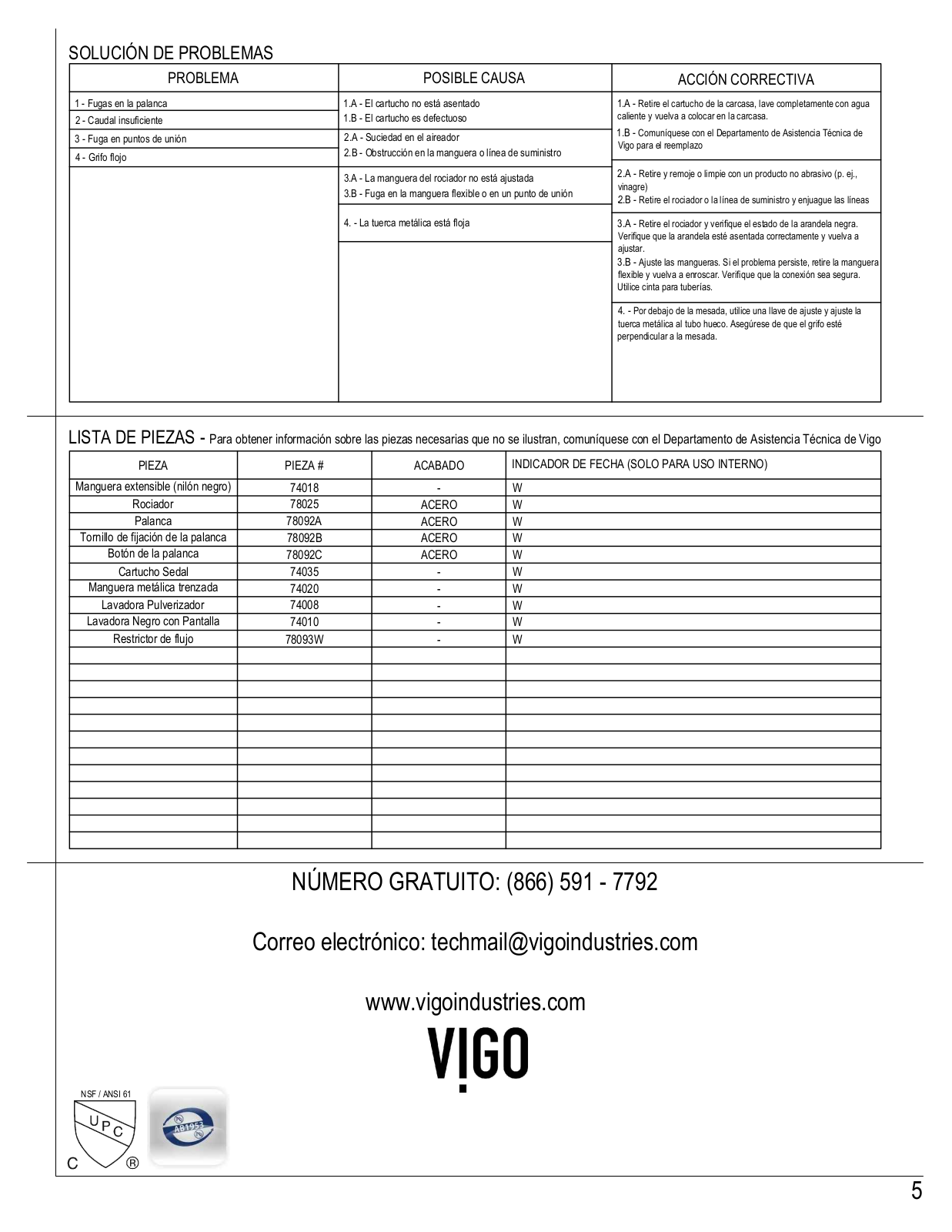

TROUBLESHOOTING

PROBLEM

POTENTIAL CAUSE

CORRECTIVE ACTION







1 - Leaks from handle

1.A - Cartridge unseated

1.A - Remove cartridge from housing, wash thoroughly with hot

2 - Insufficient flow rate

1.B - Cartridge defective

water and reseat in housing.

3 - Leak at connection points

2.A - Dirty aerator

1.B - Contact Vigo Technical Support for replacement.



2.B - Clog in supply hose / line



4 - Loose faucet body

2.A - Remove and soak / clean with a non abrasive agent (i.e.









3.A - Sprayer hose not tight

vinegar).



3.B - Flexible hose leaking at body or connection point

2.B - Remove sprayer or supply line and flush lines









4. - Metal nut became loose

3.A - Remove sprayer and check integrity of the black washer.





Make sure the washer is seated properly and retighten.





3.B - Tighten hoses. If this does not resolve the issue, remove





the flexible hose and rethread, checking to make sure the





connection is secure. Make sure to use pipe tape.











4. - From under the counter, use an adjustable wrench and





tighten the metal nut to the hollow pipe. Make sure the faucet is





perpendicular to the counter.







PARTS LIST - For any parts needed but not shown, please contact Vigo Technical Support

PART

PART #

FINISH

SUPPLY DATE INDICATOR (INTERNAL USE ONLY)









Pull out Hose (black nylon)

74018

-

W

Sprayer

78025

ST

W

Handle

78092A

ST

W

Handle Set Screw

78092B

ST

W

Handle Button

78092C

ST

W

Sedal Cartridge

74035

-

W

Metal braided Hose

74020

-

W

Sprayer Washer

74008

-

W

Black Washer with Screen

74010

-

W

Flow Restrictor

78093W

-

W

































































































TOLL FREE: (866) 591 - 7792

E-Mail: techmail@vigoindustries.com

www.vigoindustries.com

NSF / ANSI 61

5

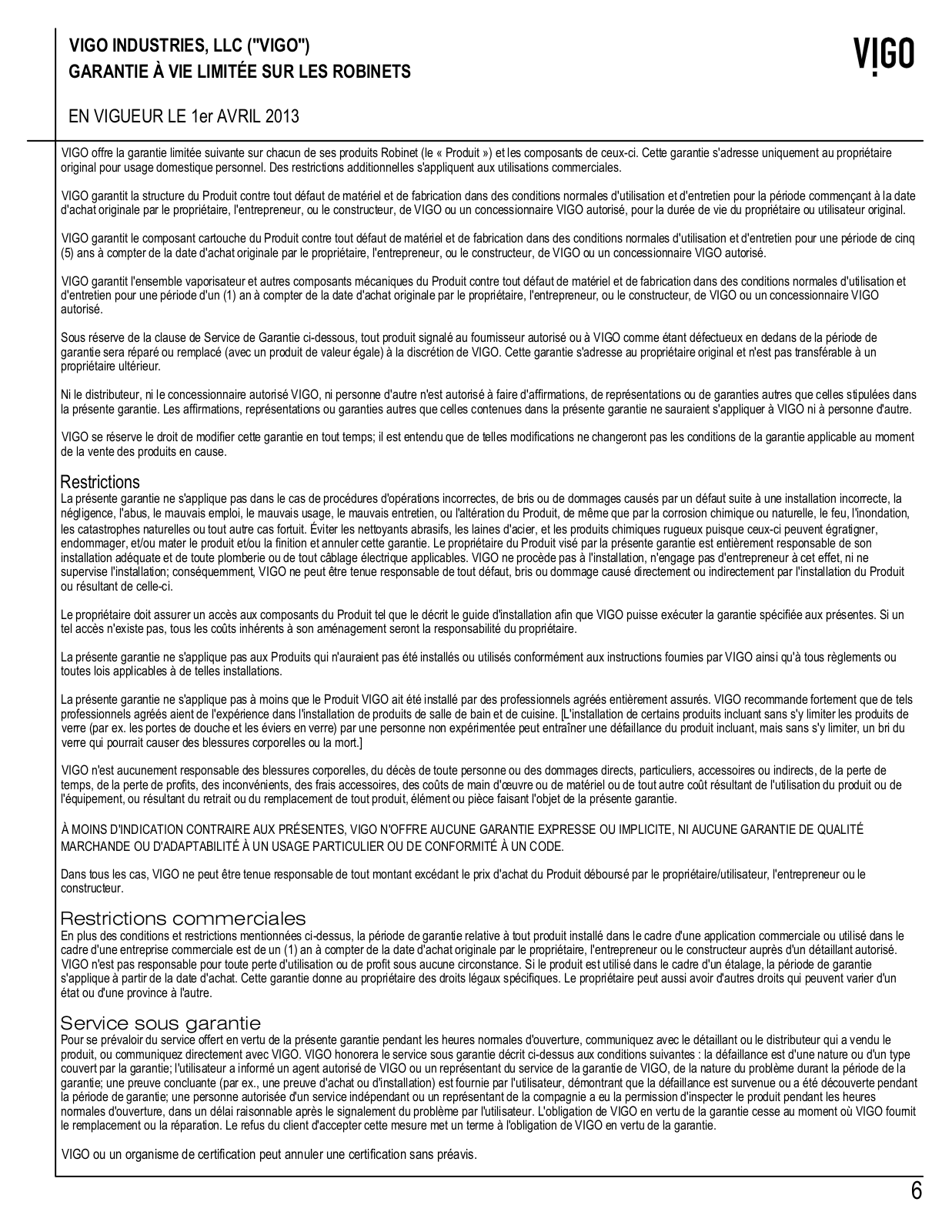

VIGO INDUSTRIES, LLC ("VIGO")

FAUCET LIMITED LIFETIME WARRANTY

EFFECTIVE APRIL 1, 2013

VIGO offers the following limited warranty on each of its Faucet products (the "Product") and the components thereof. This warranty extends only to the original owner for personal household use. For commercial uses, additional limitations apply.

VIGO warrants the structure of the Product to be free from defects in workmanship and materials under normal use and service for the period commencing from the initial date of purchase by the owner, contractor, or builder, from VIGO or an authorized VIGO dealer, through the lifetime of the original owner or end-user.

VIGO warrants the cartridge component of the Product to be free from defects in workmanship and materials under normal use and service for a period of five (5) years from the initial date of purchase by the owner, contractor, or builder, from VIGO or an authorized VIGO dealer.

VIGO warrants the spray assembly and other mechanical components of the Product to be free from defects in workmanship and materials under normal use and service for a period of one (1) year from the initial date of purchase by the owner, contractor, or builder, from VIGO or an authorized VIGO dealer.

Subject to the Warranty Service provision below, any product reported to the authorized dealer or to VIGO as being defective within the warranty period will be repaired or replaced (with a product of equal value) at the option of VIGO. This warranty extends to the original owner and is not transferable to a subsequent owner.

Neither the distributor, authorized VIGO dealer, nor any other person has been authorized to make any affirmation, representation, or warranty other than those contained in this warranty. Any affirmation, representation, or warranty other than those contained in this warranty shall not be enforceable against VIGO or any other person.

VIGO reserves the right to modify this warranty at any time, it being understood that such modifications will not alter the warranty conditions applicable at the time of sale of the products in question.

Limitations

This warranty shall not apply to instances of incorrect operating procedures, breakages, or damages caused by fault through improper installation, carelessness, abuse, misuse, misapplication, improper maintenance, or alteration of the Product, as well as chemical or natural corrosion, accident, fire, flood, an act of God, or any other casualty. Avoid abrasive cleaners, steel wools, and harsh chemicals as these will scratch, damage, and / or dull the product and / or finish and void this warranty. The owner of the Product covered by the present warranty is entirely responsible for its proper installation and any applicable plumbing or electrical wiring. VIGO neither installs nor supervises the installation nor hires a contractor for this purpose; consequently, VIGO cannot be held responsible for any default, breakage, or damages caused thereby or resulting thereof, either directly or indirectly.

The owner must provide access to the components of the Product as described in the installation guide so that VIGO can execute the warranty specified herein. If such access is not available, all expenses to provide said access will be the responsibility of the owner.

This warranty does not apply to Products that have not been installed or operated in accordance with instructions supplied by VIGO and all applicable rules, regulations, and legislation pertaining to such installations.

This warranty does not apply unless the VIGO Product is installed by fully insured licensed professionals. Vigo strongly recommends that such licensed professionals have experience in the installation of bathroom and kitchen products. [Installation of certain products, including without limitation glass products (i.e., shower doors and glass sinks) by an inexperienced person may result in product failure including, but not limited to, glass breakage which could result in personal injury or death.]

VIGO is not liable for personal injuries or deaths to any persons or for any direct, special, incidental, or consequential damage, loss of time, loss of profits, inconvenience, incidental expenses, labor or material charges, or any other costs resulting from the use of the product or equipment or pertaining to the application of the present warranty, or resulting from the removal or replacement of any product or element or part covered by this warranty.

EXCEPT AS OTHERWISE PROVIDED ABOVE, VIGO MAKES NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE OR COMPLIANCE WITH ANY CODE.

In any case, VIGO cannot be held liable for any amount over and above the purchase price paid for the Product by the owner/end-user, contractor, or builder.

Commercial Limitations

In addition to the above conditions and limitations, the warranty period for products installed for commercial applications or used in commercial ventures is one (1) year from the initial date of purchase by the owner, contractor, or builder from an authorized dealer. VIGO is not responsible for loss of use or profit under any circumstances. If the product is used as a display, the warranty period begins from the date of purchase. This warranty gives the owner specific legal rights. The owner may also have other rights which can vary from one state or province to another.

Warranty Service

In order to obtain service provided under this warranty during regular business hours, contact the dealer or distributor who sold the unit, or contact VIGO directly. VIGO will provide the warranty service described above when the following conditions have been met: the failure is of the nature or type covered by the warranty; the user has informed an authorized VIGO Agent or VIGO's warranty service department representative of the nature of the problem during the warranty period; conclusive evidence (e.g., proof of purchase or installation) is provided to the foregoing by the user proving that the failure occurred or was discovered within the warranty period; an authorized independent service person or company representative has been permitted to inspect the product during regular business hours within a reasonable time after the problem was reported by the user. Vigo's warranty obligation shall be discharged upon tender of replacement or repair. The customer's refusal to accept the tender terminates VIGO's warranty obligations.

Certification may be ended by VIGO or certification agencies without notice.
