Application Drawings

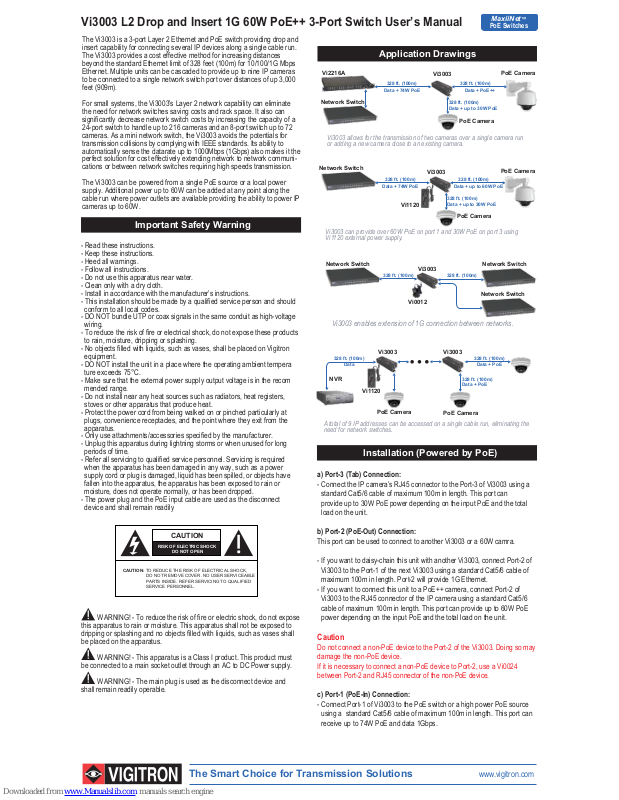

Vi3003 L2 Drop and Insert 1G 60W PoE++ 3-Port Switch User’s Manual
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Installation (Powered by PoE)
The Smart Choice for Transmission Solutions www.vigitron.com
Important Safety Warning
a) Port-3 (Tab) Connection:
- Connect the IP camera’s RJ45 connector to the Port-3 of Vi3003 using a
standard Cat5/6 cable of maximum 100m in length. This port can
provide up to 30W PoE power depending on the input PoE and the total
load on the unit.
b) Port-2 (PoE-Out) Connection:
This port can be used to connect to another Vi3003 or a 60W camra.
- If you want to daisy-chain this unit with another Vi3003, connect Port-2 of
Vi3003 to the Port-1 of the next Vi3003 using a standard Cat5/6 cable of
maximum 100m in length. Port-2 will provide 1G Ethernet.
- If you want to connect this unit to a PoE++ camera, connect Port-2 of
Vi3003 to the RJ45 connector of the IP camera using a standard Cat5/6
cable of maximum 100m in length. This port can provide up to 60W PoE
power depending on the input PoE and the total load on the unit.
Caution
Do not connect a non-PoE device to the Port-2 of the Vi3003. Doing so may
damage the non-PoE device.
If it is necessary to connect a non-PoE device to Port-2, use a Vi0024
between Port-2 and RJ45 connector of the non-PoE device.
c) Port-1 (PoE-In) Connection:
- Connect Port-1 of Vi3003 to the PoE switch or a high power PoE source
using a standard Cat5/6 cable of maximum 100m in length. This port can
receive up to 74W PoE and data 1Gbps.
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer’s instructions.
- This installation should be made by a qualified service person and should
conform to all local codes.
- DO NOT bundle UTP or coax signals in the same conduit as high-voltage
wiring.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron
equipment.
- DO NOT install the unit in a place where the operating ambient tempera
ture exceeds 75°C.
- Make sure that the external power supply output voltage is in the recom
mended range.
- Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus that produce heat.
- Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The power plug and the PoE input cable are used as the disconnect
device and shall remain readily
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a main socket outlet through an AC to DC Power supply.
WARNING! - The main plug is used as the disconnect device and
shall remain readily operable.
328 ft. (100m)
Vi3003
Network Switch
PoE Camera
328 ft. (100m)
Data + up to 30W PoE
328 ft. (100m)
Vi2216A
PoE Camera
Data + 74W PoE Data + PoE++
PoE Camera
PoE Camera
Vi3003 Vi3003
328 ft. (100m)
Data
NVR
Vi1120
328 ft. (100m)
Data + PoE
328 ft. (100m)
Data + PoE
The Vi3003 is a 3-port Layer 2 Ethernet and PoE switch providing drop and
insert capability for connecting several IP devices along a single cable run.
The Vi3003 provides a cost effective method for increasing distances
beyond the standard Ethernet limit of 328 feet (100m) for 10/100/1G Mbps
Ethernet. Multiple units can be cascaded to provide up to nine IP cameras
to be connected to a single network switch port over distances of up 3,000
feet (909m).
For small systems, the Vi3003's Layer 2 network capability can eliminate
the need for network switches saving costs and rack space. It also can
significantly decrease network switch costs by increasing the capacity of a
24-port switch to handle up to 216 cameras and an 8-port switch up to 72
cameras. As a mini network switch, the Vi3003 avoids the potentials for
transmission collisions by complying with IEEE standards. Its ability to
automatically sense the datarate up to 1000Mbps (1Gbps) also makes it the
perfect solution for cost effectively extending network to network communications or between network switches requiring high speeds transmission.
The Vi3003 can be powered from a single PoE source or a local power
supply. Additional power up to 60W can be added at any point along the
cable run where power outlets are available providing the ability to power IP
cameras up to 60W.
Vi0012
Network Switch
Network Switch
Vi3003 enables extension of 1G connection between networks.
328 ft. (100m)
Vi3003
328 ft. (100m)
Network Switch
A total of 9 IP addresses can be accessed on a single cable run, eliminating the
need for network switches.
Vi3003 allows for the transmission of two cameras over a single camera run
or adding a new camera close to an existing camera.
Vi1120
328 ft. (100m)
Vi3003
Network Switch
PoE Camera
328 ft. (100m)
Data + up to 30W PoE
328 ft. (100m)
PoE Camera
Data + 74W PoE Data + up to 60W PoE
Vi3003 can provide over 60W PoE on port 1 and 30W PoE on port 3 using
Vi1120 external power supply.
PoE Switches
MaxiiNet™
Limited Lifetime Warranty
Vigitron, Inc. warrants that all Vigitron products (“Product”), if used in accordance
with these instructions, will be free of defects in material and workmanship for
lifetime defined as the duration period of time until product end of life is announced.
After which, Vigitron will continue to provide warranty services for a period of 3
years. Period covering valid warranty will be determined by proof of purchase in the
form of an invoice from an authorized Vigitron dealer.
Warranty will only be provided for as long as the original end user purchaser owns
the product. Warranty is not transferrable. At Vigitron's option, defective product will
be repaired, replaced or substituted with a product of equal value. This warranty
does not apply if, in the judgment of Vigitron, Inc., the Product fails due to damage
from shipment, handling, storage, accident, abuse or misuse, or if it has been used
or maintained not conforming to Product manual instructions, has been modified, or
serial number removed or defaced. Repair by anyone other than Vigitron, Inc. or an
approved agent will void this warranty. Vigitron, Inc. shall not under any circumstances be liable to any person for any incidental, indirect or consequential
damages, including damages resulting from use or malfunction of the product, loss
of profits or revenues or costs of replacement goods. The maximum liability of
Vigitron, Inc. under this warranty is limited to the original purchase price of the
Product only.
Technical Specifications*
RoHS
Drawings
Ordering Information
PART No.
Description
Vi3003 Drop and Insert 10/100/1000Mbps
60W PoE++ 3-Port Switch
Vi1120 Desktop power supply 56VDC @120W
Vi0012 Wall-mount power supply 12VDC @12W
Vi0024 PD Emulator for non-PoE devices
Status LEDs
© Copyright 2015 Vigitron, Inc.
TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205
7810 Trade Street, Suite 100, San Diego, CA 92121, USA • support@vigitron.com • www.vigitron.com
UMVi3003_0815
Top View
Left View
Right View
4.12"
10.5 cm
0.97"
2.5 cm
3-Port PoE Powered PoE Switch
Vi3003
Made in U.S.A.
60W PoE
30W PoE
Power
Link/Act
1G
Ethernet
(60W PoE Out)
Link/Act
1G
Ethernet
(30W PoE Out)
Link/Act
Ethernet
(PoE In)
1G
52-57VDC
1.76"
4.5 cm
Vi0017 Desktop power supply 48VDC @40W
Electrical
PoE Rating Port 1 (PoE In): 60W
Port 2 (PoE Out): 60W
Port 3 (Tab): 802.3af (15.4W), 802.3at (30W)
Network Connection (3) RJ-45 IEC 60603-7
Wiring Support Cat 5/5e/6
Power Consumption 3W
Supported Distance 328ft (100m) per link
Status LEDs Power: Green
30W PoE Input: Orange
60W PoE Input: Orange
Port 1: 1G (Green), Link/Act. (Yellow)
Port 2 (Uplink): 1G(Green), Link/Act. (Yellow)
Port 3 (Tab): 1G(Green), Link/Act. (Yellow)
Data Rate Auto Configuring
Port 1: 10/100/1000Base-TX
Port 2: 10/100/1000Base-TX
Port 3 (Tab): 10/100/1000Base-TX
Data Interfaces and RFC 768 UDP, RFC 2068 HTTP
Compliances RFC 793 TCP, RFC 791 IP
RFC 1783 TFTP, RFC 894 IP over Ethernet
RFC 2544 TCP/IP Packet Transmission
IEEE802.3af, 8IEEE02.3at
IEEE Compliances 802.3ab, 802.3z, 802.3af, 802.3at, 802.1p,
802.1Q, 802.1D, 802.1s, 802.3u, 802.3x,
802.3w
Service Compliance IPv4 Type of Service (TOS) and
Differentiated
Services (Diff-Serv)
IPv6 Traffic Class
VLAN Support 4,096 Addresses
Jumbo Frame Up to 10,000 bytes
Regulatory
Safety CE
Environmental RoHS, WEEE
Mechanical
Dimensions 0.97x1.76x4.12 in., 2.5x4.5x10.5 cm (HxWxL)
Weight 0.26 lb, 117 g
Material Extruded Aluminum
Environmental
Humidity 0 to 95%, non-condensing
Temperature Operating: -40°C to +75°C per NEMA-TS2 testing
Storage: -40°C to +85°C
*Specifications subject to change without notice.
Port 1Port 2 Port 3
Link/Act
1G
Ethernet
(60W PoE Out)
Link/Act
1G
Ethernet
(30W PoE Out)
Link/Act
Ethernet
(PoE In)
1G
52-57VD C
a) Port-3 (Tab) Connection:
- As “a” in previous section.
b) Port-2 (PoE-Out) Connection:
- As “b” in previous section.
c) Port-1 (PoE-In) Connection:
- Connect Port-1 of Vi3003 to the network switch using a standard Cat5/6
cable of maximum 100m in length.
d) Power Connection:
- Connect power connector to Vi1120 120W desktop power supply for using
full PoE capacity of Vi3003. If the application does not provide PoE, a
Vi0014 can be used for just powering the Vi3003.
Installation (Powered by Local Power Supply)
4.60"
11.7 cm
Mounting Pattern
Power
60W PoE
30W PoE
Ports 1,2,3
GREEN
GREEN
GREEN
ORANGE
YELLOW
YELLOW
ORANGE
ON
FLASHING
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
LED
Color Statu
Function
The Vi3003 is off
The Vi3003 is on
No PoE is present on Port-2
PoE is present on Port-2
Port-3 PoE is off
Port-3 is delivering PoE
PoE voltage is out of range
10/100Mbps Connection when
1000Mbps Connection
No Link
Link flashes with Activity
