Application Drawings

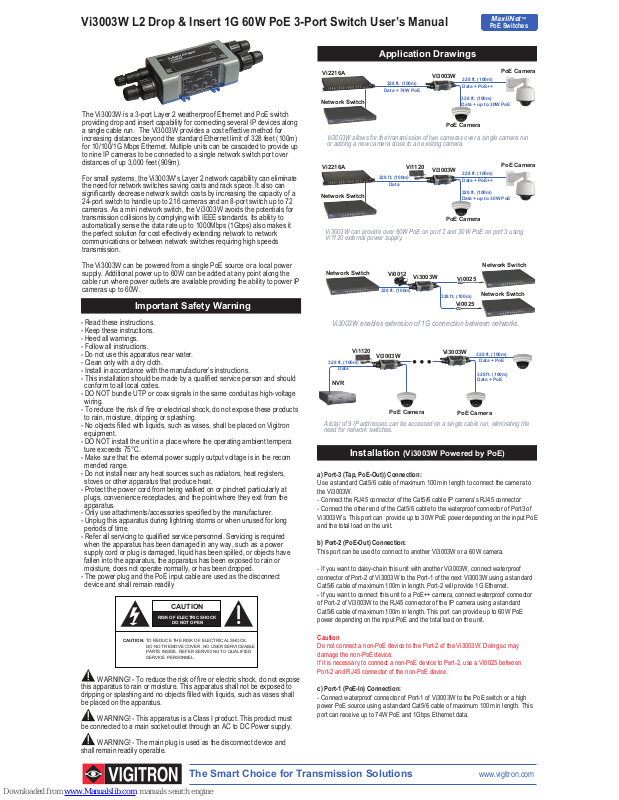

Vi3003W L2 Drop & Insert 1G 60W PoE 3-Port Switch User’s Manual
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Installation (Vi3003W Powered by PoE)
The Smart Choice for Transmission Solutions www.vigitron.com
Important Safety Warning
a) Port-3 (Tap, PoE-Out)) Connection:
Use a standard Cat5/6 cable of maximum 100m in length to connect the camera to
the Vi3003W.
- Connect the RJ45 connector of the Cat5/6 cable IP camera’s RJ45 connector
- Connect the other end of the Cat5/6 cable to the waterproof connector of Port3 of
Vi3003W’s. This port can provide up to 30W PoE power depending on the input PoE
and the total load on the unit.
b) Port-2 (PoE-Out) Connection:
This port can be used to connect to another Vi3003W or a 60W camera.
- If you want to daisy-chain this unit with another Vi3003W, connect waterproof
connector of Port-2 of Vi3003W to the Port-1 of the next Vi3003W using a standard
Cat5/6 cable of maximum 100m in length. Port-2 will provide 1G Ethernet.
- If you want to connect this unit to a PoE++ camera, connect waterproof connector
of Port-2 of Vi3003W to the RJ45 connector of the IP camera using a standard
Cat5/6 cable of maximum 100m in length. This port can provide up to 60W PoE
power depending on the input PoE and the total load on the unit.
Caution
Do not connect a non-PoE device to the Port-2 of the Vi3003W. Doing so may
damage the non-PoE device.
If it is necessary to connect a non-PoE device to Port-2, use a Vi0025 between
Port-2 and RJ45 connector of the non-PoE device.
c) Port-1 (PoE-In) Connection:
- Connect waterproof connector of Port-1 of Vi3003W to the PoE switch or a high
power PoE source using a standard Cat5/6 cable of maximum 100m in length. This
port can receive up to 74W PoE and 1Gbps Ethernet data.
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer’s instructions.
- This installation should be made by a qualified service person and should
conform to all local codes.
- DO NOT bundle UTP or coax signals in the same conduit as high-voltage
wiring.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron
equipment.
- DO NOT install the unit in a place where the operating ambient tempera
ture exceeds 75°C.
- Make sure that the external power supply output voltage is in the recom
mended range.
- Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus that produce heat.
- Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The power plug and the PoE input cable are used as the disconnect
device and shall remain readily
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a main socket outlet through an AC to DC Power supply.
WARNING! - The main plug is used as the disconnect device and
shall remain readily operable.
328 ft. (100m)
Vi3003W
Network Switch
328 ft. (100m)
Vi2216A
PoE Camera
Data + 74W PoE
Data + PoE++
PoE Camera
PoE Camera
Vi3003W
Vi3003W
328 ft. (100m)
Data
NVR
328 ft. (100m)
Data + PoE
328 ft. (100m)
Data + PoE
The Vi3003W is a 3-port Layer 2 weatherproof Ethernet and PoE switch
providing drop and insert capability for connecting several IP devices along
a single cable run. The Vi3003W provides a cost effective method for
increasing distances beyond the standard Ethernet limit of 328 feet (100m)
for 10/100/1G Mbps Ethernet. Multiple units can be cascaded to provide up
to nine IP cameras to be connected to a single network switch port over
distances of up 3,000 feet (909m).
For small systems, the Vi3003W's Layer 2 network capability can eliminate
the need for network switches saving costs and rack space. It also can
significantly decrease network switch costs by increasing the capacity of a
24-port switch to handle up to 216 cameras and an 8-port switch up to 72
cameras. As a mini network switch, the Vi3003W avoids the potentials for
transmission collisions by complying with IEEE standards. Its ability to
automatically sense the data rate up to 1000Mbps (1Gbps) also makes it
the perfect solution for cost effectively extending network to network
communications or between network switches requiring high speeds
transmission.
The Vi3003W can be powered from a single PoE source or a local power
supply. Additional power up to 60W can be added at any point along the
cable run where power outlets are available providing the ability to power IP
cameras up to 60W.
Vi0012
Network Switch
Network Switch
Vi3003W enables extension of 1G connection between networks.
328 ft. (100m)
Vi3003W
328 ft. (100m)
Network Switch
A total of 9 IP addresses can be accessed on a single cable run, eliminating the
need for network switches.
Vi3003W allows for the transmission of two cameras over a single camera run
or adding a new camera close to an existing camera.
Vi1120
Vi3003W can provide over 60W PoE on port 2 and 30W PoE on port 3 using
Vi1120 external power supply.
PoE Switches
MaxiiNet™
Vi0025
POE Blocker
Vi0025
Vi0025
POE Blocker
Vi0025
PoE Camera
328 ft. (100m)
Data + up to 30W PoE
328 ft. (100m)
Vi3003W
Network Switch
328 ft. (100m)
Vi2216A
PoE Camera
Data
Data + PoE++
PoE Camera
328 ft. (100m)
Data + up to 30W PoE
Vi1120
Limited Lifetime Warranty
Vigitron, Inc. warrants that all Vigitron products (“Product”), if used in accordance
with these instructions, will be free of defects in material and workmanship for
lifetime defined as the duration period of time until product end of life is announced.
After which, Vigitron will continue to provide warranty services for a period of 3
years. Period covering valid warranty will be determined by proof of purchase in the
form of an invoice from an authorized Vigitron dealer.
Warranty will only be provided for as long as the original end user purchaser owns
the product. Warranty is not transferrable. At Vigitron's option, defective product will
be repaired, replaced or substituted with a product of equal value. This warranty
does not apply if, in the judgment of Vigitron, Inc., the Product fails due to damage
from shipment, handling, storage, accident, abuse or misuse, or if it has been used
or maintained not conforming to Product manual instructions, has been modified, or
serial number removed or defaced. Repair by anyone other than Vigitron, Inc. or an
approved agent will void this warranty. Vigitron, Inc. shall not under any circumstances be liable to any person for any incidental, indirect or consequential
damages, including damages resulting from use or malfunction of the product, loss
of profits or revenues or costs of replacement goods. The maximum liability of
Vigitron, Inc. under this warranty is limited to the original purchase price of the
Product only.
Technical Specifications*
RoHS
Drawings
Ordering Information
© Copyright 2017 Vigitron, Inc.
TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205
7810 Trade Street, Suite 100, San Diego, CA 92121, USA • support@vigitron.com • www.vigitron.com
UMVi3003W_0117
Top View
Left View Right View
Electrical
PoE Rating Port 1 (PoE In): 60W
Port 2 (PoE Out): 60W
Port 3 (Tap, PoE Out): 802.3af (15.4W), 802.3at (30W)
Network Connection (3) RJ-45 IEC 60603-7
Wiring Support Cat 5/5e/6
Power Consumption 3W
Supported Distance 328ft (100m) per link
Data Rate Auto Configuring
Port 1: 10/100/1000Base-TX
Port 2: 10/100/1000Base-TX
Port 3 (Tap): 10/100/1000Base-TX
Data Interfaces and RFC 768 UDP, RFC 2068 HTTP
Compliances RFC 793 TCP, RFC 791 IP
RFC 1783 TFTP, RFC 894 IP over Ethernet
RFC 2544 TCP/IP Packet Transmission
IEEE802.3af, 8IEEE02.3at
IEEE Compliances 802.3ab, 802.3z, 802.3af, 802.3at, 802.1p,
802.1Q, 802.1D, 802.1s, 802.3u, 802.3x,
802.3w
Service Compliance IPv4 Type of Service (TOS) and
Differentiated
Services (Diff-Serv)
IPv6 Traffic Class
VLAN Support 4,096 Addresses
Jumbo Frame Up to 10,000 bytes
Mechanical
Dimensions 1.82x2.74x8.75 in., 2.5x7x26.6 cm (HxWxL)
Weight 1.32 lb, 599 g
Material ABS Plastic
Environmental
Humidity 0 to 95%, non-condensing
Temperature Operating: -40°C to +75°C per NEMA-TS2 testing
Storage: -40°C to +85°C
Regulatory
Safety CE, FCC
Environmental RoHS, WEEE
Accessories (Optional)
Vi1120 Desktop power supply 56VDC @120W
for 60W PoE operation
Vi0017 Desktop power supply, 802.3at 40W
for 30W PoE operation
Vi0012 Wall-mount power supply 12VDC @12W
non-PoE operation
Vi0025 Connects non-PoE devices to the 60W PoE Out port
*Specifications subject to change without notice.
a) Port-3 (Tap) Connection:
- As “a” in previous section.
b) Port-2 (PoE-Out) Connection:
- As “b” in previous section.
c) Port-1 (PoE-In) Connection:
- Connect waterproof power connector the of Port-1 of Vi3003W to the
network switch using a standard Cat5/6 cable of maximum 100m in length.
d) Power Connection:
- Connect waterproof power connector to Vi1120, 120W desktop power
supply for using full PoE capacity of Vi3003W.
If the unit connected to Port-1 does not require PoE, a Vi0014 can be used
for just powering the Vi3003W.
Installation (Vi3003W Powered by Local Power Supply)
PART No.
Description
Vi3003W Drop and Insert 10/100/1000Mbps
60W PoE 3-Port Switch/Repeater
Vi1120 Desktop power supply 56VDC @120W
Vi0012 Wall-mount power supply 12VDC @12W
Vi0025 PoE Blocker for connecting non-PoE devices
Vi0017 Desktop power supply 48VDC @40W
Vi3003W
Power
52-57VDC
10/100/1G
Ethernet
60W PoE Out
10/100/1G
Ethernet
30W PoE Out
Weatherproof 3-Port 60W PoE Powered PoE Switch
10/100/1G
Ethernet
PoE In
www.vigitron.com
4.12"
10.5 cm
1.82"
2.5 cm
2.74"
7 cm
