Vi2301A Ethernet Extender over UTP Installation Manual
The MaxiiCopper Model Vi2301A is a revolutionary data transmission
device that extends full-duplex High-Speed Ethernet over existing UTP
infrastructures. It extends 10BaseT signals up to 3,000 feet (914 m) and
100BaseT up to 2,100 feet (640m). It employs MaxiiCopper innovative
and unique Ethernet extension technology that is designed to take full
advantage of high-bandwidth networking cables and maintain a full-duplex
10 or 100 Mb/s Ethernet connection up to the maximum range with
minimum transmission error and latency.
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a mains socket outlet thru an AC to DC Power supply.
Ethernet Extenders
The Vi2301A can connect multiple remote network devices such as
Mega-pixel IP cameras or VoIP to a central LAN switching fabric with ease.
Its dual-rate capability feature provides an easy way to balance the best
possible network throughput and long-reach distance design.
The Vi2301A is a transceiver device and it needs to be deployed on both
ends of the UTP cable as master and slave devices respectfully via setting a
dip switch. A second dip switch sets the data rate between the remote and
central locations. It is equipped with LEDs to provide link status and
configured data rate. No IP setting or configurations are required and it is
completely transparent to the corporate IP network and higher layer
protocols. The UTP cable needs to be point to point without any branches.
Multiple segments can be joined together using UTP couplers.
Important Safety Warning
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer’s instructions.
- This installation should be made by a qualified service person and should
conform to all local codes.
- DO NOT bundle UTP or Coax signals in the same conduit as high-voltage
wiring.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron
equipment.
- DO NOT install the unit in a place where the operating ambient tempera
ture exceeds 75° C.
- Make sure that the external power supply output voltage is in the recom
mended range.
- Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus (including DVRs) that produce heat.
- Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The mains plug is used as the disconnect device and shall remain readily
operable.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING! - The mains plug is used as the disconnect device and
shall remain readily operable.

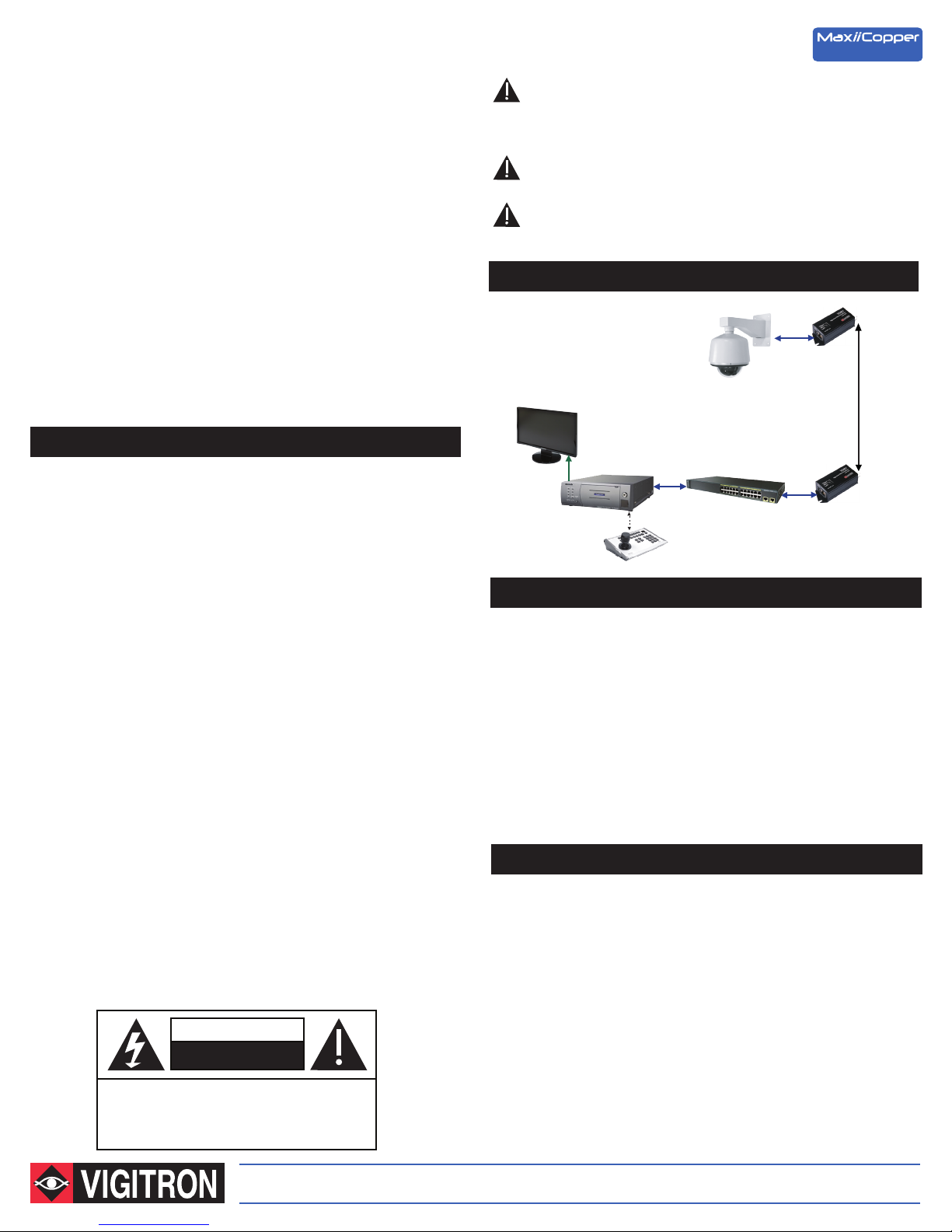

Application Drawing
Cat-5
Vi2301A
IP Camera
NVR
Data
IP Camera-end Installation
Network Switch
Up to 3,000 ft.
(914 m) UTP
Cat-5
Vi2301A
- If you like to power the unit using a local power supply connect the 12VDC
power supply to the power connector of the Vi2301A. A power adapter
connector is provided to simplify connection.
- If no power supply is plugged in the unit will use PoE. When using PoE the
camera has to be powered by PoE also.
- Connect the IP camera RJ45 connector to the “10/100BaseT Ethernet” port
of Vi2301A using a standard Cat5/6 cable of maximum 100 m in length.
- Connect one end of the long UTP cable to the “Extended Ethernet” RJ45
connector of Vi2301A.
The link LED on the 10/100 connector should be “ON” to indicate proper
connection between the camera and Vi2301A.
Ethernet Switch/NVR-end Installation
- If you like to power the unit using a local power supply connect the 12VDC
power supply to the power connector of the Vi2301A. A power adapter
connector is provided to simplify connection.
- If no power supply is plugged in the unit will use PoE. When using PoE the
camera has to be powered by PoE also.
- Connect the RJ45 connector of the Ethernet switch to the 10/100BaseT
Ethernet port of Vi2301A using a standard Cat5/6 cable of maximum
328 feet (100 m) in length.
- Connect one end of the long UTP cable to the “Extended Ethernet” RJ45
connector of Vi2301A.
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The Smart Choice for Transmission Solutions www.vigitron.com
The link LED on the 10/100 Ethernet connector should be “ON” to indicate
proper connection between the switch and Vi2301A. While the Link LED,
Orange for 100BaseT and Green for 10BaseT, in a steady state will indicate
confirmed connection between extenders.
Technical Specifications*
Link
Traffic
10/100 BaseT
Traffic
Status LEDs
Electrical
Ethernet Interface Standard 10/100BaseT
Ethernet Rate Auto selectable 10/100 Mb/s
UTP** 100 Ohm, 3000 feet (914 m) at 10BaseT
2,100 feet (640 m) at 100BaseT
Power Supply 12 VDC, 150 mA maximum
Connectors Ethernet Interface: RJ-45 Connector
Extended Interface: RJ-45 Connector
Power: IEC380-8 inlet
Environmental
Humidity 0 to 95%, non-condensing
Temperature Operating: -40°C to +75°C
Storage: -40°C to +80°C
Mechanical
Dimensions 1.15x1.6x3.15 in., 3.0x4.0x8.0 cm (HxWxL)
Weight 0.212 lb, 96 g
Material Extruded Aluminum
Accessories
12 VDC wall-mount power supply (optional)
*Specifications subject to change without notice.
**Distance figures are obtained using in house testing mirroring installations. Factors such as cabling, connections,
use of power and environmental conditions may affect actual distances and should be taken into consideration.
10/100Base-T
Traffic
Link
12V /24V
LED Name Color Status Function
Power RED
(Extended Side)
(Extended Side)
(Standard Side)
(Standard Side)
Made in U.S.A.
OFF Power is OFF
ON Power is ON
YELLOW
GREEN ON Connection is OK, 10BaseT Mode
ORANGE ON Connection is OK, 100BaseT Mode
GREEN
YELLOW
OFF No Traffic
FLASHING Traffic
OFF No connection
FLASHING Connection is OK with Traffic
OFF No connection
ON Connection is OK
RG45 Connector Information
In “One Pair Wire” operation only Pin-1 and
Pin-2 are used.
Extended
Ethernet
1
2
3
4
5
6
7
8
RoHS
12V /24V
10/100Base-T
Traffic
Made in U.S.A.
Right View
Drawings
Power
Link
3.73"
9.5 cm
Vi2301A
High Speed Ethernet Extender
Top View
over UTP
www.vigitron.com
Extended
Ethernet
Left View
1.6"
4 cm
1.15"
3 cm
Ordering Information
PART No.
Vi2301A Single port UTP Ethernet Extender
Vi2304A 4-port UTP Ethernet Extender
Vi2308A 8-port UTP Ethernet Extender, 19”, 1U
Vi2316A 16-port UTP Ethernet Extender,
Description
19”, 1U
Limited Lifetime Warranty
Vigitron, Inc. warrants that all Vigitron products (“Product”), if used in accordance
with these instructions, will be free of defects in material and workmanship for
lifetime defined as the duration period of time until product end of life is announcement. After which Vigitron will continue to provide warranty services for a period of 3
years. Period covering valid warranty will be determined by proof of purchase in the
form of an invoice from an authorized Vigitron dealer.
Warranty will only be provided for as long as the original end user purchaser owns
the product. Warranty is not transferrable. At Vigitron's option, defective product will
be repaired, replaced or substituted with a product of equal value. This warranty
does not apply if, in the judgment of Vigitron, Inc., the Product fails due to damage
from shipment, handling, storage, accident, abuse or misuse, or if it has been used
or maintained not conforming to Product manual instructions, has been modified, or
serial number removed or defaced. Repair by anyone other than Vigitron, Inc. or an
approved agent will void this warranty. Vigitron, Inc. shall not under any circumstances be liable to any person for any incidental, indirect or consequential
damages, including damages resulting from use or malfunction of the product, loss
of profits or revenues or costs of replacement goods. The maximum liability of
Vigitron, Inc. under this warranty is limited to the original purchase price of the
Product only.
TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205
7810 Trade Street, Suite 100, San Diego, CA 92121, USA • support@vigitron.com • www.vigitron.com
© Copyright 2013 Vigitron, Inc.
Manual_Vi2301A
