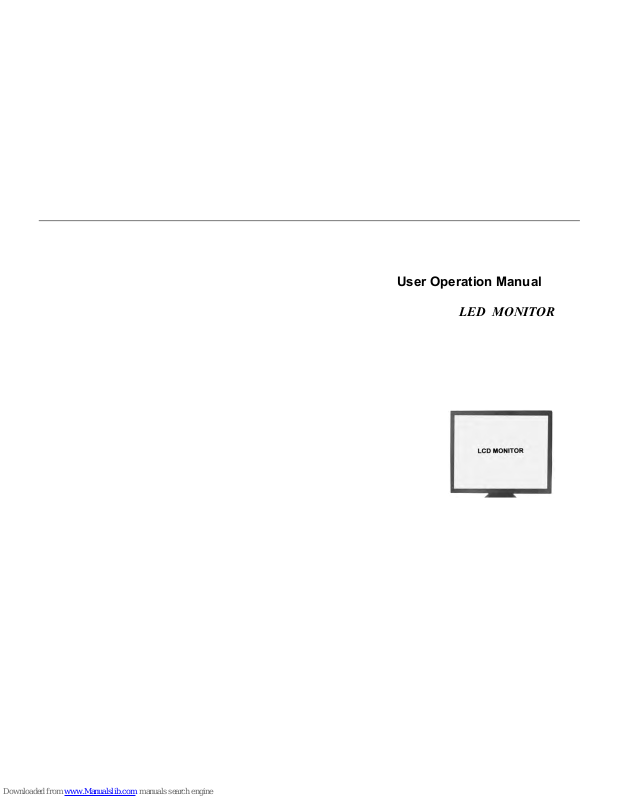

Page 1
User Operation Manual
LED MONITOR
Page 2
Table of contents
Important safety information------------------------------------------------------- 2~3
Accessories------------------------------------------------------------------------------- 4
Installation--------------------------------------------------------------------------------- 4
Explanation of Connectors ------------------------------------------------------ 4~6
Connection under various signal input mode
（Ⅰ） Connecting with computer VGA------------------------------------------------------- 5
（Ⅱ） Connecting the Device with Video (Basic)------------------------
------------------ 6
（Ⅲ） HDMI connection-------------------------------------------------
------------------------- 6
Connecting the Monitor Cables to your Computer-------------------------------7
Testing the Monitor-------------------------------------------------------
--------------- 7
Controls & Functions-------------------------------------------
--------------------------8
Choosing the input source---------------------------------
--------------------------------9
OSD setup under VGA input mode-----------
------------------------------------9~12
OSD setup under AV1/AV2/S-VIDEO/HDMI input mode--
---------------13~16
Care and Cleaning---------------------------------------------
-------------------------16
Mounting your monitor to the Wall------------------
----------------------------16
Important Safety Information
Read and understand all safety information before using this product. Follow
all instructions marked on the product and described in this document. Pay
close attention to the following installation warnings and safety precautions.
Intended Use
This monitor was designed for AV or BNC input and tested to replace an
existing monitor. These monitors are intended for indoor use only and are
not designed for use in hazardous locations.
Explanation of Signal Word Consequences
DANGER: To avoid the risk of fire and/or explosion which will result in
serious injury or death: Do not install or use this product in a hazardous
location.
WARNING: To avoid the risk of fire which could result in serious injury
or death: Do not remove the cover or back of the monitor.
CAUTION: To avoid the risk of electric shock which could result in
serious injury or death:
•This device must be operated with the original power supply,
•Do not use a damaged power supply.
•Do not use a power cord that is frayed or otherwise damaged.
CAUTION: To avoid the risk of electric shock which may result in
minor or moderate injury:
•The socket-outlet should be installed near the equipment and should be
easily accessible.
•Use a power cable that is properly grounded. Always use the appropriate
AC cord certified for the individual country. Some examples are listed
below:
•Do not service the monitor Do not remove the cover or back of the monitor.
There are no user serviceable parts inside. Refer all servicing to qualified
service personnel. The backlight inverter output is at high voltage.
•Do not use non-conforming replacement parts.
•Do not expose the monitor to rain or other sources of water, steam or
moisture.
•Do not place foreign objects on the monitor or its cables.
CAUTION: To avoid the risk of minor or moderate personal injury or
damage to the monitor:
• Never wall-mount the monitor without the locking mechanism in place.
1
2
Page 3
• Use an anchoring system appropriate for the weight of the product.
• Consult a construction professional before attempting to hang the unit on
the wall.
To avoid the risk of glass breakage, which may result in minor or moderate
injury:
The display contains glass parts. Dropping the display may cause the glass
parts to break.
• Do not place foreign objects on the monitor.
Important Notes:
•Plug the power cord into an appropriate power source & a grounded
receptacle.
•When unplugging power supply cord, pull on plug not cord.
•Do not connect or disconnect this product during an electrical storm.
•Install the display in a well-ventilated area. Always maintain adequate
ventilation to protect the display from overheating and to ensure reliable
and continued operation.
•Do not expose this display to heat. Passive heat may cause damage to the
case and other parts.
•Do not install this display in areas where extreme vibrations may be
generated. For example, near to manufacturing equipment as this may
produce strong vibrations. The vibrations may cause the display to exhibit
picture discoloration or poor video quality.
• Product weight varies depending on the packaging, use caution when
lifting.
•To avoid ergonomic concerns:
Do not install the monitor in a manner or location with awkward accessibility.
Extended use may result in muscle, tendon, or fixed posture strains. It is
recommended you take periodic breaks from continuous use.
CAUTION: To avoid the risk of electric shock which may result in minor
or moderate injury, do not use if:
Liquid is spilled into the product or if the product is exposed to rain or water.
The product does not operate properly when operating instructions are
followed.
•The product has been dropped or the case has been damaged.
•The product shows a distinct change in performance, indicating a need for
service.
Accessories
Please check the following listed accessories before installation:
AC wire one pcs
Power supply one pcs
VGA cable one pcs
AUDIO cable one pcs
User manual one pcs
Installation
1. Rear Interface
External power supply
Explanation of connectors
This section describes the various connections on the back panel of your
MONITOR. There are several ways to connect devices.
DC12V: power supply DC12V
HDMI: Lets you connect a device, such as a digital cable box, with an HDMI
or a DVI output. HDMI (High-Definition Multimedia Interface) provides an
uncompressed digital connection that carries both video and audio data by
way of an integrated mini-plug cable. Since HDMI technology is based on
Digital Visual Interface (DVI), the jack on the back of your MONITOR is also
compatible with DVI devices.
VGA: Connect your computer, or other device with a VGA output, to this
jack using a 15 pin D-sub cable.
S-VIDEO: Connect a DVD player, or other device with an s-video output, to
this jack using a 4 pin s-video cable.
VIDEO INPUT 1 (BNC1/BNC2 IN): Lets you connect a device that has a
composite video output, such as a VCR or DVD player.
3
4
Page 4
VIDEO OUTPUT (BNC1/BNC2 OUT) Connect a VCR or DVD-recorder to
record digital and analog programs from the ANTENNA CABLE INPUT
(excluding copy-protected programs and component video formats) while
the MONITOR is turned on. You must leave the MONITOR on the same
channel you are recording.
AUDIO IN (Stereo mini jack) Use to obtain sound when a PC is connected to
the VGA jack. Use a 3.5 mm stereo mini pin cable (sometimes referred to
as 1/8” stereo mini pin) to connect audio from a PC to your MONITOR.
AUDIO L and R: Receives audio from another device such as a camcorder,
video game console, VCR, or DVD player. Use when connecting to the
VIDEO or S-V Input. The left audio connector is usually white. The right
audio connector is usually red.
2. Connection under various signal input mode
（Ⅰ）Connecting with computer VGA
This connection allows you to connect to a personal computer. Connect
one end of a 15-pin monitor cable to the VGA VIDEO jack on the monitor
and the other end to the PC's video output jack. Note, if your PC's video
output isn't 15-pin, you'll need an adapter that can connect to a 15-pin
monitor cable.
Connect your audio cable.
Connect a 3.5 mm stereo mini pin cable (sometimes referred to as 1/8"
stereo mini pin) to the PC AUDIO jack on the back of the monitor and the
other end to the Audio Output jack on the PC
Viewing the PC
1. Plug in the MONITOR and the PC, if they aren't already plugged in.
2. Turn on the MONITOR and the PC.
3. Press the SOURCE button on the remote control until you see VGA
displayed at the top of the monitor's screen. To go back to viewing AV
video, press the SOURCE buttons to enter the AV
（Ⅱ ） Connecting the Device with AV Video (Basic)
This connection allows you to connect a device that has a Video Out jack,
for example, a camera or DVD player.
Note: If the device you're connecting also has Component Video jacks and
you have component video cables, we recommend you use the Component
Video (Advanced) Connection instead.
Connect your yellow video cable (video in).
Connect a video cable to the BNC1 or BNC2 INPUT jack on the back of
the monitor and to the Video Output jack on the DVD player or a camera.
Connect your red and white audio cables.
Connect the audio (red and white) cables to the AUDIO INPUT R and L
jacks on the back of the monitor and to the Audio Output jacks on the
DVD player.
Viewing the Picture from the Connected Device
1. Plug in the monitor and the device, if they aren't already plugged in.
2. Turn on the MONITOR and the device you want to view, for example a
DVD player.
3. Press the SOURCE button on the remote control until you see AV1 (if
connected to the VIDEO INPUT 1 jack) or AV2 (if connected to the AV2
jacks) displayed at the top of the monitor's screen.
Note: If the picture from the DVD player appears blue and your device is
connected to the VIDEO Input, you might be tuned to the wrong input.
Make sure you press SOURCE until you see AV1/AV2 displayed at the
TOP of the monitor's screen.
（Ⅲ ） HDMI connection
High-Definition Multimedia Interface (HDMI) technology is an
uncompressed digital connection that carries both video and audio data by
way of an integrated mini-plug cable.
Using the example of a set-top box:
•If your set-top box has an HDMI jack, connect an HDMI cable.
A. Connect an HDMI cable to the HDMI Input jack on the back of the
monitor and to the HDMI Out jack on the back of the device.
B. If you’re using an HDMI adapter, you need to connect Audio left and
right cables to the DVD AUDIO R and L jacks on the back of the monitor
and to the R and L jacks on the back of the device.
Viewing the Picture from the Connected Device
The device in this connection is connected to the HDMI jack. To view this
device:
1. Turn on the monitor and the device you want to view, for example a set-
top box.
5
Page 5
2. Press the source button on the remote control until you see HDMI
displayed at the top of the monitor's screen.
3. Connecting the Monitor Cables to your Computer
You should be sure all cable connections are secure -- tighten all cable
screws. Shaking and vibration may dislodge cables that are improperly
connected. Route all wiring and cabling away from heat sources and sharp
metal edges to avoid damage.
4. Testing the Monitor
After connection, turn on the power switch located on the rear. Before you
test your monitor, make sure all cables are connected properly. Be sure to
tighten all cable screws. To test that the monitor is working properly:
1. Turn on your computer.
2. Make sure the video image is displayed. If it is not, turn on your monitor.
Ensure the LED is blue – red indicates power but no signal.
3. Make sure the video image is centred within the screen area. Use the
monitor controls to adjust the image, if necessary. Perform an Auto Config
first, then if you wish you can adjust the horizontal and vertical position,
contrast, and brightness to better suit your video card and your personal
preference. Refer to Basic OSD setup for more information on using the
on-screen menu to adjust the video display.
Controls & Functions
Buttons on the lower-right part of the panel
Use the side panel buttons of your monitor to access the monitor’s
features.
SOURCE MENU + -
POWER
1.POWER: Turns the monitor on / off
2.SOURCE: Accesses the available video input signals (VGA, HDMI,
AV1, AV2, S-VIDEO)
3.MENU： Brings up the MONITOR Main menu. When in the OSD
system, press MENU button to return to the previous menu or exit
4.＋: Turns up the volume. In the MONITOR menu system, acts like the
right arrow button on the remote control and adjusts menu controls.
5.－ : Turns down the volume. In the MONITOR menu system, acts like
the left arrow button on the remote control and adjusts menu controls.
HOW to use buttons
Use the buttons on the right side control panel to adjust the OSD
（1）Power on the LCD monitor.
(2) Press source button to accesses the available video input signals，
press ＋ or — button to enter the video mode
(3) Press MENU button then press ＋／－ button move highlight icon left
/ right
(4) Press SOURCE button to enter the submenu，then press ＋／－
button corresponding to edit,
(5) When you are satisfied with the setting, press MENU button to return
to the previous menu or exit
(6)
N.B. To Lock or Unlock OSD settings after set up.
Press and hold "menu" button for 5 seconds.
Choose the input source
If you hope to enjoy the picture from the external input source, before
selecting the source, you need to connect the devices, otherwise when you
select the source, the no signal indicator will appear on the screen. Press
source button on the monitor, the menu appears on the screen, then press
source to select the desired input, and press “+/-” to set it.
VGA: the input source from VGA terminal output
7
8
Page 6
HDMI: the input source from HDMI in terminal output
AV1/2: the input source from AV or video camera terminal output
SVIDEO: the input source from S-Video terminal output
OSD setup
1. OSD setup under VGA input mode
Remark
Brightness: Adjusts the brightness of
the picture.
Contrast Adjusts the difference
between the light and dark areas of
the picture.
Colour temp: press“+”button to
change the colour intensity of the
temperature Selected (Normal, warm,
cool, s-RGB. user)
Scale: normal, centre
Auto: (auto-adjust) press“+ “button
Performs automatic configuration of
the Phase, Clock, vertical and
horizontal position.
Picture mode: press + o r - button
to select picture mode, then press the
< or > buttons to select the correct
colour system, in general you can see
it as “ USER”. Press < or > button to
select ‘standard, dynamic, soft or
user.’
SOUND
equalizer
Equalizer The five-band graphic
equalizer lets you adjust the audio
frequency settings. You can select
one of the five-band Equalizer Presets
or create your own personal preset
(see picture equalizer).
Balance Adjusts how much audio is
sent to the left and right(-50 to +50)
The intermediate value is 0. When
indication value of balance increases
toward +50,sound of the right and left
speaker becomes stronger and
weaker, respectively, when indication
value of balance decreases toward 50 sound of the right and left speaker
becomes weaker and stronger
Sound Mode: Provides special
processing through your speakers
(depending on the setting you choose
as your Sound Type). The available
audio modes are: Standard, user,
movie, music.
AVC: ON or OFF
SURROUND: The surround sound
feature expands the audio listening
field wider and deeper to create
exceptional sound quality from the
monitor’s speakers
9
10
Page 7
Language Lets you select your
preferred language for the menus:
(English, Polish, German, French,
Spanish,
Portuguese, Russian, Italian)
OSD H-POSITION: H-position moves
the OSD position left (0-50) or
pressing the “>“ button. H-position
moves the OSD position right (51-100)
OSD V-POSITION: Adjust the OSD
image vertically by pressing the “<
or >“ button V-position moves the
OSD position up or down. 0-100
OSD DURATION:5-60
OSD HALFTONE:0-50
Sleep-timer: Lets you set the monitor
to turn off after a given amount of time
(OFF .15min.30min.45min.60min)
Back light:
HIGH.MID.LOW (If available)
MEM-RECALL: press ＞ key will be
reset to the factory defaults
unavailable on VGA mode
H-POSITION ： Moves image
horizontally on screen either left (<) or
right (＞).
V-POSITION ：Moves images
vertically on screen either up (<) or
down (＞).
CLOCK：If the clock setting of your
image is not fine-tuned, you may
observe periodic vertical bars of video
noise on your image. These bars of
noise are usually adjusted out when
an Auto Configuration is performed. If
the bars of noise are still present, this
setting can be adjust manually.
PHASE：If the phase of your monitor
is not fine-tuned, you may observe
unstable horizontal
MULITI-WINDOW:
OFF, PIP, POP
The default value is off, Lets you
select your window for the position of
PIP/POP
11
12
Page 8
2. OSD setup under AV1/AV2/S-VIDEO /HDMI input mode
Remark
Brightness: Adjusts the brightness of
the picture.
Contrast Adjusts the difference
between the light and dark areas of
the picture.
HUE:-50 to +50
Saturation:0~100
Sharpness:0~100
Colour temp: press“ >”button to
change the colour intensity of the
temperature Selected (Normal, warm,
cool, s-RGB, user)
Scale: normal, centre
Picture mode: standard .dynamic,
soft, user
3D NR: Reduces picture “static” or
any type of interference. This feature
is especially useful for providing a
clearer picture in weak analog signal
conditions. Press the right arrow to
choose between: Off for no noise
reduction; Low for a softer, smoother
picture that retains picture sharpness
and detail; Medium for a slightly softer
picture than the Low setting; High for
an even softer, smoother picture than
the other settings (the picture detail is
somewhat decreased).
MPEG NR: Mpeg noise reduce (OFF,
low, high)
SOUND
Equalizer: The five-band graphic
equalizer lets you adjust the audio
frequency settings. You can select
one of the five-band Equalizer
Presets or create your own personal
preset.
Balance: to balance right and left
sound of the monitor,
The intermediate value is 0,when
indication value of balance increases
toward +50,sound of the right and left
speaker becomes stronger and
weaker respectively, when indication
value of balance decrease toward -50
sound of the right and left speaker
becomes weaker and stronger
Sound Mode: Provides special
processing through your speakers
(depending on the setting you choose
as your Sound Type). The available
audio modes are:
Standard, User, movie., music.
Standard:
Does not give any special
processing, simply provides the mono
or stereo sound provided by the
signal you're watching.
AVC: ON/OFF
SURROUND: the surround sound
feature expands the audio listening
field wider and deeper to create
exceptional sound quality from the
monitor’s speakers
14
13
Page 9
Language Lets you select your
preferred language for the menus:
English. Polish. German. French.
Spanish.
Portuguese. Russian. Italian
OSD H-POSITION: H-position moves
the OSD position left (0-50) or press
the “> “ button. H-position moves the
OSD position right (51-100)
OSD V-POSITION: Adjust the OSD
image vertically by pressing the “<
or > “ button V-position moves the
OSD position up or down. 0-100
OSD DURATION:0-50
OSD HALFTONE:0-100
Sleep-timer: Lets you set the monitor
to turn off after a given amount of
time (off .15min.30min.45min.60min)
Back light:
HIGH. MID. LOW (If available)
MEM-RECALL: press ► key will be
reset to the factory defaults
Press< or > for desired adjust
parameter option until satisfactory
value is achieved, when VGA signals
are received ,the automatic modes is
used for parameter adjustment.
Hsize: horizontal size of picture can
be adjusted in this item
HSTART: horizontal position of
picture can be adjusted in this item
Vsize: vertical size of picture can be
adjusted in this item
VSTART: vertical position of picture
can be adjust in this item
MULITI-WINDOW:
OFF, PIP, POP
The default value is off, Lets you
select your window for the picture:
PIP/POP
Care and Cleaning
CAUTION: Turn off your MONITOR before cleaning.
You can clean the MONITOR as required, using a soft lint-free cloth. Be
sure to occasionally dust the ventilation slots in the cabinet to help ensure
adequate ventilation.
The MONITOR’s screen may be cleaned with a soft, lint-free cloth as well.
Take care not to scratch or mar the screen. If necessary, you may use a
cloth dampened with warm water. While cleaning, do not spray liquid directly
on the screen, or allow liquid to run down the screen and inside the Monitor.
Also, never place drinks or vases with water on top of the monitor. This
could increase the risk of fire or shock hazard and may damage the monitor.
Mounting Your MONITOR to the Wall
Caution: The wall mount must bear a minimum of five times the monitor’s
net weight without causing damage. To mount your MONITOR to the wall
you need to purchase a VESA wall mount. For models 17” and 19”,
purchase a VESA 75x75, (75x75, for example, means the mounting
measurements are 75mm horizontally and 75mm vertically; M4 x 8 mm is
the type screw that needs to be used).
1. You need to remove the base first before attaching the wall mount.
A. Place the MONITOR face down on a surface that is soft yet strong
enough to hold the MONITOR.
B. Use a screwdriver to remove the screws from the four holes on
each side of the bottom of the MONITOR’s base (only use with base)
2. Make sure all cables are already connected to the MONITOR.
3. Follow the directions included with the wall mount to mount the
monitor on the wall.
ADVANCE
16
15
SYSTEM
Loading...
