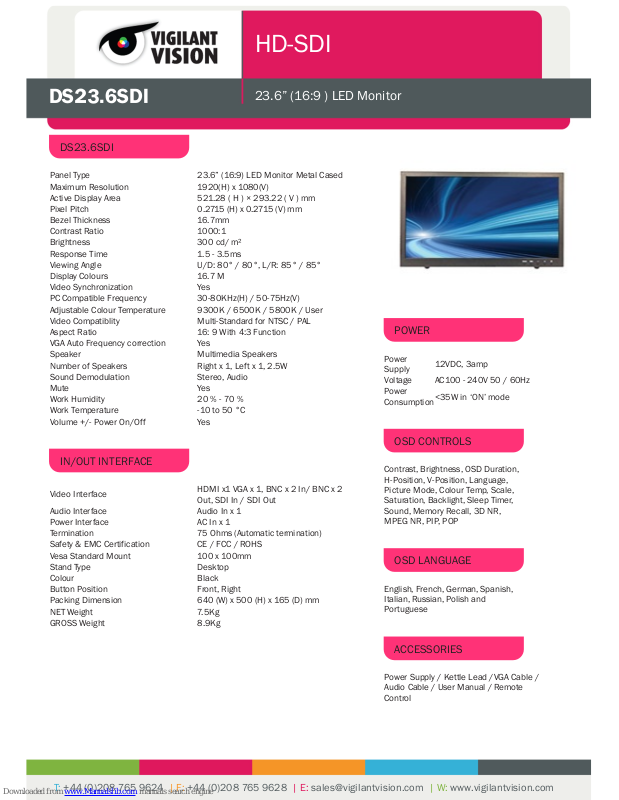

Page 1
HD-SDI
23.6” (16:9 ) LED Monitor
DS23.6SDI
DS23.6SDI
Panel Type 23.6” (16:9) LED Monitor Metal Cased
Maximum Resolution 1920(H) x 1080(V)
Active Display Area 521.28 ( H ) × 293.22 ( V ) mm
Pixel Pitch 0.2715 (H) x 0.2715 (V) mm
Bezel Thickness 16.7mm
Contrast Ratio 1000:1
Brightness 300 cd/ m²
Response Time 1.5 - 3.5ms
Viewing Angle U/D: 80° / 80°, L/R: 85° / 85°
Display Colours 16.7 M
Video Synchronization Yes
PC Compatible Frequency 30-80KHz(H) / 50-75Hz(V)
Adjustable Colour Temperature 9300K / 6500K / 5800K / User
Video Compatiblity Multi-Standard for NTSC / PAL
Aspect Ratio 16: 9 With 4:3 Function
VGA Auto Frequency correction Yes
Speaker Multimedia Speakers
Number of Speakers Right x 1, Left x 1, 2.5W
Sound Demodulation Stereo, Audio
Mute Yes
Work Humidity 20 % - 70 %
Work Temperature -10 to 50 °C
Volume +/- Power On/Off Yes
IN/OUT INTERFACE
Video Interface
HDMI x1 VGA x 1, BNC x 2 In/ BNC x 2
Out, SDI In / SDI Out
Audio Interface Audio In x 1
Power Interface AC In x 1
Termination 75 Ohms (Automatic termination)
Safety & EMC Certification CE / FCC / ROHS
Vesa Standard Mount 100 x 100mm
Stand Type Desktop
Colour Black
Button Position Front, Right
Packing Dimension 640 (W) x 500 (H) x 165 (D) mm
NET Weight 7.5Kg
GROSS Weight 8.9Kg
POWER
Power
Supply
12VDC, 3amp
Voltage AC100 - 240V 50 / 60Hz
Power
Consumption
<35W in ‘ON’ mode
OSD CONTROLS
Contrast, Brightness, OSD Duration,
H-Position, V-Position, Language,
Picture Mode, Colour Temp, Scale,
Saturation, Backlight, Sleep Timer,
Sound, Memory Recall, 3D NR,
MPEG NR, PIP, POP
OSD LANGUAGE
English, French, German, Spanish,
Italian, Russian, Polish and
Portuguese
ACCESSORIES
Power Supply / Kettle Lead /VGA Cable /
Audio Cable / User Manual / Remote
Control
T: +44 (0)208 765 9624 | F: +44 (0)208 765 9628 | E: sales@vigilantvision.com | W: www.vigilantvision.com
