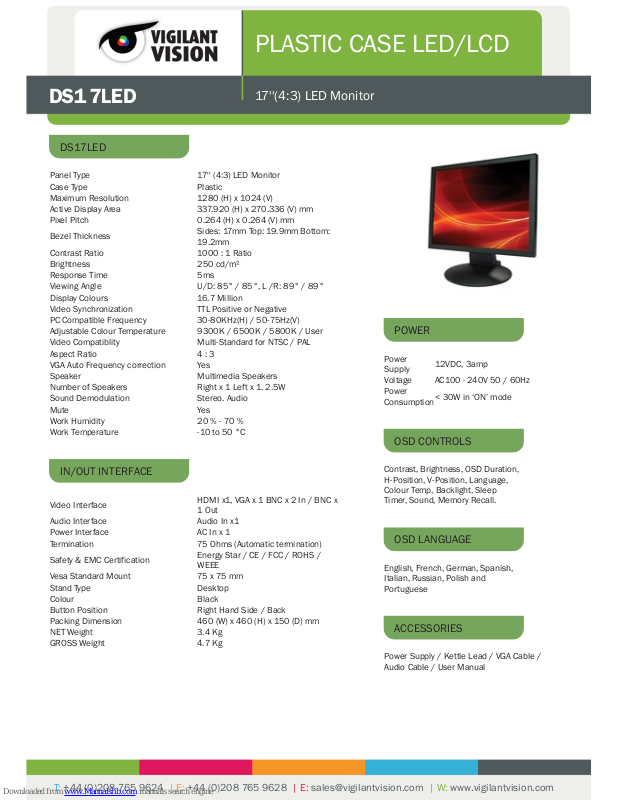

PLASTIC CASE LED/LCD
17''(4:3) LED Monitor
DS17LED
DS17LED
Panel Type 17'' (4:3) LED Monitor
Case Type Plastic
Maximum Resolution 1280 (H) x 1024 (V)
Active Display Area 337.920 (H) x 270.336 (V) mm
Pixel Pitch 0.264 (H) x 0.264 (V) mm
Bezel Thickness
Sides: 17mm Top: 19.9mm Bottom:
19.2mm
Contrast Ratio 1000 : 1 Ratio
Brightness 250 cd/m²
Response Time 5ms
Viewing Angle U/D: 85° / 85°, L /R: 89° / 89°
Display Colours 16.7 Million
Video Synchronization TTL Positive or Negative
PC Compatible Frequency 30-80KHz(H) / 50-75Hz(V)
Adjustable Colour Temperature 9300K / 6500K / 5800K / User
Video Compatiblity Multi-Standard for NTSC / PAL
Aspect Ratio 4 : 3
VGA Auto Frequency correction Yes
Speaker Multimedia Speakers
Number of Speakers Right x 1 Left x 1. 2.5W
Sound Demodulation Stereo. Audio
Mute Yes
Work Humidity 20 % - 70 %
Work Temperature -10 to 50 °C
IN/OUT INTERFACE
Video Interface
HDMI x1, VGA x 1 BNC x 2 In / BNC x
1 Out
Audio Interface Audio In x1
Power Interface AC In x 1
Termination 75 Ohms (Automatic termination)
Safety & EMC Certification
Energy Star / CE / FCC / ROHS /
WEEE
Vesa Standard Mount 75 x 75 mm
Stand Type Desktop
Colour Black
Button Position Right Hand Side / Back
Packing Dimension 460 (W) x 460 (H) x 150 (D) mm
NET Weight 3.4 Kg
GROSS Weight 4.7 Kg
POWER
Power
Supply
12VDC, 3amp
Voltage AC100 - 240V 50 / 60Hz
Power
Consumption
< 30W in ‘ON’ mode
OSD CONTROLS
Contrast, Brightness, OSD Duration,
H-Position, V-Position, Language,
Colour Temp, Backlight, Sleep
Timer, Sound, Memory Recall.
OSD LANGUAGE
English, French, German, Spanish,
Italian, Russian, Polish and
Portuguese
ACCESSORIES
Power Supply / Kettle Lead / VGA Cable /
Audio Cable / User Manual
