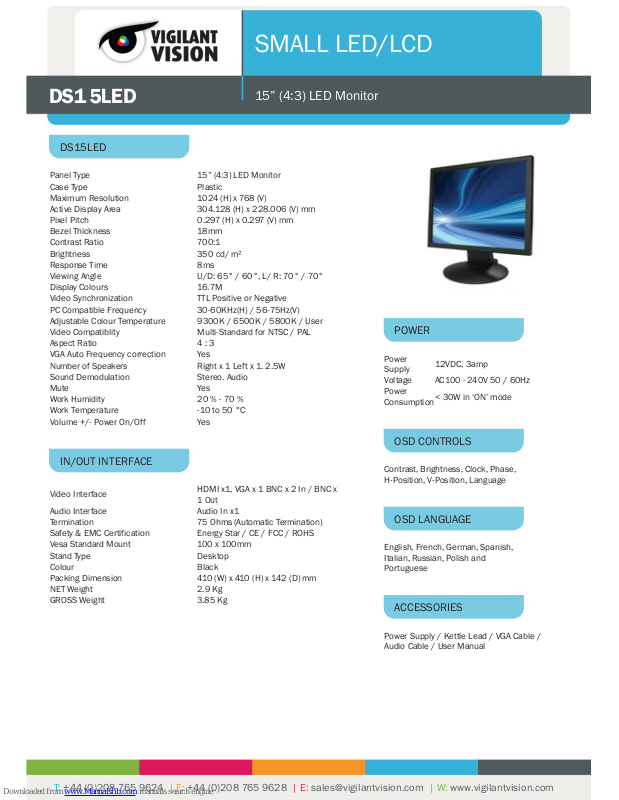

SMALL LED/LCD
15” (4:3) LED Monitor
DS15LED
DS15LED
Panel Type 15” (4:3) LED Monitor
Case Type Plastic
Maximum Resolution 1024 (H) x 768 (V)
Active Display Area 304.128 (H) x 228.006 (V) mm
Pixel Pitch 0.297 (H) x 0.297 (V) mm
Bezel Thickness 18mm
Contrast Ratio 700:1
Brightness 350 cd/ m²
Response Time 8ms
Viewing Angle U/D: 65° / 60°, L/ R: 70° / 70°
Display Colours 16.7M
Video Synchronization TTL Positive or Negative
PC Compatible Frequency 30-60KHz(H) / 56-75Hz(V)
Adjustable Colour Temperature 9300K / 6500K / 5800K / User
Video Compatiblity Multi-Standard for NTSC / PAL
Aspect Ratio 4 : 3
VGA Auto Frequency correction Yes
Number of Speakers Right x 1 Left x 1. 2.5W
Sound Demodulation Stereo. Audio
Mute Yes
Work Humidity 20 % - 70 %
Work Temperature -10 to 50 °C
Volume +/- Power On/Off Yes
IN/OUT INTERFACE
Video Interface
HDMI x1, VGA x 1 BNC x 2 In / BNC x
1 Out
Audio Interface Audio In x1
Termination 75 Ohms (Automatic Termination)
Safety & EMC Certification Energy Star / CE / FCC / ROHS
Vesa Standard Mount 100 x 100mm
Stand Type Desktop
Colour Black
Packing Dimension 410 (W) x 410 (H) x 142 (D) mm
NET Weight 2.9 Kg
GROSS Weight 3.85 Kg
POWER
Power
Supply
12VDC, 3amp
Voltage AC100 - 240V 50 / 60Hz
Power
Consumption
< 30W in ‘ON’ mode
OSD CONTROLS
Contrast, Brightness, Clock, Phase,
H-Position, V-Position, Language
OSD LANGUAGE
English, French, German, Spanish,
Italian, Russian, Polish and
Portuguese
ACCESSORIES
Power Supply / Kettle Lead / VGA Cable /
Audio Cable / User Manual
T: +44 (0)208 765 9624 | F: +44 (0)208 765 9628 | E: sales@vigilantvision.com | W: www.vigilantvision.com
