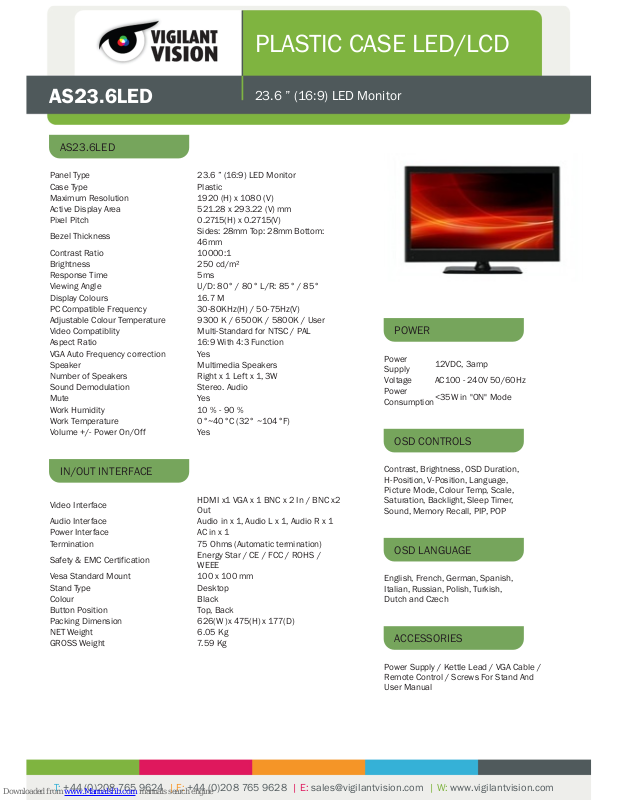

PLASTIC CASE LED/LCD
23.6 ” (16:9) LED Monitor
AS23.6LED
AS23.6LED
Panel Type 23.6 ” (16:9) LED Monitor
Case Type Plastic
Maximum Resolution 1920 (H) x 1080 (V)
Active Display Area 521.28 x 293.22 (V) mm
Pixel Pitch 0.2715(H) x 0.2715(V)
Bezel Thickness
Sides: 28mm Top: 28mm Bottom:
46mm
Contrast Ratio 10000:1
Brightness 250 cd/m²
Response Time 5ms
Viewing Angle U/D: 80° / 80° L/R: 85° / 85°
Display Colours 16.7 M
PC Compatible Frequency 30-80KHz(H) / 50-75Hz(V)
Adjustable Colour Temperature 9300 K / 6500K / 5800K / User
Video Compatiblity Multi-Standard for NTSC / PAL
Aspect Ratio 16:9 With 4:3 Function
VGA Auto Frequency correction Yes
Speaker Multimedia Speakers
Number of Speakers Right x 1 Left x 1, 3W
Sound Demodulation Stereo. Audio
Mute Yes
Work Humidity 10 % - 90 %
Work Temperature 0°~40°C (32° ~104°F)
Volume +/- Power On/Off Yes
IN/OUT INTERFACE
Video Interface
HDMI x1 VGA x 1 BNC x 2 In / BNC x2
Out
Audio Interface Audio in x 1, Audio L x 1, Audio R x 1
Power Interface AC in x 1
Termination 75 Ohms (Automatic termination)
Safety & EMC Certification
Energy Star / CE / FCC / ROHS /
WEEE
Vesa Standard Mount 100 x 100 mm
Stand Type Desktop
Colour Black
Button Position Top, Back
Packing Dimension 626(W )x 475(H) x 177(D)
NET Weight 6.05 Kg
GROSS Weight 7.59 Kg
POWER
Power
Supply
12VDC, 3amp
Voltage AC100 - 240V 50/60Hz
Power
Consumption
<35W in "ON" Mode
OSD CONTROLS
Contrast, Brightness, OSD Duration,
H-Position, V-Position, Language,
Picture Mode, Colour Temp, Scale,
Saturation, Backlight, Sleep Timer,
Sound, Memory Recall, PIP, POP
OSD LANGUAGE
English, French, German, Spanish,
Italian, Russian, Polish, Turkish,
Dutch and Czech
ACCESSORIES
Power Supply / Kettle Lead / VGA Cable /
Remote Control / Screws For Stand And
User Manual
T: +44 (0)208 765 9624 | F: +44 (0)208 765 9628 | E: sales@vigilantvision.com | W: www.vigilantvision.com
