Vifly R220 M2 Quick Start Manual

VIFLY R220 Quick Start Guide

16 / 16

Group A: CH1:5658MHz CH2:5695MHz CH3:5732MHz CH4:5769MHz CH5:5806MHz CH6:5843MHz CH7:5880MHz CH8:5917MHz

Group B: CH1:5740MHz CH2:5760MHz CH3:5780MHz CH4:5800MHz CH5:5820MHz CH6:5840MHz CH7:5860MHz CH8:5880MHz

Group C: CH1:5865MHz CH2:5845MHz CH3:5825MHz CH4:5805MHz CH5:5785MHz CH6:5765MHz CH7:5745MHz CH8:5725MHz

Group D: CH1:5705MHz CH2:5685MHz CH3:5665MHz CH4:5645MHz CH5:5885MHz CH6:5905MHz CH7:5925MHz CH8:5945MHz

Group E: CH1:5733MHz CH2:5752MHz CH3:5771MHz CH4:5790MHz CH5:5809MHz CH6:5828MHz CH7:5847MHz CH8:5866MHz

VIFLY

Website: www.viflydrone.com

Facebook: www.facebook.com/viflydrone

YouTube: www.youtube.com/c/viflydrone

ATTENTION

The motors will spin when the aircraft is armed.

Always remove all propellers before tuning the aircraft.

Before using VIFLY R220, please read Quick Start Guide and watch video tutorials on VIFLY official

website (www.viflydrone.com).

VIFLY R220 M2

QUICK START GUIDE V1.2

www.viflydrone.com

VIFLY R220 Quick Start Guide

2 / 16

GET TO KNOW THE AIRCRAFT

 The VIFLY R220 unified body is made of carbon fiber and ABS plastic, superbly durable.

 Built in the latest F4 flight controller and 25/30A BLHeli-S ESCs, VIFLY R220 is fast and

responsive.

 Selectable 25/200/500mW 5.8GHz video transmitter and 700TVL high sensitive camera bring you

fantastic FPV experience.

1. Camera

2. Headlight

3. Air Vent

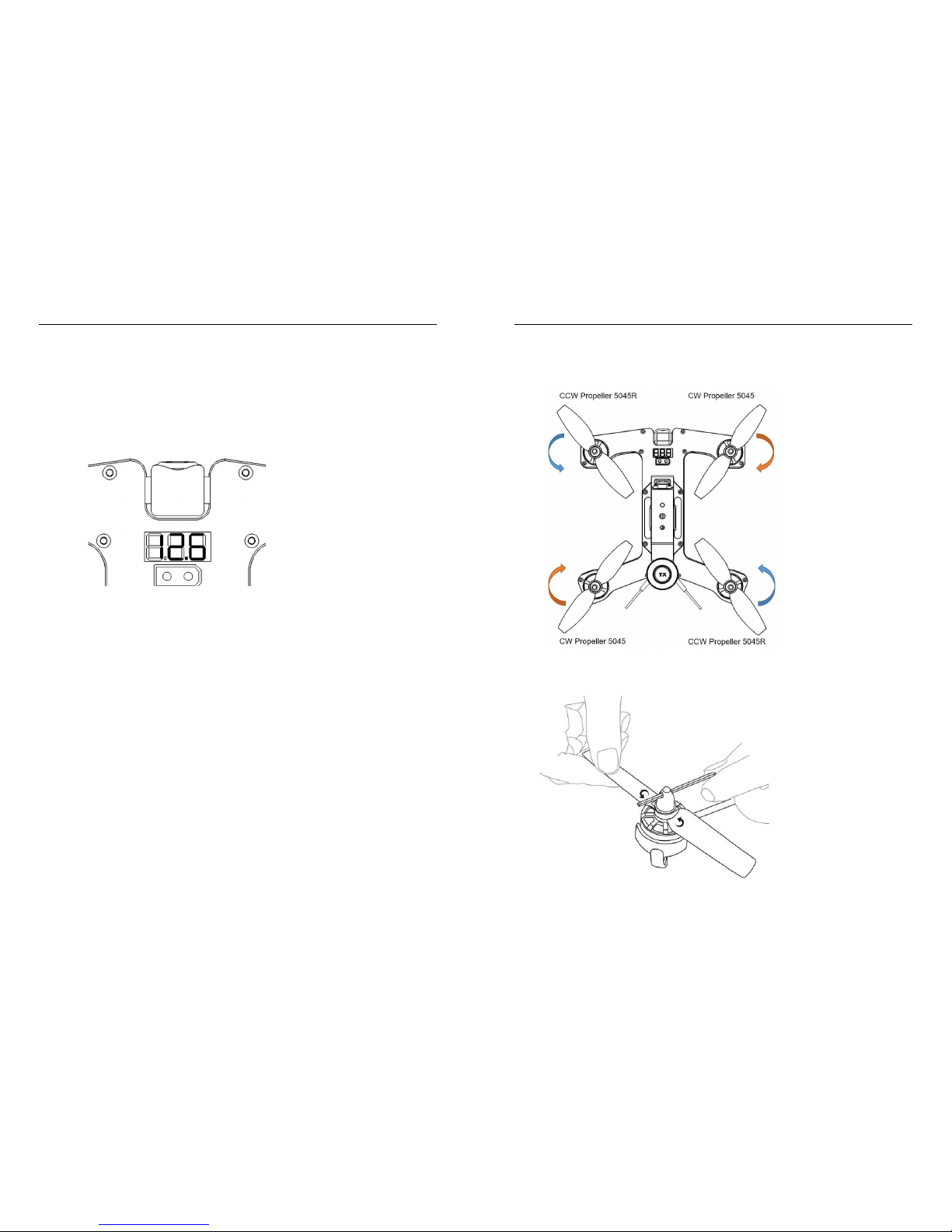

4. Propeller (Counter Clockwise 5045R)

5. Propeller (Clockwise 5045)

6. Digital LED

7. Power Port (XT60)

8. Battery Mount

9. Battery Strap

10. Li-Po Battery

VIFLY R220 Quick Start Guide

15 / 16

SPECIFICATIONS

Aircraft

Size (L x W x H) 200x195x75mm

Wheelbase 220mm

Weight 450g (Battery excluded)

Remote Controller Flysky FS-i6 6 Channels

Receiver Flysky FS-iA6B 6 Channels PPM

Flight Controller Omnibus F4, CPU 168MHz

Firmware BetaFlight

OSD BetaFlight OSD

Brushless Motor 2205-2600KV

ESC BLHeli-S 25/30A

Gyro SPI, 8KHz loop speed

Propeller DAL 5045BN / DAL T5045

Battery 11.1V 1500mAh 35C 3S Li-PO / 14.8V 1500mAh 35C 4S Li-PO (optional)

Max Battery Size (L x W x H) 90x35x35mm

Flight Time 6-8 mins(3S) / 8-10 mins(4S)

Working Environment 0℃ ~ +40℃

Camera

Sensor ON Semiconductor 1/4 inch high sensitive CMOS

Horizontal Resolution 700TVL

Field of view 120°

Wireless Video Transmitter

Output Power P01 - 25mW / P02 - 200mW / P03 - 500mW

Antenna Right-handed circular polarization

Antenna Socket RPSMA Male

Working Frequency 5.8GHz

Channel Group A/B/C/D/E 40 channels

VIFLY R220 Quick Start Guide

14 / 16

MANAGE THE VIDEO TRANSMITTER

1. Switch Channels

 VIFLY R220 has built-in wireless video transmitter with 40 channels.

 Tap the “CH” button to switch channel between A1 to E8.

 “CA1” represents channel A1.

2. Change Output Power

 The video transmitter has 3 different output power settings.

 Hold the “CH” button for 3 seconds, then tap it to switch output power between P01 to P03.

 P01/P02/P03 represent 25mW/200mW/500mW.

 Higher power gives better video signal, but more battery consumption and heat.

VIFLY R220 Quick Start Guide

3 / 16

11. Receiver Antennas

12. Video Transmitter Antenna

13. GoPro Mount

14. DVR & GPS Port

15. Bind Button

16. GPS & External LED Port

17. USB Port

18. Video Transmitter Channel & Power Button

ATTENTION

The motors will spin when the aircraft is armed.

Always remove all propellers before tuning the aircraft.

Before using VIFLY R220, please read Quick Start Guide and watch video tutorials on VIFLY official

website (www.viflydrone.com).
