Vifly R130 Quick Start Manual
VIFLY R130 Quick Start Guide
16 / 16
Group A: CH1:5658MHz CH2:5695MHz CH3:5732MHz CH4:5769MHz CH5:5806MHz CH6:5843MHz CH7:5880MHz CH8:5917MHz
Group B: CH1:5740MHz CH2:5760MHz CH3:5780MHz CH4:5800MHz CH5:5820MHz CH6:5840MHz CH7:5860MHz CH8:5880MHz
Group C: CH1:5865MHz CH2:5845MHz CH3:5825MHz CH4:5805MHz CH5:5785MHz CH6:5765MHz CH7:5745MHz CH8:5725MHz
Group D: CH1:5705MHz CH2:5685MHz CH3:5665MHz CH4:5645MHz CH5:5885MHz CH6:5905MHz CH7:5925MHz CH8:5945MHz
Group E: CH1:5733MHz CH2:5752MHz CH3:5771MHz CH4:5790MHz CH5:5809MHz CH6:5828MHz CH7:5847MHz CH8:5866MHz
VIFLY
Website: www.viflydrone.com
Facebook: www.facebook.com/viflydrone
YouTube: www.youtube.com/c/viflydrone
ATTENTION
The motors will spin when the aircraft is armed.
Always remove all propellers before tuning the aircraft.
Before using VIFLY R130, please read Quick Start Guide and watch video tutorials on VIFLY official
website (www.viflydrone.com).

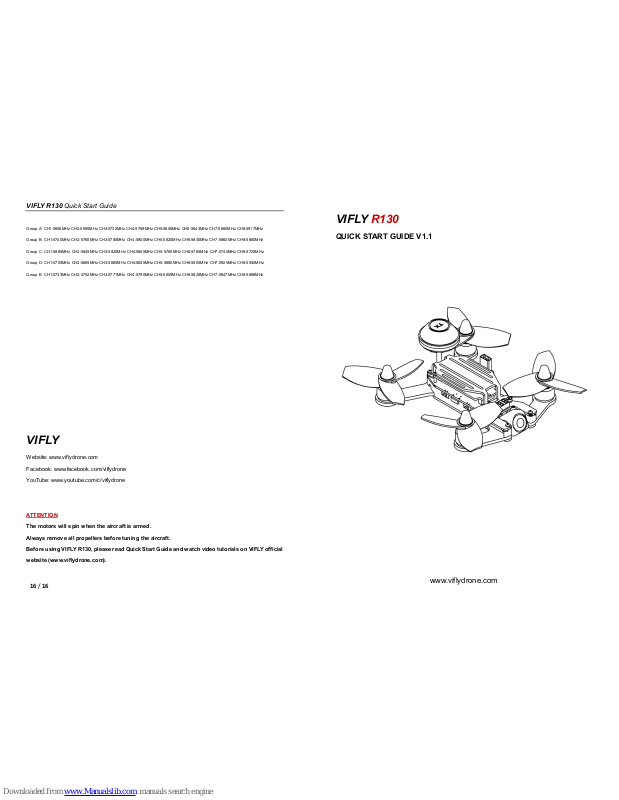

VIFLY R130
QUICK START GUIDE V1.1
www.viflydrone.com
VIFLY R130 Quick Start Guide
2 / 16
GET TO KNOW THE AIRCRAFT
The VIFLY R130 body is made of carbon fiber and ABS plastic, super light but durable.
Built in the latest F4 flight controller and 15/20A BLHeli-S ESCs, VIFLY R130 is fast and
responsive.
Selectable 25/200/500mW 5.8GHz video transmitter and 700TVL high sensitive camera bring you
fantastic FPV experience.
1. Camera
2. Headlight
3. Propeller (Clockwise T3045BN)
4. Propeller (Counter Clockwise T3045BNR)
5. Digital LED
6. Battery Mount
7. Video Transmitter Channel & Power Button
8. USB Port
9. Bind Button
VIFLY R130 Quick Start Guide
15 / 16
SPECIFICATIONS
Aircraft
Size (L x W x H) 125x115x30mm
Wheelbase 130mm
Weight 165g (Battery excluded)
Remote Controller Flysky FS-i6 6 Channels
Receiver Flysky FS-A8S 8 Channels PPM
Flight Controller Omnibus F4, CPU 168MHz
Firmware BetaFlight
OSD BetaFlight OSD
Brushless Motor 1306-4000KV
ESC BLHeli-S 15/20A
Gyro SPI, 8KHz loop speed
Propeller DAL T3045BN
Battery 11.1V 850mAh 35C 3S Li-PO / 14.8V 550mAh 35C 4S Li-PO (optional)
Max Battery Size (L x W x H) 55x30x30mm
Flight Time 6-8 mins(3S) / 6-8 mins(4S)
Working Environment 0℃ ~ +40℃
Camera
Sensor ON Semiconductor 1/4 inch high sensitive CMOS
Horizontal Resolution 700TVL
Field of view 120°
Wireless Video Transmitter
Output Power P01 - 25mW / P02 - 200mW / P03 - 500mW
Antenna Right-handed circular polarization
Antenna Socket SMA Male
Working Frequency 5.8GHz
Channel Group A/B/C/D/E 40 channels
VIFLY R130 Quick Start Guide
14 / 16
MANAGE THE VIDEO TRANSMITTER
1. Switch Channels
VIFLY R130 has built-in wireless video transmitter with 40 channels.
Tap the “CH” button to switch channel between A1 to E8.
“CA1” represents channel A1.
2. Change Output Power
The video transmitter has 3 different output power settings.
Hold the “CH” button for 3 seconds, then tap it to switch output power between P01 to P03.
P01/P02/P03 represent 25mW/200mW/500mW.
Higher power gives better video signal, but more battery consumption and heat.
VIFLY R130 Quick Start Guide
3 / 16
10. Power Port (XT30)
11. External LED Port
12. Video Transmitter Antenna
13. Taillight
ATTENTION
The motors will spin when the aircraft is armed.
Always remove all propellers before tuning the aircraft.
Before using VIFLY R130, please read Quick Start Guide and watch video tutorials on VIFLY official
website (www.viflydrone.com).
