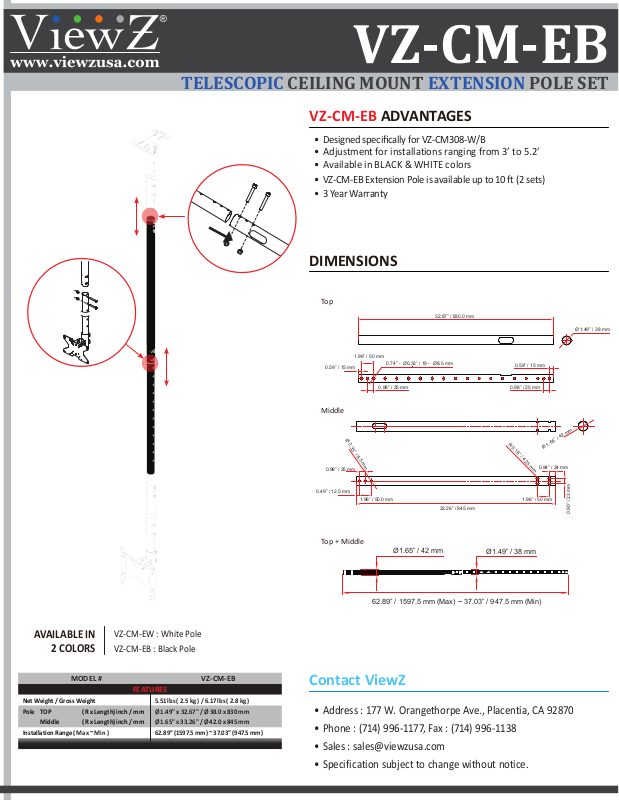

ViewZ VZ-CM-EB Specsheet

VZ-CM-EB

TELESCOPIC CEILING MOUNT EXTENSION POLE SET

VZ-CM-EB ADVANTAGES

• Designed specically for VZ-CM308-W/B

• Adjustment for installations ranging from 3’ to 5.2'

• Available in BLACK & WHITE colors

• VZ-CM-EB Extension Pole is available up to 10  (2 sets)

• 3 Year Warranty

DIMENSIONS

Top

32.67” / 830.0 mm

Ø 1.49” / 38 mm

AVAILABLE IN

2 COLORS

VZ-CM-EW : White Pole

VZ-CM-EB : Black Pole

0.59” / 15 mm

Middle

Ø 0.33” / 8.5 m

0.98” / 25 mm

0.49” / 12.5 mm

Top + Middle

1.96” / 50 mm

0.74” - Ø0.33” / 19 - Ø8.5 mm

0.98” / 25 mm 0.98” / 25 mm

m

1.96” / 50.0 mm

Ø1.65” / 42 mm

62.89” / 1597.5 mm (Max) ~ 37.03” / 947.5 mm (Min)

33.26” / 845 mm

Ø1.49” / 38 mm

0.59” / 15 mm

R 0.16” / 4.25 mm

1.96” / 50 mm

Ø 1.65” / 42 mm

0.94” / 24 mm

0.90” / 23 mm

MODEL # VZ-CM-EB

Net Weight / Gross Weight

Pole TOP

Middle

Instal lation Range ( Max ~ M in )

( R x Length) inch / mm

( R x Length) inch / mm

FEATURES

5.51 lbs ( 2. 5 kg ) / 6.17 lbs ( 2.8 kg )

Ø 1.49" x 32 .67" / Ø 38.0 x 830 mm

Ø 1.65" x 33. 26" / Ø 42.0 x 845 mm

62.89 ” (1597.5 mm) ~ 37.03” (947.5 mm)

Contact ViewZ

• Address : 177 W. Orangethorpe Ave., Placentia, CA 92870

• Phone : [phone], Fax : [phone]

• Sales : [e-mail]

• Specification subject to change without notice.
