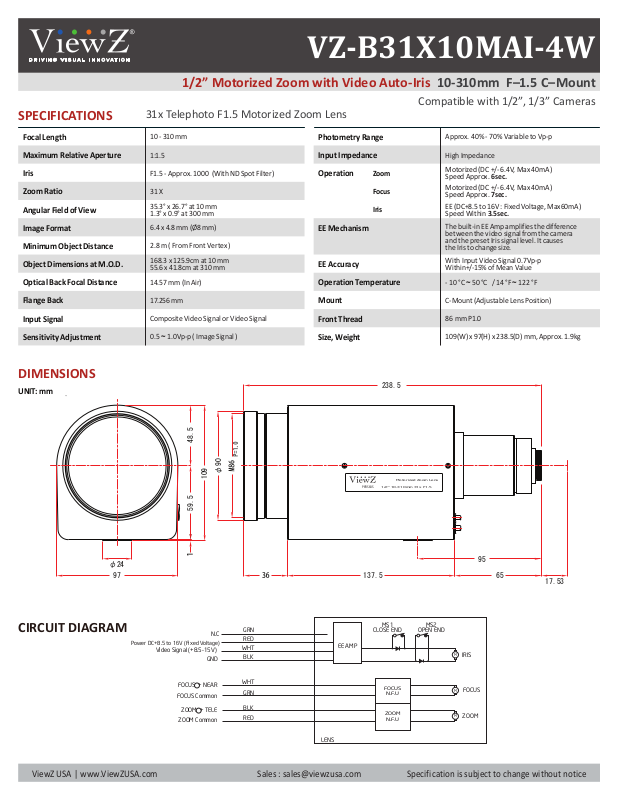

ViewZ VZ-B31X10MAI-4W Specsheet

SPECIFICATIONS

VZ-B31X10MAI-4W

1/2” Motorized Zoom with Video Auto-Iris 10-310mm F–1.5 C–Mount

Compatible with 1/2”, 1/3” Cameras

31x Telephoto F1.5 Motorized Zoom Lens

Focal Length

Maximum Relative Aperture

Iris

Zoom Ratio

Angular Field of View

Image Format

Minimum Object Distance

Object Dimensions at M.O.D.

Optical Back Focal Distance

Flange Back

Input Signal

Sensitivity Adjustment

DIMENSIONS

UN IT: m m

10 - 310 mm

1:1.5

F1.5 - Approx. 1000 (With ND Spot Filter)

31 X

35.3° x 26.7° at 10 mm

1.3° x 0.9° at 300 mm

6.4 x 4.8 mm (Ø8 mm)

2.8 m ( From Front Ver tex )

168.3 x 125.9cm at 10 mm

55.6 x 41.8cm at 310 mm

14.57 mm (In Air)

17. 256 mm

Composite Video Signal or Video Signal

0.5 ~ 1.0Vp-p ( Image Signal )

Photometry Range

Input Impedance

Operation

Zoom

Focus

Iris

EE Mechanism

EE Accuracy

Operation Temperature

Mount

Front Thread

Size, Weight

238.5

Approx. 40% - 70% Variable to Vp-p

High Impedance

Motorized (DC +/- 6.4V, Max 40mA)
Speed Approx. 6sec.

Motorized (DC +/- 6.4V, Max 40mA)
Speed Approx. 7sec.

EE (DC+8.5 to 16V : Fixed Voltage, Max60mA)
Speed Within 3.5sec.

The built-in EE Amp amplifies the difference
between the video signal from the camera
and the preset Iris signal level. It causes
the Iris to change size.

With Input Video Signal 0.7Vp-p
Within+/-15% of Mean Value

- 10 °C ~ 50 °C / 14 °F ~ 122 °F

C-Mount (Adjustable Lens Position)

86 mm P1.0

109(W) x 97(H) x 238.5(D) mm, Approx. 1.9kg

φ24

97 137.5

CIRCUIT DIAGRAM

48.559.5

109

Power DC+8.5 to 16V (Fixed Voltage)

Video Signal (+8.5-15V)

FOCUS + NEAR

FOCUS Common

ZOOM + TELE

ZOOM Common

N.C

GND

φ90

GRN
RED
WHT
BLK

WHT

GRN

BLK

RED

EE AMP

1/2" 10-310mm 31x F1.5

PERSEUS

MS1

CLOSE END

FOCUS

N.F.U

ZOOM

N.F.U

Motorized Zoom Lens

MS2

OPEN END

M

M

M

IRIS

FOCUS

ZOOM

95

65

17.53

LENS

ViewZ USA | www.ViewZUSA.com Specification is subject to change without noticeSales : [e-mail]
