Page 1
SXT2010
20.1” SXGA TFT NEMA 4/12
Flat Panel Monitor
User’s Guide
302010(A) (was document no. 920A0007 version 1.0), revised 12/98 Viewtronix
Page 2
Viewtronix reserves the right to make changes in specifications described herein at any time without
notice in order to improve design and reliability. Viewtronix does not assume any responsibility for the
use of any circuitry described; no circuit patent licenses are implied. Viewtronix assumes no responsibility
for damage caused by misuse or improper use of its products.
WARRANTY
Viewtronix warrants to Customer that the Products will be free from defects in material and
workmanship under normal use and service for a period of one year from date of invoice. Customer’s
exclusive remedy for breach of this warranty is that Viewtronix will either (i) repair or replace, at its option,
any Product which fails during the warranty period because of such defect (if Customer promptly reported
the failure to Viewtronix in writing) or, (ii) if Viewtronix is unable to repair or replace, Viewtronix will refund
the purchase price of the Product upon its return to Viewtronix. This warranty does not apply to any
Product which has been subjected to misuse, abnormal service or handling, or which has been altered or
modified in design or construction, or which has been serviced by anyone other than Viewtronix. The
warranty set forth herein is in lieu of, and exclusive of, all other warranties, express or implied.
Document No. 302010(A) (was 920A0007 version 1.0)
Released 12/98
2
Page 3
Table of Contents
Introduction ....................................................................................................................................................4
Video Modes Supported ................................................................................................................................4
Specifications ................................................................................................................................................5
Front and Side View of Monitor .....................................................................................................................6
Installation of Monitor ....................................................................................................................................6
Mode and Image Adjustment ........................................................................................................................7
Front Panel Controls......................................................................................................................................8
Menu System Description..............................................................................................................................9
Status of the Display....................................................................................................................................11
VGA Input Connector Pin Out .....................................................................................................................12
3
Page 4
Introduction
The SXT2010 is a 20.1” SXGA (1280 x 1024) TFT industrial flat panel monitor for use in NEMA 4
and NEMA 12 applications. Graphics and text can be displayed on the monitor in true color and in the
modes listed below. When the monitor is being driven in modes other than SXGA, it will automatically
expand the image and center it on the LCD. The unit is fully self-contained needing only to be panel
mounted in an appropriate enclosure and connected to 120/240 VAC and a VGA source. The monitor
features a bright 180-nit LCD display and conveniently located front panel controls with on screen menus
for easy set up and adjustment. The unit is designed to provide tool free access for quick back light
replacement and cleaning. The SXT2010 is available with optional integrated analog resistive touch
screen and/or a 304 stainless steel bezel.
Video Modes Supported
MODE HORIZONTAL
SYNC RATE
kHz
VGA 640 x 480 31.468 59.941 25.175 2
VGA 720 x 400 31.468 70.087 28.322 1.7
Mac 640 x 480 35.00 66.67 30.24 2
Mac 832 x 624 49.73 74.55 57.28 1.25
Mac 1152 x 870 68.68 75.06 100.0 1
VESA 640 x 480 37.86 72.81 31.5 2
VESA 640 x 480 37.50 75.00 31.5 2
VESA 640 x 480 43.27 85.01 36.0 2
VESA 800 x 600 35.16 56.25 36.0 1.5
VESA 800 x 600 37.88 60.32 40.0 1.5
VESA 800 x 600 48.08 72.01 50.0 1.5
VERTICAL
SYNC RATE
Hz
DOT
FREQUENCY
MHz
EXPANSION
FACTOR
VESA 800 x 600 46.88 75.00 49.5 1.5
VESA 1024 x 768 48.36 60.00 65.0 1.25
VESA 1024 x 768 56.48 70.07 75.0 1.25
VESA 1024 x 768 60.02 75.03 78.75 1.25
VESA 1024 x 768 68.68 85.00 94.5 1.25
VESA 1280 x 1024 63.98 60.02 108.0 1
VESA 1280 x 1024 79.97 75.02 135.0 1
4
Page 5
Specifications
DISPLAY
PARAMETER SPECIFICATION
Display Size 20.1” Diagonal
Active Area 15.72” (H) x 12.58” (V)
Pixel Format 1280 (H) x 1024 (V) Pixels (1 Pixel = R + G + B Dots)
Brightness 180 Nit Typical
Back Light Life 15,000 Hrs
Contrast Ratio 100:1 Typical
Number Colors Full Color
PHYSICAL
PARAMETER SPECIFICATION
Monitor Outside Dimensions 17.18” (H) x 20.32” (W) x 4.75” (D)
Monitor Weight 28 Pounds
Operating Temperature 0 ~ 50 Degrees Centigrade
Storage Temperature -20 ~ 60 Degrees Centigrade
Relative Humidity < 95%, Ta < 40 Degrees Centigrade, < 85%,40 < Ta < 50 Degrees Centigrade
Operating Vibration 5 ~ 500 Hz, 1G
Operating Shock 15G for 11ms
Operating Altitude 10,000 Feet Above Sea Level
ELECTRICAL
PARAMETER SPECIFICATION
Input Voltage 90 ~ 264 VAC, 47 ~ 440 Hz
Input Power 90 W
Compliance
Parameter Specification
NEMA Rating NEMA 4/12 From front when properly installed in an enclosure.
EMC FCC Part 15, Class A / Industry Canada ICES-003 Issue 2, Rev. 1 / EN61000-4-2,
Safety UL-1950 / CUL/CSA 22.2 950 M93/ EN60950 / Low Voltage Directive 73/23/EEC
4-3, 4-4 / EMC Directive 89/336/EEC (Pending)
(Pending)
5
Page 6

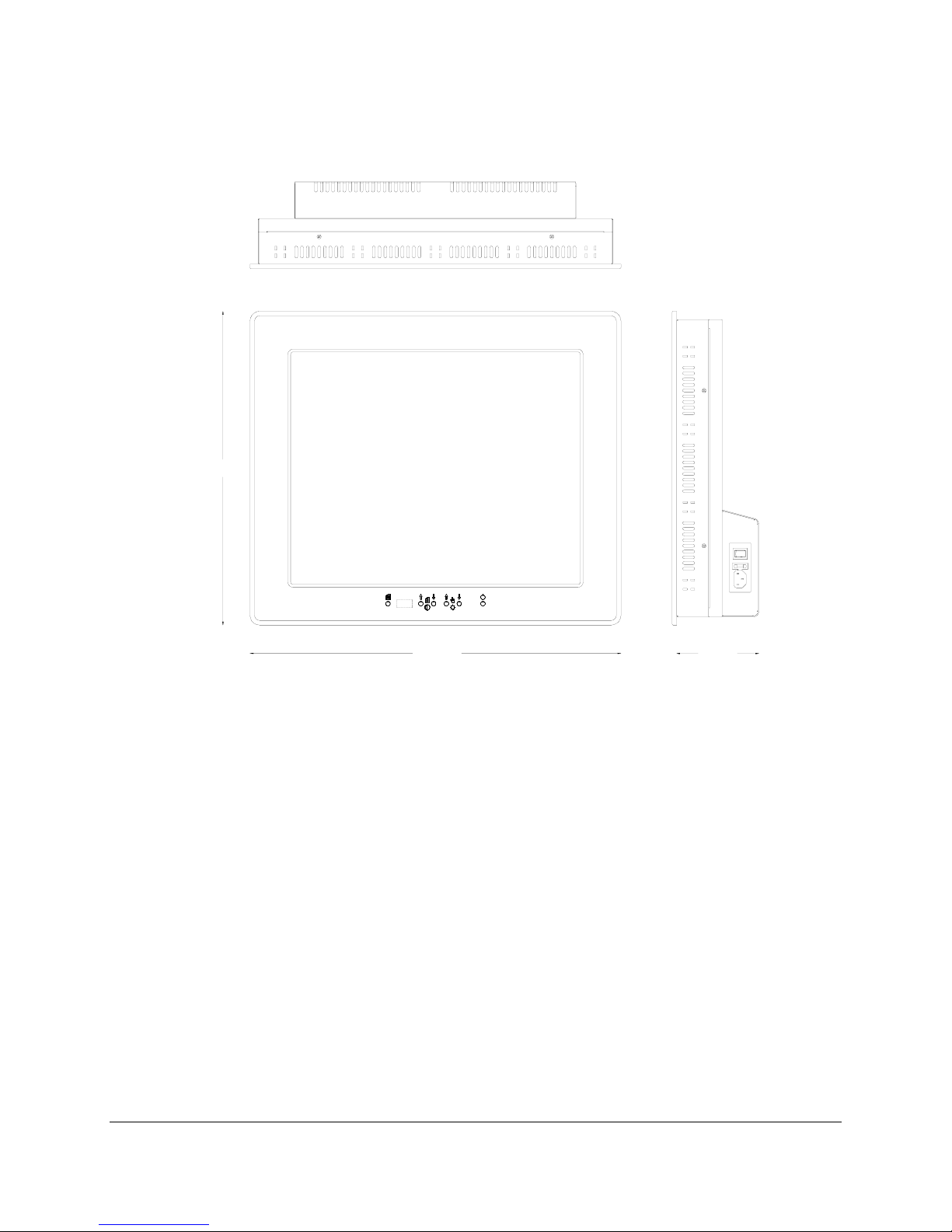

Front and Side View of Monitor
Viewtronix
17.18"
I
O
20.32"
4.50"
Installation of Monitor
This monitor is intended to be mounted in and used where NEMA 4 and NEMA 12 type
enclosures are employed. When mounted properly, the monitor meets or exceeds the sealing
requirements set forth in the NEMA 4 and NEMA 12 specifications. The monitor uses “U”-shaped clips
and a special gasket to achieve the proper seal.
To install the monitor, make a cutout per the diagram below in one of the walls of your NEMA
enclosure. Enclosures made of heavier gauge metal work better in that they won’t deform or bend as
easily when the monitor’s sealing gasket is compressed. Next hold the monitor in place while you install
the mounting clips. Tighten the clips in a cross pattern. This will help to develop an even pressure on the
sealing gasket. Tighten the clips to the point were the back of the monitor’s front bezel just begins to
contact the front of the NEMA enclosure. DO NOT OVER TIGHTEN AS DAMAGE CAN RESULT IN
THE MONITOR CAUSING LOSS OF SEALING INTEGRITY.
APPLICATION NOTE:
TO REDUCE THE AFTER-IMAGE EFFECTS CAUSED BY STATIC IMAGES BEING
DISPLAYED FOR PROLONGED PERIODS OF TIME, WE RECOMMEND SOME FORM 0F SCREEN
SAVER BE USED.
6
Page 7
Cutout Pattern for Monitor
16.40"
+/- .02"
19.55"
+/- .02"
Mode and Image Adjustment
Not all video controllers produce exactly the same video output levels or the same timing. The
following procedure can be used to select the desired video mode as well as optimize your monitor’s
image quality. When adjusting your monitor, the use of video test software such as DisplayMate for
Windows by SONERA Technologies can be very beneficial.
Before connecting the SXT2010 to your computer, adjust your desk top display settings to the
following:
Colors: 256
Vertical Refresh: 60Hz
Resolution: 1280 x 1024
Monitor Type: Viewsonic 15
After connecting the SXT2010 to your computer you should first adjust the monitors horizontal
size (or width) using the Hsiz menu selection. Next you should use the Hpos and Vpos menu selections
to center the image on the LCD. After this, use the Clka menu selection to focus the screen’s image.
Finally, use the SAVE menu selection to store the monitor’s settings in no-volatile memory.
7
Page 8

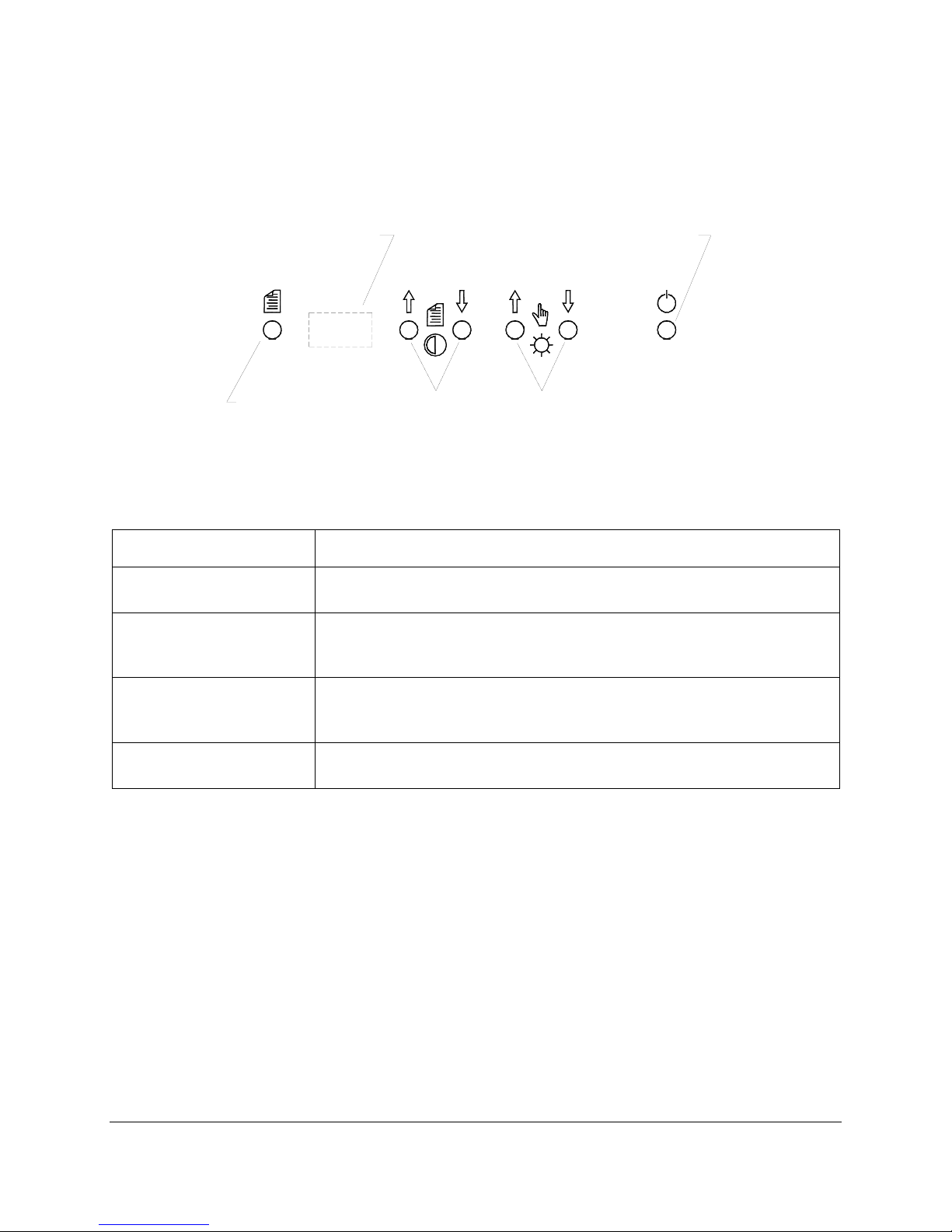

Front Panel Controls
Mode
Display
MENU SELECT INCREASE DECREASE
Menu
Control
BUTTON FUNCTION
MENU
CONTRAST
Menu Control. Changes Contrast and Brightness buttons to Menu and
Enter Buttons or back to Contrast and Brightness functions respectively.
Dual function, Contrast and Menu Select. Function 1: Contrast (10
Levels). Function 2: Menu Select (i.e. V-Pos, H-Pos, H-Size etc.) Two
buttons: ↑ and ↓.
Contrast
& Menu
Select
Brightness
& Menu
Adjustment
Power
Button
BRIGHTNESS
POWER
Note: Pressing both Contrast buttons simultaneously will jump you to the top menu level but not
change any menu positions previously selected. Pressing the Brightness buttons simultaneously
will take you down the menu tree in the same order as done previously. This saves keystrokes if
you want to go up a level. Pressing the Menu button twice will reset all menu positions and place
you at the top menu level.
When the unit is first powered on or the Alpha display timer, times out, in 15 seconds the menu
positions are reset and the buttons are restored to Contrast and Brightness Functions.
Dual function, Brightness and Menu Adjustment functions. Function
1: Brightness (2 Levels). Function 2: Adjustment of selected menu item.
Two buttons: ↑ and ↓.
Power Button. Turns main power to converter card and panel on and
off.
8
Page 9
Menu System Description
After the Menu Key is pressed the word “MENU” appears on the display. Using the Menu ↑ and ↓
buttons causes the following menu options to appear.
First Level Menu
Hpos Horizontal Position Adjustment (Use the Brightness ↑ or ↓ button to adjust)
Hsiz Horizontal Size Adjustment (Use the Brightness ↑ or ↓ button to adjust)
Vpos Vertical Position Adjustment (Use the Brightness ↑ or ↓ button to adjust)
ClkA Clock Adjustment of Focus (Use the Brightness ↑ or ↓ button to adjust)
Save Save Setting (Use the Brightness ↑ or ↓ button to select the save menu)
Sub Menu for Saving Settings After selecting the Save option, press the Contrast ↑ or
↓ buttons to select one of the following three options:
Sys0 (This is the default boot up setting)
Usr1 (This is user 1 setting)
Usr2 (This is user 2 setting)
Once you have selected the location to which the settings will be saved, press either
Brightness button to save.
Rsto Restore settings menu (Use the Brightness ↑ or ↓ button to select the Restore menu)
Sub Menu for Restoring Settings After selecting the Rsto option press the Contrast ↑
or ↓ buttons to select of the following four options:
Dflt (This is the factory default setting)
Sys0 (This is the default boot up setting)
Usr1 (This is a user selectable setting)
Usr2 (This is a user selectable setting)
Once you have selected the location from which to restore settings, press either
Brightness button to restore.
9
Page 10
SetU Setup menu (Use the Brightness ↑ or ↓ button to select the Setup menu)
Sub Menu for Setup After selecting the SetU option press Contrast ↑ or ↓ buttons to
select one of the following four options:
Sync (Type of Sync input. Use the Brightness ↑ or ↓ buttons to select the sync type)
Sub Menu for Sync After selecting the Sync option press the Contrast ↑ or ↓
buttons to select on of the four following options:
Auto (This setting will automatically detect the actual video sync type)
5wir (This setting will select 5-wire video only)
4wir (This setting will select 4-wire video only)
3wir (This setting will select 3-wire video only)
Once you have selected the Sync option, press either Brightness button to save
settings.
Dclr (This disables the 15 second automatic alpha display clear and menu reset
function.) The Brightness ↑ button enables the clear function and the Brightness
↓ button disables the clear function. The display will show “on” or “off” after the
appropriate button is pressed.
Diag (This setting is for diagnostic testing)
Sub Menu for Diag. After selecting the Diag option, press the Contrast ↑ and ↓
buttons to select one of the following eleven options:
Bds# (This is the converter board serial number)
Time (This is the amount of time the board has been powered on in hours. The
timer can keep track of up to 99,999 hours which is equal to 11.4 years
of continuous use)
Bklt (This toggles the backlight on and off)
Butn (This tests the front panel buttons) Pressing either Brightness button
places you in the button test mode. Note: If you press the power button it
will shut off the panel. You must press both Contrast buttons
simultaneously to exit the buttons test.
Dspy (This tests the alpha display) Pressing either Brightness button will cycle
you through 128 ASCII characters on the alpha display.
R232 (This tests the internal RS232 port) With a loop back connector installed
“PASS” or “FAIL” will be displayed on the alpha display. This feature is
not available on the SXT2010.
Hlin (This displays the horizontal line count) The value is the hexadecimal
number of horizontal lines per vertical period.
Vcnt (This displays the vertical count) The value is the hexadecimal vertical
period count at 500ns per count.
10
Page 11
Mode (This displays the video mode)
Ptc# (This displays the factory panel type setup)
Rev# (This displays the version of micro code installed on the converter card)
Status of the Display
The alpha display will report the status of the converter card. The following is an explanation of each of
the messages.
“Sync” Flashing When you see the word “Sync” flashing, the monitor does not detect
sync present of you have selected a specific sync type that is not
supported by the video source.
“.” Small Dot This is the power on indicator. It also indicates no errors present.
“VGAT” This indicated the video source is in VGA DOS Text Mode (640 x 400).
“VGA” This indicated the video source is in VGA Mode (640 x 480).
“SVGA” This indicated the video source is in SVGA Mode (800 x 600).
“XGA” This indicated the video source is in XGA DOS (1024 x 768).
“SXGA” This indicated the video source is in SXGA Mode (1280 x 1024).
“Undf” When you see this on the display the video resolution is undefined.
“Rang” This indicates the video source is either a format not supported by the
monitor, is corrupt, or the sync type selected is set to 3-wire mode, but
the source is either a 4-wire or 5-wire type.
“Rest” Flashing When you see this on the display the backlight is turned off.
“Cold” Flashing When you see this on the display the temperature is too cold for the
panel to function. You must wait for the panel to reach operating
temperature before the panel will begin functioning.
“Menu” When you see this on the display you are at the top level of the menu
tree.
11
Page 12
VGA Input Connector Pin Out
SIGNAL NAME 15-PIN D-SHELL
(FEMALE)
Red 1
Green 2
Blue 3
4
GND-Digital 5
GND-Red return 6
GND-Green
return
GND-Blue return 8
GND-Digital 10
Hsync 13
Vsync 14
7
9
11
12
15
12
Page 13
Xycom Automation, Inc.
734-429-4971 • Fax: 734-429-1010
1-800-AT-XYCOM • http://www.xycom.com
© 2001 Xycom Automation, Inc. All rights reserved. Printed in US. All brand or product names are the property of their respective owners.
Specifications may change without notice.
Northern Europe Sales: +44-1604-790-767
Southern Europe Sales: +39-011-770-53-11
Loading...
