Viewsonic VX2435W Service Manual

Service Manual

ViewSonic VX2435wm-1

Model No. VS11449

24” Color TFT LCD Display

(VX2435wm-1_SM Rev. 1a Mar. 2007)

ViewSonic 381 Brea Canyon Road, Walnut, California 91789 USA - [phone]

Copyright

Copyright © 2007 by ViewSonic Corporation. All rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written permission of ViewSonic
Corporation.

Disclaimer

ViewSonic makes no representations or warranties, either expressed or implied, with respect to
the contents hereof and specifically disclaims any warranty of merchantability or fitness for any
particular purpose. Further, ViewSonic reserves the right to revise this publication and to make
changes from time to time in the contents hereof without obligation of ViewSonic to notify any
person of such revision or changes.

Trademarks

Optiquest is a registered trademark of ViewSonic Corporation.
ViewSonic is a registered trademark of ViewSonic Corporation.
All other trademarks used within this document are the property of their respective owners.

Product disposal at end of product life

The lamp in this product contains mercury. Pleas e dispose of in accordance with local, state or
federal laws.

Revision History

Revision SM Editing Date ECR Number Description of Changes Editor

1a 3/29/2007 Initial Release Jamie Chang

i

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

TABLE OF CONTENTS

1. Precautions and Safety Notices 1

2. Specification 4

3. Front Panel Function Control Description 16

4. Circuit Description 23

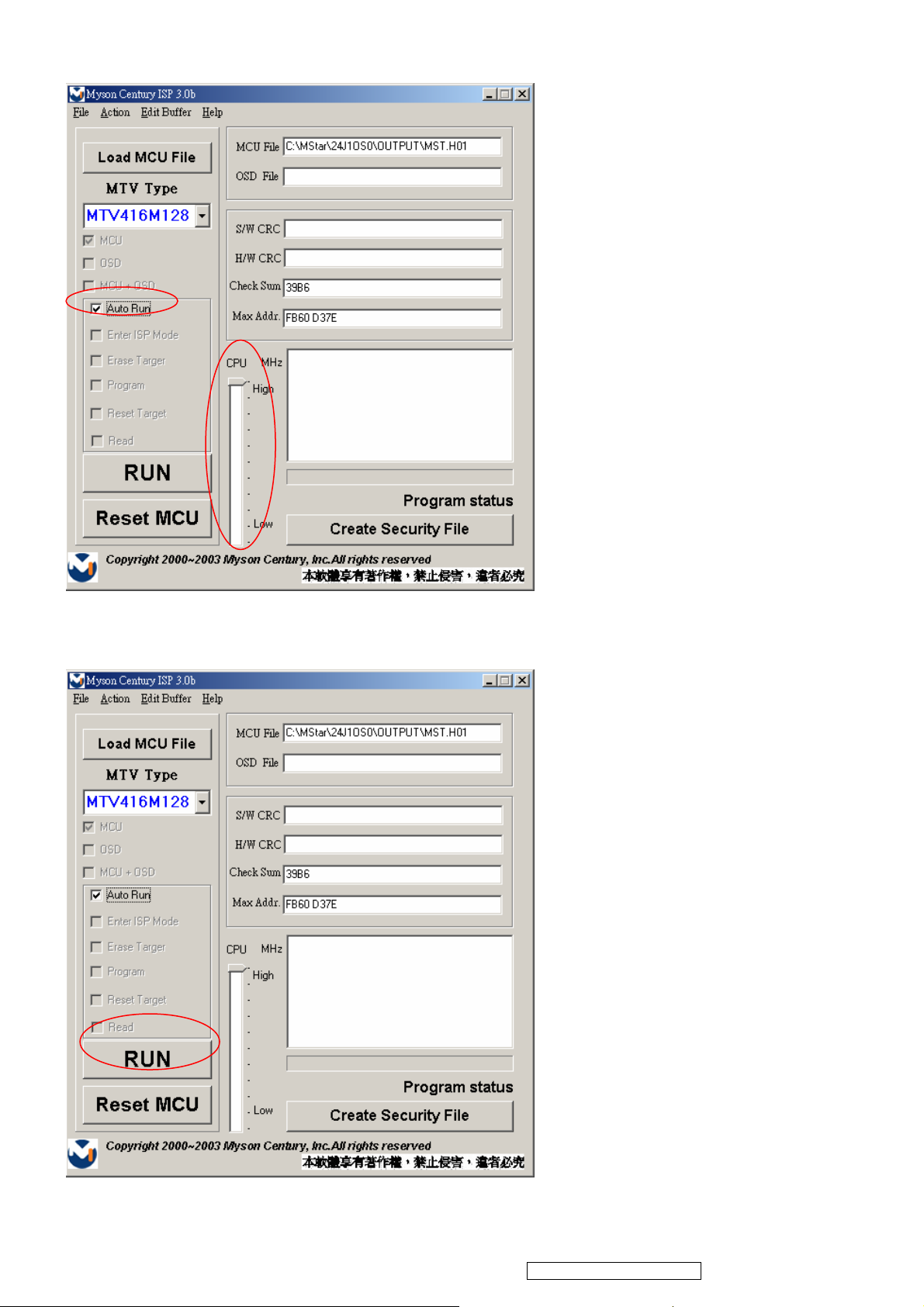

5. Adjusting Procedure 28

6. Trouble Shooting Flow Chart 50

7. Block Diagrams 58

8. Schematic Diagrams 59

9. PCB Layout Diagrams 75

10. Exploded Diagram And Spare Parts List 76

11. Recommended Spare Parts List 78

ii

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

1. Precautions and Safety Notices

1. Appropriate Operation

(1) Turn off the product before cleaning.
(2) Use only a dry soft cloth when cleaning the LCD panel surface.
(3) Use a soft cloth soaked with mild detergent to clean the display housing.
(4) Use only a high quality, safety approved AC/DC power cord.
(5) Disconnect the power plug from the AC outlet if the product will not be used for a long period of time.
(6) If smoke, abnormal noise, or strange odor is present, immediately switch the LCD display off.
(7) Do not touch the LCD panel surface with sharp or hard objects.
(8) Do not place heavy objects on the LCD display, video cable, or power cord.
(9) Do not use abrasive cleaners, waxes or solvents for your cleaning.
(10) Do not operate the product under the following conditions:

 Extremely hot, cold or humid environment.
 Areas containing excessive dust and dirt.
 Near any appliance generating a strong magnetic field.
 In direct sunlight.

2. Caution

No modification of any circuit should be attempted. Service work should only be performed after you are thoroughly

familiar with all of the following safety checks and servicing guidelines.

3. Safety Check

Care should be taken while servicing this LCD display. Because of the high voltage used in the inverter circuit, the

voltage is exposed in such areas as the associated transformer circuits.

4. LCD Module Handling Precautions

4.1 Handling Precautions

(1) Since front polarizer is easily damaged, pay attention not to scratch it.
(2) Be sure to turn off power supply when connecting or disconnecting input connector.
(3) Wipe off water drops immediately. Long contact with water may cause discoloration or spots.
(4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
(5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
(6) Since CMOS LSI is used in this module, take care of static electricity and ensure human earth when handling.
(7) Do not open or modify the Module Assembly.
(8) Do not press the reflector sheet at the back of the module in any direction.
(9) In the event that a Module must be put back into the packing container slot after it was taken out of the container, do

not press the center of the CCFL Reflector edge. Instead, press at the far ends of the CFL Reflector edge softly.

Otherwise the TFT Module may be damaged.

(10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate or tilt the Interface Connector of

the TFT Module.

(11) After installation of the TFT Module into an enclosure (LCD monitor housing, for example), do not twist or bend the

TFT Module even momentarily. When designing the enclosure, it should be taken into consideration that no

1

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

bending/twisting forces may be applied to the TFT Module from outside. Otherwise the TFT Module may be

damaged.

(12) The cold cathode fluorescent lamp in the LCD contains a small amount of mercury. Please follow local ordinances

or regulations for disposal.

(13) The LCD module contains a small amount of materials having no flammability grade. The LCD module should be

supplied with power that complies with the requirements of Limited Power Source (IEC60950 or UL1950), or an

exemption should be applied for.

(14) The LCD module is designed so that the CCFL in it is supplied by a Limited Current Circuit (IEC60950 or

UL1950). Do not connect the CCFL to a Hazardous Voltage Circuit

2

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Correct methods : Incorrect Methods :

Only touch the metal-frame of the panel or the front

cover of the monitor. Do not touch the surface of the

polarizer .

Surface of the panel is pressed by fingers & this may

cause “ MURA “

Take out the monitor Take out the monitor by grasping the LCD panel.

That may cause “ MURA“.

Place the monitor on a clean & soft foam pad . Place the monitor on foreign objects .

That could scratch the surface of panel

3

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

2. Specification

Product definition and specification

Product Name ViewSonic VX2435wm

Oracle P/N VX2435WM

Model Number VS11449

English, French, German, Italian, Spanish, Finnish,

OSD Languages

TFT LCD Panel and Model # CMO A240J1

Scalar MST 6251DA

Input Signal D-Sub / HDMI / YPbPr / CVBS / S-Video

Sync Compatibility Separate Sync / Composite Sync / SOG

Windows Vista Premium Certified(x86/x64) Yes

Adapter Internal Power Board

Russian,Japanese, Traditional Chinese, Simplified Chinese

Power Cable

Analog Cable (1.8 m, black), with PC 2001 and Hot Plug

Detect &DDC

HDMI to DVI-D Cable(1.8m, black) with PC 2001

Audio Cable(1.8m, black) with PC 2001 Yes

AV Cable (1.8m ; Yellow/Red/White) No

Component Cable (1.8m ; Green/Red/Blue) No

MIC Cable(1.8m, black) with PC 2001 No

USB Cable (V2.0) No

ViewSonic CD Wizard

ViewSonic Quick Start Guide

PerfectSuite CD No

Ye s,

Refer to APPENDIX B: Power Cable

Yes

(Detached cable; refer the Appendix A)

Ye s

(Refer the Appendix A)

Arabic, English, Finnish, Spanish, German, Italian, Japanese,

Swedish, Polish, Korean Portuguese, Russian, French,

Simplified Chinese,Traditional Chinese,Czech, Turkish

Hungarian ,Greek , Dutch

Extrme Label (5ms) No

Screen Protector Mylar Yes

Foot Protector plastic Yes, for left-front and right-front foot

Service Insert For Region code = M units only

Warranty Sticker For Region code = G units only

Warranty Card For Region code = G units only

Carton Sticker For Region code = G units only

PE bag of Carton For Region code = G units only

4

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

2-1 GENERAL specification

Test Resolution & Frequency 1920x1200 @ 60Hz

Test Image Size Full Size

Contrast and Brightness Controls

Factory Default:

Contrast = 70%, Brightness = 100%

2-2 VIDEO INTERFACE

Input Connector (refer the Appendix A) Analog = DB-15

Digital Input Connector HDMI, 19pin Type A

Video Input 1 RCA jack (Red, Blue, Green) for YPbPr

Video Input 2 RCA jack (Yellow) for CVBS

Video Input 3 S_TERMINAL for S-Video

Default Input Connector Defaults to the first detected input

Video Cable Strain Relief Equal to twice the weight of the monitor for five minutes

Video Cable Connector Pin out Compliant DDC 1/2B/CI(Refer to Appendix A)

RGB Analog (75 ohms, 0.7 / 1.0 Vp-p),

Video Signals (Impedance / Amplitude )

S Video (75 ohms,Y : 1.0Vp-p W / Neg. Sync ;C : 0.285Vp-p)

YPbPr(75 ohms,Y:1.0Vp-p ; Pb:0.7 Vp-p,Pr:0.7 Vp-p )

HDMI(TMDS, 100ohms)

Maximum PC Video Signal 950 mV with no damage to monitor

Maximum Mac Video Signal 1250 mV with no damage to monitor

Sync Signals TTL

DDC 1/2B/CI Compliant with version 1.3

HDCP HDCP code inside and compatible

Sync Compatibility Separate Sync / Composite Sync / SOG

Video Compatibility

Video timing support

(CVBS / S-Video)

Video timing support

(HDMI / YPbPr)

720p @ 50/60Hz 1080i / 1080p @ 50/60Hz

Shall be compatible with all PC type computers, Macintosh computers,

and after market video cards

480I@50/60Hz

480i / 480p @ 50/60Hz 576i / 576p @ 50/60Hz

640x350 640x400 640x480 720x400

720x480 800x600 832x624 1024x768

1152x864 1152x870 1280x720 1280x768

Resolution Compatibility

Exclusions Not compatible with interlaced video

5

ViewSonic Corporation

1280x960 1280x1024 1360x768 1400x1050

1440x900 1600x1200 1680x1050 1920x1200

The image vertical size might not be full screen.

But the image vertical position should be at the center.

Confidential - Do Not Copy VX2435wm-1

Audio / Video Action

Video input

CVBS S-Video YPbPr D-sub DVI-D via HDMI HDMI

RCA (white + red) with

CVBS/S-Video

RCA (white + red) with

Audio input

YPbPr

3.5mm phone jack X X X

Audio in HDMI X X X X X

Video OVERCAN

Component over scan: 5~8%

AV over scan: 5~8%

HDMI over scan: No over scan for PC input, 5~8% for video source.

PC: No over scan

● ●

X X

2-3 USB INTERFACE

No USB interface

X X X X

●

X X X

● ●

X

●

6

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

2-4 POWER SUPPLY

Internal Power Supply Delta DAC-24M001/ APD FP-120A01

Input Voltage Range 90 to 264 VAC

Input Frequency Range 47 to 63 Hertz

Short Circuit Protection Output can be shorted without damage

Over Current Protection Meet LPS(Limit Power Switch)

Leakage Current 3.5mA (Max) at 254VAC / 60Hz

Efficiency (at 115VAC Full Load) Typical: 80%

Minimum: 75%

Fuse Internal and not user replaceable

Power Output 110 Watts (typ)

Ripple and Noise

Max Input AC Current 1.6 Arms @ 90VAC, 1.6 Arms @180VAC

Inrush Current (Cold Start)

Power Supply Cold Start

Power Supply Transient Immunity

Power Supply Line Surge Immunity

Power Supply Missing Cycle Immunity

Ripple: <3%

Noise: <1%

100 A (max) @ 115VAC

100 A (max) @ 230VAC

Shall start and function properly when under full load, with all

combinations of input voltage, input frequency, and operating

temperature.

Shall be able to withstand an ANSI/IEEE C62.41-1980 6000V 200

ampere ring wave transient test with no damage.

Shall be able to withstand 1.5 times nominal line voltage for one cycle

with no damage.

Shall be able to function properly, without reset or visible screen

artifacts, when ½ cycle of AC power is randomly missing at nominal

input.

The power supply shall not produce audible noise that would be

Power Supply Acoustics

Power Saving Operation(Method) VESA DPMS Signaling

Power Consumption

Recovery Time On Mode = N/A, Active Off < 3 sec

7

ViewSonic Corporation

detectable by the user. Audible shall defined to be in compliance with

ISO 7779 (DIN EN27779:1991) Noise measurements of machines

acoustics. Power Switch noise shall not be considered.

Mode LED Power Consumption

On Blue 110 W (typ)

Active off Amber <2W

Off Off <1W

Confidential - Do Not Copy VX2435wm-1

120 W (max)

2-5 ELECTRICAL REQUIREMENT

–

Horizontal / Vertical Frequency

Horizontal Frequency 24 – 82 kHz

Vertical Refresh Rate 50 – 85* Hz

Maximum Pixel Clock 165 MHz

Sync Polarity Independent of sync polarity

Timing Table

Item

Timing

1 640 x 350 @ 70 Hz, 31.5 KHz

2 640 x 350 @ 85 Hz, 37.9 KHz

3 640 x 400 @ 60 Hz, 31.5 KHz

4 640 x 400 @ 70 Hz, 31.5 KHz

5 640 x 400 @ 85 Hz, 37.9 KHz

6 640 x 480 @ 50 Hz, 24.7 KHz

7 640 x 480 @ 60 Hz, 31.5 KHz

8 640 x 480 @ 67 Hz, 35 KHz

9 640 x 480 @ 72 Hz, 37.9 KHz

10 640 x 480 @ 75 Hz, 37.5 KHz

11 640 x 480 @ 85 Hz, 43.3 KHz

12 720 x 400 @ 70 Hz, 31.5 KHz

Analog

Composite

Separated

   

   

   

   

   

  

   

   

   

   

   

   

TMDS/HDMI

SOG

Digital

Remark

13 720 x 400 @ 85 Hz, 37.9 KHz

14 720 x 480 @ 60 Hz, 31.5 KHz

15 720 x 576 @ 50 Hz, 31.3 KHz

16 800 x 600 @ 56 Hz, 35.1 KHz

17 800 x 600 @ 60 Hz, 37.9 KHz

18 800 x 600 @ 72 Hz, 48.1 KHz

19 800 x 600 @ 75 Hz, 46.9 KHz

20 800 x 600 @ 85 Hz, 53.7 KHz

21 832 x 624 @ 75 Hz, 49.7 KHz

22 1024 x 768 @ 50 Hz, 39.6 KHz

23 1024 x 768 @ 60 Hz, 48.4 KHz

24 1024 x 768 @ 70 Hz, 56.5 KHz

25 1024 x 768 @ 75 Hz, 60 KHz

26 1024 x 768 @ 75 Hz, 60.2 KHz

27 1024 x 768 @ 85 Hz, 68.7 KHz

28 1152 x 864 @ 75 Hz, 67.5 KHz

   

   

   

   

   

   

   

   

   

   

   

   

   

   

   

   

8

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

29 1152 x 870 @ 75 Hz, 68.7 KHz

   

30 1280 x 720 @ 50 Hz, 37.5 KHz

31 1280 x 768 @ 50 Hz, 39.6 KHz

32 1280 x 768 @ 60 Hz, 47.4 KHz

33 1280 x 768 @ 60 Hz, 47.8 KHz

34 1280 x 768 @ 75 Hz, 60.3 KHz

35 1280 x 768 @ 85 Hz, 68.6 KHz

36 1280 x 960 @ 50 Hz, 49.4 KHz

37 1280 x 960 @ 60 Hz, 59.7 KHz

38 1280 x 960 @ 75 Hz, 75.2 KHz

39 1280 x 1024 @ 50 Hz, 52.7 KHz

40 1280 x 1024 @ 60 Hz, 64 KHz

41 1280 x 1024 @ 70 Hz, 74.6 KHz

42 1280 x 1024 @ 72 Hz, 76.8 KHz

43 1280 x 1024 @ 75 Hz, 80 KHz

44 1360 x 768 @ 60 Hz, 47.7 KHz

45 1400 x 1050 @ 50 Hz, 54.1 KHz

 

   

   

   

   

   

   

   

   

   

   

   



   

   

   

46 1400 x 1050 @ 60 Hz, 64.7 KHz

47 1400 x 1050 @ 60 Hz, 65.3 KHz

48 1400 x 1050 @ 75 Hz, 82.3 KHz

49 1440 x 900 @ 60 Hz, 55.5 KHz

50 1440 x 900 @ 60 Hz, 59.9 KHz

51 1440 x 900 @ 75 Hz, 75 KHz

52 1600 x 1200 @ 60 Hz, 75 KHz

53 1680 x 1050 @ 60 Hz, 65.3 KHz

54 1920 x 1080 @ 50 Hz, 28.1 KHz

55 1920 x 1080 @ 60 Hz, 33.8 KHz

   

   

   

   

   

   

   

   

   

   

9

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

For Video Source Only

Item

Timing

Separated

Analog

Composite

SOG

HDMI

YPbPr

CVBS

S-Video

Remark

1 480p @ 50 Hz

2 480p @ 60 Hz

3 480i @ 50 Hz

4 480i @ 60 Hz

5 576i @ 50 Hz

6 576i @ 60 Hz

7 576p @ 50 Hz

8 576p @ 60 Hz

9 720p @ 50 Hz

10 720p @ 60 Hz

11 1080i @ 50 Hz

12 1080i @ 60 Hz

*1. Tolerance ≧ ±2KHz.

*2. Any timing not in the list, it should display as normal or show on “OUT OF RANGE” OSD message without blanking.

*3. The image quality of 85Hz mode might be worse than 75Hz.

X X X

X X X

X X X

X X X

X X X

X X X

X X X

X X X

X X X

X X X

X X X

X X X

 

 

   

   

   

   

 

 

 

 

 

 

X X

X X

X X

X X

X X

X X

X X

X X

Primary Presets

1920x1200 @ 60Hz

User Presets

Number of User Presets (recognized timings) Available: 10 presets total in FIFO configuration

Changing Modes

 Maximum Mode Change Blank Time for image stability : 5 seconds (Max), excluding “Auto Adjust” time
 Under DOS mode (640 x 350, 720 x 400 & 640 x 400), it should recall factory setting when execute “Auto Adjust”
 The monitor needs to do “Auto Adjust” the first time a new mode is detected (see section “0-Touch™ Function

Actions”)

 While running Change Mode, Auto Adjust or Memory Recall, the image shall blank

10

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

2-6 FRONT PANEL CONTROLS AND INDICATORS

Front Panel Hardware Controls

Power Switch (Front Head) Power Control, soft Power Switch.

Power LED (Front Head) Blue– ON

Orange – Active Off

Dark = Soft Power Switch OFF

Front Panel Controls (Head)

[ 1 ] [ 2 ] [

Reaction Time OSD must fully appear within 0.5s after pushing Button 1

Short Cuts Function from the button(s)

[1] Main Menu

[2] Input toggle (Analog or Digital)

[▼] To immediately activate Brightness/Contrast menu.

[▼] +[▲] Recall both of Contrast and Brightness to default

] [▲] [▼]

[ 1 ] Button 1

[ 2 ] Button 2

[

] Power

[▲] Up arrow button

[▼] Down arrow button

Note: Power Button, Button 1 and Button 2 must be one-shot logic

operation. (i.e. there should be no cycling)

[1] + [2] Toggle 720x400 and 640x400 mode when input 720x400 or 640x400 mode

[1] + [▼] + [▲]

(Keep pushing 3 sec)

[1] + [▼] Power Lock

[1] + [▲] OSD Lock

[▲] Essential mode switch

[2] + [▲] Skin tone switch

[2] + [▼] DDC/CI ON/Off (ON:DDC/CI ; Off:DDC/2B)

No signal + [ ] + [▼] + [▲] Burning mode

Signal + [ ] + [▼] + [▲] Factory Mode

Remark : All the short cuts function are only available while OSD off

White Balance. (Not shown on user’s guide)

Standard ->Text -> Cinema -> Game -> Portrait -> Scenery -> Vivid

Nature -> Reddish -> yellowish

11

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Main Menu Controls

Auto Image Adjust*1

Contrast/Brightness*2*4

Input Select

D-Sub , AV , S-Video , YPbPr , HDMI

Audio Adjust

Volume*4, Mute*4 ,Bass, Treble , Balance

Color Adjust

sRGB, 9300K, 7500K, 6500K, 5400K, User Color [R, G, B]

Information

[H Frequency, V Frequency, Resolution, Pixel Clock,(Video format), Serial Number, Model Number,

[“www.ViewSonic.com

Manual Image Adjust

Horizontal Size*1, H/V. Position*1, Fine Tune*1, Sharpness*3 , Tint*5 , Color*5 , Aspect ratio [1:1 , 4:3 , 16:9 , Full

Screen] , Opticolor [Standard, Text , Cinema, Game, Portrait, Scenery, Vivid ], Opticolor Skin Tone[Nature,

reddish ,yellowish] ,

Setup Menu

Language [English, French, German, Italian, Spanish, Finnish, Japanese,Russian ,Simplified Chinese, Traditional Chinese],

Resolution Notice, OSD Position, OSD Timeout, OSD Background , Sleep [30,45,60,120, Off] *5

Memory Recall

*1 These functions are not available in Digital Mode

*2 These functions are not available under SRGB Mode, Opticolor On, and Opticolor Skin Tone On

*3 These functions are not available under Native Resolution Mode

*4 These functions setting can be recalled to default value by pressing [▼]+[▲]

*5 These functions are not available in D-Sub Mode

*6 These functions are not available in 720p/1080i timing Mode

*7 DLC function always “ON”

” ]

[Remark] Please refer to the detail in the Appendix C

Function descriptions

Main Menu Controls

The Main Menu OSD includes most of control functions.

Please refer to APPENDIX C (Main Menu OSD Table) for the detail.

OSD Lock short cuts function for the buttons

The OSD lock will be activated by pressing the front panel control buttons "(1), & (▲)" for 10 seconds. If the user then tries

to access the OSD by pressing any of the buttons "1", "▼", "▲", "2" a message will appear on the screen for 3 seconds

showing "OSD Locked". The OSD lock will be deactivated by pressing the front panel control buttons "(1), & (▲)" again for

10 seconds.

Note1: When the OSD is locked will lock all functions, including “Volume” and “Mute”

12

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Note 2: Status bar indicating OSD Lock or Unlock is in progress and when complete it will indicate “OSD Locked”

Note 3: OSD Lock should not lock Power Button and Power Lock function

Power Lock short cuts function for the buttons

The power button lock will be activated by pressing the front panel control buttons "(1), & (▼)" for 10 seconds. Locking the

power button means that the user won't be able to turn off the LCD while the power button is locked. If the user presses the

power button while it is locked, a message will appear on the screen for 3 seconds showing "Power Button Locked". It also

means that with the power button locked, the LCD would automatically turn back "On" when power is restored after a power

failure. If the power button is not in the locked mode, then power should return to it's previous state when power is restored

after a power failure. The power button lock will be deactivated by pressing the front panel control buttons "(1), & (▼)"

again for 10 seconds.

Note 1: Status bar indicating Power Button lock or unlock is in progress and when complete it will indicate “Power Button

Locked”

Note 2: Power should only be lockable in the “On State”

Memory Recall Actions

Memory Recall action on the analog and digital mode as below

1. Recall white balance to factory setting

2. Set the factory defaults as shown in Section 4-8

3. Clean all the mode setting buffer

4. Execute Auto Image Adjust

Note: Memory Recall should have no effect for Language, Power Lock, User Color Settings or Input Priority

Input Signal Notice Actions

The Input Signal Notice OSD appears 3 seconds when power turns on or change input signal.

The Input Signal Notice OSD position is on the right-top side of image. And the OSD background setting shall be turn on.

Resolution Notice Actions

Resolution Notice OSD should show on screen after changing to non-native mode for 30 sec

For auto input select function, it shall meet the requirement in Appendix D.

The OSD should disappear after 10 sec or by pushing button [1] or [2]

Resolution Notice function should be disabled when push button [2] under Resolution Notice OSD

0-Touch™ Function Actions

1. Execute Auto Image Adjust when new mode detected, and save the settings to buffer for further use

2. It should be reset by Memory Recall function

(Should not reset by power off, power unplug and others)

OSD Auto Save

The OSD shall save new settings when it is turned off by the user or when it times out. There shall not be a separate save

13

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Factory Defaults (PC Mode:D-SUB/DVI)

Item Defaults Item Defaults

Contrast 70% Input Priority Auto Search

Brightness 100% Resolution Notice Enabled

Color Temperature 6500K Volume 50 % @1W

Sharpness 100% Balance 50 %(Start point)

OSD H. Position 50% Treble 50 %

OSD V. Position 50% Bass 50 %

OSD Time Out 15 Sec

OSD Background Enabled

Factory Defaults (Video source Mode:Video/S-Video/HDMI)

Item Defaults Item Defaults

Contrast 70% Input Priority Auto Search

Brightness 100% Resolution Notice Enabled

Color Temperature 9300K Volume 50 % @1W

Sharpness 100% Balance 50 %(Start point)

OSD H. Position 50% Treble 50 %

OSD V. Position 50% Bass 50 %

OSD Time Out 15 Sec

OSD Background Enabled

14

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

2-7 AUDIO INTERFACE (SPEAKER SPECIFICATION)

Speaker specification
Audio input 1 3.5Mini Jack for PC Audio and HDMI bypass connector
Audio input 2 RCA jack (White / Red) x 1 for YPbPr

Audio input 3

Line input signal 1.0 Vrms
Line input impedance 10 kOhm
Maximum power output (Electric) 3W (RL=8Ω)
Signal to Noise Ratio 85dB
SPL. 85 dB +/- 3dB
Frequency response 100 Hz – 20 Khz
Distortion < 10 % THD (Vol. max @1kHz)

Vibration

Screen image

Connector PC99 requirement Audio in Lime Green pantone # 577C

Cable type / length

Audio DPMS Speakers should be off when the rest of the monitor is in power saving.

* No any sympathetic or abnormal noise allowed.

RCA jack (White / Red) x 1 for CVBS / S-Video
***CVBS and S-Video will share the same RCA jack

There should be no audible vibration with volume at 100% and treble /
bass at default.
There should be no affect on the screen image stability under any
conditions.

Input 1: 3.5mm stereo cable / 1.8m
Input 2: RCA stereo cable / 1.8m
Input 3: RCA stereo cable / 1.8m

2-8 TFT LCD PANEL

1st Source Panel

Model number CMO A240J1
Type Active Matrix TFT, TN technology
Active Size 24” Wide
Pixel Arrangement RGB Vertical Stripe
Pixel Pitch 0.270 mm
Glass Treatment Anti-Glare, Hard coating (3H)
# of Backlights 6 CCFL
Backlight Life 50000 Hrs (Typ)

40000 Hrs (Min)

500 cd/m2 (Typ after 30 minute warm up) Luminance (Center) –
CT = 6500K,
Contrast/ Brightness = Max
Brightness Uniformity 77 % (Typ) / 67 % (Min)
Contrast Ratio 1000 :1 (Typ)
700 : 1 (Min)
Color Depth 16.7 million colors (8bits)
Horizontal Viewing Angle 176 degrees (Typ)
Vertical Viewing Angle 176 degrees (Typ)
Response Time GTG
10%-90% @ Ta=25°C 8ms (Typ) / 13ms (Max)
Mercury 3.0 mg per lamp
Panel Defects Please see Panel Quality Specifications.

*The average of measured value from monthly shipment shall be equal or better than the Typical value above.

400 cd/m2 (Min after 30 minute warm up)

15

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

3. Front Panel Function Control Description

Adjusting the Screen Image

Main Menu

with OSD controls

Front Control Panel

shown below in detail

Displays the control screen for

the highlighted control.

Also toggles between two

controls on some screens.

Also a shortcut to Auto Image

Adjust.

Displays the Main

Menu or exits the

control screen and

saves adjustments.

Standby Power On/Off
Power light
Blue = ON
Orange = Power Saving

Scrolls through menu
options and adjusts the
displayed control.

Also a shortcut to display
the Contrast/Brightness
adjustment control screen
(T) / OptiColor (S)

16

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Do the following to adjust the display setting:

1. To display the Main Menu, press button [1].

NOTE: All OSD menus and adjustment screens disappear automatically after about 15

seconds. This is adjustable through the OSD timeout setting in the setup menu.

2. To select a control to adjust, pressSorTto scroll up or down in the Main Menu.

3. After the desired control is selected, press button [2]. A control screen like the one shown

below appears.

The command line at the bottom of the
control screen tells what to do next from
this screen. You can toggle between control
screens, adjust the selected option, or exit
the screen.

4. To adjust the setting, press the up S or down T buttons.

5. To save the adjustments and exit the menu, press button [1] twice.

The following tips may help you optimize your display:

• Adjust the computer's graphics card so that it outputs a 1920 x 1200 @ 60Hz video signal to
the LCD display. (Look for instructions on “changing the refresh rate” in the graphics card's
user guide.)

• If necessary, make small adjustments using H. POSITION and V. POSITION until the
screen image is completely visible. (The black border around the edge of the screen should
barely touch the illuminated “active area” of the LCD display.)

17

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Main Menu Controls

Adjust the menu items shown below by using the up S and down T buttons.

Control Explanation

Auto Image Adjust sizes and centers the screen image automatically.

Contrast adjusts the difference between the image background (black level)

and the foreground (white level).

Brightness adjusts background black level of the screen image.

Input Select toggles between inputs if you have more than one computer

connected to the VX2435wm.
Note: Please press the power on/off key to restart monitor when changing the
HDMI input device.

Audio Adjust
Vol ume increases the volume, decreases the volume, and mutes the audio.

Tre ble Adjusts the treble level.
Bass Adjusts the bass level.
Balance Adjusts left and right audio balance.

Mute temporarily silences audio output.

Color Adjust provides several color adjustment modes, including preset color

temperatures and a User Color mode which allows independent adjustment of
red (R), green (G), and blue (B). The factory setting for this product is 6500K
(6500 Kelvin).

18

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Control Explanation

sRGB-This is quickly becoming the industry standard for color management,
with support being included in many of the latest applications. Enabling this
setting allows the LCD display to more accurately display colors the way they
were originally intended. Enabling the sRGB setting will cause the Contrast and
Brightness adjustments to be disabled.

9300K-Adds blue to the screen image for cooler white (used in most office

settings with fluorescent lighting).

7500K - Adds blue to the screen image for cooler white (used in most office

settings with fluorescent lighting).

6500K-Adds red to the screen image for warmer white and richer red.

5400K-Adds green to the screen image for a darker color.

User Color Individual adjustments for red (R), green (G), and blue (B).

1. To select color (R, G or B) press button [2].

2. To adjust selected color, pressSandT.

Important: If you select RECALL from the Main Menu when the product is

set to a Preset Timing Mode, colors return to the 6500K factory preset.

Information displays the timing mode (video signal input) coming from the
graphics card in the computer, the LCD model number, the serial number, and
the ViewSonic® website URL. See your graphics card’s user guide for
instructions on changing the resolution and refresh rate (vertical frequency).
NOTE: VESA 1920 x 1200 @ 60Hz (recommended) means that the resolution
is 1920 x 1200 and the refresh rate is 60 Hertz.

19

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Control Explanation

Manual Image Adjust

Horizontal Size adjusts the width of the screen image.

H./V. Position (Horizontal/Vertical Position) moves the screen image left or

right and up or down.

Fine Tune sharpens the focus by aligning text and/or graphics with pixel
boundaries.

NOTE: Try Auto Image Adjust first.

Sharpness adjusts the clarity and focus of the screen image.

Tint Adjusts the Hue level of image. (It's inactive in D-SUB mode only)

Colour Adjusts the saturation level of image. (It's inactive in D-SUB mode

only)

Aspect ratio Selects the image size for 1:1, 4:3, 16:9 & full screen.

20

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Control Explanation

OptiColor Mode provides an optimum display environment depending on the
contents displayed. It contains 7 user-selectable presets. These 7 presets are
easily accessible from the short cut keys.

Standard is for general windows environment and monitor default setting.

Tex t optimized for text editing and viewing in a word processing environment.

Cinema optimized for movie and video environment.

Game optimized for PC/TV game environment.

Portrait optimized for displaying indoor portraits and enhancing pictures.

Scenery optimized for displaying outdoor scenery images.

Vivid optimized for color luster and sharpness.

These 7 presets are carefully chosen by Viewsonic, but may not suit all users'
tastes. In that case, the user can either return to the Standard setting and
manually adjust the brightness and contrast as desired.

OptiColor Skin Tone includes 3 presets (Natural / Red Tone / Yellow Tone)
which user can select according to user's preference.

Setup Menu displays the menu shown below:

21

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Control Explanation

Language Select allows the user to choose the language used in the menus and
control screens.

Resolution Notice allows the user to enable or disable this notice.

If you enable the Resolution Notice shown above and your computer is set at a

resolution other than 1920 x 1200, the following screen appears.

OSD Position allows the user to move the OSD menus and control screens.

OSD Timeout sets the length of time the OSD screen is displayed. For example,

with a “30 second” setting, if a control is not pushed within 30 seconds, the
display screen disappears.

OSD Background allows the user to turn the OSD background On or Off.

Sleep Set up the auto power off time for 30/45/60/120 minutes. (It's inactive in

D-SUB mode only)

Memory Recall returns the adjustments back to factory settings if the display is
operating in a factory Preset Timing Mode listed in the Specifications of this
manual.

22

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

4. Circuit Description

The MST6251DA is a high performance and fully integrated graphics processing IC solution for multi-function LCD
monitor/TV with resolutions up to UXGA/WUXGA. It is configured with an integrated triple-ADC/PLL, an integrated
DVI/HDCP/HDMI receiver, a video de-interlacer, two high quality scaling engines, an on-screen display controller,
and a built-in output clock generator. By use of external frame buffer, PIP is provided for multimedia applic ations. It
supports de-interlaced full-screen video, video-on-graphic overlay, split screen, frame rate conversion, and aspec t
ratio conversion for various video sources. To further reduce system costs, the MST6251DA also integrates intelligent
power management control capability for green-mode requirements
and spread-spectrum support for EMI management.

Video Source

DVI/HDMI

YPbPr

D-Sub

Video

Decoder

DVI/HDMI

YPbPr

RGB

BT656

MST6251DA

32-bit data

DDR

SDRAM

LVDS

4-bit DDR
Direct bus

MCU

Digital Audio

Panel

The MTV416M micro-controller is an 8051 CPU core embedded device targeted for LCD Monitor or LCD TV
application. It includes an 8051 CPU core, a 128K-byte internal program Flash-ROM, a 768-byte SRAM, 4 channels
of PWM DAC, 4 channels of 6-bit ADC, and a built-in sync-processor. It also includes two IIC Slave B ports,
supporting VESA DDC/CI for both D-sub and DVI interfaces, and a Boot-Code-Free ISP (In System Programming).

23

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

The PCM1754 is a CMOS, monolithic, integrated circuit, which includes stereo digital-to-analog converters and support
circuitry in a small 16-lead SSOP package. The data converters use TI’s enhanced multilevel delta-sigma architecture,
which employs 4th-order noise shaping and 8-level amplitude quantization to achieve excellent dynamic performance and
improved tolerance to clock jitter. The PCM1754 accepts industry-standard audio data formats with 16- to 24-bit data,
providing easy interfacing to audio DSP and decoder chips. Sampling rates up to 200 kHz are supported. A full set of
user-programmable functions is accessible through a three-wire serial control port, which supports register write functions.

24

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

The TPA3005D2 is a 6-W (per channel) efficient, Class-D audio amplifier for driving bridged-t ied stereo speakers.
The TPA3005D2 can drive stereo speakers as low as 8 Ω. The high efficiency of the TPA3005D2 eliminates the
need for external heatsinks when playing music. The gain of the amplifier is controlled by two gain select pins. The
gain selections are 15.3, 21.2, 27.2, and 31.8 dB. The outputs are fully protected against shorts to GND, VCC, and
output-to-output shorts. Thermal protection ensures the maximum junction temperature is not exceeded.

25

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

The NJW1141 is a sound processor includes all of th e functions require d to proc ess the audio sign al for TV, su ch as
tone control, balance, volume, mute, and AGC functions. All of the internal status and variables a re cont rolled by I
BUS interface.

2C

The TVP5147 device is a high-quality, single-chip digital video decoder that digitizes and decodes all popular
baseband analog video formats into digital component video. The TVP5147 decoder supports the analog-to-digital
(A/D) conversion of component YPbPr signals, as well as the A/D conversion and decoding of NTSC, PAL, and
SECAM composite and S-video into component YCbCr. This decoder includes two 10-bit 30-MSPS A/D converters
(ADCs). Preceding each ADC in the device, the corresponding analog channel contains an analog circuit that
clamps the input to a reference voltage and applies a programmable gain and offset. A total of 10 video input
terminals can be configured to a combination of YPbPr, CVBS, or S-video video inputs.

Composite or S-video signals are sampled at 2⋅ the square-pixel or ITU-R BT.601 clock frequency, line-locked
alignment, and are then decimated to the 1⋅ pixel rate. CVBS decoding uses five-line adaptive comb filtering for both
the luma and chroma data paths to reduce both cross-luma and cross-chroma artifacts. A chroma trap filter is also
available. On CVBS and S-video inputs, the user can control video characteristics such as contrast, brightness,
saturation, and hue via an I

2C host port interface. Furthermore, luma peaking (sharpness) with programmable gain

is included, as well as a patented chroma transient improvement (CTI) circuit. The following output formats can be
selected: 20-bit 4:2:2 YCbCr or 10-bit 4:2:2 YCbCr. The TVP5147 decoder generates synchronization, blanking,
field, active video window, horizontal and vertical syncs, clock, genlock (for downstream video encoder
synchronization), host CPU interrupt and programmable logic I/O signals, in addition to digital video outputs. The
TVP5147 decoder includes methods for advanced vertical blanking interval (VBI) data retrieval. The VBI data
processor (VDP) slices, parses, and performs error checking on teletext, closed caption (CC), and othe r VBI data. A
built-in FIFO stores up to 11 lines of teletext data, and with proper host port synchronization, full-screen teletext
retrieval is possible. The TVP5147 decoder can pass through the output formatter 2⋅sampled raw luma data for
host-based VBI processing.

26

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

27

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

5. Adjustment Procedure

A. Function Test and Alignment Procedure

1. All Modes Reset

You should do “All Model Reset” (Refer to Chap 3. Hot Keys for Function Controls) first. This action will allow

you to erase all end-user’s settings and restore the factory defaults.

2. Auto Image Adjust

The Auto Adjust is aimed to offer a best screen quality by built-in ASIC. For optimum screen quality, the user

has to adjust each function manually.

A.Turn the computer and LCD monitor on.

B. Press the ‘Auto’ button on monitor keypad to Auto Adjust.

C. The LCD monitor will start the Auto Adjust process automatically and run for 10 consecutive seconds, during

which time you will notice the image change.

3. Firmware

Test Patten: Burn in Model (Refer to Chap3. Hot Keys for Function Control)

-Make sure the F/W is the latest version.

4. DCC

Test Patten: EDID program

-Make sure it can pass test program.

5. Window Shut Down

Test Signal: 1280*1024@60Hz

Test Pattern:

Checkered Pattern Every One Pixel (50%Green & 50%Blue)

Inspection Item: Flicker, Mura

6. Window BG

Test Signal: 1280*1024@60Hz

Test Pattern:

Window standard pattern

Inspection Item: Line Defect, Function Defect & Mura

28

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

7. 25 Gray

Test Signal: 1280*1024@60Hz

Test Pattern:

Full Screen 25% White (Gray)

Inspection Item: Particle, Line Defect & Mura

8. 50 Gray

Test Signal: 1280*1024@60Hz

Test Pattern:

Full Screen 50% White (Gray)

Inspection Item: Bright Dot, Particle, Line Defect & Mura

9. White Box

Test Signal: 1280*1024@60Hz

Test Pattern:

Window standard pattern

Inspection Item: Particle, Line Defect, Power, Image Remain & Mura

10. Black Box

Test Signal: 1280*1024@60Hz

Test Pattern:

Window standard pattern

Inspection Item: Bright Dot, Line Defect & Power

29

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

11. RED

Test Signal: 1280*1024@60Hz

Test Pattern:

Full Screen Red

Inspection Item: Bright Dot, Partial & Line Defect

12. Green

Test Signal: 1280*1024@60Hz

Test Pattern:

Full Screen Green

Inspection Item: Bright Dot, Partial & Line Defect

13. Blue

Test Signal: 1280*1024@60Hz

Test Pattern:

Full Screen Green

Inspection Item: Bright Dot, Partial & Line Defect

14. Gray_Scale_0-100_V64

Test Signal: 1280*1024@60Hz

Test Pattern:

Vertical 64 (256) Gray Scale (Right → Left，From 0 to 100% White)

Inspection Item: Line Defect & Function Defect

30

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

15. Function Test Display pattern

Item Pattern Description Remark

1

2

3

4

5

6

7

8

Gray_Scale_0-100_V

Gray_Scale_0-100_H

Black Full Screen Black Figure 3

Red Full Screen 50% Red Figure 4

Green Full Screen 50% Green Figure 5

Blue Full Screen 50% Blue Figure6

White Full Screen White Figure7

Black_Tile Black Tile Under White Background Figure 8

Vertical 64 (256) Gray Scale (右→左，From 0 to 100% White)

Horizontal 64 (256) Gray Scale (上→下，From 0 to 100% White)

Figure 1

Figure 2

Figure 1 Figure 2

Figure 3 Figure 4

31

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Figure 5 Figure 6

Figure 7 Figure 8

32

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

ISP MySon 3.0b ISP user guide

1. Execute ISP program.

2. Click “Create Security File”

33

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

3. Command No : 4 Î ISP Slave Add.: 94, Slave B Add:94, Comm a nd 1:ac, Command 2:ca, Command 3:53

4. Select MTV Type Î MTV416M128

34

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

5. Click ”Load MCU File” then select thefile: xxx. H01.

6. Inspect ” Check Sum”, Max Addr.

35

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

7. Select ”Auto Run” then set up CPUÎHigh.

8. Click ”RUN”

36

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

9. If appear the message then reconnect and check hardware and click ”RUN”.

10. Completed.

37

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Packing For Shipping And Disassembly Procedure

Packing For Shipping

1. Packing Procedure

1.1 Paste protection film to protect the monitor. (Figure 1)

1.2 Put the monitor in the PE bag and seal the bag with tape. (Figure 2)

Figure 1 Figure 2

1.3 Put the cushion into the carton then place the monitor on the cushion. (Figure 3)

1.4 Put the cushion then place the seat assy and all the accessories into the carton. As last,

close the carton and seal it with tape. (Figure 4)

Figure 3 Figure 4

38

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

D. Monitor Assembly and Disassembly

1 Separate Stand Assy

1.1 Remove Stand Cover

Step 1 :

Remove the Seat Assy

Step 2 :

Remove the Cover .

Step 3 :

Remove 2 Cover Hinges .

Step 4 :

Loose and remove 6 screws

39

Step 5 :

Remove the Stand Assy

Step 6 :

Completed.

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

2 Separate Rear Cover (Rear Case Assy)

Separate Bezel hooks to take Bezel and Rear Cover apart.

Step 1 :

Loose and remove 5 screws.

Step 2 :

Separate Bezel hooks to take

Bezel and Rear Cover apart.

Step 3 :

Remove Rear Cover.

Step 4 :

Completed.

3 Remove Power Board and AD Board

3.1 Remove Metal Cover

Step 1 :

Remove FFC from OSD Board.

Step 2 :

Lift up LCD module and remove bezel then

tear down the Tape.

40

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Step 3 :

Remove 6 pieces of Backlight wires.

Step 4 :

Loose and remove 4 screws.

Step 5 :

Loose and remove 2 screws.

Step 6 :

Loose and remove the screw.

Step 7 :

Loose and remove 2 screws.

41

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Step 8 :

Remove the PCBA Cover

3.2 Remove Power Board and AD Board

Step 1 :

Remove the power wire.

Step 2 :

Loose and remove 6 screws.

Step 3 :

Remove Inverter.

Step 4 :

Remove FFC.

42

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Step 5 :

Loose and remove 4 screws.

Step 6 :

Remove Lips Board

Step 7 :

Remove 2 pieces of FFCs.

Step 8 :

Remove the FFC.

Step 9 :

Loose and remove 4 screws.

Step 10 :

Remove AD PCBA.

Step 11 :

Completed.

43

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

4 Change New AD Board and Power Board

Step 1 :

Place new AD Board.

Step 2 :

Fasten 4 screws.

Step 3 :

Insert FFC.

Step 4 :

Insert 2 pieces of FFCs .

Step 5 :

Insert new Lips.

44

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Step 6 :

Fasten 4 screws.

Step 7 :

Insert the power line.

Step 8 :

Place the Inverter.

Step 9 :

Fasten 6 screws.

Step 10 :

Insert the power wire.

Step 11: Completed.

45

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

5. Remove OSD Board

Step 1 :

Separate both Audio Cable.

Step 2 :

Take OSD Board apart.

Step 3:

Completed.

6.Change New OSD Board

Step 1 :

Place New OSD Board.

Step 2 :

Insert Audio cable to connectors of New

OSD Board.

Step 3:

Completed.

46

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

7. Add Cover to AD PCB Heatsink

Step 1 :

Join the PCB Cover.

Step 2 :

Fasten 2 fixed screws.

Step 3 :

Fasten the screw.

Step 4 :

Fasten 2 screws.

Step 5 :

Fasten 2 screws.

Step 6 :

Insert 6 pieces of Backlight wires.

47

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Step 7 :

Join LCD module and remove bezel then

paste the tape .

Step 8 :

Insert FFC.

Step 9 :

Completed.

8. Rear Assy & Stand Assembly

Step 1 :

Place Rear Cover.

Step 2 :

Fasten 5 fixed screws.

Step 3 :

Place the Stand Assy.

48

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Step 4 :

Fasten 6 fixed screws.

Step 5 :

Join 2 Cover Hinges .

Step 6 :

Join the Cover .

Step 7 :

Join the Seat Assy

Step 8 :

Completed.

49

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

6. Troubleshooting Flow Chart

p

Defect Mode Failure Analysis Repair Testing

Light On Test

※ “ Panel Change” Should be Performed to Level 3 Repair stage

Abnormal

Display

Flash Dots

Bright Dot

Dark Dot

Backlight

Light Leakage

Mura

Image Sticking

Brightness spot

Check Panel

Panel Change

Particle

Dot Defect

Image Remain

Group Bright

Dots

Others Cosmetics

Defect

Next Ste

NG

TEST

A

Completed

50

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

p

Defect Mode Failure Analysis Repair Testing

※ “ Panel Change” Should be Performed to Level 3 Repair stage

A

Display Noise

Power on

Check PCBA

AD/B Change

Display

Abnormal

Power/B Change

Inverter/B Change

Flicker

CNT/B Change

Beat Display

Flicker

Beat Display

Shut Down

Check Panel

Panel Change

Display Wave

Check PCBA

AD/B Change

Power/B Change

CNT/B Change

Check Panel

Panel Change

No Backlight

Check Adapter

Adapter Change

Next Ste

NG

TEST

B

Completed

51

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

b

t

p

Failure Analysis Repair Testing

※ “ Panel Change” Should be Performed to Level 3 Repair stage

B

Display White

Ou

Check PCBA

AD/B Change

Power/B Change

Booting Delay

Brightness

Even

Abnormal

Check PCBA

Check PCBA

Inverter/B Change

OSD/B Change

Power/B Change

Beat Display

No Backlight

Check Panel

Inverter/B Change

Panel Change

Check Adapter

Adapter Change

No signal

AD/B Change

R.G.B

Display

Abnormal

Check PCBA

CNT/B Change

Gray Scale

Display

A

normal

Check Wire

Check Panel

VGA cable Change

DVI cable Change

Panel Change

Next Ste

NG

TEST

C

Completed

52

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

p

Defect Mode Failure Analysis Repair Testing

※ “ Panel Change” Should be Performed to Level 3 Repair stage

C

Horizontal

Line Defect

Vertical

Weak Line

Horizontal

Weak Line

Check PCBA

AD/B Change

Vertical

Band Defect

Check Panel

Panel Change

Horizontal

Band Defect

Power Saving

Display

Abnormal

Check PCBA

AD/B Change

AD/B Change

Peculiar Smell

Check PCBA

Power/B Change

Inverter/B Change

Next Ste

NG

TEST

Completed

53

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

r

r

g

g

p

Defect Mode Failure Analysis Repair Testing

※ “ Panel Change” Should be Performed to Level 3 Repair stage

AD/B Change

Power/B Change

Power ON/OFF

Abnormal

No Powe

Turn Off

Check PCBA

Check PCBA

Abnormal

CNT/B Change

Inverter/B Change

OSD/B Change

Check Wire

Check Wire

Check Adapter

OSD Cable

AC Power Change

DC Power CNT

Cable Chan

Adapter Change

e

LED Display

Abnormal

LED Off

LED Dark

Check PCBA

AD/B Change

Power/B Change

Inverter/B Change

OSD/B Change

LED Abnormal

LED Loss

LED Flicke

Check Wire

OSD Cable Change

DC Power CNT

Cable Chan

Adapter Change

e

NG

Next Ste

TEST

54

ViewSonic Corporation

Completed

Confidential - Do Not Copy VX2435wm-1

p

p

Defect Mode Failure Analysis Repair Testing

Abnormal BIOS

&OSD

※ “ Panel Change” Should be Performed to Level 3 Repair stage

OSD Key

Unavailable

OSD Can’t

Input

OSD Can’t

Read

Check PCB

AD/B Change

CNT/B Change

Power/B Change

Inverter/B Change

OSD/B Change

Abnormal

Louds

eaker

OSD No

Display

OSD Jiggle

OSD Display

Abnormal

Voice Loss

Abnormal

Loud

L/R

Abnormal

Check Wire

Check BIOS

Check PCBA

Check Wire

D-sub cable Change

OSD cable Change

VGA cable Change

DVI cable Change

BIOS Update

AD/B Change

CNT/B Change

Power/B Change

Inverter/B Change

OSD/B Change

No Voice

L/R Same

Vo l u m e

Check Loudspeaker

55

ViewSonic Corporation

Loudspeaker

Noise

OSD Cable Change

Loudspeaker

Change

NG

Next Ste

Completed

Confidential - Do Not Copy VX2435wm-1

TEST

p

Defect Mode Failure Analysis Repair Testing

Other Abnormal

Display

※ “ Panel Change” Should be Performed to Level 3 Repair stage

Display Shut

Down

Check PCBA

AD/B Change

Power/B Change

CNT/B Change

Check Panel

Panel Change

Display Flicker

((tapping )

Check PCBA

AD/B Change

CNT/B Change

Check Panel

Panel Change

DVI Signal

Display

Check PCB

AD/B Change

Abnormal

EDID Update

TV Function

Display

Abnormal

Check PCBA

Check Wire

Check Controller

TV /B Change

AV Cable Change

Remote controller

Change

56

ViewSonic Corporation

NG

Next Ste

Completed

Confidential - Do Not Copy VX2435wm-1

TEST

Trouble Shooting Analysis

Check the information in this section to see if the problems can be solved before requesting repair.

Note：The consumers are only allowed to solve the problems described as below. Any unauthorized product modification, or failure to

follow instructions supplied with the product will end the warranty immediately.

 No image

 Make sure power button is ON.
 Check whether the LCD monitor and computer power cords are plugged and whether there is a

supply of power.

 No Signal Input

 Check the signal connection between the computer and LCD monitor.

 “Out of Range”

 Check the computer image output resolution and frequency and compare the value with the preset

values (Please refer to [Appendix-Display Mode]).

 Fuzzy Image

 Adjust Phase.

 Image too bright

 Adjust brightness and contrast by OSD.

 Image too dark

 Adjust brightness and contrast by OSD.

 Irregular image

 Check the signal connection between the computer and LCD monitor.
 Perform Auto Adjust.

 Distorted image

 Reset the LCD monitor
 Take off extra accessories (such as signal extension cord).

 Image is not centered

 Use OSD Image Menu to adjust H_Position and V_Position.
 Check image size setting.
 Perform Auto Adjust.

 Size is not appropriate

 Use OSD Image Menu to adjust H_Position and V_Position.
 Check image size setting.
 Perform Auto Adjust.

 Uneven color

 Use OSD Color Menu to adjust color setting.

 Color too dark

 Use OSD Color Menu to adjust color setting.

 Dark area distorted

 Use OSD Color Menu to adjust color setting.

 White color is not white

 Use OSD Color Menu to adjust color setting.

57

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

7. Block Diagram

YPbPr + Audio L/R input signal

S-Video signal

Video + Audio L/R input signal

D-sub signal

HDMI signal

PC line in

speaker speaker

Keypad

board

switch

signal

Audio

L/R

Main board

data

signal

timing

signal

Gamma

voltage

VGH

VGL

VAA

Vcom

3.3Vdc

LCD panel

90~240Vac

14.5Vdc

5Vdc

On/off

Power board

adjust

adjust

On/off

INVER

TER

Lamp

voltage

Back

light

58

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

8. Schematic Diagrams

+1.8V
+2.5VM

+3.3V
+3.3AVDD

06. Scaler

SCL_HD
SDA_HD
R_RX2+
R_RX2­G_RX1+
G_RX1­B_RX0+
B_RX0­RXCLK+
RXCLK­HD_DET

VS_RGB
HS_RGB
SOG
BLUE+
BLUE­GREEN+
GREEN­RED+
RED-

PR+
PR­Y+
Y­SOY
PB+
PB-

+1.8V
+2.5VM

+3.3V
+3.3AVDD

VD[0..7]
VLLC

06. Scaler

INV_PWM

AUMCK

AUSCK

AUWS

AUSD

AD[0..3]

INT
WR

ALE

HWRESET

FSDQM0
FSDQM1

FSCLK-

FSCLK+
FSBKSEL0
FSBKSEL1

FSCKE

FSADDR[0..11]

FSDATAU[0..31]

FSDQS1
FSDQS2
FSDQS0
FSDQS3

/FSCAS

/FSWE

/FSRAS

RD

INV_PWM

5V_AU

+14V

V9A

02. Audio

5V_AU

SHDN_AMP

SHDN_AMP

+5V

SHDN_AMP

AV_RST

AV_RST

DC/DC_ON/OFF

PC_R

+14V

PC_L
AV_R

AV_L

YPBPR_R

YPBPR_L

SPK_L+

SPK_L-

SPK_R+

SPK_R-

MSCL
MSDA

SOS

SCAN_ON/OFF

PANEL_ON/OFF

INV_ON/OFF

AV_ON/OFF

DC/DC_ON/OFF

AV_ON/OFF

VCPU

KEY1

SCALER_ON/OFF

KEY2
KEY3
KEY4
KEY5
KEY6

LED_BLU

LED_ORG

08. DDR

+2.5VM

V9A

AUMCK
AUSCK

AUWS
AUSD MSCL

05. MPU

MSCL
MSDA

AD[0..3]
INT
WR
RD
ALE
HWRESET

SCL_HD
SDA_HD
DDC_CLK
DDC_DAT

FSDQM0
FSDQM1
FSCLK­FSCLK+
FSBKSEL0
FSBKSEL1
FSCKE
FSADDR[0..11]
FSDATAU[0..31]
FSDQS1
FSDQS2
FSDQS0
FSDQS3
/FSCAS
/FSWE
/FSRAS

AUMCK
AUSCK

AUWS
AUSD

02. Audio

MSCL
MSDA

AD[0:3]
INT
WR
RD
ALE
HWRESET

SCL_HD
SDA_HD
DDC_CLK
DDC_DAT

05. MPU

FSDQM0
FSDQM1
FSCLK­FSCLK+
FSBKSEL0
FSBKSEL1
FSCKE
FSADDR[0..11]
FSDATAU[0..31]
FSDQS1
FSDQS2
FSDQS0
FSDQS3
/FSCAS
/FSWE
/FSRAS

+5V

PC_R
PC_L
AV_R
AV_L
YPBPR_R
YPBPR_L
SPK_L+
SPK_L­SPK_R+
SPK_R-

MSDA

SOS
SCAN_ON/OFF
SCALER_ON/OFF

VCPU

KEY1
KEY2
KEY3
KEY4
KEY5
KEY6

LED_BLU
LED_ORG

PANEL_ON/OFF

INV_ON/OFF

+2.5VM

14. KEY PAD

KEY1
KEY2
KEY3
KEY4
KEY5
KEY6

LED_BLU
LED_ORG

14. KEY PAD

07. Power

SOS
SCAN_ON/OFF
SCALER_ON/OFF

07. Power

VCPU

SPK_L+

SPK_L-

SPK_R+

SPK_R-

SPK_L+
SPK_L­SPK_R+
SPK_R-

+5V

+14V

VD33V

+3.3V

+2.5VM

INV_PWM

+1.8V

+3.3AVDD

V25V_A
V25V_B

INV_ON/OFF

PANEL_ON/OFF

+5V
+14V
VD33V
+3.3V
+2.5VM
+1.8V
+3.3AVDD
V25V_A
V25V_B

PC_R
PC_L
AV_R
AV_L
YPBPR_R
YPBPR_L

+5V

DDC_CLK
DDC_DAT

+5V

03. HDMI

+5V

03. HDMI

09. VGA

DDC_CLK
DDC_DAT

+5V

09. VGA

10. VIDEO Input

PC_R
PC_L
AV_R
AV_L
YPBPR_R
YPBPR_L

10. AV IO

+1.8VD
+1.8VA
+3.3VA
+3.3VD

SCL_HD
SDA_HD

R_RX2+

R_RX2-

G_RX1+

G_RX1-

B_RX0+

B_RX0-

RXCLK+

RXCLK-

HD_DET

VS_RGB

HS_RGB

SOG

BLUE+

BLUE-

GREEN+

GREEN-

RED+

RED-

PR+

PR-

Y+

Y-

SOY

PB+

PB-

SV_Y

SV_C

AV_CVBS

13. TVP5147

+1.8VD
+1.8VA
+3.3VA
+3.3VD

AV_CVBS

SV_C

SV_C

AV_CVBS

SV_Y

SV_Y

SCL_HD
SDA_HD
R_RX2+
R_RX2­G_RX1+
G_RX1­B_RX0+
B_RX0­RXCLK+
RXCLK­HD_DET

VS_RGB
HS_RGB
SOG
BLUE+
BLUE­GREEN+
GREEN­RED+
RED-

PR+
PR­Y+
Y­SOY
PB+
PB-

VD[0..7]

VLLC

VD[0..7]
VLLC

+5V

+3.3VA
+3.3VD
+1.8VD
+1.8VA

11. AV POWER

+5V

+3.3VA
+3.3VD
+1.8VD
+1.8VA

11. AV POWER

5V_AU

AV_ON/OFF

+14V

V9A

13. Video Decoder

5V_AU

AV_ON/OFF

+14V
V9A

08. DDR

15. DC/DC 15. DC/DC

RXOC-

RXO0+

RXO2-

RXO1-

RXE0-

RXE1+

RXE0-

A_B0P

A_B0N

A_B0P

RXE1+

RXE1-

RXE1-

RXE1-

RXE1+

A_B0N

A_B1P

A_B1P

A_B1P

A_B0N

RXE2+

RXE2-

RXE2+

RXE2+

A_B1N

A_B1N

A_B2P

A_B1N

RXE2-

RXE3+

RXE2-

A_B2P

A_B2N

A_B2P

RXE3+

RXE3-

RXE3+

A_B2N

A_B3P

A_B2N

RXEC+

RXEC-

RXE0+

MSDA

MSCL

AV_RST

RXE0-

RXE0+

RXEC-

A_G0P

A_G0P

A_G0N

A_G0P

A_G0N

A_G1P

A_G1P

A_G1P

A_G0N

A_G1N

A_G1N

A_G2P

A_G1N

RXEC+

RXEC+

A_G2P

A_G2N

A_G2N

A_G2P

A_G2N

RXEC-

A_G3P

A_G3P

A_G3N

A_G3P

RXE0+

A_G3N

A_B0P

A_G3N

AV_RST

MSCL

MSDA

VD33V
V25V_A
V25V_B

MSCL
MSDA

VD33V
V25V_A
V25V_B

MSCL
MSDA

04. Panel IF

GRL1

GRL1

STV_R

STV_R

GRL1

STV_R

A_TP1

A_STH

A_TP1

A_TP1

A_STH

A_R0P

A_R0P

A_R0P

A_STH

A_R0N

A_R0N

A_R1P

A_R0N

A_R1P

A_R1N

A_R1N

A_R1P

A_R1N

A_R2P

A_R2P

A_R2N

A_R2P

A_R2N

A_R3P

A_R2N

A_R3P

A_R3N

A_R3N

A_R3P

A_R3N

RXE3-

RXE3-

A_B3P

A_B3N

A_B3N

A_B3P

A_B3N

RXOC+

RXOC-

RXOC+

RXOC-

RXOC+

A_CKP

A_CKN

A_CKP

A_CKN

A_CKP

A_CKN

RXO0-

RXO0+

RXO0+

B_R0P

B_R0N

B_R0P

B_R0P

RXO0-

RXO1+

RXO1+

RXO0-

RXO1+

B_R1P

B_R0N

B_R1P

B_R1P

B_R0N

RXO2+

RXO1-

RXO1-

B_R1N

B_R1N

B_R2P

B_R1N

RXO2+

RXO2-

RXO2-

RXO2+

B_R2N

B_R2P

B_R2N

B_R2P

B_R2N

RXO3+

RXO3-

RXO3+

RXO3+

B_R3P

B_R3N

B_R3P

B_R3P

RXO3-

RXO3-

B_G0P

B_R3N

B_G0P

B_G0P

B_R3N

B_G0N

B_G1P

B_G0N

B_G1P

B_G1P

B_G0N

RESET_T

B_G1N

B_G1N

B_G2P

B_G1N

RESET_T

RESET_T

B_G2P

B_G2N

B_G2N

B_G2P

B_G2N

FDOT

FDOT

FDOT

B_G3P

B_G3N

B_G3P

B_G3P

B_G3N

B_B0P

B_G3N

B_B0N

B_B0P

B_B0N

B_B0P

B_B0N

B_B1P

B_B1P

B_B1N

B_B1P

B_B1N

B_B2P

B_B1N

B_B2P

B_B2N

B_B2N

B_B2P

B_B2N

B_B3P

B_B3N

B_B3P

B_B3P

B_CKP

B_B3N

B_CKP

B_B3N

B_CKP

B_CKN

B_CKN

B_STH

B_CKN

16. T-CON16. T-CON

B_STH

B_TP1

B_STH

B_TP1

B_TP1

CKV

DC/DC_ON/OFF

GVOFF

GVOFF

SD_CS1
SD_CS2

SD_DQM

SD_RAS
SD_CAS

SD_WE
SD_BA0
SD_BA1

SD_CLK
SDA_D[0..31]
SDB_D[0..31]

SD_A[0..10]

STV

CKV

OE

POL

POL

OE

STV

04. Panel IF

OE

POL

CKV

VGH_P

STV

VGL

VD33V

AVDD

SDA_D[0..31]
SDB_D[0..31]
SDB_A[0..10]

VGH_P
VGL
VD33V
AVDD

SD_CS1
SD_CS2
SD_DQM
SD_RAS
SD_CAS
SD_WE
SD_BA0
SD_BA1
SD_CLK

DC/DC_ON/OFF
GVOFF

17. T-CON SDRAM

SD_CS1
SD_CS2
SD_DQM
SD_RAS
SD_CAS
SD_WE
SD_BA0
SD_BA1
SD_CLK
SDA_D[0..31]
SDB_D[0..31]
SD_A[0..10]

17. T-CON SDRAM

VGH_P

+14V

VD33V

VGL

AVDD

VD33V

+14V
VD33V

VGL
VGH_P
AVDD

VD33V

ViewSonic Corporation

Model

Title

TOP

Date Rev:

59

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

料號未定

AUSCK

AUSCK AUMCK

5V_AU

5V_AU

YPBPR_R YPBPR_L

PC_R PC_L

MSDA

MSCL5,10,13

1 2

LOUT HDMI_L

ROUT HDMI_R

HDMI_R

YPBPR_R
PC_R PC_L

INR

R270R270
R271R271

AUSD

AUWS

L42L42

C341C341

C379C379

R327R327

C381C381

R328R328

C351C351
C345C345
C346C346
C350C350

C348C348
C355C355

C356C356
C358C358
C360C360

AUSD
AUWS

R266R266
R267R267
R269R269

C342C342

10
11
12
13
14
15

C380C380

C382C382

1
2
3
4
5
6
7
8
9

LOUT
ROUT

IN1a
IN2a
IN3a
IN4a
MONa
NC
TONE-Ha
TONE-La
LINEa
OUTa
CVa
CVb
SDA
SCL
GND

U31U31

U30U30

1

SBCK

2

SDATA

3

SLRCK

4

DGND

5

NC

6

VCC

7

LOUT

8

ROUT

IN1b
IN2b
IN3b
IN4b

MONb

TONE-Hb

TONE-Lb

LINEb

OUTb

AGC
CTH

CTL

VREF

SXCK
MUTE

DEMP

TEST

ZEROA

VCOM
AGND

NC

V+

FMT

R268R268

16
15
14
13
12
11
10
9

30
29
28
27
26
25
24
23
22
21
20
19
18
17
16

R325R325

R326R326

C344C344
C352C352
C353C353
C347C347

C354C354
C349C349

C357C357
C359C359
C361C361
C362C362
C363C363

V9A

V9A

C343C343

AUMCK

5V_AU

HDMI_L
AV_LAV_R
YPBPR_L

INL

SHDN_AMP5

AV_LAV_R

R310R310

C370C370

GNDA

D34D34

R312R312

C50C50

+14V_AMP

1 2

GNDA

Audio Amp

+14V

L1L1

+14V4,7,13

32

Q24Q24

1

R313R313

GNDA

GNDA

INL

R2R2

R8R8

GNDA

1 2

+C5+

C5

GNDA GNDA

C37C37

INR

C38C38

C30C30

C31C31

C32C32

R3R3

R9R9

+14V_AMP

GNDA

C10C10

L2L2

46

45

PVCCR

PVCCR

Thermal Pad

Thermal Pad

LOUTN16PGNDL18LOUTP

PVCCL

15

L4L4

C61C61

C9C9

L3L3

C20C20

39

41

42

43

PVCCR

C62C62

PGNDR

ROUTP40ROUTP

PVCCL

20

22

C52C52

C55C55

L5L5

ROUTN44ROUTN

PGNDR

LOUTN17PGNDL19LOUTP21PVCCL

38

23

PVCCR

C35C35

+14V_AMP

37

BSRP

VCLAMPR

VAROUTR

VAROUTL

VCLAMPL

BSLP

24

+14V_AMP

C56C56

MODEB

MODE

AVCC

AVDD
COSC
ROSC
AGND

+14V_AMP

36
35
34
33
32
31
30

NC

C42C42

29
28
27

R4R4

26

C49C49

25

+C6+

C6

GNDA

C8C8

C16C16 C18C18

C17C17

C19C19

+14V_AMP

47

49

48

U1

U1

1
2
3
4
5
6
7
8

9
10
11
12

+14V_AMP

SDZ
RINN

Thermal pad
RINP
V2P5

LINP
LINN
AVDDREF
VREF
VARDIFF
VARMAX
VOL
REFGND

C53C53 C54C54

BSRN

BSLN13PVCCL

14

C51C51

C39C39
C40C40

C46C46

C28C28

GNDA

SPK_R-

SPK_R+

GNDA

GNDA

SPK_L+

SPK_R­SPK_R+
SPK_L+
SPK_L-

GNDA

60

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

GNDA

SPK_L-

ViewSonic Corporation

Model

Title

Date Rev:

AUDIO

J1J1

+5V

CEC/DDC GND

DDC SCL

DDC SDA

CEC
HPD

Dat2 shield
Dat1 shield
Dat0 shield

clk shield

DAT0+

DAT0-

DAT1+

DAT1-

DAT2+

DAT2-

18
17
15
16
13
19

2
5
8
11

7
9
4
6
1
3

HD5V

HPD

R20R20

HPD

Q1Q1

32

RX0+
RX0­RX1+
RX1­RX2+
RX2-

1

SCL_HD

HD_DET

R21R21

R286R286
R285R285
R287R287
R288R288
R289R289
R290R290

R22R22

R24R24
R23R23

R18R18

HD5V

R19R19

B_RX0+ 6
B_RX0- 6
G_RX1+ 6
G_RX1- 6
R_RX2+ 6
R_RX2- 6

U3U3

8

VCC

7

WP

6

SCL
SDA5GND

A0
A1
A2

+5V

D1D1

+5V 2,7,9,10,11,13

C66C66

1
2
3
4

SDA_HD
SCL_HDSDA_HD

HD5V

SDA_HD 6
SCL_HD 6

10

clk+

12

clk-

HD5V HPD SCL_HD SDA_HD RX0+ RX0- RX1+

D35D35

1 2

RX1- RX2+ RX2- RXC+ RXC-

D42D42

1 2

RXC+
RXC-

D36D36

D43D43

R291R291
R292R292

1 2

D37D37

D44D44

RXCLK+ 6
RXCLK- 6

1 2

D38D38

D45D45

D39D39

1 2

D46D46

1 2

D40D40

D41D41

1 2

1 2

1 2

1 2

1 2

61

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

ViewSonic Corporation

1 2

Model

Title

HDMI

Date Rev:

CN1CN1

VCM
GMA18
GMA17
GMA16
GMA15
GMA14
GMA13
GMA12
GMA11
GMA10

VAA

B_B3P6
B_B3N6

B_B2P6

B_B2N6

B_B1P6

B_B1N6

B_B0P6

B_B0N6
B_G3P6

B_G3N6
B_G2P6

B_G2N6

B_G1P6

B_G1N6

B_G0P6

B_G0N6

POL6

B_STH6
B_CKP6
B_CKN6

B_TP16

B_R3P6

B_R3N6

B_R2P6

B_R2N6

B_R1P6

B_R1N6

B_R0P6

B_R0N6

VSD

VAA

GMA9
GMA8
GMA7
GMA6
GMA5
GMA4
GMA3
GMA2
GMA1

53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

A_B3P6

A_B3N6

A_B2P6

A_B2N6

A_B1P6

A_B1N6

A_B0P6

A_B0N6
A_G3P6

A_G3N6
A_G2P6
A_G2N6
A_G1P6
A_G1N6
A_G0P6
A_G0N6

POL6

A_STH6
A_CKP6

A_CKN6

A_TP16

A_R3P6
A_R3N6
A_R2P6
A_R2N6
A_R1P6
A_R1N6
A_R0P6
A_R0N6

VGH_P

VGL

STV_R6

STV6

CKV6

OE6

GRL16

VAA

VSD

VGD

VREF

CN2CN2

53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

GMA1
GMA2
GMA3
GMA4

GMA5
GMA6
GMA7
GMA8
GMA9

RA1RA1

RA3RA3

VAA

AVDD

R36R36

12.5V

VREF

R37R37

R39R39

1
2
3
4

1
2
3
4

R42R42

8
7
6
5

8
7
6
5

MSCL5,10,13

MSDA

1

2

Q2Q2

3

VREF REFL

VAA VAA

VD33V

C68C68

10
11
12
13
14
15
16
17
18
19

U5U5

1
2
3
4
5
6
7
8
9

Vcom out2
REFH
NC
NC
Out1
Out2
Out3
Out4
Out5
Out6
GNDa
VS
Out7
Out8
Out9
REFH out
VSD
SCL
SDA

R38R38

R40R40

Vcom out1

REFL

NC
NC

REFL out

Out18
Out17
Out16
Out15
Out14
GNDa

VS
Out13
Out12

Ou11
Out10
GNDd

AO

Thermal pad

39

REFL

LD

0.2V

R44R44

R41R41

R45R45

38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20

RA2RA2

RA4RA4

1
2
3
4

1
2
3
4

R43R43

VCM

GMA1
GMA2
GMA3
GMA4
GMA5
GMA6
GMA7
GMA8
GMA9

VREF

8
7
6
5

8
7
6
5

1
1
1
1
1
1
1
1
1

1

GMA18
GMA17
GMA16
GMA15

GMA14
GMA13
GMA12
GMA11
GMA10

GMA1GMA1
GMA2GMA2
GMA3GMA3
GMA4GMA4
GMA5GMA5
GMA6GMA6
GMA7GMA7
GMA8GMA8
GMA9GMA9

VREF1VREF1

GMA10
GMA11
GMA12
GMA13
GMA14
GMA15
GMA16
GMA17
GMA18

GMA1 12.20V))
GMA2 10.40V))
GMA3 9.85V))
GMA4 9.25V))
GMA5 9.10V))
GMA6 8.95V))
GMA7 8.60V))
GMA8 7.80V))
GMA9 7.35V))
GMA10 6.15V))
GMA11 5.65V))
GMA12 4.55V))
GMA13 4.10V))
GMA14 3.90V))
GMA15 3.65V))
GMA16 3.10V))
GMA17 2.45V))
GMA18 0.55V))

GMA10GMA10

1

GMA11GMA11

1

GMA12GMA12

1

GMA13GMA13

1

GMA14GMA14

1

GMA15GMA15

1

GMA16GMA16

1

GMA17GMA17

1

GMA18GMA18

1

R46R46

VD33V

VD33V

C73C73

R47R47

VD33V

C74C74

62

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

VGD

VSD

VCM

GMA1

C69C69 C71C71

GMA9

C70C70

C76C76

C77C77C75C75

GMA10

C72C72

GMA18

C78C78

SCAN BLU

1

VCOM1VCOM1

CN3CN3

1

2

2

ViewSonic Corporation

STV

1

Model

Title

Panel Interface

Date Rev:

DC/DC_ON/OFF

R239R239

SCAN_ON/OFF

R314R314

C371C371

VCPU

C82C82

D2D2

1 2

AV_ON/OFF

SHDN_AMP

PANEL_ON/OFF

INV_ON/OFF

HDCP_SCL
HDCP_SDA

C85C85

C86C86

INT

MSDA

MSCL

R296R296

AV_RST

HWRESET

R59R59
R65R65

Y2Y2

RESET_MPU

INT
MSDA

MSCL
AV_ON/OFF
AV_RST

SHDN_AMP
HWRESET

PANEL_ON/OFF
INV_ON/OFF

EA/VP

UCLK

R51R51

35

P7.0/HBLANK

21

X1

20

X2

10

RESET

14

INT0/P3.2

15

INT1/P3.3

16

T0/P3.4/ISDA

17

P7.5/ISCL

36

P5.7/CLKO2

37

P5.6

38

P5.5

39

P5.4

40

P5.3

41

P5.2

42

P5.1

43

P5.0

1

P4.2/AD2

12

P4.3/AD3

VCPU

C84C84

U8U8

44

P1.0/ET2

VCC

P1.1/DA0
P1.2/DA1
P1.3/DA2

P1.4/DA3
HSYNC/P1.5
VSYNC/P1.6

P1.7/SOGI

P6.0/CLKO1

P6.1
P6.2
P6.3
P6.4
P6.5
P6.6
P6.7

HSCL2/P7.3

HSDA2/P7.4

P7.2/HCLAMP

P7.1/VBLANK
HSDA1/TXD/P3.1
HSCL1/RXD/P3.0

P4.0/AD0
P4.1/AD1

GND

22

VCPU

785

6

RA20RA20

312

4

2
3
4
5
6
7
8
9

KEY1

24

KEY2

25

KEY3

26

KEY4

27

KEY5

28

KEY6

29
30
31

R256R256

19

R257R257

18
32

R297R297

33

R261R261

13

R260R260

11
23

34

LED_BLU
LED_ORG

785

6

312

4

RA21RA21

SCALER_ON/OFF

VCPU

RA6RA6

KEY1
KEY2
KEY3
KEY4
KEY5
KEY6

DDC_DAT
DDC_CLK

LED_BLU
LED_ORG

6

312

4

VCPU

785

R295R295

6

312

4

785

RA7RA7

R330R330

SOS
DDC_DAT
DDC_CLK

AD0
AD1
AD2
AD3

VCPU VCPU

R331R331

VCPU

AD[0:3]

ALE
RD
WR

VCPU

1

Q26Q26

D48D48

1 2
1 2

D47D47

Q27Q27

1

+5V

+5V VCPU

C365C365

32

SCL_HD
SDA_HD

32

U32U32

3

SCL_HD
SDA_HD

VIN

C83C83

1

VOUT
VOUT

GND

VCPU

2
4

U7U7

3

Vcc

C364C364

RESET

GND

VCPU

RESET_MPU

2
1

I2C address at A0
for System Data
stroge.

C87C87

U9U9

1

3
4

VCC

A0
A12WP

SCL

A2

SDA

GND

VCPU

8
7
6
5

MSCL
MSDA

R61R61

R66R66

I2C address at A4
for HDCP key

VCPU

U10U10

R64R64 R62R62

1

A0
A12WP

3

A2

4

GND

C88C88

VCC

SCL

SDA

VCPU

8
7
6
5

HDCP_WP
HDCP_SCL
HDCP_SDA

VCPU

R299R299

VCPU VCPU

R63R63

HDCP_SCL
HDCP_SDA

HDCP_WP

CN4CN4

1

1

2

2

3

3

4

4

ViewSonic Corporation

Model

Title

Date Rev:

MTV416

63

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

SD_A[0..10]

SDA_D[0..31] SDB_D[0..31]

SD_A[0..10]

SDA_D[0..31]

SDA_D0
SDA_D1

SDA_D2
SDA_D3

SDA_D4
SDA_D5

SDA_D6
SDA_D7

SD_DQM
SD_WE
SD_CAS
SD_RAS
SD_CS1

SD_BA0
SD_BA1

SDA_D16
SDA_D17

SDA_D18
SDA_D19

SDA_D20
SDA_D21

SDA_D22
SDA_D23

SD_DQM
SD_WE
SD_CAS
SD_RAS
SD_CS1

SD_BA0
SD_BA1
SD_A10
SD_A0
SD_A1
SD_A2
SD_DQM

VCC_SD

U28U28

1

VDD

2

DQ0

3

VDDQ

4

DQ1

5

DQ2

6

VSSQ

7

DQ3

8

DQ4

9

VDDQ

10

DQ5

11

DQ6

12

VSSQ

13

DQ7

14

NC

15

VDD

16

DQM0

17

WE

18

CAS

19

RAS

20

CS

21

NC

22

BS0

23

BS1

24

A10/AP

25

A0

26

A1

27

A2

28

DQM2

29

VDD

30

NC

31

DQ16

32

VSSQ

33

DQ17

34

DQ18

35

VDDQ

36

DQ19

37

DQ20

38

VSSQ

39

DQ21

40

DQ22

41

VDDQ

42

DQ23

43

VDD

VSS

DQ15

VSSQ

DQ14
DQ13

VDDQ

DQ12
DQ11

VSSQ

DQ10

DQ9

VDDQ

DQ8

NC

VSS

DQM1

NC
NC

CLK

CKE

A9
A8
A7
A6
A5
A4
A3

DQM3

VSS

NC

DQ31

VDDQ

DQ30
DQ29

VSSQ

DQ28
DQ27

VDDQ

DQ26
DQ25

VSSQ

DQ24

VSS

86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44

SDA_D15
SDA_D14

SDA_D13
SDA_D12

SDA_D11
SDA_D10

SDA_D9
SDA_D8

SD_DQM

SD_CLK1

SD_A9
SD_A8
SD_A7
SD_A6
SD_A5
SD_A4
SD_A3
SD_DQM

SDA_D31
SDA_D30

SDA_D29
SDA_D28

SDA_D27
SDA_D26

SDA_D25
SDA_D24

SDB_D[0..31]

SD_CS2

SDB_D0
SDB_D1

SDB_D2
SDB_D3

SDB_D4
SDB_D5

SDB_D6
SDB_D7

SDB_D16
SDB_D17

SDB_D18
SDB_D19

SDB_D20
SDB_D21

SDB_D22
SDB_D23

SD_DQM
SD_WE
SD_CAS
SD_RAS
SD_CS2

SD_BA0
SD_BA1
SD_A10
SD_A0
SD_A1
SD_A2
SD_DQM

VCC_SD

U29U29

1

VDD

2

DQ0

3

VDDQ

4

DQ1

5

DQ2

6

VSSQ

7

DQ3

8

DQ4

9

VDDQ

10

DQ5

11

DQ6

12

VSSQ

13

DQ7

14

NC

15

VDD

16

DQM0

17

WE

18

CAS

19

RAS

20

CS

21

NC

22

BS0

23

BS1

24

A10/AP

25

A0

26

A1

27

A2

28

DQM2

29

VDD

30

NC

31

DQ16

32

VSSQ

33

DQ17

34

DQ18

35

VDDQ

36

DQ19

37

DQ20

38

VSSQ

39

DQ21

40

DQ22

41

VDDQ

42

DQ23

43

VDD

VSS

DQ15

VSSQ

DQ14
DQ13

VDDQ

DQ12
DQ11

VSSQ

DQ10

DQ9

VDDQ

DQ8

NC

VSS

DQM1

NC
NC

CLK

CKE

A9
A8
A7
A6
A5
A4
A3

DQM3

VSS

NC

DQ31

VDDQ

DQ30
DQ29

VSSQ

DQ28
DQ27

VDDQ

DQ26
DQ25

VSSQ

DQ24

VSS

86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44

SDB_D15
SDB_D14

SDB_D13
SDB_D12

SDB_D11
SDB_D10

SDB_D9
SDB_D8

SD_DQM

SD_CLK1

SD_A9
SD_A8
SD_A7
SD_A6
SD_A5
SD_A4
SD_A3
SD_DQM

SDB_D31
SDB_D30

SDB_D29
SDB_D28

SDB_D27
SDB_D26

SDB_D25
SDB_D24

SD_CLK

R238R238

VD33V

R237R237

12

SD_CLK1

C321C321

VD33V

VCC_SD

C323C323

VCC_SD

C332C332

64

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

C333C333

U6.3 U6.15U6.1 U6.29 U6.43 U6.49 U6.67 U6.81

C325C325

C326C326

C327C327

C328C328C324C324

C329C329

C330C330C322C322

C331C331

U8.3 U8.15U8.1 U8.29 U8.43 U8.49 U8.67 U8.81

C335C335 C336C336

C337C337

C338C338C334C334

C340C340C339C339

ViewSonic Corporation

Model

Title

Date Rev:

MST6251DA

+5V

U11U11

U12U12

U14U14

U13U13

3

VIN

GND

1

3

VIN

GND

1

3

VIN

GND

1

3

VIN

GND

1

VOUT
VOUT

VOUT
VOUT

VOUT
VOUT

VOUT
VOUT

2
4

2
4

2
4

2
4

+3.3V

5V_SCALER

C131C131

C134C134

C140C140

C138C138

C132C132

C135C135

C141C141

C137C137

Q16Q16

32

R263R263

R265R265

SCALER_ON/OFF5

1

C372C372

1

32

Q17Q17

R264R264

R300R300

R305R305

R304R304

+3.3AVDD

C133C133

+3.3V

C136C136

+2.5VM

C142C142

+1.8V

C139C139

Scaler Analog

+3.3AVDD 6

Scaler Digital

+3.3V 6

Scaler & DDR

+2.5VM 6,8

Scaler Core

+1.8V 6

Apdaptor Connector

+5V

R301R301

+14V

R303R303

R317R317

INV_ON/OFF5

C369C369

SCAN_ON/OFF5

SOS

+5V

R77R77

32

Q5Q5

INV_PWM6

INV_PWM

1

SCAN_ON/OFF
SOS

INV_ADJ

J2J2

16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

+5V

+5V

+5V7

R78R78

32

PANEL_ON/OFF5

C373C373

PANEL_ON/OFF +5V +3.3AVDD +3.3V +1.8V

1

1

PANEL_ON1PANEL_ON1

Q7Q7

Q6Q6

32

1

R258R258

1

C146C146

C149C149

C155C155

+5V1+5V1

C147C147

C156C156

1

U15U15

3

U16U16R79R79

3

U17U17

3

+33AVDD1+33AVDD1

VIN

VIN

VIN

1

1

1

VOUT
VOUT

GND

VOUT
VOUT

GND

VOUT
VOUT

GND

2
4

2
4

2
4

1

+33V1+33V1

Panel & TCON IO & SDRAM

R306R306

R307R307

R308R308

VD33V

C148C148

TCON Core

V25V_A

C151C151C150C150

TCON RSDS

V25V_B

C157C157

1

+18V1+18V1

VD33V

V25V_A

V25V_B

+2.5VM

VD33V

V25V_A

1

14V114V1

V25V_B+14V

+5V2,3,9,10,11,13

+14V

1

+25VM1+25VM1

1

VD33V1VD33V1

1

V25V_A1V25V_A1

1

V25V_B1V25V_B1

C143+C143

+14V

C152+C152

+5V

+

+

C144C144

C153C153

C145C145

C154C154

ViewSonic Corporation

Model

65

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

Title

Power

Date Rev:

+2.5VM

L14L14

1 2

FSCLK+

FSCLK-

+2.5V_DMQ

C158C158

GND

R80R80

Place this parallel
termination close to
corresponding memory IC
Pins

FSDQM0

FSDQM1

FSDQM0

FSDQM1

C159C159 C173C173

FSADDR[0..11]6

FSBKSEL06
FSBKSEL16

FSCLK-6

FSCLK+6

FSCKE6

/FSRAS6

/FSCAS6

/FSWE6

FSDQS0
FSDQS2
FSDQS1
FSDQS3

R277R277
R279R279
R278R278
R280R280

C162C162

FSADDR0
FSADDR1
FSADDR2
FSADDR3
FSADDR4
FSADDR5
FSADDR6
FSADDR7
FSADDR8
FSADDR9 FSDATA7
FSADDR10
FSADDR11

FSBKSEL0
FSBKSEL1

FSCLK­FSCLK+
FSCKE

/FSRAS
/FSCAS
/FSWE

C163C163 C166C166

FSDQS0
FSDQS2
FSDQS1
FSDQS3

FSDQM00
FSDQM10
FSDQM01
FSDQM11

GND

M4
M5

M6
M7

M8
M9

M10

M3

L11
L10

M11

M1

G12

G1

A12

G11

G2

A11

L12

M2

B10

G3

G10

K11
K12

C164C164 C167C167 C172C172C160C160

+2.5V_DMQ

U18U18

A0
A1

L5

A2
A3
A4

L8

A5
A6
A7
A8/AP

L7

A9

K5

A10

L6

A11

BA0

L4

BA1
CK

CK
CKE
CS

L1

RAS

K1

CAS

K2

WE

A1

DQS0
DQS1
DQS2
DQS3

A2

DM0
DM1
DM2
DM3

L9

NC
NC
NC

B3

NC
NC
NC
NC

K8

NC
NC
NC

L2

NC

L3

NC

VDDC6VDDC7VDDD3VDD

C169C169

D10

FSVREF

VDDK3VDDK6VDDK7VDD

C170C170

K10

M12

K9

F10

VDDQF3VDDQ

H10

VDDQH3VDDQ

C168C168C161C161

+2.5V_DMC

J10

VDDQJ3VDDQ

C165C165

B11

D11

E10

VDDQB2VDDQB4VDDQB6VDDQB7VDDQB9VDDQ

VSSD4VSSD6VSSD7VSSD9VSSE5VSSE6VSSE7VSSE8VSSF5VSSF6VSSF7VSSF8VSSG5VSSG6VSSG7VSSG8VSSH5VSSH6VSSH7VSSH8VSSJ5VSSJ6VSSJ7VSSJ8VSSK4VSS

VDDQD2VDDQ

VDDQE3VDDQ

C171C171

VREF

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7

DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23

DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31

VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

A6
B5
A5
A4
B1
C2
C1
D1

J12
J11
H12
H11
F12
F11
E12
E11

E2
E1
F2
F1
H2
H1
J1
J2

D12
C12
C11
B12
A9
A8
B8
A7

A3
A10
C3
C4
C5
C8
C9
C10
D5
D8
E4
E9
F4
F9
G4
G9
H4
H9
J4
J9

GND

FSDATA0
FSDATA1
FSDATA2
FSDATA3
FSDATA4
FSDATA5
FSDATA6
FSDATA7

FSDATA16
FSDATA17
FSDATA18
FSDATA19
FSDATA20
FSDATA21
FSDATA22
FSDATA23

FSDATA8
FSDATA9
FSDATA10
FSDATA11
FSDATA12
FSDATA13
FSDATA14
FSDATA15

FSDATA24
FSDATA25
FSDATA26
FSDATA27
FSDATA28
FSDATA29
FSDATA30
FSDATA31

+2.5VM6,7

C174C174

FSDATA[0..31]

+2.5VM

+2.5V_DMQ

FSDATA0
FSDATA1
FSDATA2
FSDATA3

FSDATA4
FSDATA5
FSDATA6

FSDATA8
FSDATA9
FSDATA10
FSDATA11

FSDATA12
FSDATA13
FSDATA15
FSDATA14

FSDATA16
FSDATA17
FSDATA19
FSDATA18

FSDATA20
FSDATA21
FSDATA23
FSDATA22

FSDATA24
FSDATA25
FSDATA26
FSDATA27

FSDATA28
FSDATA29
FSDATA30
FSDATA31

L15L15

1 2

RA8RA8

4
3
2
1

RA9RA9

4
3
2
1

RA10RA10

4
3
2
1

RA11RA11

4
3
2
1

RA13RA13

4
3
2
1

RA15RA15

4
3
2
1

RA16RA16

4
3
2
1

RA17RA17

4
3
2
1

+2.5V_DMC

C175C175

GND

C176C176

FSDATAU[0..31]

FSDATAU0

5

FSDATAU1

6

FSDATAU2

7

FSDATAU3

8

FSDATAU4

5

FSDATAU5

6

FSDATAU6

7

FSDATAU7

8

FSDATAU8

5

FSDATAU9

6

FSDATAU10

7

FSDATAU11

8

FSDATAU12

5

FSDATAU13

6

FSDATAU15

7

FSDATAU14

8

FSDATAU16

5

FSDATAU17

6

FSDATAU19

7

FSDATAU18

8

FSDATAU20

5

FSDATAU21

6

FSDATAU23

7

FSDATAU22

8

FSDATAU24

5

FSDATAU25

6

FSDATAU26

7

FSDATAU27

8

FSDATAU28

5

FSDATAU29

6

FSDATAU30

7

FSDATAU31

8

C177C177

C178C178

C179C179

C180C180

FSDATAU[0..31] 6

C181C181

C182C182

C183C183

GND

66

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

R242R242

R243R243

FSVREF

C184C184

GND

Near The DDR-SDRAM IC

C185C185

ViewSonic Corporation

Model

Title

Date Rev:

DDR-SDRAM

DDC_DAT

R252R252

R251R251

DDC_DAT

D6D6

DDC_CLK

R254R254

1 2

RED_IN+

D8D8

1 2

GRN_IN+

D9D9

D7D7

RED_IN-

GRN_IN-

TXD
ASDA
AHS_IN
AVS_IN
ASCL

1 2

CN5CN5

R85R85

R89R89

1617

11
12
13
14
15

1
6
2
7
3
8
4
9
5
10

RED_IN+

RED_IN-

GRN_IN+

GRN_IN­BLU_IN+
BLU_IN­RXD
5V_VGA

R86R86

R87R87

R88R88

R90R90

R81R81 R82R82

DDC_CLK

R253R253

D5D5

1 2

C187C187

C188C188

C189C189

C190C190

5V_VGA +5V

U19U19

1

A0
A12WP

3

A2

4

GND

RED+ 6

RED- 6

GREEN+ 6

GREEN- 6

VCC

SCL
SDA

8
7
6
5

D4D4

R83R83

5V_VGA

5V_VGA

+5V 2,3,7,10,11,13

R84R84

C186C186

DDC_CLK
DDC_DAT

DDC_CLK
DDC_DAT

R91R91

1 2

BLU_IN+

R93R93

D10D10

1 2

AHS_IN

D11D11

1 2

BLU_IN-

R96R96

R95R95

1 2

C194C194

R92R92

R94R94

C191C191

C192C192

C193C193

SOG 6

BLUE+ 6

BLUE- 6

R98R98

R97R97

VS_RGB 6HS_RGB 6

C195C195

ViewSonic Corporation

AVS_IN

D12D12

1 2

Model

Title

VGA Input

Date Rev:

67

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

L16L16

SV_YIN

SV_CIN

AVIN

J4

J4

9

AV_RIN

D16D16

1 2

1 2

PC_LIN

AV_LIN

D17D17

AVIN

D19D19

1 2

8
7

6
5
4

3
2
1

RED

RED

RCA L/R input
for AV

WHITE

WHITE

AV input

YELLOW

YELLOW

J5J5

SV_YIN

12

34

J3

D13D13

1 2

SV_CIN

D14D14

1 2

YC

YC

J3

S-Video input

GND GND

GND GND

AV_R

AV_L

AV_CVBS13

SV_Y13

SV_C13

SV_Y

R99R99

SV_C

R100R100

C198C198

C200C200

R101R101

1 2

L17L17

1 2

L18L18

AV_R AV_RIN

1 2

L19L19

AV_L AV_LIN

1 2

L20L20

1 2

C196C196

C197C197

C199C199

C201C201

C202C202

To swap L/R
=>stuff these
beads

R106R106

PC_L

R107R107

PC_R

PC_RIN

PC_LIN

PC_RIN

D23D23

PC L/R LINE IN (GREEN)

1 2

PC_L

PC_R

R102R102

R104R104

PC_L

PC_R

R103R103

R105R105

C203C203

C204C204

D20D20

PC_LIN

1 2

PC_RIN

YPBPR Audio input

J6

J6

L21L21

R114R114

YPBPR_LIN

YPBPR_RIN

R109R109

R111R111

C218C218

L25L25

1 2

D29D29

1 2

R116R116

YPBPR_L

YPBPR_R

PR+6

PR-6

PB+6

PB-6

PR+

PB+

C209C209

C211C211
C212C212

C214C214

C205C205

C207C207

R108R108

R110R110

R113R113

R112R112

SOY6

Y+6

1 2

L22L22

1 2

L23L23

1 2

C210C210

1 2

L24L24

C213C213

C215C215

Y+

C216C216

C206C206

C208C208

R115R115

1 2

YPBPR_LIN

D24D24

1 2

D28D28

D30D30

1 2

YPBPR_RIN

D26D26

9
8
7

6
5
4

3
2
1

4

3
2

1

J7

J7

RED

RED

YPBPR input

BLUE

BLUE

GREEN

GREEN

WHITE

WHITE

RED

RED

ViewSonic Corporation

C217C217

Y-6

R117R117

68

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

1 2

Model

Title

AV IO

Date Rev:

Audio Decorder

AV_ON/OFF

5V_AU

Vedio Decorder

+5V

Q8Q8

+5V7

C228C228 C227C227

R318R318

C374C374

R133R133

1

32

Q10Q10

32

R259R259

1

U22U22

3

VIN

VOUT
VOUT

GND

1

2
4

C229C229

+3.3TVP

U21U21

3

VIN

Audio processor

+14V

Q19Q19

+14V V9A

C367C367 C368C368

R281R281

32

R282R282

1

C366C366

U33U33

3

VIN

VOUT
VOUT

GND

1

2
4

R283R283

V9A

GND

1

VOUT
VOUT

+1.8V_TVP

2
4

C230C230

L27L27

1 2

L29L29

1 2

AV_ON/OFF

+3.3VA+3.3TVP

+3.3VD

C232C232

C234C234

R319R319

C375C375

+3.3VA 13

+3.3VD 13

R298R298

1

+1.8V_TVP

R284R284

32

Q23Q23

L28L28

1 2

L30L30

1 2

+1.8VA

+1.8VD

C233C233

C235C235

+1.8VA 13

+1.8VD 13

+3.3TVP

+1.8V_TVP

V9A

1

1

1

+33TVP1+33TVP1

+18V_TVP1+18V_TVP1

V9A1V9A1

ViewSonic Corporation

Model

69

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

Title

AV Power

Date Rev:

AV_CVBS

SV_C

+3.3VA
+3.3VD
+1.8VD
+1.8VA

AV_CVBS

R139R139

SV_C

R140R140

+3.3VA 11
+3.3VD 11
+1.8VD 11
+1.8VA 11

C241C241

C243C243

C245C245

C251C251

V1_1A

V1_1B

V1_1C

V1_2A

V1_2B

Bypass IC

電容最靠近

+1.8VA

C238C238

+3.3VA

C244C244

+1.8VA

C247C247

C248C248

C252C252

V1_1B
V1_1C

V1_2A
V1_2B
V1_2C

V1_3A
V1_3B
V1_3C

C236C236

C239C239

Y4Y4

R135R135

U23

U23

1
2

3
4
5
6

7
8
9

10
11
12
13
14
15

16
17
18

19
20

V1_1A

VI_1B
VI_1C

CH1_A33GND
CH1_A33VDD
CH2_A33VDD
CH2_A33GND

VI_2A
VI_2B
VI_2C

CH2_A18GND
CH2_A18VDD
A18VDD_REF
A18GND_REF
CH3_A18VDD
CH3_A18GND

VI_3A
VI_3B
VI_3C

CH3_A33GND
CH3_A33VDD

C237C237

80

VI_1A

R136R136

R137R137

75

78

76

79

77

XTAL174XTAL2

PLL_A18VDD

PLL_A18GND

CH1_A18VDD

CH1_A18GND

71

72

73

FID//GPIO

HS/CS/GPIO

VS/VBLK/GPIO

TVP5147

TVP5147

68

DGND

66

67

DVDD

70

C1/GPIO69C0/GPIO

62

61

IOVDD

IOGND

C5/GPIO63C4/GPIO64C3/GPIO65C2/GPIO

C6/GPIO/RED

C7/GPIO/GREEN

C8/GPIO/BLUE

C9/GPIO/FSO

DGND
DVDD

IOGND

IOVDD

DGND
DVDD

60
59
58
57

56
55

54

Y0

53

Y1

52

Y2

51

Y3

50

Y4

49
48

47

Y5

46

Y6

45

Y7

44

Y8

43

Y9

42
41

Y2
Y3
Y4

C249C249

Y5
Y6
Y7
Y8
Y9

+3.3VD

C242C242

+1.8VD

C240C240

C246C246

LSB

MSB

C253C253

Shielding

RA18RA18

Y2

1

Y3

2

Y4

3

Y5

4

Y6

1

Y7

2

Y8

3

Y9

4

RA19RA19C250C250

8
7
6
5
8
7
6
5

VD0
VD1
VD2
VD3
VD4
VD5
VD6
VD7

VD[0..7]

VD[0..7]

Shielding

SV_Y

SV_Y

R141R141

C254C254

C255C255

C260C260

C261C261

C264C264

V1_2C

V1_3A

V1_3B

V1_3C

V1_4A

C256C256

AV_RST

MSCL

MSDA

C257C257

AV_RST

V1_4A

+3.3VD +3.3VD

R57R57

CH4_A33VDD21CH4_A33GND22VI_4A23CH4_A18GND24CH4_A18VDD25AGND26DGND27SCL28SDA29INTREQ30DVDD31DGND32PWDN33RESETB34FSS/GPIO35AVID/GPIO36GLCO/I2CA37IOVDD38IOGND39DATACLK

I2C R/W=B9/B8

R58R58

R142R142

R143R143

R144R144

C376C376

40

C258C258

C259C259

C262C262

L31L31

1 2

C263C263

Shielding

VLLCDATACLK

VLLC

Shielding

ViewSonic Corporation

Model

Title

Date Rev:

TVP5147

70

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

VCPU

VCPU

KEY2

Q21Q21

KEY5

KEY4

KEY3

KEY1

KEY6

CN7CN7

15
14
13
12
11
10
9
8
7

LED_ORGOUT
LED_BLUOUT

LA1LA1

1
2
3
4
1
2
3
4

LA2LA2

8
7
6
5
8
7
6
5

6
5
4

4

2

CA1

D

CA1

SPK_R+

CA

CA

C3D

3
2
1

5C6B7A8

CA2

CA2

2

A1B

CA

CA

4

C3D

D

5C6B7A8

A1B

SPK_R-

R145R145

32

LED_BLUOUT

SPK_L+

LED_BLU

LED_ORG

R320R320

VCPU

R321R321

Q22Q22

1

1

C377C377

SPK_L-

R146R146

32

LED_ORGOUT

C378C378

71

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

ViewSonic Corporation

Model

Title

Date Rev:

KEYPAD

-5.5V

VGL

R151R151

C266C266

R148R148

C268C268

R149R149

C269C269

R152R152

C271C271

D32D32

DC/DC_ON/OFF6

+14V

+14V7

C278C278

+14V

R154R154

1

C272C272

3

2

C279C279

INL

AVDD

R150R150

C280C280

U24U24

23

10

18

4

7

5

9

FBN

DRVN

POSB

/SHDN

IN

INL

SUPCP

GND

13

3

REF

GND_B

25

14

OUTB

MODE21DRN

2

6

NEGB

22

DLP

20

FBL

OUTL

DRVP

FBP

SRC

THR

SUPB

GON

CTL

NC

12

8

11

17

24

16

15

1

19

OUTL

VGH

R164R164

R156R156

C275C275

GVOFF 6

R158R158

R159R159

R162R162

13V

C273C273

R157R157

R160R160

R161R161

C267C267

C270C270

R309R309

REF

3

3

VGH

23V

1

2
1

2

AVDD

VD33V

D31D31

D33D33

VGH_P

AVDD

VD33V

C274C274

REF

Test Pads

AVDD

VGL

VGH

VGH_P

1

1

1

1

AVDD1AVDD1

VGL1VGL1

VGH1VGH1

VGH_P1VGH_P1

72

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

REF

GVOFF

DC/DC_ON/OFF

R165R165

12

C281C281

1

1

1

REF1REF1

GVOFF1GVOFF1

DCDC_ON1DCDC_ON1

ViewSonic Corporation

Model

Title

DC/DC

Date Rev:

VD33V

V25V_B

SDB_D[0..31]

VDD_DPLL

R221R221

C284C284

VD33V

V25V_B

SDB_D[0..31]

12

C285C285

Loop Filter

RESET_T

L32L32

1 2

L35L35

1 2

SDB_D24
SDB_D25
SDB_D26
SDB_D27
SDB_D28
SDB_D29

SDB_D30
SDB_D31
SDB_D8
SDB_D9

SDB_D10
SDB_D11
SDB_D12
SDB_D13

SDB_D14
SDB_D15
SDB_D0
SDB_D1
SDB_D2
SDB_D3
SDB_D4

SDB_D5
SDB_D6
SDB_D7
SDB_D16

SDB_D17
SDB_D18
SDB_D19
SDB_D20
SDB_D21
SDB_D22
SDB_D23

RESET_T

C306C306

SDA_D[0..31]

SD_A[0..10]

SD_CS1
SD_CLK
SD_BA0

VDD_CORE

VDD_IO

SD_BA1
SD_WE
SD_RAS

SD_CAS
SD_CS2

R224R224

R228R228

C286C286

SDA_D[0..31]

SD_A[0..10]

SD_A1

SD_A0

SD_A10

190

191

188

189

192

GND

SD_A0

SD_A10

193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243

S_DIM_I
S_DIM_O

PLL_SEL

R230R230

reset time=100ms
(2/3*R*C)

C289C289

C307C307

244
245
246
247
248
249
250
251
252
253
254
255
256

VDD_IO

12

R229R229

12

C287C287

U6.138 U6.198

U6.152U6.51 U6.166 U6.180

C290C290

C308C308

SD_BA0

VDD25
GND
SD_BA1
SD_WE
SD_RAS
VDD33
SD_CAS
SD_CS2
SDB_D24
SDB_D25
SDB_D26
SDB_D27
SDB_D28
SDB_D29
GND
SDB_D30
SDB_D31
SDB_D8
SDB_D9
VDD33
SDB_D10
SDB_D11
SDB_D12
SDB_D13
GND
VDD25
SDB_D14
SDB_D15
SDB_D0
SDB_D1
SDB_D2
SDB_D3
SDB_D4
VDD33
SDB_D5
SDB_D6
SDB_D7
SDB_D16
GND
SDB_D17
SDB_D18
SDB_D19
SDB_D20
SDB_D21
SDB_D22
SDB_D23
VDD33
GND
SIN1
VDD33
GND
SIN2
DIM_IN
DIM_OUT
VDD25
GND
XIN
XOUT
PLL_SEL(N.C.)
PLL_VDD25
VCOIN(BIAS_CP)
PLL_GND
CPOUT(N.C.)
VDT_RC

SCL1SDA2KTEST13KTEST04TST_AGE5TST_PGM6FDOT7SELLVDS_ODC8RPF9MDF10LUT_MUX111LUT_MUX313EN_DGM14EN_BKLT

KTEST0

KTEST1

TCON_SDA

TCON_SCL

C292C292

C291C291

C309C309

TST_AGE

VDD_CORE

LVDS resistors are close to ASIC.

R168R168

R173R173

RXE0-

RXE1-

RXE2-

RXE3-

Q25Q25

VDD_LVDS

RXEC-

SELLVDS

FDOT_T

32

TST_PGM

TST_AGE

LUT3

LUT2

LUT1

MDF

RPF

EN_DGM

EN_BKLT

KTEST0

KTEST1

PLL_SEL

R227R227

RXO0+

RXO1+

RXO2+

RXO3+

1

1

3
4

R167R167

VDD_LVDS

SDA_D28

SDA_D27

140

SDA_D26

139

SDA_D27

SDA_D26

S_GVON

C314C314

SD_DQM

SDA_D25

SDA_D24

128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65

V25V_A

C301C301

1 2

C315C315

VDD_RSDS

VDD_RSDS

L37L37

S_ASTH

U6.120U6.89 U6.108U6.77

C302C302

C316C316

B_B3P
B_B3N
B_B2P
B_B2N
B_B1P
B_B1N
B_B0P
B_B0N

B_G3P
B_G3N
B_G2P
B_G2N
B_G1P
B_G1N
B_G0P
B_G0N

B_CKP
B_CKN

B_R3P
B_R3N
B_R2P
B_R2N
B_R1P
B_R1N
B_R0P
B_R0N

A_B3P
A_B3N
A_B2P
A_B2N
A_B1P
A_B1N
A_B0P
A_B0N

A_G3P
A_G3N
A_G2P
A_G2N
A_G1P
A_G1N
A_G0P
A_G0N

A_CKP
A_CKN

A_R3P
A_R3N
A_R2P
A_R2N
A_R1P
A_R1N
A_R0P
A_R0N

VDD_LPLL

U6.42

S_BTP1

S_BSTH

131

132

138

137

VDD33

SDA_D25

S_GVOFF

S_OE

S_STV_R

C299C299

129

134

135

133

136

130

GND

GND

B_TP1

VDD25

B_STH

SD_DQM

SDA_D24

B_STH_R

B_B3P
B_B3M
B_B2P
B_B2M
B_B1P
B_B1M
B_B0P
B_B0M

VDD_RSDS25

B_G3P
B_G3M
B_G2P
B_G2M
B_G1P
B_G1M
B_G0P
B_G0M

VSS_RSDS

B_CLKP
B_CLKM

VDD_RSDS25

B_R3P
B_R3M
B_R2P
B_R2M
B_R1P
B_R1M
B_R0P
B_R0M

VSS_RSDS

PI
A_B3P
A_B3M
A_B2P
A_B2M
A_B1P
A_B1M
A_B0P
A_B0M

VDD_RSDS25

A_G3P
A_G3M
A_G2P
A_G2M
A_G1P
A_G1M
A_G0P
A_G0M

VSS_RSDS

A_CLKP
A_CLKM

VDD_RSDS25

A_R3P
A_R3M
A_R2P
A_R2M
A_R1P
A_R1M
A_R0P
A_R0M

VSS_RSDS

A_STH

A_STH_R

GND

64

S_POL

S_ATP1

S_STV

S_CKV

VDD_CORE

C300C300

SDA_D17

SD_A9

SD_A2

SD_A3

183

182

186

187

185

180

184

181

GND

GND

SD_A9

SD_A3

SD_A2

SD_A1

VDD25

VDD33

SD_CLK

SDA_D22

SDA_D23

SD_A4

SD_A5

SD_A8

SD_A6

SD_A7

174

179

178

177

176

175

173

172

SD_A8

SD_A7

SD_A6

SD_A5

SD_A4

SD_CS1

SDA_D23

SDA_D22

SDA_D16

SDA_D18

SDA_D19

SDA_D21

SDA_D20

171

170

SDA_D21

SDA_D6

SDA_D7

163

162

166

169

168

167

165

164

GND

VDD33

SDA_D7

SDA_D19

SDA_D18

SDA_D20

SDA_D17

SDA_D16

SDA_D15

SDA_D14

SDA_D12

SDA_D3

SDA_D4

SDA_D5

161

160

159

SDA_D6

SDA_D5

SDA_D4

SDA_D13

SDA_D1

SDA_D2

SDA_D0

156

155

157

158

154

153

GND

SDA_D1

SDA_D0

SDA_D3

SDA_D2

SDA_D15

SDA_D14

SDA_D8

SDA_D31

SDA_D30

SDA_D29

SDA_D28

SDA_D10

SDA_D11

SDA_D9

147

145

152

146

151

150

149

148

144

143

142

141

GND

VDD33

SDA_D9

SDA_D8

SDA_D13

SDA_D12

SDA_D11

SDA_D10

SDA_D31

SDA_D30

SDA_D29

CM2679A-KQ(NQ)CM2679A-KQ(NQ)

LUT_MUX2

LRGND16RAMP117RAPP118RBMP119RBPP120LRVDD2521RCMP122RCPP123RCLKMP124RCLKPP125RDMP126RDPP127LRGND28RAMP229RAPP230RBMP231RBPP232LRVDD2533RCMP234RCPP235RCLKMP236RCLKPP237RDMP238RDPP239LRGND40LPGND41LPVDD2542GND

15

12

EN_DGM

EN_BKLT

MDF

TST_PGM

SELLVDS

RPF

FDOT_T

LUT2

LUT1

LUT3

RXO0-

RXO1-

RXO2-

RXO0+

RXO1+

RXO2+

RXOC-

RXOC+

VDD_IO

U6.226U6.239

C294C294

C293C293

U6.247U6.218U6.185U6.193U6.132

U6.60

C310C310

C311C311

C295C295

V25V_A

VDD_LVDS

RXE0-

RXE1-

RXO3+

V25V_A

RXE0+

RXE1+

C296C296

L36L36

1 2

RXE2-

RXE2+

RXEC-

RXO3-

DE_LVDS44DCK_LVDS45GRL246GRL147DRL248DRL1

GND50VDD3351VDD3352PWRON53GVON54GVOFF55OE56STV_R57STV58CKV59VDD2560GND61POL62A_TP163VDD33

49

43

VDD_IO

S_GRL1

DRL2

GRL2

S_DE

S_DCK

DRL1

VDD_LPLL

RXE3-

RXE3+

RXEC+

V25V_A V25V_A

L33L33

1 2

C297C297C288C288

C312C312 C317C317

C298C298

VDD_LVDS

U6.21 U6.33

C313C313

R201R201

Irsds=24/R

L34L34

1 2

C303C303

RXEC+

VDD_DPLL

U6.252

RXE0+

RXE1+

RXE2+

RXE3+

C304C304

VDD_IO

R169R169

1 2

R175R175

1 2

R178R178

1 2

R181R181

1 2

R184R184

1 2

R189R189

R192R192

R195R195

R197R197

R199R199

R202R202

R205R205

R208R208

R211R211

R215R215

R217R217

R219R219

R222R222

R225R225

S_DIM_I

R190R190

R193R193

R196R196

R198R198

R200R200

R203R203

R206R206

R209R209

R212R212

R216R216

R218R218

R220R220

R223R223

R226R226

U27U27

A0
A12WP
A2
VSS

FDOT

VCC

SCL
SDA

R170R170

1 2

R176R176

1 2

R179R179

1 2

R182R182

1 2

R185R185

1 2

8
7
6
5

RXOC-RXOC+

R171R171

RXO0-

RXO1-

RXO2-

RXO3-

LUT Selection
0~5 LUT
6 Non Used
7 OD Bypass

L<->R

L<->R, U<->D

Watch LVDS_DE,
LVDS_DCK

EN_DGM
EN_BKLT

VDD_IO

R233R233

R232R232

TCON_SCL
TCON_SDA

C320C320

S_GRL1

EN_DGM1EN_DGM1

1

EN_BKLT1EN_BKLT1

1

WP

VDD_IO

R234R234

WP

R235R235

R166R166

S_GVON

1 2

R172R172

S_GVOFF

1 2

R174R174

S_OE

1 2

R177R177

S_STV

1 2

R180R180

S_STV_R

1 2

R183R183

S_CKV

1 2

R186R186

S_POL

1 2

R187R187

S_ATP1

1 2

R188R188

S_ASTH

1 2

R191R191

S_BTP1

1 2

R194R194

S_BSTH

1 2

VDD_IO

R207R207

S_DE
S_DCK
GRL2
GRL1
DRL2
DRL1

OE
STV
STV_R
CKV
POL
A_TP1

A_STH
B_TP1B_TP1B_TP1B_TP1B_TP1B_TP1

B_STH
S_DIM_O

1
1
1
1
1
1

1
1
1
1
1
1

1
1

1
1

U26U26

1

NC

Vcc

2

A
GND3Y

TCON_SCL
TCON_SDA

GND
WP

WP should be
shorted to GND for
writing.

5

4

R204R204

R210R210

VDD_IO

S_DE1S_DE1
S_DCK1S_DCK1
GRL1GRL1
GRL2GRL2
DRL1DRL1
DRL2DRL2

OE1OE1
STV1STV1
STV_R1STV_R1
CKV1CKV1
POL1POL1
A_TP1A_TP1

A_STH1A_STH1
B_TP1B_TP1

B_STH1B_STH1
S_DIM_O1S_DIM_O1

C305C305

CN8CN8

1

1

2

2

3

3

4

4

GVOFF

OE

STV

STV_R

CKV

POL

A_TP1

A_STH

B_TP1

B_STH

GRL1

TST_PGM

ViewSonic Corporation

Model

73

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

Title

T-CON

Date Rev:

SD_A[0..10]

SDA_D[0..31] SDB_D[0..31]

SD_A[0..10]

SDA_D[0..31]

SDA_D0
SDA_D1

SDA_D2
SDA_D3

SDA_D4
SDA_D5

SDA_D6
SDA_D7

SD_DQM
SD_WE
SD_CAS
SD_RAS
SD_CS1

SD_BA0
SD_BA1

SDA_D16
SDA_D17

SDA_D18
SDA_D19

SDA_D20
SDA_D21

SDA_D22
SDA_D23

SD_DQM
SD_WE
SD_CAS
SD_RAS
SD_CS1

SD_BA0
SD_BA1
SD_A10
SD_A0
SD_A1
SD_A2
SD_DQM

VCC_SD

U28U28

1

VDD

2

DQ0

3

VDDQ

4

DQ1

5

DQ2

6

VSSQ

7

DQ3

8

DQ4

9

VDDQ

10

DQ5

11

DQ6

12

VSSQ

13

DQ7

14

NC

15

VDD

16

DQM0

17

WE

18

CAS

19

RAS

20

CS

21

NC

22

BS0

23

BS1

24

A10/AP

25

A0

26

A1

27

A2

28

DQM2

29

VDD

30

NC

31

DQ16

32

VSSQ

33

DQ17

34

DQ18

35

VDDQ

36

DQ19

37

DQ20

38

VSSQ

39

DQ21

40

DQ22

41

VDDQ

42

DQ23

43

VDD

VSS

DQ15

VSSQ

DQ14
DQ13

VDDQ

DQ12
DQ11

VSSQ

DQ10

DQ9

VDDQ

DQ8

NC

VSS

DQM1

NC
NC

CLK

CKE

A9
A8
A7
A6
A5
A4
A3

DQM3

VSS

NC

DQ31

VDDQ

DQ30
DQ29

VSSQ

DQ28
DQ27

VDDQ

DQ26
DQ25

VSSQ

DQ24

VSS

86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44

SDA_D15
SDA_D14

SDA_D13
SDA_D12

SDA_D11
SDA_D10

SDA_D9
SDA_D8

SD_DQM

SD_CLK1

SD_A9
SD_A8
SD_A7
SD_A6
SD_A5
SD_A4
SD_A3
SD_DQM

SDA_D31
SDA_D30

SDA_D29
SDA_D28

SDA_D27
SDA_D26

SDA_D25
SDA_D24

SDB_D[0..31]

SD_CS2

SDB_D0
SDB_D1

SDB_D2
SDB_D3

SDB_D4
SDB_D5

SDB_D6
SDB_D7

SDB_D16
SDB_D17

SDB_D18
SDB_D19

SDB_D20
SDB_D21

SDB_D22
SDB_D23

SD_DQM
SD_WE
SD_CAS
SD_RAS
SD_CS2

SD_BA0
SD_BA1
SD_A10
SD_A0
SD_A1
SD_A2
SD_DQM

VCC_SD

U29U29

1

VDD

2

DQ0

3

VDDQ

4

DQ1

5

DQ2

6

VSSQ

7

DQ3

8

DQ4

9

VDDQ

10

DQ5

11

DQ6

12

VSSQ

13

DQ7

14

NC

15

VDD

16

DQM0

17

WE

18

CAS

19

RAS

20

CS

21

NC

22

BS0

23

BS1

24

A10/AP

25

A0

26

A1

27

A2

28

DQM2

29

VDD

30

NC

31

DQ16

32

VSSQ

33

DQ17

34

DQ18

35

VDDQ

36

DQ19

37

DQ20

38

VSSQ

39

DQ21

40

DQ22

41

VDDQ

42

DQ23

43

VDD

VSS

DQ15

VSSQ

DQ14
DQ13

VDDQ

DQ12
DQ11

VSSQ

DQ10

DQ9

VDDQ

DQ8

NC

VSS

DQM1

NC
NC

CLK

CKE

DQM3

VSS

NC

DQ31

VDDQ

DQ30
DQ29

VSSQ

DQ28
DQ27

VDDQ

DQ26
DQ25

VSSQ

DQ24

VSS

A9
A8
A7
A6
A5
A4
A3

86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44

SDB_D15
SDB_D14

SDB_D13
SDB_D12

SDB_D11
SDB_D10

SDB_D9
SDB_D8

SD_DQM

SD_CLK1

SD_A9
SD_A8
SD_A7
SD_A6
SD_A5
SD_A4
SD_A3
SD_DQM

SDB_D31
SDB_D30

SDB_D29
SDB_D28

SDB_D27
SDB_D26

SDB_D25
SDB_D24

SD_CLK

R238R238

VD33V

R237R237

12

SD_CLK1

C321C321

VD33V

VCC_SD

C323C323

VCC_SD

C332C332

74

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

C333C333

U6.3 U6.15U6.1 U6.29 U6.43 U6.49 U6.67 U6.81

C325C325

C326C326

C327C327

C328C328C324C324

C329C329

C330C330C322C322

C331C331

U8.3 U8.15U8.1 U8.29 U8.43 U8.49 U8.67 U8.81

C335C335 C336C336

C337C337

C338C338C334C334

C340C340C339C339

ViewSonic Corporation

Model

Title

Date Rev:

T-CON SDRAM

9. PCB Layout Diagrams

75

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

y

N

_

N

_

N

_

N

_

N

_

_

_X_

_

_

_AD_

N

_AD_

_

_

_

_

N

_

_

_

10. Exploded Diagram and Exploded Parts List

EXPLODED PARTS LIST ( VX2435wm-1 )

ViewSonic Model Number: VS11449
Rev: 1a

Serial No. Prefix: QD2

Item ViewSonic P/N Ref. P/N Description Q't

1 C-00008374 40-D013211
2
3
4
5
6
7 CB-00008173
8 CB-00008172

9 B-00008359 27-D012488
10 A-00008130 27-D012489
11 B-00008360 35-D012882
12
13 C-00008375

14 C-00008043
15 C-00008044 40-D010947
16 C-00008373 40-D013212
17 C-00008372 40-D013208
18
19 HW-00000553

20 HW-00000555 42A9930014
21 HW-00008146 42-D000887
22 B-00008028

/A 41-D004378
/A
/A 73-DD10366
/A
/A

/A 41-D012085

/A 40-D013225

MO0J101K0 ASSY

73-D014887 AL
44-D012347 ASSY
32-D013210 FFC-OSD
32-D012481 FFC

40-D013216 REAR-ASSY
40-D010942 STAND_ASSY_A240J1-H02 1

42A9930008 SCREW

35-D010238 PCBA/OSD 1

BEZEL- ASSY_A240J1-H02 1
ASSY

AL

PCB
PCB
PCB
COVER

SEAT
COVER
COVER
AV COVER ASSY

SCREW_M3X6L 4
SCREW

FRAME_FRONT_M240J1 1

PANEL_M240J1 1
TAPE_M240J1 4
TAPE-2_MPR2_A240J1 1

BLU_A240J1 1

24W12 1

A240J1 2
INVERTER_A240J1 1
POWER_A240J1 1

A240J1 1

ASSY_A240J1 1

A240J1-H02 1

ASSY_A240J1-H02 1

HINGE_ASSY_R_A240J1 1
HINGE_ASSY_L_A240J1 1

A240J1-H02 1

M3X4L 23

M3X8L 6

76

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

m

r

n

n

n

PACKING PART LIST (VX2435wm-1)

ViewSonic Model Number: VS11449
Rev: 1a

Item ViewSonic P/N Ref. P/N Location Q'ty

1 N/A
2 P-00008398
3 P-00008399
4 P-00008400
5 P-00008401
6 A-00005071
7 CB-00005851
8 CB-00000547
9 CB-00008171

10 N/A

11 N/A

12 N/A

VX2435w
78-D013370
78-D013298

78-D013294
78-D013331
32-D002330
32-D002132

32F2818004

32-D013214

Different regio
(refer to BOM)

Different regio
(refer to BOM)

Different regio
(refer to BOM)

LCD Monitio
PE Foam Bag 1
PE Foam (bottom) 1
PE Foam (Up) 1
Carton 1
Power Cord 1
Monitor Cable 1
Audio Cable 1
DVI-HDMI CABLE 1

Menu (Quick Setup) 1

Menu (CD-ROM) 1

Warranty Registration card 1

1

77

ViewSonic Corporation Confidential - Do Not Copy VX2435wm-1

11. Recommended Spare Parts List

m

p

)

-

-

0

y

(

y)

g

t

g

t

(

r

r

e

(

)

y

I

s

y

m

m

m

d

l

g

f

m

d

p

m

g

m

m

p

m

[

,

m

ViewSonic Model Number: VS11449

RECOMMENDED SPARE PARTS LIST (VX2435wm-1)

Serial No. Prefix: QD2 Rev: 1a

Item ECR/ECN ViewSonic P/N Ref. P/N Location Universal number#

1

Accessories:

2
3

PC Board

4

Assembly: [All

5
6

Cabinets:

7

[Front Panel, All

8

Covers, Base

9

Assembly]

10
11
12

Cables: [All Cables]

13
14
15
16
17

Documentation:

18

[Quick Start Guide,

19
20

Hardware: [Screw,

21

Bracket, Hinge,

22

Washer]

23
24
25

Miscellaneous:

26

Packing Material:

27

[Box, Foam, Bags]

28
29
30

Plastics:

Pedestal

Description

Power Cord - 0.75mm^2 3C 6 LS-13J 1800 m
Ada

ter - (Open Frame FP-120A01 AAA
PCBA for ,A240J1-J01-P,A240J1-J01-P-S1,1101
PCBA for ,A220Z1-Z01-H,A220Z1-Z01-H-K2,1101
Inverter Board - BCMO24U01 A 6mA 274
Base Assembl
Cover

Seat Ass
Cover Hin
Cover Hin
Front Panel ­Back Cove
Audio Cabl
Video Cable ­DVI Cable - Accessor
Flat Cable - FFC 53 Pins Pitch=0.5 CB-00008172 32-D012481
Flat Cable - FFC CFC58 15 Pin
Safet
Carton Label 76.2 mmx76.2 m
CD-Ro
Screw - 3 P=0.5 mm L=4 mm Pan Hea
Screw,M3*P0.5*6,Stee
Screw - 4P=0 mm L=11.8 mm Hexa
Screw M3,P=1.27 mm,L=10 m
Screw - M3 P=0.5 mm L=8 mm Pan Hea
Ta
Ba
Foam - EPS Botto
Foam - EPS U
Craft Box - 598 mmx182 mmx644 m
Panel Protector Film - A240J1-W01 XY-53 T=01m

e - Lef
e - Righ

J01) Speake

D-Sub, (30AWG

Cable HDM

Label 160 mmx30 m

on Stand Of

e Security, OPP,L900xW50x0.045m

- 700 mmx700 mmx0.13 m

A-00005071 32-D002330
A-0000813027-D012489
B-00008360 35-D012882
B-00008361 35-D012457
B-00008359 27-D012488
C-00008043 40-D010942
C-00008044 40-D010947
C-00008372 40-D013208
C-00008373 40-D013212
C-00008374 40-D013211

C-00008375 40-D013216
CB-00000547 32F2818004
CB-00005851 32-D002132
CB-00008171 32-D013214

CB-00008173 32-D013210
DC-00008336 77-D013330
DC-00008337 77-D013324
DC-00008338 76-D013329

HW-00000553 42A9930008
HW-00000555 42A9930014
HW-00006041 42A9940007
HW-00008003 42A9930015
HW-00008146 42-D000887

M-00000560 7345511002

P-00008398 78-D013370
P-00008399 78-D013298
P-00008400 78-D013294
P-00008401 78-D013331

PL-00008129 73-D013014

Remark 1:
Remark 2:

Above listed items are examples, supplier can expand the rows to add more necessary items.
All revised RSPLs with newly added items or any change made should be highlighted and correlated with the
ECN/ECR approved by ViewSonic Corporation. This is to eliminate repeated cross checks of each item between this

78

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

y

I

,

I

F

)

I

)

,

I

,

I

,

I

,

I

,

I

,

I

I

,

g ,

I

n

I

gder

y

I

g

I

n

I

T

I

r

R

I

,

I

5

I

,

,

I

s

I

d

I

_

I

y

I

,

I

,

I

,

I

y

I

y

I

,

K

n

I

n

I

p

I

pap

I

i

n

p

P

BOM LIST ( VX2435wm-1 )

ViewSonic Model Number: VS11449
Rev: 1a

Serial No. Prefix: QD2

Item ViewSonic P/N Ref. P/N Description Location Universal number# Q't

1 N/A

2 N/A

3 N/A
4 N/A

5 N/A

6 N/A

7 N/A

8 N/A

9 N/A

10 N/A
11 N/A

12 HW-00000553

13 HW-00006041
14 N/A
15 N/A
16 N/A

17 CB-00008172

18 B-00008360

19 N/A

20 N/A

21 B-00008359

22 A-00008130

23 HW-00000555

24 HW-00008003

25 HW-00008146
26 CB-00008173
27 C-00008374

28 C-00008373

29 C-00008375

30 C-00008372

31 B-00008361
32 C-00008043
33 N/A

34 PL-00008129

35 N/A

36 DC-00008336
37 N/A
38 HW-00002076

39 N/A
40 M-00000560

36X8636401

73-C000047

LUO001XXXX

LUO001XXB

74-D005091

74-D005092

73-D008216

36-D009811

73-D002676

35-D011837
7349951002 TORAY SE-9187L, white, Green

42A9930008

42A9940007

41-D004378 Metal Frame Front, M240J1, SECC 0.8t, Fom
41-D012065 Cover AD Ass
44-D012347 Backli

32-D012481

35-D012882

73-D010366

73-D014887

27-D012488

27-D012489

42A9930014

42A9930015

42-D000887

32-D013210 FFC, CFC58, 15 Pins, Tennsure
40-D013211 Bezel Ass

40-D013212

40-D013216

40-D013208

35-D012457
40-D010942 Stand Ass

40-D013225 AV Cover Ass
73-D013014

77-D013326

77-D013330
7345911004 Ta

7841595111 Corner Protector,
7841996911
7345511002 Ta

Driver IC, COG, Scan, HX8636APD400(TSMC), 300Channel, Himax,
Green

ACF, COG, AC-8405Z-23 1.5mmX100M, 100000 mmx1.5 mm
Hitachi Chemical, COG-ACF, Green I

LCD Panel For 24” (1*1) MVA, TFT1 & CF1 asahi 0.7mm For OD
Process (Panel Base
LCD Panel For 24”MVA , WUXGA (Sheet Base
Polarizer, CF, Degree 0, 526.4 mmx332 mmx0.215 mm, M240J1
NPF-SEG1423DUAGS1, Nitto Denko, Green

Polarizer, TFT, Degree 90, 522.4 mmx328 mmx0.205 mm, M240J1
NPF-EF.SEG, Nitto Denko, Green

ACF, COF, AC-4255U1-16, 200000 mmx1.2 mm, Hitachi Chemical
Green I

Driver IC, COF, Data, M240J1-L01, HX8109FCBBG, 8 bit
480Channel, Himax, Green I

ACF, PCB, AC-9825R-35, 100000 mmx1.5 mm, Hitachi Chemical
PCB-ACF, Green I

PCBA for , A240J1-J01-P, M240J1-L01-X, 1101-01, Rev.01, ITC USI
ODM, Green I

SCREW, 3, P=0.5 mm, L=4 mm, Pan Head, Phillips Cross Recess
Hama Naka Motogawa Hama Naka Shoukin Shiho Shin Yee Shye

Green

Chin
SCREW, 4, P=0 mm, L=11.8 mm, Hexagon Stand Off, Socket, Shi

Yee Shiho Hama Naka Motogawa, Green

, A240J1, Jiin Ming, Green I

ht Unit, A240J1, CLT_BL, Green I
FFC, 53 Pins, P-TWO Tennsure_FFC, Pitch=0.5 X/B_A240J1, Gree
I
PCBA for , A240J1-J01-P, A240J1-J01-P-S1, 1101-05, Rev.05, TSM
ITC, ODM, Green I
Conductive Tape, M240J1, AL, 50 mmx50 mmx0.08 mm, Just Ente
Tennsure, Green I
Isolated Tape, A240J1, 277.2 mmx58 mmx0.12 mm, Just Enter, MP
I
DC/AC Inverter, BCMO24U01, A, 6mA, 2740 V, GIO_Inverter
Green
Adapter_Open_Frame, FP-120A01, AAA, 1.5 A, 14.5 V, 24 V, 3 A,
V, 120 W, APD, Green
SCREW, 3, P=0.5 mm, L=6 mm, Pan Head, Phillips Cross Recess
Hama Naka Shoukin/Shye Ching/Hama Naka Motogawa/Shin Yee,

Green

NA
SCREW, M3, P=1.27 mm, L=10 mm, Pan Head, Phillips Cros

Recess, Green
SCREW, M3, P=0.5 mm, L=8 mm, Pan Head, Cross with Slotte

Recess, Screw_with_Nylok, Hama Naka Motogawa/Shye Ching,
Green

, A240J1-H02, Black(J01), Push Power, SPK, Green I
Cover Hinge Assy, A240J1-H02, Black(J01), Push Power, RIGHT
Green I

Rear Assy, A240J1-H02, Silver(TY4818A)/Black(M1077), Push
Power, D-sub+Audio+RCA-Video+YPbPr+S-Video+HDMI, Green II

Cover Hinge Assy, A240J1-H02, BLACK(J01), Push Power, LEFT
Green I

PCBA for , A220Z1-Z01-H, A220Z1-Z01-H-K2, 1101-03, Rev.03
ITC USI TSMT, ODM, CEM1, Green I

, A220Z1-H05, Silver(TY4818A), Hontech, Green I

, A240J1-H02, Black(J01), Push Power, Green I
Panel Protector Film, A240J1-W01, XY-53 T=01mm, Tennsure
BLAN
SN Label for , A240J1-H02, 50 mmx25 mm, Kunshan Hwakua
Chang Huang, VSC VX2435wm, Green I
Safety Label for , A240J1-H02, 160 mmx30 mm, Kunshan Hwakua
Chang Huang, VSC VX2435wm, Green I

e, 33Mx10 mm, Green

er, 50 mmx50 mmx1850 mm, Green I
Separator, (AA), A190E2-H04, 1200 mmx1050 mmx11 mm, Shangha
Zhung Hao Hua Sun Paper, ACER, Non Gree

e, A170E1-H0P, 900 mmx50 mmx0 mm, Symbio, OP

FFC, A240J1-H02, Green I

0.03

0.5

0.028

0.056

0.5

0.004

0.133

0.033

0.008

4

1

1

1

12

1

23

2
1

1
1

2

1

4

1

1

1

4

1

6

1
1

1

1

1

1
1

1
1

1

1

79

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

Item ViewSonic P/N Ref. P/N Description Location Universal number# Q't

y

,

I

a

I

pping

2

a

I

,

I

n

I

r

I

g

I

n

I

,

,

I

,

I

y

I

,

I

g

I

Pallet, A190E3-H02_acer, Wooden, (KD-HT), 1209 mmx1066
mmx135 mm, Hua Sun Paper/Shanghai Hang Wei/Ming Li, Green I

Seat Assy, A220Z1-H05, Black(ABS-757-J01)/Siliver(TY4818A)
Hontech, Green I

Cushion, A240J1-H02, EPS, White, 632 mmx170 mmx200 mm, Chi
Nan EPS, bottom, Green I

Package Information for , A240J1-H0
Cushion, A240J1-H02, EPS, white, 632 mmx170 mmx200 mm, Chi
Nan EPS, up, Green I
MENU for A240J1-H02, Complex, 4C, Car Tong Kunshan Yi Ching
VSC VX2435wm CD-ROM, Green I
Carton Label for , A240J1-H02, 76.2 mmx76.2 mm, Kunsha
Hwakuan Chang Huang, VSC VX2435wm, Green I
Carton, A240J1-H02, 598 mmx182 mmx644 mm, Chen Yi Pape
Shanghai Zhung Hao, VSC VX2435wm, Green I
SN Label for , A150X1-T02, 75 mmx40 mm, Chang Huang Car Ton
Kunshan Kunshan Hwakuan, Pallet Barcode Label, Green
Bag, A240J1-W01, 700 mmx700 mmx0.13 mm, LDPE, 700, Taiwa
Hon Chuan Huang Jyii, Green I
Software (BIOS), A240J1, A240J1OS1005, VSC , Checksum(111C),
Date, 20070105, Green II
Software (EDID_D-SUB), A240J1, VSCBD1EA00, VSC
Checksum(78), VSCBD1EA, A240J1, VGA EDID, VSC, VSC

Green I

2435wm
Software (EDID_DVI), A240J1, VSCBD1ED00, VSC,

Checksum(F0), VSCBD1ED, A240J1, HDMI EDID, VSC, VSC

Green I

2435wm

Accessory Cable, D-Sub, JV-4777, Black, Pins-Pins, Jhen Vei
30AWG, Reduce Shield Rate, Green

Power Cord, LP-53 & VCTF 0.75mm^2 3C 6 BLACK & LS-13J
BLACK, BSMI, 1800 mm, Linetek Fon

Cable, Audio, NONE, Black, Pins-Pins, Green

ma, Green

0.033

0.033

41 N/A

42 C-00008044

43 P-00008399
44 N/A

45 P-00008400

46 DC-00008338

47 DC-00008337

48 P-00008401

49 DC-00008010

50 P-00008398

51 N/A

52 N/A

53 N/A
54 CB-00000547

55 CB-00005851

56 A-00005071

57 CB-00008171

78-D003113

40-D010947

78-D013298
79-D013295 Shi
78-D013294

76-D013329

77-D013324

78-D013331

7741513161

78-D013370

10-D016538

10-D016458

10-D016457

32F2818004 Accessor
32-D002132

32-D002330

32-D013214 Accessory Cable, HDMI, Black, Jhen Vei, DVI_D - HDMI, Green II 1

1

1
1
1

1

1

1

1

1

1

1

1
1

1

80

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1

* Reader’s Response*

Dear Readers:

Thank you in advance for your feedback on our Service Manual, which allows continuous improvement
of our products. We would appreciate your completion of the Assessment Matrix below, for return to
ViewSonic Corporation.

Assessment

A. What do you think about the content of this Service Manual?

Unit Excellent Good Fair Bad

1. Precautions and Safety Notices

2. Specification

3. Front Panel Function Control Description

4. Circuit Description

5. Adjustment Procedure

6. Troubleshooting Flow Chart

7. Block Diagrams

8. Schematic Diagrams

9.PCB Layout Diagrams

10. Exploded Diagram and Exploded Parts List

11. Recommended Spare Parts List

B. Are you satisfied with this Service Manual?

Item Excellent Good Fair Bad

1. Service Manual Content

2. Service Manual Layout

3. The form and listing

C. Do you have any other opinions or suggestions regarding this service manual?

Name:

Reader’s basic dada:

Title:

Company:

Add:

Tel:

Fax:

E-mail:

After completing this form, please return it to ViewSonic Quality Assurance in the USA at facsimile
1-909-839-7943. You may also e-mail any suggestions to the Director, Quality Systems & Processes
([e-mail])

81

ViewSonic Corporation

Confidential - Do Not Copy VX2435wm-1
