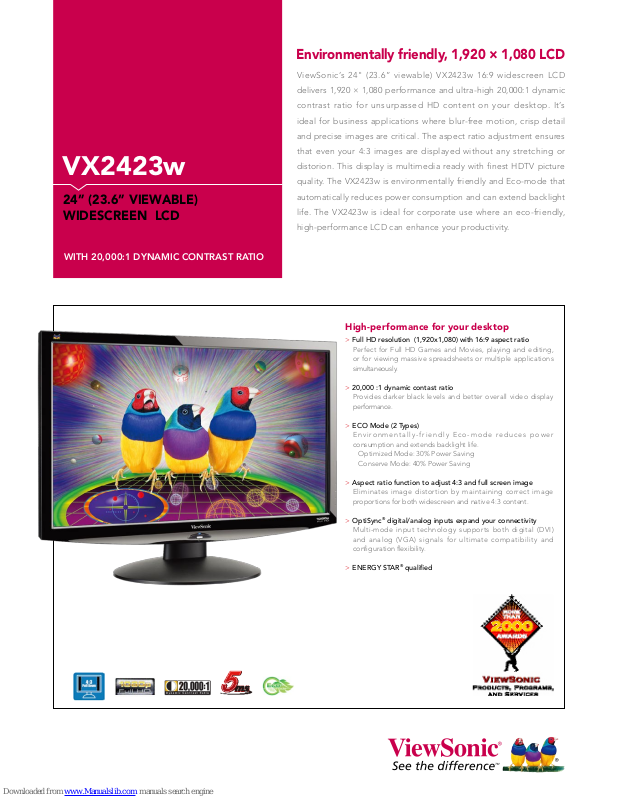

ViewSonic VX2423w Brochure & Specs

VX2423w

24” (23.6” VIEWABLE)
WIDESCREEN LCD

ViewSonic’s 24" (23.6” viewable) VX2423w 16:9 widescreen LCD

delivers 1,920 × 1,080 performance and ultra-high 20,000:1 dynamic

contrast ratio for unsurpassed HD content on your desktop. It’s

ideal for business applications where blur-free motion, crisp detail

and precise images are critical. The aspect ratio adjustment ensures

that even your 4:3 images are displayed without any stretching or

distorion. This display is multimedia ready with finest HDTV picture

quality. The VX2423w is environmentally friendly and Eco-mode that

automatically reduces power consumption and can extend backlight

life. The VX2423w is ideal for corporate use where an eco-friendly,

high-performance LCD can enhance your productivity.

> Full HD resolution (1,920x1,080) with 16:9 aspect ratio

Perfect for Full HD Games and Movies, playing and editing,
or for viewing massive spreadsheets or multiple applications
simultaneously.

> 20,000 :1 dynamic contast ratio

Provides darker black levels and better overall video display
performance.

> ECO Mode (2 Types)

Environmentally-friendly Eco-mode reduces power
consumption and extends backlight life.
Optimized Mode: 30% Power Saving
Conserve Mode: 40% Power Saving

> Aspect ratio function to adjust 4:3 and full screen image

Eli minat es im age disto rtion by maint ainin g corre ct im age
proportions for both widescreen and native 4:3 content.

> OptiSync

®

digital/analog inputs expand your connectivity

Multi-mode input technology supports both digital (DVI)
and ana lo g (VGA) sign als for ultimate com patib il ity and
configuration flexibility.

> ENERGY STAR

®

qualified

Environmentally friendly, 1,920 × 1,080 LCD

High-performance for your desktop

WITH 20,000:1 DYNAMIC CONTRAST RATIO

Size

Display Area

Optimum Resolution

Brightness

Contrast Ratio

Viewing Angles

Response Time

Pixel Pitch

Panel Surface

Light Source

Color Support

Analog

Digital

Sync

Frequency

PC

Mac **

Analog

Digital

Power

Voltage

Consumption (W)

Eco Mode

Save mode (W)

Tilt

Basic

OnView

Temperature

Humidity

Physical (w/ stand)

Physical (w/o stand)

Net

Gross weight

23.6" wide Color TFT Active Matrix LCD 16:9 aspect ratio

521 (mm) × 293 (mm)

1,920 × 1,080 WUXGA (Full HD)

300 cd/m² (typ.)

1,000:1 (typ.) ; 20,000:1 dynamic

170° (H), 160° (V) at CR≧10 / 170° (H), 170° (V) at CR≧5

5ms (on/off)

0.2715mm (H) × 0.2715mm (V)

Anti-Glare, Hard coating (3H)

50,000 hrs (typ.)

16.7 M (6-bits + Hi FRC)

RGB Analog (75 ohms, 0.7 Vp-p) DVI-D

DVI-D

Separate Sync

Fh: 24-82kHz, Fv: 50-75Hz

VGA up to 1,920 × 1,080 non-interlaced

Power Mac, up to 1,920 × 1,080

15 pin mini D-sub × 1

DVD-I

3-pin AC plug (CEE22)

AC 100-240V (Universal); 50 / 60Hz (Switch)

47 (Max)

Standard 45W / Optimize 31W / Conserve 26W

≦

1W

20° ~

-

5°

[1], [2], Power, Down, Up

Auto Image Adjust, Contrast/Brightness, Audio Adjust (Volume, mute),

Color Adjust (sRGB, 9300K, 7500K, 6500K, 5000K, User Color [R, G, B]),

Information, Manual Image Adjus t (H/V Position, Horizontal Size, Fine

Tune, Sharp ness, Dynamic Contrast, Aspect Ratio, ECO M ode), Setup

Menu (Language, Resolution Notice, OSD Position, OSD Timeout, OSD

Background, Sleep), Memory Recall

0 - 40°C (32 - 104°F)

5 - 90% (Non condensed)

564mm × 418mm × 261mm

564mm × 360mm × 67mm

5.4 kg

7.5 kg

CB, WEEE, RoHS, UL/cUL, FCC-B, NOM, Energy Star, ERGO, CE, Ukraine,

GOST-R+Hygienic, SASO, BSMI, PSB, C-TICK, MIC, CCC

VESA 100mm × 100mm

ViewSonic VX2423w LCD, VGA cable, Power cable, Quick Start Guide,

ViewSonic Wizard CD, DVI cable

LCD

INPUT

COMPATIBILITY

CONNECTOR

POWER

ERGONOMICS

CONTROLS

OPERATING

CONDITIONS

DIMENSIONS

(Wx HxD)

WEIGHT

REGULATIONS

WALL MOUNT

PACKAGE CONTENTS

Model No.VS12515 (VX 2423w)

VX2423w

24” (23.6” viewable) 16:9 widescreen LCD with Full HD 1080p resolution
