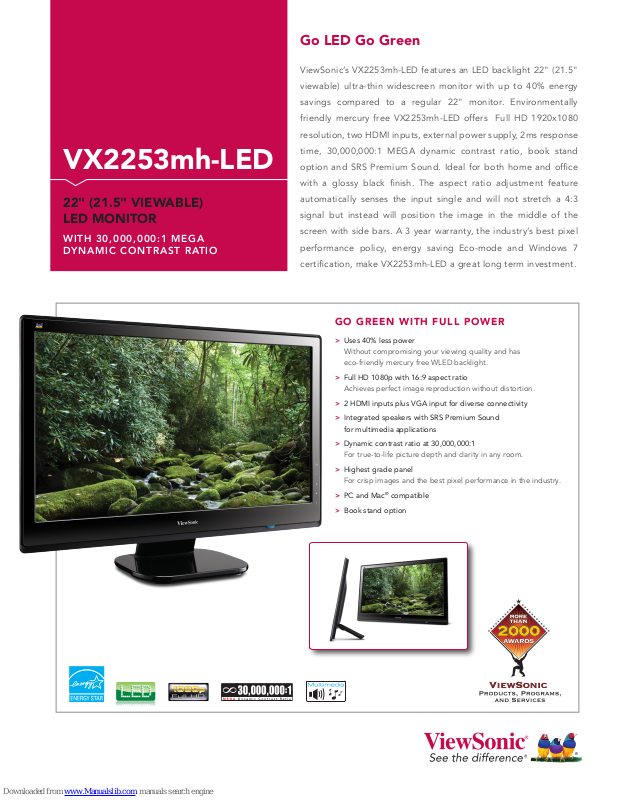

ViewSonic VX2253mh Specifications

VX2253mh-LED

22" (21.5" VIEWABLE)
LED MONITOR

WITH 30,000,000:1 MEGA
DYNAMIC CONTRAST RATIO

Go LED Go Green

ViewSonic’s VX2253mh-LED features an LED backlight 22" (21.5"

viewable) ultra-thin widescreen monitor with up to 40% energy

savings compared to a regular 22" monitor. Environmentally

friendly mercury free VX2253mh-LED offers Full HD 1920x1080

resolution, two HDMI inputs, external power supply, 2ms response

time, 30,000,000:1 MEGA dynamic contrast ratio, book stand

option and SRS Premium Sound. Ideal for both home and office

with a glossy black finish. The aspect ratio adjustment feature

automatically senses the input single and will not stretch a 4:3

signal but instead will position the image in the middle of the

screen with side bars. A 3 year warranty, the industry’s best pixel

performance policy, energy saving Eco-mode and Windows 7

certification, make VX2253mh-LED a great long term investment.

GO GREEN WITH FULL POWER

Uses 40% less power

>

Without compromising your viewing quality and has

eco-friendly mercury free WLED backlight.

Full HD 1080p with 16:9 aspect ratio

>

Achieves perfect image reproduction without distortion.

2 HDMI inputs plus VGA input for diverse connectivity

>

Integrated speakers with SRS Premium Sound

>

for multimedia applications

Dynamic contrast ratio at 30,000,000:1

>

For true-to-life picture depth and clarity in any room.

Highest grade panel

>

For crisp images and the best pixel performance in the industry.

PC and Mac® compatible

>

Book stand option

>

VX2253mh-LED

22" (21.5" VIEWABLE) LED MONITOR WITH 30,000,000:1 MEGA DYNAMIC CONTRAST RATIO

LED Type 22" (21.5" Viewable) Wide Color TFT Active Matrix LCD

Display Area 18.7" horizontal x 10.6" vertical; 21.5" diagonal
Optimum Resolution 1920x1080p
Contrast Ratio 1000:1 (typ); 30,000,000:1 (dynamic)
Viewing Angles 170º horizontal, 160º vertical @ contrast ratio > 10:1
Response Time 5ms (typ)
Light Source Long life, 25,000 hrs. (typ)
Brightness 300 cd/m2 (typ)
Panel Surface Anti-glare

VIDEO INPUT Analog RGB analog (75 ohms, 0.7/1.0 Vp-p)

Digital HDMI x2 (TMDS, 100 ohms)
Frequency Fh: 24~83kHz, Fv: 50~75Hz
Sync H/V separated (TTL), composite sync-on-green

COMPATIBILITY PC VGA up to 1920x1080 non-interlaced

Mac®* Power Mac™ G3/G4/G5 up to 1920x1080

CONNECTOR Analog 15-pin mini D-sub (VGA)

Digital HDMI
Power 3-pin AC plug (CEE22)

AUDIO Speakers 2x2-watt
POWER Voltage AC 100–240V (universal), 50/60Hz (auto switch)

Consumption 20W (typ)

CONTROLS Basic Power, 1, down, up, 2

OSD Auto image adjust, brightness, contrast, input select (analog,
digital), ViewMatch® color adjust (sRGB, 9300K, 7500K,
6500K, 5400K, default, user color - RGB), information
(resolution, H/V frequency, pixel clock, model number,
serial number), manual image adjust (H/V position, H size,
fine tune, sharpness), setup menu (language, resolution
notice, OSD position, OSD timeout, OSD background),
memory recall

ERGONOMICS Tilt Down 5º, Up 20º
OPERATING Temperature 32–104º F (0–40º C)
CONDITIONS Humidity 20–90% (non-condensing)
DIMENSIONS Physical 20.75" x 15.7" x 7.72" (527mm x 399mm x 196mm)
(W x H x D) Packaging 23.1" x 17.8" x 4.8" (587mm x 453mm x 122mm)
WEIGHT Net 7.5 lb. (3.4 kg)

Gross 10.3 lb. (4.7 kg)

REGULATIONS UL, cUL, FCC-B, CB, CE, ENERGY STAR®, NOM, GS (covers

GS), ERGO (ISO13406-2 &MPR II), MPR II, GOST-R + 20
original copies hygienic, SASO, PCBC, VCCI, BSMI, CCC,
PSB, C-TICK, MIC (KCC), WEEE, RoHS, EPEAT Silver

POWER MANAGEMENT Meets MPR II and ENERGY STAR® standards
PACKAGE CONTENTS LCD display, power cable, VGA video cable, HDMI cable,

audio cable, Quick Start Guide, ViewSonic Wizard CD (User
Guide and drivers)

WARRANTY Three-year limited warranty on parts, labor and backlight.

ViewSonic Corporation’s QMS & EMS have been registered

to ISO 9001 & ISO 14001, respectively, by TUV NORD.

Sales: [phone] • [e-mail] • ViewSonic.com

*Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection,
offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks
stated herein are the property of their respective companies. Copyright © 2010 ViewSonic Corporation. All rights reserved.
[15304-00B-11/10] VX2253mh-LED
