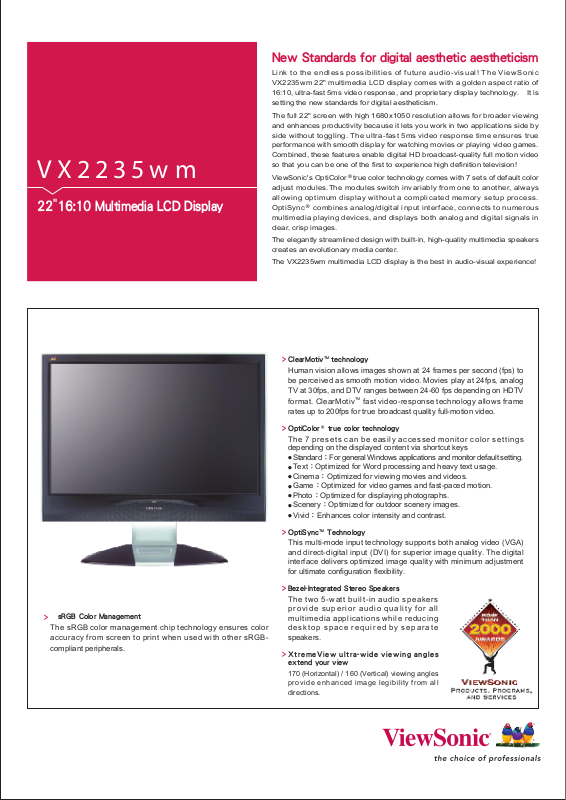

V X 2 2 3 5 w m
22"16:10 Multimedia LCD Display
New Standards for digital aesthetic aestheticism
Li nk to th e e nd le ss po ss ib il it ie s o f f ut ur e a ud io -v is ua l! Th e V ie wS on ic
VX2235wm 22" multimedia LCD display comes with a golden aspect ratio of
16:10, ultra-fast 5ms video response, and proprietary display technology.It is
setting the new standards for digital aestheticism.
The full 22" screen with high 1680x1050 resolution allows for broader viewing
and enhances productivity because it lets you work in two applications side by
side without toggling. The ultra-fast 5ms video response time ensures true
performance with smooth display for watching movies or playing video games.
Combined, these features enable digital HD broadcast-quality full motion video
so that you can be one of the first to experience high definition television!
ViewSonic's OptiColor true color technology comes with 7 sets of default color
adjust mo dules.The modules switch invariably from one to another, always
allow ing op timum dis play w ithout a c ompli cated mem ory se tup pr ocess.
Opt iSynccombines anal og/digital input int erface, connects to numerous
multimedia playing devices, and displays both an alog and digital signals in
clear, crisp images.
The elegantly streamlined design with built-in, high-quality multimedia speakers
creates an evolutionary media center.
The VX2235wm multimedia LCD display is the best in audio-visual experience!
sRGB Color Management
>
The sRGB color management chip technology ensures color
accurac y from screen to print w hen used with other sRGBcompliant peripherals.
ClearMotivTM technology
>
Human vision allows images shown at 24 frames per second (fps) to
be perceived as smooth motion video. Movies play at 24fps, analog
TV at 30fps, and DTV ranges between 24-60 fps depending on HDTV
format. ClearMotiv
TM
fast video-response technology allows frame
rates up to 200fps for true broadcast quality full-motion video.
>
OptiColor true color technology
The 7 p res ets can be e asi ly a ccess ed m oni tor col or s ett in gs
depending on the displayed content via shortcut keys
●
Standard：For general Windows applications and monitor default setting.
●
Text：Optimized for Word processing and heavy text usage.
●
Cinema：Optimized for viewing movies and videos.
●
Game：Optimized for video games and fast-paced motion.
●
Photo：Optimized for displaying photographs.
●
Scenery：Optimized for outdoor scenery images.
●
Vivid：Enhances color intensity and contrast.
OptiSyncTM Technology
>
This multi-mode input technology supports both analog video (VGA)
and direct-digital input (DVI) for superior image quality. The digital
interface delivers optimized image quality with minimum adjustment
for ultimate configuration flexibility.
Bezel-Integrated Stereo Speakers
>
The tw o 5- wat t bu ilt -in audio spe ake rs
provi d e s u p erior a u d i o qual i t y f or all
mu ltime di a applic at ions w hi le reduc in g
d esktop spac e r e q u i r e d b y s e p arate
speakers.
Xt rem eView ultra -wide viewi ng ang les
>
extend your view
170 (Horizontal) / 160 (Vertical) viewing angles
pr ov ide enhanced im ag e l eg ibility from al l
directions.
VX2235wm
22" 16：10 Multimedia LCD Display
LCD
INPUT
COMPATIBILITY
CONNECTOR
AUDIO
POWER
CONTROLS
OPERATING
CONDITIONS
DIMENSIONS
(W×H×D)
WEIGHT
REGULATIONS
Ergonomics
Wall Mount
Display Area
Optimum Resolution
Brightness
Contrast Ratio
Viewing Angles
Response Time
Pixel Pitch
Panel Surface
Analog
Digital
Sync
Frequency
PC
Mac
Analog
Digital
Audio-in
Power
Speaker
Voltage
Consumption
Basic
®
OnView
Temperature
Humidity
Physical (mm)
Net
Tilt
Model No. VS11349
22" diagonal Wide
1680×1050
280 cd/m2 (Typ.)
700:1 (Typ.)
170°(Horizontal),160°(Vertical) (CR＞10)
5ms
0.282mm(H)×0.282mm(V)
Anti-glare
RGB Analog
DVI-D
H/V Separated
FH:30-82kHz, Fv:50-85Hz
VGA up to 1680×1050 Non Interlaced
Power Mac, up to 1680×1050
15 pin mini D-sub×1
DVI-D
3.5mm Audio Line-in
Built-in power Adapter, 3-pin plug
2.5W×2
100-240VAC; 50/60 Hz (Switch)
47W (Max.)
[1], [2], Power, Down[▼], Up[▲]
Auto Image Adjust Contrast/Brightness Input Select Analog/Digital
Color Adjust sRGB, 9300K, 6500K(default), 5400K, User Color [R, G,
B] Information Resolution, H Frequency, V Frequency, Pixel Clock,
Model Number, Serial Number, “www.ViewSonic.com” Manual I
5℃-35℃
20%-80% (Non condensed)
524mm×482mm×244mm
6 kgs
CB, MPR II, WEEE, RoHS.UL, cUL, FCC-B, TUV-S, NOM, Energy
Star, TUV/ERGO, CE, GOST-R+Hygienic, SASO, ENERGY, BSMI,
CCC, PSB, C-TICK, MIC,
20°~ -5°
Meet VESA 100mm x100mm standerds
