1. Precautions and Safety Notices
1. Caution :
No modification of any circuit should be attempted . Service work should only be performed after
you are thoroughly familiar with all of the following safety checks and servicing guide line
2. Safety Check :
Care should be taken while servicing this LCD display. Because of the high voltage used in the
inverter circuit. These voltage are exposed in such areas as the associated transformer circuits .
3. POWER SUPPLY REQUIREMENTS
The external power converter for this display utilizes AC and DC cords , AC cord is
detachable , but DC cord is permanently attached . Any attempt to replace another adapter could
result in serious problem on the display .
4. LEAKAGE CURRENT HOT CHECK
4-1 Plug the AC cord directly into the AC outlet. Do not use an isolation transformer during
this check.
4-2 Connect a 1500 ohm , 10 watt resistor , paralleled by a 0.15uF capacitor between each
metallic part and a good earth ground
4-3 Use an AC voltmeter with 1000 ohm / volt or more sensitivity and measure the AC voltage
across the combination 1500 ohm resistor and 0.15uF capacitor.
4-4 Move the resistor connection to each exposed metallic part and measure the voltage.
4-5 Reverse the polarity of the AC plug in the AC outlet and repeat the above measurement.
4-6 Voltage measured must not exceed 1.5 volt RMS, from any exposed metallic part to the
ground. A leakage current tester may be used in the above hot check, in which case any
circuit measured must not exceed 1.0 milliamp. In the case of a measurement exceeding
the 1.0 milliamp value, a rework is required to eliminate the chance of a shock hazard .
AC VOLTMETER
V
0.15u
.
To Metal Parts
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
1500 10W
1
Earth Ground
Handing Methods
correct method
Take out the monitor with cushion
Place the monitor on a clean & soft foam pad
incorrect method
Take out the monitor by grasping the LCD
panel.That may cause “ MURA“.
Place the monitor on foreign objects .That
could scratch the surface of panel
Do not touch the surface of the polarizer .
Surface of the panel is pressed by fingers &
this may cause “ MURA “
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
2
bezel
bezel
bracket
bracket
when you get the lcd
monitor
monitor
when assemble&disassembly
when you get the lcd
when assemble&disassembly
when assemble&disassembly
when assemble&disassembly
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
3
2. Specification
GENERAL specification
Test Resolution & Frequency 1680x1050 @ 60Hz
Test Image Size Full Size
Contrast and Brightness Controls
VIDEO INTERFACE
Analog Input Connector DB-15 (Analog), refer the appendix A
Digital Input Connector DVI-D (Digital), refer the appendix B
Default Input Connector Defaults to the first detected input
Video Cable Strain Relief Equal to twice the weight of the monitor for five minutes
Video Cable Connector DB-15 Pin out Compliant DDC 1/2B
Video Signals
Video Impedance 75 Ohms (Analog), 100 Ohms (Digital)
Maximum PC Video Signal 950 mV with no damage to monitor
Maximum Mac Video Signal 1250 mV with no damage to monitor
Sync Signals LVDS
DDC 1/2B Compliant with Revision 1.3
Sync Compatibility Separate Sync, Composite Sync, SOG
1. Video RGB (Analog)
Separate, Composite, and Sync on Green
2. TMDS (Digital)
Shall be compatible with all PC type computers, Macintosh
computers, and after market video cards
640 x 350*, 640 x 480, 720 x 400* (640 x 400*), 800 x 600, 832 x
624, 1024 x 768, 1152 x 864, 1152 x 870, 1280 x 720, 1280 x
960, 1280 x 1024, 1680 x 1050
* The image vertical size might not be full screen.
But the image vertical position should be at the center.
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
POWER SUPPLY
Internal Power Supply Part Number: EAPD-64CF
Input Voltage Range 90 TO 264 VAC
Input Frequency Range 47.5 TO 63 HERTZ
Short Circuit Protection Output can be shorted without damage
Over Current Protection 10 A typical
Leakage Current 3.5mA (Max) at 264VAC / 50Hz
EFFICIENCY 80 % typical at 115VAC Full Load
Fuse Internal and not user replaceable
Power Dissipation 64 Watts (typ)
Max Input AC Current 1.5Arms @ 90VAC
INRUSH CURRENT (COLD START) 80 A @ 230VAC
Shall start and function properly when under full load, with all
Power Supply Cold Start
Power Supply Transient Immunity
Power Supply Line Surge Immunity
Power Supply Missing Cycle Immunity
Power Supply Acoustics
US Type Power Cable
European Type Power Cable
CCC Type Power Cable
PSE Type Power Cable
Power Saving Operation(Method)
Power Consumption
Recovery Time On Mode = N/A, Active Off < 3 sec
combinations of input voltage, input frequency, and operating
temperature
Shall be able to withstand an ANSI/IEEE C62.41-1980 2000V
200 ampere ring wave transient test with no damage
Shall be able to withstand 1.5 times nominal line voltage for one
cycle with no damage
Shall be able to function properly, without reset or visible screen
artifacts, when ½ cycle of AC power is randomly missing at
nominal input
The power supply shall not produce audible noise that would be
detectable by the user. Audible shall define to be in compliance
with ISO 7779 (DIN EN27779:1991) Noise measurements of
machines acoustics. Power Switch noise shall not be considered
Separate 3-prong NEMA 5-15P type plug. Length = 1.8m.
Connects to display.
Color = Black
Schuko CEE7-7 type plug.
Length = 1.8m, Connects to display.
Color = Black
Separate 3-prong type plug.
Length = 1.8m. Connects to display.
Color = Black
Separate 2-prong NEMA 1-15P type plug. Length = 1.8m.
Connects to display.
Color = Black
VESA DPMS Signaling
ON Mode < 50W (Max) / 49W (Typ)
On Mode < 50 W (Max) / 49W (Typ)
Saving Mode < 2 W, Off Mode < 1 W
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
ELECTRICAL REQUIREMENT
Horizontal / Vertical Frequency
Horizontal Frequency 30 – 82 KHZ
Vertical Refresh Rate 50 – 75 HZ
Maximum Pixel Clock Digital: 165 MHz Analog: 205 MHz
Sync Polarity Independent of sync polarity.
Timing Table
Item Timing Analog Digital
1 640 x 350 @ 70Hz, 31.5kHz Yes Yes
2 640 x 400 @ 60Hz, 31.5kHz Yes Yes
3 640 x 400 @ 70Hz, 31.5kHz Yes Yes
4 640 x 480 @ 50Hz, 24.7kHz No No
5 640 x 480 @ 60Hz, 31.5kHz Yes Yes
6 640 x 480 @ 67Hz, 35.0kHz Yes Yes
7 640 x 480 @ 72Hz, 37.9kHz Yes Yes
8 640 x 480 @ 75Hz, 37.5kHz Yes Yes
9 640 x 480 @ 85Hz, 43.27kHz No No
10 720 x 400 @ 70Hz, 31.5kHz Yes Yes
11 800 x 600 @ 56Hz, 35.1kHz Yes Yes
12 800 x 600 @ 60Hz, 37.9kHz Yes Yes
13 800 x 600 @ 75Hz, 46.9kHz Yes Yes
14 800 x 600 @ 72Hz, 48.1kHz Yes Yes
15 800 x 600 @ 85Hz, 53.7kHz No No
16 832 x 624 @ 75Hz, 49.7kHz Yes Yes
17 1024 x 768 @ 60Hz, 48.4kHz Yes Yes
18 1024 x 768 @ 70Hz, 56.5kHz Yes Yes
19 1024 x 768 @ 72Hz, 58.1kHz Yes Yes
20 1024 x 768 @ 75Hz, 60.0kHz Yes Yes
21 1024 x 768 @ 85Hz, 68.67kHz No No
22 1152 x 864 @ 75Hz, 67.5kHz Yes Yes
23 1152 x 870 @ 75Hz, 68.7kHz Yes Yes
24 1280 x 1024 @ 60Hz, 63.4kHz Yes Yes
25 1280 x 1024 @ 75Hz, 79.97kHz Yes Yes
26 1280x 720 @ 60Hz, 45kHz Yes Yes
27 1680 x 1050 @ 60Hz, 65.3kHz Yes Yes
28 1680 x 1050 @ 75Hz, 82.3kHz Yes No
29 1680 x 1050 @ 85Hz, 93.9kHz No No
Primary Presets
1680x1050 @ 60Hz
AUDIO INTERFACE (SPEAKER SPECIFICATION)
Line input connection 3.5 mm stereo jack
Line input signal 1.3 Vrms
Line input impedance 10 kOhm
Maximum power output (Electric) 1 W @ < 5% distortion
Signal to Noise Ratio 72 dB
Frequency response 200 Hz – 20 Khz
Distortion
Vibration
Screen image
Connector PC99 requirement Audio in Lime Green pantone # 577C
Cable type / length 3.5mm stereo cable / 1.8m length
Audio DPMS
< 5 % THD (@1kHz)
There should be no audible vibration with volume at 100% and
treble / bass at default
There should be no affect on the screen image stability under
any conditions
Speakers stay on when the rest of the monitor is in power saving
Note: There is no guarantee <1W power consumption in Active
Off mode, when the Audio Cable is connected
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
Panel Characteristics:
st
Source Panel
1
Model number AUO M201EW01 V0
Type PMVA type with LVDS interface
Active Size 433.44 (H) x 270.9(V)
Pixel Arrangement RGB Vertical Stripe
Pixel Pitch 0.258 mm
GLASS TREATMENT Anti Glare (Hard coating 3H)
# OF BACKLIGHTS 6 CCFL
BACKLIGHT LIFE 50,000 Hours (Min)
Luminance (5-point) –
Condition:
CT = 6500K, Contrast = Max, Brightness = Max
Brightness Uniformity ≧80% (Typ), 75% (Min),
Contrast Ratio 800:1 (typ), 400:1 (min)
Color Depth 16.7 million colors (8 bits)
Viewing Angle (Horizontal) @ CR>10
Viewing Angle (Vertical) @ CR>10
Response Time
10%-90% @ Ta=25°C
Panel Defects Please see Panel Quality Specifications.
300 cd/m2 (Typ after 30 minute warm up)
240 cd/m2 (Min after 30 minute warm up)
Typical: 178º
Minimum: 150º
@ CR>5
Typical: T.B.D
Minimum: T.B.D
Tr = 25 ms,Tf = 15 ms Total = 40ms (max)
Tr =11 ms,Tf = 5ms Total =16ms(typ)
Without OD Board (gray –gray)
(Average of Tr and Tf) = 8 ms (typ)
MECHANICAL
Dimension (Desktop)
Width 484.6 mm (19 inch)
Height 441.3 mm (17.3inch)
Depth 201 mm (7.9 inch)
Monitor Weight 6.3 Kg (13.89 lbs)
Dimension (Head Only / Wall Mount)
Width 484.6 mm (19 inch)
Height 340.1 mm (13.4 inch)
Depth 67.1 mm (2.6 inch)
Monitor Weight 5 Kg (11.02 lbs)
Ergonomics
Tilt Up From 0º up to 20º≧
Tilt Down From 0º down to -3º ~ -5 º
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
3. Front Panel Function Control Description
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
Main Menu Controls
Adjust the menu items shown below by using the up and down buttons.
A. Auto Image Adjust automatically sizes, centers, and fine tunes the video signal to eliminate
waviness and distortion. Press the [2] button to obtain a sharper image.
NOTE: Auto Image Adjust works with most common video cards. If this function does not work on
your LCD display, then
lower the video refresh rate to 60 Hz and set the resolution to its pre-set value.
B. Contrast adjusts the difference between the image background (black level) and the foreground
(white level).
C. Brightness adjusts the lamps current to control the screen brightness.
D. Input adjusts the Analogue or the Digital input source
E. Audio Adjust the volume increase or decrease and mute function
F. Color Adjust provides several color options: preset color temperatures and Custom User Color which
allows you to adjust red (R), green (G), and blue (B). The factory setting for this product is 6500K
(6500° Kelvin).
9300K — Adds blue to the screen image for cooler white (used in most office settings with fluorescent
lighting).
5400K — Adds red to the screen image for warmer white and richer red.
Custom User Color — Individual adjustments for red, green, and blue.
1 To select color (R, G or B) press button [2].
2 To adjust selected color, press ▲ or ▼ .
3 When you are finished making all color adjustments, press button [1] twice.
G. Information displays the timing mode (video signal input) coming from the graphics card in your
computer. See your graphic card’s user guide for instructions on changing the resolution and refresh
rate (vertical frequency). VESA 1680 x 1050 @ 60 Hz (recommended) means that the resolution is
1680 x 1050 and the refresh rate is 60 Hertz.
H. Manual Image Adjust controls are explained below:
H. Size (Horizontal Size) adjusts the width of the screen image.
NOTE: Vertical size is automatic with your LCD display. H./V. Position adjusts horizontal and vertical position of the screen image. You can toggle between
Horizontal and Vertical by pressing button [2]. Horizontal moves the screen image to the left or to the right.
Vertical moves the screen image up and down.
Fine Tune sharpens focus by aligning the illuminated text and/or graphic characters.
Sharpness adjusts the clarity and focus of the screen image.
Setup Menu controls are explained below:
Language allows you to choose the language used in the menus and control screens.
Resolution Notice displays the recommended resolution for this LCD display.
Enable allows the Resolution Notice to appear on-screen.
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
Disable will not allow the Resolution Notice to appear on-screen.
OSD Timeout sets the length of time an on-screen display screen is displayed. For example,
with a“15 second” setting, if a control is not pushed within 15 seconds, the display OSD disappears.
I. OSD Position allows you to move the on-screen display menus and control screens.
J. Memory Recall returns adjustments to the original factory settings if the display is operating in a
factory Preset Timing Mode listed in this user guide.
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
4. Circuit Description
1. Outline
1.1 Power On/Off, (2) Enter button, up arrow button, down arrow button, (1) MENU button, n on the front
panel.
1.2 D-sub 15pin connector, DVI-D connector, audio line-in receptacle, and AC-IN are located on the back
side of the cabinet.
1.3 OSD menu includes the following function;
Auto Image Adjust (only active under analog input)
Contrast/Brightness
Input Select
Audio Adjust
Color Adjust
Information
Manual Image Adjust
Setup Menu
Memory Recall
1.4 Contrast and Brightness can be directly controlled with UP / DOWN key.
1.5 Audio volume can be controlled with UP/DN key when Audio Adjust menu is active.
2. CONNECTORS
2.1 AC inlet : CEE22 typed connector
2.2 Audio : Line-in,
CN9
1
5
4
3
2
Line-in receptacle
(Line-in receptacle is green)
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
2.3 Video signal connector for analog input: 15P Mini D-Sub
CN6
162738495
10
DB15HD
1617
PIN MNEMONI SIGNAL
1 RV Red Video
2 GV Green Video
3 BV Blue Video
4 NC None
5 GND Ground (DDC return)
6 RG Red GND
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
3. ELECTRICAL SPECIFICATIONS
3.1 Standard conditions
Display Area
Video Signal
Contrast
Brightness
Ambient
Input
Warming up
Display
3.2 POWER
3.2.1 Power supply
Input voltage 100~240Vac
Power frequency 50~60Hz
Input current
433.44 x 270.9 mm
0.7Vpp
Default
Default
20 +/- 5 °C
AC
> 30 min
1680 x 1050
<1.5Arms@90Vac
Inrush current
Power consumption 47W(typical);50Watts(Max)
3.2.2 Power Management
State Power Indicator
On 47Watts Green
Standby < 2Watts Amber
Off <2Watts Off
80A(Max) at 230Vac(cold
start)
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
3.3 Acceptable timing
If the timing is within following specification, this LCD display can automatically function with a certain
position.
Horizontal: Sync frequency: 30~82 KHz (Analog: 205MHz, Digital:165MHz)
Vertical: Sync frequency: 50~75*Hz
3.4 Signal level and input impedance
3.4.1 Video Signal level: 0.7Vp-p Video signal.
3.4.2 Sync Signal level
H/V Separate: TTL level
3.4.3 Input impedance
Analog video input: 75 ohm
Digital video input: 100 ohm
Sync input: > 1 k ohm
Audio input: 10K ohm
4. SIGNAL CABLE: Signal cable with Mini D-Sub 15P connectors at both ends. Length: 1.8 meter.
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
(16) Week of Manufacture _________________ = 01
(17) Year of Manufacture _________________ = 2005
(10-17) Complete Serial Number ______________ = See Descriptor Block
(18) EDID Version Number _________________ = 1
(19) EDID Revision Number ________________ = 3
(20) VIDEO INPUT DEFINITION:
Analog Signal
0.700, 0.300 (1.000 Vp-p)
Separate Syncs, Composite Sync, Sync on Green
(21) Maximum Horizontal Image Size ________________ = 430 mm
(22) Maximum Vertical Image Size __________________ = 270 mm
(23) Display Gamma ________________________________ = 2.20
(24) Power Management and Supported Feature(s):
Active Off/Very Low Power, Standard Default Color Space,
Preferred Timing Mode
Display Type = R/G/B Color
(25-34) CHROMA INFO:
Red X - 0.640 Green X - 0.288 Blue X - 0.144 White X - 0.313
Red Y - 0.352 Green Y - 0.628 Blue Y - 0.076 White Y - 0.329
(35) ESTABLISHED TIMING I:
720 X 400 @ 70Hz (IBM,VGA)
640 X 480 @ 60Hz (IBM,VGA)
640 X 480 @ 67Hz (Apple,Mac II)
640 X 480 @ 72Hz (VESA)
640 X 480 @ 75Hz (VESA)
800 X 600 @ 56Hz (VESA)
800 X 600 @ 60Hz (VESA)
(36) ESTABLISHED TIMING II:
800 X 600 @ 72Hz (VESA)
800 X 600 @ 75Hz (VESA)
832 X 624 @ 75Hz (Apple,Mac II)
1024 X 768 @ 60Hz (VESA)
1024 X 768 @ 70Hz (VESA)
1024 X 768 @ 75Hz (VESA)
1280 X 1024 @ 75Hz (VESA)
(37) Manufacturer's Reserved Timing:
1152 X 870 @ 75Hz (Apple,Mac II)
(38-53) Standard Timing Identification:
1680 X 1050 @75Hz
1280 X 1024 @60Hz
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
1280 X 960 @60Hz
1152 X 864 @75Hz
Not Used
Not Used
Not Used
Not Used
______________________________________________________________________
(54-71) Detailed Timing / Descriptor Block 1:
1680x1050 Pixel Clock: 146.25 MHz
______________________________________________________________________
Horizontal Image Size: 433 mm Vertical Image Size: 271 mm
Refreshed Mode: Non-Interlaced Normal Display - No Stereo
Monitor Range Limits:
Min Vertical Freq - 50 Hz
Max Vertical Freq - 75 Hz
Min Horiz. Freq - 30 KHz
Max Horiz. Freq - 82 KHz
Pixel Clock - 210 MHz
Secondary GTF - Not Supported
______________________________________________________________________
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
(108-125) Detailed Timing / Descriptor Block 4:
Monitor Name:
VX2025wm
(126) No Extension EDID Block(s)
(127) CheckSum OK
5.2. Digital EDID: Digital EDID is stored in IC4.
Appendix F : Digital EDID
______________________________________________________________________
EDID Block 0, Bytes 0-127
128 BYTES OF EDID CODE:
0 1 2 3 4 5 6 7 8 9
________________________________________
0 | 00 FF FF FF FF FF FF 00 5A 63
10 | 1D E5 01 01 01 01 01 0F 01 03
20 | 80 2B 1B 78 2E CF E5 A3 5A 49
30 | A0 24 13 50 54 BF EF 80 B3 0F
40 | 81 80 81 40 71 4F 31 0A 01 01
50 | 01 01 01 01 21 39 90 30 62 1A
60 | 27 40 68 B0 36 00 B1 0F 11 00
70 | 00 1C 00 00 00 FF 00 51 36 59
80 | 30 35 30 31 30 30 30 30 31 0A
90 | 00 00 00 FD 00 32 4B 1E 52 11
100 | 00 0A 20 20 20 20 20 20 00 00
110 | 00 FC 00 56 58 32 30 32 35 77
120 | 0A 20 20 20 20 20 00 6A
______________________________________________________________________
(08-09) ID Manufacturer Name ________________ = VSC
(11-10) Product ID Code _____________________ = E51D
(12-15) Last 5 Digits of Serial Number ______ = Not Used
(16) Week of Manufacture _________________ = 01
(17) Year of Manufacture _________________ = 2005
(10-17) Complete Serial Number ______________ = See Descriptor Block
(18) EDID Version Number _________________ = 1
(19) EDID Revision Number ________________ = 3
(20) VIDEO INPUT DEFINITION:
Digital Signal
Non - VESA DFP 1.x Compatible
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
(21) Maximum Horizontal Image Size ________________ = 430 mm
(22) Maximum Vertical Image Size __________________ = 270 mm
(23) Display Gamma ________________________________ = 2.20
(24) Power Management and Supported Feature(s):
Active Off/Very Low Power, Standard Default Color Space,
Preferred Timing Mode
Display Type = R/G/B Color
(25-34) CHROMA INFO:
Red X - 0.640 Green X - 0.288 Blue X - 0.144 White X - 0.313
Red Y - 0.352 Green Y - 0.628 Blue Y - 0.076 White Y - 0.329
(35) ESTABLISHED TIMING I:
720 X 400 @ 70Hz (IBM,VGA)
640 X 480 @ 60Hz (IBM,VGA)
640 X 480 @ 67Hz (Apple,Mac II)
640 X 480 @ 72Hz (VESA)
640 X 480 @ 75Hz (VESA)
800 X 600 @ 56Hz (VESA)
800 X 600 @ 60Hz (VESA)
(36) ESTABLISHED TIMING II:
800 X 600 @ 72Hz (VESA)
800 X 600 @ 75Hz (VESA)
832 X 624 @ 75Hz (Apple,Mac II)
1024 X 768 @ 60Hz (VESA)
1024 X 768 @ 70Hz (VESA)
1024 X 768 @ 75Hz (VESA)
1280 X 1024 @ 75Hz (VESA)
(37) Manufacturer's Reserved Timing:
1152 X 870 @ 75Hz (Apple,Mac II)
(38-53) Standard Timing Identification:
1680 X 1050 @75Hz
1280 X 1024 @60Hz
1280 X 960 @60Hz
1152 X 864 @75Hz
640 X 400 @70Hz
Not Used
Not Used
Not Used
______________________________________________________________________
(54-71) Detailed Timing / Descriptor Block 1:
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
1680x1050 Pixel Clock: 146.25 MHz
______________________________________________________________________
Horizontal Image Size: 433 mm Vertical Image Size: 271 mm
Refreshed Mode: Non-Interlaced Normal Display - No Stereo
Monitor Range Limits:
Min Vertical Freq - 50 Hz
Max Vertical Freq - 75 Hz
Min Horiz. Freq - 30 KHz
Max Horiz. Freq - 82 KHz
Pixel Clock - 170 MHz
Secondary GTF - Not Supported
______________________________________________________________________
(108-125) Detailed Timing / Descriptor Block 4:
Monitor Name:
VX2025wm
(126) No Extension EDID Block(s)
(127) CheckSum OK
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
6. THEORY OF OPERATION
This section describes the function of the LCD monitor per functional block.
This monitor includes MB board, power board, Inverter board and button board.
6.1 MB BOARD
The MB board is a two-layer, single-landed. 12V DC power from the power adapter enters the board
through connector CN6. Other connectors on the board are for audio speaker and button board .The VGA
cable is a signal cable that contains video signal, sync signal and DDC signal from PC VGA adapter. This
system board consists of 4 functional areas: flat panel controller, flash ROM, power regulator and Audio
amplifier
6.1.1 Flat panel controller… NT68563HF (IC2)
The heart of the system board is the scalar chip of NT68563HF. The scaler is a highly integrated flat panel
display controller that interfaces analog, digital, and video inputs. It combines a triple ADC, a DVI
compliant TMDS receiver, a multi-color on screen display (OSD) controller and many other functions in a
single chip. It provides user a simple, flexible and cost-effective solution for various flat panel display
products.
The NT68563HF operates at frequencies up to 205MHz (analog only), suitable for LCD monitor up to
UXGA resolution. The NT68563HF also build-in noise reduction function to provide more stable video
quality, spread spectrum to provide low EMI solution, sRGB for video color space convert, post pattern for
manufacture test.
a) Clock Generation:
This is the input pair to an internal crystal oscillator and corresponding logic. A 12.000 MHz crystal is
recommended.
b) Hardware Reset (Pin127):
Hardware Reset signal is provided by MCU (IC3), it is active high.
c) Analog to Digital Converter:
The NT68563HF chip has triple ADC's (analog-to-digital converters), one for each color (red, green and
blue) .The analog RGB and synchronous signals are connected to NT68563 as described below:
Pin Name Pin Number
Red + 25
Red - 26
Green + 23
Green - 24
Blue + 20
Blue - 21
H sync 39
V sync 40
ViewSonic Corporation Confidential - Do Not Copy VX2025wm -1
d) Internal OSD: Internal SRAM allows up to 2048 characters, with programmable OSD frame size.
Width is 64 columns, and Height is 32 row.
e) On chip TMDS receiver: The NT68563HF integrated TMDS receiver, which operates up to 165MHz
and can directly connect to all DVI compliant TMDS transmitters. The TMDS signals are connected
to NT68563HF as described bellow:
6.1.2 Mcu flash ROM
This is an 8031 CPU core embedded micro-controller, which is design for high-performance low-cost LCD
monitor control application. It contains an 8-bit 8031 micro-controller, on-chip 64 K bytes flash-type
program ROM, 1,280-bytes internal data memory, four 7-bit resolution A/D Converter, 10-channel 8-bit
resolution PWM DAC, two 16-bit timer/counters, and a UART.
a) PWM controlling function (Pin 8, Pin 9): The MCU 68F633 has two GPIO to control audio volume and
back light brightness.
b) Serial interface ports pin 25~26(DVI) and pin 27~28(VGA): This serial interface ports communicate
with MCU and support up to 400Kbit per second transmit rate.
6.1.2 Power Regulator AIC1563 (U1), AIC1117 (U3, U4, U5): The AIC1563 is a monolithic control IC
containing the primary functions required for DC-to-DC converters. The device consists of an internal
temperature compensated reference, comparator, controlled duty cycle.
Oscillator with an active current sense circuit, desired output voltage are determined by the equation,
Volt = 1.25 *(1 + R121 / R122), in this case, the output voltage are 5 Volts
AIC1117 (U3, U4, U5): The AIC1117 is a low dropout positive adjustable regulator with minimum of 800mA
output current capability.
So it is well suited for 3.3 V and 2.5 V Regulator.
U5 as a 1.8V regulator, desired output voltage are determined by the equation
Volt=1.25 x (1 + R90/R88) = 1.8
U3 as a 3.3V regulator, desired output voltage are determined by the equation
Volt=1.255 x (1+ R86/R85) = 3.3
U4 as a 3.3V regulator, desired output voltage are determined by the equation
Volt=1.255 x (1+ R89/R87) = 3.3
ViewSonic Corporation Confidential - Do Not Copy VX2025wm -1
6.2 Audio Amplifier UTC TDA7496L (U9)
The TDA7496L is a stereo 2W+2W class AB power amplifier; Features of the TDA7496L include linear
volume control, Stand-by and mute functions.
6.3 Inverter Board
This is a specific inverter for VA2012 monitor 40W backlight which converters 20Vdc to drive 6 tubes cold
cathode fluorescent tubes. Electrical specification described as below.
6.3.1 Inverter Electrical specification described as below.
INPUT
Rated Input Voltage 20Vdc
Input Voltage Range 18.5~21.5Vdc
Input Current <2A
Off state Input Power <0.1W
On / off control Voltage 2~5.25 for on, 0~0.2 for off
OUTPUT
Rated Output Strike-on Voltage 1500~2000Vrms
Rated Output Voltage 710Vrms at 6mA
Rated Output Frequency 40~50KHz
Rated Output Current 6~7mA
6.4 This is a general purpose AC / DC adapter which converter 90~240 Vac to a stabilized DC voltage
20V for inverter and 12V for system board with rated output current of 4.16A
6.4.1 Power Electrical specification described as below.
INPUT
Rated Input Voltage 90~264Vac, 47~63Hz
Operation Input Voltage 100~240Vac, 50~60Hz
Input Current <1.5A@90Vac
Inrush Current <80A @ 230Vac(Cold start)
OUTPUT
Output Voltage Regulation +/-5%
Output Ripple and Noise 300 mVp-p
Rated Output Current <4.16A
Turn-on Delay <3 seconds
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
5. Adjustment Procedure
1. Function test
(1) Test equipment
Color video signal and pattern generator (or PC with SXGV resolution)
(2) Test condition
Before function testing and alignment, the unit must warm up for at least 30 minutes under the following
conditions:
1. Room temperature
2. With full-white screen , RGB , black pattern
3. with cycled display modes.
2. Test display modes
Item Timing Analog Digital
1 640 x 350 @ 70Hz, 31.5kHz Yes Yes
2 640 x 400 @ 60Hz, 31.5kHz Yes Yes
3 640 x 400 @ 70Hz, 31.5kHz Yes Yes
4 640 x 480 @ 60Hz, 31.5kHz No Yes
5 640 x 480 @ 67Hz, 35.0kHz Yes Yes
6 640 x 480 @ 72Hz, 37.9kHz Yes Yes
7 640 x 480 @ 75Hz, 37.5kHz Yes Yes
8 640 x 480 @ 85Hz, 43.27kHz No No
9 720 x 400 @ 70Hz, 31.5kHz Yes Yes
10 800 x 600 @ 56Hz, 35.1kHz Yes Yes
11 800 x 600 @ 60Hz, 37.9kHz Yes Yes
12 800 x 600 @ 75Hz, 46.9kHz Yes Yes
13 800 x 600 @ 72Hz, 48.1kHz Yes Yes
14 800 x 600 @ 85Hz, 53.7kHz No No
15 832 x 624 @ 75Hz, 49.7kHz Yes Yes
16 1024 x 768 @ 60Hz, 48.4kHz Yes Yes
17 1024 x 768 @ 70Hz, 56.5kHz Yes Yes
18 1024 x 768 @ 72Hz, 58.1kHz Yes Yes
19 1024 x 768 @ 75Hz, 60.0kHz Yes Yes
20 1024 x 768 @ 85Hz, 68.67kHz No No
21 1152 x 870 @ 75Hz, 68.7kHz Yes Yes
22 1280 x 1024 @ 60Hz, 63.4kHz Yes Yes
23 1280 x 1024 @ 75Hz, 79.97kHz Yes Yes
24 1280 x 720 @ 60Hz, 45kHz Yes Yes
25 1680 x 1050 @ 60Hz, 65.3kHz Yes Yes
26 1680 x 1050 @ 75Hz, 82.3kHz Yes No
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
3. Test pattern
Item Test condition Pattern Specification Remark
1 Frequency &
performance
2 Monitor saturation 16-gray scale
3 RGB color
performance
Cross-hatch
pattern
No noise is allowed, all colors must be
clear
3 to 4 levels must be saturated when
pattern
brightness and contrast are set to 100%
RGB color Check the color temperature of RGB
signal color
Pattern 1
Pattern 2
Pattern 3, 4, 5
4 Sub-pixel defect RGB color Check the sub-pixel defect Pattern 3, 4 , 5
5 Full white Full white Check the brightness and contrast ratio,
Pattern 6
and check for bright pixel defects
6 Full black Full black Pattern 7
7. 5-cycle pattern 5-cycle pattern Check the BU Pattern 8
8. 1-dot pattern 1-dot pattern Check the flicker Pattern 9
Pattern 1 Pattern2
Pattern 3 Pattern4
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
Pattern 5 Pattern6
Pattern 7 Pattern 8
Pattern 9
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
Firmware update procedure:
When you received a received monitor , please check whether the firmware version. If not , please following
procedure to upgrade to the latest version .
1. Equipment needed :
- VX2025wm
- PC ( Personal computer )
- LPT cable (TWO FEMALE)
- Fixture (ISP)
- Firmware upgrade program
2. Connection :
To PC
To Monitor
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
Appendix A : How to install the software for ISP :
0. To setup ISP environment :
Hardware:
PC or notebook, parallel(printer) cable, ISP tooling.
Software:
If OS was Win2000 or WinXP , please install “PORT95NT.exe”

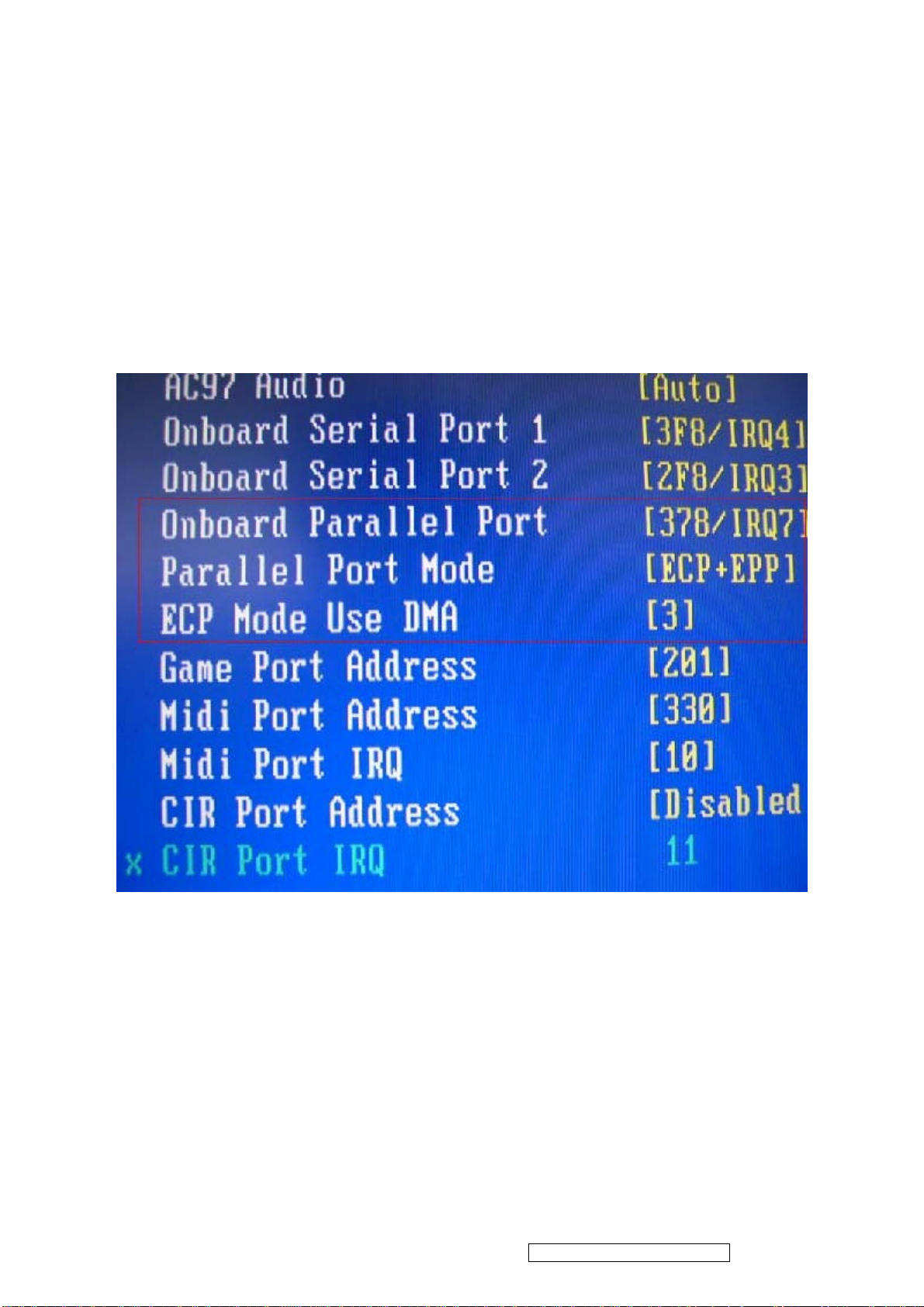

In order to ensure can execute ISP program, please set BIOS in PC or Notebook as Fig 0.0
Fig 0.0
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
1. Install ISP
1.1 User could download ISP software - EasyWirter
1.2 double click the file of EasyWriterV2.10p2.exe to install.
Fig 1.0
1.3 Press “ Next “ button to continue , see Fig 1.1
Fig 1.1
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
1.4 Keep default setting or press “ Change “ button for selecting the path that you want , and then press
“Next “ button to continue , see Fig 1.2
Fig 1.2
1.5 Press “ Install “ button to continue , see Fig 1.3
Fig 1.3
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
1.6 Press “ Next “ button to continue , see Fig 1.4
Fig. 1.4
1.7 Installation has finished , press “ Finish “ button , see Fig 1.5
Fig. 1.5
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
Appendix B : Use ISP to program MCU
2.1 press “ Load Hex “ button to load the hex file , see fig2.1
Fig.2.1
2.2 Select item 4“4.NT68F633(64k) IC , see fig2.2
Fig.2.2
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
2.3 press “ Auto “ button to continue , see fig2.3
Fig. 2.3
2.4 Check the status is “Auto Process Finished” and show 100% in the bar, see fig2.4
Fig. 2.4
2.4 If show “ Can’t enter ISP mode!” message, please re-check all ISP connection is ready, see fig2.5
Fig. 2.5
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
Disassembly procedure
take out LCD(1)
put lcd on the desk with sponge(2)
tear off yellow tape and uninsert lcd cabel(10)
unlock pcb'a screw and uninsert power cabel(11)
unlock stand screw(3)
unlock stand screw(4)
take out pcb'a(12)
pull out cable from pcb'a(13)
unlade lcd cover with a fixture(5)
unlock gnd plate and take out pcb holder(14)
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
34
unlock shielding screw(6)
tear off AL FOIL(16)
pull out CCFT CABLE(7)
tear off yellow tape and uninsert lcd cabel(15)
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
unlock button/b screw(8)
unlock bezel screw(17)
35
unlock bkt L/R screw(18)pull out button/b cable from button/b connector(9)
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
36
Packing method
(1) stick lcd film
美紋膠帶
1-11-2
(2) cover PE BAG
(4) put lcd in carton
注意PANEL面朝
向
(5) put cable&base&manual&assemble handle
(3) assemble END CAP R/L
VGA
CABLE&DVI
CABLE
MANUAL
HANDLE
BASE
(6) accessories check&cover carton
POWER
CABLE&AUD
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
37
6. Troubleshooting Flow Chart
No Power
No Power
Check CN6 pin 1,2
12V correct?
Check U4,U3 pin2
3.3V correct?
Check U5 pin 2
1.8V correct?
Change power
board
Change U3,U4
Change U5
Check Y1
frequency 12MHz
Change Y1
Change M/B
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
No Audio
No Audio Output
OK
Check input signal
J1 OK?
OK
Check CN7 to
speaker OK?
OK
Check CN6 pin 1,2
12V correct?
OK
NO
NO
NO
Check input source
or change J1
Change speaker
Change power
board module
Check U6 pin 6
Volume and
Check U6
pin12(mute),p11(stby)
Q7
OK
OK
NO
NO
Change Q7
Change U6
Change M/B
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
39
Display color abnormal
Display color abnormal
Check panel cable?
OK
Check open/short
of IC2?
OK
Check panel power
supply of Q4
NO
NO
NO
Change panel cable
Repair open/short
Change Q4
OK
Check panel
NO
Change panel
OK
Change M/B
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
40
7. Recommended Spare Parts List
RECOMMENDED SPARE PARTS LIST (VX2025wm-1)
ViewSonic Model Number: VS10859
Serial No. Prefix: Q6YRev: 1b
21
22Updated Vendor E-00005213DN0TE230F06
23Part # on 09/07/06DN0TE260009speaker assembly
24L9VDQ-4 HINGE COVER SUB ASSY GPHW-000052163FL9V0HS002hinge cover
Hardware:
25Screw (To Assemble the Cabinet)M-SCW-0824-6802MM30040IBJ9panel to L/R bracket & bezel
26Screw (To Assembly The Cabinet)M-SCW-0824-0813MF30060BBJ6PCBAs to metal shielding
27Nut-MBLI1004018 IO LI1 (MBLI1004,REV3A)M-MS-0808-8986MBLI1004018DVI&D-SUB to shielding
Miscellaneous:
28Rubber PlugM-MS-0808-9815GAL9V002014rubber plug vesa
29LCD Film Rev 3AM-00004158JXW0ZB01019LCD panel
Packing Material:
30Update Vendor P-00005217HFW0VX03014
31Part # 09/07/06HFW0VX01011 carton
32Foam-End Cap (Left)P-00005218HBW0VX01018 cushion
33Foam-End Cap (Right)P-00005219HBW0VX02014 cushion
34EPE Bag-L9VD (HAL9V002,REV3A)M-MS-0808-9817HAL9V002014PE bag
35Plastics:Pedestal (FAL9V006,Rev.3A)Added on 09/06/06PL-00008022FAL9V006010base
Above listed items are examples, supplier can expand the rows to add more necessary items.
All revised RSPLs with newly added items or any change made should be highlighted and correlated with the ECN/ECR approved by ViewSonic Corporation. This is to eliminate repeated cross
Remark 2:
checks of each item between this version and prior versions.
Description
Description
Description
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
93A-PC-0106-0306DM333181S01POWER 3P 1.8M(CHN)Y546B300012180QD GP
94A-PC-0106-0224DM333181G97POWER CORD 3P 1.8M(USA)V04VS350012180 GP
95A-PC-0106-0227DM333181801POWER CORD SP-023+IS-14 1.8M(B)EU GP
96A-00003642
DM33T181004
POWER CORD SP-305+IS-14 3P 1.8M(TWN)B GP
1
1
1
1
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
43
8. Exploded Diagram and Exploded Parts List
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
44
Y
EXPLODED PARTS LIST (VX2025wm-1)
ViewSonic Model Number: VS10859
Rev: 1b
Serial No. Prefix: Q6
ItemViewSonic P/NRef. P/NDescriptionQ'ty
1M-MS-0808-9243
2M-MS-0808-9402FEL7V007014BIRD LOGO L7VD(FEL7V007,REW3A)GP1
3N/AEAW0VX01017LCD MARK WOVX(EAW0VX01,REV3A)GP1
4N/AEAW0VX02013LCD BEZEL W0VX(EAW0VX02,REV3A) GP1
5M-SCW-0824-6802MM30040IBJ9SCREW M3.0*4.0-I(NI) GP9
6E-00005213DN0TE230F06SPEAKER ASSY L9VDQ FG-TE230 GP
7N/AEBL9V004018CONTROL BUTTON L9VDQ-4(EBL9V004,R3A) GP1
8M-MS-0808-9401EBL7V028019LENS L7VD(EBL7V028,REV3A)GP1
ViewSonic CorporationConfidential - Do Not CopyVX2025wm-1
52
CHN217
D30
GND_AGND_A
132
CHN217
D31
GND_A
132
MCU-VDDMCU-VDDMCU-VDD
CHN217
D32
132
MCU-VDDMCU-VDD
CHN217
D33
ViewSonic Corporation
Model
MCU(I/O_Key)
Title
DateRev:
+3.3V
T0M5T0P5
T1M5T1P5
TCLK1M5
T3M5
T4M5
T5M5T5P5
T6M5T6P5
TCLK2M5
T7M5
R6810K/6/NC
LCD-VDD
R70
0/6/NC
TCLK1M
T3M
T4M
T6M
TCLK2M
T7M
LCD-VDD
T0M
T1M
T2M
CN4
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
1841 30P
GND_AGND_A
2
1
2
4
3
4
6
5
6
8
7
8
10
9
10
12
11
12
14
13
14
16
15
16
18
17
18
20
19
20
22
21
22
24
23
24
26
25
26
28
27
28
30
29
30
T0P
T1P
T2P
TXB2+ T6P
TXBC+TCLK2P
TXB3+ T7P
TCLK1P
T3P
T4P
T2P5T2M5
TCLK1P5
T3P5
T4P5
T5P
TCLK2P5
T7P5
R69
0/6/NC
R67
10K/6/NC
+3.3V
GND_A
GND_A
Max 2.0A
+5V
L9
BEAD 120/1206
+18V
+12V
LCD-ON6
L10
BEAD 120/1206/NC
L11
BEAD 120/1206/NC
R734.7K/6
C44
2
2200pF/6
R71
4.7K/6
R72
2.2K/6
3
Q4
1
GND_A
MMBT3904
SI9435
Q3
2
3
45
LCD-VDD
+
C47
C46
330uF/16V
GND_A
GND_A
2005.06.13 modify
0.1uF/6
ViewSonic Corporation
Model
PANEL OUTPUT
81
7
6
C45
BEAD 120/1206
2200pF/6
C48
GND_A
L12
0.1uF/6
Title
ViewSonic CorporationConfidential - Do Not CopyVX2025wm-1
53
DateRev:
5V
FUSE20/1210/NC
12
L13
BEAD 120/1206/NC
D191SS355
GND_A
+12V
SSM12LL
D24
12
3
56
BL-BRIGHT
CN6CONN 4x2-R
4
BL-ON
87
BL-BRIGHT 6
+
C62
100uF/25V/NC
GND_A
VGA-5V DVI-5V+5V
D23
BAT54C-GS08
L20
BEAD 120/0805
GND_A
GND_A
R82
390K/6/NC
100uF/25V
C50
C49
0.1uF/6/NC
GND_AGND_A
FUSE10/1210
0.1uF/6
C52
330uF/16V/NC
12
Max 1.2A 60mil * 3 via
BL-ON6
10K/6
C83
GND_A
L16
12
100UH/NC
R81
C68
560/6/NC
+
8
DRI
7
IPK
6
VCC
U2
SC
SE
TC
GNDFB
AIC1563/NC
U4
VOUTVIN
1
ADJ/GND
LT1117/TO223
U4-A1
VOUTVIN
1
ADJ/GND
AIC1084/TO252/NC
330/6 1%
GND_A
1
2
3
45
+12V
GND_A
GND_AGND_AGND_A
23
4
4
23
R89
C53
330uF/16V
200/6 1%
R740/1206
0.1uF/8
C54
D22
21
RB081L-20/NC
C65
330pF/6/NC
R87
GND_A
13.3K/1%/NC
1K/1%/NC
+
C69
100uF/25V
1uF/8
C56
R80
1K/6 1%
GND_A
L28
BEAD 120/0805
U1
8
BOOST
7
IS
6
VCC
AIC1563
R793K/6 1%
C57 2200pF/6
C63
2200pF/6/NC
0.1uF/6/NC
R83
R84
MCU-VDD
C64
GND_A
231
1
DC
2
DE
3
CF
45
GNDFB
+
C61
330uF/16V/NC
GND_A
+5V
21
C55
GND_A GND_A
D25
21
RB081L-20
R7547/6
R76330K/6
120pF/6
+18V
D26
RB081L-20
R77
+
C70
240K/6 1%
+5V
100uF/25V
2
31
1K/6 1%
R78
L17
BEAD 120/0805
U5-A1
1
ADJ/GND
LT1117/TO223/NC
U5
1
ADJ/GND
AIC1084/TO252
GND_A
D20
1SS355
Q6
MMST3906
VOUTVIN
4
VOUTVIN
R90
150/6 1%
7681
Q5
C51
NDS9410A/SO
2345
0.1uF/6
+5V
Max 2.5A 100mil * 4via
L1447UH
D21
RB081L-20
21
GND_A
U3
23
VOUTVIN
1
ADJ/GND
LT1117/TO223
U3-A1
1
ADJ/GND
+
C66
330uF/16V
23
4
23
R88
330/6 1%
AIC1084/TO252/NC
+1V8
+
C71
4
VOUTVIN
R86
330/6 1%
GND_A
L21
BEAD 120/0805
100uF/25V
4
23
12
C58
1000pF/6
GND_AGND_A
VGA_3V3
R85
200/6 1%
+
C67
330uF/16V
CVDD1V8
ViewSonic Corporation
Model
Scaler Power
L15
BEAD 120/1206
0.1uF/6
C59
C60
1000uF/6.3V
GND_A
L18
BEAD 120/0805
L19
BEAD 120/0805
DVDD
ADC_VAA
Title
DateRev:
ViewSonic CorporationConfidential - Do Not CopyVX2025wm-1
54
+5V
J1
VOLUME6
ZD005D100
1
5
4
3
2
R91 1K/6
R952K/6
L_LINELIN_PC
R_LINE
220pF/6
C78
AGND
R9210K/6
31
Q7
2
MMBT3904
L23 BEAD 120/0805
12
12
L24 BEAD 120/0805
220pF/6
C79
MUTE6
R936K8/6
1uF/8
C72
AGND
MUTE
R96100/6
R97100/6
R10210K/6
31
2
Z0415
Z0416RIN_PC
+5V
VOLU
10K/6
R94
20K/6
20K/6
R98
R99
AGND
R10310K/6
Q8
DTC144EUA
C75 0.47uF/6
C77 0.47uF/6
C82
330uF/16V
C81
0.1uF/8
+12V
L22BEAD/1206
U6
4
INL
95
INRVAROUT_L
11
STBY
10
SVR
GND
GND
TDA7496L
123
15
16
VS
VAROUR_R
GND
GND
13
VS
OUTL
VOLUME
OUTRMUTE
GND
GND
GND
192018
VCC12
C73
0.1uF/6
C76
17
6
7
C80
1412
L26 BEAD/1206
AGND
VOLU
C74
330uF/16V
330uF/16V
SPKOUTR
330uF/16V
SPKOUTL
R100BEAD 120/0805
R101BEAD 120/0805
L25
BEAD 120/1206
AGND
CN7
1
2
3
4
4606-04-04P-R
+5V
R10410K/6
STANDBY6
STANDBY
2
R10510K/6
31
Q9
DTC144EUA
AGND
AGND
ViewSonic CorporationConfidential - Do Not CopyVX2025wm-1
55
AGND
AGND
GND_A
L27BEAD/1206
AGND
GND_A
ViewSonic Corporation
Model
Title
DateRev:
AUDIO
11. PCB Layout Diagrams
11.1
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
56
11.2
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
57
11.3
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
58
* Reader’s Response*
Dear Readers:
Thank you in advance for your feedback on our Service Manual, which allows continuous improvement
of our products. We would appreciate your completion of the Assessment Matrix below, for return to
ViewSonic Corporation.
Assessment
A. What do you think about the content of this Service Manual?
Unit Excellent
1. Precautions and Safety Notices
2. Specification
3. Front Panel Function Control Description
4. Circuit Description
5. Adjustment Procedure
6. Troubleshooting Flow Chart
7. Recommended Spare Parts List
8. Exploded Diagram and Exploded Parts List
9. Block Diagrams
10. Schematic Diagrams
11.PCB Layout Diagrams
B. Are you satisfied with this Service Manual?
Good Fair Bad
Item Excellent Good Fair Bad
1. Service Manual Content
2. Service Manual Layout
3. The form and listing
C. Do you have any other opinions or suggestions regarding this service manual?
Reader’s basic dada:
Name:
Title:
Company:
Add:
Tel:
Fax:
E-mail:
After completing this form, please return it to ViewSonic Quality Assurance in the USA at facsimile
1-909-839-7943. You may also e-mail any suggestions to the Director, Quality Systems & Processes
(marc.maupin@viewsonic.com)
ViewSonic Corporation Confidential - Do Not Copy VX2025wm-1
59
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
