ViewSonic VX2000 1

Page 3

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC are trademarks of VESA.

NERGY STAR

As an E E

NERGY STAR

is a registered trademark of the U.S. Environmental Protection Agency (EPA).

partner, ViewSonic Corporation has determined that this product meets the

guidelines for energy efficiency.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Internet at: www.viewsonic.com. The ViewSonic

ROM also provides an opportunity for you to print the registration form, which you may mail or fax to ViewSonic.

For Your Records

Product Name: Model Number: Document Number: Serial Number: Purchase Date:

ViewSonic VX2000 VLCDS23723-1W

A-CD-VX2000-1 ______________ ______________

Product disposal at end of product life

ViewSonic is concerned about the preservation of our environment. Please dispose of this product properly at the end of its useful life. Your local waste disposal company may provide information about proper disposal.

Wizard CD-

ViewSonic VX2000 2

Page 4

Getting Started

Congratulations on your purchase of a ViewSonic® LCD Display®.

Important!

Save the original box and all packing material for future shipping needs.

NOTE:

The word “Windows” in this user guide refers to the following Microsoft operating systems: Windows ‘95, Windows NT, Windows ‘98, Windows 2000, Windows Me (Millennium), and Windows XP.

Package Contents

• LCD display

• VGA cable

• Digital cable (DVI-D)

• AC/DC power adapter

• Power cords

• Audio cable (for speakers)

• Microphone cable

• ViewSonic Wizard CD-ROM

NOTE:

•

the User Guide PDF files and INF/ICM display optimization files. The INF file ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install both files

The CD jacket contains the Quick Start Guide, and the CD includes

Precautions

• Sit at least 18" from your LCD display.

• Avoid touching the screen. Skin oils are

difficult to remove.

• Never remove the rear cover. Your LCD

display contains high-voltage parts. You may be seriously injured if you touch them.

• Avoid exposing your LCD display to direct sunlight or another heat source. Orient your LCD display away from direct sunlight to reduce glare.

• Always handle your LCD display with care when moving it.

• Place your LCD display in a well-ventilated area. Do not place anything on your LCD display that prevents heat dissipation.

• Ensure the area around the LCD display is clean and free of moisture.

• Do not place heavy objects on the LCD display, video cable, or power cord.

• If smoke, abnormal noise, or strange odor is present, immediately switch the LCD display off and call your dealer or ViewSonic. It is dangerous to continue using the LCD display.

ViewSonic VX2000 3

Page 5

Quick Installation

1 Connect power cord and AC/DC

adapter

2 Connect video cable

• Make sure both the LCD display and computer are turned OFF

• Remove rear panel covers if necessary

• Connect the video cable from the LCD display to the computer

Macintosh users:

require a Macintosh adapter. Attach the adapter to the computer and plug the video cable into the adapter.

To order a ViewSonic contact ViewSonic

Models older than G3

Macintosh adapter,

Customer Support

3 Turn ON LCD display and

computer

Turn ON the LCD display, then turn ON the computer. This sequence (LCD display before computer) is important.

NOTE: Windows users may receive a message asking them to install the INF file. This is on the CD.

4 Insert the ViewSonic Wizard CD

into the computer’s CD drive.

Follow the on-screen instructions If your computer does not have a CD-ROM

drive, see “Customer Support."

(1) Wait for the CD-ROM to auto-start. NOTE: If the CD-ROM does not auto-start:

double-click on the CD-ROM icon in the Windows Explorer, then double-click on

viewsonic.exe.

4 Wizard CD (continued)

(2) Follow the on-screen instructions.

5 Audio Installation (optional)

• Speakers Connect the audio cable (lime-colored) to the AUDIO OUT port of your computer’s sound card, then to the LCD display’s AUDIO IN port (see illustration below).

• Microphone colored to the MIC IN port of your computer’s sound card, then to the LCD display’s MIC OUT port (See illustration below.)

Connect the microphone cable (pink-

6 Windows users: Set the timing

mode (resolution and refresh rate)

Example:

For instructions on changing the resolution and refresh rate, see the graphic card’s user guide.

Installation is complete. Enjoy your new ViewSonic, LCD display.

To be best prepared for any future customer service needs: print this user guide and write the serial number in page 2. (See back of LCD display.)

You can register your product online at the website for your region. See the Customer Support table in this guide.

The ViewSonic Wizard CD-ROM also provides an opportunity for you to print the registration form which you may mail or fax to ViewSonic.

1600 x 1200 @ 60 Hz.

"For Your Records"

AC IN

Rear panel covers

Power cord and AC/DC adapter

AC outlet (wall socket)

Computer

ower cord

Video cable

Audio cable

Microphone

cable

ViewSonic VX2000 4

Page 6

Installation of Wall Mount (Optional)

To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to the instructions that come with the base mounting kit. To convert your LCD display from a desk-mounted to a wall-mounted display, do the following:

Four screw holes for wall mount

Disconnect Power.

Lay the LCD display face down on a towel or blanket. If you remove the base for a wall mount, the microphone in the base is disconnected. But, you can leave the base attached to the LCD display with the wall mount. Notice the four screw holes for the wall mount on the back as shown on the left.

Attach the mounting bracket from the VESA compatible wallmounting kit (100 mm x 100 mm distance).

Attach the LCD display to the wall, following the instructions in the wall-mounting kit.

ViewSonic VX2000 5

Page 7

Using the LCD Display

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the screen image and minimizing eye strain. The

resolution

example 60 Hz). After setting the timing mode, use the OnView to adjust the screen image.

For the best picture quality set your LCD display timing mode to:

VESA 1600 x 1200 @ 60 Hz.

To set the Timing Mode:

(example 1600 x 1200) and

refresh rate

timing mode

(or vertical frequency;

consists of the

controls

Set the resolution: Right-click on the Windows® desktop >

Settings

Set the refresh rate: See your graphic card's user guide for instructions.

WA R N I N G :

maximum refresh rate of 75Hz; doing so may result in permanent damage to your LCD display.

> set the resolution.

Do not set the graphics card in your computer to exceed the

Properties

OSD and Power Lock Settings

OSD Lock:

• buttons are pressed the message

OSD Unlock:

•

Power Button Lock:

• seconds. If the power button is pressed the message will display for a few seconds. With or without this setting, after a power failure, your LCD display’s power will automatically turn on when power is restored.

Press and hold [1] and the up arrow ▲ for 10 seconds. If any

OSD Locked

Press and hold [1] and the up arrow

Press and hold [1] and the down arrow

will display for a few seconds.

▲

again for 10 seconds.

▼

for 10

Power Button Locked

Power Button Unlock:

• 10 seconds.

Press and hold [1] and the down arrow

ViewSonic VX2000 6

▼

again for

Page 8

Adjusting the Screen Image

Use the buttons on the front control panel to display and adjust the OnView

controls which display on the screen. The OnView controls are explained at the top of the next page and are defined in “Main Menu Controls” on page 9.

Main Menu with OnView controls

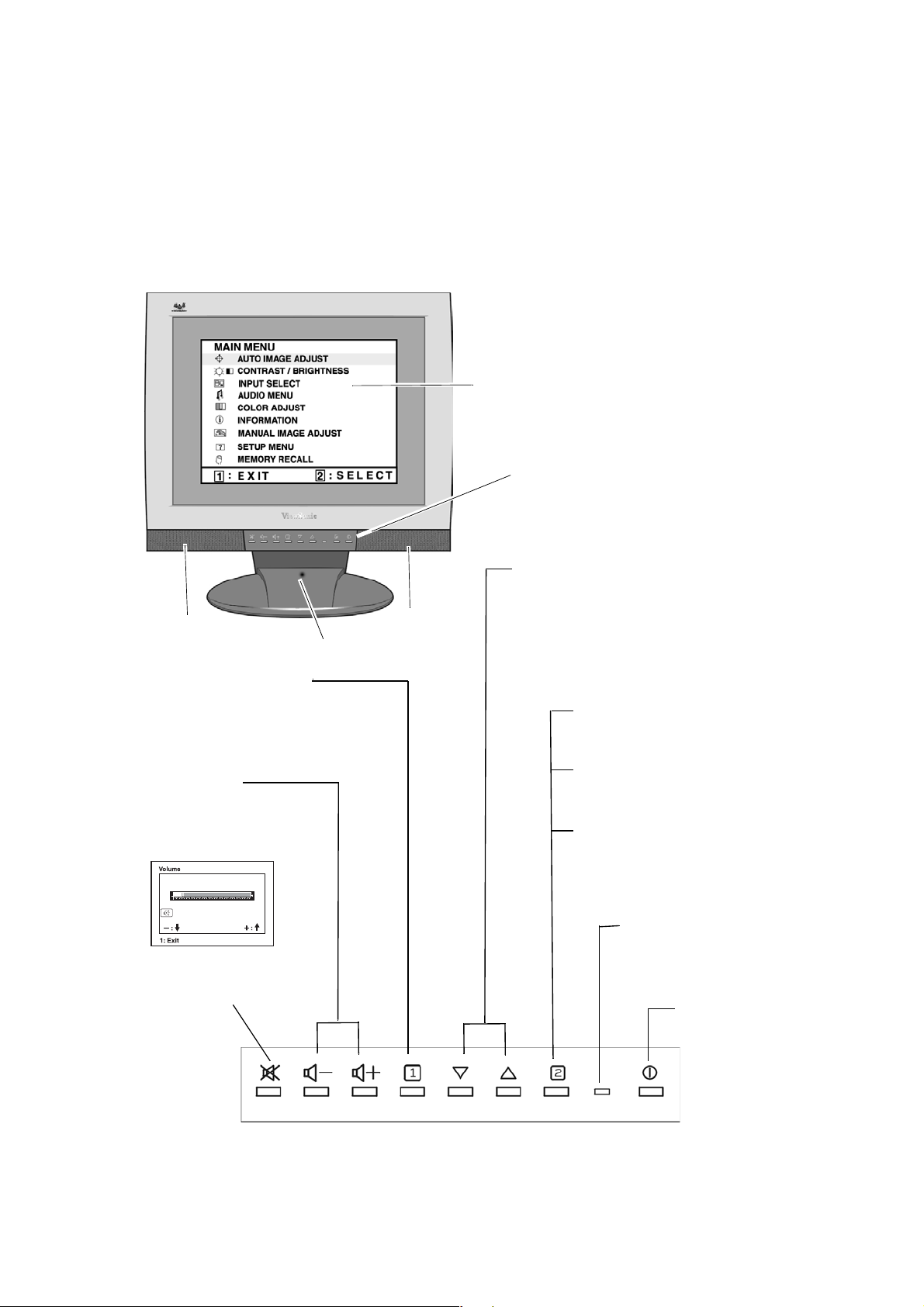

Front Control Panel shown below

Scrolls through menu options and adjusts the displayed control.

Speaker

Microphone

Also a shortcut to display the Contrast adjustment control screen.

Displays the Main Menu or exits the control screen and saves adjustments

Decreases or increases volume

Audio Mute button turns the sound off.

Displays the control screen for the highlighted control.

Also toggles between two controls on some screens.

Also a shortcut to toggle between analog and digital connections.

Power lig h t Green = ON Orange = Power

Saving

Power On/Off

ViewSonic VX2000 7

Page 9

Do the following to adjust the screen image:

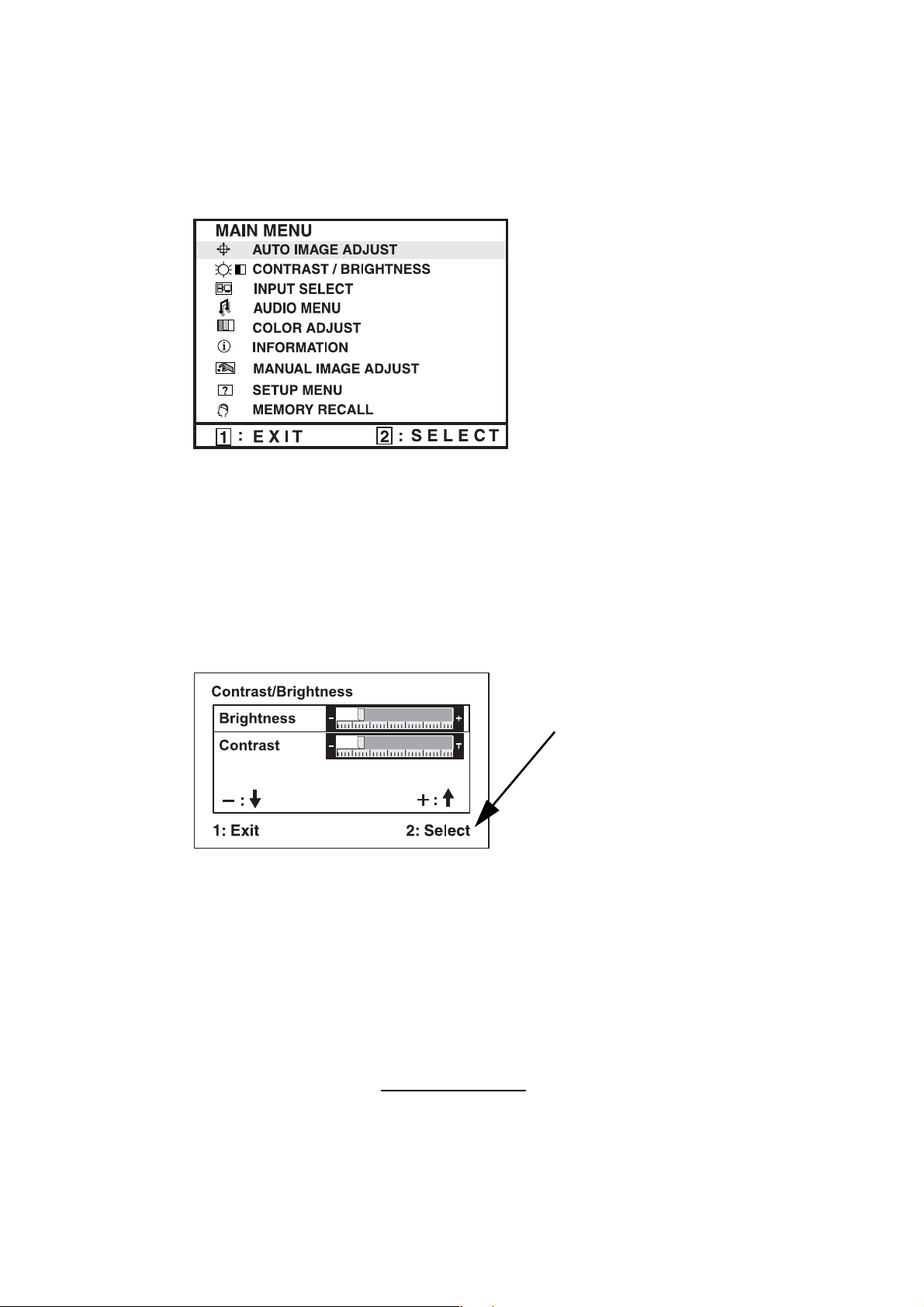

To display the Main Menu, press button [1].

NOTE:

All OnView menus and adjustment screens disappear automatically after about 15 seconds. This is adjustable through the OSD timeout setting in the setup menu.

To select a control you want to adjust, press ▲ or ▼ to scroll up or down the Main Menu.

After the control is selected, press button [2]. A control screen like the one shown below appears.

The command line at the bottom of the control screen tells what to do next from this screen. You can toggle between control screens, adjust the selected option, or exit the screen.

To adjust the control, press the up ▲ or down ▼ buttons.

To save the adjustments and exit the menu, press button [1]

twice

The following tips may help you optimize your display:

• Adjust your computer's graphic card so that it outputs a video signal 1600 x

1200 @ 60Hz to the LCD display. (Look for instructions on "changing the refresh rate" in your graphic card's user guide.)

• If necessary, make small adjustments using H POSITION and V POSITION

until the screen image is completely visible

. (The black border around the edge of the screen should barely touch the illuminated "active area" of the LCD display.)

ViewSonic VX2000 8

Page 10

Main Menu Controls

Adjust the menu items shown below by using the up ▲ and down ▼ buttons.

Control Explanation

Auto Image Adjust

sizes and centers the screen image

automatically.

Contrast

adjusts the difference between the image background

(black level) and the foreground (white level).

Brightness

Input Select

adjusts background black level of the screen image.

toggles between inputs if you have more than one

computer connected to the VX2000.

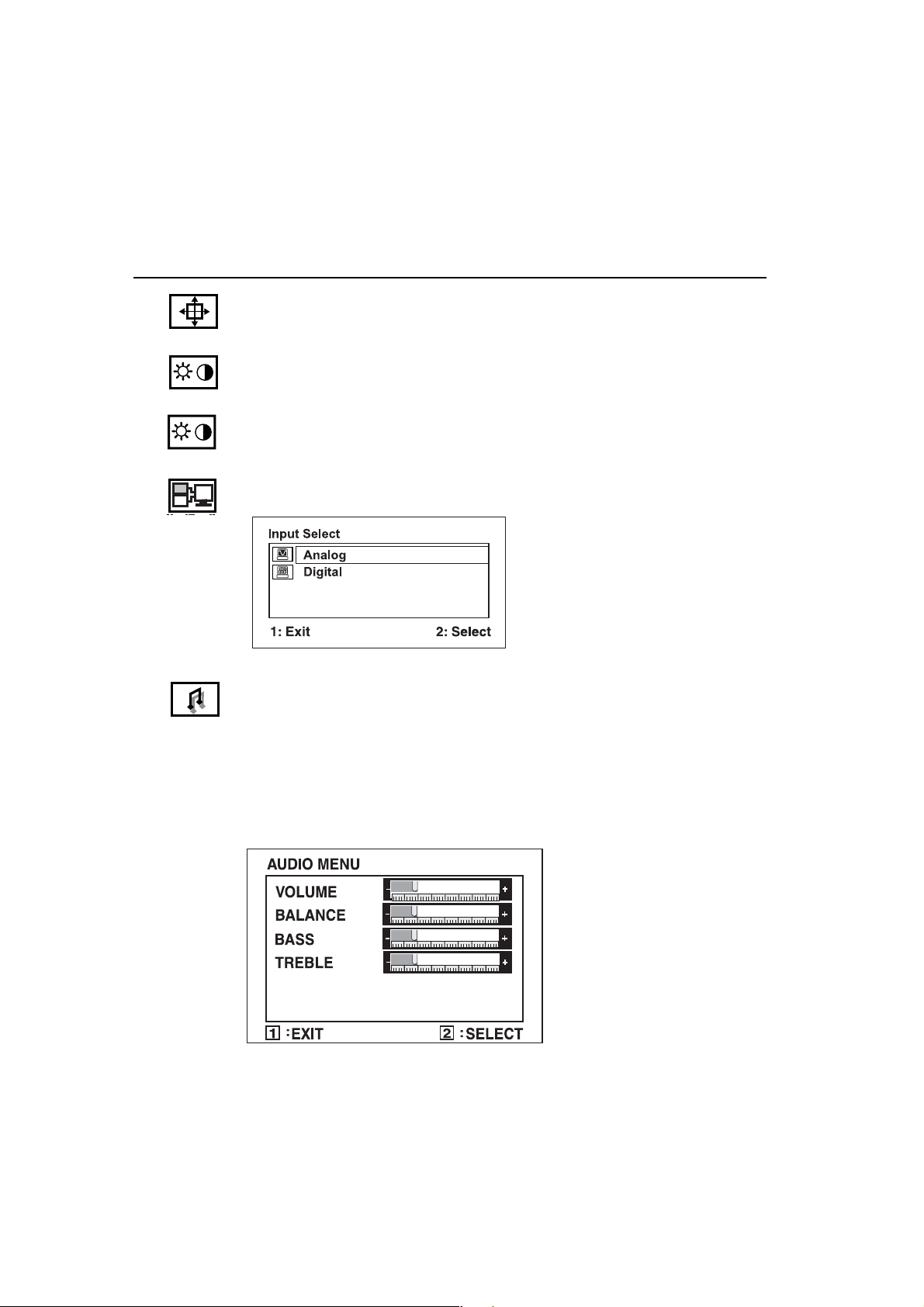

Audio Menu

Vo lu me

Balance

provides the following adjustments:

increases or decreases the loudness of the audio output.

adjusts the proportion of sound coming from each

speaker.

Bass

Tr eb le

adjusts the low (bass) frequency audio output.

adjusts the high (treble) frequency audio output. .

ViewSonic VX2000 9

Page 11

Control Explanation

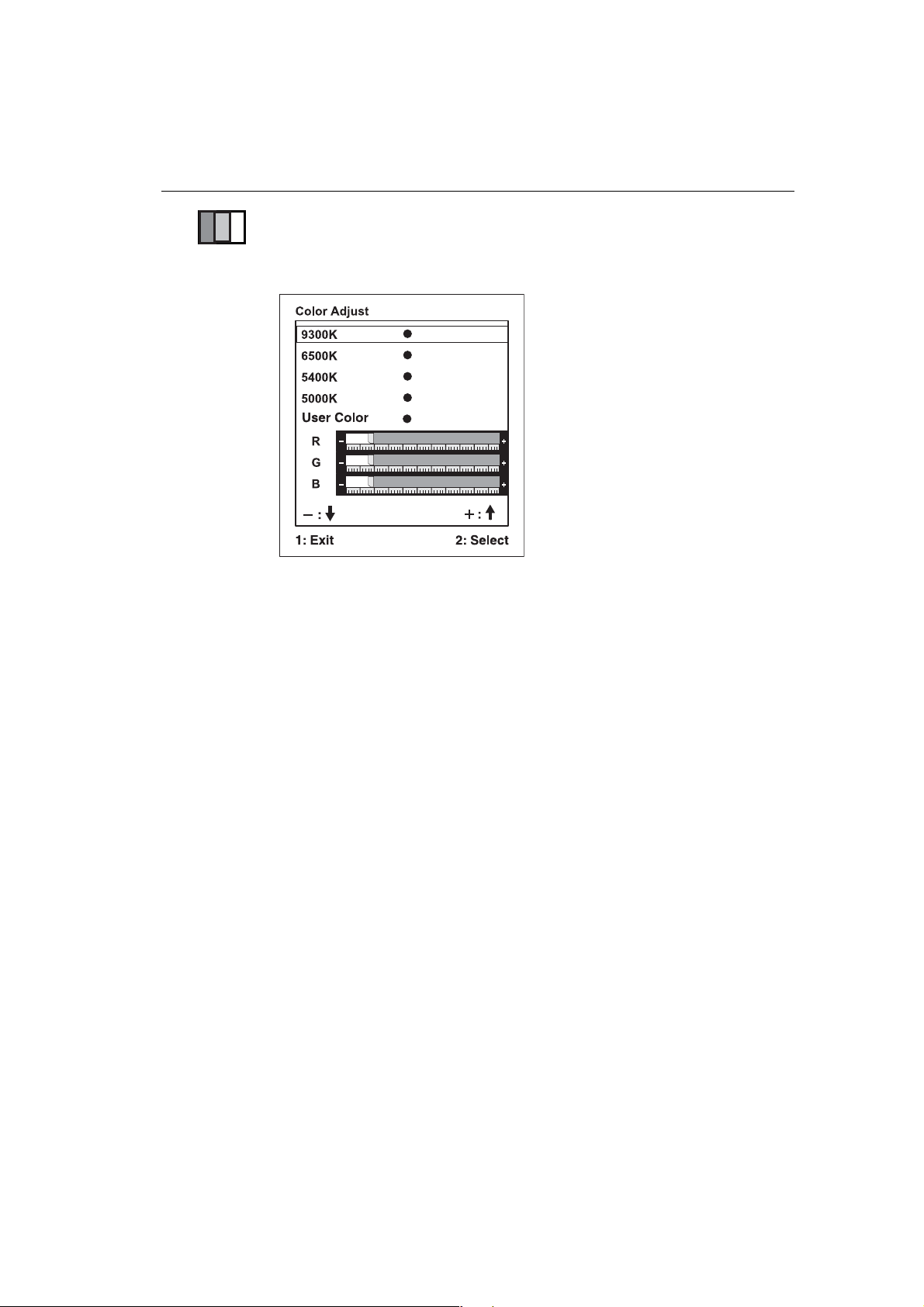

Color Adjust

color temperatures and

provides several color adjustment modes: preset

RGB

which allows you to adjust red (R), green (G), and blue (B) separately. The factory setting for this product is 6500K (6500 Kelvin).

9300K

— Adds blue to the screen image for cooler white (used

in most office settings with fluorescent lighting).

6500K

— Adds red to the screen image for warmer white and

richer red.

5400K

5000K

— Adds green to the screen image for a darker color.

— Adds blue and green to the screen image for a darker

color.

User Color

and blue (B)

To select color (R, G or B) press button [2].

To adjust selected color, press ▲ or ▼.

Important

— Individual adjustments for red (R), green (G),

: If you select RECALL from the Main Menu when the product is set to a Preset Timing Mode, colors return to the 6500K factory preset.

ViewSonic VX2000 10

Page 12

Control Explanation

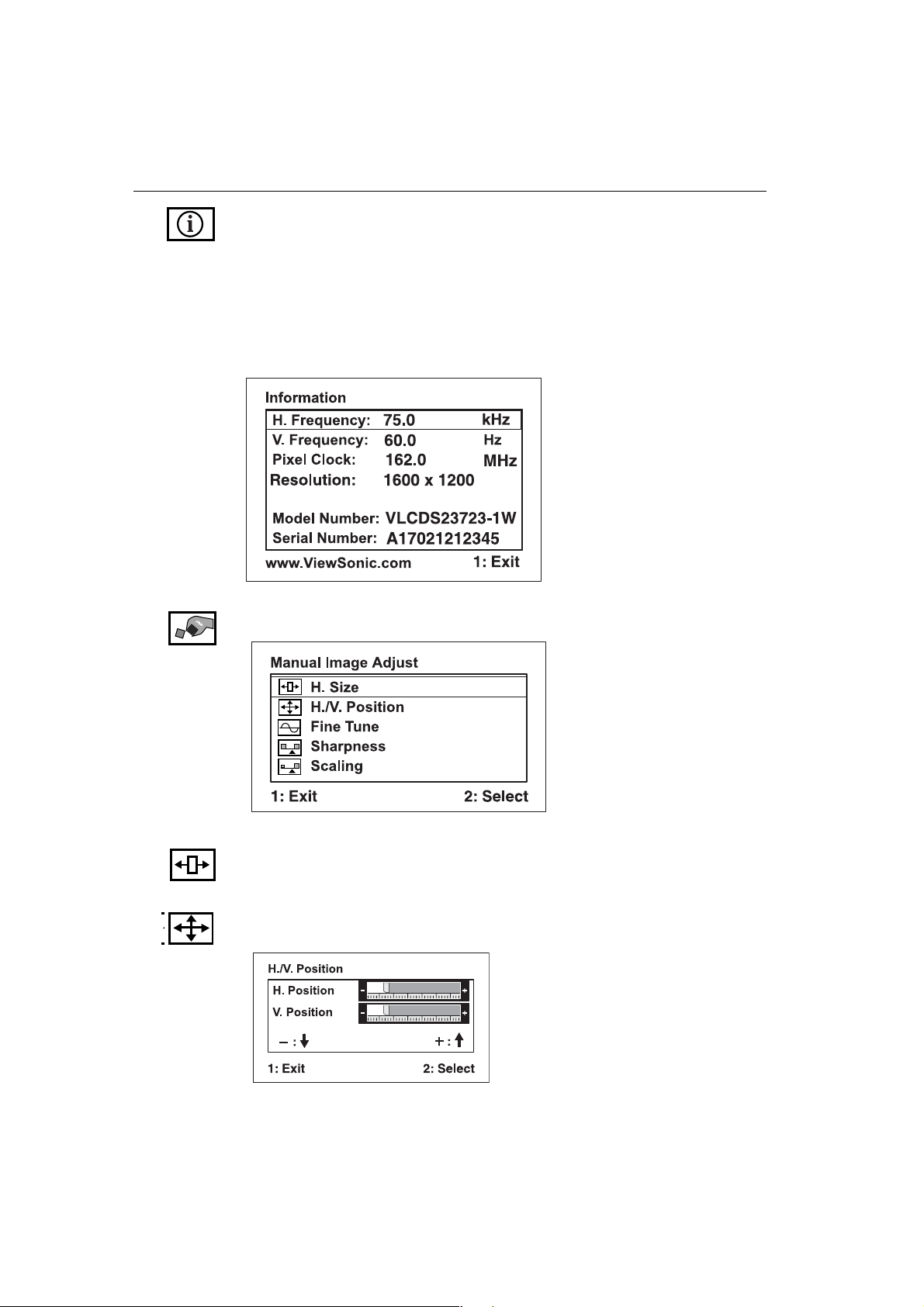

Information

displays the timing mode (video signal input) coming from the graphics card in your computer, the LCD model number, the serial number, and the ViewSonic website URL. See your graphic card’s user guide for instructions on changing the resolution and refresh rate (vertical frequency).

NOTE:

VESA 1600 x 1200 @ 60Hz (recommended) means that the resolution is 1600 x 1200 and the refresh rate is 60 Hertz.

Manual Image Adjust Sub-menu

H. Size (Horizontal Size)

H./V. Position (Horizontal/Vertical Position)

adjusts the width of the screen image.

image left or right and up or down.

ViewSonic VX2000 11

moves the screen

Page 13

Control Explanation

Fine Tune

sharpens the focus by aligning the text and/or graphic

characters.

NOTE:

Sharpness

Scaling

Try Auto Image Adjust first.

adjusts the clarity and focus of the screen image.

adjusts the video input signal to the screen size using

the following options:

1:1

adjusts the video signal so that the height and width of the

screen image are the same.

Fill All

Fill Aspec Ratio

adjusts the video signal to fill the screen.

adjusts maintains the correct video signal

proportions for different resolutions.

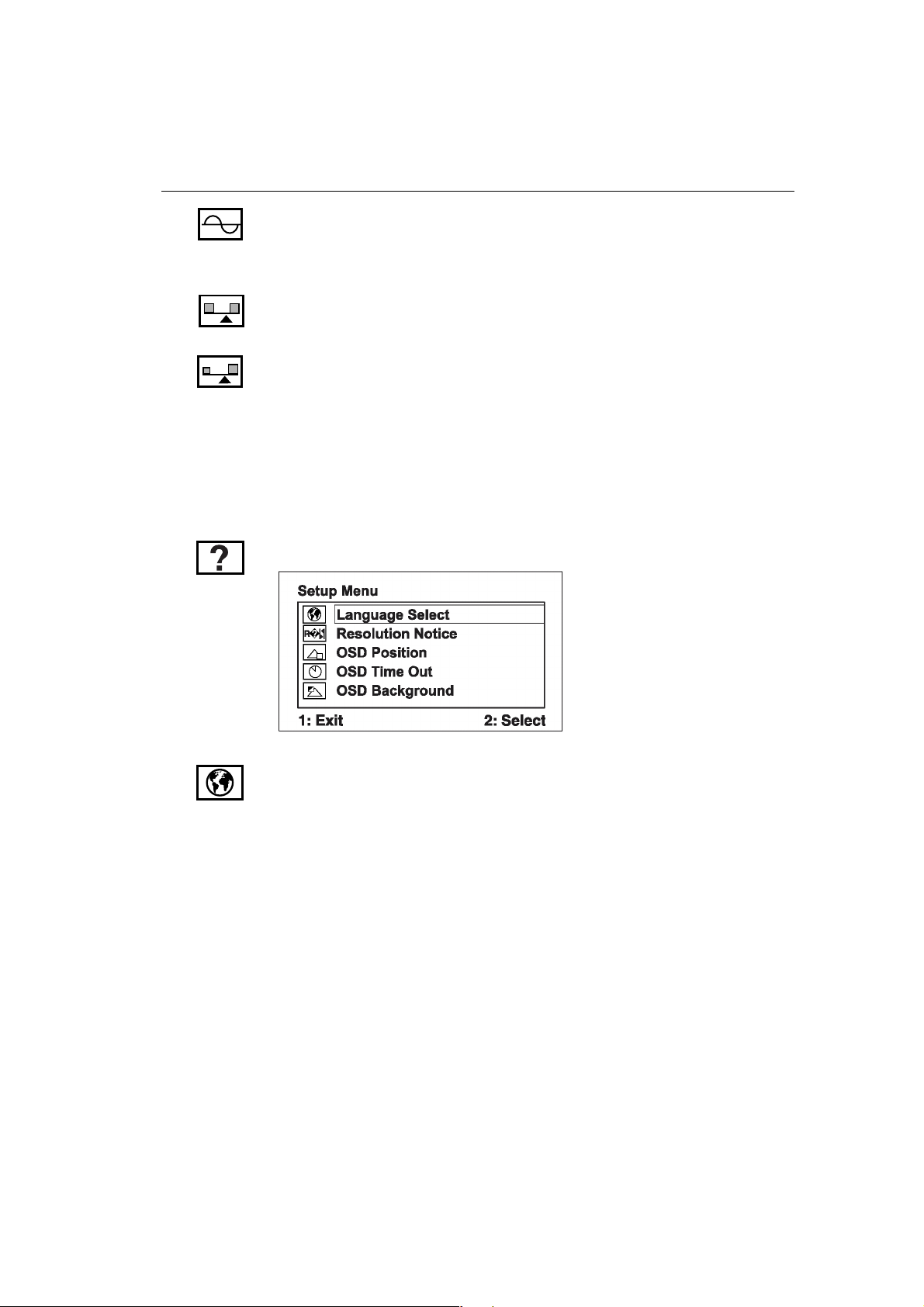

Setup menu displays the menu shown below:

Language

allows you to choose the language used in the menus

and control screens.

ViewSonic VX2000 12

Page 14

Control Explanation

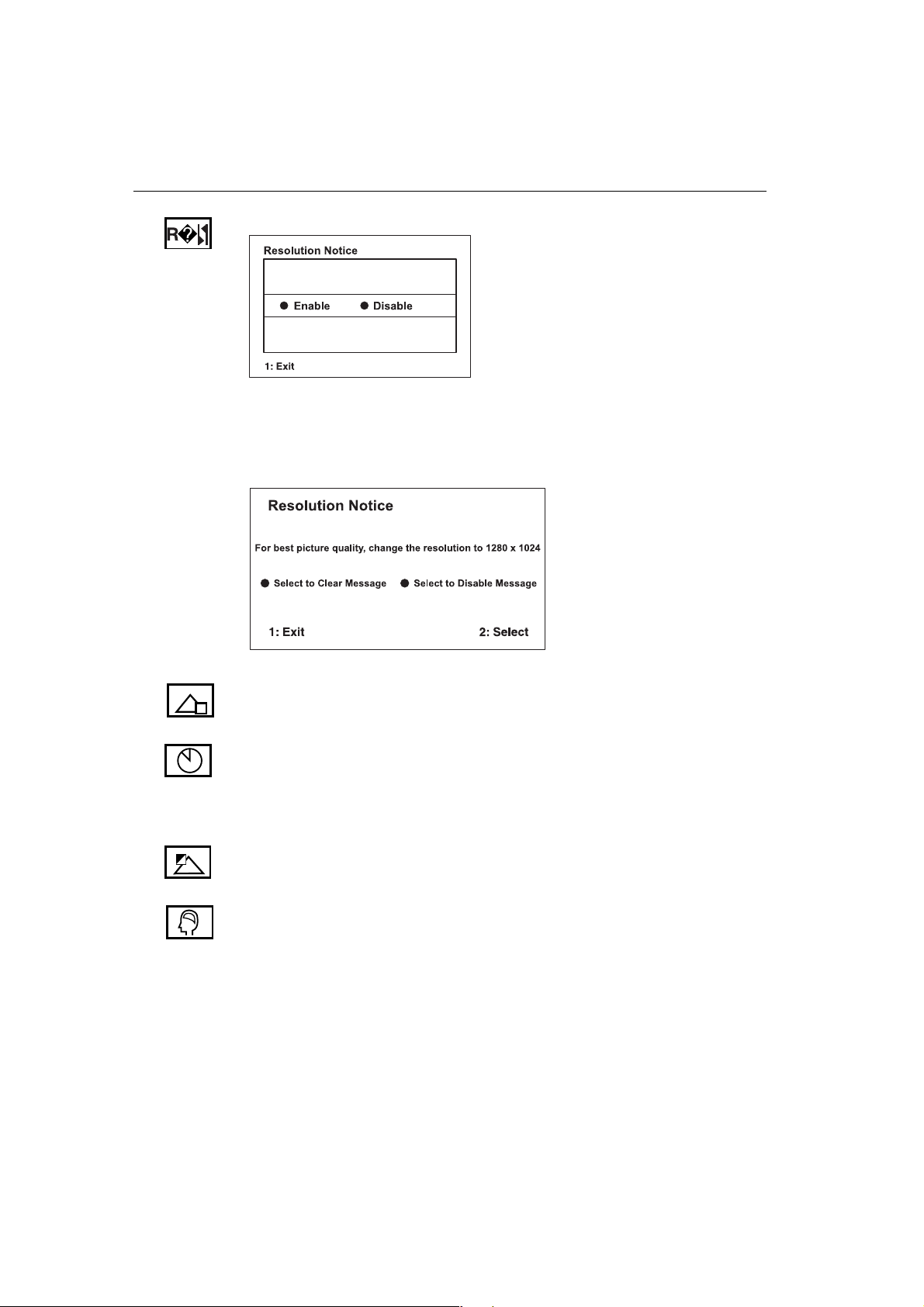

Resolution Notice

allows you to enable or disable this notice.

If you enable the Resolution Notice shown above and your computer is set at a resolution other than 1600 x 1200, the following screen appears.

OSD Position

allows you to move the on-screen display menus

and control screens.

OSD Timeout

sets the length of time the on-screen display screen is displayed. For example, with a “30 second” setting, if a control is not pushed within 30 seconds, the display screen disappears.

OSD Background

allows you to turn the On-Screen Display

background On or Off.

Memory Recall

returns the adjustments back to factory settings if the display is operating in a factory Preset Timing Mode listed in the Specifications of this manual.

ViewSonic VX2000 13

Page 15

Other Information

Specifications

LCD

Input signal

Compatibility

Resolution

Power

Display area

Operating conditions

Ty p e

Color Filter Glass surface

Video Sync RGB analog (0.7/1.0 Vp-p, 75 ohms)

PC Macintosh

Recommended and supported

HDTV

Voltage 100-240 VAC, 50/60 Hz (auto switch)

Horizontal Ve rti ca l

Temperature Humidity Altitude

20.1" (full 20.1" viewable diagonal area) Active Matrix UXGA LCD LCD, 0.255 mm pixel pitch RGB vertical stripe Anti-Glare

DVI-D (TMDS, 100 ohms) Separate Sync, Composite Sync, Sync on Green f

:30-82 kHz, fv:50-85 Hz

Up to 1600 x 1200 Non-interlaced Power Macintosh up to 1600 x 1200

1600 x 1200 @ 60 Hz 1280 x 1024 @ 60, 75 1024 x 768 @ 60, 70, 72, 75, 85 Hz 800 x 600 @ 56, 60, 72, 75, 85 Hz 640 x 480 @ 60, 75, 85 Hz 640 x 400 @ 70 Hz 720 x 400 @ 70 Hz 720p (1280 x 720 @60 Hz)

16.1" (408 mm)

12.0" (306 mm)

32° F to + 104° F (0° C to + 40° C) 10% to 90% (no condensation) To 10,000 feet (3,000 m)

Storage conditions

Dimensions

Weight

Regulations

Power saving modes

Preset Timing Mode

Warning :

result in permanent damage to the LCD display.

Macintosh computers older than G3 require a ViewSonic® Macintosh adapter. To order an adapter,

contact ViewSonic “Customer Support” on page 16.

Do not set the graphics card in your computer to exceed these refresh rates; doing so may

Temperature Humidity Altitude

Physical (LCD display only)

Net 18.5 lb (8.4 kg) LCD display only

UL, cUL, FCC-B, CB, ISO13406-2, CE, TUV/GS, TUV Ergo, NEMKO, SEMKO, DEMKO, FIMKO, GOST-R (PCT BZ02), PCBC, VCCI, BSMI, CCEE, PSB,

TC099, C-TICK, PCT (BZ02),

On Normal (Green LED) Active Off <3W (Orange LED)

(pre-adjusted to VESA® 1600 x 1200 @ 60 Hz)

-4° F to + 140° F (-20° C to + 60° C) 10% to 90% (no condensation) To 40,000 feet (12,000 m)

W x D x H

19.0" (483 mm), 8.3" (210 mm) x 19.8" (502 mm)

NERGY STAR

ViewSonic VX2000 14

Page 16

Troubleshooting

No power

• Make sure power button (or switch) is ON.

• Make sure A/C power cord is securely connected to the DC power supply and the power supply is firmly connected to the LCD display

• Plug another electrical device (like a radio) into the power outlet to verify that the outlet is supplying proper voltage.

Power is ON but no screen image

• Make sure the video cable supplied with the LCD display is tightly secured to the video output port on the back of the computer. If the other end of the video cable is not attached permanently to the LCD display, tightly secure it to the LCD display.

• Adjust brightness and contrast.

• If you are using an Macintosh older than G3, you need a Macintosh adapter.

Wrong or abnormal colors

• If any colors (red, green, or blue) are missing, check the video cable to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection.

• Connect the LCD display to another computer.

• If you have an older graphics card, contact ViewSonic

for a non-DDC

adapter.

Control buttons do not work

• Press only one button at a time.

ViewSonic VX2000 15

Page 17

Customer Support

For technical support or product service, see the table below or contact your reseller.

NOTE:

Country/

You will need the product serial number.

Web site T = Telephone

Region

United States

Canada

United Kingdom viewsoniceurope.com

Europe, Middle East, Baltic countries, and North Africa

Australia and New Zealand

viewsonic.com/ support

viewsoniceurope.com Contact your

viewsonic.com.au

F = FAX

(800) 688-6688

(909) 468-1202

(800) 688-6688

(909) 468-1202

0800 833 648

(01293) 643910

reseller

+61 2 9929 3955

+61 2 9929 8393

service.us@ viewsonic.com

service.ca@ viewsonic.com

service.eu@ viewsoniceurope.com

service.au@ viewsonic.com

Singapore/India and Southeast Asia

Other Asia/Pacific countries

South Africa viewsonic.com/asia

viewsonic.com.sg

viewsonic.com.tw

65 273 4018

65 273 1566

886 2 2246 3456

886 2 8242 3668

886 2 2246 3456

886 2 8242 3668

service.sg@ viewsonic.com

service.ap@ viewsonic.com

ViewSonic VX2000 16

Page 18

Cleaning the LCD Display

• MAKE SURE THE LCD DISPLAY IS TURNED OFF.

• NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE.

To clean the screen:

Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles.

If still not clean, apply a small amount of non-ammonia, non-alcohol based glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.

To clean the case:

Use a soft, dry cloth.

If still not clean, apply a small amount of a non-ammonia, non-alcohol based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.

Disclaimer

ViewSonic

does not recommend the use of any ammonia or alcohol-based cleaners on the LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

ViewSonic VX2000 17

Page 19

Limited Warranty

VIEWSONIC LCD DISPLAY

What the warranty covers:

ViewSonic

warranty period. If a product proves to be defective in material or workmanship during the warranty period, product or parts may include remanufactured or refurbished parts or components.

How long the warranty is effective: ViewSonic

three (3) years for all labor from the date of the first consumer purchase.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

3. Removal, installation, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact

2. To obtain service under warranty, you will be required to provide (a) the original dated sales slip, (b) your

3. Take or ship the product freight prepaid in the original container to an authorized

4. For additional information or the name of the nearest

Limitation of implied warranties:

THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Exclusion of damages:

VIEWSONIC'S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. VIEWSONIC SHALL NOT BE LIABLE FOR:

1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES

2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.

3. ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on contact

ViewSonic LCD Warranty (V3.0) Release Date: 01-29-2002

warrants its products to be free from defects in material and workmanship during the

ViewSonic

LCD displays are warranted for three (3) years for all parts including the light source and

a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product

modification, or failure to follow instructions supplied with the product. b. Repair or attempted repair by anyone not authorized by c. Any damage of the product due to shipment. d. Removal or installation of the product. e. Causes external to the product, such as electrical power fluctuations or failure. f. Use of supplies or parts not meeting g. Normal wear and tear. h. Any other cause which does not relate to a product defect.

You will need to provide your product's serial number.

name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

vice center or

ViewSonic

BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

ViewSonic

will, at its sole option, repair or replace the product with a like product. Replacement

ViewSonic.

or your local

ViewSonic

dealer.

’s specifications.

ViewSonic Customer Support.

ViewSonic

products sold outside of the U.S.A. and Canada,

service center, contact

ser-

ViewSonic VX2000 18

Page 20

Warning:

This device must be operated with the original power supply, part number: LSE0111B1280

CAUTION: The socket-outlet should be installed near the equipment and should be easily accessible.

CAUTION:

Use a power cable that is properly grounded. Always use the appropriate AC cord that is certi-

fied for the individual country. Some examples are listed below:

USA................. UL

Canada............. CSA

Germany .......... VDE

Switzerland ..... SEV

Britain ............. BASE/BS

Japan ............... Electric Appliance Control Act

IMPORTANT NOTICE CONCERNING POWER CORD SELECTION

The power cord set for this unit has been enclosed and has been selected according to the country of destination and must be used to prevent electric shock. Use the following guidelines if it is necessary to replace the original cord set, or if the cord set is not enclosed. The female receptacle of the cord set must meet IEC-60320 requirements and may look like (Figure A1 below):

Figure A1

Figure A2

For the United States and Canada

In the United States and Canada the male plug is a NEMA5-15 style (Figure A2), UL Listed, and CSA Labeled. For units which are mounted on a desk or table, type SVT or SJT cord sets may be used. For units which sit on the floor, only SJT type cord sets may be used. The cord set must be selected according to the current rating for your unit. Please consult the table below for the selection criteria for power cords used in the United States and Canada.

Cord Type Size of Conductors in Cord Maximum Current Rating of Unit

SJT 18 AWG

16 AWG 14 AWG

SVT 18 AWG

17 AWG

10 Amps 12 Amps 12 Amps

10 Amps 12 Amps

For European Countries

In Europe you must use a cord set which is appropriate for the receptacles in your country. The cord set is HARCertified, and a special mark that will appear on the outer sheath, or on the insulation of one of the inner conductors.

AC PLUG CORD PRECAUTIONS FOR THE UNITED KINGDOM

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET THEN THE PLUG SHOULD BE CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO AN APPROPRIATE SOCKET.

If a new plug is to be fitted, please observe the wiring code as shown below.

If in any doubt, please consult a qualified electrician.

WAR NING :

IMPORTANT:

If the coloured wires of the mains lead of this appliance do not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the Earth symbol or coloured GREEN or GREEN-AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you have purchased the product.

THIS APPLIANCE MUST BE EARTHED.

The wires in this mains lead are coloured in accordance with the following code:

Green-and-Yellow: Earth Blue: Neutral Brown: Live

ViewSonic VX2000 19

Page 21

Compliance Information for U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Warning

To assure continued FCC compliance, the user must use grounded power supply cord and the provided shielded video interface cable with bonded ferrite cores. If a BNC cable is going to be used, use only a shielded BNC(5) cable. Also, any unauthorized changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device.

CE Conformity for Europe

The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility, and 73/ 23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety."

ViewSonic VX2000 20

Page 22

ViewSonic Corporation
