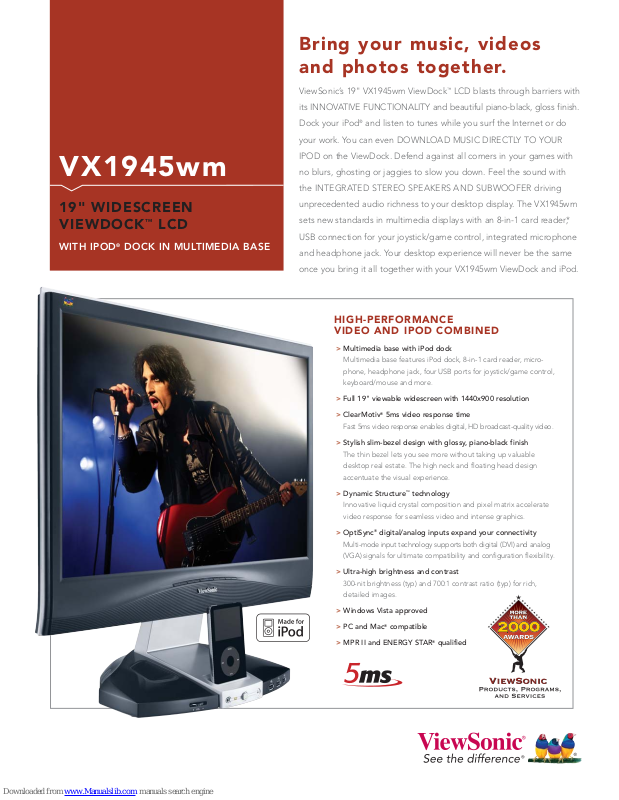

ViewSonic VX1945 Brochure & Specs
VX1945wm
19" WIDESCREEN
VIEWDOCK™LCD
WITH IPOD®DOCK IN MULTIMEDIA BASE
Bring your music, videos
and photos together.
ViewSonic’s 19" VX1945wm ViewDock™LCD blasts through barriers with
its INNOVATIVE FUNCTIONALITY and beautiful piano-black, gloss finish.
®
Dock your iPod
your work. You can even DOWNLOAD MUSIC DIRECTLY TO YOUR
IPOD on the ViewDock. Defend against all comers in your games with
no blurs, ghosting or jaggies to slow you down. Feel the sound with
the INTEGRATED STEREO SPEAKERS AND SUBWOOFER driving
unprecedented audio richness to your desktop display. The VX1945wm
sets new standards in multimedia displays with an 8-in-1 card reader*,
USB connection for your joystick/game control, integrated microphone
and headphone jack. Your desktop experience will never be the same
once you bring it all together with your VX1945wm ViewDock and iPod.
HIGH-PERFORMANCE
VIDEO AND IPOD COMBINED
and listen to tunes while you surf the Internet or do
> Multimedia base with iPod dock
Multimedia base features iPod dock, 8-in-1 card reader, micro-
phone, headphone jack, four USB ports for joystick/game control,
keyboard/mouse and more.
> Full 19" viewable widescreen with 1440x900 resolution
> ClearMotiv
Fast 5ms video response enables digital, HD broadcast-quality video.
> Stylish slim-bezel design with glossy, piano-black finish
The thin bezel lets you see more without taking up valuable
desktop real estate. The high neck and floating head design
accentuate the visual experience.
> Dynamic Structure™technology
Innovative liquid crystal composition and pixel matrix accelerate
video response for seamless video and intense graphics.
> OptiSync®digital/analog inputs expand your connectivity
Multi-mode input technology supports both digital (DVI) and analog
(VGA) signals for ultimate compatibility and configuration flexibility
> Ultra-high brightness and contrast
300-nit brightness (typ) and 700:1 contrast ratio (typ) for rich,
detailed images
> Windows Vista approved
> PC and Mac
> MPR II and ENERGY STAR
®
5ms video response time
.
®
compatible
®
qualified
.
VX1945wm
19" WIDESCREEN LCD WITH IPOD®DOCK IN MULTIMEDIA BASE
LCD Type 19" Wide Color TFT Active Matrix LCD
Display Area 16.1" horizontal x 10.0" vertical; 19" diagonal
Optimum Resolution 1440x900
Contrast Ratio 700:1 (typ)
Viewing Angles 160° horizontal, 160° vertical @ contrast ratio > 10:1
Response Time 5ms (typ)
Light Source Long life, 40,000 hrs. (typ)
Brightness 300 cd/m2 (typ)
Panel Surface Anti-glare
VIDEO INPUT Analog/Digital RGB analog (75 ohms, 0.7 Vp-p)/DVI-D (TMDS, 100 ohms)
Frequency Fh: 30~82kHz, Fv: 50~85Hz
Sync H/V separated (TTL), composite, sync-on-green
COMPATIBILITY PC VGA up to 1440x900 non-interlaced
Mac®* Power Mac™ G3/G4/G5 up to 1440x900
CONNECTOR Analog/Digital 15-pin mini D-sub/DVI-D
Power 3-pin AC plug (CEE22)
Base iPod dock, USB (A type)x4, USB (B type)x1, audio out stereo
jack, 2-in-1 audio in, headphone jack
AUDIO Speakers 2x2-watt
Sub-woofer 1x3-watt
POWER Voltage AC 100–240V, 50–60Hz (auto switch)
Consumption 59W (typ)
CONTROLS Basic Power, 1, down, up, 2, sub volume
OPERATING Temperature 41–95°F (5–35°C)
CONDITIONS Humidity 20–80% (non-condensing)
DIMENSIONS Physical with stand 17.7" x 17" x 8.4" (450mm x 449mm x 212mm)
(W x H x D) Physical without stand 17.7" x 13.4" x 2.6" (450mm x 341mm x 65.5mm)
WEIGHT Net with stand 12.6 lb. (5.7 kg)
REGULATIONS UL, cUL, FCC-B, CB, CE, ENERGY STAR®, NOM, NEMKO/GS
RECYCLE/DISPOSAL The lamp in this product contains mercury. Please dispose of
POWER MANAGEMENT Meets MPR II and ENERGY STAR® standards
PACKAGE CONTENTS LCD display, power cable, 15-pin VGA video cable, DVI cable,
WARRANTY Three-year limited warranty on LCD, parts and labor.
®
OnView
Net without stand 9.6 lb. (4.4 kg)
Gross with stand 17 lb. (7.7 kg)
Auto image adjust, brightness, contrast, input select (analog,
digital), ViewMatch
5400K, user color - RGB), information (resolution, H. frequency,
V. frequency, pixel clock, model number, serial number), manual
image adjust (H. size, H. position, V. position, fine tune,
sharpness), setup menu (language, resolution notice, OSD
position, OSD timeout, OSD background), memory recall
(covers TUV/GS), NEMKO ERGO (covers TUV/ERGO,
ISO13406-2 & MPR II), MPR II, GOST-R + 20 original copies
hygienic, SASO, PCBC, VCCI, BSMI, CCC, PSB, C-TICK,
Argentina-S, Green Mark, RoHS
in accordance with local, state and federal laws.
Quick Start Guide, ViewSonic Wizard CD
®
color adjust (sRGB, 9300K, 6500K-default,
ViewSonic Corporation’s QMS & EMS have been registered to
ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Customer Service and Technical Support: (800) 688-6688 • Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
*Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details.
Windows Vista and the Windows Vista logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Corporate names, trademarks stated herein are the property of their
respective companies. Copyright © 2007 ViewSonic Corporation. All rights reserved. [13360-00B-01/07] VX1945wm-1
