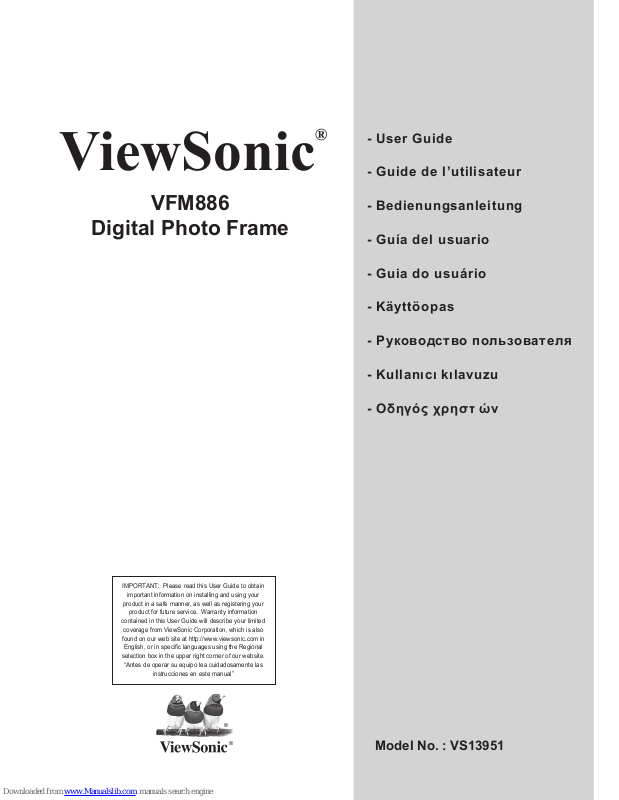

ViewSonic VFM886-50E, VFM886, VS13951 User Manual
VFM886
Digital Photo Frame
ViewSonic
®
Model No. : VS13951
- User Guide
- Guide de l’utilisateur
- Bedienungsanleitung
- Guía del usuario
- Guia do usuário
- Käyttöopas
- Руководство пользователя
- Kullanιcι kιlavuzu
- Οδηγός χρηστ ών
IMPORTANT: Please read this User Guide to obtain
important information on installing and using your
product in a safe manner, as well as registering your
product for future service. Warranty information
contained in this User Guide will describe your limited
coverage from ViewSonic Corporation, which is also
found on our web site at http://www.viewsonic.com in
English, or in specic languages using the Regional
selection box in the upper right corner of our website.
“Antes de operar su equipo lea cuidadosamente las
instrucciones en este manual”
ViewSonic VFM886i
Compliance Information
FCC Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy, and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: You are cautioned that changes or modications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
For Canada
• This Class B digital apparatus complies with Canadian ICES-003.
• Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
CE Conformity for European Countries
The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive
2006/95/EC.
Following information is only for EU-member states:
The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC
(WEEE).
The mark indicates the requirement NOT to dispose the equipment including any spent or
discarded batteries or accumulators as unsorted municipal waste, but use the return and collection
systems available.
If the batteries, accumulators and button cells included with this equipment, display the chemical
symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than
0.0005% Mercury or more than, 0.002% Cadmium, or more than 0.004% Lead.
ViewSonic VFM886ii
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive 2002/95/EC of the
European Parliament and the Council on restriction of the use of certain hazardous substances in
electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum
concentration values issued by the European Technical Adaptation Committee (TAC) as shown
below:
Substance
Proposed Maximum
Concentration
Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex of the RoHS
Directives as noted below:
Examples of exempted components are:
1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in other lamps not
specically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes, and electronic
ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more
lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing
up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.
ViewSonic VFM886iii
Copyright Information
Copyright © ViewSonic® Corporation, 2011. All rights reserved.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks
of ViewSonic Corporation.
Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or consequential damages resulting from
furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to
change product specications without notice. Information in this document may change without
notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any
purpose without prior written permission from ViewSonic Corporation.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
VFM886
ViewSonic Digital Photo Frame
VS13951
VFM886_UG_ENG Rev. 1B 09-27-11
__________________________________
__________________________________
Product disposal at end of product life
ViewSonic respects the environment and is committed to working and living green. Thank you
for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more.
USA & Canada: http://www.viewsonic.com/company/green/recycle-program/
Europe: http://www.viewsoniceurope.com/uk/kbase/article.php?id=639
Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx
ViewSonic VFM886iv
Important Safety Instructions
Always follow the basic safety precautions below when using your Digital Photo Frame. This will reduce
the risk of re, electric shock, and injury.
Warning: To reduce the risk of re or shock hazard, do not expose this product to rain or moisture.
Warning: To prevent the risk, do not remove the cover, there are no spare parts inside, refer all product
services to professional personnel.
• Digital Photo frame is for indoor use only.
• Unplug Digital Photo frame before performing care and maintenance.
• Do not block the ventilation holes on the back of Digital Photo Frame at any time.
• Keep your Multimedia Digital Photo Frame out of direct sunlight and heat source.
• Protect the power cord. Route power cords appropriately to avoid trip over by someone else or
pinched by items placed on or against them. Pay particular attention to the point where the cord
attaches to Digital Photo Frame.
• Only use the AC adapter included with the Digital Photo Frame. Using any other power adapter
will void your warranty.
• Unplug the power cord from the outlet when the unit is not in use.
Cleaning LCD Screen
Treat the screen gently. The screen is made of glass which can be scratched or damaged
To clean ngerprints or dust from the LCD screen, we recommend using a soft / nonabrasive cloth
such as a camera lens cloth to clean the LCD screen.
If you use a commercial LCD cleaning kit, do not apply the cleaning liquid directly to the LCD screen.
Clean the LCD screen with cleaning cloth moistened with the liquid.
Package Content
•
Power adapter
•
Digital Photo Frame
•
Remote control
•
USB cable(VFM886-54/74)
•
USB cable
•
User’s manual
•
Quick Start Guide
•
Stand
ViewSonic VFM8861
1. Precautions
Warnings
Please read this manual carefully before operating and reserve it for future
reference. It will be helpful to you if you encounter any operating problem.
Avoid exposing this device to water, moisture
or high humidity. Do not place it near
swimming pool, bathtub or sink where it may
come in contact with water.
Clean only with a dry soft cloth; do not use
any chemical liquid for cleaning.
To ensure reliable operation of the device az
from overheating, do not block any ventilation
openings.
Only use attachments/ accessories specified
by the manufacturer.
Do not step on the power cable, plug or
adapter to avoid electronic shock.
Do not attempt to service this device
yourself.. Opening or removing covers may
expose you to dangerous voltages or other
hazards. Refer all servicing and repairs to
qualified service personnel.
Please unplug this device in the
thunderstorm weather or not in use for a long
time.
Do not press hard on the LCD screen in the
process of transportation or usage. Avoid
sharp objects.
ViewSonic VFM8862
2. Product Introduction
2.1 Features
High quality 8 inch LCD: 800x600 high resolution.
Picture in JPG, JPEG formats compatible.
Picture slideshow with a variety of transition effects, support picture
rotating and zooming.
Music player (MP3) & background music when pictures slide showed.
Video in MJPEG and MPEG-4 formats compatible.
Txt E-books reader.
Clock & calendar & alarm functions.
3-in-1 Card reader (SD/SDHC/MMC).
2.2 Specifications
LCD Screen
Panel size Aspect
ratio
8 inch 4:3
Effective viewing
area
162.0 (W) x 121.5 (H) mm
Resolution 800 (W) x 600 (H) pixels
Photo File
Image formats
supported
JPG, JPEG(baseline coding)
Max. image
resolution
30 million pixels
Video File
Video decoder MPEG4, MJPEG, AVI
Video formats
supported
MPG, MPEG, MOV
Video
specifications
MJPEG AVI: Max.320 x 240
MPEG4
AVI
DIVX4/5/5.11/6:Max.720 x 576-5MBps
XVID: Max.720 x 576-5MBps
MPEG4 (avi) Max.720 x 576-5MBps
MOV Max.640 x 480
E-book
File format supported txt (English Only)
Max. file size Max. 10M
ViewSonic VFM8863
Calendar
Clock, Calendar, Alarm
Music File
Music formats
supported
Mp3(sampling rate 44.1kHz, bit rate
32k-320kbps),
Memory
Medium
Memory Card
supported
MMC, SD, SDHC (max 32GB)
USB USB flash drive (max 200mA)
File system FAT, FAT32
Electrical
Specifications
Power input DC5V 1A
Power
consumption
≤ 5W
Power adapter
Input AC100-240V~50/60HZ
Output DC5V
1A
Dimensions
Dimensions 225 x 185 x 24.2 mm
Weight Approx. 440g
Operating
mode
Button operation
Environmental
Requirements
Operating temperature 0°C~40°C
Storage temperature -20°C~60°C
Regulations CE, BSMI, FCC, ICES003, LVD, Gost-R/Hygienic
2.3 Accessories
Power adapter ..................................................................... 1 piece
Digital Photo Frame............................................................. 1 piece
Remote control .................................................................... 1 piece
USB cable(VFM886-54/74) ................................................. 1 piece
USB cable ........................................................................... 1 piece
User’s manual ..................................................................... 1 piece
Quick Start Guide ................................................................ 1 piece
Stand ................................................................................... 1 piece

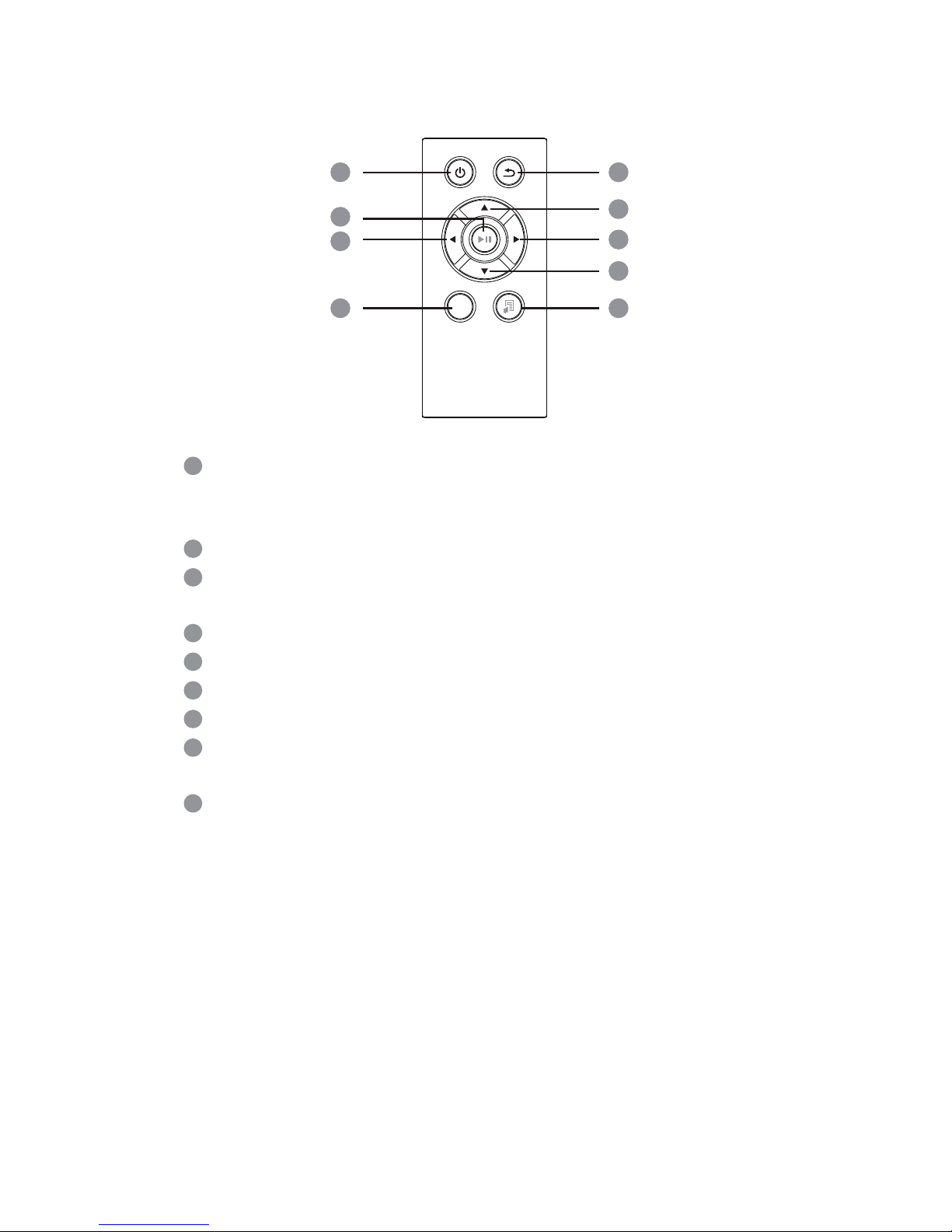

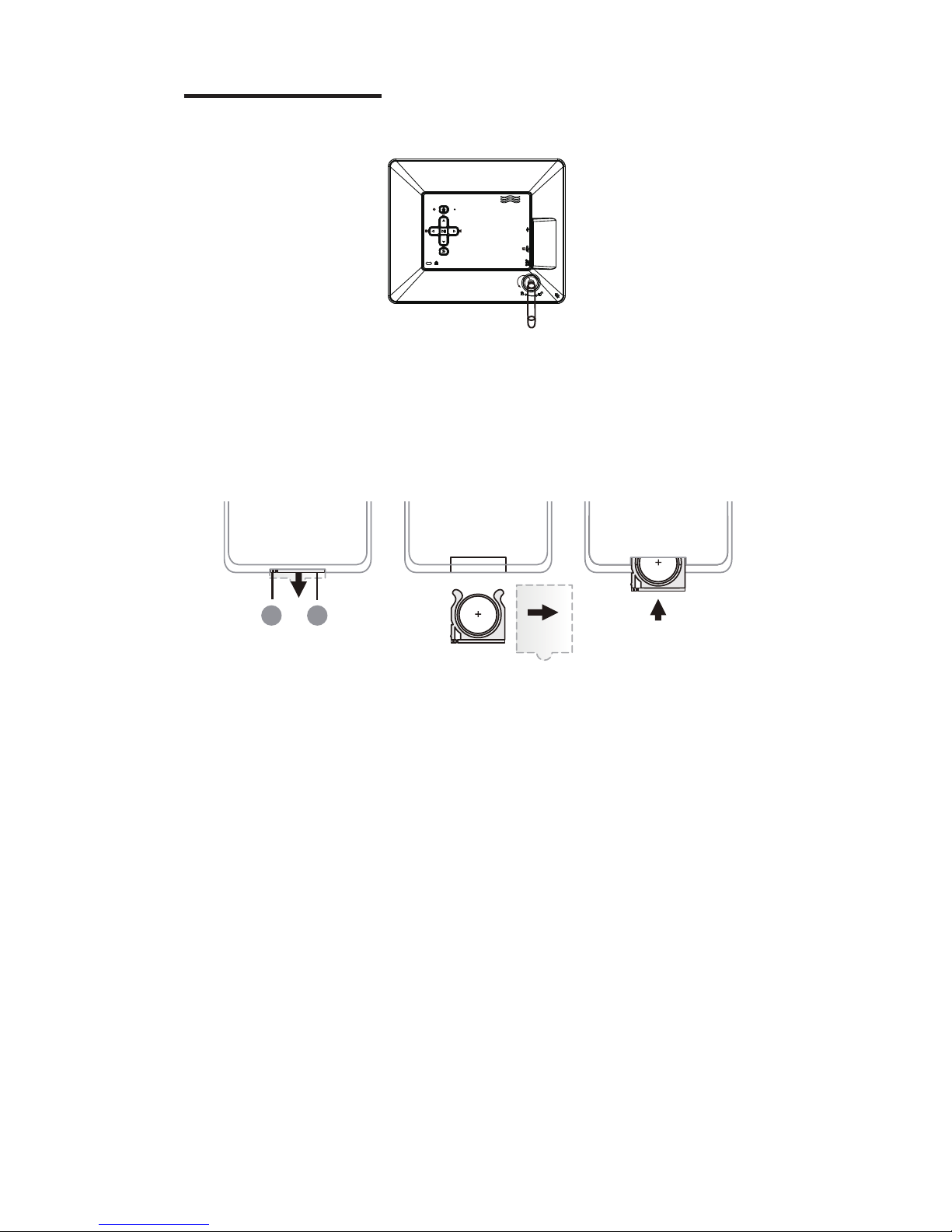

2.4 Button Illustration
ViewSonic VFM8864
1
Power: a. Press & hold to turn on the device.
b. Press & hold to turn off the device.
c. Press briefly to turn to main menu when the device power is on.
2
Return: Exit.
3
Play: a. Confirm / Enter. b. Play/Pause.
c. Press & hold to pop-up the shortcut menu.
4
UP: a. Up; b. Previous; c. Rewind.
5
DOWN: a. Down; b. Next; c. Fast forward.
6
RIGHT: a. Right; b. volume+;
c. enter; d. adjust+.
7
LEFT: a. Left; b. volume-;
c. back to the up-level; d. adjust-.
2.5 Terminal Illustration
1
USB HOST: Connect to USB flash drive or PC (max 200mA)
2
SD/SDHC/MMC card slot.
3
DC-IN: Power input 5V DC 1A
