VFM1027-11M
Digital Photo Frame
ViewSonic
®
Model No. : VS13788
IMPORTANT: Please read this User Guide to obtain
important information on installing and using your
product in a safe manner, as well as registering your
product for future service. Warranty information
contained in this User Guide will describe your limited
coverage from ViewSonic Corporation, which is also
found on our web site at http://www.viewsonic.com in
English, or in specic languages using the Regional
selection box in the upper right corner of our website.
“Antes de operar su equipo lea cuidadosamente las
instrucciones en este manual”
Page 2
ViewSonic VFD1027W-11Mi
Compliance Information
FCC Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy, and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: You are cautioned that changes or modications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
For Canada
• This Class B digital apparatus complies with Canadian ICES-003.
• Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Page 3
ViewSonic VFD1027W-11Mii
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive 2002/95/EC of the
European Parliament and the Council on restriction of the use of certain hazardous substances in
electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum
concentration values issued by the European Technical Adaptation Committee (TAC) as shown
below:
Substance
Proposed Maximum
Concentration
Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex of the RoHS
Directives as noted below:
Examples of exempted components are:
1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in other lamps not
specically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes, and electronic
ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more
lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing
up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.
Page 4
ViewSonic VFD1027W-11Miii
Copyright Information
Copyright © ViewSonic® Corporation, 2010. All rights reserved.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks
of ViewSonic Corporation.
Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or consequential damages resulting from
furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to
change product specications without notice. Information in this document may change without
notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any
purpose without prior written permission from ViewSonic Corporation.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
VFD1027W-11M
ViewSonic Digital Photo Frame
VS13788
VFD1027W-11M_ENG Rev. 1B 11-10-10
__________________________________
__________________________________
Product disposal at end of product life
ViewSonic respects the environment and is committed to working and living green. Thank you
for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more.
USA & Canada: http://www.viewsonic.com/company/green/recycle-program/
Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/
Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx
Page 5
ViewSonic VFD1027W-11Miv
Important Safety Instructions
Always follow the basic safety precautions below when using your Digital Photo Frame. This will reduce
the risk of re, electric shock, and injury.
Warning: To reduce the risk of re or shock hazard, do not expose this product to rain or moisture.
Warning: To prevent the risk, do not remove the cover, there are no spare parts inside, refer all product
services to professional personnel.
• Digital Photo frame is for indoor use only.
• Unplug Digital Photo frame before performing care and maintenance.
• Do not block the ventilation holes on the back of Digital Photo Frame at any time.
• Keep your Multimedia Digital Photo Frame out of direct sunlight and heat source.
• Protect the power cord. Route power cords appropriately to avoid trip over by someone else or
pinched by items placed on or against them. Pay particular attention to the point where the cord
attaches to Digital Photo Frame.
• Only use the AC adapter included with the Digital Photo Frame. Using any other power adapter
will void your warranty.
• Unplug the power cord from the outlet when the unit is not in use.
Cleaning LCD Screen
Treat the screen gently. The screen is made of glass which can be scratched or damaged
To clean ngerprints or dust from the LCD screen, we recommend using a soft / nonabrasive cloth
such as a camera lens cloth to clean the LCD screen.
If you use a commercial LCD cleaning kit, do not apply the cleaning liquid directly to the LCD screen.
Clean the LCD screen with cleaning cloth moistened with the liquid.
Package Content
•
Digital Photo Frame
•
AC power adapter (12V, 1.5A)
•
This User Guide
•
Quick Start Guide
•
USB cable
•
Remote Control
•
Stand
Page 6
1ViewSonic VFD1027W-11M
Table of Contents
Introduction.........................................................................................2
Main Features.....................................................................................2
Unit Assembly.....................................................................................2
Controls..............................................................................................2
Operations..........................................................................................3
Viewing Photos in Slideshow Effect....................................................3
Main Menu..........................................................................................4
Viewing Individual Pictures.................................................................4
Copy les in the le list screen............................................................5
Feature Setup......................................................................................6
Calendar And Clock Display................................................................6
Page 7
2ViewSonic VFD1027W-11M
Introduction
Congratulations on your purchase of your digital photo frame.
Before operating the unit, please read this manual carefully, and retain it for future reference.
This manual will help you use the many exciting and useful features that will make your photo
frame viewing more enjoyable. It includes a step by step guide to the basics on photo frame operation including instructions on uploading and playing photos.
You will also be able to create a slideshow using multiple transition
effects or display one picture at a time.
Main Features
• Display digital picture in Hi-resolution and great quality
• Create an automatic slide show with multiple transition effects.
• Supports jpeg images up to 12 Mega Pixels.
• Accepts many memory cards including SD,MMC,MS cards, as well as USB ash drives.
• Calendar mode with slideshow.
• User friendly on screen display lets you easily access all features.
• Includes a credit card sized remote control.
Unit Assembly
Open the package and remove the foam packing. Install the digital photo frame stand at the rear
of the unit. Insert the DC jack and plug the adapter into any AC outlet.
Insert the media into the correct slot and turn power to ON position.

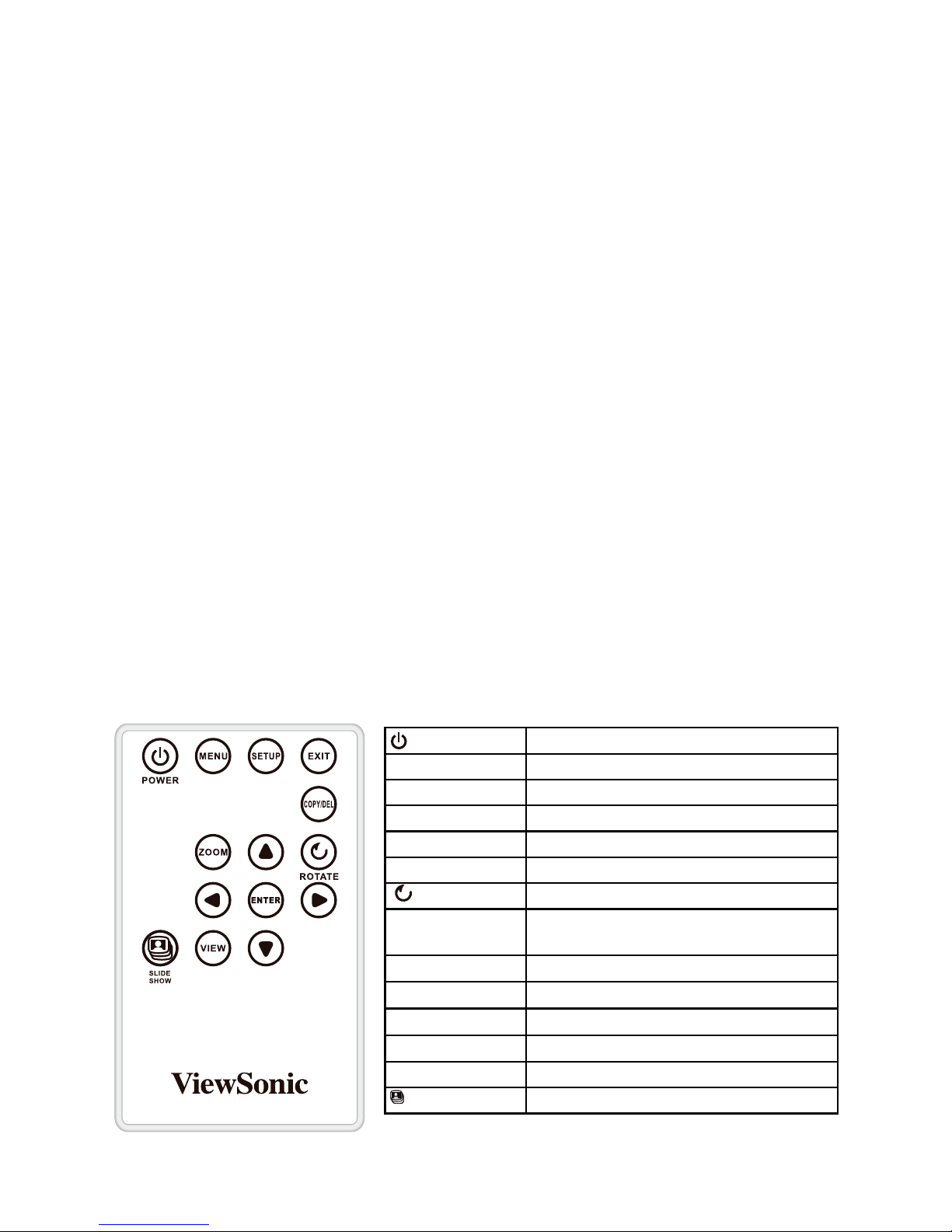

Controls
POWER To turn ON/OFF the set.
MENU To jump to main menu.
SETUP To enter setup menu.
EXIT To escape to previous menu.
COPY/DEL To copy or delete the selected files.
ZOOM To zoom in the photo.
To rotate the photo.
ENTER To confirm the selection or show the
tool bar when play photo.
Up key. To move the icon up.
Down key. To move the icon down.
Left key. To move the icon to left.
Right key. To move the icon to right.
VIEW To view the photo in thumbnail mode.
SLIDESHOW To run slideshow mode.
Page 8
3ViewSonic VFD1027W-11M
Operation
Photos can be viewed directly from your memory card or you can copy les to the device that
you want to store.
For instructions on copy les, please see the “Copy le in the le list screen” section on page 5.
Viewing Photo in Slideshow Mode
The digital picture frames is compatible with the following memory cards:
Secure Digital card (SD)
Multi Media Card (MMC)
Memory Stick (MS)
Insert the memory card with the front label facing away from you. Do not force the memory card
into the memory slot, if you are unable to insert the memory card easily, you may have inserted it
the wrong way. Reverse it and try again.
Note:
The digital picture frame will only recognize digital picture stored in jpeg format. Digital picture
stored in other formats will be ignored by the device.
Make sure you have at least one picture stored on the memory card. The frame will not function
properly without a stored picture.
You can also use a USB ash drive. It operated the same way as the memory cards. Simply
insert the ash drive into the USB host plug on the side of the frame.
The slideshow of your photos will begin to play automatically. The slideshow will play your photos
in the order which they are listed on your memory card. You can rearrange them using a PC.
To select and view an individual picture, please see “ Viewing Individual Pictures” on page 4.
Page 9
4ViewSonic VFD1027W-11M

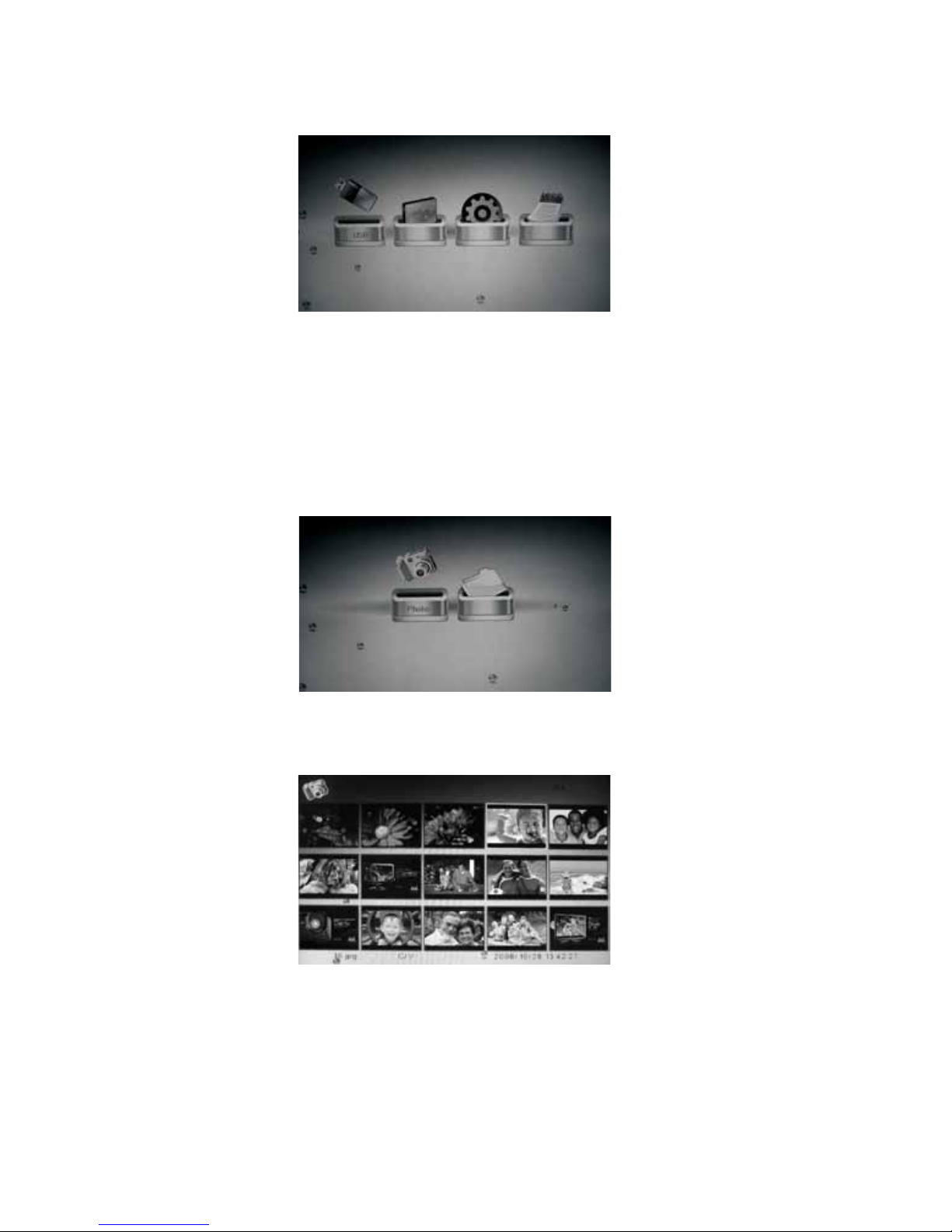

Main menu
When the digital Picture Frame is turned on, you will see the MENU screen.
There are one memory card slot and one USB port are on the board. If there is a device is inserted in these slot, the corresponding icon will be shown, otherwise it will be hidden.
Viewing Individual Pictures
Select the desired media on the main menu. If a media card is used, it will appear as an additional icon. Select the “ Photo” option from the menu and press “ENTER”.
A photo thumbnail list will appear. Use the UP/DOWN, LEFT/RIGHT
arrows to highlight the desired photo.
When the desired photo is highlighted, press ENTER to view it in full screen. The photo will show
up in full screen and remain still in pause mode. Press ENTER to begin slideshow mode.

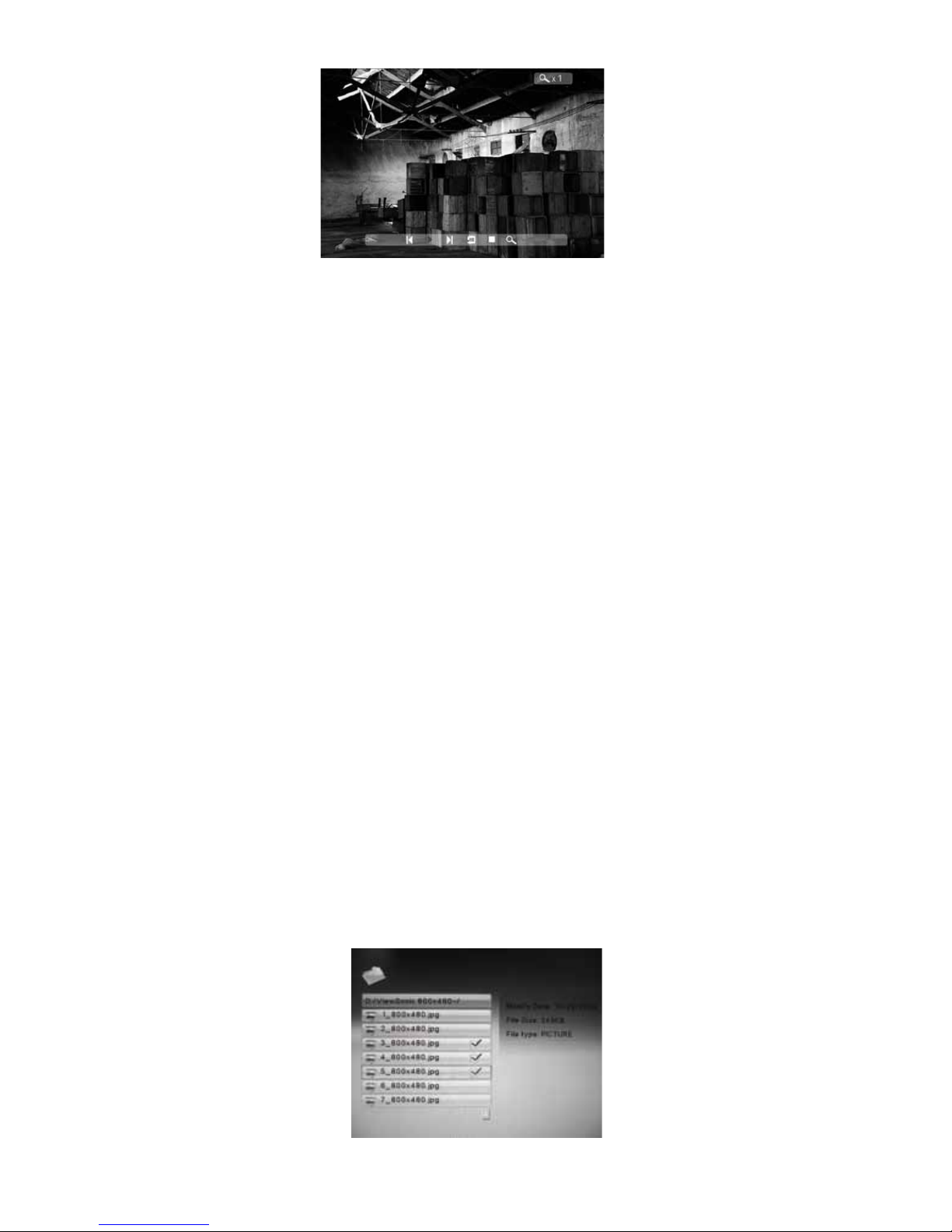

While a slideshow is playing or a picture is on display, press the
ENTER button. The following display menu will appear.
Page 10
5ViewSonic VFD1027W-11M
The option icons displayed are as follows:
Previous
Play the previous picture in the picture list.
Play or Pause
Play or pause the current slideshow.
Next
Play the next picture in the picture list.
Rotate
Use the rotate function to change the picture orientation to either portrait or landscape.
Stop
Stop slideshow and return to the photo thumbnail list.
Zoom
Increase the picture size by 2,4,8 or 16 times.

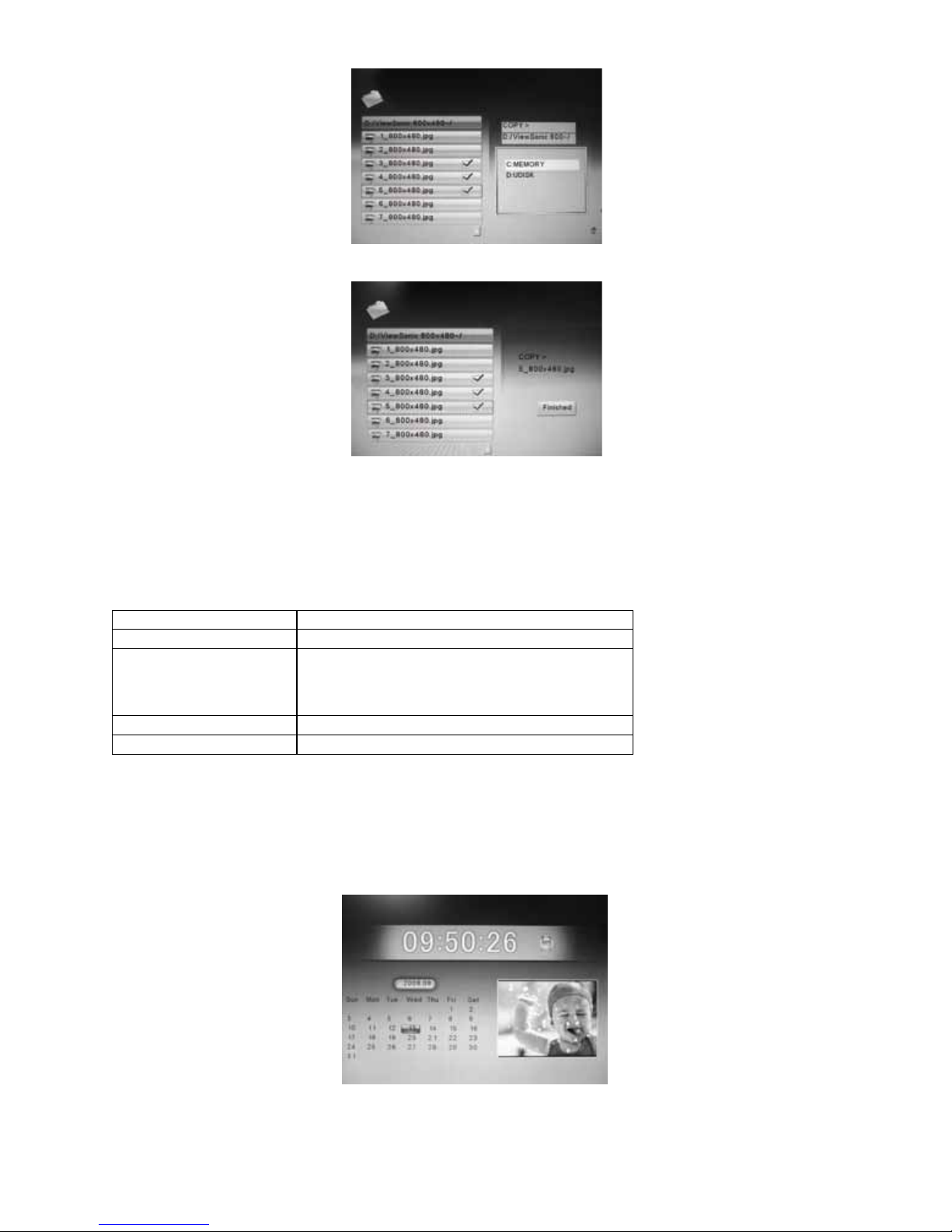

Copy les in the le list screen
If the user wants to do copy, press the MENU button to select FILE icon. When the sub-menu is
on, use the UP/DOWN cursor to select the le and press the RIGHT button to conrm the selection, then press the COPY/DEL button, the screen will show user COPY/ DELETE information in
the right. Use the UP/DOWN cursor to select COPY and press ENTER to conrm, then user also
use the UP/DOWN cursor to select the device and press the RIGHT to conrm that you want to
store the copy le. After copying it, it will show
“Finished”. Press the ENTER to turn off the submenu and go back to the le list.
Page 11
6ViewSonic VFD1027W-11M
Feature Setup
Many of the picture frame functions can be adjusted to your preference. By using the SETUP
option from the main menu, the following changes can be made: use the ENTER button and UP/
DOWN arrows to change the options.
Function Description
Language Includes English, French, Spanish
Slideshow effect Off, Random, Fading, Bottom-to top, top-to-
button, Left-to-right, right-to-left, door-close,
door-open, hori-cross, verti-cross
Time Year/Month/Date/Time setup
Default Return to factory default setup
Calendar and Clock Display
From the main MENU screen, select Calendar/clock and press ENTER, the Calendar/ Clock
screen will display. A picture slideshow will begin at the picture at the picture preview window at
the right part of the screen.
Page 12
ViewSonic VFD1027W-11M7
Customer Support
For technical support or product service, see the table below or contact your reseller.
Note : You will need the product serial number.
Country/
Region
Web Site
T=Telephone
F=Fax
E-mail
Australia/New
Zealand
www.viewsonic.com.au
AUS=1800 880 818
NZ=0800 008 822
Canada www.viewsonic.com
T (Toll-Free)= 1-866-463-4775
T (Toll)= 1-424-233-2533
F= 1-909-468-3757
Europe www.viewsoniceurope.com www.viewsoniceurope.com/uk/support/call-desk/
Ireland (Eire)
www.viewsoniceurope.com/
uk/
www.viewsoniceurope.com/
uk/support/call-desk/
Latin America
(Argentina)
Latin America
(Chile)
Latin America
(Columbia)
Latin America
(Mexico)
Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: 01.222.891.55.77 CON 10 LINEAS
Electroser, Av Reforma No. 403Gx39 y 41, 97000 Merida, Yucatan. Tel: 01.999.925.19.16
Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico
Latin America
(Peru)
Puerto Rico &
Virgin Islands
www.viewsonic.com
T= 1-800-688-6688 (English)
T= 1-866-379-1304 (Spanish)
F= 1-909-468-3757
Singapore/
Malaysia/
Thailand
United
Kingdom
www.viewsoniceurope.com/
uk/
www.viewsoniceurope.com/
uk/support/call-desk/
service_gb@viewsoniceurope.
com
United States www.viewsonic.com
T (Toll-Free)= 1-800-688-6688
T (Toll)= 1-424-233-2530
F= 1-909-468-3757
Page 13
ViewSonic VFD1027W-11M8
Limited Warranty
VIEWSONIC Digital Photo Frame
What the warranty covers:
ViewSonic warrants its products to be free from defects in material and workmanship, under normal
use, during the warranty period. If a product proves to be defective in material or workmanship during
the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product.
Replacement product or parts may include remanufactured or refurbished parts or components.
How long the warranty is effective:
ViewSonic Digital Photo Frame are warranted for 1 year for labor from the date of the rst customer
purchase.
Who the warranty protects:
This warranty is valid only for the rst consumer purchaser.
What the warranty does not cover:
1. Any product on which the serial number has been defaced, modied or removed.
2. Damage, deterioration or malfunction resulting from:
a. Accident, misuse, neglect, re, water, lightning, or other acts of nature, unauthorized product
modication, or failure to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by ViewSonic.
c. Causes external to the product, such as electric power uctuations or failure.
d. Use of supplies or parts not meeting ViewSonic’s specications.
e. Normal wear and tear.
f. Any other cause which does not relate to a product defect.
3. Any product exhibiting a condition commonly known as “image burn-in” which results when a static
image is displayed on the product for an extended period of time.
How to get service:
1. For information about receiving service under warranty, contact ViewSonic Customer Support (please
refer to Customer Support page). You will need to provide your product’s serial number.
2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your
name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service
center or ViewSonic.
4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.
Limitation of implied warranties:
There are no warranties, express or implied, which extend beyond the description contained herein
including the implied warranty of merchantability and tness for a particular purpose.
Exclusion of damages:
ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be
liable for:
1. Damage to other property caused by any defects in the product, damages based upon inconvenience,
loss of use of the product, loss of time, loss of prots, loss of business opportunity, loss of goodwill,
interference with business relationships, or other commercial loss, even if advised of the possibility of
such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.
4.3: ViewSonic DPF Warranty DPF_LW01 Rev. 1A
06-20-08
Page 14
ViewSonic VFD1027W-11M9
Mexico Limited Warranty
VIEWSONIC Digital Photo Frame
What the warranty covers:
ViewSonic warrants its products to be free from defects in material and workmanship, under normal
use, during the warranty period. If a product proves to be defective in material or workmanship during
the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product.
Replacement product or parts may include remanufactured or refurbished parts or components.
How long the warranty is effective:
ViewSonic Digital Photo Frame are warranted for 1 year for labor from the date of the rst customer
purchase.
Who the warranty protects:
This warranty is valid only for the rst consumer purchaser.
What the warranty does not cover:
1. Any product on which the serial number has been defaced, modied or removed.
2. Damage, deterioration or malfunction resulting from:
a. Accident, misuse, neglect, re, water, lightning, or other acts of nature, unauthorized product
modication, or failure to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by ViewSonic.
c. Causes external to the product, such as electric power uctuations or failure.
d. Use of supplies or parts not meeting ViewSonic’s specications.
e. Normal wear and tear.
f. Any other cause which does not relate to a product defect.
3. Any product exhibiting a condition commonly known as “image burn-in” which results when a static
image is displayed on the product for an extended period of time.
How to get service:
For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer
to the attached Customer Support page). You will need to provide your product’s serial number, so please
record the product information in the space provided below on your purchase for your future use. Please
retain your receipt of proof of purchase to support your warranty claim.
For Your Records
Product Name: ______________________ Model Number: _______________________
Document Number: ____________________
Serial Number: ______________________ Purchase Date: ________________________
Extended Warranty Purchase? _______________(Y/N)
If so, what date does warranty expire? _____________________________________________
1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your
name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
2. Take or ship the product in the original container packaging to an authorized ViewSonic service
center.
3. Round trip transportation costs for in-warranty products will be paid by ViewSonic.
Page 15
ViewSonic VFD1027W-11M10
Limitation of implied warranties:
There are no warranties, express or implied, which extend beyond the description contained herein
including the implied warranty of merchantability and tness for a particular purpose.
Exclusion of damages:
ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be
liable for:
1. Damage to other property caused by any defects in the product, damages based upon inconvenience,
loss of use of the product, loss of time, loss of prots, loss of business opportunity, loss of goodwill,
interference with business relationships, or other commercial loss, even if advised of the possibility of
such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.
4. Repair or attempted repair by anyone not authorized by ViewSonic.
Page 16
ViewSonic VFD1027W-11M11
Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:
Name, address, of manufacturer and importers:
México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas,
Col. San Fernando Huixquilucan, Estado de México
Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm
NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004
Hermosillo:
Distribuciones y Servicios Computacionales SA de
CV.
Calle Juarez 284 local 2
Col. Bugambilias C.P: 83140
Tel: 01-66-22-14-9005
E-Mail: [email protected]
Villahermosa:
Compumantenimietnos Garantizados, S.A. de C.V.
AV. GREGORIO MENDEZ #1504
COL, FLORIDA C.P. 86040
Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09
E-Mail: [email protected]
Puebla, Pue. (Matriz):
RENTA Y DATOS, S.A. DE C.V. Domicilio:
29 SUR 721 COL. LA PAZ
72160 PUEBLA, PUE.
Tel: 01(52).222.891.55.77 CON 10 LINEAS
E-Mail: [email protected]
Veracruz, Ver.:
CONEXION Y DESARROLLO, S.A DE C.V. Av. Americas # 419
ENTRE PINZÓN Y ALVARADO
Fracc. Reforma C.P. 91919
Tel: 01-22-91-00-31-67
E-Mail: [email protected]
Chihuahua
Soluciones Globales en Computación
C. Magisterio # 3321 Col. Magisterial
Chihuahua, Chih.
Tel: 4136954
E-Mail: [email protected]
Cuernavaca
Compusupport de Cuernavaca SA de CV
Francisco Leyva # 178 Col. Miguel Hidalgo
C.P. 62040, Cuernavaca Morelos
Tel: 01 777 3180579 / 01 777 3124014
E-Mail: [email protected]
Distrito Federal:
QPLUS, S.A. de C.V.
Av. Coyoacán 931
Col. Del Valle 03100, México, D.F.
Tel: 01(52)55-50-00-27-35
E-Mail : [email protected]
Guadalajara, Jal.:
SERVICRECE, S.A. de C.V.
Av. Niños Héroes # 2281
Col. Arcos Sur, Sector Juárez
44170, Guadalajara, Jalisco
Tel: 01(52)33-36-15-15-43
E-Mail: [email protected]
Guerrero Acapulco
GS Computación (Grupo Sesicomp)
Progreso #6-A, Colo Centro
39300 Acapulco, Guerrero
Tel: 744-48-32627
Monterrey:
Global Product Services
Mar Caribe # 1987, Esquina con Golfo Pérsico
Fracc. Bernardo Reyes, CP 64280
Monterrey N.L. México
Tel: 8129-5103
E-Mail: [email protected]
MERIDA:
ELECTROSER
Av Reforma No. 403Gx39 y 41
Mérida, Yucatán, México CP97000
Tel: (52) 999-925-1916
E-Mail: [email protected]
Oaxaca, Oax.:
CENTRO DE DISTRIBUCION Y
SERVICIO, S.A. de C.V.
Murguía # 708 P.A., Col. Centro, 68000, Oaxaca
Tel: 01(52)95-15-15-22-22
Fax: 01(52)95-15-13-67-00
E-Mail. [email protected]
Tijuana:
STD
Av Ferrocarril Sonora #3780 L-C
Col 20 de Noviembre
Tijuana, Mexico
FOR USA SUPPORT:
ViewSonic Corporation
381 Brea Canyon Road, Walnut, CA. 91789 USA
Tel: 800-688-6688 (English); 866-323-8056 (Spanish);
Fax: 1-800-685-7276
E-Mail: http://www.viewsonic.com
4.3: ViewSonic Mexico Limited Warranty DPF_LW03 Rev. 1A 06-25-07
Page 17
Loading...
