ViewSonic VS13729, PJD6211P User Manual
ViewSonic
®
- User Guide
PJD6211P
DLP Projector
IMPORTANT: Please read this User Guide to obtain important
information on installing and using your product in a safe
manner, as well as registering your product for future service.
Warranty information contained in this User Guide will describe
your limited coverage from ViewSonic Corporation, which is
also found on our web site at http://www.viewsonic.com in
English, or in specic languages using the Regional selection
box in the upper right corner of our website.
“Antes de operar su equipo lea cuidadosamente las
instrucciones en este manual”
- Guide de l’utilisateur
- Bedienungsanleitung
- Guía del usuario
- Guida dell’utente
- Guia do usuário
- Användarhandbok
- Käyttöopas
- Руководство пользователя
- 使用手冊 (繁體)
- 使用手册 (简体)
- 사용자 안내서
- คู่มือการใช้งาน
- Podręcznik użytkownika
- Kullanιcι kιlavuzu
Model No. : VS13729
CONTENTS
PJD6211P
ViewSonic
Introduction ........................................................................................................5
Projector Features .......................................................................................................5
Package Contents .......................................................................................................6
Projector Overview ......................................................................................................7
Using the Product ........................................................................................9
Control Panel .............................................................................................................. 9
Connection Ports .......................................................................................................10
Remote Control .........................................................................................................11

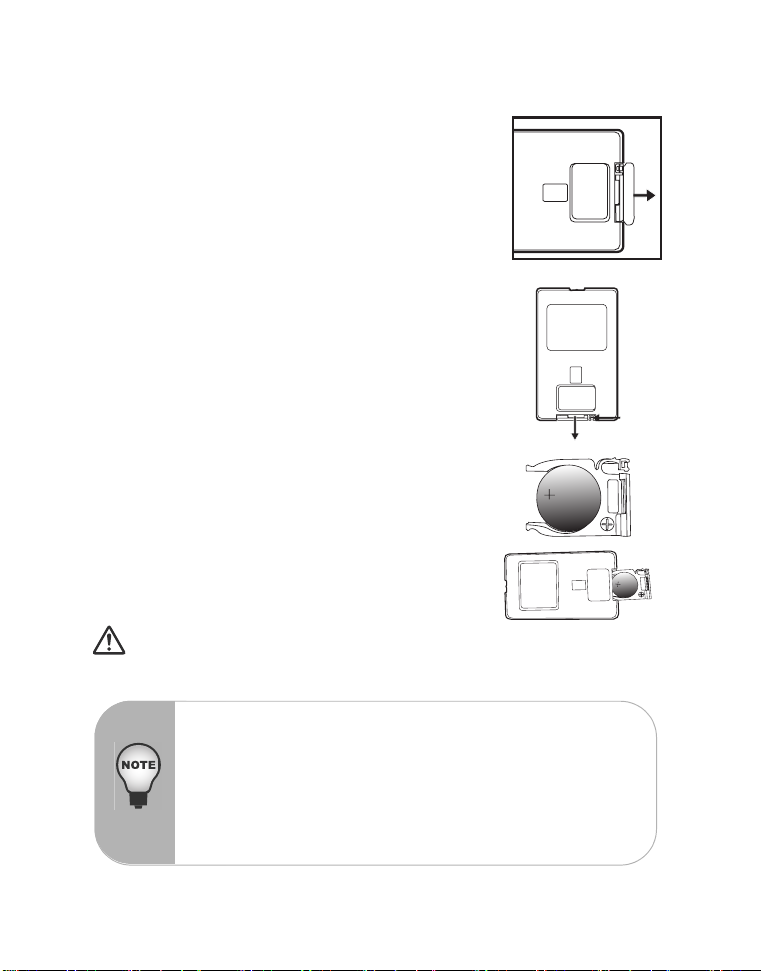

Replacing the Battery ................................................................................................12

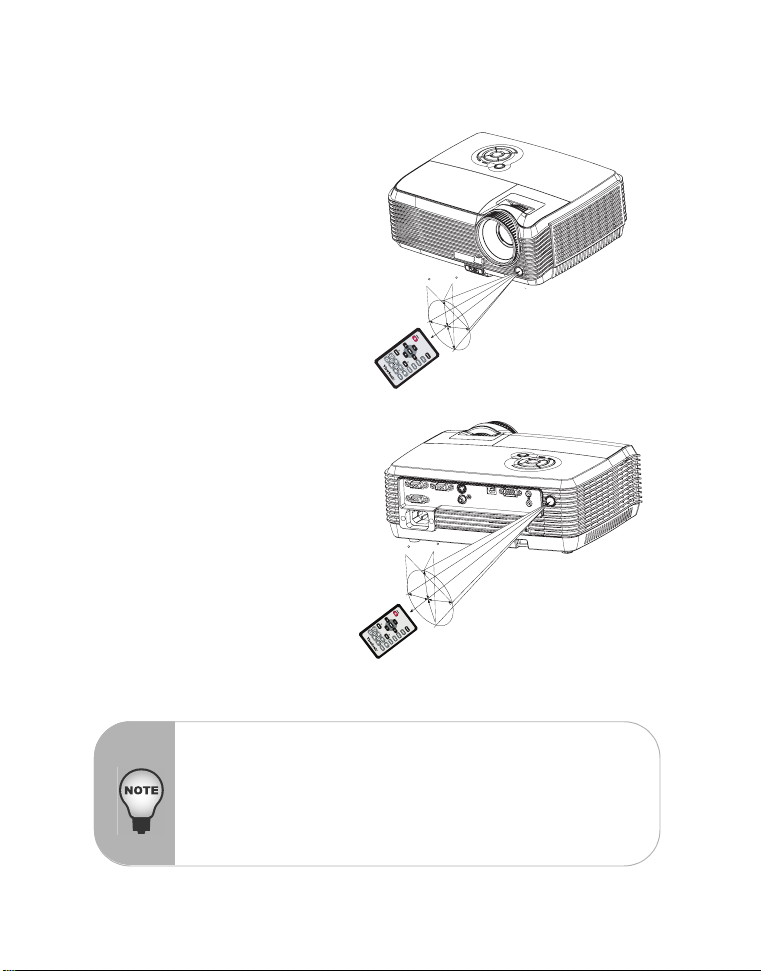

Remote Control Operation ........................................................................................ 13
Installation ........................................................................................................14

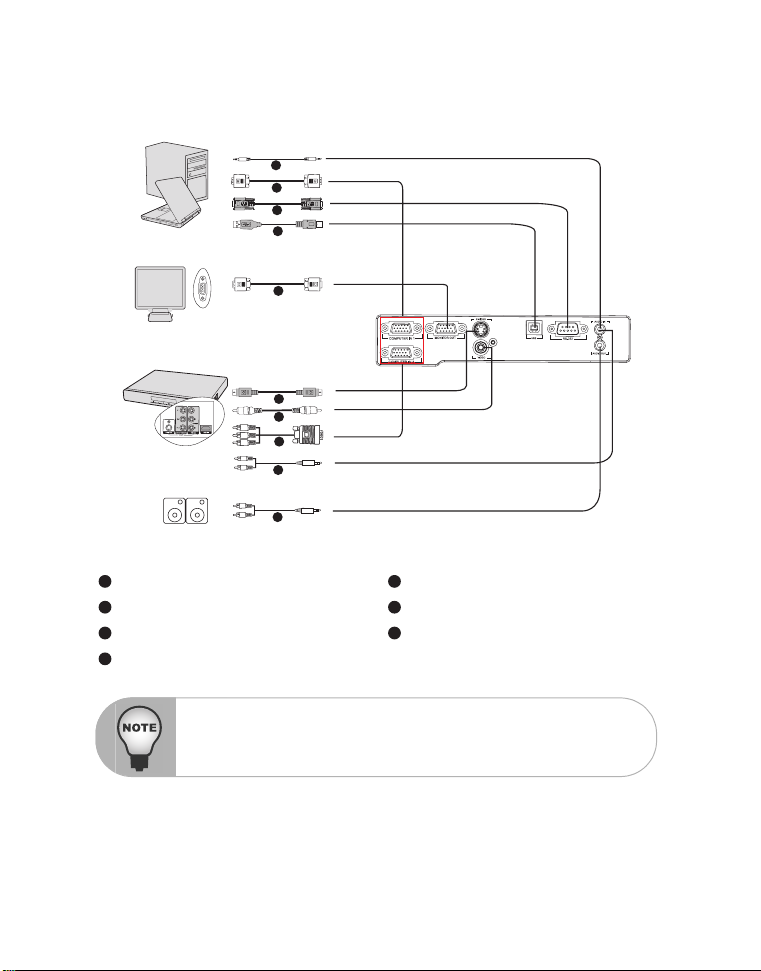

Connecting the Projector ...........................................................................................14
Powering On/Off the Projector ..................................................................................15

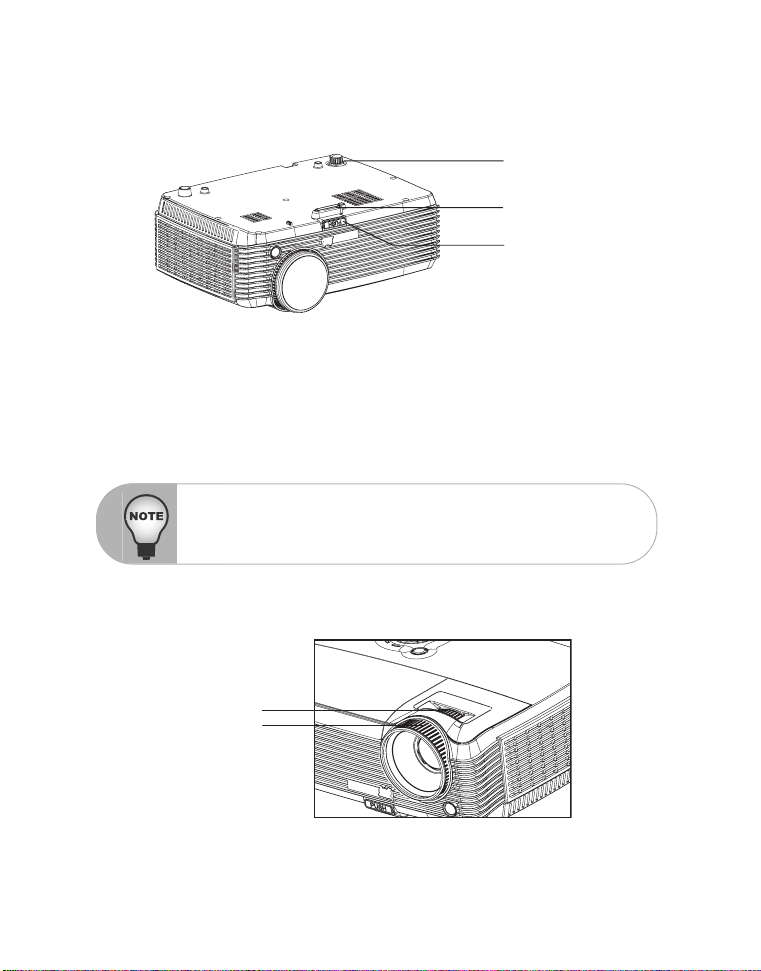

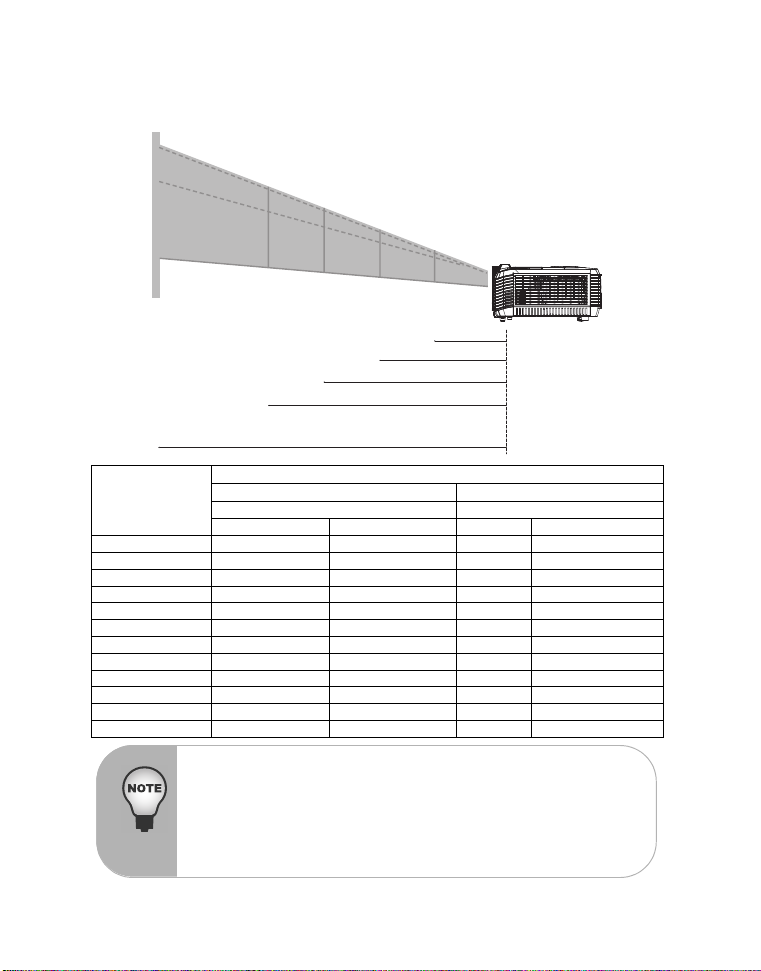

Adjusting the Projector .............................................................................................. 16

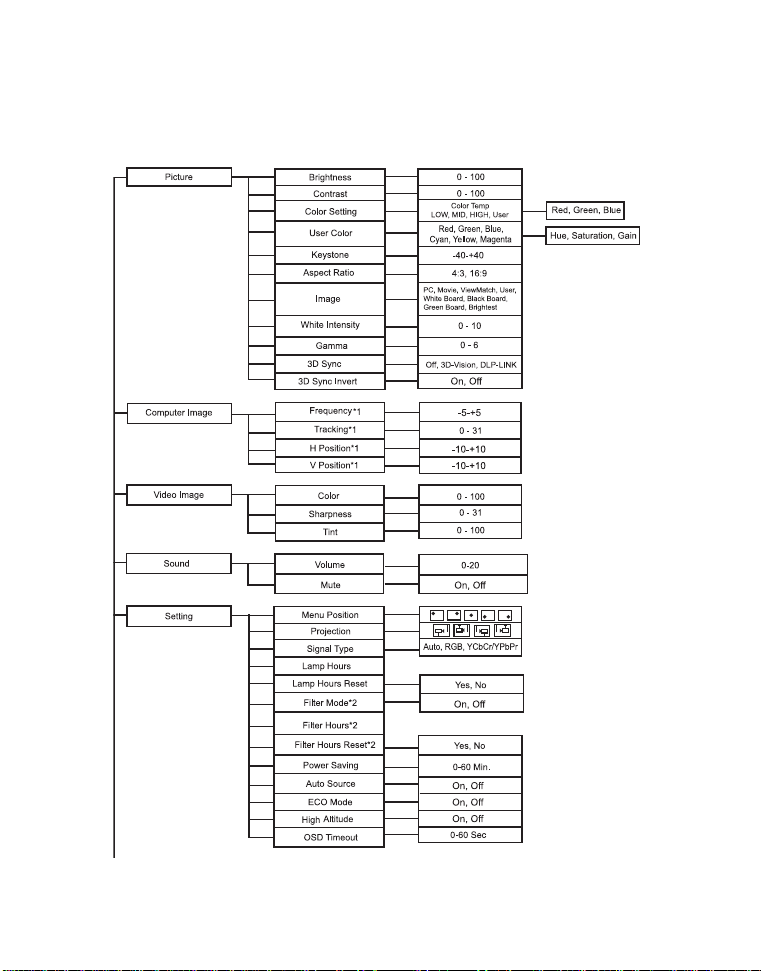

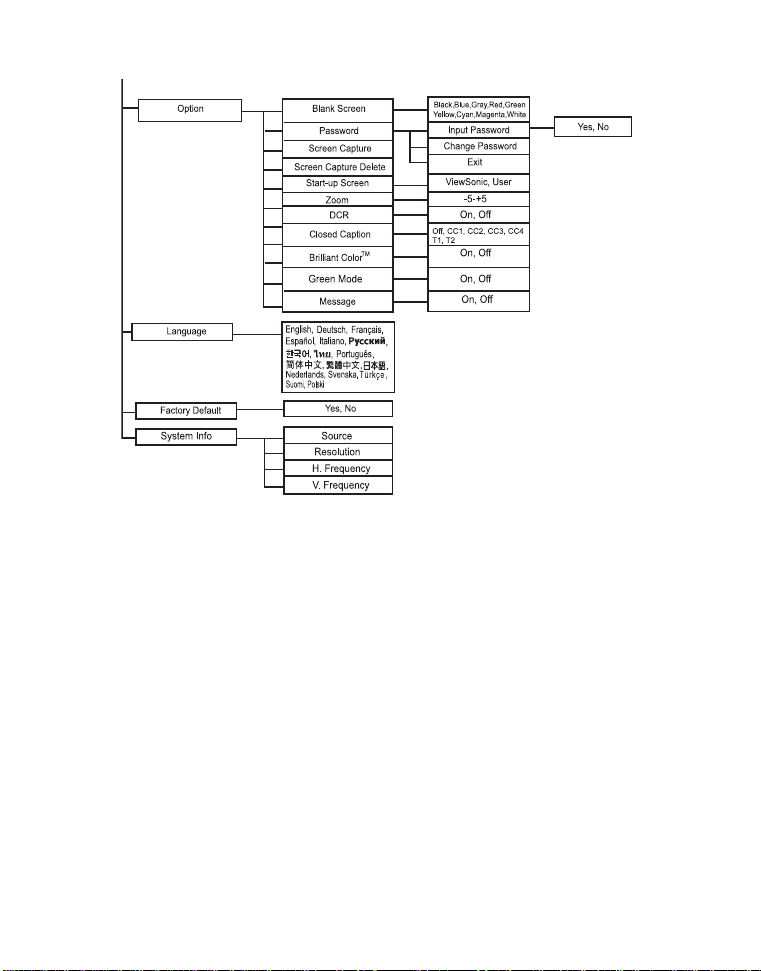

Menu Operation ............................................................................................18
Maintenance ...................................................................................................24
Cleaning the Lens ..................................................................................................... 24
Cleaning the Projector Housing ................................................................................24

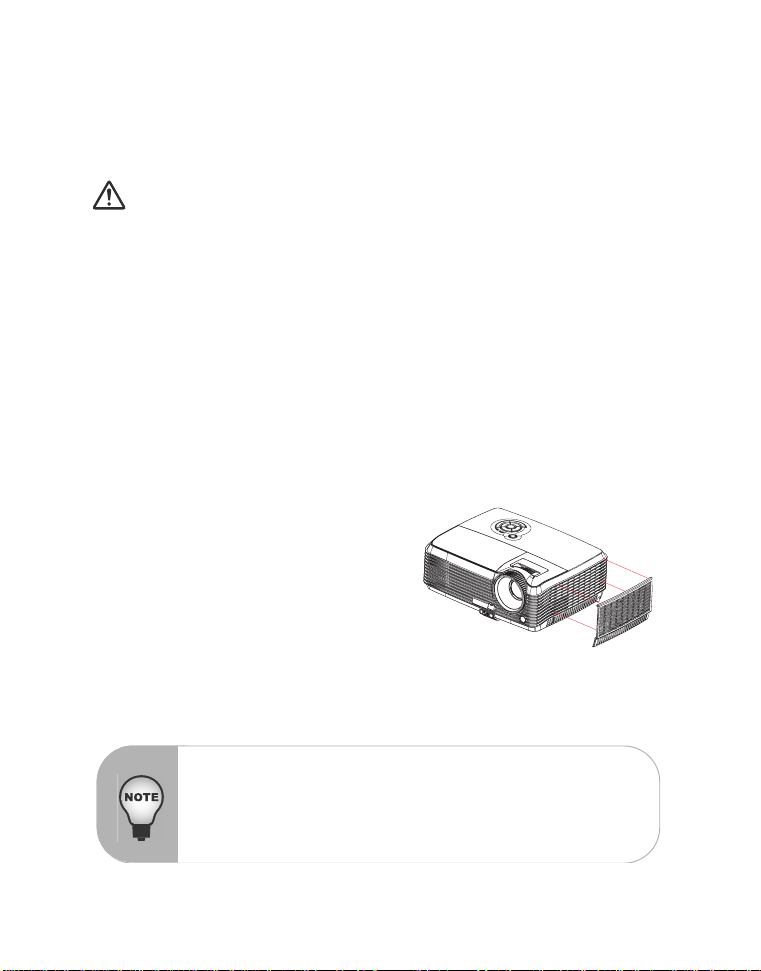

Cleaning the Filter Cover .......................................................................................... 24

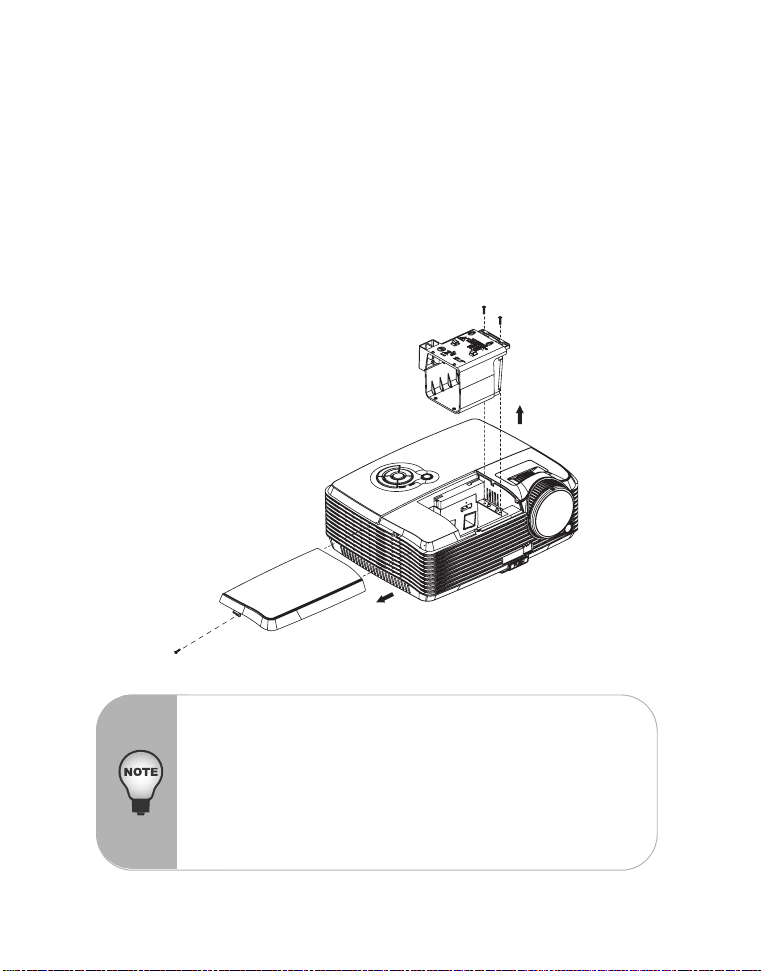

Replacing the Lamp .................................................................................................. 25
Specifications ............................................................................................... 27
Appendix ............................................................................................................28
LED Indicator Messages ...........................................................................................28
Compatibility Modes ..................................................................................................29
Troubleshooting ........................................................................................................ 31

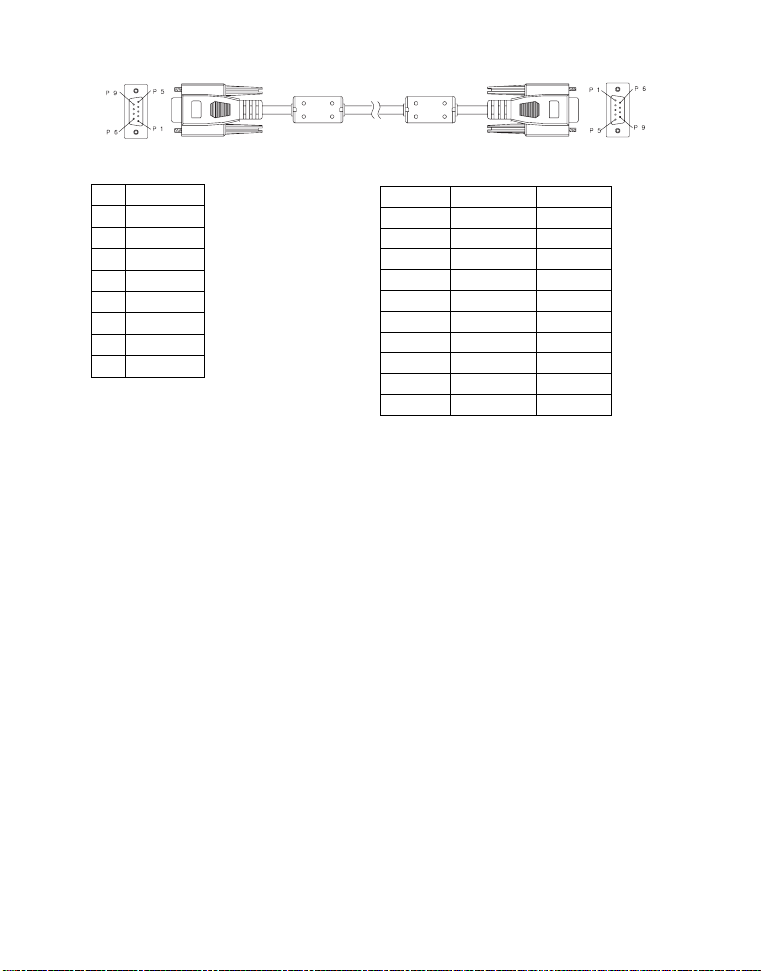

RS-232 Command and Configuration .......................................................................32

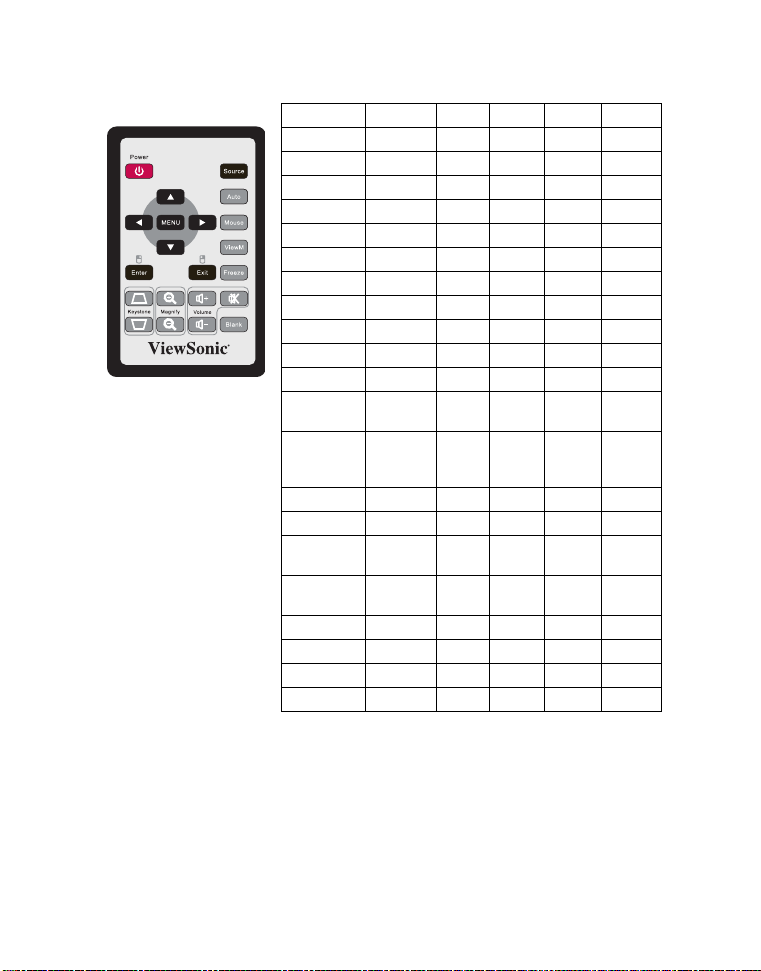

IR Control Code ........................................................................................................ 34
Compliance Information
PJD6211P
1
ViewSonic
FCC Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning:
party responsible for compliance could void your authority to operate the equipment.
For Canada
• This Class B digital apparatus complies with Canadian ICES-003.
• Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
CE Conformity for European Countries
You are cautioned that changes or modications not expressly approved by the
The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive
2006/95/EC.
Following information is only for EU-member states:
The mark is in compliance with the Waste Electrical and Electronic Equipment Directive
2002/96/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment including any spent or
discarded batteries or accumulators as unsorted municipal waste, but use the return and
collection systems available.
If the batteries, accumulators and button cells included with this equipment, display the
chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of
Important Safety Instructions
PJD6211P
2
ViewSonic
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this unit near water.
6. Clean with a soft, dry cloth.
Do not block any ventilation openings. Install the unit in accordance with the
7.
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
devices (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade and the third prong are provided
for your safety. If the provided plug does not t into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs.
Convenience receptacles and the point where they exit from the unit. Be sure that the
power outlet is located near the unit so that it is easily accessible.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specied by the
manufacturer, or sold with the unit. When a cart is used, use caution when
moving the cart/unit combination to avoid injury from tipping over.
13. Unplug this unit when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the unit
has been damaged in any way, such as: if the power-supply cord or plug is damaged,
if liquid is spilled onto or objects fall into the unit, if the unit is exposed to rain or
moisture, or if the unit does not operate normally or has been dropped.
Declaration of RoHS Compliance
PJD6211P
3
ViewSonic
This product has been designed and manufactured in compliance with Directive 2002/95/EC of the
European Parliament and the Council on restriction of the use of certain hazardous substances in
electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum
concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:
Substance
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex of the RoHS Directives
as noted below:
Examples of exempted components are:
1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in other lamps not
specically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes, and electronic ceramic
parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up
to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.
Proposed Maximum
Concentration
Actual Concentration
Copyright Information
PJD6211P
4
ViewSonic
Copyright© ViewSonic® Corporation, 2010. All rights reserved.
Macintosh and Power Macintosh are registered trademarks of Apple Inc.
Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft
Corporation in the United States and other countries.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of
ViewSonic Corporation.
VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC are
trademarks of VESA.
PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation.
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions
contained herein; nor for incidental or consequential damages resulting from furnishing this material, or
the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change
product specications without notice. Information in this document may change without notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any purpose
without prior written permission from ViewSonic Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as it becomes available, please
register your product on the Internet at: www.viewsonic.com. The ViewSonic® Wizard CD-ROM also
provides an opportunity for you to print the registration form, which you may mail or fax to ViewSonic.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
PJD6211P
ViewSonic DLP Projector
VS13729
PJD6211P_UG_ENG Rev. 1A 07-19-10
_______________________________
_______________________________
The lamp in this product contains mercury.
Please dispose of in accordance with local, state or federal laws.
Introduction
PJD6211P
5
ViewSonic
Projector Features
The projector integrates high-performance optical engine projection and a user - friendly
design to deliver high reliability and ease of use.
The projector offers the following features:
Single chip 0.55" Texas Instruments DLP
XGA (1024 x 768 pixels)
Auto image re-sizing (Auto-Sync.) to 1024 x 768 full screen with scaling
compression compatibility for VGA, SVGA, XGA and SXGA
Compatibility with Macintosh
®
computers
Compatibility with NTSC, PAL, SECAM and HDTV
D-Sub 15-pin terminal for analog video connectivity
User-friendly, multi-language on-screen display
Advanced electronic keystone correction
RS-232 connector for serial control
The information in this manual is subject to change without notices.
The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
®
technology
Package Contents
PJD6211P
6
ViewSonic
When you unpack the projector, make sure you have all these components:
Projector with Lens Cap AC Power Cord Remote Control (IR)
ViewSonic CD Wizard Quick Start Guide VGA Cable (D-SUB to D-SUB)
Optional accessories
Filter cover
P/N: P4R34-4600-00
Contact you dealer immediately if any items are missing, appear damaged, or if
the unit does not work
Save the original shipping carton and Packing material; they will come-in handy
if you ever to ship your unit. for maximum protection, repack your unit as it was
originally packed at the factory.
RS232 cable
P/N: J2552-0208-00
.
RGB to component adapter
P/N: J2552-0212-00
Projector Overview
PJD6211P
7
ViewSonic
Front View
12 8
11 10 9
1 3 54 762
Lens cap Filter cover
1
Elevator button Speaker
2 8
Lens cap strap Focus ring
3 9
Projection lens Zoom ring
4 10
Front IR remote control sensor Control panel
5 11
Ventilation holes (intake) Lamp cover
6 12
7
Rear View
PJD6211P
8
ViewSonic
Connection ports
1
AC power socket
2
Kensington lock
23
Rear IR remote control sensor
4
Ventilation holes (exhaust)
5
Security bar
6
Bottom View
1
1
2
4
3
5
6
2
Ceiling mount holes (M4*6)
1
Tilt-adjustment feet
22
This projector can be used with a ceiling mount for support. The ceiling mount is
not included in the package.
Contact your dealer for information to mount the projector on a ceiling.
Using the Product
PJD6211P
9
ViewSonic
Control Panel
LED
9
1 3
2
4
8
754
Power (Power LED indicator)
1
Refer to “LED Indicator Messages”.
TEMP (Temperature LED indicator)
2
Refer to “LED Indicator Messages”.
LAMP (Lamp LED indicator)
3
Refer to “LED Indicator Messages”.
Button Function
/ Keystone
4
Manually correct distorted images resulting from an angled projection.
Four directional buttons
5
Use four directional buttons to select items or make adjustments to your selection.
ENTER
6
Enter to sub-menu and confirm the menu selection.
SOURCE
7
Manually select an input source.
MENU/EXIT
8
Display or exit the on-screen display menus.
Power
9
Turn the projector on or off.
6
Connection Ports
PJD6211P
10
ViewSonic
3
2
1
4
5
6
1
COMPUTER IN 1
1
Connect image input signal (analog RGB or component) to this jack.
COMPUTER IN 2
2
Connect image input signal (analog RGB or component) to this jack.
MONITOR OUT
3
Connect to a computer display, etc.
S-VIDEO
4
Connect S-Video output from video equipment to this jack.
VIDEO
5
Connect composite video output from video equipment to this jack.
USB
6
This connector is for firmware update and mouse function support.
RS-232
7
When operating the projector via a computer, connect this to the controlling
computer's RS-232C port.
AUDIO IN
8
Connect an audio output from video equipment to this jack.
AUDIO OUT
9
Connect to a speaker or other audio input equipment.
8
7
9
Remote Control
PJD6211P
11
ViewSonic
POWER
1
Turn the projector on or off.
Four directional buttons
2
Use four directional buttons to
select items or make adjustments
to your selection.
MENU
3
Display or exit the on-screen display
menus.
Enter
4
Confirmed selections.
Exit
5
Exit OSD Menu.
Keystone+ / -
6
Adjust image distortion caused by
tilting the projector.
Magnify
7
Zoom in and out the images.
Source
8
Manually select an input source.
Auto
9
Resynchronize the projector to the
input signal from a computer. This
function is available for
mode only.
Mouse
10 15
Switch between OSD control and
Mouse control (Apply to
Navigation buttons, Enter/Mouse
Left Click, and Exit/Mouse Right
Click buttons).
ViewM
11
Switch in between high brightness
performance or Accuracy color
performance.
computer
Freeze
12
Press “Freeze” to pause the screen image.
Press again to cancel the freeze function.
Mute
13
Cut off the sound temporarily. Press again
to cancel the Mute function.
Blank
14
Cut off the screen temporarily. Press
again to cancel the Blank Screen
function.
Volume + / -
Adjust the volume level.
Loading...
