PGD-150
3D Glasses
Model No. : VS13345
Page 2
ViewSonic
PGD-1501
Compliance Information
For U.S.A.
This device complies with part 15 of FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: You are cautioned that changes or modications not expressly approved
by the party responsible for compliance could void your authority to operate the
equipment.
For Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
CE Conformity for European Countries
The device complies with the EMC Directive 2004/108/EC and Low Voltage
Directive 2006/95/EC.
Following information is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical and
Electronic Equipment Directive 2002/96/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment as
unsorted municipal waste, but use the return and collection systems
according to local law.
If the batteries, accumulators and button cells included with this equipment,
display the chemical symbol Hg, Cd, or Pb, then it means that the battery has
a heavy metal content of more than 0.0005% Mercury or more than, 0.002%
Cadmium, or more than 0.004% Lead.
•
•
•
•
ENG
Page 3
ViewSonic
PGD-1502
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive
2002/95/EC of the European Parliament and the Council on restriction of the use
of certain hazardous substances in electrical and electronic equipment (RoHS
Directive) and is deemed to comply with the maximum concentration values issued
by the European Technical Adaptation Committee (TAC) as shown below:
Substance
Proposed Maximum Concentration
Actual Concentration
Lead (Pb) 0,1% < 0,1%
Mercury (Hg) 0,1% < 0,1%
Cadmium (Cd) 0,01% < 0,01%
Hexavalent Chromium (Cr6+) 0,1% < 0,1%
Polybrominated biphenyls (PBB) 0,1% < 0,1%
Polybrominated diphenyl ethers
(PBDE)
0,1% < 0,1%
Certain components of products as stated above are exempted under the Annex of
the RoHS Directives as noted below:
Examples of exempted components are:
1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in other
lamps not specically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes,
and electronic ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by
weight or more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight,
aluminium containing up to 0.4% lead by weight and as a cooper alloy containing
up to 4% lead by weight.
Page 4
ViewSonic
PGD-1503
Copyright Information
Copyright © ViewSonic Corporation, 2010. All rights reserved.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered
trademarks of ViewSonic Corporation.
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors
or omissions contained herein; nor for incidental or consequential damages resulting
from furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves
the right to change product specications without notice. Information in this
document may change without notice.
No part of this document may be copied, reproduced, or transmitted by any means,
for any purpose without prior written permission from ViewSonic Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as it
becomes available, please register your product on the Internet at: www.viewsonic.com.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
PGD-150
ViewSonic 3D Glasses
VS13345
PGD-150_UG_ENG Rev. 1A 01-06-10
Product disposal at end of product life
ViewSonic is concerned about the preservation of our environment. Please dispose
of this product properly at the end of its useful life. Your local waste disposal
company may provide information about proper disposal.
ENG
Page 5
PGD-150 3D Glasses User Guide
System Requirements
The PGD-150 3D Glasses are designed to be emitter free and work with 3D enabled
DLP® Link projectors and televisions. The DLP projector should be in 3D mode and
displaying 3D content.
3D Glasses
Benefits
Light weight design for comfortable long-time wear
․Long effective distance (up to 15 metres) when used in conjunction with a projector
which has a brightness output of more than 2000 lumens
․Good resistance against ambient light interference
Operation Guide
․To turn on PGD-150 3D Glasses
Press the power button, the LED and LCD shutter will flash three times. The 3D
Glasses will then be in 3D mode. If you press the power button again, 3D mode will
become inverted.
․To turn off 3D Glasses
Press the power button until the LED lights up.

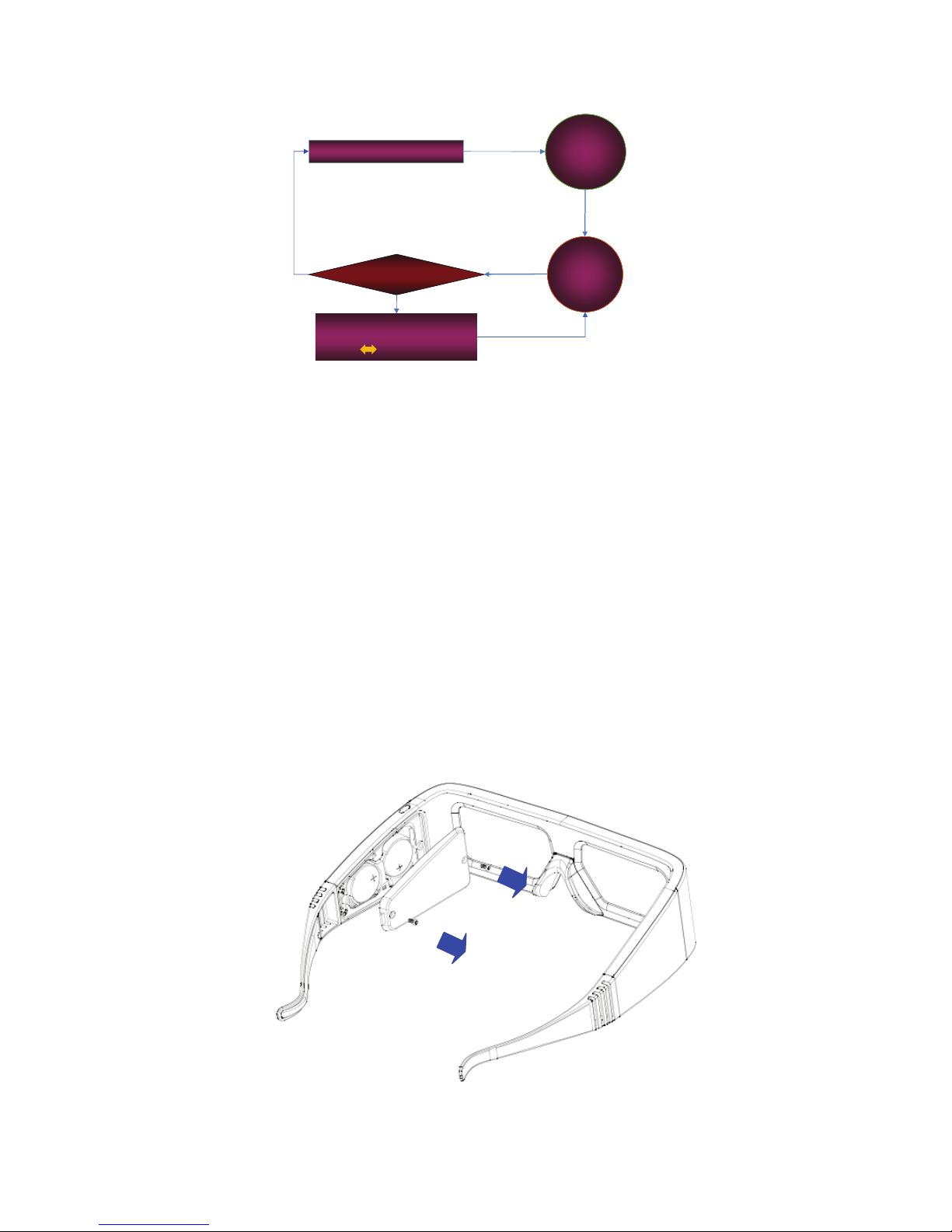

․Operation instruction flow chart

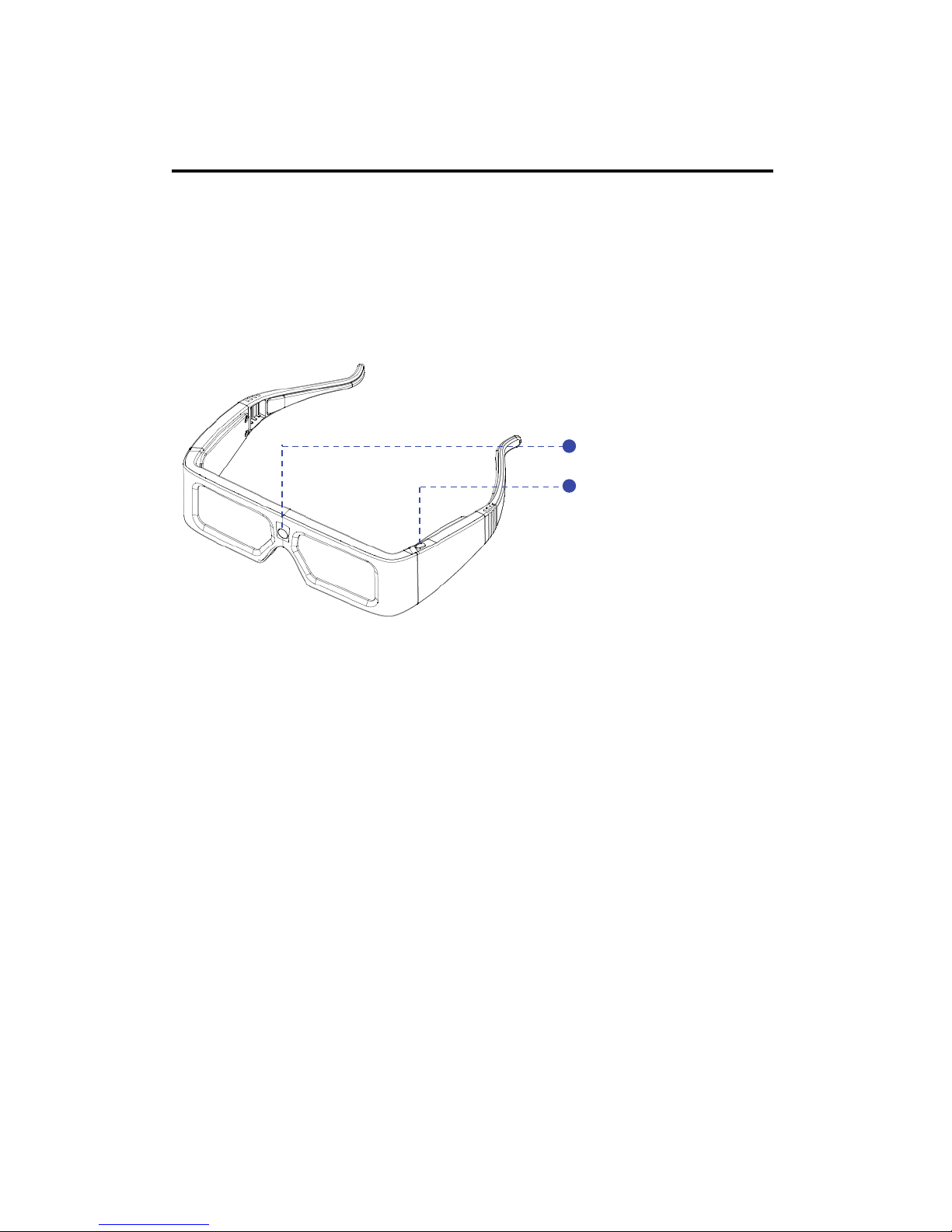

Optical receiver
Power button
Battery indicator LED
ViewSonic
PGD-1504
Page 6
In inversion mode
3D 3D(Inverted)
Ye s
No
Power off
Press button>2.5sec
Press button
LED\ Shu tter flashes 3 times
Strong LED >0.1sec
Shutter on
in 3D mode
Battery Indicator
The PGD-150 3D Glasses come pre-loaded with two coin type non-rechargeable
manganese lithium batteries, and provide for up to 70 hours of continuous use. When
the battery life is close to the end, the battery indicator LED will flash 4 times
consecutively every 1 minute. This flashing will repeat until the battery life is
exhausted. When you turn on 3D Glasses under low battery level, the LED will be lit
slightly for 5 seconds. After that, 3D Glasses will be turned off automatically.
Battery Replacement
․Battery Installation
When you want to replace batteries, you simply loosen the screw and insert two 3V
coin type non-rechargeable batteries (CR2032). The positive terminal of the batteries
must face out.
Step 1 Loosen the screw
Loosen the screw
ViewSonic
PGD-1505
Page 7

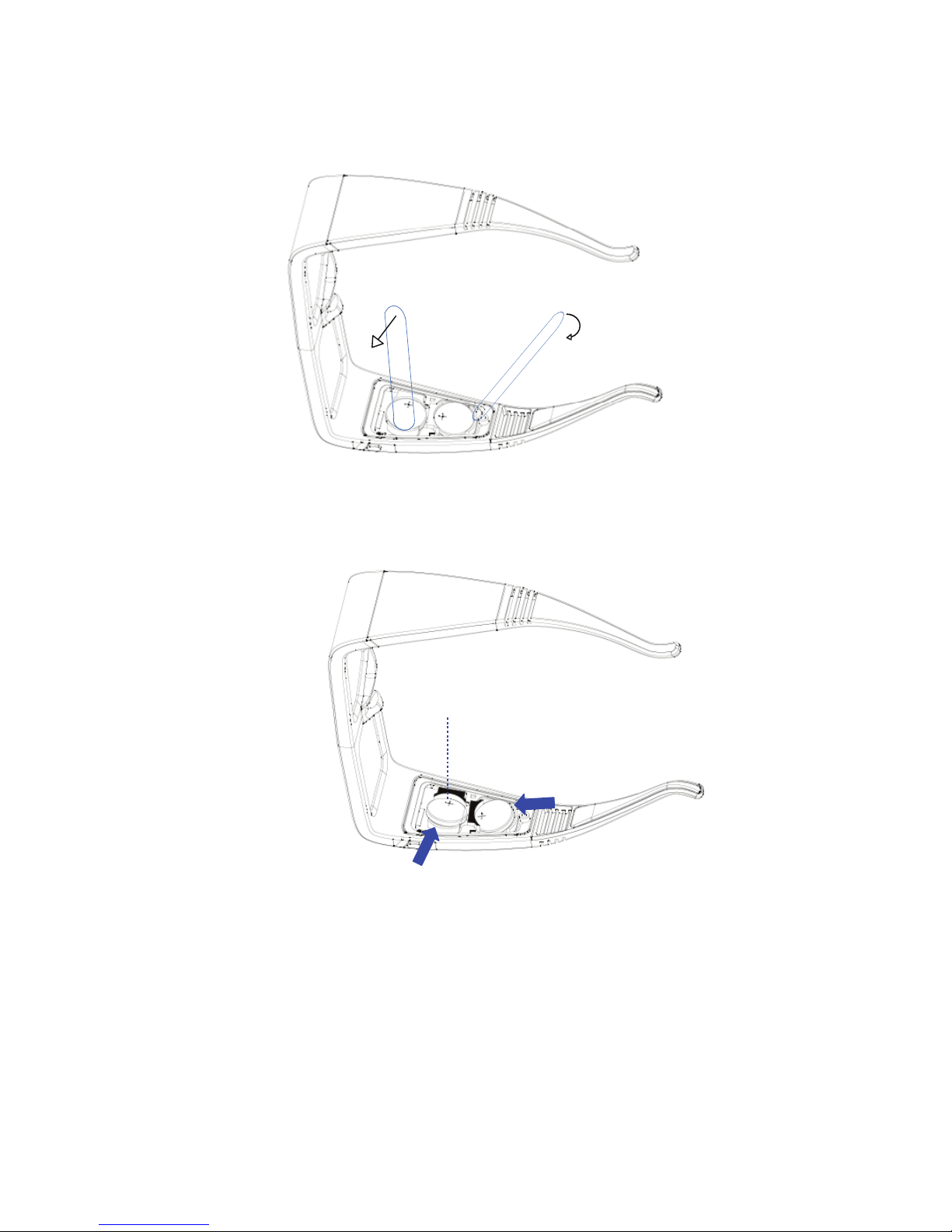

Step 2 Battery Removal and Replacement
Use a small lever to pry out the batteries and remove them.
Step 3 Insert new batteries with the positive terminals facing out
Step 4 Replace the battery cover
Anode of battery
Battery insertion direction
Battery insertion direction
Pry
Pry
ViewSonic
PGD-1506
Page 8
Nosepiece Replacement

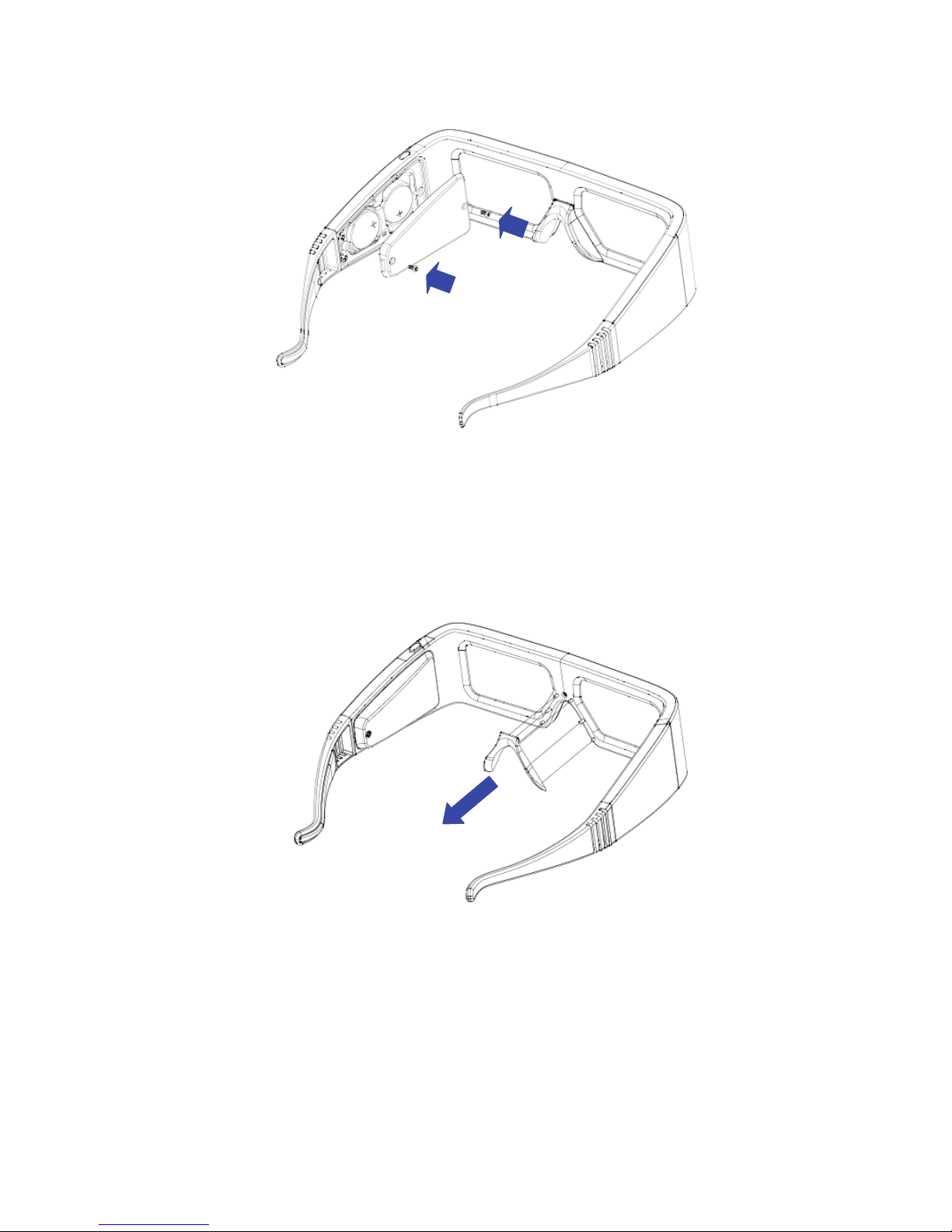

The PGD-150 3D Glasses come with three interchangeable nosepieces to give you the
most comfortable fit. Simply pull out the current nosepiece horizontally and insert the
one that fits you best.
Pull out the
nosepiece as shown
and change with
another nosepiece
Fasten the screw
ViewSonic
PGD-1507
Page 9
Packing List
The following parts are included in the packing box.
․One pair of PGD-150 3D glasses
․Three interchangeable nosepieces
(large, medium, small)
․User Guide
Compliance & Certification
PGD-150 3D glasses are compliant with the following regulations.
․FCC (Federal Communications Commission)
․CE (European Conformity)
Caution
․If LCD shutters are dirty, please use soft clothes to wipe them.
․Do not apply strong pressure to the lens’s of the PGD-150 3D glasses
