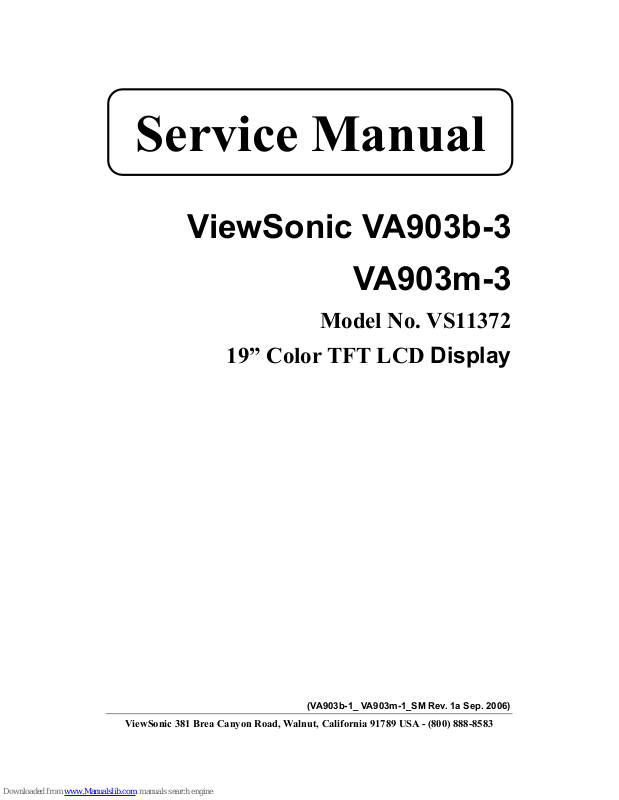

ViewSonic VA903b-3
VA903m-3
Model No. VS11372
19” Color TFT LCD Display
(VA903b-1_ VA903m-1_SM Rev.
1a Sep. 2006)
ViewSonic 381 Brea Canyon Road, Walnut, California 91789 USA - (800) 888-8583
Service Manual
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
i
Copyright
Copyright © 2006 by ViewSonic Corporation. All rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written permission of ViewSonic
Corporation.
Disclaimer
ViewSonic makes no representations or warranties, either expressed or implied, with respect to
the contents hereof and specifically disclaims any warranty of merchantability or fitness for any
particular purpose. Further, ViewSonic reserves the right to revise this publication and to make
changes from time to time in the contents hereof without obligation of ViewSonic to notify any
person of such revision or changes.
Trademarks
Optiquest is a registered trademark of ViewSonic Corporation.
ViewSonic is a registered trademark of ViewSonic Corporation.
All other trademarks used within this document are the property of their respective owners.
Revision History
Revision SM Editing Date ECR Number Description of Changes Editor
1a 09/08/2006 Initial Release Jamie Chang
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
ii
TABLE OF CONTENTS
1. Precautions and Safety Notices 1
2. Specification 4
3. Front Panel Function Control Description 13
4. Circuit Description 16
5. Adjustment Procedure 23
6. Troubleshooting Flow Chart 47
7. Recommended Spare Parts List 55
8. Exploded Diagram and Exploded Parts List 60
9. Block Diagram 65
10. Schematic Diagrams 66

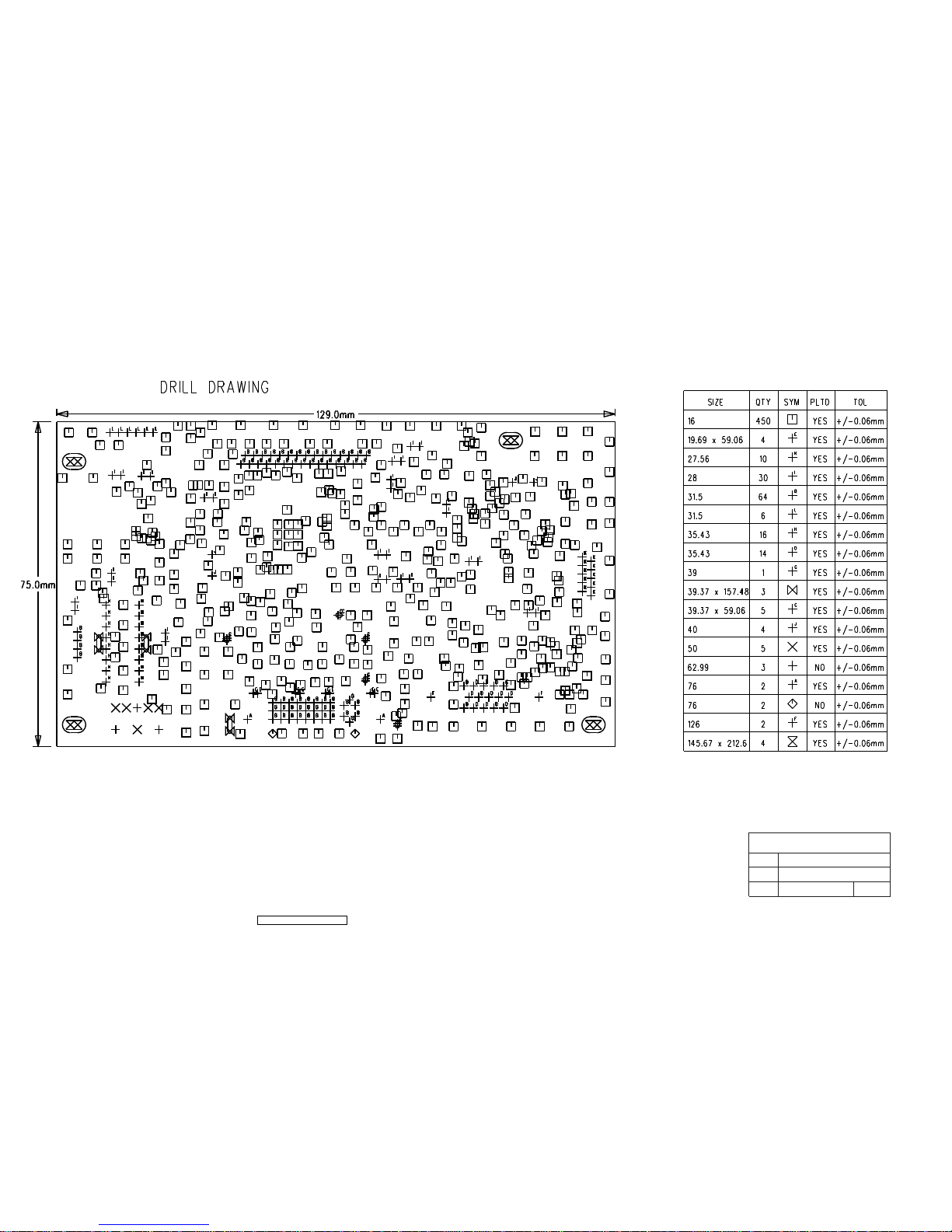

11. PCB Layout Diagrams 72
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
1
1. Precautions and Safety Notices
1. Please carefully read this manual before operating the device and keep it available for future reference.
2. To avoid the danger of the monitor falling and thereby possibly causing injury and/or serious damage to the
monitor itself, do not place it on unstable cars or desks. Be careful to avoid placing any stress on the LCD screen
during handling.
3. Do not place this monitor in areas that are wet or where water or other liquids may come in contact with it, such as
bathrooms, kitchens, wet floors, near washing machines or by swimming pools.
4. Remove the power plug from the electrical socket before cleaning. No water-containing cleaning agent should be
used to clean the screen, but only cleaning agents formulated specifically for cleaning LCD screens. Do not put any
liquid cleaning agent directly on the screen, but put it on a soft cloth first and then gently apply the cloth to the
screen.
5. In order to guarantee reliable operation and adequate heat dissipation, do not cover or block vent holes on the
monitor. Do not put the monitor close to heat sources. Do not place the monitor on furniture such as a bookshelf,
unless sufficient ventilation is available.
6. A 3-pin grounding plug is provided for this monitor. In order to guarantee normal operation and safety of this unit,
this plug should be used with a matching grounded power socket.
7. Please follow all warnings and instructions that accompany the monitor.
8. Please pay special attention to power supply overloads, as electrical shock or fire may occur.
9. Do not place anything on the power cord. Do not hang the power cord over an area where people or objects may
pass.
10. In case the monitor is not be used for an extended period, turn off power to avoid the possibility of short circuits
caused by lightning.
11. In order to avoid electrical shock or fire risks, do not insert any object through any openings in the monitor’s
enclosure. Do not allow any liquid to come in contact with the monitor.
12. In case of any abnormal noise or odor caused by incorrect operation, turn off power immediately and contact a
professional technician. Do not attempt to repair this monitor by yourself, as electrical shock may occur when
opening the back cover or accessing internal components.
13. If any of the following conditions occurs, turn off power and contact a repair service provider:
1) the power cord is damaged or worn;
2) liquid has gotten into the monitor, or the monitor has experienced immersion or wetting;
3) the monitor has fallen;
4) the monitor’s performance shows obvious changes;
5) the monitor fails to work normally when correct procedures are followed. In that case, please make any
adjustments in accordance with instructions supplied with the monitor; do not attempt any changes to
established procedures, as further damage may occur, making successful repair of the monitor more difficult.
14. In case parts need to be replaced, you must use identical parts or those supplied by our certified manufacturers. Any
other parts used without our authorization may result in electrical shock or fire risk.
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
2
Handing and Placing methods
Correct methods Incorrect methods
Only touch the metal frame of the LCD panel or the
front cover of the monitor, DO not touch the surface
Surface of the LCD panel is pressed by fingers and that
may cause”mura”
of the POL
Take out the monitor with cushions Taking out the monitor by grasping the LCD panel, that
May cause”mura”
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
3
Place the monitor on a clean and soft foam pad Placing the monitor on a foreign objects, that could
scratch The surface of the "Panel" or cause "mura"
The panel is placed facedown the lap,that may cause
"mura"
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
4
2. Specification
INTRODUCTION
FEATURES VA903b-3 / VA903m-3
Size 19 “
Luminance (Typ)
300 cd/㎡
Contrast Ratio (Typ) 700 :1
Colors 16.2 M colors (6+2bit panel)
Response Time (Typ) 8 ms
Viewing Angle (H/V) 150 ° / 135 °
1st TFT LCD panel
Recommend resolution 1280 x 1024 @60Hz
Analog (75ohms, 1.0 Vp-p) Yes
Input Signal
Digital (DVI-D) No
Separate Sync Yes
Composite Sync No
Sync Compatibility
Sync on Green No
PC Yes
Power Mac Yes
Compatibility
TV Box (NextVision 6) Yes
Power Voltage AC 100-240V, 50/60Hz Yes
On Mode(Max / Typ) Under 36 W in max/32W IN TYP
Power Consumption
Active Off Mode (Max)
Saving mode< 2W
Off mode <1 W
Tilt ( -5 ° - 22.5 °)
Yes
Swivel No
Pivot No
Ergonomics
Height Adjust No
OSD Control [ 1 ] [ 2 ] [ ][▲] [▼] Yes
Physical (W x H x D) 416*429*210mm
Dimension
Package (W x H x D) 485*503*163mm
Physical (Net Weight) 4.6Kg / 10.12 lb
Weight
Package (Gross Weight) 5.8Kg/ 12.76 lb
Temperature (℉/℃) 32℉~104℉ / 0℃~40℃
Operating Condition
Humidity (%) 20 % - 90 %
Temperature (℉/℃) -4℉~140℉ / -20℃~60℃
Storage Condition
Humidity (%) 5 % - 90 %
Regulation
UL/cUL, FCC-B,TUV-S, CB, CE, TUV/GS, TUV/ERGO, TCO03, BSMI,
CCC, (PSB), (C-TICK), GOST-R/HYGIENIC, SASO, WEEE, RoHS,
ENERGY STAR,
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
5
Product definition and specification
Product Name VA903b-3 / VA903m-3
Model Number VS11372
Region
M model for America
E model for Europe
G model for China
P model for Asia
A model for Australia
S model for Singapore
K model for Korea
U model for UK
OSD Languages
English, French, German, Italian, Spanish,
Finnish, Japanese, Traditional Chinese,
Simplified Chinese
TFT LCD Panel and Model # HSD, Model # :190ME13-A16/A10
Scalar RTD, Model # : RTD2023L
Input Signal Analog
Sync Compatibility Separate
Audio
1 W @ < 15% distortion (For VA903m-3 only)
Adapter No
Power Cable Refer to Appendix D
Analog Cable (1.8 m, color : black), with PC 2001 and
Hot Plug Detect &DDC
Yes
Audio Cable (1.8m, Color: black) with PC 2001 Yes (For VA903m-3 only)
ViewSonic CD Wizard
ViewSonic Quick Start Guide
Arabic, English, Finnish, Spanish, German,
Italian, Swedish, Polish, Korean, Portuguese,
Russian, French, Simplified Chinese,
Traditional Chinese, Hungary, Czech, Turkish
Screen Protector Mylar Yes
Hi Pot label Yes
QA pass label For G model only
Hg Warning label Yes
Warranty Sticker For G model only
Warranty Card For G model only
Carton Sticker For G model only
PE bag of Carton For G model only
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
6
GENERAL specification
Test Resolution & Frequency 1280 x 1024 @ 60Hz
Test Image Size Full Size
Contrast and Brightness Controls
Factory Default:
Contrast = 70%, Brightness = 100%
VIDEO INTERFACE
Analog Input Connector DB-15 (Analog), refer the appendix A
Default Input Connector Defaults to the first detected input
Video Cable Strain Relief
Equal to twice the weight of the monitor for five
minutes
Video Cable Connector DB-15 Pin out Compliant DDC 2B
Video Signals Video RGB (Analog), Separate
Video Impedance 75 Ohms (Analog)
Maximum PC Video Signal 950 mV with no damage to monitor
Maximum Mac Video Signal 1250 mV with no damage to monitor
Sync Signals TTL
DDC 2B Compliant with Revision 1.3
Sync Compatibility Separate Sync
Video Compatibility
Shall be compatible with all PC type computers,
Macintosh computers, and after market video cards
Resolution Compatibility
640 x 350, 640 x 480, 720 x 400 (640 x 400), 800 x
600, 832 x 624, 1024 x 768, 1152 x 864, 1280 x 1024
Exclusions Not compatible with interlaced video
POWER SUPPLY
Internal Power Supply Part Number: PI-SB03/
Input Voltage Range
100 - 240VA C
Input Frequency Range
50/ 60 Hertz
Short Circuit Protection
OUTPUT CAN BE SHORTED WITHOUT DAMAGE
Over Current Protection
6.0 A TYPICAL AT 5.0 VDC
Leakage Current
1.0 MA (MAX) AT 264 VAC / 60HZ
Efficiency
80 % TYPICAL AT 115 VAC FULL LOAD
Fuse
INTERNAL AND NOT USER REPLACEABLE
Power Dissipation
32 WATTS (TYP)
Max Input AC Current
1.2 ARMS @ 90VAC, 0.8 ARMS @180VAC
Inrush Current (Cold Start)
30 A @ 90VAC, 60 A(MAX) @ 264 VA C
Power Supply Cold Start
SHALL START AND FUNCTION PROPERLY WHEN
UNDER FULL LOAD, WITH ALL COMBINATIONS OF
INPUT VOLTAGE, INPUT FREQUENCY, AND
OPERATING TEMPERATURE
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
7
Power Supply Transient Immunity
SHALL BE ABLE TO WITHSTAND AN ANSI/IEEE
C62.41-1980 6000V 200 AMPERE RING WAVE
TRANSIENT TEST WITH NO DAMAGE
Power Supply Line Surge Immunity
Shall be able to withstand 1.5 times nominal line
voltage for one cycle with no damage
Power Supply Missing Cycle Immunity
Shall be able to function properly, without reset or
visible screen artifacts, when ½ cycle of AC power is
randomly missing at nominal input
Power Supply Acoustics
The power supply shall not produce audible noise that
would be detectable by the user. Audible shall define
to be in compliance with ISO 7779 (DIN
EN27779:1991) Noise measurements of machines
acoustics. Power Switch noise shall not be considered
US Type Power Cable
Length = 1.8m. Connects to AC/DC Power Color =
Black
Power Saving Operation (Method) VESA DPMS Signaling
Power Consumption
ON Mode < 36 W (max)
pOWER sAVING < 2W ,OFF < 1W
Recovery Time On Mode = N/A, Active Off < 3 sec
ELECTRICAL REQUIREMENTS
Horizontal / Vertical Frequency
Horizontal Frequency
30 – 82 kHz
Vertical Refresh Rate
50 – 85 Hz.
Maximum Pixel Clock 135 MHz
Sync Polarity Independent of sync polarity.
Timing Table
Item Timing Analog
1 640 x 350 @ 70Hz, 31.5kHz Yes
2 640 x 480 @ 50Hz, 24.68KHZ Yes
3 640 x 480 @ 60Hz, 31.5kHz Yes
4 MAC 640 x 480 @ 67Hz, 35.0kHz Yes
5 640 x 480 @ 72Hz, 37.9kHz Yes
6 640 x 480 @ 75Hz, 37.5kHz Yes
7 640 x 480 @ 85Hz, 43.27kHz Yes
8 720 x 400 @ 70Hz, 31.5kHz Yes
9 800 x 600 @ 56Hz, 35.1kHz Yes
10 800 x 600 @ 60Hz, 37.9kHz Yes
11 800 x 600 @ 72Hz, 48.1kHz Yes
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
8
12 800 x 600 @ 75Hz, 46.9kHz Yes
13 800 x 600 @ 85Hz, 53.7kHz Yes
14 MAC 832 x 624 @ 75Hz, 49.7kHz Yes
15 1024 x 768 @ 60Hz, 48.4kHz Yes
16 1024 x 768 @ 70Hz, 56.5kHz Yes
17 1024 x 768 @ 72Hz, 58.1kHz Yes
18 1024 x 768 @ 75Hz, 60.0kHz Yes
19 1024 x 768 @ 85Hz, 68.67KHZ Yes
20 1152 x 864 @ 75Hz, 67.5KHZ Yes
21 MAC 1152x870@75HZ, 68.68KHZ Yes
22 1280 x 960 @ 60Hz, 44.93KHZ Yes
23 1280 x 960 @75Hz, 56.25KHZ Yes
24 1280 x 1024 @ 60Hz, 63.98KHZ Yes
25 1280 x 1024 @ 75Hz, 79.97KHZ Yes
*1. Tolerance ≧ ± 2kHz.
*2. Any timing not in the list, it should display as normal or show on “OUT OF RANGE” OSD message without
blanking.
*3. The image quality of 85Hz mode might be worse than 75Hz.
Primary Presets
1280 x 1024 @ 60Hz
User Presets
Number of User Presets (recognized timings) Available: 10 presets total in FIFO configuration
Changing Modes
● Maximum Mode Change Blank Time for image stability : 3 seconds (Max), excluding “Auto
Image Adjust” time
● Under DOS mode (640 x 350, 720 x 400 & 640 x 400), it should recall factory setting when
execute “Auto Adjust”
● The monitor needs to do “Auto Image Adjust” the first time a new mode is detected
(See section “0-Touch™ Function Actions”)
● The monitor needs to do “Auto Adjust” the first time a new mode is detected
(See section “0-Touch™ Function Actions”)
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
9
AUDIO INTERFACE (SPEAKER SPECIFICATION) (For VA903m-3 only)
Line input connection
3.5 mm stereo jack
Line input signal 1.0Vrms
Line input impedance >10 kOhm
Maximum power output (Electric)
1 W @ <15% DISTORTION
Signal to Noise Ratio 50 dB
Frequency response 200 Hz – 20 Khz
Distortion
<15% THD (@1kHz)
Vibration
There should be no audible vibration with volume at
100%. (Input signal within 1.0 Vrms)
Screen image
There should be no affect on the screen image
stability under any conditions
Connector PC99 requirement Audio in
Lime Green pantone # 577C
Cable type / length 3.5mm stereo cable / 1.8m length
Audio DPMS
NOTE: THERE IS NO GUARANTEE <1 W POWER
CONSUMPTION IN ACTIVE OFF MODE, WHEN THE
AUDIO CABLE IS CONNECTED
TFT LCD PANEL
1st Panel Source
HSD 190ME13-A16/A10
Type
TN, LVDS
Active Size 376.32 mm (H) x 301.056mm (V)
Pixel Arrangement RGB Vertical Stripe
Pixel Pitch 0.294 mm
Glass Treatment
ANTI GLARE (HARD COATING 3H)
# of Backlights
4 CCFL EDGE-LIGHT
Backlight Life
50,000 HOURS (MAX) / 40,000 HOURS (MIN)
Luminance –Condition: CT = 6500 K
Contrast = Max, Brightness = Max
300 CD/M2 (TYP AFTER 30 MINUTE WARM UP)
240 CD/M2 (MIN AFTER 30 MINUTE WARM UP)
Brightness Uniformity 75 % (min)
Contrast Ratio 700 :1 (Typ), 450 :1 (Min)
Color Depth Vertical) 16.2 million colors (6+2 bit panel)
Viewing Angle (Horizontal)
150 deg (Typ)@ CR>10
160 deg (Typ)@ CR>5
Viewing Angle (Vertical)
135 deg (Typ) @ CR>10
150 deg (Typ)@ CR>5
Response Time
10%-90% @ Ta=25°C
8 ms (Tr= 2 ms, Tf = 6 ms) (Typ)
12 ms (Tr= 4 ms, Tf = 8 ms) (max)
Panel Defects Please see Panel Quality Specifications.
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
10
IMAGE PERFORMANCE
Display Size
Horizontal Display Size, Primary Preset
FULL SCREEN
Vertical Display Size, Primary Preset
FULL SCREEN
Luminance
Lv (Max) –Condition:
Brightness / Contrast = 100%
CCT = USER COLOR (R/G/B=100%)
Lv (Max) = The Luminance requirement of section 4-6
“TFT LCD PANEL”
Lv (6500Kf) –Condition:
Brightness / Contrast = Default
Color Temperature = 6500K
Lv (6500K) / Lv (Max) x 100% ≧ 85%
Lv (sRGB) –Condition:
Brightness / Contrast = Default
CCT =sRGB
Lv (sRGB) / Lv (Max) x 100% ≧85%
Lv (9300K) –Condition:
Brightness / Contrast = Default
CCT = 9300K
Lv (9300K) / Lv (Max) x 100% > 70%
Lv (5400K) –Condition:
Brightness / Contrast = Default
CCT = 5400K
Lv (5400K) / Lv (Max) x 100% > 75%
Lv (Brightness) –Condition:
Contrast = 100%
Lv(Brightness=0%) / Lv(Brightness=100%) x 100% ≤ 55%
Lv (Contrast) –Condition:
Brightness = 100%
Lv(Contrast=0%) / Lv(Contrast=100%) x 100% ≤ 30%
Contrast Ratio
CR(Max) –Condition:
Contrast / Brightness = 100%
CCT = USER COLOR (R/G/B=100%)
Same as the Contrast Ratio in section 4-6
“TFT LCD PANEL”
CR(6500K) –Condition:
Contrast / Brightness = 100%
CCT = 6500K
CR(6500K) / CR(Max) ≧ 93%
Saturation
Contrast = Default
Brightness = Default
Test pattern = 64-gray
NO VISIBLE SATURATION
Contrast = 100%
Brightness = 100%
Test pattern = 64-gray
8~10 VISIBLE SATURATION
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
11
Contrast = 100%
Brightness = 100%
Input signal level = 720mV
Test pattern = 64-gray
8~10 VISIBLE SATURATION
Preset Color Temperatures
sRGB It should meet IEC 61966-2-1 (1999-10) standard.
CCT (typ) = 9300K (u’CCT=0.1888; v’ CCT=0.4457)
CCT (max) = 10250K, CCT (min) = 8500K
Preset 1
Δu’v’<0.01 (@ Full White pattern)
CCT (typ) = 6500K (u’CCT=0.1978; v’ CCT=0.4684)
CCT (max) = 6950K, CCT (min) = 6100K
Preset 2 (Primary)
Δu’v’<0.01 (@ Full White pattern)
CCT (typ) = 5400K (u’CCT=0.2044; v’ CCT=0.4808)
CCT (max) = 6185K, CCT (min) = 4935K
Preset 3
Δu’v’<0.01 (@ Full White pattern)
Preset Color Temperature
Each color preset shall be adjustable. Red, Green,
and Blue shall be individually controlled.
Video Cards Compatibility
Peaking Performance: Peaking is not adjustable
Raster Artifacts
● Video Artifacts : No visible streaking, sag, or smearing artifacts when driven by the specified
video cards in the primary mode and after user adjustment to best condition
● Power Supply, and Grounding Artifacts : No visible artifacts in any specified video mode
within the horizontal or vertical frequency range of the monitor
● Temperature Drift : Image shall not drift or lose fine-tune adjustment
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
12
MECHANICAL
Dimension
Dimension (Desktop)
Width 416mm
Height (Height adjust to the bottom) 429mm
Depth 210mm
Monitor Weight 4.6KG / 10.12lb
*Refer to Figure 1
Dimension (Head Only / Wall Mount)
Width 416mm
Height 364mm
Depth 68mm
Monitor Weight 4.2KG / 9.25lb
*Refer to Figure 1
Ergonomics
Tilt Up step 1
0° TO 20.5°±3°
Tilt Down From 0º down to -5º
Swivel Right N/A
Swivel Left N/A
Height Adjust N/A
Pivot N/A
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
13
3. FRONT PANEL CONTROLS AND INDICATORS
[1] Main Menu
[2] Auto Image Adjust
[▼] or [▲]
To immediately activate Contrast menu. It should be
change to Brightness OSD by push button [2]
[▼]+ [▲] Recall both of Contrast and Brightness to default
[1] + [2]
Toggle 720x400 and 640x400 mode when input 720x400
or 640x400 mode
[1] + [▼] + [▲]
(keep pushing 5 sec)
White Balance (Not shown on user’s guide)
[1] + [▼] Power Lock
[1] + [▲] OSD Lock
Remark : All the short cuts function are only available while OSD off
Front Panel Hardware Controls
Power Switch (Front Head) Power Control, soft Power Switch.
Power LED (Front Head)
Green – On / Orange – Active Off
Dark = Soft Power Switch OFF
Front Panel Controls (Head)
[ 1 ] [ 2 ] [ ][▲] [▼]
[ ] Power
[ 1 ] BUTTON 1
[ 2 ] Button 2
[▲] UP ARROW BUTTON
[▼] DOWN ARROW BUTTON
Note: Power Button, Button 1 and Button 2 must be
one-shot logic operation. (i.e. there should be no
cycling)
Reaction Time OSD must fully appear within 0.5s after pushing [ 1 ]
Main Menu Controls
Auto Image Adjust
Contrast/Brightness*
1
Audio Adjust (For VA903m-3 only)
Volume*3, Mute*3
Color Adjust
sRGB, 9300K, 6500K(default), 5400, User Color [R, G, B]
Information
H Frequency, V Frequency, Pixel Clock, Resolution, Serial Number, Model Number,
“www.ViewSonic.com”
Manual Image Adjust
H. Size, H/V Position
,
Fine Tune, Sharpness*2
Setup Menu
Language [English, French, German, Italian, Spanish, Finnish, Simplified Chinese
Traditional Chinese, Japanese], Resolution Notice, OSD Position*1, OSD Timeout, OSD
Background
Memory Recall
*1 These functions can be recalled to default by [▼]+ [▲]
*
2
These functions are not available under Native Resolution Mode
*
3
These functions setting can be recalled to default by [▼]+[▲] under audio mode
[Remark] Please refer to the detail in the Appendix C
Short Cuts Function from the button(s)
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
14
Function descriptions
OSD Lock short cuts function for the buttons
The OSD lock will be activated by pressing the front panel control buttons "(1), & (▲)"
for 10 seconds. If the user then tries to access the OSD by pressing any of the buttons
"1", "▼", "▲", "2" a message will appear on the screen for 3 seconds showing "OSD
Locked". The OSD lock will be deactivated by pressing the front panel control buttons
"(1), & (▲)" again for 10 seconds.
Note1: When the OSD is locked will lock all functions, including “Volume” and “Mute”
Note 2: Status bar indicating OSD Lock or Unlock is in progress and when complete it
will indicate “OSD Locked”
Note 3: OSD Lock should not lock Power Button and Power Lock function
Power Lock short cuts function for the buttons
The power button lock will be activated by pressing the front panel control buttons "(1),
& (▼)" for 10 seconds. Locking the power button means that the user won't be able to
turn off the LCD while the power button is locked. If the user presses the power button
while it is locked, a message will appear on the screen for 3 seconds showing "Power
Button Locked". It also means that with the power button locked, the LCD would
automatically turn back "On" when power is restored after a power failure. If the power
button is not in the locked mode, then power should return to it's previous state when
power is restored after a power failure. The power button lock will be deactivated by
pressing the front panel control buttons "(1), & (▼)" again for 10 seconds
Note 1: Status bar indicating Power Button lock or unlock is in progress and when
complete it will indicate “Power Button Locked”
Note 2: Power should only be lockable in the “On State”
Memory Recall Actions
Memory Recall action on the analog and digital mode as below
1. Set the factory defaults as shown in Section 4-7
2. Clean all the mode setting buffer
3. Execute Auto Image Adjust
Note: Memory Recall should have no effect for Language, Power Lock, User Color Settings
Resolution Notice Actions
1. Resolution Notice OSD should show on screen after changing to non-native mode
for 30 sec
2. The OSD should disappear after 10 sec or by pushing button [1] or [2]
Resolution Notice function should be disabled when push button [2] under Resolution
Notice OSD
0-Touch™ Function Actions
1. Execute Auto Image Adjust when new mode detected, and save the settings to buffer
for further use
2. It should be reset by Memory Recall function
(Should not reset by power off, power unplug and others)
OSD Auto Save
The OSD shall save new settings when it is turned off by the user or when it times out.
There shall not be a separate save
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
15
Factory Defaults
Item Defaults Item Defaults
Contrast 70% Volume
50%
(For VA903m-3 only)
Brightness 100% Balance N/A
Color Temperature 6500K Treble N/A
Sharpness 0% Bass N/A
OSD H. Position 50% 720x400/640x400 720x400
OSD V. Position 50%
640x480@60Hz
720x480@60Hz
640x480@60Hz
OSD Time Out 15 Sec
In SOG and Composite,
720x480@60Hz
640x480@60Hz
N/A
OSD Background Enabled
In SOG and Composite,
1152x864@75Hz
1152x870@75Hz
N/A
Resolution Notice Enabled
In SOG and Composite,
1280x768@60/75/85Hz
1024x768@60/75/85Hz
N/A
AUDIO INTERFACE (SPEAKER SPECIFICATION) (For VA903m-3 only)
Line input connection 3.5 mm stereo jack
Line input signal 1.0Vrms
Line input impedance >10 kOhm
Maximum power output (Electric) 1 W @ <15% distortion
Signal to Noise Ratio 50 dB
Frequency response 200 Hz – 20 Khz
Distortion <15% THD (@1kHz)
Vibration
There should be no audible vibration with volume
at 100%. (Input signal within 1.0 Vrms)
Screen image
There should be no affect on the screen image
stability under any conditions
Connector PC99 requirement Audio
in
Lime Green pantone # 577C
Cable type / length 3.5mm stereo cable / 1.8m length
Audio DPMS
Note: There is no guarantee <1 W power
consumption in Active Off mode, when the Audio
Cable is connected
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
16
4. Circuit Description
A. AC-DC CONVERTER
The power supply with a high-integrated green-mode PWM controller provides several features to
enhance the performance of power flyback converters.
U801 is a PWM controller and provides many protection functions.
U802 is a photo couple to transfer the feedback signal from the second side which U803 detected both of
the output DC voltage on 5V and 24V.
Z802 detected the working voltage on U801 and Q802 would pull down the voltage on U801 pin5 to
shut down U801 if feedback loop was failed.
R828 would be a dynamic load which was active while backlight was turned off and system still
working on, this kept 24V output voltage under 32V to protect the panel. After system went to
power saving mode, the R828 would no loaded. This was detected by Z803 active the R828 to load or
not.
B，Scaling Controller
Overview
Realtek RTD2523B series products are all-in-one LCD monitor controllers support up to
SXGA/XGA(optional), and integrate Realtek high performance ADC, TMDS Rx(optional), scaling engine,
OSD engine, LVDS TX, RSDS TX and so on. Moreover, all products are pin compatible in low pin count
package to save cost and make the design easier
General
z Embedded dual DDC support DDC1, DDC2B, DDC/CI
z Zoom scaling up and down
z Embedded Pattern Generator
z No external memory required.
z Require only one crystal to generate all timing
z Embedded reset control output
z Embedded crystal output to MICROP
z 3 channels 8 bits PWM output, and selectable PWM clock frequency.
Pin Description
(I/O Legend: A = Analog, I = Input, O = Output, P = Power, G = Ground)
ADC: 15 pins
Name
I/O
Pin No Description Note
ADC_GND AG 27 ADC ground
ADC_REFIO AP 28 ADC band-gap voltage de-coupling 1.20V
ADC_VDD AP 29 Analog power (3.3V)
BLUE+ AI 30 Analog input from BLUE channel
BLUE- AI 31
Analog input ground from BLUE channel
ADC_GND AG 32 ADC ground
SOG/ADC_TEST AIO 33 SOG in/ADC test pin
GREEN+ AI 34 Analog input from GREEN channel
GREEN- AI 35 Analog input ground from GREEN
channel
ADCB_VDD AP 36 Analog power (3.3V)
RED+ AI 37 Analog input from RED channel
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
17
RED- AI 38 Analog input ground from RED channel
ADC_GND AG 39 Analog ground
ADC_GND AG 40 Analog ground
ADC_VDD AP 41 Analog power (3.3V)
AHS AI 42 Analog HS input (10), (4), (5)
AVS AI 43 Analog VS input (2), (4), (5)
PLL: 8 pins
Name
I/O
Pin No Description Note
XO AI 1 Reference clock output
XI AO 2 Reference clock input
DPLL_GND AG 3 Ground for digital PLL
DPLL_VDD AP 4 Power for digital PLL (3.3V)
APLL_VDD AP 5 Power for multi-phase PLL (3.3V)
PLL_TEST1 AIO 6 Test Pin 1 / IRQ#
PLL_TEST2 AIO 7 Test Pin 2/Power-on-latch for crystal out
Frequency
APLL_GND AG 8 Ground for multi-phase PLL
Control Interface: 7 pins
Name I/O Pin No Description Note
SDIO [0] IO 54 Serial control I/F data in / Parallel port
data [0]
(2), (3), / 2mA
SDIO [1] / TCON [4] /
BBLU [0]
IO 53 Parallel port data [1] / TCON [4] / TTL
BBLU [0]
(1), (2), (3), / 2mA
SDIO [2] / TCON [3] /
BBLU [1]
IO 52 Parallel port data [2] / TCON [3] / TTL
BBLU [1]
(1), (2), (3), / 2mA
SDIO [3] / PWM2 /
TCON [2]
IO 51 Parallel port data [1] / TCON [4] / PWM2 (1), (2), (3), / 2mA
SCLK I 50 Serial control I/F clock (2), (3), (5)
SCSB I 111 Serial control I/F chip select (2), (3), (5)
RESET O 56 RESET output for Micron (2), (5), (6) / 2mA
Display & TCON/VIDEO-8 Port: 54 pins
■:LVDS+RSDS+TTLO ■:RSDS+TTLO ■:RSDS+TTLIO■:TTLO ■:TTLIO
Pin
NO.
6-bits
Dual RSDS
6 bits
Single RSDS
8/6 bits
Dual/Single
LV DS
8 bits
Dual/Single
TTL
6 bits
Dual/Single
TTL
Note
51 S[3] /
TCON[2] /
PWM2
S[3] /
TCON[2] /
PWM2
S[3] /
TCON[2] /
PWM2
S[3] /
TCON[2] /
PWM2
S[3] /
TCON[2] /
PWM2
(1), (2), (3)/
2mA
52 S[2] /
TCON[3]
S[2] /
TCON[3]
S[2] /
TCON[3]
S[2]
/BBLU[1] /
TCON[3]
S[2] /
TCON[3]
(1), (2), (3)/
2mA
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
18
53 S[1] /
TCON[4]
S[1] /
TCON[4]
S[1] /
TCON[4]
S[1]/ BBLU[0]
/ TCON[4]
S[1] /
TCON[4]
(1), (2), (3)/
2mA
55 PWM2 /
COUT /
TCON[13]
PWM2 /
COUT /
TCON[13]
PWM2 /
COUT /
TCON[13]
PWM2 /
COUT /
TCON[13]
PWM2 /
COUT /
TCON[13]
(1), (2), (3)/
2mA
59 BB3P BB3P NC BBLU [7] BBLU [7]
60 BB3N BB3N NC BBLU [6] BBLU [6]
61 BB2P BB2P NC BBLU [5] BBLU [5]
62 BB2N BB2N NC BBLU [4] BBLU [4]
63 BB1P BB1P NC BBLU [3]/T0 BBLU [3]
64 BB1N BB1N NC BBLU [2]/T1 BBLU [2]
65 BCLKP BCLKP NC BGRN [1]/T2 TCON [6]
66 BCLKN BCLKN NC BGRN [0]/T3 TCON [5]
67 BG3P BG3P NC BGRN [7] BGRN [7]
68 BG3N BG3N NC BGRN [6] BGRN [6]
73 BG2P BG2P TODP BGRN [5]/T4 BGRN [5]
74 BG2N BG2N TODN BGRN [4]/T5 BGRN [4]
75 BG1P BG1P TOCLKP BGRN [3]/T6 BGRN [3]
76 BG1N BG1N TOCLKN BGRN [2]/T7 BGRN [2]
77 BR3P BR3P TOCP BRED [7]/T8 BRED [7]
78 BR3N BR3N TOCN BRED [6]/T9 BRED [6]
79 BR2P BR2P TOBP BRED [5]/T10 BRED [5]
80 BR2N BR2N TOBP BRED [4]/T11 BRED [4]
81 BR1P BR1P TOAP BRED [3]/T12 BRED [3]
82 BR1N BR1N TOAP BRED [2]/T13 BRED [2]
85 AB3P NC TEDP ABLU [7]/T14 ABLU [7]
86 AB3N NC TEDN ABLU [6]/T15 ABLU [6]
87 AB2P NC TECLKP ABLU [5]/T16 ABLU [5]
88 AB2N NC TECLKN ABLU [4]/T17 ABLU [4]
89 AB1P NC TECP ABLU [3]/T18 ABLU [3]
90 AB1N NC TECN ABLU [2]/T19 ABLU [2]
91 ACLKP NC TEBP ABLU [1]/T20 TCON [1]
92 ACLKN NC TEBN ABLU [0]/T21 TCON [0]
93 AG3P NC TEAP AGRN [7]/T22 AGRN [7]
94 AG3N NC TEAN AGRN [6]/T23 AGRN [6]
99 AG2P TCON [11] NC AGRN [5]/T24 AGRN [5]
100 AG2N TCON [10] NC AGRN [4]/T25 AGRN [4]
101 AG1P TCON [9] NC AGRN [3]/T26 AGRN [3]
102 AG1N TCON [8] NC AGRN [2]/T27 AGRN [2]
103 AR3P TCON [7] NC ARED [7]/T28 ARED [7]
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
19
104 AR3N TCON [6] NC ARED [6]/T29 ARED [6]
105 AR2P TCON [5] NC ARED [5]/TH ARED [5]
106 AR2N TCON [1] NC ARED [4]/TV ARED [4]
107 AR1P TCON [0] NC ARED [3]/TE ARED [3]
108 AR1N NC NC ARED [2]/TK ARED [2]
113 PWM2 /
COUT /
TCON[12]
PWM2 /
COUT /
TCON[12]
PWM2 /
COUT /
TCON[12]
ARED [1] PWM2 /
COUT /
TCON[12]
(9)
114 TCON [11]
/V[0]
V [0] V [0] ARED [0] TCON [11] (1), (7), (8)
115 TCON [10]
/V[1]
V [1] V [1] BRED [1] TCON [10] (1), (7), (8)
116 TCON [9] /
V[2]
V [2] V [2] BRED [0] TCON [9] (1), (7), (8)
117 TCON [8] /
V[3]
V [3] V [3] AGRN [1] TCON [8] (1), (7), (8)
118 TCON [7] /
V[4]
V [4] V [4] AGRN [0] TCON [7] (1), (7), (8)
119 TCON [6] /
V[5]
V [5] V [5] DHS DHS (1), (7), (8)
122 TCON [5] /
V[6]
V [6] V [6] DVS DVS (1), (7), (8)
123 TCON [1] /
V[7]
V [7] V [7] DENA DENA (1), (7), (8)
124 TCON [0] /
VCLK
VCLK VCLK DCLK / TCLK DCLK / TCLK (1), (7), (8)
TMDS: 18 pins
Name I/O Pin No
Description
Note
TMDS_TST/ PWM1 AIO 9 TMDS_TEST Pin / PWM1 /
Power-on-latch for serial / parallel port
TMDS_GND G 10
TMDS_VDD P 11 (3.3V)
EXT_RES A 12 Impedance Match Reference.
TMDS_VDD P 13 (3.3V)
RX2P I 14 Differential Data Input
RX2N I 15 Differential Data Input
TMDS_GND G 16
RX1P I 17 Differential Data Input
RX1N I 18 Differential Data Input
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
20
TMDS_VDD P 19 (3.3V)
RX0P I 20 Differential Data Input
RX0N I 21 Differential Data Input
TMDS_GND G 22
RXCP I 23 Differential Data Input
RXCN I 24 Differential Data Input
TMDS_GND G 25
TMDS_VDD P 26 (3.3V)
PWM Interface: 3-2=1 pin (PWM1, PWM2 can be selected from 1 of 3 possible pins.)
Name
I/O
Pin No Description Note
PWM2 / TCON [2] / S
[3]
O 51 PWM2 / TCON [2] / SDIO [3] (1), (2), (3), (5), (8),
PWM2 / TCON [13] /
COUT
O 55 PWM2 / TCON [13] / Crystal out (2), (8), (9)
PWM2 / TCON [12] /
COUT
O 113 PWM2 / TCON [12] / Crystal out (2), (8), (9)
PWM1 / TMDS_TST AIO 9 PWM1/ TMDS_TEST Pin /
Power-on-latch for serial / parallel port
(2), (7), (8)
PWM1 / DDCSDA /
TCON [1] / BBLU [0]
IO 47 PWM1 / DDC serial control I/F data input
/ output / TCON [4]
(1), (2), (3), (5), (8),
PWM1 / DDCSDA2
(HDCP) / TCON [7]
IO 125 PWM1 / DDC serial control I/F data input
/ output / TCON [7]
(1), (2), (3), (5), (8),
PWM0 / REFCLK IO 112 PWM0 / (In / out) test pin for DCLK /
Video8 even-odd signal
(2), (9)
DDC Channel: 4 pins
Name I/O Pin No Description Note
DDCSCL / TCON [0] /
BBLU [1]
I 46 DDC serial control I/F clock / TCON [0] /
TTL BBLU [1]
(2), (3), (5)
DDCSDA / TCON [1] /
PWM1 / BBLU [0]
IO 47 DDC serial control I/F data input / output
/ TCON [1] / PWM1 / TTL BBLU [0]
(1), (2), (3), (5), (6),
(8)/ 8mA /no slew
DDCSCL2 (HDCP) /
TCON [5]
I 126 DDC serial control I/F clock / TCON [5] (2), (3), (5)
DDCSDA2 (HDCP) /
TCON [7] /PWM1
IO 125 DDC serial control I/F data input / output
/ TCON [7] / PWM1
(1), (2), (3), (5), (6),
(8)/ 8mA /no slew
Power & Ground: 22 pins
Name
I/O
Pin No Description
3.3V Power P 49,121 VCCIO: 2
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
21
3.3V Ground G 48,120 GNDIO: 2
3.3V Power P 58,71,83,95,110 PVCC: 5
3.3V Ground G 57,72,84,96,109 PGND: 5
2.5V Power P 45,69,98,127 VCCK: 4
2.5V Ground G 44,70,97,128 GNDIK: 4
Note: (1) TTL compatible CMOS Input (Vt=1.7V); VCC=3.3V;
(2) 5V tolerance pad;
(3) Internal 75K Ohms pull high resistor.
(4) Internal 75K Ohms pull low resistor.
(5) Schmitt trigger CMOS Input (Vt=1.4-~2.2V);
(6) Open-Drain, Output Drive low & Pull-high.
(7) Bi-directional input/output
(8) Programmable driving current (2~10mA)
(9) TTL output 5V & 3.3V
(10) 4V tolerance pad
C, MTV512M
The MTV512M micro-controller is an 8051 CPU core
embedded device especially tailored for flat panel
display applications. It includes an 8051 CPU core,
768-byte SRAM, 4 channels of 6-bit ADC, 3 external
counters/timers, 6 channels of PWM DAC, VESA
DDC interface, and a 64K-byte internal program
Flash-ROM memory in 44-pin PLCC package
FEATURES
• 8051 core, 12MHz operating frequency with
single/double CPU clock option
• 0.35um process; 3.3V power supply
• 768-byte RAM; 64K-byte program Flash memory
• Maximum 6 channels of PWM DAC
• Compliant with VESA DDC1/2B/2Bi/2B+ standard
• Dual slave IIC addresses; two H/W auto transfer
DDC1/DDC2x data for both D-sub and DVI
interfaces
• Watchdog timer with programmable interval
• Support external counters/timers, 1 & 2
• Single/double frequency clock output
• Two external interrupts, INT1 is shared with Slave
IIC interrupt source.
• Maximum 4 channels of 6-bit ADC
• Flash-ROM code protection selection
• 44-pin PLCC package
D. INVERTER
In order to drive the CCFLs embedded in the panel module, there is a push-pull inverter to convert by the controller.
from input 24V up to hundreds of AC voltage output peak to peak.
The inverter is formed by symmetric in order to drive the separate lamp modules.
The input stage consists of a PWM controller, push-pull inverter, and switching MOSFET to convert DC input into
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
22
AC output.
The output stage consists of a tuning capacitor, transformer, and push-pull MOSFET pair to boost AC output up to
hundreds of voltage peak to peak.
And one resister is serial to lamp for output voltage feedback.
There are two signals which control the inverter come from system to turn on the inverter and control brightness.
Logic “low” level which send to U901 is turn on the inverter.
BL-ADJ signal control brightness by DC level which was integral from PWM signal.
5. Adjusting Procedure
1. Function test
1.1 products
19” LCD Monitor
1.2 test equipment
Color video Signal& pattern (Or PC with SXGA resolution and a sound card)
1.3 Test Condition
Before function test and alignment ,each LCD Monitor should be warmed up at least
30 minutes with the following conditions:
A: in roon temperature
B with full white screen ,RGB ,and black
C. with cycled display model:
1280 x 1024 @ 60Hz
1.4 Test display& Pattern
1.4.1 Compatible model
Item Timing Analog
1 640 x 350 @ 70Hz, 31.5kHz
Yes
2 640 x 480 @ 50Hz, 24.68KHZ
Yes
3 640 x 480 @ 60Hz, 31.5kHz
Yes
4 MAC 640 x 480 @ 67Hz, 35.0kHz
Yes
5 640 x 480 @ 72Hz, 37.9kHz
Yes
6 640 x 480 @ 75Hz, 37.5kHz
Yes
7 640 x 480 @ 85Hz, 43.27kHz
Yes
8 720 x 400 @ 70Hz, 31.5kHz
Yes
9 800 x 600 @ 56Hz, 35.1kHz
Yes
10 800 x 600 @ 60Hz, 37.9kHz
Yes
1 1 800 x 600 @ 72Hz, 48.1kHz
Yes
12 800 x 600 @ 75Hz, 46.9kHz
Yes
13 800 x 600 @ 85Hz, 53.7kHz
Yes
14 MAC 832 x 624 @ 75Hz, 49.7kHz
Yes
15 1024 x 768 @ 60Hz, 48.4kHz
Yes
16 1024 x 768 @ 70Hz, 56.5kHz
Yes
17 1024 x 768 @ 72Hz, 58.1kHz
Yes
18 1024 x 768 @ 75Hz, 60.0kHz
Yes
19 1024 x 768 @ 85Hz, 68.67KHZ
Yes
20 1152 x 864 @ 75Hz, 67.5KHZ
Yes
21 MAC 1152x870@75HZ, 68.68KHZ
Yes
22 1280 x 960 @ 60Hz, 44.93KHZ
Yes
23 1280 x 960 @75Hz, 56.25KHZ
Yes
24 1280 x 1024 @ 60Hz, 63.98KHZ
Yes
25 1280 x 1024 @ 75Hz, 79.97KHZ
Yes
*1. Tolerance ≧ ± 2kHz.
*2. Any timing not in the list, it should display as normal or show on “OUT OF RANGE” OSD message without
blanking.
*3. The image quality of 85Hz mode might be worse than 75Hz.
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
23
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
24
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
25
Firmware Update Procedure
1. The monitor’s firmware update for VA903m/b have two method.
Download the MCU IC by the fire machine. This procedure is finished in SMT.
ISP Method. When the monitor ’s BIOS isn’t exist or firmware isn’t final program, this method Is worked by ISP
Cord with monitor.
2. VA903m/b monitor upgrade firmware by ISP Cord.
Equipment Needed
- USB cable for print port *1
- VGA cable*1
- LPT cable (25pin)*1
- AC power cable*1
- ISP fire cord (the fixture is made in TE ) for firmware upgrade*1
- Power adapter for firmware upgrade (this adapter is made in TE)*1
- A computer with Windows XP
- VA903m/b monitor ( no firmware)
- a additional monitor for system display
- ISP & ISP3.0program
NOTE:
The fixtures for firmware upgrade provide two differen t methods to fire. Please check you monitor’s Main board,
refer to MCU-RSIC type and choose the method.
Below form appear the relation between the method and the MCU-RSIC type
PIN1-2 CLOSED
PIN2-3 CLOSED
JUMPER
REALTEK
M-STAR & NOVATEK
ASIC
OTHER
MYSON
MCU
B
A
METHOD
TEST PC Fixture ISP_CORD Fixture POWER_ADAPTER
LPT PORT
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
26
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
27
LPT Cable AC power Cable VGA Cable
USB FOR PRINT
ISP3.0
SOFT
2.2. Setup Procedure
2.2.1 Connect PO1 of ISP fixture with print port of computer by LPT cable
2.2.2 Connect PO2 of ISP fixture with USB port of computer by USB cable
2.2.3 Connect PO3 of ISP fixture with monitor VGA port by VGA cable
2.2.4 Connect mouse, keyboard, AC power, monitor with computer
2.2.5 Plug AC cable in power adapter AC jack
2.2.6 Connect power adapter DC_OUTPUT port to main board DC_IN port
2.2.7 Connect PO3 of ISP fixture with VGA port of monitor’s main board by VGA cable
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
28
PO2 to USB cable PO1 to LPT cable
PO3 to VGA cable
jumper
AC JACK
DC_IN port
VGA port
NOTE:
Do STEP2.2.6 and STEP2.2.7 for monitor’s main board only. Monit or firmware upgrade will jump this step.
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
29

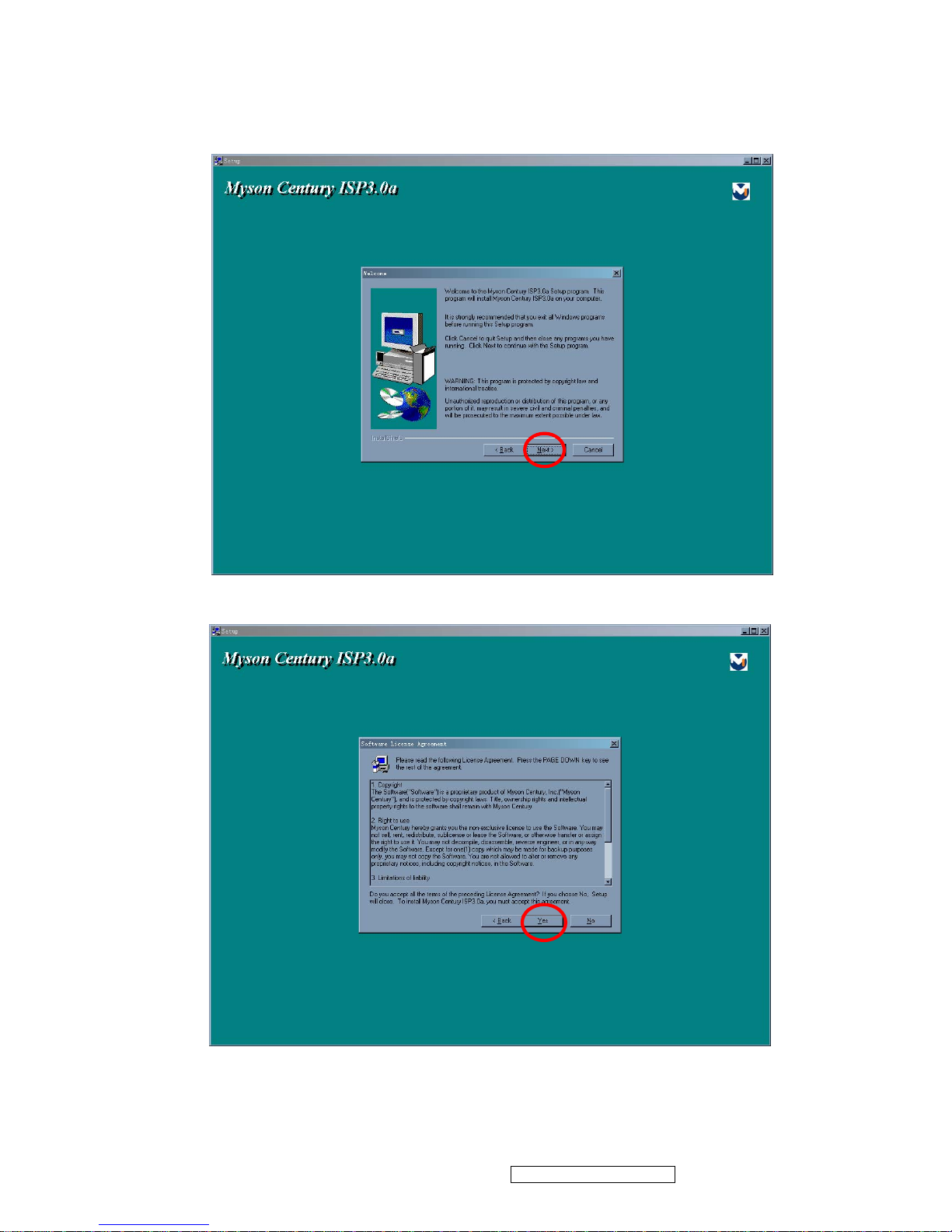

2.3. Soft install
Install ISP3.0 program by selecting and clicking “…\isp3.0\setup.exe”, press “YES” or “NEXT” buttons
until setup is complete.
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
30
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
31
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
32
Installation will create a icon for ISP application in “START MENU”\PROGRAM
Press “finish” button exit setup
STEP1: Choose the DCC written Program
set up the DCC written fixture ,check whether the connection between main board is in well
condition ,see attached file 1.1&1.2 per the product model ,choose the corresponding Model, DCC
written process, the model mr171-AAA should apply the SIP Program
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
33
STEP2: Creat security file
Choose the Tab "create Security File " to enter next Dialogue Item
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
34
STEP3: Input the related parameter, save them and take up the next step
STEP4: Choose the Tab MTV TYPE
Choose the MTV512M64 from the TAB ISP ITEMS
DCC Written model Diagram Table as below
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
35
STEP5: DCC WRITTEN methods
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
36
SETP6: Choose the DDC Written BIOS document
Choose the Tab LOAD MCU FILE，Looking up the related BIOS document in my Computer ,and Point
the confirm Tab
when the BIOS Documents' loading is successful ,you can find the picture as above
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
37
Step 7.Confirm the BIOS'S check sum
In the above attached Display picture ,you should check whether the check sum's Data comply
to the bios' DCC written, if there is no problem ,pls press the run menu to write
If showed the picture as above pls check whether the DDC write fixture is well Connected with PC
the power board is power on and the program's setup is all right
ViewSonic Corporation
Confidential - Do Not Copy VA903b-1_ VA903m-1
38
The normal program is writing
The program has finished writing
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
39
Disassembly Procedure
1. Remove the hinge cover
2. Unscrew the back cover’s screw
3. open the back cover ,pull out the speaker wire
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
40
4. Tear off the aluminum foil where fix up the light
5.
Tear off the aluminum foil where cover the FFC cable,take out the key board from bezel ,pull out
FFC cable from the main board;
6. pull out the two pcs screw form the main board
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
41
7. pull out the two screws where lie in the two sides of the frame
8. pull out the screws which fix up the bezel and then take out the bezel
9. Take out the screw which covers the shield
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
42

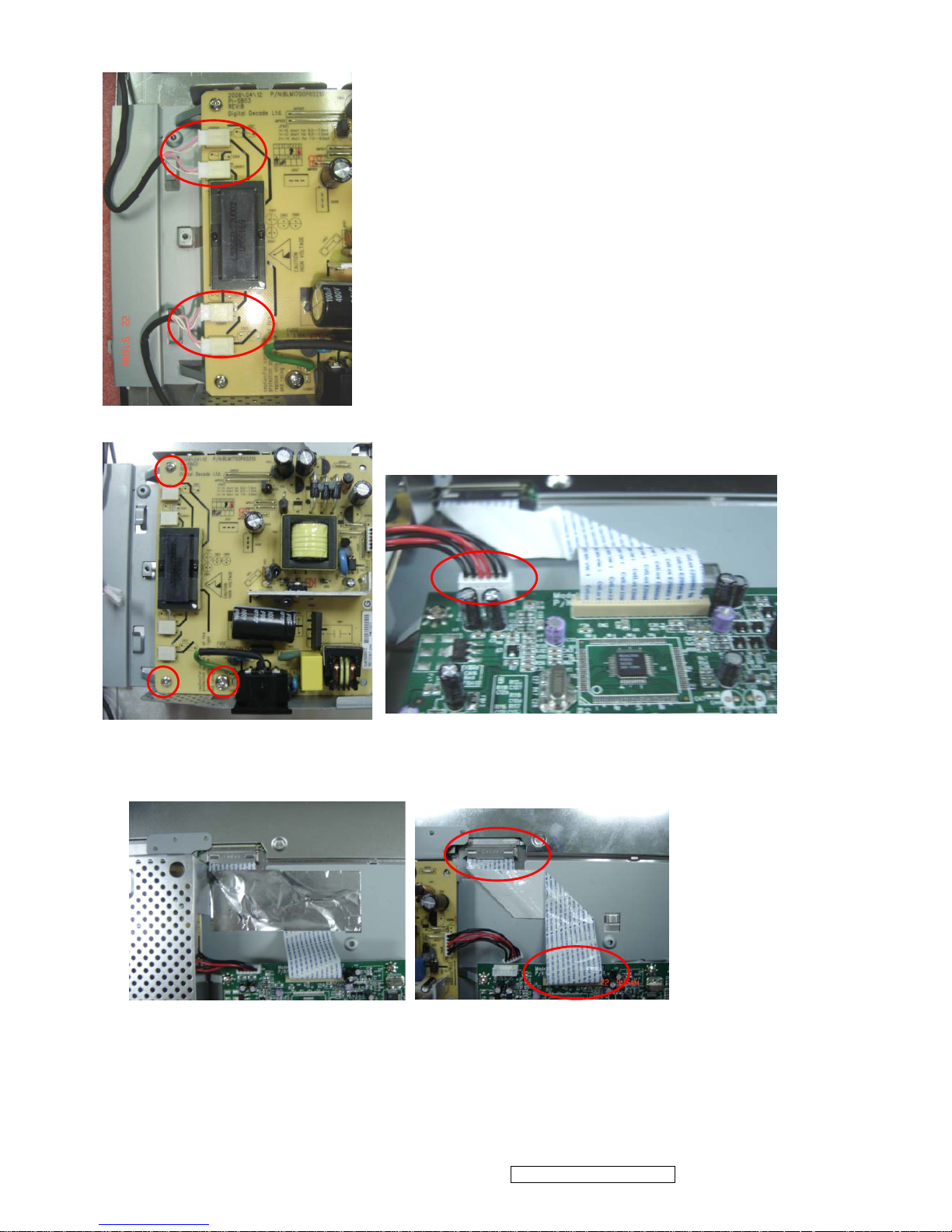

10. pull out the lamp wire material
11. take out the screw form the power board ,pull out the power boards’ connecter wire
12. take out the FCC Cable AL where lies in the panel ,pull out the FCC cable
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
43
13. take out the main board’s screw
14. Remove the fame down towards
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
44
Packing Procedure
1.1 Paste production film to protect the monitor screen.(Figure 1)
1.2 Put the monitor in the PE bag and seal bag with type (Figure 2)
1.3 Put the cushions on the monitor.(Figure 4)
tape
tape
Production film
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
45
1.4 Put the base in the EPE bag. and then,place the base on the cushions ,as figure;
1.4.Place the monitor into the carton and then put all accessories into carton .At last,close the
carton.
Use ‘s Guide
Base signal cord
Power cord
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
46
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
47
6. Troubleshooting Flow Chart
Main Procedure
Start
Connect all of devices to
the LCD monitor
Power On
Is indicator LED
light?
A. Power Circuit
Troubleshooting
Yes
No
1
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
48
Is backlight on?
Display Performance
O.K.?
Function Adjustment
O.K.?
Audio Function O.K.?
No Trouble Found
End
B. Backlight
Troubleshooting
C. Performance
Troubleshooting
D. Function
Troubleshooting
E. Audio
Troubleshooting
Yes
Yes
Yes
No
No
No
No
1
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
49
A. Power Circuit Troubleshooting
Start
Change AC/
DC Adapter
Retry Power
On
Change Main
Board & Retry
No Trouble Found
End
End
End
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
50
B. Backlight Troubleshooting
Start
Change
Inverter and
Retry
No Trouble Found
End
End
End
End
Backlight
Change
Module
Change
Main
Board&
Retry
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
51
C. Performance Troubleshooting
Start
Screen is
flickering?
Change VGA
Cable
Change Main
Board
Bad Uniformity?
Is screen white?
NO
NO
Screen is
scrolling?
LCD Line Defect?
Change
Inverter Board
Change LCD
Module
Change LCD
Module
Check
Connector
Change Main
Board
Change LCD
Module
NO
Yes
No
Change Main
Board
NO
NO
2
NO
YES
YES
YES NO
YES
YES
YES
NO
YES
YES
YES
YES
YES
YES
YES
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
52
2
Screen with noise or line
bar?
Prss Reset Button from
front panel control
End
Change Main
Board
Screen is smaller?
Make sure relution is set
at default
Reset O.K.?
Change Main
Board
No Trouble Found
End
No
No
Yes
No
Yes
No
Yes
No
YesYes
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
53
D. Function Troubleshooting
Start
Control Menu not
Functioning?
Change
Control Board
and Retry?
Change Main
Board
No Trouble Found
End
No
No
Yes
Yes
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
54
E. Audio Troubleshooting
Start
Make sure sound output, Audio
cable is OK.
No Sound
Change
Speaker
Change
Speaker
Change Main
Board
Sound is broken?
Volume
Unadjustable?
No Trouble Found
End
No
Yes
Yes
No
Yes
No
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
55
7. Recommended Spare Parts List
Rev: 1b
Item ECR/ECN ViewSonic P/N Ref. P/N Location Universal number#
1
Accessories:
Power Cord - USA A-00008026 W402091809531
2 Main Board - LM/MR19I-AAA B-00006501 XLM191A040002
3 Key Board - SVA B-00006502 XLM191A050001
4 Inverter Board + Power Board Rev.1 B-00008053 XLM1700390015-SF
5 Base Assembly (Midnight Gray) C-00006583 XLM171A280003
6 Updated Vendor XLM191A100003
7 Part # on 10/12/06 XLM191A100002
8 Updated Vendor XLM191A110001
9 Part # on 10/12/06 XLM191A110002
10 Audio Cable - 1800mm 26A WG UL2547 CB-00005758 W0026918A0142
11 VGA Cable 30AWG UL20276 (Video Cable) CB-00006504 W0926418AQ951
12 LCD Module (HSD190ME13-A10) 19" LVDS HANNSTAR E-00008009 E34862190H304
13 LCD Module 19" HSD190ME13-A16 LVDS Hannstar VA/VG SERIES) Added on 10/02/06 E-00005792 E34862190H303-A
14
Hardware:
Bracket - SVA HW-00008013 XLM191A200001
15 Generic Foam (Set) P-00001347 30833
16 Generic Box , Rsc 22 1/2"x 11 3/4"x 23 1/2" P-00002515 20653
17 Craft Foam (Left) P-00008071 F20133191A002
18 Craft Foam (Right) P-00008072 F20143191A002
Updated Vendor F400718191A01
Part # on 10/12/06 F4007K4191A01
Remark 1: Above listed items are examples, supplier can expand the rows to add more necessary items.
Remark 2:
Front panel (Bezel Assembly)
Back Cover (Housing Assy RGB Only)
Cabinets:
19
Packing Material:
RECOMMENDED SPARE PARTS LIST (VA903b-3)
Description
Serial No. Prefix: QAU
PC Board Assembly:
ViewSonic Model Number: VS11372
C-00008088
C-00008089
All revised RSPLs with newly added items or any change made should be highlighted and correlated with the ECN/ECR approved by ViewSonic Corporation. This is to eliminate
repeated cross checks of each item between this version and prior versions.
Electronic
Components:
Cables:
Craft Box P-00008073
Rev: 1b
Item ECR/ECN ViewSonic P/N Ref. P/N Location Universal number#
1
Accessories:
Power Cord A-00008026 W402091809531
2 Main Board - LM/MR19I-AAA B-00006501 XLM191A040002
3 Key Board - SVA B-00006502 XLM191A050001
4 Inverter Board + Power Board Rev.1 B-00008053 XLM1700390015-SF
6 Front Panel (SILVER ) +Button Added on 10/16/06 C-00008154 XLM191A100002
8 Back Cover - (Housing Assy(BLACK) RGB+Audio) Added on 10/16/06 C-00008155 XLM191A110002
9 Base Assembly (Black) C-00008090 XLM171A280002
10 AUDIO CABLE 26A WG UL2547 CB-00005758 W0026918A0142
11 VGA Cable 30AWG UL20276 (Video Cable) CB-00006504 W0926418AQ951
12 LCD Module (HSD190ME13-A10) 19" LVDS Hannstar E-00008009 E34862190H304
13 LCD Module 19" HSD190ME13-A16 Hannstar Added on 10/02/06 E-00005792 E34862190H303-A
14
Hardware:
Bracket - LM/MR19I-AAA Black CMO HW-00008014 XLM191A200002
15 Generic Foam (Set) P-00001347 30833
16 Generic Box , Rsc 22 1/2"x 11 3/4"x 23 1/2" P-00002515 20653
17 Craft Foam (Left) P-00008071 F20133191A002
18 Craft Foam (Right) P-00008072 F20143191A002
Craft Box Updated Vendor F400718191A02
Part # on 10/12/06 F4007K4191A02
Remark 1:
Above listed items are examples, supplier can expand the rows to add more necessary items.
Remark 2: All revised RSPLs with newly added items or any change made should be highlighted and correlated with the ECN/ECR approved by ViewSonic Corporation. This is to
eliminate repeated cross checks of each item between this version and prior versions.
PC Board Assembly:
Cables:
RECOMMENDED SPARE PARTS LIST (VA903m-3)
Description
Serial No. Prefix: QAV
Electronic
Components:
ViewSonic Model Number: VS11372
19
Cabinets:
Packing Material:
P-00008074
ViewSonic Model Number: VS11372
Rev: 1b
Serial No. Prefix: QAV
Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty
1 N/A E015-006-W (10mm*14mm) Bird logo 1
2 N/A E015-016-1-W VIEWSONIC38MM 1
3 E-00008009 E34862190H304
LCD MODULE HSD190ME13-A10 1280×1024 [SX] 19" LVDS HANNSTAR
LEAD FREE
1
4 N/A F0004191AK001
Quick Install Manual 16 mandarin speeches LM/MR19I-AAA L190*W127mm for
viewsonic REV:0
1
5 N/A F0010171A3001
base attachment procedure LM/MR17I-AAA ENGLISH L190*W127mm for
viewsonic VA703 REV:0
1
6 N/A F001217043001 Explanation card LM/LM1704 ENGLISH L210*W148mm for Viewsonic REV:0
1
7 N/A F101415170401 MARK LM/LM1704 L11*W11mm energy star 1
8 N/A F102506191A04 Safety Label LM/MR19I-AAA L89.5*W49.5mm for viewsonic (VA903m) REV:1
1
9 N/A F103015170401 Blank Label LM/LM1704 L50*W25mm 1
10 DC-00008065 F103015171A01 Blank Label LM/MR17I-AAA L36*W9mm for viewsonic china 1
11 N/A F103915170401 CARTON LABEL(UPC) LM/LM1704 L76*W76mm FOR VIEWSONIC 1
12 N/A F103915171A01 CARTON LABEL LM/MR17I-AAA L89*W58mm for viewsonic 8ms 1
13 N/A F104515170401 RATING LABEL LM/LM1704 L7*W7mm for Viewsonic 1
14 P-00008071 F20133191A002 POLYETHYLENE-L EPS LM/MR19I-AAA L155*W155*H483mm 1
15 P-00008072 F20143191A002 POLYETHYLENE-R EPS LM/MR19I-AAA L155*W155*H483mm 1
16 N/A F300250000047 BAG /PE L550*W480*T0.03mm transparent 1
17 N/A F300272501501 PLASTIC BAG LDPE L250*W150*T0.08mm 1
18 N/A F4007K4191A02
CARTON K4K(C) LM/MR19I-AAA L485*W163*H503mm for viewsonic VA903m
REV:1
1
19 N/A F401422LM0001 PARTITION SUPPORT BC LM/MONITOR series L800*W50*H50*T5mm 0.035
20 N/A F401422LM0003 PARTITION SUPPORT BC LM/MONITOR series L2000*W50*H50*T5mm 0.071
21 N/A F401918191A01
PAPER COVER C LM/MR19I-AAA L1147*W981*H60mm(內尺寸) 0.035
22 N/A F50301F199002 PALLET SMOKE WOOD LM/F199 L1140*W980*H120mm 0.017
23 N/A F801191000005 CD M/MR19I-AA For viewsonic HSD REV:1 1
24 N/A F900181000001 PE LIMPID W500*T0.03mm1500m/ROLL PACKTHREAD PP WHITE 0.0003
25 N/A F9008G2000002 PACKTHREAD PP WHITE W14.5mm*T0.8mm 1300m/roll 0.0003
26 N/A M101082807401 SCREW COPPER Φ2.8*L7mmWITH NICKEL 2
27 N/A M105223004401 SCREW MACHINE (Binding) Φ3.0mm L5mmNICKEL 15
28 N/A M105244006401 SCREW BINDING Φ4.0*L6mm WITH NICKEL AD WASHER 1
29 N/A M108224008401 MACHINE SCREW Φ4.0*L8mm NICKEL 4
30 N/A M115233008401 SCREW TA PW Φ3.0*L8.0mm NICKEL Washer(Φ10.0mm) 1
31 N/A M621700LM0390-G Main Bracket SECC LM/MR19I-AAA REV:0 1
32 N/A P36D1C2010001 MYLAR L410*W320*T0.12mm LIMPID 1
33 N/A P440703800002 RUBBER CUSHION(housing) Φ7.45*Φ3.2*H8mm BLACK 4
34 N/A P441508980001 RUBBER CUSHION /RUBBER L15*W8*T9.8mm BLACKL15*8*9.8 BLACK 2
35 N/A P532015A20001 CUSHION L20*W15*T12mmEVA 3
36 N/A P705A995LM020-A Back Cover ABS HB BLACK Shoot shaping LM/MR17I-AAA REV:0 1
37 N/A V5004AP150201 ADHESIVE TAPE L25000*W15*T0.25mm 25m/ROLL(YW0910300002) 0.01
38 N/A V900505020003 AL FOIL L50×W30×T0.10mm 1
39 N/A V900505030001 AL FOIL L100xW40xT0.07mm 1
40 N/A V900505030007 AL FOILL100xW30*T0.35mm(Y78400004G*1) 4
41 CB-00006504 W0926418AQ951 VGA CABLE 30AWG UL20276 L1800mm 15PIN black 1
42 A-00008026 W402091809531
AC POWER CORD USA size RVV 300/500V 3G S0.75mm2 L180cm BLACK
YISHENG
1
43 CB-00008033 W47A103015003 AC POWER CORD UL 22AWG L150cm BLACK YISHENG 1
Substitute N/A W47A103015004 FFC WIRE CY050408001 P=1.0mm 30PIN L150mm HUNG FU 1
44 CB-00008043 W47B101030001 FFC WIRE CY050408001 P=1.0mm 30PIN L150mm HANQUAN 1
45 B-00008053 XLM1700390015-SF
POWER BOARD+INVERTER BOARDASSY PI-SB03 24V+5V LM/17''/19'' LCD
MONITOR FOR VIEWSONIC REV:1(PHIHONG FEI HONG )
1
Substitute N/A XLM1700390015-SH
POWER BOARD+INVERTER BOARDASSY PI-SB03 24V+5V LM/17''/19'' LCD
MONITOR FOR VIEWSONIC REV:1(UMEC HUAN LONG )
1
46 C-00008090 XLM171A280002 BASE ASSY LM/MR17I-AAA BASE+RUBBER BLACK REV:1(GAOCHENG )
1
47 N/A P441200200001 RUBBER CUSHION Φ12*H2m m BLACK 3M9448 WITH Glue 6
48 N/A P74AA995LM101-A BASE ABS HB BLACK Shoot shaping LM/MR17I-AAA REV:1(GAOCHENG) 1
49 N/A XLM171A380001 SHIELD ASSY LM/MR17I-AAA SHIELD+MYLAR 1
50 N/A M711200LM0130-A SHIELD SPTE T=0.3mm LM/MR17I-AAA REV: 1
51 N/A P369579010001 MYLAR L95*W79.5*T0.1mm WHITH ADHESIVE 1
52 B-00006501 XLM191A040002 MAIN BOARD ASSY LM/MR19I-AA 1
53 N/A A01F241615A21 IC EEPROM AT24C16 2500ns ATMEL SOIC-8 2K*8 (SMD) 1
54 N/A A03D111703G03
IC LINEAR IC VOLTAGE REGULATOR GL1117A-3.3 (INPUT 4.8~12V
OUTPUT 3.3V) SOT-223 GTM LeadFree (SMD)
1
Substitute N/A A03D111703A54 IC LINEAR VOLTAGE REGULATOR AP1117E33A SOT-223 ANACHIP (SMD)
1
55 N/A A03D111703U01
IC LINEAR VOLTAGE REGULATOR LD1117-18-A SOT-223 3PIN 1.8V UTC
(SMD)
1
Substitute N/A A03D111703A53 IC Linear voltage converter AP1117E18A SOT-223- 3Pin(SMD) 1
Substitute N/A A03D916403R01 IC , Analog , Regulator , RT9164-18CG , SOT223-3 , Richtek 1
56 N/A A07TV51202M02 IC MCU MTV512GMG 64K MYSON LQFP-48P Lead Free (SMD) 1
57 N/A A43H206506A01
LINEAR IC POWER AMPLIFIE with Volume contorl PA2065JI 2W DIP-16PIN
ANPEC (DIP)
1
58 N/A A08D2023R2001 IC ASIC/SCALER RTD2023L PLCC-48P REALTEK Lead Free (SMD) 1
59 N/A BLM19VAM10116 BARE PCB LM/MR19V-AAAD MAIN BOARD 2SIDES FR-4 T1.6mm REV:1.6
3
60 N/A C02205003C111 CAP MLCC NPO 5pF 50V ±0.25%(C) 0603 TAPPING (SMD) 2
61 N/A C02210003J111 CAP MLCC NPO 10pF 50V ±5% 0603 TAPPING (SMD) 1
62 N/A C02212003J111 CAP MLCC /NPO 12PF 50V ±5%(J) 0603 TAPPING (SMD) 3
63 N/A C02222003J111 CAP MLCC /NPO 22PF 50V ±5%(J) 0603 TPPING (SMD) 3
64 N/A C02310501K111 CAP MLCC X5R 1uF 16V ±10% (K) 0603 TAPING (SMD) 1
65 N/A C4026813M5341
CAP EC -40~105°c 680uF 10V ±20%(M) Φ8*H11.5mm P=3.5mm(Curve FOOT
P=2.0mm) LEAD FREE (DIP)
1
BOM LIST (VA903m-3)
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
56
Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty
66 N/A C4022296M2122
CAP EC -40℃~105℃ 2.2uF/25V ±20%(M) ψ4*H5mm P=2.0mm (DIP) 1
67 N/A C02410302K111 CAP MLCC X7R 10nF/25V±10%(K) 0603TAPPING (SMD) 35
68 N/A C02410403K111 CAP MLCC X7R 0.1UF/50V ±10%(K) 0603 TAPPING(SMD) 6
69 N/A C02447302K111 CAP MLCC/ X7R 0.047uF /25V ±10%(K) 0603 TAPPING(SMD) 1
70 N/A C02447401K111 CAP MLCC X7R 470nf 16V ±10%(K) 0603 TAPING lead free (SMD) 3
71 N/A C4021006M2431
CAP EC(S) -40~105℃ 10uF 25V ±20% (M) Φ5×H7mm P=2.5mm (DIP) 5
72 N/A C4021014M2222
CAP EC(S) -40~105℃ 100uF 16V ±20% (M) Φ5×H11mm P=2.0mm (DIP) 2
73 N/A C4022204M2322
CAP EC -40~105℃ 22UF/16V ±20%(M) ∮5*H5MM P=2.0MM (DIP) 1
74 N/A C4024704M2422
CAP EC -40∘~105℃ 47UF/16V ±20% (M) ∮5*H7MM P=2.0MM (DIP) 3
75 N/A D00BAV9905G01 DIODE BAV99 SOT-23 GTM (SMD) 4
76 N/A D00L414803Y11 DIODE LL4148 SOD-123 YING SMD 6
77 N/A D01ZT52C03K01 DIODE BZT52C SOD-123 KINGWELL 5.6V (SMD) 1
78 N/A E231080150009
SPEAKER 3717CP15 OBLONG 8Ω 1.5W R/L450mm L37*W17*H9mm Y&G
LEAD FREE
1
79 N/A J4507270155B1
D-SUB H/D,15PIN,VGA PC99(LIGHT BLUE)DIP 90°,3 ROW,1285-15S-004-98C01,TEKCON
1
80 N/A J4509100102H1 FFC CONNECTOR P=1mm 10PIN 90° CF16061D0T0 HANQUAN (DIP) 1
81 N/A J4509100306H1 FFC CONN ,30 PIN,1.0,DIP 180°,1 ROW,Cvilux 16301V0T or compatible 3
82 N/A L004100201101
BEAD Chip Beads DDY160808U011MB 10Ω 200mA 0603(1608) TAPING MAGIC
LEAD FREE (SMD) 5
83 N/A L013121302A11
CHIP BEAD Ferrite ChipBeads (high current) WB201209B601QLT02 120Ω
3000mA 1206 Walsin (SMD)
2
84 N/A Q441240047151 CRYSTAL QUARTZ/ 24MHZ 30PPM 20PF 49US CRE (DIP) 2
85 N/A R070000J10311 RES CHIP 0Ω ±5%(J) 1/10W 0805 TAPPING (SMD)(Y180320000J0) 6
86 N/A R070000J20111 05: RESISTOR.RES CHIP 0Ω ±5%(J).1/8W 0603 TAPPING (SMD)...... 2
87 N/A R070331J10111 RES CHIP 330Ω ±5%(J) 1/10 0603 TAPPING (SMD) 3
88 N/A R070470J10111 RESISTOR.RES CHIP 47Ω±5%(J) 1/10W.0603 TAPPING (SMD) 3
89 N/A R070750J10111 RESISTOR.RES CHIP 75Ω ±5%(J) 1/10W.0603 TAPPING (SMD)...... 10
90 N/A R071000J10111 RES CHIP 100Ω ±5%(J) 1/10 0603 TAPPING (SMD) 5
91 N/A R074702J20111 05: RESISTOR.RES CHIP 47KΩ ±5%(J) 1/8W.0603 TAPPING (SMD)...... 1
92 N/A R070059J61111 RES CHIP 0.5Ω ±5%(J) 1/2W 1210 TAPING LEAD FREE (SMD) 9
93 N/A R071001J20111 05: RESISTOR.RES CHIP 1KΩ ±5%(J) 1/8W.0603 TAPPING (SMD)...... 5
94 N/A R071002J20111 05: RESISTOR.RES CHIP 10KΩ ±5%(J) 1/8W.0603 TAPPING(SMD)...... 1
95 N/A R071003J10111 RES CHIP 100KΩ ±5%(J) 1/1 0603 TAPPING (SMD) 1
96 N/A R071004J30111 RES CHIP 1MΩ ±5%(J) 1/16W 0603 TAPPING (SMD) 2
97 N/A R071502F30111 RES CHIP 15K
Ω ±1%(F) 1/16 0603 TAPPING (SMD) 3
98 N/A R072001J30111
RES CHIP 2KΩ ±5%(J) 1/16W 0603 TAPPING （SMD)(Y180222001J0) 8
99 N/A R072200J20111 05: RESISTOR.RES CHIP 220Ω ±5%(J) 1/8W.0603 TAPPING(SMD)...... 1
100 N/A R073002J10111 05: RESISTOR.RES CHIP 30KΩ±5%(J) 1/10W.0603 TAPPING (SMD)...... 9
101 N/A R074701J20111 RESISTOR.RES CHIP 4.7KΩ ±5%(J) 1/8W.0603 TAPPING(SMD)...... 2
102 N/A R076801J10111 RES CHIP 6.8KΩ ±5%(J)1/10W 0603 TAPING (SMD) 6
103 N/A R144701J20112 RES ARRAY 4.7KΩ ±5%(J) 1/10W 8P4R 3216 TAPPING (SMD) 3
104 N/A T00T390402G01 TR GMBT3904 SOT-23 GTM (SMD) 4
105 N/A T00T390602G01 TR GMBT3906 SOT-23 GTM (SMD) 1
106 N/A T01A340102A21 XSTR AO3401/ST3401, SOT- 23;3 , Alpha & Omega/ST 1
107 N/A Y640307001*1 JACK PHONE EAR (TJ312-5BP- 1) 1
108 N/A Y64115HB06*1
CONNECTOR 180℃ 2mm 6PIN 1
109 B-00006502 XLM191A050001 KEY BOARD ASSY LM/MR19I-AAA 1
110 N/A BLM191AB10113 BARE PCB LM/MR19I-AAA BUTTON BOARD 1SIDE FR-1 T1.6mm REV:1.3
1
111 N/A D462102211201 LED,Φ3.0x5.3 mmP=2.54 YELLOW/GREEN (DIP) 1
112 N/A J4509100102H1 FFC CONNECTOR P=1mm 10PIN 90° CF16061D0T0 HANQUAN (DIP) 5
113 N/A P764P295LM010 SWITCH PA66 BLACK LCDMONITOR SERIES REV:0 1
114 C-00008154 XLM191A100002 BEZEL ASSY(SILVER ) LM/MR19I-AAA BEZEL+BTTTON 1
115 N/A P727A901LMC60-C BEZEL ABS HB SILVER PRINT LM/MR19I-AAA REV:0 1
116 PL-00006589 P763P398LM020-B
FUNCTION BUTTON PC SILVER PAINT LM/MR17I-AAA REV:0(GAOCHENG
)
1
117 C-00008155 XLM191A110002 HOUSING ASSY(BLACK) LM/MR19I-AAA RGB+AUDIO 2
118 N/A M105223004401 MACHINE SCREW Bouding Φ3.0*L6mm NICKEL 4
119 N/A M410810130001 SCREW Φ4.0*L8mm NICKEL WITH WASHER 2
120 N/A M627700LM0270-E Holder SECC LM/MR19I- AA L114*W67.75*H8.1*T1.5mm REV:0 1
121 N/A P728A995LM130-A
HOUSING ABS HB BLACK Shoot shaping LM/MR19I-AAA RGB+AUDIO
REV:0
0.01
122 N/A V300800000001
GLUE 50g/BOTTLE (﹕-60℃~+200℃) 1
123 HW-00008014 XLM191A200002 BRACKET ASSY(black) LM/MR19I-AAA bracket+hinge+screw(GAOCHENG )
1
124 N/A M155234008401
SCREW plastics,be attacked Low carbon steel 十/PWΦ4.0*L8mm NICKEL 2
125 N/A M155234010401
SCREWplastics,be attacked Low carbon steel 十/PWΦ4.0*L10mm NICKEL 1
126 N/A M701900LM0190-K SCREW Φ4.0*L8mm NICKEL WITH WASHER 1
127 N/A P711A995LM030-A Bracket ABS HB BLACK Shoot shaping LM/MR17I-AAA REV:0(GAOCHENG )
1
128 CB-00005758 W0026918A0142 AUDIO CABIE 26AWG UL2547 L=1800mm 6C BLACK 4
129 N/A P392411A00001 SPEAKER SPONGE L24.5*W11*T10mm L/R 25°(VA703) 1
130 N/A Y64115HB04*1 CONNECTOR M 180°/2.0mm 1 ROW 4P 1
131 N/A L012121201113
BEAD CHOKE Ferrite(generalcircuit) DDY160808U121MB 120Ω 200mA
0603DUANWANG LEAD FREE (SMD)
9
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
57
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
58
ViewSonic Model Number: VS11372
Rev: 1b
Serial No. Prefix: QAU
Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty
1 N/A E015-006-W (10mm*14mm) Bird log
o
1
2 N/A E015-016-1-W VIEWSONIC38MM 1
3 E-00008009 E34862190H304
LCD MODULE HSD190ME13-A10 1280×1024 [SX] 19" LVDS HANNSTAR LEAD
FREE
1
4 N/A F0004171AK001 Quick Install Manual LM/MR19I-AA L190*W127mm for viewsonic REV:
0
1
5 N/A F0010171A3001
base attachment procedure LM/MR17I-AAA ENGLISH L190*W127mm for viewsonic
VA703 REV:0
1
6 N/A F001217043001 Explanation card LM/LM1704 ENGLISH L210*W148mm for Viewsonic REV:
0
1
7 N/A F101415170401 MARK LM/LM1704 L11*W11mm energy sta
r
1
8 N/A F102506191A03 Safety Label LM/MR19I-AA L89.5*W49.5mm for viewsonic (VA903b) REV:
1
1
9 N/A F103015170401 Blank Label LM/LM1704 L50*W25m
m
1
10 DC-00008065 F103015171A01 Blank Label LM/MR17I-AAA L36*W9mm for viewsonic chin
a
1
11 N/A F103915170401 CARTON LABEL(UPC) LM/LM1704 L76*W76mm FOR VIEWSONIC 1
12 N/A F103915171A01 CARTON LABEL LM/MR17I-AAA L89*W58mm for viewsonic 8m
s
1
13 N/A F104515170401 RATING LABEL LM/LM1704 L7*W7mm for Viewsoni
c
1
14 P-00008071 F20133191A002 POLYETHYLENE-L EPS LM/MR19I-AAA L155*W155*H483m
m
1
15 P-00008072 F20143191A002 POLYETHYLENE-R EPS LM/MR19I-AAA L155*W155*H483m
m
1
16 N/A F300250000047 BAG /PE L550*W480*T0.03mm transparen
t
1
17 N/A F300272501501 PLASTIC BAG LDPE L250*W150*T0.08m
m
1
18 N/A F4007K4191A01 carton K4K C LM/MR19I-AA L485*W163*H503mm for viewsonic VA903b REV:
1
1
19 N/A F401422LM0001 PARTITION SUPPORT BC LM/MONITOR series L800*W50*H50*T5m
m
0.035
20 N/A F401422LM0003 PARTITION SUPPORT BC LM/MONITOR series L2000*W50*H50*T5m
m
0.071
21 N/A F401918191A01
PAPER COVER C LM/MR19I-AAA L1147*W981*H60mm
(
內尺寸) 0.035
22 N/A F50301F199002 PALLET SMOKE WOOD LM/F199 L1140*W980*H120mm 0.017
23 N/A F801191000005 CD M/MR19I-AA For viewsonic HSD REV:1 1
24 N/A F900181000001 PE LIMPID W500*T0.03mm1500m/ROLL PACKTHREAD PP WHITE 0.0003
25 N/A F9008G2000002 PACKTHREAD PP WHITE W14.5mm*T0.8mm 1300m/rol
l
0.0003
26 N/A M101082807401 SCREW COPPER Φ2.8*L7mmWITH NICKEL 2
27 N/A M105223004401 SCREW MACHINE (Binding) Φ3.0mm L5mmNICKEL 15
28 N/A M105244006401 SCREW BINDING Φ4.0*L6mm WITH NICKEL AD WASHER 1
29 N/A M108224008401 MACHINE SCREW Φ4.0*L8mm NICKEL 4
30 N/A M115233008401 SCREW TA PW Φ3.0*L8.0mm NICKEL Washer(Φ10.0mm) 1
31 N/A M621700LM0390-G Main Bracket SECC LM/MR19I-AAA REV:
0
1
32 N/A P36D1C2010001 MYLAR L410*W320*T0.12mm LIMPI
D
1
33 N/A P440703800001 RUBBER CUSHION(housing) Φ7.45*Φ3.2*H8mm GREY 4
34 N/A P441508980001 RUBBER CUSHION /RUBBER L15*W8*T9.8mm BLACKL15*8*9.8 BLACK 2
35 N/A P532015A20001 CUSHION L20*W15*T12mmEV
A
3
36 N/A P705A997LM032-A Back Cover ABS HB GRAY Shoot shaping LM/MR17I-AA REV:2(gaocheng
)
1
37 N/A V5004AP150201 ADHESIVE TAPE L25000*W15*T0.25mm 25m/ROLL(YW0910300002
)
0.01
38 N/A V900505020003 AL FOIL L50×W30×T0.10m
m
1
39 N/A V900505030001 AL FOIL L100xW40xT0.07m
m
1
40 N/A V900505030007 AL FOILL100xW30*T0.35mm(Y78400004G*1) 4
41 CB-00006504 W0926418AQ951 VGA CABLE 30AWG UL20276 L1800mm 15PIN black 1
42 A-00008026 W402091809531
AC POWER CORD USA size RVV 300/500V 3G S0.75mm2 L180cm BLACK
YISHENG
1
43 CB-00008033 W47A103015003 AC POWER CORD UL 22AWG L150cm BLACK YISHENG 1
Substitute N/A W47A103015004 FFC WIRE CY050408001 P=1.0mm 30PIN L150mm HUNG FU 1
44 N/A W47B101030001 FFC WIRE CY050408001 P=1.0mm 30PIN L150mm HANQUAN 1
45 B-00008053 XLM1700390015-SF
POWER BOARD+INVERTER BOARDASSY PI-SB03 24V+5V LM/17''/19'' LCD
MONITOR FOR VIEWSONIC REV:1
(
PHIHONG FEI HONG
)
1
Substitute N/A XLM1700390015-SH
POWER BOARD+INVERTER BOARDASSY PI-SB03 24V+5V LM/17''/19'' LCD
MONITOR FOR VIEWSONIC REV:1
(
UMEC HUAN LONG
)
1
46 C-00006583 XLM171A280003 BASE ASSY(midnight gray)LM/MR17I-AA BASE+RUBBER REV:1(GAOCHENG
)
1
47 N/A P441200200001 RUBBER CUSHION Φ12*H2m m BLACK 3M9448 WITH Glue 6
48 N/A P74AA997LM011-A BASE ABS HB GRAY Shoot shaping LM/MR17I-AA REV:1(GAOCHENG ) 1
49 N/A XLM171A380001 SHIELD ASSY LM/MR17I-AAA SHIELD+MYLA
R
1
50 N/A M711200LM0130-A SHIELD SPTE T=0.3mm LM/MR17I-AAA REV
:
1
51 N/A P369579010001 MYLAR L95*W79.5*T0.1mm WHITH ADHESIV
E
1
52 B-00006501 XLM191A040002 MAIN BOARD ASSY LM/MR19I-A
A
1
53 N/A A01F241615A21 IC EEPROM AT24C16 2500ns ATMEL SOIC-8 2K*8 (SMD) 1
54 N/A A03D111703G03
IC LINEAR IC VOLTAGE REGULATOR GL1117A-3.3 (INPUT 4.8~12V OUTPUT
3.3V
)
SOT-223 GTM LeadFree (SMD
)
1
Substitute N/A A03D111703A54 IC LINEAR VOLTAGE REGULATOR AP1117E33A SOT-223 ANACHIP (SMD) 1
55 N/A A03D111703U01
IC LINEAR VOLTAGE REGULATOR LD1117-18-A SOT-223 3PIN 1.8V UTC
(
SMD
)
1
Substitute N/A A03D111703A53 IC Linear voltage converter AP1117E18A SOT-223- 3Pin(SMD
)
1
Substitute N/A A03D916403R01 IC , Analog , Regulator , RT9164-18CG , SOT223-3 , Richte
k
1
56 N/A A07TV51202M02 IC MCU MTV512GMG 64K MYSON LQFP-48P Lead Free (SMD) 1
57 N/A A08D2023R2001 IC ASIC/SCALER RTD2023L PLCC-48P REALTEK Lead Free (SMD) 1
58 N/A BLM19VAM10116 BARE PCB LM/MR19V-AAAD MAIN BOARD 2SIDES FR-4 T1.6mm REV:1.
6
1
59 N/A C02205003C111 CAP MLCC NPO 5pF 50V ±0.25%(C) 0603 TAPPING (SMD) 3
60 N/A C02210003J111 CAP MLCC NPO 10pF 50V ±5% 0603 TAPPING (SMD) 2
61 N/A C02212003J111 CAP MLCC /NPO 12PF 50V ±5%(J) 0603 TAPPING (SMD) 1
62 N/A C02222003J111 CAP MLCC /NPO 22PF 50V ±5%(J) 0603 TPPING (SMD) 3
63 N/A C02310501K111 CAP MLCC X5R 1uF 16V ±10% (K) 0603 TAPING (SMD) 1
64 N/A C02410302K111 CAP MLCC X7R 10nF/25V±10%(K) 0603TAPPING (SMD) 1
65 N/A C02410403K111 CAP MLCC X7R 0.1UF/50V ±10%(K) 0603 TAPPING(SMD) 33
66 N/A C02447302K111 CAP MLCC/ X7R 0.047uF /25V ±10%(K) 0603 TAPPING(SMD) 6
67 N/A C02447401K111 CAP MLCC X7R 470nf 16V ±10%(K) 0603 TAPING lead free (SMD) 1
68 N/A C4021006M2431
CAP EC(S) -40~105℃ 10uF 25V ±20% (M) Φ5×H7mm P=2.5mm (DIP
)
2
69 N/A C4021014M2222
CAP EC(S) -40~105℃ 100uF 16V ±20% (M) Φ5×H11mm P=2.0mm (DIP
)
5
70 N/A C4022204M2322
CAP EC -40~105℃ 22UF/16V ±20%(M) ∮5*H5MM P=2.0MM (DIP
)
2
71 N/A C4024704M2422
CAP EC -40∘~105℃ 47UF/16V ±20% (M) ∮5*H7MM P=2.0MM (DIP) 1
72 N/A D00BAV9905G01 DIODE BAV99 SOT-23 GTM (SMD) 3
73 N/A D00L414803Y11 DIODE LL4148 SOD-123 YING SMD 4
74 N/A D01ZT52C03K01 DIODE BZT52C SOD-123 KINGWELL 5.6V (SMD) 6
75 N/A J4507270155B1
D-SUB H/D,15PIN,VGA PC99(LIGHT BLUE)DIP 90°,3 ROW,1285-15S-004-98C01,TEKCON
1
76 N/A J4509100102H1 FFC CONNECTOR P=1mm 10PIN 90° CF16061D0T0 HANQUAN (DIP) 1
77 N/A J4509100306H1 FFC CONN ,30 PIN,1.0,DIP 180°,1 ROW,Cvilux 16301V0T or compatibl
e
1
BOM LIST (VA903b-3)
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
59
Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty
78 N/A L004100201101
BEAD Chip Beads DDY160808U011MB 10Ω 200mA 0603(1608) TAPING MAGIC
LEAD FREE
(
SMD
)
3
79 N/A L013121302A11
CHIP BEAD Ferrite ChipBeads (high current) WB201209B601QLT02 120Ω 3000mA 1206
Walsin
(
SMD
)
5
80 N/A Q441240047151 CRYSTAL QUARTZ/ 24MHZ 30PPM 20PF 49US CRE (DIP) 2
81 N/A R070000J10311 RES CHIP 0Ω ±5%(J) 1/10W 0805 TAPPING (SMD)(Y180320000J0) 2
82 N/A R070000J20111 05: RESISTOR.RES CHIP 0Ω ±5%(J).1/8W 0603 TAPPING (SMD)...... 6
83 N/A R070331J10111 RES CHIP 330Ω ±5%(J) 1/10 0603 TAPPING (SMD) 2
84 N/A R070470J10111 RESISTOR.RES CHIP 47Ω±5%(J) 1/10W.0603 TAPPING (SMD) 3
85 N/A R070750J10111 RESISTOR.RES CHIP 75Ω ±5%(J) 1/10W.0603 TAPPING (SMD)...... 3
86 N/A R071000J10111 RES CHIP 100Ω ±5%(J) 1/10 0603 TAPPING (SMD) 10
87 N/A R071001J20111 05: RESISTOR.RES CHIP 1KΩ ±5%(J) 1/8W.0603 TAPPING (SMD)...... 5
88 N/A R071002J20111 05: RESISTOR.RES CHIP 10KΩ ±5%(J) 1/8W.0603 TAPPING(SMD)...... 3
89 N/A R071003J10111 RES CHIP 100KΩ ±5%(J) 1/1 0603 TAPPING (SMD) 1
90 N/A R071004J30111 RES CHIP 1MΩ ±5%(J) 1/16W 0603 TAPPING (SMD) 1
91 N/A R071502F30111 RES CHIP 15KΩ ±1%(F) 1/16 0603 TAPPING (SMD) 1
92 N/A R072001J30111
RES CHIP 2KΩ ±5%(J) 1/16W 0603 TAPPING （SMD)(Y180222001J0) 3
93 N/A R072200J20111 05: RESISTOR.RES CHIP 220Ω ±5%(J) 1/8W.0603 TAPPING(SMD)...... 8
94 N/A R073002J10111 05: RESISTOR.RES CHIP 30KΩ±5%(J) 1/10W.0603 TAPPING (SMD)...... 1
95 N/A R074701J20111 RESISTOR.RES CHIP 4.7KΩ ±5%(J) 1/8W.0603 TAPPING(SMD)...... 9
96 N/A R076801J10111 RES CHIP 6.8KΩ ±5%(J)1/10W 0603 TAPING (SMD) 2
97 N/A R144701J20112 RES ARRAY 4.7KΩ ±5%(J) 1/10W 8P4R 3216 TAPPING (SMD) 6
98 N/A T00T390402G01 TR GMBT3904 SOT-23 GTM (SMD) 3
99 N/A T00T390602G01 TR GMBT3906 SOT-23 GTM (SMD) 4
100 N/A T01A340102A21 XSTR AO3401/ST3401, SOT- 23;3 , Alpha & Omega/S
T
1
101 N/A Y640307001*1 JACK PHONE EAR (TJ312-5BP- 1) 1
102 N/A Y64115HB06*1
CONNECTOR 180℃ 2mm 6PIN 1
103 B-00006502 XLM191A050001 KEY BOARD ASSY LM/MR19I-AAA 1
104 N/A BLM191AB10113 BARE PCB LM/MR19I-AAA BUTTON BOARD 1SIDE FR-1 T1.6mm REV:1.3 1
105 N/A D462102211201 LED,Φ3.0x5.3 mmP=2.54 YELLOW/GREEN (DIP) 1
106 N/A J4509100102H1 FFC CONNECTOR P=1mm 10PIN 90° CF16061D0T0 HANQUAN (DIP) 1
107 N/A P764P295LM010 SWITCH PA66 BLACK LCDMONITOR SERIES REV:0 5
108 C-00008088 XLM191A100003 BEZEL ASSY(midnight gray)LM/MR19I-AA BEZEL+BUTTO
N
1
109 N/A P727A997LM040-C BEZEL ABS HB GRAY PRINT LM/MR19I-AA REV:0 1
110 PL-00006589 P763P398LM020-B FUNCTION BUTTON PC SILVER PAINT LM/MR17I-AAA REV:0(GAOCHENG ) 1
111 C-00008089 XLM191A110001 HOUSING ASSY(midnight gray) LM/MR19I-AA RGB ONL
Y
1
112 N/A M105223004401 MACHINE SCREW Bouding Φ3.0*L6mm NICKEL 2
113 N/A M410810130001 SCREW Φ4.0*L8mm NICKEL WITH WASHER 4
114 N/A M627700LM0270-E Holder SECC LM/MR19I- AA L114*W67.75*H8.1*T1.5mm REV:
0
1
115 N/A P728A997LM030-A HOUSING ABS HB GREY INJECION LM/MR19I-AA RGB ONLY REV:0 1
116 N/A V300800000001
GLUE 50g/BOTTLE (﹕-60℃~+200℃) 0.01
117 HW-00008013 XLM191A200001 BRACKET ASSY(midnight gray)LM/MR19I-AA bracket+hinge+screw(GAOCHENG
)
1
118 N/A M155234008401
SCREW plastics,be attacked Low carbon steel 十/PWΦ4.0*L8mm NICKEL 1
119 N/A M155234010401
SCREWplastics,be attacked Low carbon steel 十/PWΦ4.0*L10mm NICKEL 2
120 N/A M701900LM0190-K SCREW Φ4.0*L8mm NICKEL WITH WASHER 1
121 N/A P711A997LM010-A Bracket ABS HB GRAY INJECION LM/MR17I-AA REV:0 1
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
60
8. Exploded Diagram and Exploded Parts List
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
61
Item ViewSonic P/N Ref. P/N Description Q'ty
1 N/A E015-006-W (About 10mm*14mm) Bird logo 1
2 N/A E015-016-1-W VIEWSONIC 38MM 1
3 N/A P727A997LM040-C BEZEL ABS HB GRAY Printed LM/MR19I-AA REV:0 1
4 PL-00006589 P763P398LM020-B FUNCTION BUTTON PC SILVER LM/MR17I-AAA REV:0 1
5 B-00006502 XLM191A050001 KEY BOARD ASSY LM/MR19I-AAA 1
6 N/A M105243005401 SCREW MACHINE (Binding) Φ3.0mm L5mm NICKEL 13
7 E-00008009 E34862190H304
LCD MODULE HSD190ME13-A10 1280×1024 [SX] 19" LVDS
HANNSTAR LEAD FREE
1
8 N/A M115233008401 SCREW TA Φ3.0*L8.0mm NICKEL Washer(Φ10.0mm) 2
9 N/A M621700LM0390-G Bracket SECC LM/MR19I-AAA REV:0 1
10 B-00006501 XLM191A040002 MAIN BOARD ASSY LM/MR19I-AA 1
11 B-00006503 XLM1700390010
POWER BOARD+INVERTER BOARD ASSY PI-SB03 24V+5V LM/17''/19''
LCD MONITOR FOR VIEWSONIC
1
12 N/A M105244006401 MECHENICAL SCREW WITH NI 1
13 N/A P369579010001 MYLAR L95*W79.5*T0.1mm WHITH ADHESIVE 1
14 N/A M711200LM0130-A Shield SPTE LM/MR17I-AAA REV: 1
15 N/A P612012010001 RUBBER FOOT ROUND Φ12*T2mm BLACK 6
16 N/A P74AA997LM010-A BASE ABS HB GRAY LM/MR17I-AA REV:0 1
17 N/A P705A997LM030-A Back Cover ABS HB GRAY LM/MR17I-AA REV:0 1
18 N/A P711A995LM030-A Bracket ABS HB BLACK LM/MR17I-AAA REV:0 1
19 N/A M108224008401 MACHINE SCREW Φ4.0*L8mm NICKEL 4
20 N/A M701900LM0140-K Hinge SPCC NI LM/MR17I-AAA 1
21 N/A M155234008401 SCREW PLASTIC Φ4.0*L8mm NICKEL 3
22 N/A P440700450001 RUBBER CUSHION Φ7.0*H4.5mm BLACK 4
23 N/A M105243006401 MACHINE SCREW Φ3.0*L6mm NICKEL 2
24 N/A P728A995LM130-A HOUSING ABS HB BLACK LM/MR19I-AAA RGB+AUDIO REV:0 1
25 N/A M627700LM0270-E
Holder SECC WASHER LM/MR19I-AA L114*W67.75*H8.1*T1.5mm
REV:0
1
26 N/A M410810130001 VASA BKT T=0.8mm SECC WASHER 4
EXPLODED PARTS LIST (VA903b-3 )
ViewSonic Model Number: VS11372
Rev: 1a
Item ViewSonic P/N Ref. P/N Description Q'ty
1 N/A E015-006-W (About 10mm*14mm) Bird logo 1
2 N/A E015-016-1-W VIEWSONIC 38MM 1
3 N/A P727A901LMC60-C BEZEL ABS HB SILVER Print LM/MR19I-AAA REV:0 1
4 PL-00006589 P763P398LM020-B FUNCTION BUTTON PC SILVER LM/MR17I-AAA REV:0 1
5 B-00006502 XLM191A050001 KEY BOARD ASSY LM/MR19I-AAA 1
6 N/A M105243005401 SCREW MACHINE (Binding) Φ3.0mm L5mm NICKEL 13
7 E-00008009 E34862190H304
LCD MODULE HSD190ME13-A10 1280×1024 [SX] 19" LVDS HANNSTAR
LEAD FREE
1
8 N/A M115233008401 SCREW TA Φ3.0*L8.0mm NICKEL Washer(Φ10.0mm) 2
9 N/A M621700LM0390-G Bracket SECC LM/MR19I-AAA REV:0 1
10 B-00006501 XLM191A040002 MAIN BOARD ASSY LM/MR19I-AA 1
11 B-00006503 XLM1700390010
POWER BOARD+INVERTER BOARD ASSY PI-SB03 24V+5V LM/17''/19''
LCD MONITOR FOR VIEWSONIC
1
12 N/A M105244006401 MECHENICAL SCREW WITH NI 1
13 N/A P369579010001 MYLAR L95*W79.5*T0.1mm WHITH ADHESIVE 1
14 N/A M711200LM0130-A Shield SPTE LM/MR17I-AAA REV: 1
15 N/A P612012010001 RUBBER FOOT ROUND Φ12*T2mm BLACK 6
16 N/A P74AA997LM010-A BASE ABS HB GRAY LM/MR17I-AA REV:0 1
17 N/A P705A997LM030-A Back Cover ABS HB GRAY LM/MR17I-AA REV:0 1
18 N/A P711A995LM030-A Bracket ABS HB BLACK LM/MR17I-AAA REV:0 1
19 N/A M108224008401 MACHINE SCREW Φ4.0*L8mm NICKEL 4
20 N/A M701900LM0140-K Hinge SPCC NI LM/MR17I-AAA 1
21 N/A M155234008401 SCREW PLASTIC Φ4.0*L8mm NICKEL 3
22 N/A P440700450001 RUBBER CUSHION Φ7.0*H4.5mm BLACK 4
23 N/A M105243006401 MACHINE SCREW Φ3.0*L6mm NICKEL 2
24 N/A P728A995LM130-A HOUSING ABS HB BLACK LM/MR19I-AAA RGB+AUDIO REV:0 1
25 N/A M627700LM0270-E
Holder SECC WASHER LM/MR19I-AA L114*W67.75*H8.1*T1.5mm REV:0
1
26 N/A M410810130001 VASA BKT T=0.8mm SECC WASHER 4
EXPLODED PARTS LIST (VA903m-3 )
ViewSonic Model Number: VS11372
Rev: 1a
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
62
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
63
PACKING FOR SHIPPING
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
64
Item ViewSonic P/N Ref. P/N DESCRIPTION Qty
1 N/A F300270000037
PLASTIC BAG LDPE L700*W(500+140)*T0.04m
m
1
2 P-00008073 F4007K4191A01
CARTON C(K4K) LM/MR19I-AAA L485*W163*H503mm for
viewsonic(VA903b
)
1
3 P-00008071 F20133191A002
POLYETHYLENE-L EPS LM/MR19I-AAA L155*W155*H483mm
1
4 F20143191A002
POLYETHYLENE-R EPS LM/MR19I-AAA L155*W155*H483mm
1
5 A-00006505 W402221509531
AC POWER CORD US Spec 22AWG L150cm BLACK
1
6 CB-00005758 W0026918A0142
AUDIO CABIE 26AWG UL2547 L=1800mm 6C BLACK
1
7 N/A W0926417AQ951
VGA CABLE 30AWG UL20276 L1800mm 15PIN Blac
k
1
8 N/A F801190000017
CD Manual LM/MR17I-AA VIEWSONIC VA703b INNOLUX
REV:0
1
9 N/A F300272501501
PLASTIC BAG LDPE L250*W150*T0.08m
m
1
10 N/A N/A
Monitor Head Onl
y
1
11 P-00006586 F300250000070
PLASTIC BAG PE L610*W510*T0.04m
m
1
12 C-00006583 XLM171A280003 BASE ASSY LM/MR17I-AAA BASE+RUBBER(Midnight Gray) 1
PACKING PARTS LIST (VA903b-3 )
ViewSonic Model Number: VS11372
Rev: 1a
Item ViewSonic P/N Ref. P/N Description Q'ty
1
N/A F300270000037 PLASTIC BAG LDPE L700*W(500+140)*T0.04mm
1
2
P-00008074 F4007K4191A02
CARTON C(K4K) LM/MR19I-AAA L485*W163*H503mm
for viewsonic(VA903m)
1
3
P-00008071 F20133191A002
POLYETHYLENE-L EPS LM/MR19I-AAA
L155*W155*H483mm
1
4
P-00008072 F20143191A002
POLYETHYLENE-R EPS LM/MR19I-AAA
L155*W155*H483mm
1
5
A-00006505 W402221509531 AC POWER CORD US Spec 22AWG L150cm BLACK
1
6
CB-00005758 W0026918A0142 AUDIO CABIE 26AWG UL2547 L=1800mm 6C BLACK
1
7
N/A W0926417AQ951 VGA CABLE 30AWG UL20276 L1800mm 15PIN Black
1
8
N/A F801190000017
CD Manual LM/MR17I-AA VIEWSONIC VA703b
INNOLUX REV:0
1
9
N/A F300272501501 PLASTIC BAG LDPE L250*W150*T0.08mm
1
10
Monitor Head Only
1
11
P-00006586 F300250000070 PLASTIC BAG PE L610*W510*T0.04mm
1
12
C-00008090 XLM171A280002 BASE ASSY LM/MR17I-AAA BASE+RUBBER BLACK
1
PACKING PARTS LIST (VA903m-3 )
ViewSonic Model Number: VS11372
Rev: 1a
Item ViewSonic P/N Ref. P/N Description Q'ty
1
N/A F300270000037 PLASTIC BAG LDPE L700*W(500+140)*T0.04mm
1
2
P-00008074 F4007K4191A02
CARTON C(K4K) LM/MR19I-AAA L485*W163*H503mm
for viewsonic(VA903m)
1
3
P-00008071 F20133191A002
POLYETHYLENE-L EPS LM/MR19I-AAA
L155*W155*H483mm
1
4
P-00008072 F20143191A002
POLYETHYLENE-R EPS LM/MR19I-AAA
L155*W155*H483mm
1
5
A-00006505 W402221509531 AC POWER CORD US Spec 22AWG L150cm BLACK
1
6
CB-00005758 W0026918A0142 AUDIO CABIE 26AWG UL2547 L=1800mm 6C BLACK
1
7
N/A W0926417AQ951 VGA CABLE 30AWG UL20276 L1800mm 15PIN Black
1
8
N/A F801190000017
CD Manual LM/MR17I-AA VIEWSONIC VA703b
INNOLUX REV:0
1
9
N/A F300272501501 PLASTIC BAG LDPE L250*W150*T0.08mm
1
10
Monitor Head Only
1
11
P-00006586 F300250000070 PLASTIC BAG PE L610*W510*T0.04mm
1
12
C-00008090 XLM171A280002 BASE ASSY LM/MR17I-AAA BASE+RUBBER BLACK
1
PACKING PARTS LIST (VA903m-3 )
ViewSonic Model Number: VS11372
Rev: 1a
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
65
9. Block Diagram
ANA L O G
RGB
Co l oc k
GE N
Pa n el
In t er f a ce
Tr i pl e
AD C
In t er f a ce
Ho s t
In t er f a ce
EEP R O M
AT2 4 C 1 6
Key p a d
ARAGABHSVS
Aud i o
Amp .
APA 20 6 5
Cry s t a l
24MH Z
LVDSTra n
smi t t
er
Swi t c h
A03 4 0 1
Re a lt e k
RT D 25 2 3 B/
RT D 20 2 3 L
3.3 V
Dig i t a l
DVI
SCL
SDA
+,-, D ow n
Aut o , R ig h t
XIN
XOU T
24M H Z
PHD , PCL K
PHS ,P VS
RE 「7 : 0」,R O「7: 0」
GE 「7 : 0」G O 「7: 0」
BE 「7 : 0」BO 「7: 0」
TX0+ TX0-
TX1+ TX1-
TX2+ TX2-
17p a n e l
DC
PO W E R
5V s u p pl y to pa n el
3.3 V s u p pl y c h i p
RTD 2 5 2 3B/R TD 2 0 2 3La n d
mtv 5 1 2
Pow e r
Sup p l y
ON / O F F
Li n e
In
Spe a k e r
Out
MC U
MT V 5 1 2 6 4 K B
XOU T
24M H Z
Bac k l i gh t
Con t r o l
Inv e r t er
AC -I N
PO W E( 9 0 V~ 2 64 V )
DC
PO W ER
Aud i o (5V)
B acklight
ANA L O G
RGB
Co l oc k
GE N
Pa n el
In t er f a ce
Tr i pl e
AD C
In t er f a ce
Ho s t
In t er f a ce
EEP R O M
AT2 4 C 1 6
Key p a d
ARAGABHSVS
Aud i o
Amp .
APA 20 6 5
Cry s t a l
24MH Z
LVDSTra n
smi t t
er
Swi t c h
A03 4 0 1
Re a lt e k
RT D 25 2 3 B/
RT D 20 2 3 L
3.3 V
Dig i t a l
DVI
SCL
SDA
+,-, D ow n
Aut o , R ig h t
XIN
XOU T
24M H Z
PHD , PCL K
PHS ,P VS
RE 「7 : 0」,R O「7: 0」
GE 「7 : 0」G O 「7: 0」
BE 「7 : 0」BO 「7: 0」
TX0+ TX0-
TX1+ TX1-
TX2+ TX2-
17p a n e l
DC
PO W E R
5V s u p pl y to pa n el
3.3 V s u p pl y c h i p
RTD 2 5 2 3B/R TD 2 0 2 3La n d
mtv 5 1 2
Pow e r
Sup p l y
ON / O F F
Li n e
In
Spe a k e r
Out
MC U
MT V 5 1 2 6 4 K B
XOU T
24M H Z
Bac k l i gh t
Con t r o l
Inv e r t er
AC -I N
PO W E( 9 0 V~ 2 64 V )
DC
PO W ER
Aud i o (5V)
B acklight
ANA L O G
RGB
Co l oc k
GE N
Pa n el
In t er f a ce
Tr i pl e
AD C
In t er f a ce
Ho s t
In t er f a ce
EEP R O M
AT2 4 C 1 6
Key p a d
ARAGABHSVS
Aud i o
Amp .
APA 20 6 5
Cry s t a l
24MH Z
LVDSTra n
smi t t
er
Swi t c h
A03 4 0 1
Re a lt e k
RT D 25 2 3 B/
RT D 20 2 3 L
3.3 V
Dig i t a l
DVI
SCL
SDA
+,-, D ow n
Aut o , R ig h t
XIN
XOU T
24M H Z
PHD , PCL K
PHS ,P VS
RE 「7 : 0」,R O「7: 0」
GE 「7 : 0」G O 「7: 0」
BE 「7 : 0」BO 「7: 0」
TX0+ TX0-
TX1+ TX1-
TX2+ TX2-
17p a n e l
DC
PO W E R
5V s u p pl y to pa n el
3.3 V s u p pl y c h i p
RTD 2 5 2 3B/R TD 2 0 2 3La n d
mtv 5 1 2
Pow e r
Sup p l y
ON / O F F
Li n e
In
Spe a k e r
Out
MC U
MT V 5 1 2 6 4 K B
XOU T
24M H Z
Bac k l i gh t
Con t r o l
Inv e r t er
AC -I N
PO W E( 9 0 V~ 2 64 V )
DC
PO W ER
Aud i o (5V)
B acklight
40mil 40mil
PANEL POWER
5DVCC
BKLT-EN
LED-2
LED-1
BKLT-EN
J1
LED-2
LED-1
5DVCC
BKLT-VBRI
BKLT-VBRI
DGND
DGND
DGND
DGND
5V
5DVCC
LED2
LED1
DGND
3.3V PANEL_VCC
5V
5V
ONPANEL_5V
DGND
VBRI
INVON
POWER
MENU
EXIT
DOWN
UP
MUTE
3.3DVCC
3.3V
MCU_VCC
5DVCC
R2 NC/0
R17 1K
R8 2K
R5
100k
R16
10K/NC
Q4
2N3906
1
23
R4
10K
Q5
2N3906
1
23
R14 220
R120 220
C10
1uF
Q1
AO3401
1
32
+
C70
47uF_16V/NC
L1FEB/1206
Q6
KST3904
1
2 3
FB1 FEB/1206
+
C7
100uF_16V
+
C1
100uF_16V
JP1
HEADER 13/SM
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
R121
220
+
C6
100uF_16V
R123
220
R117 220
C11
100nF
R118 220
C8
100nF
R10
330
R127 1K
R126
1K
CN1
2.0_11pin
1
2
3
4
5
6
R2 NC/0
C127
100nF
R116 220
R6
1K
C9
NC
R13 1K
R11
330
C5
0.01uF
R119
220
C130
100nF
R122 220
R9 NC
C131
100nF
L2 FEB/1206
C3
22uF/16V
U3
1117-33/AIC1084-33
3
2
1
VIN
VOUT
GND
R15 NC
R12
4.7K
R7
4.7K
Q3
KST3904
1
2 3
C129
100nF
R3
0/NC
C132
100nF
C128
100nF
C2
100nF
C4
100nF
Q2
KST3904
1
2 3
Model
Title
Date Rev:
ViewSonic Corporation
10. Schematic Diagrams
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
66
Model
Title
Date Rev:
ViewSonic Corporation
LED-1
LED-2
UP
DOWN
MENU
MUTE
EXIT
POWER
MUTE
UP
DOWN
EXIT
MENU
DGND
JP4
HEADER 13/SM
6
5
4
3
2
1
6
5
4
3
2
1
LED1
A1C
A2
JP3
HEADER 13/SM
6
5
4
3
2
1
6
5
4
3
2
1
SW3
1 2
3 4
SW6
1 2
3 4
SW5
1 2
3 4
SW4
1 2
3 4
SW2
1 2
3 4
JP5
HEADER 13/SM
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
SW1
1 2
3 4
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
67
OSD
Model
Title
Date Rev:
ViewSonic Corporation
E
VOLUME3
STBY
3
5DVCC3
DGND
AGND
5VA
5VA
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
CA13
0.1uF
FBA1
BED/6
CA2
0.1uF
FBA10 BED/6
CA1
0.1uF
FBA5 BED/6
CNA3
2PIN 2.0mm180"
1
2
CNA2
2PIN 2.0mm180"
1
2
+
CA12
2.2uF_16V
RA5
47K
FBA8 BED/6
RA8
NC/1R2
+
CA3
10uF_16V
FBA2
FEB/1206
CA6
NC/180PF
UA1
APA20
65
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
ROUT+
SHUTDOWN
RIN-
GND
GND
VOLUME
LOUT+
LIN-
VDD
LOUT-
BYPASS
GND
GND
SE/BTL
ROUT-
VDD
CA4
1uF
FBA4
BED/6
CNA1
PHONEJACK 5P
1
2
3
4
5
CA10
NC/180PF
RA9
NC/1R2
FBA6
BED/6
CA8
1uF
RA7
47K
CA16
NC/0.1uF
+
CA11
100uF_16V
FBA9 BED/6
RA6
10K
CA15
NC/0.1uF
RA4
10K
FBA7 BED/6
RA3 15K
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
68
Model
Title
Date Rev:
ViewSonic Corporation
Closed to MCU
DGND
MCU_RESET
MCU_VCC
MCU_VCC
IICSCL
IICSDA
IICSDA
MCU_RESET
IICSCL
MCU_VCC
MCU_VCC
DVII_DETECT
DVI_POWER
VOLUME
DGND
DOWN
MENU
POWER
VGA5V_1
LED1
DDC2_SCL
DDC1_SCL
UP
DGND
ONPANEL_5V
5DVCC
RESET_MCU
RTD_SCSB
3.3DVCC
INVON
RTD_SCLK
STBY
EXIT
DSUB_DETECTLED2
DDC1_SDA
MUTE
MCU_VCC
3.3DVCC
MCU_VCC
Y224MHz
R151
10K
MTV512MG
U5
MTV512
44
45
46
47
48
1
2
3
4
8
151617
414039383736353433
32
28
29
20
21
22
23
24
25
26
27
5
9
10
11
12
13
14
6
P5.0/DA0
P5.1/DA1
P5.2/DA2
P5.3/DA3
P5.4/DA4
P5.5/DA5
HSCL2/P5.6
HSDA2/P5.7
RST
HDA1/TX/P3.1
XTAL2
XTAL1
VSS
VCC
P1.0
P1.1
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7
NC
VSYNC
NC
P6.0/AD0
P6.1/AD1
P6.2/AD2
P6.3/AD3
P6.4
P6.5
P6.6/CLK0
P6.7
HCL1/RX/P3.0
P3.2/INT0
P3.3/INT1
P3.4/T0
P3.5/T1
P7.6/CLKO
P7.7
NC
R152
6.8K
C125
10pF
R149 100
U4
X24C16 (SMD)
8
5
6
4
7
3
2
1
5DVCC
SDA
SCL
GND
TEST
A2
A1
A0
+
C123
100uF
Q11
2N3906
1
2 3
R142
4.7K
R148
100
+
C122
10uF_16V
R146 100
R138 100
RP1
472_4
1 8
2 7
3 6
4 5
R147 100
Q10
2N3906
1
2 3
R141
0
R139
4.7K
R150
10K
D28
1N4148
1 2
R143
NC/4.7K
R140 100
C126
10pF
C121
100nF
D29
1N4148
12
D27
1N4148
1 2
RP3
472_4
1 8
2 7
3 6
4 5
C124
100nF
R144
4.7K
R137
4.7K
RP5
472_4
1 8
2 7
3 6
4 5
RP4
472_4
1 8
2 7
3 6
4 5
R136
4.7K
D30
1N4148
1 2
RP2
472_4
1 8
2 7
3 6
4 5
R145
NC/4.7K
D26
1N4148
1 2
RP6
472_4
1 8
2 7
3 6
4 5
SDIO1
RTD_SD3/SDI
SDIO0
DDC2_SDA
SDIO2
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
69
Closed to connector
Closed to connectorClosed to connectorClosed to connector
G0-
DDC1_SCL
BIN
GIN
RIN
R0-
R0+
VGA5V_1
CONNECT
DDC1_SDA
B0-
B0+
DDC1_SDA
CONNECT
VGA5V_
1
BIN
DDC2_SCL
DDC2_SDA
DDC1_SCL
G0
+
GINRIN
SOG0
AHS0
AVS0
RX
0P
RX0N
RX1P
RX1N
RX
2P
RX2N
RXCN
RXCP
ADC_GND
DGND
ADC_GNDADC_GND
DVI_POWER
DDC2_SCL
DVII_DETECT
AVS0
AHS0
B0+
DGND
3.3DVCC
B0-
SOG0
G0-
R0+
R0-
DDC1_SCL
DDC1_SDA
DSUB_DETECT
VGA5V_1
G0+
R1.8DVCC
RXCN
RX2N
RXCP
RX1P
RX0P
RX1N
RX2P
RX0N
DGND
R1.8DVCC
R1.8DVCC
R1.8DVCC
D11
LL5232B 5.6V 5%
R129
10
C117
100nF
R19 100
RG1
1M
R20
2K
C21 47nF
R26 0
C118
100nF
D23
BAV99
3
1
2
R30 100
R31 0
C115
100nF
D21
BAV99
3
1
2
R39 100
R24 75
C119
100nF
L6 FEB_0603
R128
10
D1
BAV99
3
1
2
R34 100
R23 47
C120
100nF
L7 FEB_0603
C112
NC/10pF
R21
2K
C110
100nF
R4010K 1/16W
R133
10
VGA_R+
VGA_G+
VGA_B+
DGND
VGA_R-
VGA_G
-
VGA_B-
DGND
DDCSDA
DDCSCL
HSIN
VSIN
VGA5V
DGND
DGND
U1
VGA_CON15
1
2
3
4
5
6
7
8
9
10
12
13
14
15
11
R27 100
D2
BAV99
3
1
2
R18 100
D18
BAV99
3
1
2
D17
MLL5232B 5.6V
D4
UDZ5.6B
C12 47nF
C105
100nF
R28 75
D14
LL5232B 5.6V 5%
D9
UDZ5.6B
R134
10
R131
10
C108
100nF
C20 47nF
C13
22pF
D3
BAV99
3
1
2
R132
10
C104
100nF
C23 47nF
C106
100nF
C14
12pF
C116
100nF
C15 5pF
L5 FEB/ 0R-0603
R130
10
D24
BAV99
3
1
2
C18 5pF R29 47
D19
BAV99
3
1
2
D22
BAV99
3
1
2
C19 47nF
L8 FEB_0603
R32 47
D5
UDZ5.6B
D8
UDZ5.6B
D10
UDZ5.6B
R135
10
D25
BAV99
3
1
2
R25 100
C109
100nF
C107
100nF
C16 47nF
C17 470nF
R22 0
C22 5pF
C25
100nF
R33 75
D15
LL5232B 5.6V 5%
D20
BAV99
3
1
2
C113
100nF
JP2
JACK
1
2
3
4
5
6
7
8
C1
C4
9
10
11
12
13
14
15
16
C2
17
18
19
20
21
22
23
24
C3
C5
25
26
DAT2-
DAT2+
2/4shield
DAT4-
DAT4+
DDC SCL
DDC SDA
VSYNC
R
HSYNC
DAT1-
DAT1+
1/3shield
DAT3-
DAT3+
DVI+5V
SYNC GND
HPD
G
DAT0-
DAT0+
0/5shield
DAT5-
DAT5+
clk shield
clk+
clk-
B
RGB GND
SHELL1
SHELL2
C111
NC/10pF
D16
LL5232B 5.6V 5%
C114
100nF
DDC2_SDA
Model
Title
Date Rev:
ViewSonic Corporation
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
70
Model
Title
Date Rev:
ViewSonic Corporation
SCALER
Closed to Scaler
DDC1_SDA
DDC1_SCL
XO
XI
RX2P
RX2N
RX1P
RX1N
RX0P
RX0N
RXCP
RXCN
BJT_B
RXE3RXE3+
RXO3+
RXE1+
RXE1-
RXE0+
RXE0-
RXEC+
RXEC-
RXO0RXO0+
RXO1RXO1+
RXO2RXO2+
RXOCRXOC+
RXO3-
RXE2RXE2+
33VRST_REF
1.8CC
XI
RST_OUT
DDCSDA1
DDCSCL1
XO
RXE2-
RXE3+
RXO1+
RXE2+
RXOC-
RXE0-
RXO3-
RXE1+
RXE3-
RXE1-
RXO2+
RXO0+
RXO3+
RXO2-
RXO1-
RXEC-
RXO0-
RXOC+
RXE0+
RXEC+
PWM0
R0-
RXE1+
DGND
RXE3-
RXE2+
RXE0+
BJT_B
RXO3+
RXO2-
DGND
G0-
DGND
RXOC-
RXE1-
DDC1_SCL
RXOC+
RXE2-
PWM0
B0-
RXO2+
XO
AVS0
SOG0
RXE3+
XI
RXO1+
RST_OUT
RXO0-
G0+
RXO3-
1.8CC
DGND
RXE0-
RXEC-
RXO0+
DDC1_SDA
R3.3DVCC
RXO1-
B0+
33VRST_REF
1.8CC
R1.8DVCC
AHS0
R0+
RXEC+
G0-
B0-
R0+
B0+
R0-
SOG0
AVS0
G0+
AHS0
BJT_B
3.3DVCC
RESET_MCU
RX1P
RX1N
RX2P
RX2N
RX0P
RX0N
RXCP
RXCN
DGND
PANEL_VCC
RTD_SCLK
RTD_SCSB
3.3DVCC
VBRI
RTD_SD3/SDI3
RESET_MCU3
RTD_SCLK3
RTD_SCSB3
R0+2
G0-2
AHS02
G0+2
AVS02
SOG02
B0-2
B0+2
R0-2
R1.8DVCC
R1.8DVCC
3.3DVCCR3.3DVCC
R3.3DVCC
R3.3DVCC
R3.3DVCC
3.3DVCC
R1.8DVCC
R3.3DVCC
L9
FEB/1206
C34
100nF
C29
100nF
RTD2523B( LVDS )
U2
22
21
23
24
37
25
26
27
38
28
29
31
39
40
5
10
7
6
13
8
9
16
11
12
14
15
17
18
127
128
126
125
2
3
4
1
47465972839510860718496
107
50
5157555453524858616263646566676869
121
120
73
74
75
76
77
78
79
80
81
82
85
86
87
88
89
90
91
92
93
94
97
98
99
100
101
102
103
104
105
114
115
118
119
122
123
124
113
112
19
20
30
33
32
36
35
34
56
49
106
109
110
111
116
117
70
ADC_GND
ADC_VDD
B0+
B0-
ADC_GND
SOG0
G0+
G0-
ADC_VDD
R0+
R0-
B1+ / V6
AHS1 / V0
AVS1 / VCLK
TMDS_TST / PWM0 / TCON2
TMDS_GND
TMDS_VDD
REXT
TMDS_VDD
RX2P
RX2N
TMDS_GND
RX1P
RX1N
RX0P
RX0N
RXCP
RXCN
XO
XI
DPLL_GND
DPLL_VDD
APLL_VDD
PLL_TEST1 / TCON0 / TCON3
PLL_TEST2 / TCON1 / TCON12
APLL_GND
VCCK
GNDK
PVCC
PVCC
PVCC
PVCC
PVCC
PGND
PGND
PGND
PGND
PGND
DDCSCL1 / TCON4
DDCSDA1 / TCON9
SCLK / TCON3
SDIO[3] / TCON0
SDIO[2] / TCON11
SDIO[1] / TCON7
SDIO[0] / TCON13
PWM1 / TCON0 / COUT
BJT_B
BB3P/BBLU7
BB3N/BBLU6
BB2P/BBLU5
BB2N/BBLU4
BB1P/BBLU3
BB1N/BBLU2
BCLKP/BGRN7
BCLKN/BGRN6
BG3P/BGRN5
DDCSCL2 / VCLK / TCON4
DDCSDA2 / V7 / TCON6
BG2P / TXE3+
BG2N / TXE3-
BG1P / TXEC+
BG1N / TXEC-
BR3P / TXE2+
BR3N / TXE2-
BR2P / TXE1+
BR2N / TXE1-
BR1P / TXE0+
BR1N / TXE0-
AB3P / TXO3+
AB3N / TXO3-
AB2P / TXOC+
AB2N / TXOC-
AB1P / TXO2+
AB1N / TXO2-
ACLKP / TXO1+
ACLKN / TXO1-
AG3P / TXO0+
AG3N / TXO0-
AG2P
AG2N
AG1P
AG1N
AR3P
AR3N
AR2P
AR2N
AR1P
SDIO[2] / V3 / TCON5
SDIO[3] / V4 / TCON9
SCSB / V5 / TCON7
SCLK / V6 / TCON3
TCON9 / PWM0
RESET_OUT
33VRST_REF
SDIO[1] / V2 / TCON8
SDIO[0] / V1 / TCON10
AVS0
AHS0
B1- / V7
G1+ / V4
G1- / V5
R1+ / V1
R1- / V2
SOG1 / V3
SCSB / TCON12
PWM2 / TCON1/TCON7
AR1N
33VPNLOUT
TCON13 / COUT
V0 / TCON2/PWM1
VCCK
GNDK
BG3N/BGRN4
RV1
0
+
C45
100uF_16V
R64
NC
Y1
24MHz
2
R55
15K
C38
100nF
R68
0
R69
NC/1K
C46
100nF
R56
30K
C28
22pF
+
C32
22uF_16V
CN2 CF1601S 30Pin-1.0H(Cvilux)(DIP)
1
2
3
4
6
8
10
12
14
16
18
20
22
24
26
28
30
7
9
11
13
15
17
19
21
23
25
27
29
5
R66 100
C42
100nF
C43
100nF
Q9
2N3906
312
C49
100nF
R112
4.7K
C47
100nF
C35
100nF
C30
100nF
+
C44
10uF_16V
R70 0
R47
6.8KNC
C39
100nF
C37
100nF
C31
100nF
R58
4.7K
R61
NC
+
C48
100uF_16V
R60 0
C40
100nF
R63
4.7K
Q8
2N3906
312
+
C36
10uF_16V
RTD2023L
U6
1
2
3
4
5
6
7
8
9
10
11
12
1314151617181920212223
24
36
35
34
33
32
31
30
29
28
27
26
25
4847464544434241403938
37
XO
XI
PLL_GND
AVS/VCLK
AHS/V0
B-/V1
B+/V2
G-/V3
G+/V4
SOG/V5
R-/V6
R+/V7
ADC_GND
ADC_VDD
PWM0/SDIO[3]
PWM1/DDCSCL/SCSB
PWM2/DDCSDA/SCLK
BJT_CTRL
VCCK
PGND
TXE3+
TXE3-
TXEC+
TXEC-
TXO2-
TXO2+
TXOC-
TXOC+
TXO3-
TXO3+
TXE0-
TXE0+
TXE1-
TXE1+
TXE2-
TXE2+
PLL_VDD
33VRST_REF
RESET_OUT
SCLK/PWM0
SCSB/PWM1/DDCSCL
SDIO[3]/PWM2/DDCSDA
VCCK
PGND
TXO0-
TXO0+
TXO1-
TXO1+
R59
NC
L10 FEB/1206
C27
22pF
L11
NC/FEB/1206
R67 100
R62
4.7K
R71 0
C33
100nF
C41
100nF
R65
1K
SDIO2
SDIO1
SDIO0
RTD_SD3/SDI
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
71
Model
Title
Date Rev:
ViewSonic Corporation
TOP
11. PCB Layout Diagrams
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
72
Model
Title
Date Rev:
ViewSonic Corporation
BOTTOM
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
73
Model
Title
Date Rev:
ViewSonic Corporation
DRILL DRAWING
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
74
Model
Title
Date Rev:
ViewSonic Corporation
MASK-TOP
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
75
Model
Title
Date Rev:
ViewSonic Corporation
MASK-BOTTOM
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
76
Model
Title
Date Rev:
ViewSonic Corporation
SMD-TOP
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
77
Model
Title
Date Rev:
ViewSonic Corporation
SILKSCREEN-BOTTOM
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
78
Model
Title
Date Rev:
ViewSonic Corporation
SILKSCREEN-TOP
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
79
ViewSonic Corporation Confidential - Do Not Copy VA903b-1_ VA903m-1
80
* Reader’s Response*
Dear Readers:
Thank you in advance for your feedback on our Service Manual, which allows continuous improvement
of our products. We would appreciate your completion of the Assessment Matrix below, for return to
ViewSonic Corporation.
Assessment
A. What do you think about the content of this Service Manual?
Unit Excellent Good Fair Bad
1. Precautions and Safety Notices
2. Specification
3. Front Panel Function Control Description
4. Circuit Description
5. Adjustment Procedure
6. Troubleshooting Flow Chart
7. Recommended Spare Parts List
8. Exploded Diagram and Exploded Parts List
9. Block Diagrams
10. Schematic Diagrams
11.PCB Layout Diagrams
B. Are you satisfied with this Service Manual?
Item Excellent Good Fair Bad
1. Service Manual Content
2. Service Manual Layout
3. The form and listing
C. Do you have any other opinions or suggestions regarding this service manual?
Reader’s basic dada:
Name:
Title:
Company:
Add:
Tel:
Fax:
E-mail:
After completing this form, please return it to ViewSonic Quality Assurance in the USA at facsimile
1-909-839-7943. You may also e-mail any suggestions to the Director, Quality Systems & Processes
(marc.maupin@viewsonic.com)
Loading...
