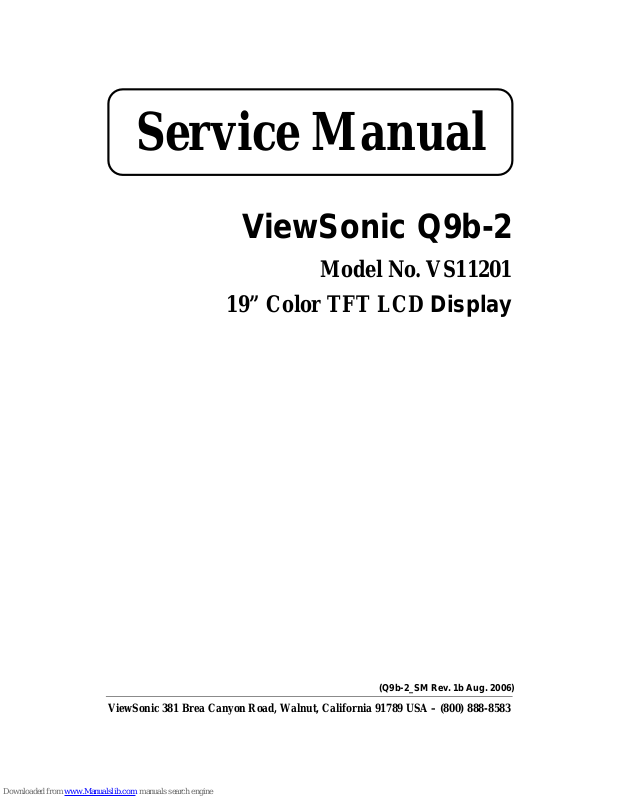

ViewSonic VS11201, Q9b-2 Service Manual

ViewSonic Q9b-2

Model No. VS11201

19” Color TFT LCD Display

(Q9b-2_SM Rev. 1b Aug. 2006)

ViewSonic 381 Brea Canyon Road, Walnut, California 91789 USA – [phone]

Service Manual

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

Copyright

Copyright © 2006 by ViewSonic Corporation. All rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written permission of ViewSonic
Corporation.

Disclaimer

ViewSonic makes no representations or warranties, either expressed or implied, with respect to
the contents hereof and specifically disclaims any warranty of merchantability or fitness for any
particular purpose. Further, ViewSonic reserves the right to revise this publication and to make
changes from time to time in the contents hereof without obligation of ViewSonic to notify any
person of such revision or changes.

Trademarks

Optiquest is a registered trademark of ViewSonic Corporation.
ViewSonic is a registered trademark of ViewSonic Corporation.
All other trademarks used within this document are the property of their respective owners.

Revision History

Revision SM Editing Date ECR Number Description of Changes Editor

1a 05/02/2006 Initial Release Jamie Chang

(updated RSPL, BOM, Spec.)

1b 08/22/2006

VS-E060267 Add 2nd panel source(HSD190ME-A10/A16)

Jamie Chang

VS-E060268

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

TABLE OF CONTENTS

1. Precautions and Safety Notices 1

2. Specification 5

3. Front Panel Function Control Description 14

4. Circuit Description 20

5. Adjustment Procedure 25

6. Troubleshooting Flow Chart 45

7. Recommended Spare Parts List 53

8. Exploded Diagram and Exploded Parts List 58

9. Block Diagram 61

10. Schematic Diagrams 62

11. PCB Layout Diagrams 69

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

1

1. Precautions and Safety Notices

1. Appropriate Operation

(1) Turn off the product before cleaning.
(2) Use only a dry soft cloth when cleaning the LCD panel surface.
(3) Use a soft cloth soaked with mild detergent to clean the display housing.
(4) Use only a high quality, safety approved AC/DC power cord.
(5) Disconnect the power plug from the AC outlet if the product will not be used for a long period of time.
(6) If smoke, abnormal noise, or strange odor is present, immediately switch the LCD display off.
(7) Do not touch the LCD panel surface with sharp or hard objects.
(8) Do not place heavy objects on the LCD display, video cable, or power cord.
(9) Do not use abrasive cleaners, waxes or solvents for your cleaning.
(10) Do not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas containing excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- In direct sunlight.

2. Caution

No modification of any circuit should be attempted. Service work should only be performed after you are thoroughly familiar

with all of the following safety checks and servicing guidelines.

3. Safety Check

Care should be taken while servicing this LCD display. Because of the high voltage used in the inverter circuit, the voltage is

exposed in such areas as the associated transformer circuits.

4. LCD Module Handling Precautions

4.1 Handling Precautions

(1) Since front polarizer is easily damaged, pay attention not to scratch it.
(2) Be sure to turn off power supply when connecting or disconnecting input connector.
(3) Wipe off water drops immediately. Long contact with water may cause discoloration or spots.
(4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
(5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
(6) Since CMOS LSI is used in this module, take care of static electricity and ensure human earth when handling.
(7) Do not open or modify the Module Assembly.
(8) Do not press the reflector sheet at the back of the module in any direction.
(9) In the event that a Module must be put back into the packing container slot after it was taken out of the

container, do not press the center of the CCFL Reflector edge. Instead, press at the far ends of the
CFL Reflector edge softly. Otherwise the TFT Module may be damaged.

(10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate or tilt the Interface

Connector of the TFT Module.

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

2

(11) After installation of the TFT Module into an enclosure (LCD monitor housing, for example), do not twist or

bend the TFT Module even momentarily. When designing the enclosure, it should be taken into consideration
that no bending/twisting forces may be applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.

(12) The cold cathode fluorescent lamp in the LCD contains a small amount of mercury. Please follow local

ordinances or regulations for disposal.

(13) The LCD module contains a small amount of materials having no flammability grade. The LCD module

should be supplied with power that complies with the requirements of Limited Power Source
(IEC60950 or UL1950), or an exemption should be applied for.

(14) The LCD module is designed so that the CCFL in it is supplied by a Limited Current Circuit (IEC60950

or UL1950). Do not connect the CCFL to a Hazardous Voltage Circuit.

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

3

Handing and Placing methods

Correct methods Incorrect methods

Only touch the metal frame of the LCD panel or the
front cover of the monitor, DO not touch the surfaceof
the POL

Surface of the LCD panel is pressed by fingers and that
may cause”mura”

Take out the monitor with cushions Taking out the monitor by grasping the LCD panel, that

May cause”mura”

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

4

Correct methods Incorrect methods

Place the monitor on a clean and soft foam pad Placing the monitor on a foreign objects, that could

scratch The surface of the "Panel" or cause "mura"

The panel is placed facedown the lap,that may cause
"mura"

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

5

2. Specification

2-1 GENERAL specification

Test Resolution & Frequency 1280x1024 @ 75Hz
Test Image Size Full Size

Contrast and Brightness Controls

Factory Default:
Contrast = 90%, Brightness = 100%

2-2 VIDEO INTERFACE

Input Connector (refer the appendix A) DB-15 (Analog)
Default Input Connector Defaults to the first detected input

Video Cable Strain Relief

Equal to twice the weight of the monitor for five
minutes

Video Cable Connector DB-15 Pin out Compliant 2B

Video RGB (Analog)
Separate Sync

Video Signals

TMDS (Digital)
Video Impedance 75 Ohms (Analog), 100 Ohms (Digital)
Maximum PC Video Signal 950 mV with no damage to monitor
Maximum Mac Video Signal 1250 mV with no damage to monitor
Sync Signals TTL
DDC2B Compliant with Revision 1.0
Sync Compatibility Separate Sync

Video Compatibility

Shall be compatible with all PC type computers,

Macintosh computers, and after market video

cards

Resolution Compatibility

640x350, 720x400, 640x480, 800x600, 832x624,

1024x768, 1152x864,

1152x870, 1280x960, 1280x1024
Exclusions Not compatible with interlaced video

2-3 USB INTERFACE

N/A

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

6

2-4 POWER SUPPLY

Internal Power Supply FSP FSP035-1PI01ZT
Input Voltage Range 90 to 264 VAC
Input Frequency Range 47.5 to 63 Hertz
Short Circuit Protection Output can be shorted without damage
Over Current Protection 5.0 A typical at 12.0 VDC
Leakage Current 3.5mA (Max) at 254VAC / 60Hz
Efficiency 80 % typical at 115VAC Full Load
Fuse Internal and not user replaceable
Power Dissipation 36W(typ) 40W(max)
Max Input AC Current 1.5 Arms @ 90VAC, 0.75 Arms @180VAC

Inrush Current (Cold Start)

50 A (max) @ 115VAC

90 A (max) @ 230VAC

Power Supply Cold Start

Shall start and function properly when under full

load, with all combinations of input voltage, input

frequency, and operating temperature.

Power Supply Transient Immunity

Shall be able to withstand an ANSI/IEEE

C62.41-1980 6000V 200 ampere ring wave

transient test with no damage.
Power Supply Line Surge Immunity

Shall be able to withstand 1.5 times nominal line

voltage for one cycle with no damage.

Power Supply Missing Cycle Immunity

Shall be able to function properly, without reset or

visible screen artifacts, when ½ cycle of AC power

is randomly missing at nominal input.

Power Supply Acoustics

The power supply shall not produce audible noise

that would be detectable by the user. Audible

shall defined to be in compliance with ISO 7779

(DIN EN27779:1991) Noise measurements of

machines acoustics. Power Switch noise shall not

be considered.
Power Saving Operation(Method) VESA DPMS Signaling

On Mode < 36W(Typ) / 40W (max)
Power Consumption

Active Off < 1 W @ 120 Vac /

< 1.5W @ 220Vac
Recovery Time On Mode = N/A, Active Off < 3 sec

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

7

2-5 ELECTRICAL REQUIREMENT
Horizontal / Vertical Frequency

Horizontal Frequency 30 – 80 kHz
Vertical Refresh Rate 55 – 75 Hz.
Maximum Pixel Clock 135 MHz
Sync Polarity Independent of sync polarity.

Timing Table

Analog

Item

Timing

Separated

Composite

SOG

Digital - TMDS

Remark

1 640 x 350 @ 70 Hz, 31.5 KHz 

The vertical image size might not full

screen

(Vertical position = center).
2 640 x 480 @ 60 Hz, 31.5 KHz 
3 640 x 480 @ 67 Hz, 35 KHz 
4 640 x 480 @ 72 Hz, 37.9 KHz 
5 640 x 480 @ 75 Hz, 37.5 KHz 
6 720 x 400 @ 70 Hz, 31.5 KHz 
7 800 x 600 @ 56 Hz, 35.1 KHz 
8 800 x 600 @ 60 Hz, 37.9 KHz 
9 800 x 600 @ 72 Hz, 48.1 KHz 

10

800 x 600 @ 75 Hz, 46.9 KHz 
11 832 x 624 @ 75 Hz, 49.7 KHz 
12

1024 x 768 @ 60 Hz, 48.4 KHz 

13

1024 x 768 @ 70 Hz, 56.5 KHz 

14

1024 x 768 @ 75 Hz, 60.2 KHz 

15

1152 x 864 @ 75 Hz, 67.5 KHz 

16

1152 x 870 @ 75 Hz, 68.7 KHz 

17

1280 x 960 @ 60 Hz, 59.7 KHz 
18 1280 x 1024 @ 60 Hz, 64 KHz 
19 1280 x 1024 @ 75 Hz, 80 KHz 

Primary Presets

1280x1024 @ 75Hz

User Presets

Number of User Presets (recognized timings) Available: 10 presets total in FIFO configuration

Changing Modes

● Maximum Mode Change Blank Time for image stability : 3 seconds (Max), excluding “Auto Adjust” time

● The monitor needs to do “Auto Adjust” the first time a new mode is detected

(see section “0-Touch™ Function Actions”)

● While running Change Mode, Auto Adjust or Memory Recall, the image shall blank

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

8

2-6 FRONT PANEL CONTROLS AND INDICATORS
Front Panel Hardware Controls

Power Switch (Front Head) Power Control, soft Power Switch.
Power LED (Front Head) Green – ON

Orange – Active Off

Dark = Soft Power Switch OFF
Front Panel Controls
(Head; From left to right)

Button Icon Function
Button1

Select(backward)

Button2

Select(forward)

Button3

Power

Button4

-

Adjust Down

Button5

+

Adjust Up

Reaction Time OSD must fully appear within 0.5s after pushing Button 1

Short Cuts Function from the button(s)

Button 1 Auto Image Adjust.
Button 2 Main Menu
Button 4 Mute on/off
Button 5 Volume OSD
Button 4 + Button 5
+ Button 3

Factory Mode
(The Burning mode is build in Factory mode)

Remark : All the short cuts function are only available while OSD off

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

9

Function descriptions

Main Menu Controls

The Main Menu OSD include most of control functions.
Please refer to APPENDIX B (Main Menu OSD Table) for the detail.

Factory Default OSD Actions

Memory Recall action on the analog and digital mode as below

1. Set the factory defaults as shown in Section 2-8

2. Clean all the mode setting buffer

3. Execute Auto Image Adjust

0-Touch™ Function Actions

1. Execute Auto Image Adjust when new mode detected, and save the settings to buffer for
further use

2. It should be reset by Memory Recall function
(Should not reset by power off, power unplug and others)
OSD Auto Save
The OSD shall save new settings when it is turned off by the user or when it times out.
There shall not be a separate save

Factory Defaults

Item Defaults
Contrast 90
Brightness 100
Color Setting NATIVE

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

10

2-7 AUDIO INTERFACE (SPEAKER SPECIFICATION)

Speaker specification

Line input connection 3.5 mm stereo jack
Line input signal 0.7 Vrms
Line input impedance 18 kOhm
Maximum power output (Electric) 1 W@ < 15 % distortion
Signal to Noise Ratio 50 dB
Frequency response 200 Hz – 10 Khz
Distortion < 5 % THD (@1kHz)

Vibration

There should be no audible vibration with
volume at 100% and treble / bass at
default.

Screen image

There should be no affect on the screen

image stability under any conditions.
Connector PC99 requirement Audio in Lime Green pantone # 577C
Cable type / length 3.5mm stereo cable / 1.8m length

Audio DPMS

Speakers should be off when the rest of

the monitor is in power saving.

Sympathetic

Under following conditions, there should

be no sympathetic heard

1. input <=0.7Vrms

2. Volume OSD <=80

Distance =30cm ±5cm

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

11

2-8 Panel Characteristics :

1

st

and 2nd Source Panel

Model number 1

st

Source Panel: Hannstar HSD190ME13-A16

2

nd

Source Panel: Hannstar HSD190ME13 -A10

Type Active Matrix TFT, TN technology
Active Size 19”
Pixel Arrangement RGB Vertical Stripe
Pixel Pitch 0.294 mm
Glass Treatment Anti-Glare
# of Backlights 4 CCFL
Backlight Life 40000 Hrs (Min)

50000 Hrs (Typ)
300 cd/m2 (Typ after 30 minute warm up) Luminance (Center) –

CCT = User Color (R/G/B=100%),
Contrast/ Brightness = Max

240 cd/m2 (Min after 30 minute warm up)

Brightness Uniformity 75 % (Typ) / 70 % (Min)
Contrast Ratio 700 :1 (Typ)
450 : 1 (Min)
Color Depth 16.2 million colors (6+2 bit panel)

Viewing Angle H, V, D (CR >10)

Typical:

H = 150 degrees
V = 135 degrees

Minimum:

H = 130 degrees
V = 115 degrees

Viewing Angle H, V, D (CR >5)

Typical:

H = 160 degrees
V = 155 degrees

Response Time
10%-90% @ Ta=25°C

On/Off

Typical = 8 ms

Maximun = 12 ms

Mercury

3.0 mg per lamp

Panel Defects Please see Panel Quality Specificat ions.

*Over 50% units per shipment shall meet the Typical value above.

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

12

2-9 IMAGE PERFORMANCE
Display Size

Horizontal Display Size, Primary Preset Full Screen
Vertical Display Size, Primary Preset Full Screen

Luminance

Lv (Max) –Condition:
Brightness / Contrast = 100%
Color Temperature = User (R/G/B=100)

Lv (Max) = The Luminance requirement of
section 2-6 “TFT LCD PANEL”

Lv (NATIVE) –Condition:
Brightness = Default / Contrast = Default
Color Temperature = NATIVE

Lv (NATIVE) / Lv (Max) x 100% > 85%

Lv (COOL) –Condition:
Brightness = Default / Contrast = Default
Color Temperature = COOL

Lv (COOL) / Lv (Max) x 100% > 70%

Lv (WARM) –Condition:
Brightness = Default / Contrast = Default
Color Temperature = WARM

Lv (WARM) / Lv (Max) x 100% > 70%

Contrast Ratio

CR(Max) –Condition:
Contrast / Brightness = 100%
Color Temperature = User (R/G/B=100)

Same as the Contrast Ratio in section 2-6
“TFT LCD PANEL”

Saturation

Contrast = Default
Brightness = Default
Test pattern = 128-gray

No visible saturation

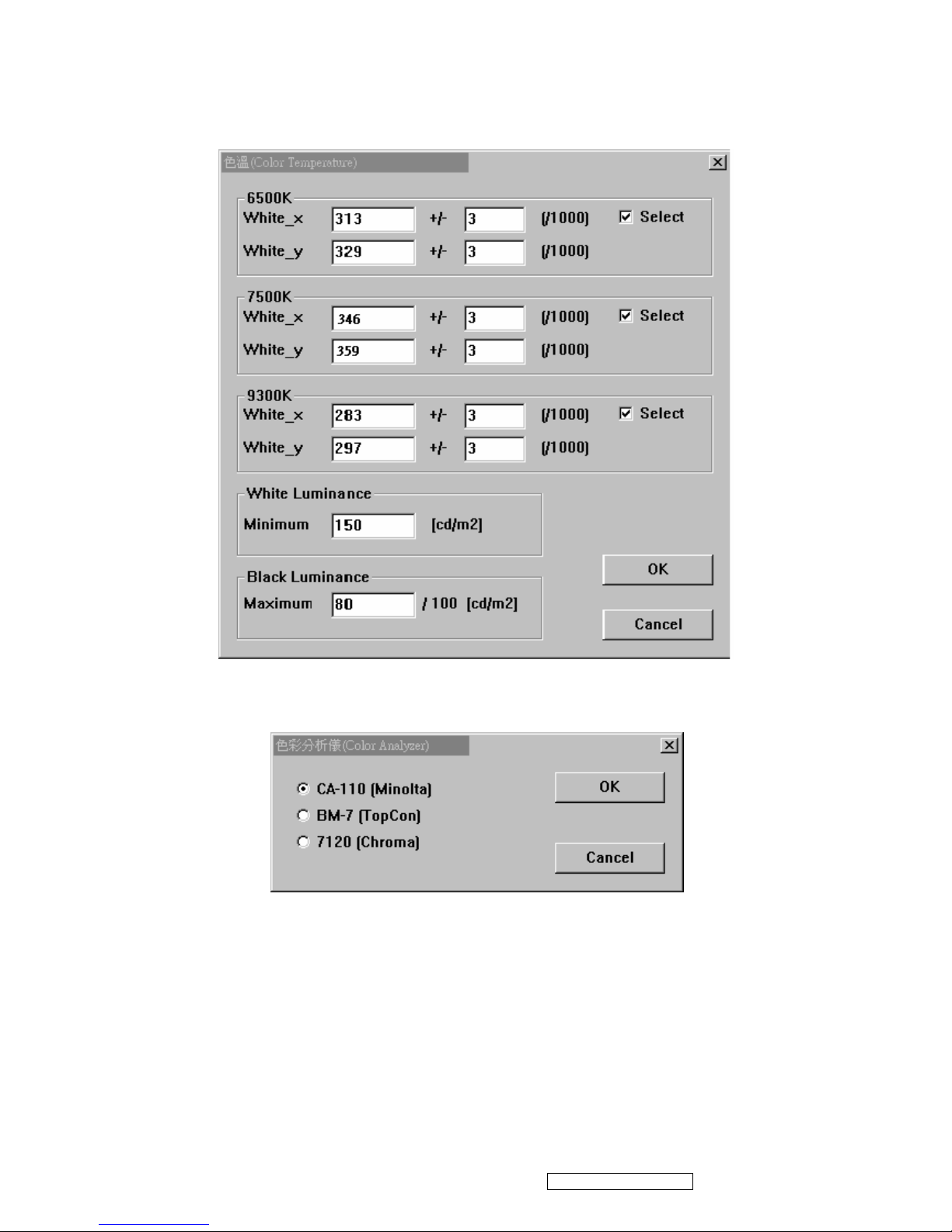

Preset Color Temperatures

Color Temperature = WARM
(CCT around 5500K)

x = 0.332 ± 0.03

y = 0.348 ± 0.03
Color Temperature = NATIVE
(CCT around 6500K)

x = 0.313 ± 0.03

y = 0.329 ± 0.03
Color Temperature = COOL
(CCT around 9300K)

x = 0.283 ± 0.03

y = 0.298 ± 0.03

Video Cards Compatibility

Peaking Performance : Peaking is not adjustable

Raster Artifacts

● Video Artifacts : No visible streaking, sag, or smearing artifacts when driven by the
specified video cards in the primary mode and after user adjustment to best condition

● Power Supply, and Grounding Artifacts : No visible artifacts in any specified video mode
within the horizontal or vertical frequency range of the monitor

● Temperature Drift : Image shall not drift or lose fine-tune adjustment

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

13

2-10 MECHANICAL

Desktop

Dimension 418 mm (W) x 408 mm (H) x 184 mm (D)

16.5" (W) x 16.1" (H) x 7.2" (D)

Monitor Weight 4.9 Kg (10.8 lbs)

Head Only / Wall Mount

Dimension 418 mm (W) x 363 mm (H) x 57 mm (D)

16.5" (W) x 14.3" (H) x 2.2" (D)

Monitor Weight 4.6 Kg (10.1 lbs)

Ergonomics

Tilt Up

+15º ±2 º

Tilt Down

-5 º ±2 º

Cabinet Material

Display Head Plastic Material ABS-94HB
Neck/Base Plastic Material ABS-94HB

Internal Plastic Cabinet Components

All internal plastic cabinet components shall be
in compliance with the requirements of MPR II
The reference for the Front Bezel is the Black
color chip provided by ViewSonic
The color difference between any two cabinet
components shall be less than 0.80 “Delta E”,

Front Bezel Color

in the 1976 CIE L*a*b Colorspace.
Neck, Base, Speaker Cover, Rear Cover
and Rear Logo Color

The reference for the Neck, Base, Speaker

Cover, Rear Cover and Rear Logo is the Black

color chip provided by ViewSonic

The color difference between any two cabinet

components shall be less than 0.80 “Delta E”,

in the 1976 CIE L*a*b Colorspace.

Cabinet Color Drift Due To UV-Light

The color drift due to UV-Light shall be less than

3.0

“Delta E” in the 1976 CIE L*a*b colorspace.

Testing shall be performed according to the

requirements of ASTM Test Method D4459-93.
Cabinet Texture

Mold-Tech # 11010 used on all external textured

surfaces.

Samples

The supplier shall submit textured color chips,

plastic material specifications, and Material

Safety Data Sheets for approval.

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

14

3. Front Panel Function Control Description

3.1 Functional Description of Controls

a. User Control Panel

b. Description of Key Functions

. Symbol

Function

•

1. Auto-adjust

2. Select the next OSD icon up

‚

1. Show the main OSD menu

2. Select the next OSD icon down

ƒ

Power indicator

„

Turn the power on or off

…

1. Show the mute OSD.

2. Decrease a function’s (
)

value.

3. Move to the next function (

) left

†

1. Show the volume OSD menu

2. Increase a function’s (
)

value.

3. Move to the next function (

) right

3.2 LED Indicator

The Model has one power LED which has two colors, Green and Amber.
LED should have enough luminance for clear viewable.
Some monitor status area indicated by using this LED, as follows:

Power LED

Normal On Green
Suspend Amber
Active Off Off
Out of Range Amber
No Input Signal Amber (OSD ON)

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

15

3.3 User Adjustment (At Analog Signal input)

3.4 Specification (at all Present Timing)

a. BRT / CONT:

Picture background shall become brighter with BRIGHTNESS at its MAX position, and shall become

darker at its MIN position.

Contrast of picture shall be changed by adjusting contrast value.

b. Adjusted Range for H/V Center : ±10mm or more / ±5mm or more

c. Adjusted Range for H Phase / Pitch : ＞60 steps / ±50 dots

d. Color : Standard Shipping Condition－ Native

Preset Color Mode － Cool, Native, Warm.
User Adjustment Mode － Users can adjust each R or G or B color individually.

Native: x=0.313±0.015;y=0.329±0.015
Cool :x=0.283±0.015;y=0.297±0.015
Warm : x=0.346±0.015;y=0.359±0.015

Hot Key

Brightness Up

Brightness Down

User
Native
Cool

RGB Mode

Auto Adjuster

Brightness

Contrast

H position

V position

Phase

Clock

Color

Language

OSD

Slider Bar

Color Red
Color Green
Color Blue

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

16

e. Recall : Recall include Brightness, Contrast, Volume, OSD Position, OSD Time, and execute

Auto Adjust.

f. Language: Users can choose one of the eight languages：English, French, German, Spanish and

Italian, Russian, Tradition Chinese, Simplify Chinese.

g. Power: Pushing Power button shall cause the monitor to be turned ON and LED to be

illuminated.

Pushing Power button again shall cause the monitor to be turned OFF and LED to be OFF.

3.5 Other User/Service Information

a. SIGNAL OVER RANGE:

If the horizontal or vertical or both input signal frequency exceed the acceptable input frequency
range, the monitor keeps indicating the “SIGNAL OVER RANGE” as the OSD information after
2 seconds. If both input signal frequencies are in the acceptable frequency range, the monitor
puts out the OSD indication and goes back to normal state.

b. RGB NO INPUTSIGNAL:

In case of the pin 14 is +5V, the monitor recognizes PC is connected. Otherwise, the pin 14 is
low (approx. 0V), horizontal or vertical input signals are not exist, the monitor displays OSD
information〝RGB NO INPUTSIGNAL〞5 seconds, then goes to power save.

3.6 Picture Size & Tilt (Primary mode only; to be checked in shipping condition.)

a. Picture Size: ＜All Models＞ Follow Panel Spec.

b. Tilt:

| AB- CD| = Tilt on top ≦ 1mm
| EF - GH| = Tilt on bottom ≦ 1mm
| BB’-EE’| ≦ 1mm (at left side)
| DD’-GG’| ≦ 1mm (at right side)

B’

E’

E

B

D G

D’

G’

F H

A C

bezel
video

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

17

3.7 Brightness Uniformity and Contrast Ratio

a. Brightness Uniformity:
128 640 1152

Bmax = MAX (BA, BB, BC, BD, BE)
Bmax - Bmin Bmin = MIN (BA, BB, BC, BD, BE)

Bmax Bave = AVE (BA, BB, BC, BD, BE)

b. Contrast Ratio:

The contrast ratio is measured at point A and calculated by using the following formula
Luminance with all pixels in white

Contrast ratio (CR) ＝ ≧ 200 （According to HANNSTAR

Luminance with all pixels in black HSD190ME13-A02)

3.8 Shipping Luminance
a. Condition Input signal : Full white pattern
Controls : Color temperature of Office

Cont./Brt. : Default value

Measurement point : One point at the center of the picture.

Warm-up time : 30 minutes.
Color analyzer : CA-210

c. Shipping luminance (center)

Shipping Luminance

Color Temperature

19”

Native

≧ 200 cd / ㎡

3.9 Maximum / Minimum Luminance

a. Condition Input signal : Full white pattern (Primary mode)
Measurement point : Center of LCD screen
Color Analyzer : CA-210
Maximum : BRT→Max.
CONT→Max.

≦ 20%

B

E

A

C D

102
512
922

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

18

b. Specification: Native only

(1) ≧200 cd/㎡

3.10 Black Level

a. Gray Scale Condition Input signal: 32 Gray scale (Primary mode)
Controls : CONT./BRT. primary setting, other shipping setting

condition.

b. Specification：Native (1) The first bar from black of gray scale pattern shall be cut off.

(2) The last bar from the bright of gray scale pattern shall be
discrimination.

3.11 Picture Quality

a. Condition BRT : MIN. ~ MAX.

CONT : MIN. ~ MAX.

*Inspection of picture quality shall be made at the distance of 50 cm in front of LCD surface.

b. Full White Signal

Condition : Input signal – Full white signal

Specification: The following electrical defects shall not be so conspicuous.
(ITU-R 4.5 or better in primary mode, and ITU-R 4.0 or better in other modes)

(2) ringing, seam, etc.
(3) flicker, noise, beat, etc.
(4) shading, etc.
(5) saturation of video power supply, etc.

c. Inverted Crosshatch Signal

Condition : Input signal – Inverted crosshatch signal

Specification: Following electrical defects shall not be so conspicuous.
(ITU-R 4.5 or better in primary mode, and ITU-R 4.0 or better in other modes)

(1) video ringing, over shoot, smear, etc.
(2) vertical jitter, horizontal jitter, picture vibration, etc.

d. Gray Scale Signal

Condition : Input signal – Gray scale signal

Specification: Following electrical defects shall not be so conspicuous.
(ITU-R 4.5 or better in primary mode, and ITU-R 4.0 or better in other modes)

(1) Oscillation, noise, beat, shading, etc.

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

19

3.12 EDID DATA

a. Condition : Maintain Mode
b. Specification : FOR RGB

DDC EDID 128 BYTES DATA STRUCTURE

No. Item EDID Data or Definiti on
00 Header 00 FF FF FF FF FF FF 00
08 ID Manufacturer Name 10 8C (DDL)
0A ID Product Code 00 00 (0)
0C ID Serial Number 00 00 00 00 (0)
10 Week Of Manufacture Week of manufacture
11 Year Of Manufacture Year of manufacture
12 EDID Version,Revision 01 03
14 Video Input Definition 7E(Analog signal,0.700,0.000(0.7

Vp-p),Black-to-Black, ,Separate Syncs, Composite Syncs, Sync

on Screen )
15 Max. H. Image Size 25 (37cm)
16 Max. V. Image Size 1E(30cm)
17 Display Transfe

Charac.(gamma)

78(2.20)
18 Feature Support(DPMS) EB(Stand-by,Suspend,Active Off supported,R/G/B color display)

19 Color Characteristics Per TFT measurement(See NOTE1)

23

Established Timings AF--(720*480@70Hz) ,(640*480@60Hz),(640*480@72Hz),

(640*480@75Hz),(800*600@56Hz),(800*600@60Hz)
EF--(800*600@72Hz),(800*600@75Hz),(832*624@75Hz)
(1024*768@60Hz),(1024*768@70Hz),(1024*768@75Hz)
(1280*1024@75Hz)
00—

26 Standard Timing Identification 81 80— 1280*1024@60Hz; 71 4F— 1152*864@75Hz z;

81 40--1280*960@75Hz; 31 46— 640x480 @66Hz
01 01-- 01 01-­01 01-- 01 01--

36 Detailed Timing 1 Description BC 34 00 98 51 00 2A 40 10 90 13 00 78 2D 11 00 00 1E

(1280*1024@75Hz,Video Size:376mm*301mm,No Stereo)

48 Detailed Timing 2 Description 00 00 00 FF 00 20 44 44 4C 30 30 30 30 30 20 20 20 20

Monitor S/N: DDL00000

5A Detailed Timing 3 Description 00 00 00 FD 00 37 4B 1E 50 0E 00 0A 20 20 20 20 20 20

(Vf:55~75Hz,Hf:30~80KHz,Pixel Clock:140MHz)

6C Detailed Timing 4 Description 00 00 00 FC 00 4C 4D 31 39 30 34 0A 20 20 20 20 20 20

(LM1904)

7E Extension Flag 00
7F Checksum Per DDC Specification

NOTE 1 Panel Specification (HSD190ME13)

Color characteristics R: x=0.6475 y=0.3271

G: x=0.2920 y=0.6143
B: x=0.1416 y=0.0791
W: x=0.3096 y=0.3301

Store in EDID data=

FD 56 A5 53 4A 9D 24 14 4F 54

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

20

4. Circuit Description

A. A/D converters

The ADC is a 7-bit 4-channel analog-to digital converter ,the structure of these ADCS is 7-bit
successive approximation ,analog voltage is supplied from external sources to the A/D input pins and
the result of the conversion is stored In the 7-bit data latch registers(ADC0_REG~ADC3_REG).The
A/D cannels are activated by cleaning the correspondent control bits in the ADC_CON control register,
when users write”1” into one of the enable control bits(EN_ADC0~EN-ADC3),its correspondent I/O pin
will be switched to the A/D Converter input pin

The conversion will be started by setting STRT_ADC Bit, user can monitor this bit to get the valid A/D
channel, its latched data is meaningful, the analog voltage to be measured should be stable during the
conversion operation and the variation will not exceed 1 LSB for the best accuracy in measurement

B.Scalling controller

1. VGA front end

l Built-in triple high speed ADC,PLL for analog RGB input
l Supports both non-interlaced and interlaced RGB graphic input signals
l Input signal ranges from 0.55-0.9v
l Provides RGB analog gain and offset control
l Support 64 steps (one cycle of pixel)of phase adjust
l ADC sampling rates are up to 110MHZ for x type, 160MHZ for E type Supports analog SOG

input

2. YUV Front End

l Support ITU-R BT.656 8-bit input
l Built-in YUV to RGB color space converter

3. Display

l Supports data swap to fit any panel data alignment for PCB Layout
l Built in LVDS transmitter
l Supports spectrum of output clock

4. Hot interface

l Support serial 2-wire IIC bus
l Provides 2 channel PMW

5. Power

l Power supply
l Less than 1.3W

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

21

6. Video processor

l Flexible de-interlacing unit for VGA and digital YUV video input data
l Auto-calibration function for quick vide cantering, clock adjust and phase adjust
l Independent horizontal and vertical zoom in/out algorithm
l Enhanced interpolation algorithm for optimal image quality
l Provides RGB digital gain and offset control
l Dithering function supports 24-bits quality for 18-bit panel
l SRGB matrix mapping support
l 10-bit programmable gamma table for panel compensation
l Supports Hue and saturation adjustment
l Built-in POST pattern

Timing controller

l Support RSDS output
l Provides 4 differential data pairs to support 6 or 8-bit RGB data bus
l 10 General Purpose output allow suitability to different production environments
l Provide single pixel (18-24-bit) or dual pixel (36-48-bit)
l Programmable RSDS swing level
l Supports line offset function for two bank system panel
l 12 GPO internal controls 10 GPO external pin outputs
l Supports data swap to fit any panel data alignment for PCD layout

Sync Processor

l Supports separate, composite and TTL-level sync-on-Green (SOG) sync input
l Polarity detection for HSYNCI and VSYNCI
l Fast mode change detection function

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

22

Pin description

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

23

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

24

C.NT68521
The NT68521 is a high quality image and highly integrated LCD controller, it combines a triple ADC,
scaling engine, OSD, LVDS and timing controller
The ADC supporter up to 160MHZ pixel rate and built-in a low jitter digital for sampling input video that
provides more stabile ,clear data for display,
The NT68521 Built-in DSP engine execute image zoom-in, zoom out function, the zoom feature provides
linear scaling up/down that makes it easier to fit different panel resolutions
The OSD provides a bit map,multi-color RAM front that is more flexible to create the customer’s OSD the
output provides multi-interface and for general panel solutions ,the display provides LVDS interface
The NT68521 also has a built-in spread spectrum feature to provide low EMI solutions ,SRGB for video
color space convert ,post pattern for manufacturing test ,de-interlace feature receives interlace video
input and display on TFT panels

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

25

5. Adjustment Procedure

1. Function test

1.1 products
19” LCD Monitor

1.2 test equipment
(2-1). One PC (Windows system);two RS-232 PORT，COM1: signal resolution、COM2: color
meter。

Print PORT: connection with IIC/RS-232 Adapter Board
(2-2).Color Meter: MINOLTA. CA-110 is 21cm apart form the screen (eg: BM-7 distance is 50cm;
Field = 2.0)
(2-3). IIC/RS-232 Adapter Board (Set IIC Port)
(2-4). (TOPCON BM-7 or CA110) will be upright with Monitor
(2-5).each equipment’s connection circuit diagram, pls see the appendix two and three.

(3).Setup

( 3-1 ).with 32 level gray scale Pattern
(3- 2 ).Brightness Set 50; Contrast Set 50.
( 3-3 ). Auto White Balance:

Entered into Maintain mode then choose Menu (F199N) Icon ,and press (+) Key to enter
into Maintain Menu; choose Auto Color ,press down (+) Key to implement Auto Color

Adjust。
(4).adjust specification:
At Brightness=50, Contrast=50 Full White Pattern

6500°K: x=0.313±0.015;y=0.329±0.015
9300°K: x=0.283±0.015;y=0.297±0.015
S RGBK : x=0.313±0.015;y=0.329±0.015

Brightness=50，Contrast=50 Full White 180 CD/M≧

2

(5). Applicable program exercitation (use the color temperature adjust program to adjust color
temperature)

210mm

MINOLTA CA-110

LCD Module

Optical

Black Pasteboard Cylinder

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

26

(5- 1).WBA.exe, enter the pattern as follow:

(5- 2 ).at this time .pls press the open document as follow, choose the project document and
press the open button, the pattern is as follow

note: pls choose the related program depending on the model and panel of the product

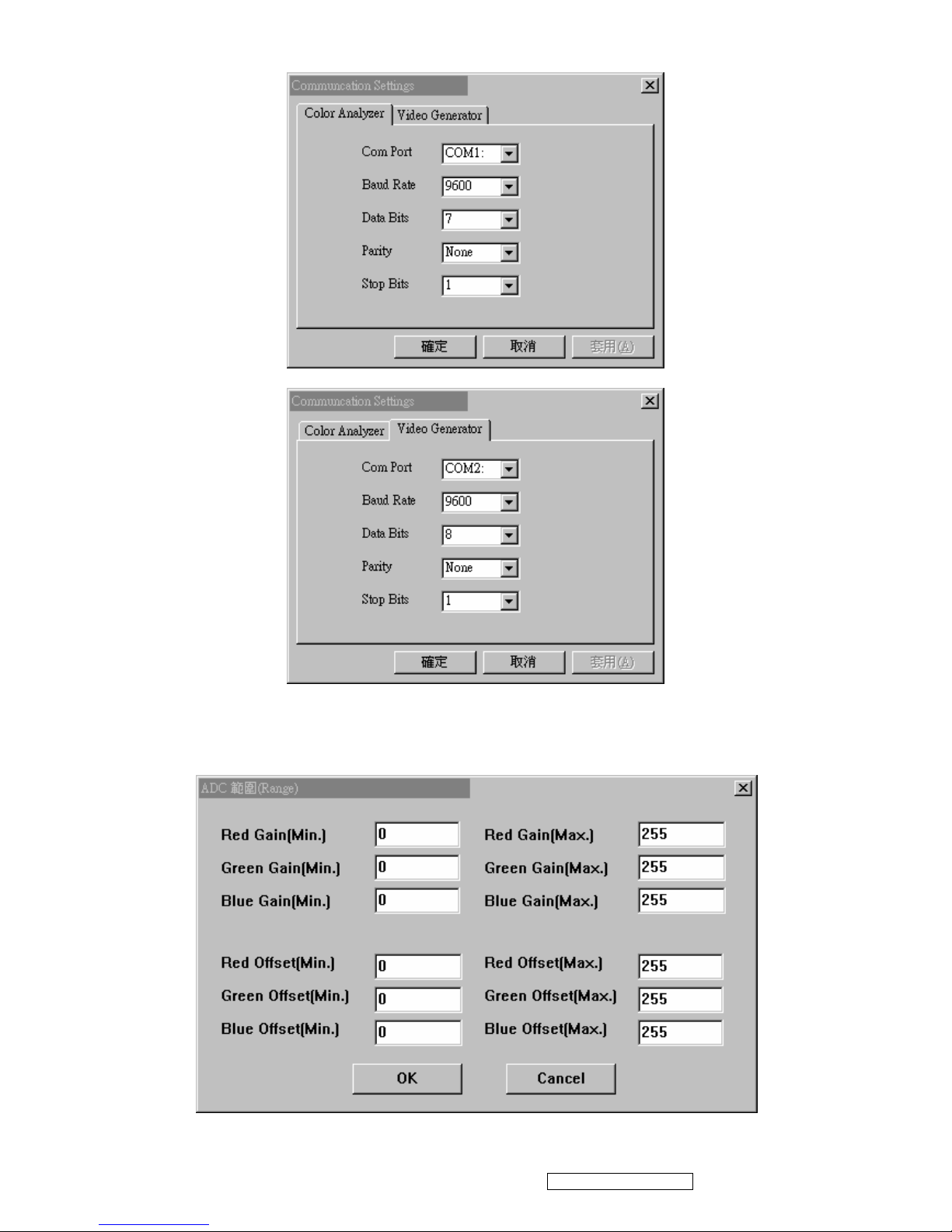

( 5-3 ).pls choose” (Set)”à”Communication”, should alter the communication setup,the patter is
As follow:

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

27

( 5-4 ). Pls select” Set”à”Range”, ADC setup range, pattern is as follow:

LM1901XXND: Gain 0 ~ 255 Offset 0 ~ 255

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

28

(5-5 ). Pls select”(Set)”à”Color Temperature” setup the color temperature specification, the

7500K of the program is”SRGB”color temperature ,pattern as follow: advise the adjust
tolerance will be ±3

( 5-6 ). Pls select” Set”à”Color Analyzer” setup color analysis fixture Type,at present we can
Use CA-110 and BM-7. Chroma7120,the pattern as follow:

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

29

( 5-7 ). Pls select” Set”à”Video Generator” to set the signal generator’s Type and
Timing/Pattern, refer to the pattern as follow:

( 5-8 ) pls select ”Set”à”Default RGB Gain

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

30

( 5-9 ). Begin to adjust;pls press the tools menu Icon, Icon, at this time the program will
go on the color temperature adjusting, refer to the pattern as follow.

(6).when adjusting the color tempreture,after the auto adjust, you must save the document and

then turn

On the machine, test the color and temperature:

6500°K: x=0.313±0.015;y=0.329±0.015
9300°K: x=0.283±0.015;y=0.297±0.015
SRGB : x=0.313±0.015;y=0.329±0.015

(7).POWER SAVING& power test﹕INPUT 1280x1024 @75Hz FULL WHITE, insert the signal

to D-SUB&DVI . CHECK whether the POWER SAVING is normal, POWER SAVING LED
whether the dark orange light is normal and the power is within the specification.

(8).gray scale test﹕Input1280x1024 @75HZ 32 gray scale pattern

Before check the patter、at first execute auto adjust once based on contrast DAC 0∼100

display

The gray scale should be evidently, on the contrary, when it died down and the pattern will

be darker and darker。

(9).DDC LOAD: pls select corresponding Model’s DDC document as the loading

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

31

2. Firmware and EDID upgrade/update Methods
. MCU software written:

2-1. Used equipment:

(1).one PC (Windows system),one Print PORT: connect withIIC/RS-232 Adapter Board
(2). IIC/RS-232 Adapter Board(Set IIC Port)
2-2. applicable program operate:

(1).execute Writer.exe to enter the pattern as follow

(2). Then pls press Load Hex document as follow

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

32

(3) after opening the Hex document that you choose,pls select the NT68F633 (64K)

(4) begin to load MCU software: after press” AUTO”, then at this time will be loading the MCU

software,pls see the pattern as follow:

2. I/P 1280x1024 @75Hz CROSS TALK (PATTERN63) FH=79KHz,FV=75Hz
2-1.input the signal to D-SUB to execute AUTO ADJUSTING function，then CHECK the pattern

whether have interaction noise.(if still have noise ,we can slightly adjust the clock or phase
menu)

2-2. I/P1280x1024 @75Hz 32 Gray pattern (PATTERN48) CHECK the pattern can’t lack of color or
Have too much color．

2-3 TIMING CHECK

640x480@60/66/72/75Hz 800x600@56/60/72/75Hz
1024x768@60/70/75Hz 1280x1024@60/75Hz
832x624@75Hz 1152x864@75Hz
1280x960@60Hz 720x400@70Hz

3 Disassembly Procedure

1.Remove the hinge cover

2.Unscrew 8 pcs screws

3.Unscrew 2 pcs screws

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

33

4. Insert plastic flake to hole ,and pull the flake along the gap between the bezel and housing, to
separate the housing from bezel.

5. Pull out the speaker waire from the main board

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

34

6 Take out housing part;

7 Remove 4pcs screw,take out ;

shield cover

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

35

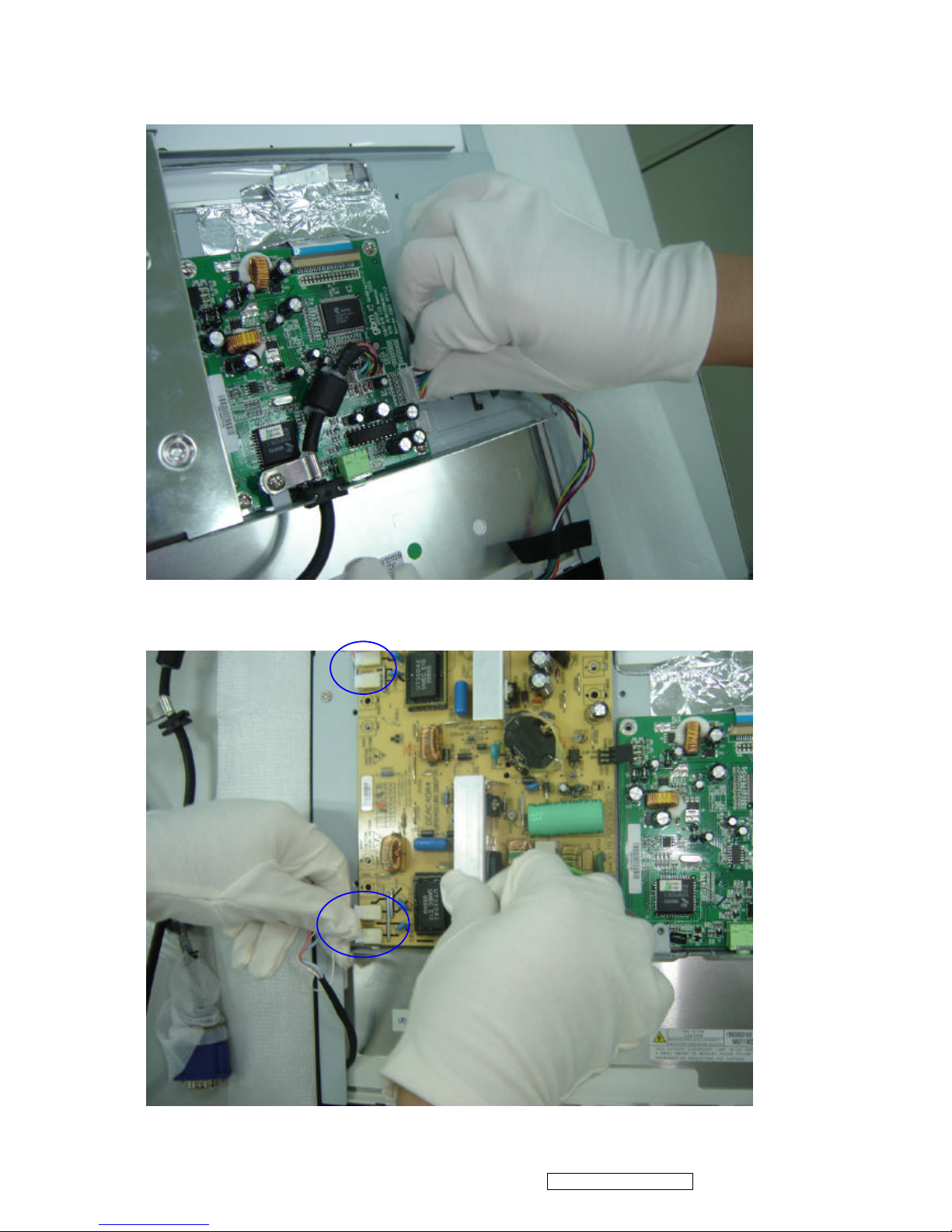

8 . Remove the earth screw ,push up the signal cable from the frame, pull up signal cable
connecter from the main board ;

9 Pull out the 4pcs lamp wire from power board;

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

36

10 Unscrew 4pcs screw;

11 Take the power board up from the frame;

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

37

12. Tear off the aluminum foil where cover the FFC cable,push the connert hook forward ,pull
out FFC cable from the main board;

push the connert
hook forward

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

38

push 2pcs hook
forward

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

39

15. Unscrew 2 pcs screws

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

40

16. Release all hooks around the Panel for remove the bezel;

Frame

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

41

17. Remove bezel from the panel;

18. Unscrew 2pcs screw with at the panel side

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

42

4 Packing Procedure

1.1 Paste production film to protect the monitor screen.(Figure 1)

1.2 Put the monitor in the PE bag and seal bag with type (Figure 2)

1.3 Put the cushions on the monitor.(Figure 4)

tape

tape Production film

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

43

1.4 Put the base in the EPE bag. and then,place the base on the cushions ,as figure

1.5 Place the monitor into the carton and then put all accessories into carton .At last, close the carton.

Use ‘s Guide

Power cord Base Audio cord

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

44

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

45

6. Troubleshooting Flow Chart

Main Procedure

Start

Connect all of devices to

the LCD monitor

Power On

Is indicator LED

light?

A. Power Circuit
Troubleshooting

Yes

No

1

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

46

Is backlight on?

Display Performance

O.K.?

Function Adjustment

O.K.?

Audio Function O.K.?

No Trouble Found

End

B. Backlight
Troubleshooting

C. Performance
Troubleshooting

D. Function
Troubleshooting

E. Audio
Troubleshooting

Yes

Yes

Yes

No

No

No

No

1

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

47

A. Power Circuit Troubleshooting

Start

Change AC/

DC Adapter

Retry Power

On

Change Main

Board & Retry

No Trouble Found

End

End

End

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

48

B. Backlight Troubleshooting

Start

Change

Inverter and

Retry

No Trouble Found

End

End

End

End

Backlight

Change

Module

Change

Main

Board&

Retry

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

49

C. Performance Troubleshooting

Start

Screen is

flickering?

Change VGA

Cable

Change Main

Board

Bad Uniformity?

Is screen white?

NO

NO

Screen is

scrolling?

LCD Line Defect?

Change

Inverter Board

Change LCD

Module

Change LCD

Module

Check

Connector

Change Main

Board

Change LCD

Module

NO

Yes

No

Change Main

Board

NO

NO

2

NO

YES

YES

YES NO

YES

YES

YES

NO

YES

YES

YES

YES

YES

YES

YES

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

50

2

Screen with noise or line

bar?

Prss Reset Button from

front panel control

End

Change Main

Board

Screen is smaller?

Make sure relution is set

at default

Reset O.K.?

Change Main

Board

No Trouble Found

End

No

No

Yes

No

Yes

No

Yes

No

YesYes

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

51

D. Function Troubleshooting

Start

Control Menu not

Functioning?

Change

Control Board

and Retry?

Change Main

Board

No Trouble Found

End

No

No

Yes

Yes

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

52

E. Audio Troubleshooting

Start

Make sure sound output, Audio

cable is OK.

No Sound

Change

Speaker

Change

Speaker

Change Main

Board

Sound is broken?

Volume

Unadjustable?

No Trouble Found

End

No

Yes

Yes

No

Yes

No

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

53

7. Recommended Spare Parts List

Serial No. Prefix: Q5W Rev: 1b

Item ECR/ECN ViewSonic P/N Universal number# Q'ty

1

Accessories:

Cable(CON).POWER CORD/AC A-00005760 W40218A022631 1

2

PC Board

MAIN BOARD ASSY

B-00005755 XLMF179040001 1

3

KEY BOARD ASSY

B-00005756 XLMF179050006 1
4 POWER BOARD+INVERTER BOARD ASSY B-00005757 XLM1700390003 1
5

Cabinets:

BASE ASSY LM/F1704&1904 C-00005763 XLM1704280002 1
6 COVER(HINGE)/ ABSHB BLACK C-00005768 P70EAJ26LM010 1
7 BEZEL ABS PA757 BLACK C C-00005769 P727AF26LM030-C 1
8

Cables:

AUDIO CABIE 26AWG UL2547 CB-00005758 W0026918A0142 1
9 RGB CABLE 18AWG UL20276 CB-00005759 W0318715AQ261 1

10

Documentation:

Safety Label

DC-00005753 F102506190401 1

11

Blank Label

DC-00005754 F103010LM0001 1
12 USER'S MANUAL DC-00005761 F000219043001 1
13

Speaker 26AWG/UL Squareness 8Ω 2W

E-00005762

E231080200004

1

14

LCD MODULE HSD190ME13-A16 1280×1024
[SX] 19" LVDS HANNSTAR

E-00005792 E34862190H303 1

15

LCD MODULE HSD190ME13-A10 1280×1024
[SX] 19" LVDS HANNSTAR

Added on 08/03/06 E-00008009 E34862190H304 1

16

Hardware:

BRACKET ASSY LM/F199 HW-00005765 XLMF199200001 1

17 HOLDER ASSY LM/F199 for RGB HW-00005766 XLMF199210001 1
18

Packing Material:

CRAFT BOX

P-00005767 F400722190402 1
19 POLYETHYLENE-L /EPS LM/F199 P-00005771 F20133F199001 1
20 POLYETHYLENE-R/EPS LM/F199 P-00005772 F20143F199001 1
21 GENERIC FOAM SET P-00001347 30833
22 GENERIC BOX P-00002515 20653
23

Plastics:

HOUSING ASSY LM/LM1904 PL-00005764 XLM1904110001 1

24 FUNCTION-KEY F1704 ABS HB PL-00005770 P763A926LM070 1

Remark 1:

Above listed items are examples, supplier can expand the rows to add more necessary items.

Remark 2:

ViewSonic Model Number: VS11201

All revised RSPLs with newly added items or any change made should be highlighted and correlated with the
ECN/ECR approved by ViewSonic Corporation. This is to eliminate repeated cross checks of each item
between this version and prior versions.

RECOMMENDED SPARE PARTS LIST (Q9b-2)

Description

Electronic
Components:

Rev: 1b

Serial No. Prefix: Q5W

Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

1 E-00005762 E231080200004

SPEAKER 26AWG/UL Rectangle 8Ω 2W GSM SPEAKER+SPEAKER WIRE
4P/2P+2PIN L400/145MM

2

2 E-00005792 E34862190H303

LCD MODULE HSD190ME13-A16 1280×1024 [SX] 19" LVDS HANNSTA

R

1

3 DC-00005754 F103010LM0001

Blank Label copper LM/MONITOR Series L43*W10m

m

1

4 P-00005771 F20133F199001

POLYETHYLENE-L /EPS LM/F199 L470*W110*H150m

m

1

5 P-00005772 F20143F199001

POLYETHYLENE-R/EPS LM/F199 L470*W110*H150m

m

1

6 N/A F300250000047

BAG /PE L550*W480*T0.03mm Transparen

t

1

7 N/A F300250000062

Wrapping bag PE L260*W180*T0.03mm(ARCH item B AG-18026-0030

)

1

8 N/A F300483202001

PEARL BGA EPE L320*W200*T1.0mm FOR LM190

4

1

9 N/A F400722190403

CARTON LM1904 L490*W123*H498mm for viewsonic REV:

1

1

10 N/A F401422LM0001

PARTITION SUPPORT BC LM/MONITOR series L800*W50*H50*T5m

m

0.0625

11 N/A F401422LM0003

PARTITION SUPPORT BC LM/MONITOR series L2000*W50*H50*T5m

m

0.0625

12 N/A F401918190401

PAPER COVER LM/LM1904 L985*W750*H60m

m

0.005

13 N/A F401918190402

PAPER COVER LM/LM1904 L1115*W985*H60m

m

0.02777

14 N/A F50301F199001

PALLET SMOKE WOOD LM/F199 L735*W980*H120m

m

0.0025

15 N/A F50301F199002

PALLET SMOKE WOOD LM/F199 L1140*W980*H120m

m

0.01388

16 N/A F900181000001

PE BAG LIMPID W500*T0.03mm 1500m/coi

l

0.000156

17 N/A F9008G2000002

PACKTHREAD PP WHITE W14.5mm*T0.8mm 1300m/ coi

l

0.0003

18 N/A M104244009401

SCREW MACHINE /STEEL +/Binding Φ4.

0

×L9.0mm N

I

6

19 N/A M105243005401

SCREW MACHINE (Binding) Φ3.0mm L5mm NICKE

L

12

20 N/A M105244005401

SCREW MACHINE 十/Binding Φ4.0*L5mm NICKEL with toothed lock washers

1

21 N/A M108253006401

SCREW MACHINE/ +/T WITH WASHER Φ3*L6mm N

I

1

22 N/A M168253022401

T-C M3*22.0-B

2

23 N/A M621700LM0450-A

Bracket SECC LM/LM1904 L409*W208*H46mm (RGB CABLE) REV:

0

1

24 N/A P36A3A2010001

MYLAR L136*W124*T0.188m

m

1

25 N/A P36AMAG010001

MYLAR L410*W330*T0.12mm transparen

t

1

26 N/A P391510700001

SPEAKER SPONGE L15*W10*T7.0m

m

2

27 N/A P441208440001

RUBBER CUSHION /RUBBER L15*W8*T9.8m

m

1

28 N/A P441508980001

BLACKL15*8*9.8 BLACK EVA L15mm*W10mm*H11mm WIT

H

5

29 N/A P449016300001

ADHESIVE RUBBER CUSHION L90*W16*T3m

m

2

30 N/A P44AL20300001

RUBBER CUSHION(UP) L395*W20*T3.0mm RUBBE

R

1

31 C-00005768 P70EAJ26LM010

COVER(HINGE)/ ABSHB BLACK C LM/F199 L125*W31*H27m

m

1

32 N/A P727AF26LM031-C

BEZEL ABS PA757 BLACK C printing LM/LM1904 FOR ViewSonic REV:

1

1

33 PL-00005770 P763A926LM070

FUNCTION-KEY F1704 ABS HB BLACK-

C

1

34 N/A P791P500LM030-A

LENS PMMA NATURAL INJECTION LM/LM1704&1904 REV:

0

1

35 N/A V300800000001

GLUE 50g/BOTTLE

0.01

36 N/A V5004AP150201

ADHESIVE TAPE L25000*W15*T0.25mm 25m/ROLL(YW0910300002

)

0.004

37 N/A V5005A5080101

Sticky tape L50000*W8*T0.1m

m

0.006

38 N/A V501275024801

Sticky tape L75m*W48*T 0.045mm FOR VIEWSONE

C

0.006

39 N/A V900505020003

AL FOIL L50×W30×T0.10m

m

1

40 N/A V900505030001

AL FOIL L100xW40xT0.07m

m

1

41 N/A V900505030007

AL FOIL L100xW30*T0.35mm(Y78400004G *1

)

4

42 CB-00005758 W0026918A0142

AUDIO CABIE 26AWG UL2547 L=1800mm 6C BLAC

K

1

43 N/A W0330715AQ261

RGB CABLE 30AWG UL20276 L1500mm 15PIN TO 2*8PIN BLACK

C

1

44 A-00005760 W40218A022631

(CON).POWER CORD/AC UL18AWG L1500mmBLACK.C.I-SHENG125V 10A...

.

1

45 CB-00006506 W47A103015001

WIRE FFC CY050408001 P=1.0mm 30PIN L195mm HUNG F

U

1

46 N/A W47B100835001

WIRE FFC FFCC0605T2250EC P=1.0mm 8PIN L250mm

1

47 N/A XLM1700390015-SF

POWER BOARD+INVERTER BOARD ASSY PI-SB03 24V+5V LM/17''/19LCD
MONITOR FOR VIEWSONIC REV:1(PHIHONG feihong)

.

1

48 N/A XLM1700390015-SH

POWER BOARD+INVERTER BOARD ASSY PI-SB03 24V+5V LM/17''/19'' LCD
MONITOR FOR VIEWSONIC REV:1(UMEC huan nong

)

1

49 N/A XLM1700390015-SD

POWER BOARD+INVERTER BOARD ASSY PI-SB03 24V+5V LM/17''/19'' LCD
MONITOR FOR VIEWSONIC REV:1(DARFON DA FANG

)

1

50 N/A XLM1704040001

MAIN BOARD ASSY LM/F1704/F1904 (2sides FR-4 T1.6mm REV:1.0

)

1

51 N/A A01F241615A21

IC EEPROM AT24C16 2500ns ATMEL SOIC-8 2K*8 (SMD) U4

1

52 N/A A03D111703A53

IC Linear voltage converter AP1117E18A SOT-223- 3Pin(SMD

)

REG2

1

53

N/A

A03D111703U01 VOLTAGE REGULATOR LD1117-18-A SOT-223 3PIN 1.8V UTC (SMD) 1

54 N/A A03D111703A54

IC LINEAR VOLTAGE REGULATOR AP1117E33A SOT-223 ANACHIP (SMD

)

REG1

1

55 N/A A03D111703G03

IC LINEAR IC VOLTAGE REGULATOR GL1117A-3.3 (INPUT 4.8~12V OUTPUT

3.3V) SOT-223 GTM LeadFree (SMD)

1

56 N/A A03K206819A41 LINEAR IC AUDIO AMPLIFIER APA2068KAI SOP-16 ANPEC LEAD FREE (SMD) UA1 1

57 N/A A07TV51202M02

IC MCU MTV512GMG 64K MYSON LQFP-48P Lead Free (SMD) U3

1

58 N/A A08D2023R2001

IC ASIC/SCALER RTD2023L PLCC-48P REALTEK Lead Free (SMD) U1

1

59 N/A BLM17A4M10300

PCB printing LM/F1704/F1904 for mainboard 2SIDES FR-4 T1.6mm REV:1.1

1

60 N/A C02210003J111

CAP MLCC NPO 10pF 50V ±5% 0603 TAPPING (SMD) C15 C18 C22 C46 C47

5

61 N/A C02212003J111

CAP MLCC /NPO 12PF 50V ±5%(J) 0603 TAPPING (SMD) C26

1

62 N/A C02222003J111

CAP MLCC /NPO 22PF 50V ±5%(J) 0603 TPPING (SMD) C25

1

63 N/A C02310501K111

CAP MLCC X5R 1uF 16V ±10% (K) 0603 TAPING (SMD) CA5 CA6 CA8

3

64 N/A C02410403K111 CAP MLCC X7R 0.1UF/50V ±10%(K) 0603 TAPPING(SMD)

C2 C3 C4 C5 C6 C8 C9 C11
C12 C13 C14 C15 C16 C18
C19 C21 C22 C23 C28 C30
C31 C40 C42 C43 C48 C49
C50 C51 C52 C53 C54 C55
C56 C57 C58 CA1 CA3 CA4

38

65 N/A C02447302K111

CAP MLCC/ X7R 0.047uF /25V ±10%(K) 0603 TAPPING(SMD) C24 C32 C35 C36 C37 C39

6

66 N/A C02847401M111

CAP MLCC Y5V 0.47uF 16V±20%(M) 0603 TAPPING (SMD) C33

1

67 N/A C4021006M2431

CAP EC(S) -40~105℃ 10uF 25V ±20% (M) Φ5×H7mm P=2.5mm (DIP)

C29 C41 C44 3

68 N/A C4021014M2532

CAP EC –40~105℃ 100uF/16V ±20%(M) Φ6.3×H P=2.5mm (DIP)

CA2 EC2 EC3 3

69 N/A C4022204M2322

CAP EC -40~105℃ 22UF/16V ±20%(M) ∮5*H5MM P=2.0MM (DIP)

C1 C10 C17 C20 4

70 N/A C4022214M3232

CAP EC -40~105℃ 220UF /16V ±20%(M) Φ6.3*H7mm P=2.5mm (DIP)

C45 EC1 2

71 N/A C4022296M2122

CAP EC -40℃~105℃ 2.2uF/25V ±20%(M) ψ4*H5mm P=2.0mm (DIP)

CA7 1

72 N/A C4024704M2242

CAP EC -40℃ -+105℃ 47uF/16V Φ5*11mm M DIP

C7 1

73 N/A D00BAV9905G01

DIODE BAV99 SOT-23 GTM (SMD) D1 D2 D3

3

74 N/A D00L414803Y11

DIODE LL4148 SOD-123 YING (SMD

)

D8 D9 D10 D11

4

75 N/A D01ZT52C03K01

ZENER BZT52C SOD-123KINGWELL 5.6V (SMD) D4 D5 D6 D7

4

76 N/A J4509100085C1

FFC CONNECTOR P=1mm 8PIN 90° CF16061D0T0 HANQUAN (DIP) JP1

1

77 N/A J4509100306H1

FFC CONN ,30 PIN,1.0,DIP 180°,1 ROW,Cvilux 16301V0T or compatibl

e

CN2

1

78 N/A J4527200164A1

WAFER P=2.0mm 16PIN(2*8PIN) 180° GRAY (DIP

)

CN3

1

79 N/A L012121201113 BEAD CHOKE Ferrite(generalcircuit) DDY160808U121MB 120Ω 200mA 0603 (SMD)

FBA1 FBA3 FBA4 FBA5
FBA6 FBA7 FBA8 FBA9 L

5

9

80 N/A L012700201111

BEAD CHOKE Ferrite(generalcircuit) DDY160808U121MB 70Ω 200mA 0603(1608)
TAPING FORD GLORY LEAD FREE (SMD)

L2 L3 L4 3

81 N/A L013121302A11

CHIP BEAD Ferrite Chip Beads (high current) WB201209B601QLT02 120Ω 3000mA
1206 Walsin (SMD)

FB1 FB2 FB3 FB4 FBA2 5

82 N/A Q441240047151

CRYSTAL QUARTZ/ 24MHZ30PPM 20PF 49US CRE (DIP) Y1

1

83 N/A R070000J20111

05: RESISTOR.RES CHIP 0Ω ±5%(J).1/8W 0603 TAPPING (SMD)...... L1 R15 R19 R24

4

ViewSonic Model Number: VS11201

BOM LIST (Q9b-2) "Panel A16"

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

54

Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

84 N/A R070220J30111

05: RESISTOR.RES CHIP 22Ω ±5%(J) 1/16W 0603 TAPPING (SMD)...... R53 R55

2

85 N/A R070330J30111

RES CHIP 33Ω ±5%(J) 1/16W 0603 TAPPING(SMD) R56

1

86 N/A R070470J10111

RESISTOR.RES CHIP 47Ω ±5%(J) 1/10W.0603 TAPPING (SMD) R16 R22 R25

3

87 N/A R070750F30111 05: RESISTOR.CHIP RES 75Ω ±1%(F).1/16W 0603 TAPPING (SMD)(Y180217509F0) R17 R21 R26 3

88 N/A R071000J20111 RESISTOR.RES CHIP 100Ω ±5%(J).1/8W 0603 TAPPING(SMD)......

R11 R12 R18 R20 R23 R27
R58 R59 R62 R63 R64 R65
R66 R67 R68

15

89 N/A R071001J20111

05: RESISTOR.RES CHIP 1KΩ ±5%(J) 1/8W.0603 TAPPING (SMD)...... R2 R4 R5 R7 R61 R70

6

90 N/A R071002J20111

05: RESISTOR.RES CHIP 10KΩ ±5%(J) 1/8W.0603 TAPPING(SMD)...... R50 R51 R52 R54 RA1 RA2

6

91 N/A R071003J10111

RES CHIP 100KΩ ±5%(J) 1/1 0603 TAPPING (SMD) R1

1

92 N/A R071004J30111

RES CHIP 1MΩ ±5%(J) 1/16W 0603 TAPPING (SMD) RG1

1

93 N/A R071502F30111

RES CHIP 15KΩ ±1%(F) 1/16 0603 TAPPING (SMD) R8 RA5

2

94 N/A R072001J30111

RES CHIP 2KΩ ±5%(J) 1/16W 0603 TAPPING （SMD)(Y180222001J0)

R13 R14 2

95 N/A R072200J20111

05: RESISTOR.RES CHIP 220Ω ±5%(J) 1/8W.0603 TAPPING(SMD)...... R60 R69

2

96 N/A R072201J10111

RES CHIP 2.2KΩ ±5%(J) 1/10W 0603 TAPPING (SMD) R37 R38

2

97 N/A R073302J30111

RES CHIP 33KΩ ±5%(J) 1/16 TAPPING(SMD)(Y180213302J0) R10

1

98 N/A R074701J20111

RESISTOR.RES CHIP 4.7KΩ ±5%(J) 1/8W.0603 TAPPING(SMD)...... R3 R6 R28 R29 R30 R36

6

99 N/A R074702J20111

05: RESISTOR.RES CHIP 47KΩ ±5%(J) 1/8W.0603 TAPPING (SMD)...... RA3 RA4

2

100 N/A R076801J10111

RES CHIP 6.8KΩ ±5%(J)1/10W 0603 TAPING (SMD) R57

1

101 N/A R141002J20111

RES ARRAY 10KΩ ±5%(J) 1/16W 8P4R 3216 TAPPING (SMD)(Y270181002J0) RP1 RP2 RP3 RP4

4

102 N/A T00T390402G01

TR GMBT3904 SOT-23 GTM (SMD) Q2 Q3 Q4

3

103 N/A T00T390602G01

Triode GMBT3906 SOT-23 GTM (SMD) Q7 Q8 Q9 Q10

4

104 N/A T01A340102A21

XSTR AO3401/ST3401, SOT- 23;3 , Alpha & Omega/ST Q1

1

105 N/A W432264C21301

WIRE HARNESS UL1007 26AWG 4PIN P=2mm 180° L130m

m

1

106 N/A Y64115HB04*1

CONNECTOR M 180℃/2.0mm 1ROW 4P

CNA1 1

107 N/A Y64115HB06*1

CONNECTOR 180℃ 2mm 6PIN

CN1 1

108 N/A XLM1704050002

KEY BOARD ASSY LM/LM1704 For Realte

k

1

109 N/A BLM1704B10212

BARE PCB LM/MR1704 BUTTON BOARD 1SIDE FR-1 T1.6mm REV:1.2

1

110 N/A D462213405201

LED Φ4*H5.5mm P=1.5mm ORA/GREEN BULK 3PIN fold 90

°

LED2

1

111 N/A J4509100085C1

FFC CONNECTOR P=1mm 8PIN 90° CF16061D0T0 HANQUAN (DIP) CN1

1

112 N/A P764P295LM010

Switch button PA66 BLACK LCD MONITOR Series REV:

0

SW1 SW2 SW3 SW4 SW5

5

113 N/A XLM1704150001

AUDIO BOARD ASSY LM/F1704 (PCB 1SIDE FR-1 T1.6mm REV:1.0

)

1

114 N/A BLM1704A10110

BARE PCB LM/F1704 AUDIO BOARD 1SIDE FR-1 T1.6mm REV:1.

0

1

115 N/A C02410403K111

CAP MLCC X7R 0.1UF/50V ±10%(K) 0603 TAPPING(SMD) C1 C2 C3

3

116 N/A J41070515T201

Ear-Phone JACK,5 PIN,DIP 90°,LIME GREEN,Tekco

n

CNA1

1

117 N/A L012601301311

BEAD CHOKE Ferrite Chip Beads(generalcircuit) FMC2012 600Ω 300 mA 0805(2012)
TAPING Chilisin SM

D

FB1 FB2 FB3 3

118 N/A Y64115HB04*1

CONNECTOR M 180°/2.0mm 1ROW 4P CNA1

1

119 N/A XLM17VA380001

SHIELD ASSY LM/MR17V-AAA(SHIELD+MYLAR

)

1

120 N/A M711200LM0160-A

SHIELD SPTE LM/MR17V-AAAD REV:

0

1

121 N/A P369579010001

MYLAR L95*W79.5*T0.1mm WHITH ADHESIV

E

1

122 N/A XLM1904280001

BASE ASSY LM/LM190

4

1

123 N/A P610051010001

FOOT RUBBERLM/199 rubber Φ17*T2mm black-

c

4

124 N/A P74AAF26LM010-A BASE ABS PA757 BLACK C INJECTION LM/1704&1904( L280*W184mm) REV:0 1

125 N/A XLMF199110002

Housing ASSY LM/F199 (RGB+AUDIO) BLACK

C

1

126 N/A M621700LM0190

REAR_BRACKET SECC T=1.0m

m

2

127 N/A M632700LM0020 FIX PLATE(HINGE)/SECC NATURAL LM/F199 L136*W35.5*H6 T=2.0mm REV:0 1

128 N/A M632700LM0060

Fix Plate SECC T0.8mm LM/ML17A2-a REV:

0

1

129 N/A P728A926LM210-C

HOUSING ABS HB BLACK C PRINTING (RGB+AUDIO) LM/F199 REV:

0

1

130 N/A V300800000001

GLUE 50g/BOTTLE (﹕- 60℃~+200℃)

0.01

131 HW-00005765 XLMF199200001

BRACKET ASSY LM/F199

1

132 N/A M154223012801

SCREW Φ3*12MM WITH WASHER

3

133 N/A M701900LM0040

Hinge/SPCC LM/F199 L121*W31*H22.3mm WITH NICKEL REV:

0

1

134 N/A P711AJ26LM010

BRACKET(BASE)/ABS HB BLACK C LM/F199 L77.4*W43*H75.5m

m

1

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

55

Rev: 1b

Serial No. Prefix: Q5W

Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

1 E-00005762 E231080200004

SPEAKER 26AWG/UL Rectangle 8Ω 2W GSM SPEAKER+SPEAKER WIRE
4P/2P+2PIN L400/145MM

2

2 E-00008009 E34862190H304

LCD MODULE HSD190ME13-A10 1280×1024 [SX] 19" LVDS HANNSTAR LEAD
FREE

1

3 DC-00005754 F103010LM0001

Blank Label copper LM/MONITOR Series L43*W10m

m

1

4 P-00005771 F20133F199001

POLYETHYLENE-L /EPS LM/F199 L470*W110*H150m

m

1

5 P-00005772 F20143F199001

POLYETHYLENE-R/EPS LM/F199 L470*W110*H150m

m

1

6 N/A F300250000047

BAG /PE L550*W480*T0.03mm Transparen

t

1

7 N/A F300250000062

Wrapping bag PE L260*W180*T0.03mm(ARCH item B AG-18026-0030

)

1

8 N/A F300483202001

PEARL BGA EPE L320*W200*T1.0mm FOR LM190

4

1

9 N/A F400722190401

CARTON BC LM/LM1904 L490*W125*H496mm whinout printin

g

1

10 N/A F401422LM0001

PARTITION SUPPORT BC LM/MONITOR series L800*W50*H50*T5m

m

0.0625

11 N/A F401422LM0003

PARTITION SUPPORT BC LM/MONITOR series L2000*W50*H50*T5m

m

0.0625

12 N/A F401918190401

PAPER COVER LM/LM1904 L985*W750*H60m

m

0.005

13 N/A F401918190402

PAPER COVER LM/LM1904 L1115*W985*H60m

m

0.02777

14 N/A F50301F199001

PALLET SMOKE WOOD LM/F199 L735*W980*H120m

m

0.0025

15 N/A F50301F199002

PALLET SMOKE WOOD LM/F199 L1140*W980*H120m

m

0.01388

16 N/A F900181000001

PE BAG LIMPID W500*T0.03mm 1500m/coi

l

0.000156

17 N/A F9008G2000002

PACKTHREAD PP WHITE W14.5mm*T0.8mm 1300m/ coi

l

0.0003

18 N/A M104244009401

SCREW MACHINE /STEEL +/Binding Φ4.0×L9.0mm N

I

6

19 N/A M105243005401

SCREW MACHINE (Binding) Φ3.0mm L5mm NICKE

L

12

20 N/A M105244005401

SCREW MACHINE 十/Binding Φ4.0*L5mm NICKEL with toothed lock washer

s

1

21 N/A M108253006401

SCREW MACHINE/ +/T WITH WASHER Φ3*L6mm N

I

1

22 N/A M168253022401

T-C M3*22.0-B

2

23 N/A M621700LM0450-A

Bracket SECC LM/LM1904 L409*W208*H46mm (RGB CABLE) REV:

0

1

24 N/A P36A3A2010001

MYLAR L136*W124*T0.188m

m

1

25 N/A P36AMAG010001

MYLAR L410*W330*T0.12mm transparen

t

1

26 N/A P391510700001

SPEAKER SPONGE L15*W10*T7.0m

m

2

27 N/A P441208440001

RUBBER CUSHION /RUBBER L15*W8*T9.8m

m

1

28 N/A P441508980001

BLACKL15*8*9.8 BLACK EVA L15mm*W10mm*H11mm WIT

H

5

29 N/A P449016300001

ADHESIVE RUBBER CUSHION L90*W16*T3m

m

2

30 N/A P44AL20300001

RUBBER CUSHION(UP) L395*W20*T3.0mm RUBBE

R

1

31 C-00005768 P70EAJ26LM010

COVER(HINGE)/ ABSHB BLACK C LM/F199 L125*W31*H27m

m

1

32 N/A P727AF26LM031-C

BEZEL ABS PA757 BLACK C printing LM/LM1904 FOR ViewSonic REV:

1

1

33 PL-00005770 P763A926LM070

FUNCTION-KEY F1704 ABS HB BLACK-

C

1

34 N/A P791P500LM030-A

LENS PMMA NATURAL INJECTION LM/LM1704&1904 REV:

0

1

35 N/A V300800000001

GLUE 50g/BOTTLE

0.01

36 N/A V5004AP150201

ADHESIVE TAPE L25000*W15*T0.25mm 25m/ROLL(YW0910300002

)

0.004

37 N/A V5005A5080101

Sticky tape L50000*W8*T0.1m

m

0.006

38 N/A V501275024801

Sticky tape L75m*W48*T 0.045mm FOR VIEWSONE

C

0.006

39 N/A V900505020003

AL FOIL L50×W30×T0.10m

m

1

40 N/A V900505030001

AL FOIL L100xW40xT0.07m

m

1

41 N/A V900505030007

AL FOIL L100xW30*T0.35mm(Y78400004G *1

)

4

42 CB-00005758 W0026918A0142

AUDIO CABIE 26AWG UL2547 L=1800mm 6C BLAC

K

1

43 N/A W0330715AQ261

RGB CABLE 30AWG UL20276 L1500mm 15PIN TO 2*8PIN BLACK

C

1

44 A-00005760 W40218A022631

(CON).POWER CORD/AC UL18AWG L1500mmBLACK.C.I-SHENG125V 10A...

1

45 CB-00006506 W47A103015001

WIRE FFC CY050408001 P=1.0mm 30PIN L195mm HUNG F

U

1

46 N/A W47B100835001

WIRE FFC FFCC0605T2250EC P=1.0mm 8PIN L250m

m

1

47 N/A XLM1700390015-SF

POWER BOARD+INVERTER BOARD ASSY PI-SB03 24V+5V LM/17''/19LCD
MONITOR FOR VIEWSONIC REV:1(PHIHONG feihong) . 1

48

N/A

XLM1700390015-SH

POWER BOARD+INVERTER BOARD ASSY PI-SB03 24V+5V LM/17''/19'' LCD
MONITOR FOR VIEWSONIC REV:1(UMEC huan nong)

1

49 N/A XLM1700390015-SD

POWER BOARD+INVERTER BOARD ASSY PI-SB03 24V+5V LM/17''/19'' LCD
MONITOR FOR VIEWSONIC REV:1(DARFON DA FANG ) 1

50 N/A XLM1704040001

MAIN BOARD ASSY LM/F1704/F1904 (2sides FR-4 T1.6mm REV:1.0

)

1

51 N/A A01F241615A21

IC EEPROM AT24C16 2500ns ATMEL SOIC-8 2K*8 (SMD) U4

1

52 N/A A03D111703A53

IC Linear voltage converter AP1117E18A SOT-223- 3Pin(SMD

)

REG2

1

53 N/A A03D111703U01 VOLTAGE REGULATOR LD1117-18-A SOT-223 3PIN 1.8V UTC (SMD) 1
54 N/A A03D111703A54

IC LINEAR VOLTAGE REGULATOR AP1117E33A SOT-223 ANACHIP (SMD

)

REG1

1

55

N/A

A03D111703G03

IC LINEAR IC VOLTAGE REGULATOR GL1117A-3.3 (INPUT 4.8~12V OUTPUT

3.3V) SOT-223 GTM LeadFree (SMD)

1

56 N/A A03K206819A41 LINEAR IC AUDIO AMPLIFIER APA2068KAI SOP-16 ANPEC LEAD FREE (SMD) UA1 1

57 N/A A07TV51202M02

IC MCU MTV512GMG 64K MYSON LQFP-48P Lead Free (SMD) U3

1

58 N/A A08D2023R2001

IC ASIC/SCALER RTD2023L PLCC-48P REALTEK Lead Free (SMD

)

U1

1

59 N/A BLM17A4M10300

PCB printing LM/F1704/F1904 for mainboard 2SIDES FR-4 T1.6mm REV:1.

1

1

60 N/A C02210003J111 CAP MLCC NPO 10pF 50V ±5% 0603 TAPPING (SMD)

C15 C18 C22 C46
C47

5

61 N/A C02212003J111

CAP MLCC /NPO 12PF 50V ±5%(J) 0603 TAPPING (SMD) C26

1

62 N/A C02222003J111

CAP MLCC /NPO 22PF 50V ±5%(J) 0603 TPPING (SMD) C25

1

63 N/A C02310501K111

CAP MLCC X5R 1uF 16V ±10% (K) 0603 TAPING (SMD) CA5 CA6 CA

8

3

64 N/A C02410403K111 CAP MLCC X7R 0.1UF/50V ±10%(K) 0603 TAPPING(SMD)

C2 C3 C4 C5 C6 C8
C9 C11 C12 C13 C14
C15 C16 C18 C19
C21 C22 C23 C28
C30 C31 C40 C42
C43 C48 C49 C50
C51 C52 C53 C54
C55 C56 C57 C58
CA1 CA3 CA

4

38

65 N/A C02447302K111 CAP MLCC/ X7R 0.047uF /25V ±10%(K) 0603 TAPPING(SMD)

C24 C32 C35 C36
C37 C39

6

66 N/A C02847401M111

CAP MLCC Y5V 0.47uF 16V±20%(M) 0603 TAPPING (SMD) C33

1

67 N/A C4021006M2431

CAP EC(S) -40~105℃ 10uF 25V ±20% (M) Φ5×H7mm P=2.5mm (DIP

)

C29 C41 C44 3

68 N/A C4021014M2532

CAP EC –40~105℃ 100uF/16V ±20%(M) Φ6.3×H P=2.5mm (DIP)

CA2 EC2 EC3 3

69 N/A C4022204M2322

CAP EC -40~105℃ 22UF/16V ±20%(M) ∮5*H5MM P=2.0MM (DIP)

C1 C10 C17 C20 4

70 N/A C4022214M3232

CAP EC -40~105℃ 220UF /16V ±20%(M) Φ6.3*H7mm P=2.5mm (DIP

)

C45 EC1 2

ViewSonic Model Number: VS11201

BOM LIST (Q9b-2) "Panel A10"

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

56

Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

71 N/A C4022296M2122

CAP EC -40℃~105℃ 2.2uF/25V ±20%(M) ψ4*H5mm P=2.0mm (DIP

)

CA7 1

72 N/A C4024704M2242

CAP EC -40℃ -+105℃ 47uF/16V Φ5*11mm M DIP

C7 1

73 N/A D00BAV9905G01

DIODE BAV99 SOT-23 GTM (SMD) D1 D2 D3

3

74 N/A D00L414803Y11

DIODE LL4148 SOD-123 YING (SMD) D8 D9 D10 D11

4

75 N/A D01ZT52C03K01

ZENER BZT52C SOD-123KINGWELL 5.6V (SMD) D4 D5 D6 D7

4

76 N/A J4509100085C1

FFC CONNECTOR P=1mm 8PIN 90° CF16061D0T0 HANQUAN (DIP

)

JP1

1

77 N/A J4509100306H1

FFC CONN ,30 PIN,1.0,DIP 180°,1 ROW,Cvilux 16301V0T or compatibl

e

CN2

1

78 N/A J4527200164A1

WAFER P=2.0mm 16PIN(2*8PIN) 180° GRAY (DIP

)

CN3

1

79 N/A L012121201113 BEAD CHOKE Ferrite(generalcircuit) DDY160808U121MB 120Ω 200mA 0603 (SMD)

FBA1 FBA3 FBA4
FBA5 FBA6 FBA7
FBA8 FBA9 L

5

9

80 N/A L012700201111

BEAD CHOKE Ferrite(generalcircuit) DDY160808U121MB 70Ω 200mA 0603(1608)
TAPING FORD GLORY LEAD FREE (SMD)

L2 L3 L4 3

81 N/A L013121302A11

CHIP BEAD Ferrite Chip Beads (high current) WB201209B601QLT02 120Ω 3000mA
1206 Walsin (SMD

)

FB1 FB2 FB3 FB4
FBA

2

5

82 N/A Q441240047151

CRYSTAL QUARTZ/ 24MHZ30PPM 20PF 49US CRE (DIP) Y1

1

83 N/A R070000J20111

05: RESISTOR.RES CHIP 0Ω ±5%(J).1/8W 0603 TAPPING (SMD)...... L1 R15 R19 R24

4

84 N/A R070220J30111

05: RESISTOR.RES CHIP 22Ω ±5%(J) 1/16W 0603 TAPPING (SMD)...... R53 R55

2

85 N/A R070330J30111

RES CHIP 33Ω ±5%(J) 1/16W 0603 TAPPING(SMD) R56

1

86 N/A R070470J10111

RESISTOR.RES CHIP 47Ω ±5%(J) 1/10W.0603 TAPPING (SMD) R16 R22 R25

3

87 N/A R070750F30111 05: RESISTOR.CHIP RES 75Ω ±1%(F).1/16W 0603 TAPPING (SMD)(Y180217509F0) R17 R21 R26 3

88 N/A R071000J20111 RESISTOR.RES CHIP 100Ω ±5%(J).1/8W 0603 TAPPING(SMD)......

R11 R12 R18 R20
R23 R27 R58 R59
R62 R63 R64 R65
R66 R67 R68

15

89 N/A R071001J20111 05: RESISTOR.RES CHIP 1KΩ ±5%(J) 1/8W.0603 TAPPING (SMD)......

R2 R4 R5 R7 R61
R70

6

90 N/A R071002J20111 05: RESISTOR.RES CHIP 10KΩ ±5%(J) 1/8W.0603 TAPPING(SMD)......

R50 R51 R52 R54
RA1 RA

2

6

91 N/A R071003J10111

RES CHIP 100KΩ ±5%(J) 1/1 0603 TAPPING (SMD) R1

1

92 N/A R071004J30111

RES CHIP 1MΩ ±5%(J) 1/16W 0603 TAPPING (SMD) RG1

1

93 N/A R071502F30111

RES CHIP 15KΩ ±1%(F) 1/16 0603 TAPPING (SMD) R8 RA5

2

94 N/A R072001J30111

RES CHIP 2KΩ ±5%(J) 1/16W 0603 TAPPING （SMD)(Y180222001J0)

R13 R14 2

95 N/A R072200J20111

05: RESISTOR.RES CHIP 220Ω ±5%(J) 1/8W.0603 TAPPING(SMD)...... R60 R69

2

96 N/A R072201J10111

RES CHIP 2.2KΩ ±5%(J) 1/10W 0603 TAPPING (SMD) R37 R38

2

97 N/A R073302J30111

RES CHIP 33KΩ ±5%(J) 1/16 TAPPING(SMD)(Y180213302J0) R10

1

98 N/A R074701J20111 RESISTOR.RES CHIP 4.7KΩ ±5%(J) 1/8W.0603 TAPPING(SMD)......

R3 R6 R28 R29 R30
R36

6

99 N/A R074702J20111

05: RESISTOR.RES CHIP 47KΩ ±5%(J) 1/8W.0603 TAPPING (SMD)...... RA3 RA

4

2

100 N/A R076801J10111

RES CHIP 6.8KΩ ±5%(J)1/10W 0603 TAPING (SMD) R57

1

101 N/A R141002J20111

RES ARRAY 10KΩ ±5%(J) 1/16W 8P4R 3216 TAPPING (SMD)(Y270181002J0) RP1 RP2 RP3 RP4

4

102 N/A T00T390402G01

TR GMBT3904 SOT-23 GTM (SMD) Q2 Q3 Q4

3

103 N/A T00T390602G01

Triode GMBT3906 SOT-23 GTM (SMD) Q7 Q8 Q9 Q10

4

104 N/A T01A340102A21

XSTR AO3401/ST3401, SOT- 23;3 , Alpha & Omega/S

T

Q1

1

105 N/A W432264C21301

WIRE HARNESS UL1007 26AWG 4PIN P=2mm 180° L130m

m

1

106 N/A Y64115HB04*1

CONNECTOR M 180℃/2.0mm 1ROW 4

P

CNA1 1

107 N/A Y64115HB06*1

CONNECTOR 180℃ 2mm 6PI

N

CN1 1

108 N/A XLM1704050002

KEY BOARD ASSY LM/LM1704 For Realte

k

1

109 N/A BLM1704B10212

BARE PCB LM/MR1704 BUTTON BOARD 1SIDE FR-1 T1.6mm REV:1.

2

1

110 N/A D462213405201

LED Φ4*H5.5mm P=1.5mm ORA/GREEN BULK 3PIN fold 90

°

LED2

1

111 N/A J4509100085C1

FFC CONNECTOR P=1mm 8PIN 90° CF16061D0T0 HANQUAN (DIP

)

CN1

1

112 N/A P764P295LM010 Switch button PA66 BLACK LCD MONITOR Series REV:0

SW1 SW2 SW3 SW4
SW5

5

113 N/A XLM1704150001

AUDIO BOARD ASSY LM/F1704 (PCB 1SIDE FR-1 T1.6mm REV:1.0

)

1

114 N/A BLM1704A10110

BARE PCB LM/F1704 AUDIO BOARD 1SIDE FR-1 T1.6mm REV:1.

0

1

115 N/A C02410403K111

CAP MLCC X7R 0.1UF/50V ±10%(K) 0603 TAPPING(SMD) C1 C2 C3

3

116 N/A J41070515T201

Ear-Phone JACK,5 PIN,DIP 90°,LIME GREEN,Tekcon CNA1

1

117 N/A L012601301311

BEAD CHOKE Ferrite Chip Beads(generalcircuit) FMC2012 600Ω 300 mA 0805(2012)
TAPING Chilisin SM

D

FB1 FB2 FB3 3

118 N/A Y64115HB04*1

CONNECTOR M 180°/2.0mm 1ROW 4

P

CNA1

1

119 N/A XLM17VA380001

SHIELD ASSY LM/MR17V-AAA(SHIELD+MYLAR

)

1

120 N/A M711200LM0160-A

SHIELD SPTE LM/MR17V-AAAD REV:0

1

121 N/A P369579010001

MYLAR L95*W79.5*T0.1mm WHITH ADHESIV

E

1

122 N/A XLM1904280001

BASE ASSY LM/LM190

4

1

123 N/A P610051010001

FOOT RUBBERLM/199 rubber Φ17*T2mm black-

c

4

124 N/A P74AAF26LM010-A BASE ABS PA757 BLACK C INJECTION LM/1704&1904( L280*W184mm) REV:0 1

125 N/A XLMF199110002

Housing ASSY LM/F199 (RGB+AUDIO) BLACK

C

1

126 N/A M621700LM0190

REAR_BRACKET SECC T=1.0m

m

2

127 N/A M632700LM0020 FIX PLATE(HINGE)/SECC NATURAL LM/F199 L136*W35.5*H6 T=2.0mm REV:0 1

128 N/A M632700LM0060

Fix Plate SECC T0.8mm LM/ML17A2-a REV:

0

1

129 N/A P728A926LM210-C

HOUSING ABS HB BLACK C PRINTING (RGB+AUDIO) LM/F199 REV:

0

1

130 N/A V300800000001

GLUE 50g/BOTTLE (﹕- 60℃~+200℃)

0.01

131 HW-00005765 XLMF199200001

BRACKET ASSY LM/F19

9

1

132 N/A M154223012801

SCREW Φ3*12MM WITH WASHE

R

3

133 N/A M701900LM0040

Hinge/SPCC LM/F199 L121*W31*H22.3mm WITH NICKEL REV:

0

1

134 N/A P711AJ26LM010

BRACKET(BASE)/ABS HB BLACK C LM/F199 L77.4*W43*H75.5m

m

1

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

57

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

58

8. Exploded Diagram and Exploded Parts List

ViewSonic Model Number: VS11201
Rev: 1a

Serial No. Prefix: Q5W

Item ViewSonic P/N Ref. P/N Description Q'ty

1 N/A P727AF26LM030-A BEZEL 1
2 PL-00005770 P763A926LM070 FUNCTON BUTTON 1
3 N/A P791P500LM030-A LENS 1
4 B-00005756 XLMF179050006 KEY BOARD ASSY 1
5 N/A P44AL16300001 RUBBER CUSHION(BOTTOM) 1
6 N/A P44A120300001 RUBBER CUSHION(TOP) 1
7 N/A E34562190SC01 LCD MODULE M190E5-L0A 1
8 N/A P441508980001 RUBBER CUSHION 4

9 N/A M104243004401 SCRW MACHINE STEEL 14
10 N/A M621700LM2000 PACK PANEL 2
11 N/A M1082B3003401 SCRW M3*3 2
12 N/A M410810010005 FRAME SECC NATURAL 1
13 N/A M420202010001 EATHER 2
14 N/A P36AHAE050001 MYLAR-BOTTOM 1
15 B-00005755 XLMF179040001 MAIN BOARD ASSY 1
16 N/A XLM1700390004 POWER BOARD 1
17 N/A M105243005401 SCREW MACHINE 4
18 N/A M108253006401 SCREW M3*6 2
19 N/A P36AHAD050001 MYLAR 1
20 N/A M644200LM0030 SHIELD 1
21 N/A M632700LM0030 FIX PLATE 2
22 E-00005762 E231080200004 SPEAKER 2
23 N/A M632700LM0020 FIX PLATE(HINGE) 2
24 N/A P728AJ26LM020 HOUSING 1
25 N/A M154223012801 SCREW 3
26 N/A M701900LM0040 HINGE/SPCC 1
27 N/A M104244009401 SCREW M4*9 6
28 N/A M168253022401 T-C M3*22.0-B 2
29 N/A P711AJ26LM010 BRACKET 1
30 C-00005768 P70EAJ26LM010 COVER(HINGE) 1
31 N/A P610051010001 RUBBER 4
32 N/A P74AAF26LM010-A BASE 1

EXPLODED PARTS LIST (Q9b-2)

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

59

Rev: 1a

Item ViewSonic P/N Ref. P/N Location Q'ty

1 P-00005767 F400722190402 CARTON LM/LM1904 L443*W124*H498mm for Vosunis 1
2 P-00005771 F20133F199001 POLYETHYLENE-L /EPS LM/F199 L470*W110*H150mm 1
3 P-00005772 F20143F199001 POLYETHYLENE-R/EPS LM/F199 L470*W110*H150mm 1
4 CB-00005758 W0026918A0142 AUDIO CABIE 26AWG UL2547 L=1800mm 6C BLACK 1
5 A-00005760 W40218A022631 CABLE(CON).POWER CORD/AC USA..18AWG L1500mm BLACK.C. 1
6 DC-00005761 F000219043001 USER'S MANUAL LM/LM1904 L210*W148mm for Vosunis REV:0 1
7 N/A F300250000062 PE L260*W180*T0.03mm(BAG-18026-0030) 1
8 MONITOR HEAD ONLY 1

9 N/A F300250000047 BAG /PE L550*W480*T0.03mm 1
10 C-00005763 XLM1704280002 BASE ASSY LM/F1704&1904 L280*W184mm black c 1
11 N/A F300483202001 PEARL BGA EPE L320*W200*T1.0mm FOR LM1904 1

PACKING PART LIST ( Q9b-2 )

ViewSonic Model Number: VS11201

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

60

Packing Exploded chart

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

61

9. Block Diagram

MCU

<Value>

DDC_SDA

DDC_SCL

SCL

SDA

Key_BUS

DDC_VDD

VGA_DET

VOLUME

AMP_STBY

MUTE

Power

<Value>

12V

5V

3.3V

1.8V

PANEL_VCC

Key

<Value>

Key_BUS

Panel Interface

<Value>

RX3+/-

RXCK+/-

RX2+/-

RX1+/-

RX0+/-

VGA_IN

<Value>

R_IN

G_IN

B_IN

DDC_VDD

DDC_SDA

DDC_SCL

VGA_DET

VSI

HSI

Scaler

<Value>

R_IN

G_IN

B_IN

SDA
SCL

RX0+/-

RX1+/-

RX2+/-

RXCK+/-

RX3+/-

HSI

VSI

Audio

<Value>

MUTE

AMP_STBY

VOLUME

EEPROM

<Value>

SDA

SCL

VSI

DDC_SCL

HSI

VGA_DET

SDA

B_IN+

R_IN+

DDC_VDD

DDC_SDA

SCL

G_IN+

PANEL_VCC1.8V

12V

5VA 3.3V

12V

ADC_GND

ADC_GND

ADC_GND

ADC_GND

ADC_GND

ADC_GND

ADC_GND

DB_R+

GVS

GHS

GHS

GVS

DB_R+

DDC_5V

DDC_SDA

DB_G+

DB_G+

DDC_SCL

VGA_VS

DB_B+ DB_B+VGA_HS

SHIELD

CON_DET

R_IN+

G_IN+

G_IN-

R_IN-

SOGI

VSI

HSI

B_IN-

B_IN+

DDC_SDA
DDC_SCL

VGA_DET

ADC_VAA

DGND

ADC_VAA

DGND

DGNDDGND

DGND

DGND

DDC_VDD

DGND

3.3V

ADC_VAA

DGND DGND

DGND

DGND

C11

0.1u

R17 NC

D7

5.6V

D5

BAV99

132

L1

B0805/80

+

C3

47u/16V

C5
22pF

L4
B0805/80

R15
NC

R13
75

C1

0.1uF

1 2

C10
22pF

C12
22pF

12

R8
100

R2
75

R9
100

R10

2.7k

D2

BAV99

132

C13
22pF

12

C6

0.1u

C4

0.1uF

1 2

U1

74LCX14

1
2
3
4
5
6
7 8

9

10

11

12

13

14

D0
Q0
D1
Q1
D2
Q2
GND Q3

D3

Q4

D4

Q5

D5

VCC

C7

0.1uF

1 2

C2
22pF

R5
75

R11

2.7k

D6

5.6V
R12 100

D3

5.6V

L2

B1206/600

D1

BAV99

132

R14 100

R7
1k

R4 100

L3
B0805/80

D4

5.6V

R6 100

CN1

PIN HERAD 7X2 PH=2.0mm

1 2
3 4
5 6
7 8

9 10
11 12
13 14

R1 100

R3 100

C9
22pC822p

Model

Title

Date Rev:

ViewSonic Corporation

VGA IN

ViewSonic Corporation Confidential - Do Not Copy

62

10. Schematic Diagrams

Q9b-2

TO RS232

TO DEBUG

W/O Audio : R100= 0 Ohm , Other N.C.

SCL
SDA

SDA

SCL

WP

POWER
AUTO/UP

LEDG

LEDA

MENU/DOWN
ADJUST+
ADJUST-

HI_BRIGHTNESS

TXD
RXD

ADJUST+

LEDG

RXD

LEDA

ADJUST-

TXD

HI_BRIGHTNESS

WP

POWER

MENU/DOWN
AUTO/UP

STBY

MUTE

MUTE

VOL

VOL

STBY

SCL

IRQN

SDA

12M_OSC

DDC_SCL
DDC_SDA

SCL

SDA

VGA_DET

BL_EN

BL_BRIGHT

PWR_EN

HSO

DDC_SDA
DDC_SCL

AMP_MUTE
AMP_STBY
VOLUME

RSTN

VSO

DGND

MCU_VDD

DGND

DGND

MCU_VDD

DGND

DGND

MCU_VDD

DGND

DGND

3.3V

MCU_VDD

MCU_VDD

3.3V

MCU_VDDMCU_VDD

DDC_VDD

3.3V

3.3V

DGND

DGND DGND

DGND

DGND

DGND

DGND

5VA12V

DGND DGND

5VA

DGND

DGND

DGND

R95

4.7k

CN4

3PIN/2.0mm

1
2
3

R97
47k

R25 100

R39 100

C29

0.1u

C26
100p

R84
NC

+

C15
47u/16V

R29

2k

+

C101
47u/16V

R82 NC

C21
22p

R26 1M

R24 100

R98
47k

R52 1k

Q1
MMBT3904

1

32

R83
NC

R35 15k

C36

0.1u

R34

6.8k

R90
680

C19
100p

C27
1u

R50 100

R81 NC

R85 100

R96
47k

C16

100n

R40
NC

C31

0.1u

R31
2k

R49 330

U2

NT68F633

4142431044

12

222021

11

13

16
17

15

14

24

23

9

8

7

6

32

40

39

5

33

38
37
36

1

35
34

31
30
29

2

252627

28

3

4

19

18

PC2

PC1*

PC0*

RSTB

VCC

PD6

GND

OSCO

OSCI

P30/RXD

P31/TXD

P34/T0
P35/T1

PB3/ADC3/INTE1

PB2/ADC2/INTE0

PB1/ADC1

PB0/ADC0

PA7/PWM9*

PA6/PWM8*

PA5/PWM7*

PA4/PWM6*

NC

PC3/PWM0

PC4/PWM1

PA3/PWM5

NC

PC5
PC6
PC7

PD0

PD1
PD2

PD3
PD4
PD5

PA0/PWM2

PB4/SCL0*

PB5/SDA0*

PB6/SCL1*

PB7/SDA1*

PA1/PWM3

PA2/PWM4

PE1

PE0

C33

0.1u

CN3

9PIN/2.0mm

1
2
3
4
5
6
7
8
9

R51 100

R93

4.7k

R38 100

R33

4.7k

R32
2k

D16

5.1V

R48 330

C17
100p

R28 100

R101
10k

R21

4.7k

CN2

4PIN/2.0mm

1
2
3
4

R102 100

R27 100

R30
2k

D14
BAV99

132

C22
22p

R99
10k

Q2
MMBT3904

1

32

R87 100

C28

0.1u

R20
1k

Q3
MMBT3904

1

32

C34

0.1u

X1
12MHz

R100
10k

C30

0.1u

R47 1k

R23 100

R86 100

R22
15k

R94

4.7k

C35

0.1u

R37
NC

R46 1k

C24
NC

C32

0.1u

R53

NC

R43 1k

R41
NC

U3
AT24C16

1
2
3
4 5

6

7

8

A0
A1
A2
GND SDA

SCLK

WP

VCC

R36
NC

C25
NC

C18
100p

D15
BAT54C

R42 1k

C14
1u

R44 1k

Model

Title

Date Rev:

ViewSonic Corporation

MCU

ViewSonic Corporation Confidential - Do Not Copy

63

Q9b-2

ADC_GND

ADC_GND

ADC_GND

PLL_GNDA

OPTION

R/B SWAP

0.1U33PF
_(for
15"sva)

BIN-

BIN+

RIN+

GIN-

GIN+

RIN-

G_IN+
G_IN-

R_IN-

R_IN+

B_IN-

B_IN+

HSO

IRQN

VSO

SDA

T3M/ARSGP3

T4P/ARSRN0

VSI

T6M/ARSRP2

T4M/ARSRP0

HSI

T5M/ARSRP1
T5P/ARSRN1

SOGI

T1P/ARSGN0

12M_OSC

T1M/ARSGP0

RSTN

TCLK2M/ARSRP3

T6P/ARSRN2
TCLK2P/ARSRN3

T0P/ARSBN3

T0M/ARSBP3

T7M/ARSCLK_P

TCLK1M/ARSGP2
TCLK1P/ARSGN2

T3P/ARSGN3

T2M/ARSGP1

SCL

T2P/ARSGN1

T7P/ARSCLK_N

DGND

ADC_VAA

DGND

1.8V

1.8V

ADC_VAA

ADC_VAA

DGND

3.3V

DGND

DGND

3.3V

3.3V

DGND

DGND

C45

0.1u

R55
(NC)820

L5

B0805/600

R88
(NC)2.7k

C56

0.1u

C42

0.1u C48

0.1u

C63
10n

C62 10n

C61 10n

+

C55

47u/16V

+

C53
470u/16V

C40

0.1u

C43

0.1u

C60 10n

C54

0.1u

L7
B0805/1k

R60 100

C59 10n

R57 100

U4

NT68521AEF

4
7

12

10

21221714151889

16

119

123

121
122

25

68

69
67

47

713856

109

39

103

106
107
108

10427

28
29
30
31
32
33
34
35
36

125 127

1

2

3128

7057294105

40

42
41

44
43

46
45

55
54
53
52
51
50
49
48

64
63
62
61
60
59
58
57

75

76

77

78

79

80

81

82

93
92
91
90
89
88
87
86

102
101
100
99
98
97
96
95

66
65

73

74

83

110

111

112

113

114

115

116

84

126

13
20

6

19

11

23
24

117

26

118

120

85

37

124

Vref
NC

NC

BIN+

NC

NC

GIN+

ADC_VAA

ADC_GND

GIN-

NC

NC

SOGI

VSYNCI

CGND

OSCI
OSCO

ADC_VAA

GPO1

SPA
SPB

DGND

DPLL_DVDD

CVDD

DVDD

IRQn

BRSBP[0]

DVDD

RSTn
SDA
SCL

CVDD

CGND

Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
YUV_CLK/D_CLK

DGND

DVDD

NC

NC

ADC_VAA

ADC_GND

DPLL_DGND

TESTP

DGND

DGND

DGND

BRSBN[0]

BRSBN[1]
BRSBP[1]

BRSBN[2]
BRSBP[2]

BRSBN[3]
BRSBP[3]

BRSGN[3]
BRSGP[3]
BRSGN[2]
BRSGP[2]
BRSGN[1]
BRSGP[1]
BRSGN[0]
BRSGP[0]

BRSRN[3]
BRSRP[3]
BRSRN[2]
BRSRP[2]
BRSRN[1]
BRSRP[1]
BRSRN[0]
BRSRP[0]

TCLK2P/ARSRN[3]

TCLK2M/ARSRP[3]

T6P/ARSRN[2]

T6M/ARSRP[2]

T5P/ARSRN[1]

T5M/ARSRP[1]

T4P/ARSRN[0]

T4M/ARSRP[0]

T1M/ARSGP[0]

T1P1/ARSGN[0]

T2M/ARSGP[1]
T2P/ARSGN[1]

TCLK1M/ARSGP[2]

TCLK1P/ARSGN[2]

T3M/ARSGP[3]
T3P/ARSGN[3]

ARSBP[0]
ARSBN[0]
ARSBP[1]
ARSBN[1]
ARSBP[2]
ARSBN[2]

T0M/ARSBP[3]

T0P/ARSBN[3]

CLKB/BRSCLK_N
POLB/BRSCLK_P

T7P/CLKA/ARSCLK_N

T7M/POLA/ARSCLK_P

LVDS_AVDD

MD1/GPO9

MD0/GPO8

GPO7

VSO/GPO6

HSO/GPO5

PWM1/GPO4

PWM0/GPO3

LVDS_AGND

HSYNCI

ADC_VAA
NC
NC

NC

BIN-

RIN+
RIN-

GPO2

ADC_GND

DVDD

CVDD

DVDD

DVDD

12M/GPO0

C58 10n

R89 22

C38

0.1u

R54 22

C39

0.1u

C100

0.1u C49

0.1u

C50

0.1u

C23

C57 10n

C46

0.1u

+

C47

47u/16V

R56 100

C41

0.1u C51

0.1u

D9
(NC)AIC431CUN

3 1

2

C20
33PF(for 15"sva)

R58 100

C44

0.1u

+

C37

47u/16V

R59 100

Model

Title

Date Rev:

ViewSonic Corporation

ViewSonic Corporation Confidential - Do Not Copy

64

Q9b-2

NT68521AEF

T6M/ARSRP2

T3M/ARSGP3
T5M/ARSRP1

T3P/ARSGN3

T6P/ARSRN2
T7P/ARSCLK_N

T4P/ARSRN0

T2M/ARSGP1

T1P/ARSGN0

T7M/ARSCLK_P

T2P/ARSGN1
TCLK1M/ARSGP2
T4M/ARSRP0

T1M/ARSGP0

TCLK2P/ARSRN3

T0M/ARSBP3

TCLK2M/ARSRP3

T0P/ARSBN3

T5P/ARSRN1

TCLK1P/ARSGN2

TCLK2P/ARSRN3

T2M/ARSGP1

T7P/ARSCLK_N

TCLK1M/ARSGP2

TCLK2M/ARSRP3

T4M/ARSRP0

T4P/ARSRN0

T3M/ARSGP3

TCLK1P/ARSGN2

T2P/ARSGN1

T0M/ARSBP3

T0P/ARSBN3

T6P/ARSRN2

T1P/ARSGN0

T7M/ARSCLK_P

T6M/ARSRP2

T1M/ARSGP0

T3P/ARSGN3

T5P/ARSRN1

T5M/ARSRP1

T1P/ARSGN0T1M/ARSGP0

T4M/ARSRP0 T4P/ARSRN0

T2M/ARSGP1
T2P/ARSGN1

TCLK1P/ARSGN2

T4M/ARSRP0
T4P/ARSRN0

T5P/ARSRN1

T3M/ARSGP3

TCLK2M/ARSRP3

T0M/ARSBP3
T1M/ARSGP0

T0P/ARSBN3

T7P/ARSCLK_N

TCLK2P/ARSRN3

T7M/ARSCLK_P

T1P/ARSGN0

TCLK1M/ARSGP2

T5M/ARSRP1

T6P/ARSRN2

T3P/ARSGN3

T6M/ARSRP2

PANEL_VCC

DGND DGND

DGND

PANEL_VCC

CN5

30PIN/1.0mm

31 32

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

GND

GND

CN6

15*2PIN/2.0mm

1 2
3 4
5 6
7 8

9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30

Model

Title

Date Rev:

ViewSonic Corporation

PANEL CONNECTOR

ViewSonic Corporation Confidential - Do Not Copy

65

Q9b-2

AUDIO IN

TO SPEAKERS

L_OUT

R_IN

R_OUT

L_IN

VOLUME

AMP_STBY

AMP_MUTE

12V

R62
47k

+

C69

470u/16V

C75
NC

C70
1u

R63
18k

R64
47k

C71
1u

C65

0.1u

C102
1u

+

C64
470u/16V

L9
B0805/600

C66
1u

L8
B0805/600

R92
10k

CN7

JST 4Pin PH=2.0mm

1

2

3

4

C103
NC

CN8

3PIN/2.0mm

1
2
3

R61
18k

+

C67

470u/16V

CN12

PHONEJACK 3.5D

5
4
3
2
1

C68
100pF

12

+

C74
470u/16V

C73
100pF

12

C72
1u

U5
TDA7496L

1

2

3

13

18

19

20

9

8

10 11

12

14

15

16

17

6

5

7

4

GND

GND

GND

GND

GND

GND

GND

INR

NC

SVR STBY

MUTE

OUTR

VS

VS

OUTL

VOLUME

VAROUT_L

VAROUT_R

INL

Model

Title

Date Rev:

ViewSonic Corporation

AUDIO IN

ViewSonic Corporation Confidential - Do Not Copy

66

Q9b-2

PANEL_VCC=3.3V R98=2k
PANEL_VCC=5.0V R70=3.6k
Panel 15" D12=SS14
Panel 17"/19" D12=SR34

BL_EN

PWR_EN

BL_BRIGHT

3.3V

DGND

3.3VP

DGNDDGND

3.3VP

DGNDDGND DGND

12V

DGND DGND

DGND

DGND

12V

DGND DGND DGND

PANEL_VCC

DGND

DGND

DGND

DGNDDGND

DGND

DGND

DGND

DGND

DGND

1.8V

DGND

C82
NC

12

C86

0.1u

L10
RH3.5x6x1.0W

+

C96
100uF/16V

L14
47uH/1.5A

C77

0.1u C83

0.1u

+

C97
470uF/16V

R70

3.6K

C94

0.1u

L15
RH3.5x6x1.0W

C87

0.1u

+

C92
100u/16V

CN9

PIN HEARD 3X2 PH=2.54mm

1 2
3 4
5 6

D10
SS14

C98

0.1u

R68 100

C81

0.1uF

C88

0.1u

H1

1
2

7

8

3

4

5

6

9

H4

1
2

7

8

3

4

5

6

9

R75
10k

U9
AP1509

1 2

3

45678

Vin Output

FB

SD

GND

GND

GND

GND

U6
AP1509

1 2

3

45678

Vin Output

FB

SD

GND

GND

GND

GND

C76
1uF/0603

12

C78

0.1u

C84

0.1u

12

+

C85
100u/16V

C99

0.1u

D13
5V6

R66

1.2K

C89
1uF/0603

12

+

C79

470uF/16V
L12
RH3.5x6x1.0w

H2

1
2

7

8

3

4

5

6

9

R69 100

C91

0.1u

L11
47uH/1.5A

R71

1.2K

D11
3V6

H3

1
2

7

8

3

4

5

6

9

D12
SS14

C93

0.1u

+

C80

470uF/16V

R65 2K

L13

RH3.5X6X1.0W

U8
LDO_1117-1.8

3

2

1

4

VIN

VOUT

GND

CASE

+

C90
100uF/16V

R67
0

12

Model

Title

Date Rev:

ViewSonic Corporation

Power

ViewSonic Corporation Confidential - Do Not Copy

67

Q9b-2

Auto/Up

Menu/Down

Green

Left/-

Amber

Right/+

POWER

SW4 TOUCH SWITCH 4P

SW1 TOUCH SWITCH 4P

SW5 TOUCH SWITCH 4P

SW2 TOUCH SWITCH 4P

D17

LED Dual

1

2

3

CN13

JST 8Pin PH=2.0 H 90

1
2
3
4
5
6
7
8

SW3 TOUCH SWITCH 4P

Model

Title

Date Rev:

ViewSonic Corporation

K/B

ViewSonic Corporation Confidential - Do Not Copy

68

Q9b-2

Model

Title

Date Rev:

ViewSonic Corporation

COMPONENT SIDE

ViewSonic Corporation Confidential - Do Not Copy

69

11. PCB Layout Diagrams

Q9b-2

Model

Title

Date Rev:

ViewSonic Corporation

COPPER BOTTOM

ViewSonic Corporation Confidential - Do Not Copy

70

Q9b-2

Model

Title

Date Rev:

ViewSonic Corporation

DRILL DRAWING

ViewSonic Corporation Confidential - Do Not Copy

71

Q9b-2

Model

Title

Date Rev:

ViewSonic Corporation

SOLDER MASK TOP

ViewSonic Corporation Confidential - Do Not Copy

72

Q9b-2

Model

Title

Date Rev:

ViewSonic Corporation

Solder Mask Bottom

ViewSonic Corporation Confidential - Do Not Copy

73

Q9b-2

Model

Title

Date Rev:

ViewSonic Corporation

PASTE MASK TOP

ViewSonic Corporation Confidential - Do Not Copy

74

Q9b-2

Model

Title

Date Rev:

ViewSonic Corporation

SILKSCREEN TOP

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

75

ViewSonic Corporation Confidential - Do Not Copy Q9b-2

76

* Reader’s Response*

Dear Readers:

Thank you in advance for your feedback on our Service Manual, which allows continuous improvement
of our products. We would appreciate your completion of the Assessment Matrix below, for return to
ViewSonic Corporation.

Assessment

A. What do you think about the content of this Service Manual?

Unit Excellent Good Fair Bad

1. Precautions and Safety Notices

2. Specification

3. Front Panel Function Control Description

4. Circuit Description

5. Adjustment Procedure

6. Troubleshooting Flow Chart

7. Recommended Spare Parts List

8. Exploded Diagram and Exploded Parts List

9. Block Diagrams

10. Schematic Diagrams

11.PCB Layout Diagrams

B. Are you satisfied with this Service Manual?

Item Excellent Good Fair Bad

1. Service Manual Content

2. Service Manual Layout

3. The form and listing

C. Do you have any other opinions or suggestions regarding this service manual?

Reader’s basic dada:

Name:

Title:
Company:
Add:
Tel:

Fax:

E-mail:

After completing this form, please return it to ViewSonic Quality Assurance in the USA at facsimile
1-909-839-7943. You may also e-mail any suggestions to the Director, Quality Systems & Processes
([e-mail])
