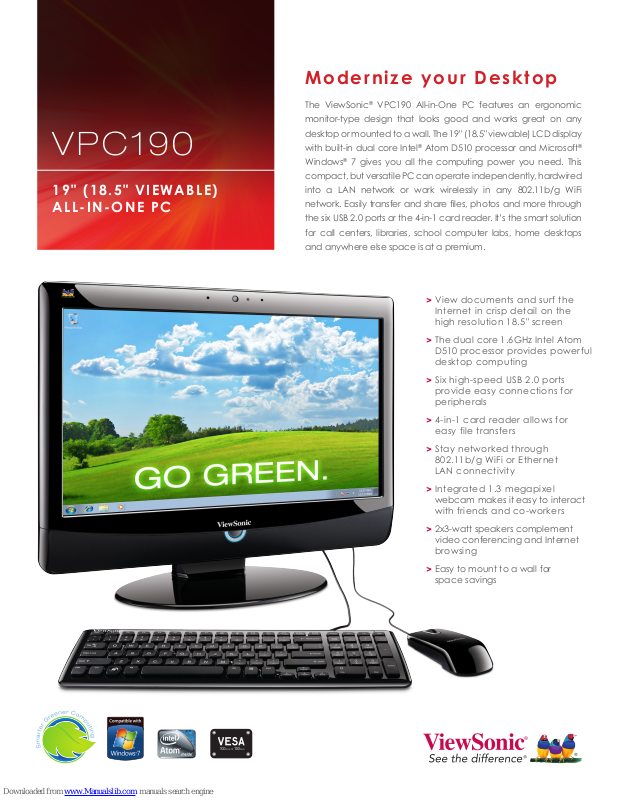

ViewSonic VPC190, VPC190B-7PUS-01 Specification Sheet

V P C 1 9 0

19" (18.5" VIEWABLE)
ALL-IN-ONE PC

Mo de rn iz e yo ur D es kt op

The ViewSonic® VPC190 All-in-One PC features an ergonomic

monitor-type design that looks good and works great on any

desktop or mounted to a wall. The 19" (18.5" viewable) LCD display

with built-in dual core Intel® Atom D510 processor and Microsoft®

Windows® 7 gives you all the computing power you need. This

compact, but versatile PC can operate independently, hardwired

into a LAN network or work wirelessly in any 802.11b/g WiFi

network. Easily transfer and share les, photos and more through

the six USB 2.0 ports or the 4-in-1 card reader. It’s the smart solution

for call centers, libraries, school computer labs, home desktops

and anywhere else space is at a premium.

>

View documents and sur f the
Internet in crisp detail on the
high resolution 18.5" screen

>

The dual core 1.6GHz Intel Atom
D510 processor provides power ful
desktop computing

>

Six high-speed USB 2.0 ports
provide easy connections for
peripherals

>

4-in-1 card reader allows for
easy file transfers

>

Stay networked through

802.11b/g WiFi or Ethernet
LAN connectivity

Integrated 1.3 megapixel

>

webcam makes it easy to interact
with friends and co-workers

>

2x3-watt speakers complement
video conferencing and Internet
browsing

>

Easy to mount to a wall for
space savings

V P C 1 9 0 19 " (1 8 .5" VIE W ABL E ) A L L-I N -ON E PC

MODEL NUMBER VPC190B-7PUS-01

LCD Type 18.5" Color TFT Active Matrix LCD

Resolution 1366x768

Contrast Ratio 1000:1 static (typ)

Viewing Angles 160º horizontal, 160º vertical

Response Time 5ms

Light Source Long life, 50,000 hrs. (typ)

Brightness 250 cd/m2 (typ)

WEBCAM 1.3 megapixel

CORE CPU Processor Type Intel® Atom D510

CPU Processor Speed 1.66Hz Dual Core, FSB 667MHz

Chipset Intel® NM10

MEMORY 2GB DDR2 SDRAM (upgradeable to 4GB)

SOFTWARE Operating System Windows® 7 Professional

HARD DRIVE Capacity 2.5", 160GB SATA

COMMUNICATION Ethernet LAN 10/100/1000 Gigabit Ethernet

Wireless LAN 802.11 b/g

INPUT/OUTPUT USB 2.0 (x6)

RJ45 Gigabit Ethernet LAN

Microphone jack

Earphone jack

4-in-1 card reader (XD, SD, MMC, MS)

AUDIO OUTPUT Speakers 3-watt (x2)

CONNECTORS Power Adapter 19V DC; 65W adapter

Power Cord 3-pin AC plug

POWER DC-DC Power On-board, 19V DC-in to 3.3V, 5V, 5VSB, 12V

Voltage AC 100–240V (universal), +/–10% Wide Range

Consumption 60W (typ)

OPERATING Temperature 32–104ºF (0–40ºC)

CONDITIONS Humidity 10–90% (non-condensing)

Altitude 0–6,000 ft. (1800 m), operational up to 10,000 ft. (3048 m)
at reduced reliability and performance

DIMENSIONS Physical (W x H x D) 18.1" x 14.7" x 7.2" (460mm x 374mm x 182mm)

Physical Without Stand 18.1" x 12.8" x 2.1" (460mm x 326mm x 54mm)

WEIGHT Net 12.68 lb. (5.75 kg)

Net Without Stand 10.3 lb. (4.67 kg)

Gross 18.57 lb. (8.43 kg)

VESA® MOUNT 100mm x 100mm

REGULATIONS CUL/FCC, RoHS

RECYCLE/DISPOSAL Please dispose of in accordance with local, state or federal laws.

PACKAGE CONTENTS VPC190, power cord, power adapter, keyboard, mouse, Quick

Start Guide, System Recovery and Driver Disk with User-Guide

WARRANTY 1 year limited warranty on parts, labor and backlight.

6

7

1

3

11

4

8

9

Sales: [phone] • [e-mail] • ViewSonic.com

Microsoft, Windows, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United

States and/or other countries. Specications subject to change without notice. Selection, offers and programs may vary by

country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property
of their respective companies. Copyright © 2011 ViewSonic Corporation. All rights reserved. [15481-00B-02/11] VPC190-1

5 2

4 10

1 – LCD Screen
2 – Slot DVD RW
3 – Power
4 – USB Port
5 – 4-in-1 Card Reader

7 – Webcam
8 – Headphone jack
9 – Microphone jack
10 – RJ45 Ethernet
11 – VESA® mount

6 – Microphone

ViewSonic Corporation’s QMS & EMS have been registered

to ISO 9001 & ISO 14001, respectively, by TUV NORD.

Sm a r t er Greener C o m puting

For more product information, visit us on the web at ViewSonic.com
