Service Manual

ViewSonic VP201b/s-1

Model No.

VLCDS26064-2W/-4W

20" Color TFT LCD Display

ViewSonic

(VP201b/s-1_SM_685 Rev. 1b Mar. 2004)



381 Brea Canyon Road, Walnut, California 91789 USA - (800) 888-8583

Copyright reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of ViewSonic Corporation.

Disclaimer

ViewSonic makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranty of merchantability or fitness for any particular purpose. Further, ViewSonic reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of ViewSonic to notify any person of such revision or changes.

Trademarks

Optiquest is a registered trademark of ViewSonic Corporation. ViewSonic is a registered trademark of ViewSonic Corporation. All other trademarks used within this document are the property of their respective owners.

Revision History

Revision Date Description Of Changes Approval

1a 28/08/03 Initial Release DCN-3387,3506,3604 Fellen. Fan

1b 25/03/04 Panel Change LG U04 Panel 16ms DCN-3773 Angela Luh

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

TABLE OF CONTENTS

1. Precautions and Safety Notices

2. Specification

3. Front Panel Function Control Description

4. Circuit Description

5. Adjusting Procedure

6. Trouble Shooting Flow Chart

7. Recommended Spare Parts List

8. Exploded Diagram And Spare Parts List

9. Block Diagram

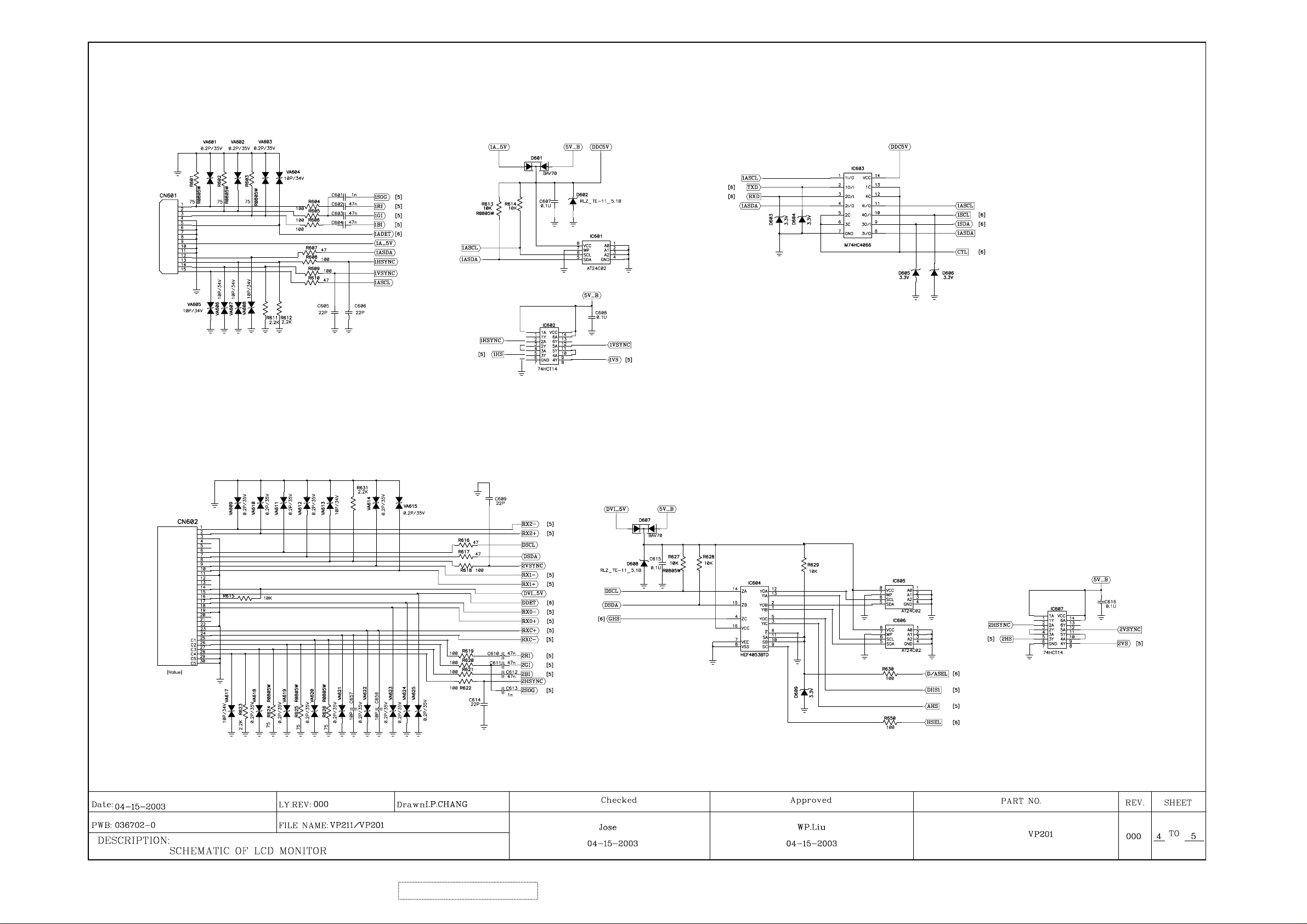

10. Schematic Diagrams

11. PCB Layout Diagrams

15 18

29 51 57 58

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

1. Precautions and Safety Notices

Prior to using this manual, please ensure tha t you have carefully followed all t he procedures outlined in the user manual for this product.

• Read all of these instructions.

• Save these instructions for later use.

• Follow all warnings and instructions marked on the product.

• Do not use this product near water.

• This display should be installed on a solid horizontal base.

• When cleaning, use only a neutral detergent cleaner with a soft damp cloth. Do not spray with liquid or aerosol cleaners.

• Do not expose this display to direct sunlight or heat. Hot air may cause damage to the cabinet and other parts.

• Adequate ventilation must be maintained to ensure reliable and continued operation and to protect the display from overheating. Do not block ventilation slots and openings with objects or install the display in a place where ventilation may be hindered.

• Do not install this display near a motor or transformer where strong magnetism is generated. Images on the display will become distorted and the color irregular.

• Do not allow metal pieces or objects of any kind fall into the display from ventilation holes.

Slots and openings in the cabinet and the back or b ottom are provided for ventilation, to ensu re reliable operation of the product and to protect it from overheating, those openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided.

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

2. Specification

2.1 Electrical Specification

a. General specification:

LCD panel suppliers: LG: LM201U03-A3./LM201U04-A3 LCD panel specification:

Input signals: a. Analog R / G / B (0.7Vp-p/75 ohm) Positive.

Input connector: a. Analog D-sub 15pin x 1.

Output connector: a. USB down stream x 4. Display data channel: DDC2B. (Appendix B) Signal frequency range: a. Horizontal:

Resolution: 1600x1200. (UXGA) Power supply: AC Input Range: AC 90 to 264V, 50/60Hz ± 3Hz, 1.5A.

Power Consumption:

a. Panel size: 20.1-inch (viewable). b. Driver element: a - Si TFT active matrix. c. Effective display area: 408.0 (H) X 306.0 (V) mm. d. Pixel pitch: 0.255 (H) X 0.255 (V) mm. e. Max. resolution: UXGA (1600X1200 pixels). f. Display color: 16.7M colors (R, G, B 8-bit data).

g. Response time (ms)(typical):

h. Color Gamut:

25 ms => LM201U03 16 ms => LM201U04 60% => LM201U03

72% => LM201U04 i. Color filter arrangement: R / G / B vertical stripe. j. Black light: Edge – light type with 6CCFLs.

k. Contrast ratio:

350:1 => LM201U03

400:1 => LM201U04 l. Luminance: 250cd/m2 (Typical). m. Luminance variation: 1.54 (MAX.). n. Viewing angle (CR >10): Horizontal: 176

, Vertical: 176o.

b. Digital R /G / B DVI rev. 1.0 (TMDS single link) c. H & V separate Sync: TTL level; Polarity: Positive or Negative. d. H & V composite Sync: TTL level; Polarity: Positive or Negative. e. SOG (Sync level 0.3Vp-p).

b. Digital DVI-I 29 pin x 1. (Analog + Digital) c. USB up stream x1.

a-1. Analog: 30KHz ~ 95KHz. a-2. Digital: 30KHz ~ 92KHz.

b. Vertical: 50Hz ~ 85*

Note: *

The maximum vertical refresh rate of 1600x1200 as below:

Hz.

Analog input: 75 Hz. Digital input: 60 Hz.

c. Pixel clock:

c-1. Analog: 205MHz. c-2. Digital: 165MHz.

d. Non-interlaced.

Less then 50Ap. For 115VAC. Inrush current Less then 100Ap. For 230V

. Less then 73W. On mode. Less then 5W. Active off mode. Less then 5W. DC power off.

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

b. Physical specification. Overall dimension:

Mechanical adjustment:

Packaging: a. Carton dimension:

Accessories: Power cable 1.8m.

c. Regulatory & Standard certification. Regulatory standards UL, cUL, FCC-B, CB, CE, ENERGY, NOM, TUV/GS, TUV-ERGO (covers ISO134 06 -2 &

a. Height: 480.55mm. b. Width: 448.00mm. c. Depth: 266.65mm. a. Net weight: 8.5kg. Weight: b. Gross weight: 11.2kg. a. Tilt: +25o ~ -5o. b. Swivel: c. Height adjust: 110mm. d. Pivot: 90

± 45

. a. Height: 494mm. b. Width: 345mm. c. Depth: 560mm.

User guide (English). CD ROM. Warranty card. HD15 - HD15 cable. DVI (D) – DVI (D) cable. USB Cable (A type to B type) Portrait Software CD

MPRII), TCO’03 (for VP201s), TCO99 (for VP201b), NEMKO, SEMKO, DEMKO, FIMKO, GOST-R, PCBC, VCCI, BSMI, CCC, (PSB), (C-TICK)

2.1.1 Picture size & position. a. Picture size.

Input analog timing 1 ~ 25mode & DVI timing 1 ~ 22mode: (Appendix A) H-size: 408mm ± 1mm. V-size: 306mm ± 1mm. (Extra 640x350)

b. Screen center.

b-1. 1600x1200: H ± 1mm, V ± 1mm. b-2. Others mode: H ± 1.5mm, V ± 1mm.

c. Picture position (refer to FIG.2).

H-position:︱g3-g4︱ ≦ 1.5mm. V-position:︱g1-g2︱ ≦ 1.5mm.

2.1.2 Luminance test. Input1600x1200 / 60Hz & full white pattern at 100IRE, adjust brightness 100%, contrast 70%.

Color temperature x, y value

9300°K x=0.283 , y=0.298

6500°K x=0.313 , y=0.329

5400°K x=0.335 , y=0.350

5000°K x=0.346 , y=0.359

306mm

408mm

FIG. 2

Y (Luminance)

Analog DVI

CCT(max) = 10250°K, CCT(min) = 8500°K

CCT(max) = 6950°K, CCT(min) = 6100°K

CCT(max) = 5915°K, CCT(min) = 4935°K

CCT(max) = 53500°K, CCT(min) = 4700°K

> 140 cd/m

> 180 cd/m

> 140 cd/m2

> 180 cd/m2

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

2.2. Adjustment control.

2.2.1 User control.

- Power switch.

- Function key.

“1” : Function select button. “▼” : Adjustment button. “▲” : Adjustment button. “2” : Function select button.

2.2.2 OSD function.

Auto Image Adjust * Contrast/Brightness:

Contrast, Brightness.

Input Select:

D-Sub, DVI-A, DVI-D.

Color Adjust:

9300K, 6500K (default), 5400, 5000, User Color (R, G, B).

Information:

Resolution, Horizontal Frequency, Vertical Frequency, Model Number, Serial Number, Web Site.

Manual Image Adjust:

H. / V. Position* Sharpness*

(H. Position, V. Position), H. Size*2, Fine Tune*

, Scaling*3 (Fill Screen, Fill Aspect Ratio*

, 1:1).

Setup Menu:

Language:

Resolution Notice:

Input Priority:

OSD Position:

OSD Timeout:

OSD Background:

Memory Recall Note:

English, French, German, Spanish, Italian, Finnish, Japanese, Traditional Chinese, Simplified Chinese.

Enable, Disable.

D-Sub, DVI-A, DVI-D, Auto Search.

H. Position, V. Position.

5SEC, 15SEC, 30SEC, 60SEC

On, Off.

These functions are not available in Digital mode; the setting is shaded and can't be selected. When auto tuning, the image should not be blanking.

These functions are not available in 1600x1200 mode, the setting is shaded and can't be selected.

When the input signal is 4:3, the “Fill Aspect ratio” function is the size same as “Fill Screen”.

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

2.3 Factory preset.

2.3.1 Special key (Hot key): Hold the following keys while powering on:

[1]. Main Menu. [2]. Select next input. (Sequence: D-SUB → DVI-A → DVI-D) [UP] or [DOWN] arrow. To immediately activate Contrast menu. It should be change to Brightness

[UP] + [DOWN] arrows. Recall Contrast or Brightness while in the Contrast or Brightness adjustment,

[1] + [2]. Toggle 720x400 and 640x400 mode when input 720x400 or 640x400 mode. [1] + [UP] + [DOWN]. White Balance. (keep press 5 seconds)

[1] + [DOWN]. Power Lock / Power Unlock. (keep press 10 seconds ) [1] + [UP]. OSD Lock / OSD Unlock (keep press 10 seconds )

DC-Power + [2] + [UP]. Copy EDID to E DC-Power + [1]. Factory mode. (Burn in mode on) DC-Power + [2] + [DOWN]. Burn in mode on. DC-Power + [UP] + [DOWN]. Burn in mode off. DC-Power + [2]. All mode recall. AC-Power on. Enter ISP mode.

2.3.2 All mode recall setting:

Contrast 70%. Brightness 100%. Color Temperature 6500K. Scaling Full Screen. Sharpness 0.

Input Priority Auto Search.

OSD H. Position 50%. OSD V. Position 50%. OSD Time Out 15 Sec OSD Background On

Resolution Notice Enabled

720x400/640x400 720x400 User color. 50%. Language. English. Clear burn in mode. Clear user mode table.

2.3.3 Factory shipment setting:

OSD by push button [2].

or recall both of Contrast and Brightness when the OSD is not open.

(only used 1024x768/75Hz, 16 Grays)

Main power switch: On.

AC power button: Off. Others setting same as “All mode recall” setting.

PROM.

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

2.4. Environmental conditions.

2.4.1 Temperature and humidity at operation : 0

C ~ 40oC.

20% ~ 90% RH (Non condensing).

2.4.2 Temperature and humidity at storage : -20

C ~ 60oC.

5 ~ 90% RH (Non condensing).

2.4.3 Vibration test (packaged) :

Vibration Frequency Acceleration Sweep time Test time

: 1G. : 1 oct. / min. : 60 min per axis, total 3 axis.

: 5 ~ 250Hz.

2.4.4 Drop test (packaged) : 76.2cm height.

1 corner, 3 edges, 6 faces.

2.4.5 Altitude : Operating : 0 ~ 3000 feet.

Non-operating : 0 ~ 12000 feet.

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

Appendix A: Timing of inputs signals / nominal input level spec / Timing.

Timing of input signals, Input level specification.

A. Input signal:

a. Analog R / G / B (0.7Vp-p/75 ohm) Positive. b. Digital R /G / B DVI rev. 1.0 (TMDS single link) c. H & V separate Sync: TTL level; Polarity: Positive or Negative. d. H & V composite Sync: TTL level; Polarity: Positive or Negative.

B. Input signal connector:

a. Analog video input:

Pin Pin assignment Pin Pin assignment 1 Red video 9 +5V for DDC 2 Green video 10 GND 3 Blue video 11 GND 4 GND 12 DDC SDA 5 GND 13 H SYNC 6 Red video return 14 V SYNC 7 Green video return 15 DDC SCL 8 Blue video return

Pin5: For cable connection detect.

b. Digital video input:

Pin Pin assignment Pin Pin assignment Pin Pin assignment 1 TMDS data 2- 9 TMDS data 1- 17 TMDS data 02 TMDS data 2+ 10 TMDS data 1+ 18 TMDS data 0+ 3 TMDS data 2 shield 11 TMDS data 1 shield 19 TMDS data 0 shield 4 NC 12 NC 20 NC 5 NC 13 NC 21 NC 6 DDC clock 14 +5V power 22 TMDS clock shield 7 DDC data 15 GND 23 TMDS clock + 8 Analog V-SYNC 16 Hot Plug Detect 24 TMDS clock C1 Analog R C2 Analog G C3 Analog B C4 Analog H-SYNC C5 Analog Ground

Pin15: For cable connection detect.

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

C. Analog timing chart.

Mode No. 1 2 3 4 5 6 7 8 9 10

TEXT

Mode Name

Horizontal Freq. 31.468 31.469 35.000 37.861 37.500 43.269 31.469

Video clock Freq. 25.175 25.175 30.240 31.500 31.500 36.000 28.322 36.000 40.000 50.000

Sync. Polarity

H. total (Dots) 800 800 864 832 840 832 900 1024 1056 1040

H. sync. (Dots) 96 96 64 40 64 56 108 72 128 120

H. back porch (Dots) 48 48 96 128 120 80 54 128 88 64

H. active (Dots) 640 640 640 640 640 640 720 800 800 800

H. front porch (Dots) 16 16 64 24 16 56 18 24 40 56

Vertical Freq. (Hz) 70.087 59.940 66.667 72.809 75.000 85.008 70.087 56.250 60.317 72.188

Sync. Polarity

V. total (Lines) 449 525 525 520 500 509 449 625 628 666

V. sync. (Lines) 2 2 3 3 3 3 2 2 4 6

V. back porch (Lines) 60 33 39 28 16 25 35 22 23 23

V. active (Lines) 350 480 480 480 480 480 400 600 600 600

V. front porch (Lines) 37 10 3 9 1 1 12 1 1 37

Mode No.

Mode Name

Horizontal Freq. (KHz) 46.875 53.674

Video clock Freq. 49.500 56.250 57.285 65.000 75.000 78.084 78.750 94.500 108.00 135.00

Sync. Polarity

H. total (Dots) 1056 1048 1152 1344 1328 1344 1312 1376 1688 1688

H. sync. (Dots) 80 64 64 136 136 136 96 96 112 144

H. back porch (Dots) 160 152 224 160 144 160 176 208 248 248

H. active (Dots) 800 800 832 1024 1024 1024 1024 1024 1280 1280

H. front porch (Dots) 16 32 32 24 24 24 16 48 48 16

Vertical Freq. (Hz) 75.000 85.061 74.553 60.004 70.069 72.082 75.029 84.997 60.020 75.025

Sync. Polarity

V. total (Lines) 625 631 667 807 806 806 800 808 1066 1066

V. sync. (Lines) 3 3 3 6 6 6 3 3 3 3

V. back porch (Lines) 21 27 37 29 29 29 28 38 38 38

V. active (Lines) 600 600 624 768 768 768 768 768 1024 1024

V. front porch (Lines) 1 1 3 3 3 3 1 1 1 1

640 x

350

VESA

800 x

600

VESA

640 x

480

＋－－－－－－＋＋＋

－－－－－－＋＋＋＋

11 12 13 14 15 16 17 18 19 20

VESA

800 x

600

＋＋－－－－＋＋＋＋

MAC 640 x

480

MAC 832 x

624

49.727

VESA

640 x

480

VESA

1024 x

768

48.363

VESA

640 x

480

VESA

1024 x

768

56.476 58.099

VESA

640 x

480

XGA

1024 x

768

TEXT

720 x

400

VESA

1024 x

768

60.023 68.677 63.981 79.976

VESA

800 x

600

35.156

VESA

1024 x

768

VESA

800 x

600

37.879 48.077

VESA

1280 x

1024

VESA

800 x

600

VESA

1280 x

1024

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

Mode No.

Mode Name

Horizontal Freq. (KHz) 91.146

Video clock Freq. 157.50 74.250 162.00 189.00 202.500

Sync. Polarity

H. total (Dots) 1728 1650 2160 2160 2160

H. sync. (Dots) 160 40 192 192 192

H. back porch (Dots) 224 270 304 304 304

H. active (Dots) 1280 1280 1600 1600 1600

H. front porch (Dots) 64 60 64 64 64

Vertical Freq. (Hz) 85.024 60.000 60.000 70.000 75.000

Sync. Polarity

V. total (Lines) 1072 750 1250 1250 1250

V. sync. (Lines) 3 5 3 3 3

V. back porch (Lines) 44 20 46 46 46

V. active (Lines) 1024 720 1200 1200 1200

V. front porch (Lines) 1 5 1 1 1

21 22 23 24 25 26 27 28 29 30

VESA

1280 x

1024

HDTV 1280 x

720

45.000

＋－＋＋＋

VESA

1600 x

1200

75.000 87.500 93.750

VESA

1600 x

1200

VESA

1600 x

1200

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

D. Digital timing chart.

Mode No. 1 2 3 4 5 6 7 8 9 10

TEXT

Mode Name

Horizontal Freq. 31.468 31.468 31.469 37.861 37.500 43.269 31.469

Video clock Freq. 25.175 25.175 25.175 31.500 31.500 36.000 28.322 36.000 40.000 50.000

Sync. Polarity

H. total (Dots) 800 800 800 832 840 832 900 1024 1056 1040

H. sync. (Dots) 96 96 96 40 64 56 108 72 128 120

H. back porch (Dots) 48 48 48 128 120 80 54 128 88 64

H. active (Dots) 640 640 640 640 640 640 720 800 800 800

H. front porch (Dots) 16 16 16 24 16 56 18 24 40 56

Vertical Freq. (Hz) 70.087 70.087 59.940 72.809 75.000 85.008 70.087 56.250 60.317 72.188

Sync. Polarity

V. total (Lines) 449 449 525 520 500 509 449 625 628 666

V. sync. (Lines) 2 2 2 3 3 3 2 2 4 6

V. back porch (Lines) 60 35 33 28 16 25 35 22 23 23

V. active (Lines) 350 400 480 480 480 480 400 600 600 600

V. front porch (Lines) 37 12 10 9 1 1 12 1 1 37

Mode No.

Mode Name

Horizontal Freq. (KHz) 46.875 53.674 48.363

Video clock Freq. 49.500 56.250 65.000 75.000 78.084 78.750 94.500 108.00 135.00 157.50

Sync. Polarity

H. total (Dots) 1056 1048 1344 1328 1344 1312 1376 1688 1688 1728

H. sync. (Dots) 80 64 136 136 136 96 96 112 144 160

H. back porch (Dots) 160 152 160 144 160 176 208 248 248 224

H. active (Dots) 800 800 1024 1024 1024 1024 1024 1280 1280 1280

H. front porch (Dots) 16 32 24 24 24 16 48 48 16 64

Vertical Freq. (Hz) 75.000 85.061 60.004 70.069 72.082 75.029 84.997 60.020 75.025 85.024

Sync. Polarity

V. total (Lines) 625 631 807 806 806 800 808 1066 1066 1072

V. sync. (Lines) 3 3 6 6 6 3 3 3 3 3

V. back porch (Lines) 21 27 29 29 29 28 38 38 38 44

V. active (Lines) 600 600 768 768 768 768 768 1024 1024 1024

V. front porch (Lines) 1 1 3 3 3 1 1 1 1 1

640 x

350

＋－－－－－－＋＋＋

－＋－－－－＋＋＋＋

11 12 13 14 15 16 17 18 19 20

VESA

800 x

600

＋＋－－－＋＋＋＋＋

VGA

640 x

400

VESA

800 x

600

VESA

640 x

480

VESA

1024 x

768

VESA

640 x

480

VESA

1024 x

768

56.476 58.099

VESA

640 x

480

XGA

1024 x

768

VESA

640 x

480

VESA

1024 x

768

60.023 68.677 63.981 79.976 91.146

TEXT

720 x

400

VESA

1024 x

768

VESA

800 x

600

35.156

VESA

1280 x

1024

VESA

800 x

600

37.879 48.077

VESA

1280 x

1024

VESA

800 x

600

VESA

1280 x

1024

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

Mode No.

Mode Name

Horizontal Freq. (KHz)

Video clock Freq. 74.250 162.00

Sync. Polarity

H. total (Dots) 1650 2160

H. sync. (Dots) 40 192

H. back porch (Dots) 270 304

H. active (Dots) 1280 1600

H. front porch (Dots) 60 64

Vertical Freq. (Hz) 60.000 60.000

Sync. Polarity

V. total (Lines) 750 1250

V. sync. (Lines) 5 3

V. back porch (Lines) 20 46

V. active (Lines) 720 1200

V. front porch (Lines) 5 1

21 22 23 24 25 26 27 28 29 30

HDTV 1280 x

720

45.000

VESA

1600 x

1200

75.000

－＋

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

a. 128 bytes of EDID code for VP201b analog.

0 1 2 3 4 5 6 7 8 9 0 00 FF FF FF FF FF FF 00 5A 63 10 11 69 01 01 01 01 01 0D 01 03 20 0E 29 1F 78 2A 4E 95 A1 57 4C 30 94 26 1C 50 54 BF EF 80 A9 40 40 81 80 81 40 71 4F 61 59 45 59 50 31 59 A9 4F 48 3F 40 30 62 B0 60 32 40 40 C0 13 00 98 32 11 00 70 00 1E 00 00 00 FF 00 80 30 33 30 31 30 30 30 30 31 0A 90 00 00 00 FD 00 32 55 1E 5F 15 100 00 0A 20 20 20 20 20 20 00 00 110 00 FC 00 56 50 32 30 31 62 0A 120 20 20 20 20 20 20 00 B4

Note: *4 (77 ~ 79)

77 78 79 Remark

Standard packing individual head packing & multi-packing

b. 128 bytes of EDID code for VP201b digital.

0 1 2 3 4 5 6 7 8 9 0 00 FF FF FF FF FF FF 00 5A 63 10 11 69 01 01 01 01 01 0D 01 03 20 80 29 1F 78 2A 4E 95 A1 57 4C 30 94 26 1C 50 54 BF EF 80 A9 40 40 81 80 81 40 71 4F 61 59 45 59 50 31 59 31 0A 48 3F 40 30 62 B0 60 32 40 40 C0 13 00 98 32 11 00 70 00 1E 00 00 00 FF 00 80 30 33 30 31 30 30 30 30 31 0A 90 00 00 00 FD 00 32 55 1E 5C 11 100 00 0A 20 20 20 20 20 20 00 00 110 00 FC 00 56 50 32 30 31 62 0A 120 20 20 20 20 20 20 00 B4

*4 *

41 32 31 A21 41 32 44 A2D

*4 *

Note: *4 (77 ~ 79)

77 78 79 Remark

Standard packing individual head packing & multi-packing

41 32 31 A21 41 32 44 A2D

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

c. 128 bytes of EDID code for VP201s analog.

0 1 2 3 4 5 6 7 8 9 0 00 FF FF FF FF FF FF 00 5A 63 10 18 0C 01 01 01 01 01 0D 01 03 20 0E 29 1F 78 2A 4E 95 A1 57 4C 30 94 26 1C 50 54 BF EF 80 A9 40 40 81 80 81 40 71 4F 61 59 45 59 50 31 59 A9 4F 48 3F 40 30 62 B0 60 32 40 40 C0 13 00 98 32 11 00 70 00 1E 00 00 00 FF 00 41 32 55 80 30 33 30 31 30 30 30 30 31 0A 90 00 00 00 FD 00 32 55 1E 5F 15 100 00 0A 20 20 20 20 20 20 00 00 110 00 FC 00 56 50 32 30 31 0A 20 120 0A 20 20 20 20 20 00 B4

d. 128 bytes of EDID code for VP201s digital.

0 1 2 3 4 5 6 7 8 9 0 00 FF FF FF FF FF FF 00 5A 63 10 18 0C 01 01 01 01 01 0D 01 03 20 80 29 1F 78 2A 4E 95 A1 57 4C 30 94 26 1C 50 54 BF EF 80 A9 40 40 81 80 81 40 71 4F 61 59 45 59 50 31 59 31 0A 48 3F 40 30 62 B0 60 32 40 40 C0 13 00 98 32 11 00 70 00 1E 00 00 00 FF 00 41 32 55 80 30 33 30 31 30 30 30 30 31 0A 90 00 00 00 FD 00 32 55 1E 5C 11 100 00 0A 20 20 20 20 20 20 00 00 110 00 FC 00 56 50 32 30 31 0A 20 120 20 20 20 20 20 20 00 B4

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

e. 128 bytes of EDID code for VP211b analog.

0 1 2 3 4 5 6 7 8 9 0 00 FF FF FF FF FF FF 00 5A 63 10 11 6A 01 01 01 01 01 0D 01 03 20 0E 2B 20 78 2A EE 95 A3 54 4C 30 99 26 0F 50 54 BF EF 80 A9 40 40 A9 4F 81 99 81 59 71 4F 61 59 50 45 59 31 59 48 3F 40 30 62 B0 60 32 40 40 C0 13 00 B0 44 11 00 70 00 1E 00 00 00 FF 00

80 30 33 30 31 30 30 30 30 31 0A 90 00 00 00 FD 00 32 55 1E 5F 15 100 00 0A 20 20 20 20 20 20 00 00 110 00 FC 00 56 50 32 31 31 62 0A 120 20 20 20 20 20 20 00 B4

Note: *4 (77 ~ 79)

77 78 79 Remark

Standard packing individual head packing & multi-packing

41 32 32 A22 41 32 45 A2E

f. 128 bytes of EDID code for VP211b digital.

0 1 2 3 4 5 6 7 8 9 0 00 FF FF FF FF FF FF 00 5A 63 10 11 6A 01 01 01 01 01 0D 01 03 20 80 2B 20 78 2A EE 95 A3 54 4C 30 99 26 0F 50 54 BF EF 80 A9 40 40 81 99 81 59 71 4F 61 59 45 59 50 31 59 31 0A 48 3F 40 30 62 B0 60 32 40 40 C0 13 00 B0 44 11 00 70 00 1E 00 00 00 FF 00

*4 *

80 30 33 30 31 30 30 30 30 31 0A 90 00 00 00 FD 00 32 55 1E 5C 11 100 00 0A 20 20 20 20 20 20 00 00 110 00 FC 00 56 50 32 31 31 62 0A 120 20 20 20 20 20 20 00 B4

Note: *4 (77 ~ 79)

77 78 79 Remark

Standard packing individual head packing & multi-packing

41 32 32 A22 41 32 45 A2E

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

3. Front Panel Function Control Description

A. User control.

B. OSD (on screen display) function control method.

Scrolls through menu options and adjusts the displayed control. Also a shortcut to display the Contrast adjustment control screen.

Display the Main Menu or exits the control screen

and saves adjustments

Displays the control screen for the highlighted control.

Also toggles between two controls on some screens.

Also a shortcut to toggle analog and digital

Power light Green – ON Orange – Power Saving

1. To display the main menu, press button “1”.

2. To select a control you want to adjust, press ▲ or ▼ to scroll up or down the main menu.

3. After the control is selected, press button “2”.

4. To adjust the control, press the ▲ or ▼ button.

5. To save the adjustments and exit the menu, press button “1” twice.

Power On / Off

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

C. Main menu controls.

Adjust the menu items shown below by using the up ▲ and down ▼ buttons.

Control explanation.

Auto Image Adjust automatically sizes, centers, and fine tunes the video signal to eliminate waviness and distortion.

Press the [2] button to obtain a sharper image.

Note: Auto Image Adjust works with most common video cards. If this function does not work

on your LCD display, then lower the video refresh rate to 60Hz and set the resolution to its pre-set value.

Contrast adjusts the difference between the image background (black level) and the foreground (white level).

Brightness adjusts background black level of the screen image.

Input Select allows you to toggle between an analog and a digital signal.

Color Adjust provides several color adjustment modes: preset color temperatures and RGB which allows you to adjust

red (R), green (G), and blue (B) separately. The factory setting for this product is 6500K (6500 Kelvin).

9300K ─ Adds blue to the screen image for cooler white (used in most office settings with fluorescent lighting).

6500K ─ Adds red to the screen image for warmer white and richer red.

5400K ─ Adds blue and green to the screen image for a darker color.

User Color ─ Individual adjustments for red (R), green (G), and blue (B).

1. To select color (R, G or B) press button [2].

2. To adjust selected color, press ▼ or ▲.

Important: If you select RECALL from the Main Menu when the product is set to a Preset Timing Mode, colors

return to the 6500K factory preset.

Information displays the timing mode (video signal input) coming from the graphics card in your computer. See your

graphic card’s user guide for instructions on changing the resolution and refresh rate (vertical frequency).

Note: VESA 1600x1200@60Hz (recommended) means that the resolution is 1600x1200 and the refresh

rate is 60 Hertz.

Manual Image Adjust displays the Manual Image Adjust menu.

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

Setup Menu displays the menu shown below.

The Setup Menu controls are explained below:

Language allows you to choose the language used in the menus and control screens.

Resolution Notice displays the Resolution Notice menu shown below.

Resolution Notice advises the optimal resolution to use.

Input Priority If multiple computers will be connected to the display, this function can be used to select which

computer has priority Depending on the selected Input Priority, the display will do a one time detection for available inputs when first powered on.

OSD Position allows you to move the on-screen display menus and control screens.

OSD Timeout sets the length of time of on-screen display screen is displayed. For example, with a “15 second”

setting, if a control is not pushed within 15 seconds, the display screen disappears.

OSD Background allows you to turn the On-Screen-Display background on or off.

OSD Pivot This function is used to rotate the OSD menu, when the display is changed from Landscape to Portrait

mode.

Memory Recall returns adjustments to the original factory settings if the display is operating in a factory Preset

Timing Mode listed in this user guide.

Exception: This control does not affect changes made with the User Color control.

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

4. Circuit Description

1. Power supply (DC/DC Converter):

1.1 IC251 BA9741F is a two-channel switching regulator controller that uses PWM method. For DC to DC conversion for step-down. It converts a 12V DC into regulated and stable output voltage of 5V.

1.2 Regulator:

IC252, IC253, IC254, IC255 function is to convert 5V into regulated and stable O/P of 3.3V and 2.5V. IC252 converts 5V to 2.5V; converts 5V to 3.3V; IC253, IC254, IC255.

2. DDC data select:

2.1 IC601 is save D-SUB DDC data.

2.2 IC606 save DVI-A analog DDC data, IC605 save DVI-D digit DDC data. IC604 is triple 2 channel analog multiplexes / de-multiplexes, IC604 pin 10 & 11 is “Lo” select IC605 DDC data, IC604 pin 10 & 11 is “Hi” select IC606 DDC data.

3. ADC (Analog): The IC608 AD9888 is a complete 8-bit, 205MSPS monolithic analog interface optimized for capturing RGB graphics signal

from PC. The IC608 have two input source (D-SUB & DVI-A), the input source control by I

4. TMDS (DVI): The IC609 THC63DV161 is a TMDS receiver compliant with DVI Rev. 1.0. The IC609 turn on/off control by pin 2 “DPD” from IC401 scaler.

5. Scaler: The PW166B image processor is a highly integrated “system-on-a-chip” that interfaces analog, digital, and video inputs in virtually any format to a digital projection system or multimedia display.

Any embedded SDRAM frame buffer and memory controller perform frame rate conversion. Computer images from VGA to UXGA at almost any refresh rate can be resized to fit on a fixed-frequency target display device with any resolution up to UXGA with full 24-bit color.

The PW166B includes advanced second generation image scaling that provides completely programmable, horizontal and vertical image scaling.

The PW166B also includes advanced second-generation sync decoding which provides full support for a wide variety of sync types. This includes interlaced, progressive, sync-on-green, and TMDS DE (Data Enable) only.

An integrated OSD controller provides bit-mapped based OSD with 16 colors from a 64K color palette. The OSD controller supports transparent and translucent functions.

The Graphics Port (GPort) captures computer graphics inputs with very high input bandwidth through an external IC608 Analog-To-Digital converter (ADC) or IC609 digital interface receiver.

The DPort is designed to be connected directly to LVDS (IC501, IC502). The output timing is fully programmable and is independent of the input timing. An on-chip 80x86 microprocessor with custom features for image processing applications is provided. Built in port interrupts,

General Purpose I/O (GPIO), UART, IR Decoders, Timers and PWM Generator provide a full featured hardware base to build on.

6. LVDS Transmitter: The IC501, IC502 transmitter converts 28 bits of CMOS/TTL data into LVDS (Low Voltage Differential Signaling) data stream.

A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link.

7. USB HUB Controller: IC951 is a high speed USB HUB controller, this single-chip device incorporates one upstream and four downstream USB

transceivers. IC951 CY7C65640 includes interface signals for external port power switches. The power switching and over-current detection

of downstream ports is managed by control pins connected to an external power switch device by IC952 & IC953. IC954 is an EEPROM VID & PID configured.

C from IC401 scaler.

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

5. Adjusting Procedure

A. General.

1. All specification must be met over line voltage range of 90V

2. Operating temperature range is 0

C to 40oC with a relative humidity of 10% or less to 80%.

3. The monitor must be operational in a usable state within 30 minutes after turn-on.

4. All signal levels are measured assuming termination at the monitor’s input jacks or in its characteristic impedance.

5. All controls must have excess range (no control may be left at an end stop when proper alignment is completed).

6. The monitor is not required to meet specs during the following but must tolerate, without damage to the LCD or circuits,

any sequence or combination of power on and off, signal on and off, erratic, wrong frequency or noisy inputs while at any

possible unplugging of power or signal, settings of user accessible controls likewise, the monitor should survive extended periods of operation with line voltage reduced below the specified minimum.

7. An isolation transformer should be used when performing alignment and tests, Portions of the power supply board are hot

ground, The remaining boards are cold ground.

8. Ambient condition:

8.1 Illumination: 150 ~ 260 lux.

8.2 Environmental noise: Less than 60dB.

8.3 Interference of EMI: No excessive electric or magnetic fileds.

8.4 Temperature: 24 ± 2

8.5 Humidity: 65 ± 20%.

to 264V

50Hz / 60Hz, unless otherwise specified.

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

B. Instrument alignment.

1. Adjustment procedure.

"DOWN + 2 + DC power"

Select "Color Adjust"

Input

D-SUB

Input

1024x768 / 75Hz

16 Grays pattern

Push

3 seconds

Push

"1 + DC power"

3 second

Select

"RGB Reset"

function

Input 1600x1200 / 60 Hz Full white pattern

Push

"1 + DC power"

3 seconds

to adjust "9300K", "6500K" "5400K", "5000K"

Push "1"

Exit adjust OSD

Push "2" Push "2"

Select "Color Adjust"

Input

DVI-A

Push

"1 + DC power"

3 seconds

to adjust "9300K", "6500K" "5400K", "5000K"

Push "1"

Exit adjust OSD

Input

DVI-D

Push

"1 + DC power"

3 seconds

Select "Color Adjust"

to adjust "9300K", "6500K" "5400K", "5000K"

Push "1"

Exit adjust OSD

Push "2 + DC power" to close factory mode

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

2. Video alignment.

1.1 Preset condition.

1.1.1 Setting the contrast to 70%

1.1.2 Input 1024x768 / 75Hz, 16 gray pattern (input level 100IRE 0.7Vp-p), then press “RGB RESET”.

9300K / 6500K / 5400K / 5000K, R G B sub-contrast preset as below:

R sub-contrast 128 128 128 128 128 128 128 128 G sub-contrast 128 128 128 128 128 128 128 128 B sub-contrast 128 128 128 128 128 128 128 128

1.2 9300K alignment:

1.2.1 Input 1024x768 / 75Hz & full white pattern at 100IRE.

1.2.2 Adjust R, G, and B sub-contrast to meet following chromaticity spec:

9300K → x = 0.283 ± 0.005, y = 0.298 ± 0.005, Y > 150cd/m

1.3 6500K alignment:

1.3.1 Input 1024x768 / 75Hz & full white pattern at 100IRE.

1.3.2 Adjust R, G and B sub-contrast to meet following chromaticity spec:

6500°K → x = 0.313 ±0.005, y = 0.329 ± 0.005, Y > 200cd/m

1.4 5400K alignment:

1.4.1 Input 1024x768 / 75Hz & full white pattern at 100IRE.

1.4.2 Adjust R, G, and B sub-brightness to meet following chromaticity spec:

5400K → x = 0.335 ± 0.005, y = 0.350 ± 0.005, Y > 180cd/m

1.5 5000K alignment:

1.5.1 Input 1024x768 / 75Hz & full white pattern at 100IRE.

1.5.2 Adjust R, G and B sub-contrast to meet following chromaticity spec:

5000°K → x = 0.346 ±0.005, y = 0.359 ± 0.005, Y > 180cd/m

1.6 64grays & 16grays pattern check:

1.6.1 Input 1600x1200 / 60Hz & 64 grays pattern at 100IRE, adjust brightness 100%, and contrast 70%.

1.6.2 9300K / 6500K / 5400K / 5000K, the 64 grays can 2steps saturation.

1.6.3 Input 1600x1200 / 60Hz & 16 grays pattern at 100IRE, adjust brightness 100%, and contrast 100%.

1.6.4 9300K / 6500K / 5400K / 5000K, the 16 grays only had 3 grays can saturation.

brightness to 100%.

9300K 6500K 5400K 5000K

Analog DVI Analog DVI Analog DVI Analog DVI

(Both analog & DVI).

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

6. Trouble Shooting Flow Chart

1. No power.

Check that CN251 pin1, 2 are approximately 18V.

Yes

Check that FB251, FB252 are 18V.

FB251, FB252 failure.

Yes

Check that C263 positive is at 5V. Check that C261 positive is at 5V (for VP201).

1. Q258, D252 failure.

2. Q255, D251 failure (for VP201).

3. IC251 failure.

Yes

Failure point.

1. Power board failure.

2. Disconnected between CN251 and power board.

Failure point.

Check:

1. IC252 is O/P 2.5V.

2. IC253 is O/P 3.3V.

3. IC254 is O/P 3.3V.

4. IC255 is O/P 3.3V.

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

2. No display on screen (Screen is black, LED is off).

AC power on and DC power on

No picture LED is off

Yes

Check CN252

pin1 is 18V, pin5 is 5V

Yes

Inverter failure

Check that C263 positive is at 5V

IC251 failure

1. Check IC401 B3 pin.

2. Check Q259.

Yes

Check that the voltage level of

CN251 is approximately 18V

Power board failure

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

3. No display on screen (LED is green).

Is the backlight lit ?

Yes

Check that the cable is fully connected to CN501.

Yes

Check IC501, IC502.

Yes

Check Q263 pin4 is low voltage.

Failure point.

The cable is disconnected.

Failure point.

1. IC501, IC502 failure.

2. IC401 failure.

Q263 failure

Check that the cable is fully connected between the inverter and interface board.

The cable is disconnected.

Yes

Check CN252 pin1 is 12V,

pin5 is 5V

Yes

Inverter failure.

Failure point.

1. Check IC401 B3 pin.

2. Check Q259.

Yes

Check Q263 pin5, 6, 7, 8 is about:

1. 18V for VP211.

2. 5V for VP201.

Q263 failure

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

4. Show “No signal” on screen.

Check that signal level of R604, R605, R606, R619, R620, R621.

Check the Hsync and Vsync.

5. Keypad cannot work.

Yes

Failure point.

Yes

Check that the cable is fully connected

between the interface board and key board

Failure point.

1. IC608 failure.

2. Signal cable is disconnected.

Failure point.

1. IC405 pin2, 3, 4, 5, 6 failure.

2. TACT switch failure.

The cable is disconnected.

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

7. Recommended Spare Parts List

VP201b RSPL

Item Revision History ViewSonic P/N Ref. P/N Description Location Q'ty

1a 3/24/03 A-AD-0114-0189 993027602 POWER 90-264VAC 18V 3.33A COMP 1 1b 3/23/04 B-PS-0204-0060 993027602 POWER 90-264VAC 18V 3.33A COMP 1

2 B-KB-0207-0034 3000725100 SWITCH MEMBRANE PET 100*9 VP18 1 3 A-PC-0106-0193 3070000501 AC POWER CORD L1800 BLACK EURO 1 4 M-MS-0808-8555 3080323801 CABLE USB 2.0 A_B L1800 BLACK 1 5 M-MS-0808-8033 3080412101 CABLE D-SUB TO D-SUB RGB BLK L 1 6 A-VC-0101-0324 3080421500 CABLE DVI-D/DVI-D L1800 BLK OD 1 7 M-FC-0809-0078 3080515001 CABLE FFC ASSY 30P P1.0 L310 T CN501 1 8 A-PC-0106-0229 3090119001 AC POWER CORD L1830 BLACK US 1

9 M-SCW-0824-0772 3100130800 SCREW M M3*0.5*8 FPH C S20C ZN CABINET 4 10 M-SCW-0824-0773 3105034400 SCREW M M3*0.5*6 FLAT C S20C ZN BASE2 6 11 M-SCW-0824-0690 3105051501 SCREW M #4-40*7 HEXH #4-40*3 S DVI*2;D-SUB*2 4 12 M-SCW-0824-0781 3105127100 SCREW M M4*0.7*12 FF C S18C ZN BACK+BKT VESA 4 13 M-SCW-0824-0781 3105127100 SCREW M M4*0.7*12 FF C S18C ZN BASE1+HINGE*4 4 14 M-SCW-0824-0776 3105221000 SCREW M M3*0.5*6 FF C S18C ZN BKT+PANEL*4,SI 6 15 M-SCW-0824-0777 3105225300 SCREW M M3*0.5*4 FF C S18C ZN I/V BD 2 16 M-SCW-0824-0777 3105225300 SCREW M M3*0.5*4 FF C S18C ZN BKT 4 17 M-SCW-0824-0778 3105229400 SCREW M M3*0.5*10 FF C S18C ZN BASE1+HINGE 1 18 M-SCW-0824-0782 3105280200 SCREW M M3*0.5*4 FF C S18C ZN HINGE2+HINGE 2 19 M-SCW-0824-0783 3105280400 SCREW M M3*0.5*4 FLAT C S20C Z FOOT1+BKT 4 20 M-SCW-0824-0783 3105280400 SCREW M M3*0.5*4 FLAT C S20C Z FOOT2+BKT 4 21 M-SCW-0824-0784 3109010700 SCREW T M3*0.5*7 PAN C S+P S20 GROUNDING 1 22 M-SCW-0824-0732 3109010900 SCREW T M3*0.5*4 BIND C S18C Z BD*1 5 23 M-SCW-0824-0732 3109010900 SCREW T M3*0.5*4 BIND C S18C Z SHIELD+PANEL 4 24 M-SCW-0824-0779 3109017700 SCREW T M3*2.7*7.5 FF C S18C Z BASE1 2 25 M-SCW-0824-0779 3109017700 SCREW T M3*2.7*7.5 FF C S18C Z COVER & HINGE 2 26 M-SCW-0824-0780 3109019100 SCREW T M3*2.7*7.2 FLAT C S18C BASE FOOT1 2 27 M-SCW-0824-0780 3109019100 SCREW T M3*2.7*7.2 FLAT C S18C HINGE 4 28 M-MS-0808-8040 3110250000 WASHER SPRING SWRT CN602*2,CN601*2 4 29 M-LB-0813-0785 3200158900 LABEL STICKER OD10 WHT HI-POT NEAR AC 1 30 M-LB-0813-0712 3200449700 LABEL WARNING FOR TUBE 0.125 31 M-MS-0808-8556 3200649100 NAME PLATE VSC 3-BIRD LOGO AL FRONT BEZEL 1 32 M-MS-0808-8622 3200649200 NAME PLATE VIEWSONIC ABS 82.83 BACK CABINET 1 33 M-LB-0813-0851 3201948502 LABEL ID 100*50 VSC VP201B L20 CABINET BACK 1 34 M-LB-0813-0714 3202310700 LABEL HV WARNING 100*25 CAN 1 35 M-MS-0808-8624 3211030700 MYLAR FILM 430*330 T.1 L20CBR0 F/B 1 36 M-MS-0808-7463 3220501600 TAPE W=30 #10 3M BOTTOM(EMI) 1 37 M-MS-0808-8557 3240055600 CONDUCTIVE TAPE AL W50*L55 112 IF BD SHIELD 1 38 M-MS-0808-8583 3240160800 SPONGE EVA 5.8*5 T.5 BLK LEAKGE 1 39 M-MS-0808-8625 3240907500 SPONGE EMI CONDUCTIVE (10*10*3 TRACE(EMI) 1 40 PL-PD-0714-0100 3240957000 RUBBER PAD OD20 T4 BLACK FOR BASE3 BKT 4 41 PL-PD-0714-0101 3240968900 RUBBER PAD 20*20 T3 BLK FOR BASE3 BKT 1 42 M-MS-0808-8626 3241127300 INSULATOR PC 130*118.5 T.5 POWER BD 1 43 M-MS-0808-8627 3241127400 INSULATOR PC 231*13 T.5 PANEL BKT 1 44 C-BC-0302-0499 3360243102 CABINET BACK MIDNIGHT GRAY S0L 1 45 M-MS-0808-8559 3360506800 LED LENS ABS 1865-12 S8LRB1LS 1 46 PL-NB-0707-0192 3360624900 POWER KNOB POM M270 MIDNIGHT G 1 47 C-FP-0301-0337 3361077401 F/B ABS MIDIGHT GARY VP201B S0 1 48 M-CV-0830-2443 3361204901 COVER STAND FRONT ABS MIDNIGHT BKT BASE 1 49 M-CV-0830-2444 3361205101 COVER STAND REAR ABS MIDNIGHT 1 50 M-CV-0830-2439 3361205201 COVER BASE ABS MIDNIGHT GRAY S 1 51 M-CV-0830-2440 3361205300 COVER HINGE1 ABS MIDNIGHT GRAY 1 52 M-CV-0830-2441 3361205401 COVER HINGE2 ABS MIDNIGHT GRAY 1 53 M-CV-0830-2445 3361207000 COVER STAND BOTTOM ABS MIDNIGH 1 54 M-CV-0830-2446 3362010800 COVER VESA ABS MIDNIGHT GRAY S 1 55 C-FP-0301-0338 3368192601 F/B ASSY L20CBW05AAW S0LFA1AT 1 56 C-BS-0303-0364 3368990301 STAND ASSY L20CBW05AAW 1 57 M-MS-0808-8561 3460146100 BRACKET VESA SECC 110*20 T1 1 58 M-MS-0808-8563 3460146300 BRACKET KEYLOCK SECC 20.4*16.4 1 59 M-MS-0808-8628 3460149900 BRACKET IF&POWER SECC 95*39.2 1 60 M-MS-0808-8629 3460150002 BRACKET PANEL SECC 433.4*216.3 1 61 M-MS-0808-8630 3460150100 BRACKET PANEL SIDE-R SECC 325* 1 62 M-MS-0808-8631 3460150200 BRACKET PANEL SIDE-L SECC 325* 1 63 M-MS-0808-8632 3460150701 BRACKET BASE2 SECC 173*190.4 T 1 64 M-MS-0808-8633 3460150801 BRACKET BASE FOOT1 SECC 195.3* 1 65 M-MS-0808-8634 3460150901 BRACKET BASE FOOT2 SECC 195.3* 1 66 M-MS-0808-8635 3460151001 BRACKET BASE3 SECC 173*190.4 T 1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201b RSPL

Item Revision History ViewSonic P/N Ref. P/N Description Location Q'ty

67 M-MS-0808-8636 3460151101 BRACKET BASE1 SECC 173*190.4 T 1 68 M-MS-0808-8637 3461226402 SHIELD CAN IF SPTH 298.9*150.1 1 69 M-MS-0808-8638 3461226500 SHIELD CAN INV SPTH 210*73.8*1 1 70 M-MS-0808-8639 3461752201 HINGE SECC 312.5*51.82 L20CBW0 1 71 M-MS-0808-8640 3463000700 CONDUCTIVE AL 15*25 T0.06 CAN TO 1 72 M-MS-0808-8641 3463001100 CONDUCTIVE AL 25*60 T0.06 CABLE(EMI) 1 73 M-MS-0808-8642 3463002000 CONDUCTIVE AL 50*100 T.06 OF PANEL & 2 74 M-MS-0808-8573 3470307501 WIRE SADDLE NYLON66 MIDNIGHT G BOTTOM 3 75 M-MS-0808-8643 3472851200 CONDUCTIVE SPONGE 30*8.5*10 CN951,CN952(EMI 1 76 M-MS-0808-8644 3472854900 CONDUCTIVE SPONGE 15*15*22 BOTTOM(EMI) 1 77 M-MS-0808-8645 3472855000 CONDUCTIVE SPONGE 35*8*1 USBCONN.MIDDL 1 78 M-MS-0808-8646 3472855100 CONDUCTIVE SPONGE 10*10*12 CN953(EMI) 1 79 M-MS-0808-8647 3472855200 CONDUCTIVE SPONGE 10*10*15 TRACE(EMI) 1 80 P-FM-0602-0591 3500105500 END BLOCK-TOP EPS L20CBW05AAW 1 81 P-FM-0602-0592 3500105600 END BLOCK-BOTTOM EPS L20CBW05A 1 82 M-MS-0808-7674 3500932401 PE BAG 500*640 T=0.06 CLEAN 1 83 P-BX-0601-0813 3512237700 CARTON 552*337*489 VSC VP201B- 1 84 M-MS-0808-8396 3520094201 PE BAG 260*155*0.1T 1 85 A-CD-VP201-02 3532040100 CD-ROM VSC VSPP010920 V7.0 JACKET 1 86 M-MS-0808-8648 3532063700 MANUAL PACKING ASSY VSC VP201B 1 87 A-CD-VP201B 3532064100 CD-ROM VSC A-CD-VP201B-1 1 88 A-CD-0001 3532064200 CD-ROM VSC A-CD-VP211-1 PACKING ASSY 1 89 M-MS-0808-8649 3790193602 OTHER ASSY PANEL BKT L20CBR05A 1 90 B-SB-0221-0529 4900505280 DC-AC INVERTER 20" LG PANEL 1 91 M-MS-0808-8650 5011089200 MANUAL QUICK START GUIDE VP201 1 92 M-MS-0808-8580 5012032900 ENVELOPE FOR CD VSC PORTRAIT W 1 93 M-LCD-0829-0163 5052000150 LCD 20.1" TFT PANEL UXGA LVDS LG 1 94 B-IF-0222-0039 5600110078 LCD I/F BD ASSY L20CBW 05AAW 1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201s Recommended Spare Parts List

Item Revision History ViewSonic P/N Ref. P/N Description Location Q'ty

1a Old ViewSonic P/N A-AD-0114-0189 993027602 POWER 90-264VAC 18V 3.33A C 1 1b New ViewSonic B-PS-0204-0060 993027602 POWER 90-264VAC 18V 3.33A C 1

2 E-L-0407-1587 2921021404 CORE BEAD 40*6.5*10 W5H+TAP FOR FFC CABLE 1 3 E-L-0407-1588 2921021437 CORE BEAD 40*6.5*10 A5 +TAP FOR FFC CABLE 1 4 B-KB-0207-0034 3000725100 SWITCH MEMBRANE PET 100*9 V 1 5 A-PC-0106-0193 3070000501 AC POWER CORD L1800 BLACK E 1 6 M-MS-0808-8555 3080323801 CABLE USB 2.0 A_B L1800 BLA 1 7 A-VC-0101-0324 3080421500 CABLE DVI-D/DVI-D L1800 BLK 1 8 A-VC-0101-0336 3080423500 CABLE D-SUB/D-SUB L1800 BLA 1

9 M-MS-0808-8885 3080515002 CABLE FFC ASSY 30P P1.0 L34 PANEL TO I/F CN501 1 10 A-PC-0106-0229 3090119001 AC POWER CORD L1830 BLACK US 1 11 M-SCW-0824-0772 3100130800 SCREW M M3*0.5*8 FPH C S20C SIDE BKT+BACK CABINET 4 12 M-SCW-0824-0773 3105034400 SCREW M M3*0.5*6 FLAT C S20 BKT FOOT1+BKT BASE2 6 13 M-SCW-0824-0690 3105051501 SCREW M #4-40*7 HEXH #4-40* DVI*2;D-SUB*2 4 14 M-SCW-0824-0775 3105123700 SCREW M M4*0.7*10 FF C S18C BKT BASE1+HINGE*4 4 15 M-SCW-0824-0781 3105127100 SCREW M M4*0.7*12 FF C S18C CABINET BACK+BKT VESA 4 16 M-SCW-0824-0776 3105221000 SCREW M M3*0.5*6 FF C S18C SIDE BKT+PANEL*4,SIDE BKT 6 17 M-SCW-0824-0777 3105225300 SCREW M M3*0.5*4 FF C S18C F/B+PANEL SIDE BKT 4 18 M-SCW-0824-0777 3105225300 SCREW M M3*0.5*4 FF C S18C I/V BD 2 19 M-SCW-0824-0778 3105229400 SCREW M M3*0.5*10 FF C S18C ZN BKT BASE1+HINGE 1 20 M-SCW-0824-0782 3105280200 SCREW M M3*0.5*4 FF C S18C COVER HINGE2+HINGE 2 21 M-SCW-0824-0783 3105280400 SCREW M M3*0.5*4 FLAT C S20 FOR BKT STAND FOOT2+BKT 4 22 M-SCW-0824-0783 3105280400 SCREW M M3*0.5*4 FLAT C S20 FOR BKT STAND FOOT1+BKT 4 23 M-SCW-0824-0784 3109010700 SCREW T M3*0.5*7 PAN C S+P SOCKET GROUNDING WIRE 1 24 M-SCW-0824-0732 3109010900 SCREW T M3*0.5*4 BIND C S18 I/F BD*4;POWER BD*1 5 24 M-SCW-0824-0732 3109010900 SCREW T M3*0.5*4 BIND C S18 IV SHIELD+PANEL BKT*1,IF 4 25 M-SCW-0824-0779 3109017700 SCREW T M3*2.7*7.5 FF C S18 STAND FRONT COVER & HINGE*2; 4 26 M-SCW-0824-0780 3109019100 SCREW T M3*2.7*7.2 FLAT C S BASE BOT & BKT BASE FOOT1 2 27 M-SCW-0824-0780 3109019100 SCREW T M3*2.7*7.2 FLAT C S COVER HINGE1 & HINGE 2 28 M-MS-0808-8040 3110250000 WASHER SPRING SWRT FOR CN602*2,CN601*2 4 29 M-LB-0813-0785 3200158900 LABEL STICKER OD10 WHT HI-POT PANEL BKT NEAR AC SOCKET 1 30 M-MS-0808-8556 3200649100 NAME PLATE VSC 3-BIRD LOGO FRONT BEZEL 1 31 M-MS-0808-8758 3200651100 NAME PLATE VIEWSONIC ABS 41 BACK CABINET 1 32 M-LB-0813-0551 3200744000 LABEL BAR CODE 55*15 VSC-G 1 33 M-LB-0813-0696 3200753101 LABEL BAR CODE 76*121 VIEWS 1 34 M-LB-0813-0850 3201954300 LABEL ID 100*50 VSC VP201S CABINET BACK 1 35 M-LB-0813-0714 3202310700 LABEL HV WARNING 100*25 FOR I/V SHIELD CAN 1 36 M-MS-0808-8624 3211030700 MYLAR FILM 430*330 T.1 L20C F/B 1 37 M-MS-0808-8883 3220502410 TAPE W=60 #10 3M CABLE FFC&BRACKET PANEL 1 38 M-MS-0808-7810 3220605633 TAPE W=45 #7290 NITTO F/B 1 39 M-MS-0808-7811 3221101900 TAPE W=76 PP47 50M 4P 40 M-MS-0808-8557 3240055600 CONDUCTIVE TAPE AL W50*L55 TAPE BETWEEN IF BD SHIELD CAN 1 41 M-MS-0808-8583 3240160800 SPONGE EVA 5.8*5 T.5 BLK F/B LIGHT LEAKGE 1 42 PL-PD-0714-0100 3240957000 RUBBER PAD OD20 T4 BLACK FOR BASE3 BKT 1 43 PL-PD-0714-0101 3240968900 RUBBER PAD 20*20 T3 BLK FOR BASE3 BKT 1 44 M-MS-0808-8626 3241127300 INSULATOR PC 130*118.5 T.5 POWER BD 1 45 M-MS-0808-8627 3241127400 INSULATOR PC 231*13 T.5 PANEL BKT 1 46 M-CV-0830-2472 3360245300 COVER BOTTOM ABS 41 S0LBA1A 1 47 C-BC-0302-0534 3360245400 CABINET BACK ABS 41 S0LRA1A 1 48 M-MS-0808-8559 3360506800 LED LENS ABS 1865-12 S8LRB1 1 49 PL-NB-0707-0200 3360626400 POWER KNOB POM M270 SILVER 1 50 C-FP-0301-0266 3361081600 F/B ABS 5140 VP201S S0LFA1A 1 51 M-CV-0830-2458 3361207400 COVER VESA ABS 41S8LBB1LS 1 52 M-CV-0830-2459 3361207500 COVER STAND FRONT ABS 41 S8 BKT BASE 1 53 M-CV-0830-2461 3361207700 COVER STAND REAR ABS 41 S8L 1 54 M-CV-0830-2462 3361207800 COVER BASE ABS 41 S8LBB1LS 1 55 M-CV-0830-2463 3361207900 COVER HINGE1 ABS 41 S8LBB1L 1 56 M-CV-0830-2464 3361208000 COVER HINGE2 ABS 41 S8LBB1L 1 57 C-FP-0301-0399 3368197900 F/B ASSY L20CBR05ADB S0LFA1 1 58 C-BS-0303-0387 3368991400 STAND ASSY L20CBR05ADB S8LB 1 59 M-MS-0808-8561 3460146100 BRACKET VESA SECC 110*20 T1 1 60 M-MS-0808-8563 3460146300 BRACKET KEYLOCK SECC 20.4*1 1 61 M-MS-0808-8628 3460149900 BRACKET IF&POWER SECC 95*39 1 62 M-MS-0808-8629 3460150002 BRACKET PANEL SECC 433.4*21 1 63 M-MS-0808-8630 3460150100 BRACKET PANEL SIDE-R SECC 3 1 64 M-MS-0808-8631 3460150200 BRACKET PANEL SIDE-L SECC 3 1 65 M-MS-0808-8632 3460150701 BRACKET BASE2 SECC 173*190. 1 66 M-MS-0808-8633 3460150801 BRACKET BASE FOOT1 SECC 195 1 67 M-MS-0808-8634 3460150901 BRACKET BASE FOOT2 SECC 195 1 68 M-MS-0808-8635 3460151001 BRACKET BASE3 SECC 173*190. 1 69 M-MS-0808-8636 3460151101 BRACKET BASE1 SECC 173*190. 1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201s Recommended Spare Parts List

Item Revision History ViewSonic P/N Ref. P/N Description Location Q'ty

70 M-MS-0808-8637 3461226402 SHIELD CAN IF SPTH 298.9*15 1 71 M-MS-0808-8638 3461226500 SHIELD CAN INV SPTH 210*73. 1 72 M-MS-0808-8639 3461752201 HINGE SECC 312.5*51.82 L20C 1 73 M-MS-0808-8640 3463000700 CONDUCTIVE AL 15*25 T0.06 IF BD SHIELD CAN TO PANEL 1 74 M-MS-0808-8641 3463001100 CONDUCTIVE AL 25*60 T0.06 FFC CABLE, PANEL 1 75 M-MS-0808-8642 3463002000 CONDUCTIVE AL 50*100 T.06 FOR STICK WIRE OF PANEL & 1 76 M-WR-0828-0739 3470308700 WIRE SADDLE NYLON66 41 COVER BASE BOTTOM 1 77 M-MS-0808-8643 3472851200 CONDUCTIVE SPONGE 30*8.5*10 CN951,CN952 1 78 M-MS-0808-8646 3472855100 CONDUCTIVE SPONGE 10*10*12 FOR CN953 1 79 P-FM-0602-0591 3500105500 END BLOCK-TOP EPS L20CBW05A 1 80 P-FM-0602-0592 3500105600 END BLOCK-BOTTOM EPS L20CBW 1 81 M-MS-0808-7674 3500932401 PE BAG 500*640 T=0.06 CLEAN 1 82 M-MS-0808-8762 3500937501 PE BAG 300*200*0.06T FOR PACKING POWER/USB/D- 1 83 P-BX-0601-0877 3512244600 CARTON 552*337*489 VSC VP20 1 84 M-MS-0808-5135 3520082400 PE FILM t=0.02mm W=500 1 85 M-MS-0808-8396 3520094201 PE BAG 260*155*0.1T 1 86 M-MS-0808-7820 3520130500 DRYER 15G 80*60 PUT IN CARTON 1 87 A-CD-VP201-02 3532040100 CD-ROM VSC VSPP010920 V7.0 PUT IN CD JACKET 1 88 A-CD-0001 3532064200 PORTRAIT CD ASSY PUT IN MANUAL PACKING ASSY 1 89 A-CD-VP201 3532070800 CD-ROM VSC A-CD-VP201S 1 90 M-MS-0808-8884 3532070900 MANUAL PACKING ASSY VSC VP2 1 91 M-MS-0808-8649 3790193602 OTHER ASSY PANEL BKT L20CBR 1 92 B-SB-0221-0529 4900505280 DC-AC INVERTER 20" LG PANEL 1 93 M-MS-0808-8580 5012032900 ENVELOPE FOR CD VSC PORTRAI 1 94 B-IF-0222-0039 5600110078 LCD I/F BD ASSY L20CBW 05AA 1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201b BOM

Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

B-PS-0204-0021

E-L-0407-1587

E-L-0407-1588

B-KB-0207-0034

A-PC-0106-0193

M-MS-0808-8555

A-VC-0101-0324

A-VC-0101-0336

M-MS-0808-8885

A-PC-0106-0229

M-SCW-0824-0772

M-SCW-0824-0690

M-SCW-0824-0775

M-SCW-0824-0776

M-SCW-0824-0777

M-SCW-0824-0784

M-SCW-0824-0732

M-SCW-0824-0413

M-MS-0808-8040

M-LB-0813-0785

M-LB-0813-0712

M-MS-0808-8556

M-MS-0808-8622

#N/A

M-LB-0813-0384

M-LB-0813-0551

M-LB-0813-0696

M-LB-0813-0851

#N/A

M-LB-0813-0900

M-LB-0813-0714

M-MS-0808-8624

M-MS-0808-8883

M-MS-0808-7810

M-MS-0808-7811

#N/A

M-MS-0808-8557

M-MS-0808-8583

#N/A

M-MS-0808-0016

M-MS-0808-8627

C-BC-0302-0020

#N/A

PL-NB-0707-0192

M-CV-0830-2442

#N/A

M-MS-0808-8559

#N/A

C-FP-0301-0745

#N/A

C-BS-0303-0364

M-SCW-0824-0773

M-SCW-0824-0781

M-SCW-0824-0778

993027602 POWER 90-264VAC 18V 3.33A COMP 1 2921021404 CORE BEAD 40*6.5*10 W5H+TAPE 1 2921021437 CORE BEAD 40*6.5*10 A5 +TAPE 1 3000725100 SWITCH MEMBRANE PET 100*9 VP18 1 3070000501 AC POWER CORD L1800 BLACK EURO 1 3080323801 CABLE USB 2.0 A_B L1800 BLACK 1 3080421500 CABLE DVI-D/DVI-D L1800 BLK OD 1 3080423500 CABLE D-SUB/D-SUB L1800 BLACK 1 3080515002 CABLE FFC ASSY 30P P1.0 L340 T PANEL TO I/F CN501 1 3090119001 AC POWER CORD L1830 BLACK US 1 3100130800 SCREW M M3*0.5*8 FPH C S20C ZN SIDE BKT+BACK CABINET 4 3105051501 SCREW M #4-40*7 HEXH #4-40*3 S DVI*2;D-SUB*2 4 3105123700 SCREW M M4*0.7*10 FF C S18C ZN 4 3105221000 SCREW M M3*0.5*6 FF C S18C ZN SIDE BKT+PANEL*4,SIDE BKT 6 3105225300 SCREW M M3*0.5*4 FF C S18C ZN I/V BD 2 3105225300 SCREW M M3*0.5*4 FF C S18C ZN F/B+PANEL SIDE BKT 4 3109010700 SCREW T M3*0.5*7 PAN C S+P S20 SOCKET GROUNDING WIRE 1 3109010900 SCREW T M3*0.5*4 BIND C S18C Z IV SHIELD+PANEL BKT*1,IF 4 3109011400 SCREW T M3*0.5*6 BIND C S18C Z I/F BD*4 4 3110250000 WASHER SPRING SWRT FOR CN602*2,CN601*2 4 3200158900 LABEL STICKER OD10 WHT HI-POT PANEL BKT NEAR AC SOCKET 1 3200449700 LABEL WARNING AIR SHIPPING FOR TUBE 0.125 3200649100 NAME PLATE VSC 3-BIRD LOGO AL FRONT BEZEL 1 3200649200 NAME PLATE VIEWSONIC ABS 82.83 BACK CABINET 1 4020374207 PLASTIC ABS 94HB MIDNIGHT GRAY 4 4020374208 PLASTIC ABS 94HB MIDNIGHT GRAY 4 4020374209 PLASTIC ABS 94HB MIDNIGHT GRAY 4 4020374214 PLASTIC ABS 94HB MIDNIGHT GRAY 4 3200712700 LABEL CONTROL 100*90 0.063 3200712700 LABEL CONTROL 100*90 0.125 3200744000 LABEL BAR CODE 55*15 VSC-G 1 3200753101 LABEL BAR CODE 76*121 VIEWSONI 1 3201948502 LABEL ID 100*50 VSC VP210B L20 STICK ON R/C;FOR DCGP 1 3201949600 LABEL ID 100*50 VSC VP201B (DE STICK ON R/C;FOR DET 1 3202011000 LABEL SERIES PANEL 42*11 T0.05 1 3202310700 LABEL HV WARNING 100*25 FOR I/F SHIELD CAN 1 3211030700 MYLAR FILM 430*330 T.1 L20CBR0 F/B 1 3220502410 TAPE W=60 #10 3M CABLE FFC & PANEL BKT 0.145 3220605633 TAPE W=45 #7290 NITTO FOR F/B 0.128 3221101900 TAPE W=76 PP47 50M 4P 0.8 3222201300 TAPE AL FOIL W=25 #80023 CATE 0.06 3222201300 TAPE AL FOIL W=25 #80023 CATE 0.2 3222201300 TAPE AL FOIL W=25 #80023 CATE 0.12 3222201300 TAPE AL FOIL W=25 #80023 CATE 0.055 3222400310 TAPE W=16 #897 3M POWER SWITCH "ON" POSITION 0.03 3240055600 CONDUCTIVE TAPE AL W50*L55 112 1 3240160800 SPONGE EVA 5.8*5 T.5 BLK F/B LIGHT LEAKGE 1 3240970900 RUBBER PAD 22*4 T3 BLK STICK ON BKT CONN BOTTOM 1 3241127301 INSULATOR PC 130*118.5 T.5 POWER BD 1 3241127400 INSULATOR PC 231*13 T.5 PANEL BKT 1 3360243103 CABINET BACK ABS MIDNIGHT GRAY 1 4020374207 PLASTIC ABS 94HB MIDNIGHT GRAY 520 4020374208 PLASTIC ABS 94HB MIDNIGHT GRAY 520 4020374209 PLASTIC ABS 94HB MIDNIGHT GRAY 520 4020374214 PLASTIC ABS 94HB MIDNIGHT GRAY 520 3360624900 POWER KNOB POM M270 MIDNIGHT G 1.5GRM 1 3362010801 COVER VESA ABS MIDNIGHT GRAY-2 1 4020374207 PLASTIC ABS 94HB MIDNIGHT GRAY 64 4020374208 PLASTIC ABS 94HB MIDNIGHT GRAY 64 4020374209 PLASTIC ABS 94HB MIDNIGHT GRAY 64 4020374214 PLASTIC ABS 94HB MIDNIGHT GRAY 64 3368192603 F/B ASSY L20CBW05ABB S0LFA1AT 1 3360506800 LED LENS ABS 1865-12 S8LRB1LS 1 4020370614 PLASTIC ABS 94HB 1865-12 PA-75 0.1 3361077403 F/B ABS MIDNIGHT GRAY-2 VP201B 3361077301TL 1 4020374207 PLASTIC ABS 94HB MIDNIGHT GRAY 160 4020374208 PLASTIC ABS 94HB MIDNIGHT GRAY 160 4020374209 PLASTIC ABS 94HB MIDNIGHT GRAY 160 4020374214 PLASTIC ABS 94HB MIDNIGHT GRAY 160 3368990301 STAND ASSY L20CBW05ABB S8LBB1L 1 3105034400 SCREW M M3*0.5*6 FLAT C S20C Z BKT FOOT1+BKT BASE2 6 3105127100 SCREW M M4*0.7*12 FF C S18C ZN BKT BASE1+HINGE 4 3105229400 SCREW M M3*0.5*10 FF C S18C ZN BKT BASE1+HINGE 1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201b BOM

Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

M-SCW-0824-0782

M-SCW-0824-0783

M-SCW-0824-0779

M-SCW-0824-0780

PL-PD-0714-0100

PL-PD-0714-0101

M-CV-0830-2443

#N/A

M-CV-0830-2444

#N/A

M-CV-0830-2439

#N/A

M-CV-0830-2440

#N/A

100

#N/A

101

#N/A

102

#N/A

103

M-CV-0830-2441

104

#N/A

105

#N/A

106

#N/A

107

#N/A

108

M-CV-0830-2445

109

#N/A

110

#N/A

111

#N/A

112

#N/A

113

M-MS-0808-8632

114

M-MS-0808-8633

115

M-MS-0808-8634

116

M-MS-0808-8635

117

M-MS-0808-8636

118

M-MS-0808-8639

119

M-MS-0808-8573

120

M-BK-0805-0061

121

M-MS-0808-8561

122

M-MS-0808-8563

123

M-MS-0808-8630

124

M-MS-0808-8631

125

M-MS-0808-8637

126

M-MS-0808-8638

127

M-MS-0808-8640

128

M-MS-0808-8641

129

M-MS-0808-8641

130

M-MS-0808-8642

131

M-MS-0808-8643

132

M-MS-0808-8646

133

P-FM-0602-0591

134

P-FM-0602-0592

135

M-MS-0808-8762

136

#N/A

137

M-MS-0808-5131

138

M-MS-0808-5131

139

#N/A

140

#N/A

141

#N/A

142

P-BX-0601-0813

143

#N/A

144

M-MS-0808-5135

145

M-MS-0808-7820

146

PL-SP-0723-0002

3105280200 SCREW M M3*0.5*4 FF C S18C ZN COVER HINGE2+HINGE 2 3105280400 SCREW M M3*0.5*4 FLAT C S20C Z 4 3105280400 SCREW M M3*0.5*4 FLAT C S20C Z 4 3109017700 SCREW T M3*2.7*7.5 FF C S18C Z BASE BOT & BKT BASE1 2 3109017700 SCREW T M3*2.7*7.5 FF C S18C Z STAND FRONT COVER & HINGE 2 3109019100 SCREW T M3*2.7*7.2 FLAT C S18C BASE BOT & BKT BASE FOOT1 2 3109019100 SCREW T M3*2.7*7.2 FLAT C S18C COVER HINGE1 & HINGE 4 3240957000 RUBBER PAD OD20 T4 BLACK FOR BASE3 BKT 4 3240968900 RUBBER PAD 20*20 T3 BLK FOR BASE3 BKT 1 3361204901 COVER STAND FRONT ABS MIDNIGHT BKT BASE 1 4020374207 PLASTIC ABS 94HB MIDNIGHT GRAY 49 4020374208 PLASTIC ABS 94HB MIDNIGHT GRAY 49 4020374209 PLASTIC ABS 94HB MIDNIGHT GRAY 49 4020374214 PLASTIC ABS 94HB MIDNIGHT GRAY 49 3361205101 COVER STAND REAR ABS MIDNIGHT 1 4020374207 PLASTIC ABS 94HB MIDNIGHT GRAY 37 4020374208 PLASTIC ABS 94HB MIDNIGHT GRAY 37 4020374209 PLASTIC ABS 94HB MIDNIGHT GRAY 37 4020374214 PLASTIC ABS 94HB MIDNIGHT GRAY 37 3361205201 COVER BASE ABS MIDNIGHT GRAY-2 1 4020374207 PLASTIC ABS 94HB MIDNIGHT GRAY 20 4020374208 PLASTIC ABS 94HB MIDNIGHT GRAY 20 4020374209 PLASTIC ABS 94HB MIDNIGHT GRAY 20 4020374214 PLASTIC ABS 94HB MIDNIGHT GRAY 20 3361205300 COVER HINGE1 ABS MIDNIGHT GRAY 1 4020374207 PLASTIC ABS 94HB MIDNIGHT GRAY 30 4020374208 PLASTIC ABS 94HB MIDNIGHT GRAY 30 4020374209 PLASTIC ABS 94HB MIDNIGHT GRAY 30 4020374214 PLASTIC ABS 94HB MIDNIGHT GRAY 30 3361205401 COVER HINGE2 ABS MIDNIGHT GRAY 1 4020374207 PLASTIC ABS 94HB MIDNIGHT GRAY 7.5 4020374208 PLASTIC ABS 94HB MIDNIGHT GRAY 7.5 4020374209 PLASTIC ABS 94HB MIDNIGHT GRAY 7.5 4020374214 PLASTIC ABS 94HB MIDNIGHT GRAY 7.5 3361207000 COVER STAND BOTTOM ABS MIDNIGH 1 4020374207 PLASTIC ABS 94HB MIDNIGHT GRAY 209 4020374208 PLASTIC ABS 94HB MIDNIGHT GRAY 209 4020374209 PLASTIC ABS 94HB MIDNIGHT GRAY 209 4020374214 PLASTIC ABS 94HB MIDNIGHT GRAY 209 3460150701 BRACKET BASE2 SECC 173*190.4 T 1 3460150801 BRACKET BASE FOOT1 SECC 195.3* 2 3460150901 BRACKET BASE FOOT2 SECC 195.3* 2 3460151001 BRACKET BASE3 SECC 173*190.4 T 1 3460151101 BRACKET BASE1 SECC 173*190.4 T 1 3461752201 HINGE SECC 312.5*51.82 L20CBW0 1 3470307501 WIRE SADDLE NYLON66 94V2 MIDNI COVER BASE BOTTOM 3 3460144800 BRACKET CONN SECC 41.7*30 T0.6 CABLE FFC ASSY 1 3460146100 BRACKET VESA SECC 110*20 T1 1 3460146300 BRACKET KEYLOCK SECC 20.4*16.4 1 3460150100 BRACKET PANEL SIDE-R SECC 325* 1 3460150200 BRACKET PANEL SIDE-L SECC 325* 1 3461226402 SHIELD CAN IF SPTH 298.9*150.1 1 3461226500 SHIELD CAN INV SPTH 210*73.8*1 1 3463000700 CONDUCTIVE AL 15*25 T0.06 1 3463001100 CONDUCTIVE AL 25*60 T0.06 1 3463001100 CONDUCTIVE AL 25*60 T0.06 2 3463002000 CONDUCTIVE AL 50*100 T.06 2 3472851200 CONDUCTIVE SPONGE 30*8.5*10 3071518343 CN951,CN952(EMI) 1 3472855100 CONDUCTIVE SPONGE 10*10*12 30722052XX CN953(EMI) 1 3500105500 END BLOCK-TOP EPS L20CBW05AAW 1 3500105600 END BLOCK-BOTTOM EPS L20CBW05A 1 3500937501 PE BAG 300*200*0.06T 1 3500939901 PE BAG 740*580*.06T CLEAR 3% FOR SPARE PARTS 1 3510382900 ANGLE PAPER 2070*55*55 FOR 16SETS/PALLET 0.25 3510382900 ANGLE PAPER 2070*55*55 FOR 32SETS/PALLET 0.125 3510449200 CAP PAPER 1130*1390*120 FOR 32SETS/PALLET 0.032 3510449300 CAP PAPER 1130*700*120 FOR 16SETS/PALLET 0.063 3511346200 SLEEVE PAPER 128*125 1 3512237700 CARTON 552*337*489 VSC VP201B- 3% SPARE PARTS;FOR DCGP 1 3512238900 CARTON 552*337*489 VSC VP201B 3% SPARE PARTS;FOR DET 1 3520082400 PE FILM t=0.02mm W=500 0.04 3520130500 DRYER 15G 80*60 PUT IN CARTON 2 3520142700 PLASTIC STRIP W=12 T.5 BLACK BY SEA 1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201b BOM

Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

147

#N/A

148

#N/A

149

#N/A

150

#N/A

151

M-MS-0808-8648

152

M-MS-0808-8396

153

M-MS-0808-8650

154

A-CD-VP201B

155

A-CD-0001

156

A-CD-VP201-02

157

M-MS-0808-8580

158

#N/A

159

#N/A

160

M-MS-0808-8396

161

#N/A

162

#N/A

163

M-BK-0805-0001

164

M-MS-0808-8628

165

#N/A

166

B-SB-0221-0529

167

#N/A

168

#N/A

169

#N/A

170

#N/A

171

#N/A

172

#N/A

173

#N/A

174

#N/A

175

#N/A

176

#N/A

177

#N/A

178

#N/A

179

#N/A

180

#N/A

181

#N/A

182

#N/A

183

E-R-0405-7028

184

E-R-0405-7034

185

E-R-0405-7037

186

#N/A

187

#N/A

188

#N/A

189

#N/A

190

#N/A

191

#N/A

192

E-R-0405-7041

193

E-R-0405-7050

194

E-R-0405-7050

195

E-R-0405-6686

196

#N/A

197

#N/A

198

#N/A

199

#N/A

200

#N/A

201

#N/A

202

#N/A

203

#N/A

204

#N/A

205

#N/A

206

E-C-0404-4882

207

E-C-0404-4496

208

#N/A

209

#N/A

210

E-C-0404-4865

211

E-C-0404-4865

212

#N/A

213

E-C-0404-4868

214

#N/A

215

#N/A

216

#N/A

217

#N/A

218

#N/A

219

#N/A

3524009400 PALLET FUMIGATION 1120*1380*12 FOR 32SETS/PALLET DCGP USE 0.032 3524009500 PALLET FUMIGATION 1120*690*120 FOR DCGP USE 2PCS/40' 0.063 3524009600 PALLET WOOD 1120*1380*120 FOR 32SETS/PALLET DET USE 0.032 3524009700 PALLET WOOD 1120*690*120 FOR 16SETS/PALLET DET USE 0.063 3532063700 MANUAL PACKING ASSY VSC VP201B FOR DCGP 1 3520094201 PE BAG 260*155*0.1T 1 5011089200 MANUAL QUICK START GUIDE VP201 1 3532064100 CD-ROM VSC A-CD-VP201B-1 FOR DCGP 1 3532064200 PORTRAIT CD ASSY 1 3532040100 CD-ROM VSC VSPP010920 V7.0 PUT IN CD JACKET 1 5012032900 ENVELOPE FOR CD VSC PORTRAIT W 1 3532064800 CD-ROM VSC A-CD-VP201B-1 (DET) FOR DET 1 3532064900 MANUAL PACKING ASSY VSC VP201B FOR DET 1 3520094201 PE BAG 260*155*0.1T 1 5011089800 MANUAL QUICK START GUIDE VP201 1 3532065000 PORTRAIT CD VSC VSPP010920 V7. 1 3790193603 OTHER ASSY PANEL BKT L20CBR05A 1 3460149900 BRACKET IF&POWER SECC 95*39.2 1 3460150003 BRACKET PANEL SECC 433.4*216.3 1 4900505280 DC-AC INVERTER 20" LG PANEL 1 1160204527 CAP CD 3KV 5P D CH S7.5 C41, CY1, CY2, CY3, CY4, CY5 6 1401522114 CAP AL LD 35V 220U M 10*12.5 T C46, C47 2 3240256100 INSULATOR FR-60 T.25 94V-0 FOR INSULATOR 1 3522191900 PML FOR 4900505280 PML 1 3500304600 EPE PAD 500*370*3 0.008 3510251400 CORRUGATED PAPER 535*415*5.6 0.008 3511713100 CELLS 368*243*20 188*61*14 0.2 3813509100 PWB ASSY FOR DAC-18B013 A PWB ASSY 1 313202000 RES CH 1/4W 2K J 1206 R44 1 313272000 RES CH 1/4W 2.7K J 1206 R34 1 341021300 RES CH 1/10W 47 F 0603 R41 1 341026300 RES CH 1/10W 100 F 0603 R40 1 341059300 RES CH 1/10W 10K F 0603 R13,R45 2 341066300 RES CH 1/10W 20K F 0603 R46 1 341067100 RES CH 1/8W 22K F 0805 R64, R65, R66, R67 4 341067300 RES CH 1/10W 22K F 0603 R12, R24, R28, R32, R4, R8 6 341071300 RES CH 1/10W 33K F 0603 R68, R70 2 341077300 RES CH 1/10W 47K F 0603 R63 1 341079300 RES CH 1/10W 51K F 0603 R35, R37, R49, R57 4 341082300 RES CH 1/10W 68K F 0603 R36, R56 2 341084300 RES CH 1/10W 82K F 0603 R53 1 341087300 RES CH 1/10W 100K F 0603 R18, R51, R55, R61, R62, R79 6 341092300 RES CH 1/10W 150K F 0603 R52 1 341095300 RES CH 1/10W 221K F 0603 R17 1 341139300 RES CH 1/10W 910 F 0603 R11, R23, R27, R3, R31, R7 6 343000300 RES CH 1/10W ZERO J 0603 J3, R14, R42, R47, R50 5 343104300 RES CH 1/10W 100K J 0603 R1, R19, R20, R21, R25, R29 6 343104300 RES CH 1/10W 100K J 0603 R38, R39, R5, R78, R9 5 343105300 RES CH 1/10W 1M J 0603 R10, R2, R22, R26, R30, R6 6 343394300 RES CH 1/10W 390K J 0603 R54 1 343561300 RES CH 1/10W 560 J 0603 R72, R73, R74, R75, R76, R77 6 343564300 RES CH 1/10W 560K J 0603 R15 1 343824300 RES CH 1/10W 820K J 0603 R69, R71 2 869010302 FUSE F/SMD 2A 63V 1206 F1, F2 2 869010303 FUSE F/SMD 2A 63V 1206 F1, F2 2 1511458229 CAP MC CP 50V .1U J X7R 1206 C20 1 1511532000 CAP MC CP 50V 120P J C0G 0603 C50 1 1512438000 CAP MC CP 50V 220P K X7R 0603 C8 1 1512446000 CAP MC CP 50V 2.2KP K X7R 0603 C36, C44 2 1512452000 CAP MC CP 50V 6.8KP K X7R 0603 C14,C30,C32,C34,C37,C39,C42,C6 8 1512454100 CAP MC CP 50V .01U K X7R 0805 C31,C33,C35,C38,C40,C43 6 1512456000 CAP MC CP 50V .022U K X7R 0603 C18,C19,C21,C22,C23 5 1512458200 CAP MC CP 50V .1U K X7R 1206 C48,C49 2 1542458000 CAP MC CP 16V .1U K X7R 0603 C1,C10,C11,C12,C13,C17 6 1542458000 CAP MC CP 16V .1U K X7R 0603 C2,C3,C4,C9 4 1542467100 CAP MC CP 16V 1U K X7R 0805 C5 1 1552458100 CAP MC CP 25V .1U K X7R 0805 C45 1 1552467200 CAP MC CP 25V 1U K X7R 1206 C7,C16 2 15A2467031 CAP MC CP 10V 1U K X7R 0603 C15 1 15A2491300 CAP MC CP 10V 10U K X7R 1210 C25,C28 2 2038125601 DIO ZEN 0.5W 7.07-7.45V MINIME ZD2,ZD3,ZD4,ZD5 4 2038125601 DIO ZEN 0.5W 7.07-7.45V LLDS(M ZD2,ZD3,ZD4,ZD5 4 2038125704 DIO ZEN 0.5W 7.78-8.19V MINIME ZD1 1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201b BOM

Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

220

#N/A

221

#N/A

222

#N/A

223

#N/A

224

#N/A

225

#N/A

226

#N/A

227

#N/A

228

#N/A

229

#N/A

230

#N/A

231

#N/A

232

#N/A

233

#N/A

234

#N/A

235

#N/A

236

#N/A

237

#N/A

238

#N/A

239

#N/A

240

#N/A

241

#N/A

242

#N/A

243

#N/A

244

#N/A

245

#N/A

246

#N/A

247

#N/A

248

#N/A

249

#N/A

250

#N/A

251

#N/A

252

#N/A

253

#N/A

254

#N/A

255

#N/A

256

#N/A

257

#N/A

258

#N/A

259

#N/A

260

#N/A

261

#N/A

262

M-MS-0808-5150

263

M-MS-0808-5151

264

M-MS-0808-5165

265

M-MS-0808-5169

266

#N/A

267

E-L-0407-1550

268

#N/A

269

#N/A

270

#N/A

271

#N/A

272

#N/A

273

#N/A

274

#N/A

275

#N/A

276

#N/A

277

#N/A

278

#N/A

279

#N/A

280

#N/A

281

#N/A

282

#N/A

283

#N/A

284

#N/A

285

M-MS-0808-5150

286

M-MS-0808-5151

287

M-MS-0808-5165

288

M-MS-0808-5169

289

#N/A

290

E-L-0407-1550

291

#N/A

292

#N/A

2038125704 DIO ZEN 0.5W 7.78-8.19V LLDS(M ZD1 1 2038126201 DIO ZEN 0.5W 12.55-13.21V MINI ZD6 1 2038126201 DIO ZEN 0.5W 12.55-13.21V LLDS ZD6 1 2045207002 DIO SW 0.2A 70V SOT-23 SE. D10,D11,D12,D13,D14 5 2045207002 DIO SW 0.2A 70V SOT-23 SE. D15,D16,D17,D18 4 2045207002 DIO SW 0.2A 70V SOT-23 SE. D7,D8,D9 3 2045207002 DIO SW 0.3A 75V SOT-23 SE. D10,D11,D12,D13,D14 5 2045207002 DIO SW 0.3A 75V SOT-23 SE. D15,D16,D17,D18 4 2045207002 DIO SW 0.3A 75V SOT-23 SE. D7,D8,D9 3 2045207002 DIO SW 0.215A 70V SOT-23 SE. D10,D11,D12,D13,D14 5 2045207002 DIO SW 0.215A 70V SOT-23 SE. D15,D16,D17,D18 4 2045207002 DIO SW 0.215A 70V SOT-23 SE. D7,D8,D9 3 2048107501 DIO SW 0.2A 75V LL-34(MINIMELF D1,D2,D3,D4,D5,D6 6 2048107501 DIO SW 0.15A 75V MINIMELF D1,D2,D3,D4,D5,D6 6 2048107501 DIO SW 0.15A 75V MINIMELF D1,D2,D3,D4,D5,D6 6 2105220005 TR 40V 0.6A SOT-23 80 Q12 1 2105220005 TR 40V 1.0A SOT-23 80 Q12 1 2105220005 TR 40V 0.6A SOT-23 80 Q12 1 2425225000 FET 60V 0.115A 7.5ohm SOT-23 Q1,Q2,Q3,Q4,Q5,Q6,Q7,Q8,Q9 9 2425225000 FET 60V 0.115A 7.5ohm SOT-23 Q10,Q11,Q17,Q18 4 2425225000 FET 60V 0.115A 5ohm SOT-23 Q1,Q2,Q3,Q4,Q5,Q6,Q7,Q8,Q9 9 2425225000 FET 60V 0.115A 5ohm SOT-23 Q10,Q11,Q17,Q18 4 2426010002 FET 30V 7A 0.022ohm SO-8 N+P Q13,Q14,Q15,Q16 4 2426010002 FET 30V 7A 0.028ohm SO-8 N+P Q13,Q14,Q15,Q16 4 251030130F IC DUAL CCFL INVERTER CONTROLL IC1 1 2801978900 X'FMR INVERTER UI-11.7 00A-235 T1 1 3184630000 BOBBIN BASE LCP EFD11.7 1 3220102010 TAPE W=3 #1350F-1 3M 0.008 3220310224 TAPE W=3 CT-280 YAHUA 0.008 3220703611 TAPE W=16 KA180 4P 0.064 3220703622 TAPE W=16 PB-416F CHYUN YIH 0.064 3220704710 TAPE W=16 #92 3M 0.064 3224004600 MYLAR PE W=6 T=0.001 0.001 3520456400 PML FOR INVERTER 1 3500221500 PAD EPE 330*240*5 0.012 3510058100 CARTON 391*301*260 0.001 3510142200 PAPER PAD 365*270*5 0.002 3520386000 TRAY PET 365*270*0.5 0.012 4011170007 WIRE CU .2 2UEWN NAT 130C 0.24 4011170009 WIRE CU .2 2UEWN NAT 0.24 4011290101 WIRE CU 0.03 IEC317 G3 NAT(3KV 0.56 4020148900 EPOXY ADHESIVE K1401-11 0.04 4020201200 THINNER OF FLUX A83 ADDITIVE 0.016 4020204800 FLUX A83 ALPHA 0.008 4020500500 INK BLACK 0.008 4090003700 SOLDER BAR 50/50 0.01 4090006400 SOLDER BAR SN5/PB95 0.13 4133015300 CORE FERI UI1222 P4 UI=2500 1 2801978900 X'FMR INVERTER UI-11.7 00A-235 T2 1 3184630000 BOBBIN BASE LCP EFD11.7 1 3220102010 TAPE W=3 #1350F-1 3M 0.008 3220310224 TAPE W=3 CT-280 YAHUA 0.008 3220703611 TAPE W=16 KA180 4P 0.064 3220703622 TAPE W=16 PB-416F CHYUN YIH 0.064 3220704710 TAPE W=16 #92 3M 0.064 3224004600 MYLAR PE W=6 T=0.001 0.001 3520456400 PML FOR INVERTER 1 3500221500 PAD EPE 330*240*5 0.012 3510058100 CARTON 391*301*260 0.001 3510142200 PAPER PAD 365*270*5 0.002 3520386000 TRAY PET 365*270*0.5 0.012 4011170007 WIRE CU .2 2UEWN NAT 130C 0.24 4011170009 WIRE CU .2 2UEWN NAT 0.24 4011290101 WIRE CU 0.03 IEC317 G3 NAT(3KV 0.56 4020148900 EPOXY ADHESIVE K1401-11 0.04 4020201200 THINNER OF FLUX A83 ADDITIVE 0.016 4020204800 FLUX A83 ALPHA 0.008 4020500500 INK BLACK 0.008 4090003700 SOLDER BAR 50/50 0.01 4090006400 SOLDER BAR SN5/PB95 0.13 4133015300 CORE FERI UI1222 P4 UI=2500 1 2801978900 X'FMR INVERTER UI-11.7 00A-235 T3 1 3184630000 BOBBIN BASE LCP EFD11.7 1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201b BOM

Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

293

#N/A

294

#N/A

295

#N/A

296

#N/A

297

#N/A

298

#N/A

299

#N/A

300

#N/A

301

#N/A

302

#N/A

303

#N/A

304

#N/A

305

#N/A

306

#N/A

307

#N/A

308

M-MS-0808-5150

309

M-MS-0808-5151

310

M-MS-0808-5165

311

M-MS-0808-5169

312

#N/A

313

E-L-0407-1550

314

#N/A

315

#N/A

316

#N/A

317

#N/A

318

#N/A

319

#N/A

320

#N/A

321

#N/A

322

#N/A

323

#N/A

324

#N/A

325

#N/A

326

#N/A

327

#N/A

328

#N/A

329

#N/A

330

#N/A

331

M-MS-0808-5150

332

M-MS-0808-5151

333

M-MS-0808-5165

334

M-MS-0808-5169

335

#N/A

336

E-L-0407-1550

337

#N/A

338

#N/A

339

#N/A

340

#N/A

341

#N/A

342

#N/A

343

#N/A

344

#N/A

345

#N/A

346

#N/A

347

#N/A

348

#N/A

349

#N/A

350

#N/A

351

#N/A

352

#N/A

353

#N/A

354

M-MS-0808-5150

355

M-MS-0808-5151

356

M-MS-0808-5165

357

M-MS-0808-5169

358

#N/A

359

E-L-0407-1550

360

#N/A

361

#N/A

362

#N/A

363

#N/A

364

#N/A

365

#N/A

3220102010 TAPE W=3 #1350F-1 3M 0.008 3220310224 TAPE W=3 CT-280 YAHUA 0.008 3220703611 TAPE W=16 KA180 4P 0.064 3220703622 TAPE W=16 PB-416F CHYUN YIH 0.064 3220704710 TAPE W=16 #92 3M 0.064 3224004600 MYLAR PE W=6 T=0.001 0.001 3520456400 PML FOR INVERTER 1 3500221500 PAD EPE 330*240*5 0.012 3510058100 CARTON 391*301*260 0.001 3510142200 PAPER PAD 365*270*5 0.002 3520386000 TRAY PET 365*270*0.5 0.012 4011170007 WIRE CU .2 2UEWN NAT 130C 0.24 4011170009 WIRE CU .2 2UEWN NAT 0.24 4011290101 WIRE CU 0.03 IEC317 G3 NAT(3KV 0.56 4020148900 EPOXY ADHESIVE K1401-11 0.04 4020201200 THINNER OF FLUX A83 ADDITIVE 0.016 4020204800 FLUX A83 ALPHA 0.008 4020500500 INK BLACK 0.008 4090003700 SOLDER BAR 50/50 0.01 4090006400 SOLDER BAR SN5/PB95 0.13 4133015300 CORE FERI UI1222 P4 UI=2500 1 2801978900 X'FMR INVERTER UI-11.7 00A-235 T4 1 3184630000 BOBBIN BASE LCP EFD11.7 1 3220102010 TAPE W=3 #1350F-1 3M 0.008 3220310224 TAPE W=3 CT-280 YAHUA 0.008 3220703611 TAPE W=16 KA180 4P 0.064 3220703622 TAPE W=16 PB-416F CHYUN YIH 0.064 3220704710 TAPE W=16 #92 3M 0.064 3224004600 MYLAR PE W=6 T=0.001 0.001 3520456400 PML FOR INVERTER 1 3500221500 PAD EPE 330*240*5 0.012 3510058100 CARTON 391*301*260 0.001 3510142200 PAPER PAD 365*270*5 0.002 3520386000 TRAY PET 365*270*0.5 0.012 4011170007 WIRE CU .2 2UEWN NAT 130C 0.24 4011170009 WIRE CU .2 2UEWN NAT 0.24 4011290101 WIRE CU 0.03 IEC317 G3 NAT(3KV 0.56 4020148900 EPOXY ADHESIVE K1401-11 0.04 4020201200 THINNER OF FLUX A83 ADDITIVE 0.016 4020204800 FLUX A83 ALPHA 0.008 4020500500 INK BLACK 0.008 4090003700 SOLDER BAR 50/50 0.01 4090006400 SOLDER BAR SN5/PB95 0.13 4133015300 CORE FERI UI1222 P4 UI=2500 1 2801978900 X'FMR INVERTER UI-11.7 00A-235 T5 1 3184630000 BOBBIN BASE LCP EFD11.7 1 3220102010 TAPE W=3 #1350F-1 3M 0.008 3220310224 TAPE W=3 CT-280 YAHUA 0.008 3220703611 TAPE W=16 KA180 4P 0.064 3220703622 TAPE W=16 PB-416F CHYUN YIH 0.064 3220704710 TAPE W=16 #92 3M 0.064 3224004600 MYLAR PE W=6 T=0.001 0.001 3520456400 PML FOR INVERTER 1 3500221500 PAD EPE 330*240*5 0.012 3510058100 CARTON 391*301*260 0.001 3510142200 PAPER PAD 365*270*5 0.002 3520386000 TRAY PET 365*270*0.5 0.012 4011170007 WIRE CU .2 2UEWN NAT 130C 0.24 4011170009 WIRE CU .2 2UEWN NAT 0.24 4011290101 WIRE CU 0.03 IEC317 G3 NAT(3KV 0.56 4020148900 EPOXY ADHESIVE K1401-11 0.04 4020201200 THINNER OF FLUX A83 ADDITIVE 0.016 4020204800 FLUX A83 ALPHA 0.008 4020500500 INK BLACK 0.008 4090003700 SOLDER BAR 50/50 0.01 4090006400 SOLDER BAR SN5/PB95 0.13 4133015300 CORE FERI UI1222 P4 UI=2500 1 2801978900 X'FMR INVERTER UI-11.7 00A-235 T6 1 3184630000 BOBBIN BASE LCP EFD11.7 1 3220102010 TAPE W=3 #1350F-1 3M 0.008 3220310224 TAPE W=3 CT-280 YAHUA 0.008 3220703611 TAPE W=16 KA180 4P 0.064 3220703622 TAPE W=16 PB-416F CHYUN YIH 0.064

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201b BOM

Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

366

#N/A

367

#N/A

368

#N/A

369

#N/A

370

#N/A

371

#N/A

372

#N/A

373

#N/A

374

#N/A

375

#N/A

376

#N/A

377

M-MS-0808-5150

378

M-MS-0808-5151

379

M-MS-0808-5165

380

M-MS-0808-5169

381

#N/A

382

E-L-0407-1550

383

#N/A

384

#N/A

385

#N/A

386

#N/A

387

#N/A

388

#N/A

389

#N/A

390

#N/A

391

M-LCD-0829-0163

392

B-IF-0222-0039

393

#N/A

394

#N/A

395

#N/A

396

E-R-0405-7041

397

E-R-0405-7049

398

E-R-0405-6684

399

E-R-0405-6684

400

E-R-0405-6684

401

E-R-0405-6684

402

E-R-0405-6684

403

E-R-0405-7054

404

E-R-0405-6685

405

E-R-0405-6685

406

E-R-0405-6685

407

E-R-0405-6685

408

E-R-0405-6685

409

E-R-0405-7050

410

#N/A

411

#N/A

412

#N/A

413

E-R-0405-7042

414

E-R-0405-7042

415

E-R-0405-6687

416

#N/A

417

#N/A

418

#N/A

419

E-R-0405-7057

420

E-R-0405-7057

421

E-R-0405-7057

422

E-R-0405-7043 343392300 RES CH 1/10W 3.9K J 0603 R254 1

423

E-R-0405-6690

424

E-R-0405-7033

425

E-R-0405-7031

426

E-R-0405-7031

427

E-R-0405-7036

428

#N/A

429

#N/A

430

E-R-0405-6691

431

#N/A

432

E-R-0405-6693

433

#N/A

434

#N/A

435

#N/A

436

#N/A

437

#N/A

438

#N/A

3220704710 TAPE W=16 #92 3M 0.064 3224004600 MYLAR PE W=6 T=0.001 0.001 3520456400 PML FOR INVERTER 1 3500221500 PAD EPE 330*240*5 0.012 3510058100 CARTON 391*301*260 0.001 3510142200 PAPER PAD 365*270*5 0.002 3520386000 TRAY PET 365*270*0.5 0.012 4011170007 WIRE CU .2 2UEWN NAT 130C 0.24 4011170009 WIRE CU .2 2UEWN NAT 0.24 4011290101 WIRE CU 0.03 IEC317 G3 NAT(3KV 0.56 4020148900 EPOXY ADHESIVE K1401-11 0.04 4020201200 THINNER OF FLUX A83 ADDITIVE 0.016 4020204800 FLUX A83 ALPHA 0.008 4020500500 INK BLACK 0.008 4090003700 SOLDER BAR 50/50 0.01 4090006400 SOLDER BAR SN5/PB95 0.13 4133015300 CORE FERI UI1222 P4 UI=2500 1 2994721100 PWB D 0 L2 I1 E1 FR4 188*60*1. PWB 1 3070074731 HEADER BOX 94V0 9-5P P2.0 R SM CN2,CN4 2 3070074751 HEADER BOX 94V0 9-5P P2.0 R SM CN2,CN4 2 3070074766 HEADER BOX 94V0 9-5P P2.0 R SM CN2,CN4 2 3070075000 HEADER NY66 94V0 2PIN CN3,CN5 2 3070075166 HEADER NYLON46 94V0 2PIN SMD CN3,CN5 2 3076790051 HEADER HOUSING 94V0 2P P3.5 R CN3,CN5 2 3861270000 CABLE ASSY 1007 #26 7HOLES DAC CN1 1 5052000150 LCD 20.1" TFT PANEL UXGA LVDS LM201U03 1 5600110078 LCD I/F BD ASSY L20CBW 05AAW 1 341052300 RES CH 1/10W 4.7K F 0603 R260,R261 2 341059300 RES CH 1/10W 10K F 0603 R273 1 341070300 RES CH 1/10W 30K F 0603 R272 1 343000300 RES CH 1/10W ZERO J 0603 C256,R412,R417,R431 4 343100300 RES CH 1/10W 10 J 0603 R266 1 343101100 RES CH 1/8W 100 J 0805 R265 1 343101300 RES CH 1/10W 100 J 0603 R438,R439,R440,R441,R442 5 343101300 RES CH 1/10W 100 J 0603 R604,R605,R606,R608,R609 5 343101300 RES CH 1/10W 100 J 0603 R618,R619,R620,R621,R622 5 343101300 RES CH 1/10W 100 J 0603 R630,R643,R650 3 343102300 RES CH 1/10W 1K J 0603 R419,R422 2 343103100 RES CH 1/8W 10K J 0805 R613,R627 2 343103300 RES CH 1/10W 10K J 0603 R256,R257,R262,R274,R275 5 343103300 RES CH 1/10W 10K J 0603 R278,R281,R406,R443,R444,R445 6 343103300 RES CH 1/10W 10K J 0603 R446,R447,R450,R614,R615,R628 6 343103300 RES CH 1/10W 10K J 0603 R629,R635,R960,R962,R964,R966 6 343104300 RES CH 1/10W 100K J 0603 R951,R957 2 343152300 RES CH 1/10W 1.5K J 0603 R953 1 343153300 RES CH 1/10W 15K J 0603 R952,R954,R955,R956 4 343220100 RES CH 1/8W 22 J 0805 R271 1 343220300 RES CH 1/10W 22 J 0603 R423,R424,R425,R426,R646,R647 6 343220300 RES CH 1/10W 22 J 0603 R648,R649 2 343222300 RES CH 1/10W 2.2K J 0603 R277,R611,R612,R623,R631 5 343223300 RES CH 1/10W 22K J 0603 R283,R285 2 343270300 RES CH 1/10W 27 J 0603 R430 1 343332100 RES CH 1/8W 3.3K J 0805 R421 1 343332300 RES CH 1/10W 3.3K J 0603 R282,R284,R403,R404,R407,R408 6 343332300 RES CH 1/10W 3.3K J 0603 R409,R410,R413,R415,427,R428 6 343332300 RES CH 1/10W 3.3K J 0603 R453,R634 2

343470300 RES CH 1/10W 47 J 0603 R607,R610,R616,R617 4 343471300 RES CH 1/10W 470 J 0603 R401,R402 2 343472300 RES CH 1/10W 4.7K J 0603 R448,R449,R637,R638,R639,R640 6 343472300 RES CH 1/10W 4.7K J 0603 R641,R642,R276 3 343511300 RES CH 1/10W 510 J 0603 R636 1 343561100 RES CH 1/8W 560 J 0805 R405 1 343561300 RES CH 1/10W 560 J 0603 R451,R452 2 343562300 RES CH 1/10W 5.6K J 0603 R255 1 343681300 RES CH 1/10W 680 J 0603 R436,R437 2 343750100 RES CH 1/8W 75 J 0805 R601,R602,R603,R624,R625,R626 6 343821100 RES CH 1/8W 820 J 0805 R267 1 619900305 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP401,RP402,RP403,RP404,RP405 5 619900305 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP406,RP407,RP408,RP409,RP410 5 619900305 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP411,RP412,RP601,RP602,RP603 5 619900305 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP604,RP605,RP606,RP607,RP608 5 619900305 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP609,RP610,RP611,RP612,RP613 5

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201b BOM

Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

439

#N/A

440

#N/A

441

#N/A

442

#N/A

443

#N/A

444

#N/A

445

#N/A

446

#N/A

447

#N/A

448

#N/A

449

#N/A

450

#N/A

451

M-LCD-0826-0129

452

#N/A

453

#N/A

454

#N/A

455

#N/A

456

#N/A

457

#N/A

458

#N/A

459

#N/A

460

#N/A

461

#N/A

462

#N/A

463

#N/A

464

#N/A

465

#N/A

466

#N/A

467

#N/A

468

#N/A

469

#N/A

470

#N/A

471

#N/A

472

#N/A

473

#N/A

474

#N/A

475

#N/A

476

E-C-0404-4878

477

#N/A

478

E-C-0404-4876

479

#N/A

480

#N/A

481

#N/A

482

E-C-0404-4497

483

E-C-0404-4497

484

E-C-0404-4497

485

E-C-0404-4497

486

E-C-0404-4497

487

E-C-0404-4497

488

E-C-0404-4497

489

E-C-0404-4497

490

E-C-0404-4497

491

E-C-0404-4497

492

E-C-0404-4497

493

E-C-0404-4497

494

E-C-0404-4497

495

E-C-0404-4497

496

E-C-0404-4497

497

E-C-0404-4497

498

E-C-0404-4497

499

#N/A

500

#N/A

501

#N/A

502

#N/A

503

#N/A

504

#N/A

505

#N/A

506

#N/A

507

#N/A

508

#N/A

509

#N/A

510

#N/A

511

#N/A

619900305 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP614,RP615,,RP616,RP617,RP618 5 619900305 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP619,RP620,RP621,RP622,RP623 5 619900305 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP624,RP625 2 619900312 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP401,RP402,RP403,RP404,RP405 5 619900312 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP406,RP407,RP408,RP409,RP410 5 619900312 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP411,RP412,RP601,RP602,RP603 5 619900312 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP604,RP605,RP606,RP607,RP608 5 619900312 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP609,RP610,RP611,RP612,RP613 5 619900312 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP614,RP615,,RP616,RP617,RP618 5 619900312 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP619,RP620,RP621,RP622,RP623 5 619900312 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP624,RP625 2 730060412 CRYSTAL 14.318MHZ+-30PPM AT-49 X401 1 730180212 CRYSTAL 24MHZ +-30PPM 30PF 49U X951 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA401 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA402 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA403 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA404 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA405 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA604 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA605 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA606 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA607 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA608 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA613 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA617 1 1490247012 CAP AL CP 6.3V 47U M 5*5.5 C269,C630 2 1491010215 CAP AL CP 10V 1KU M 10*10 C263 1 1491015113 CAP AL CP 10V 150U M 6.3*5.8 C972,C974,C976,C978 4 1491222012 CAP AL CP 16V 22U M 5*5.5 C272,C960 2 1491222113 CAP AL CP 16V 220U M 6.3*7.7 C266,C280 2 1491447014 CAP AL CP 25V 47U M 8*5.4 C275,C279,C428 3 1491447115 CAP AL CP 25V 470U M 10*10 C260,C262 2 1491522810 CAP AL CP 35V 2.2U M 3*5.4 C980 1 1491610811 CAP AL CP 50V 1U M 4*5.7 C264,C273 2 1491610811 CAP AL CP 50V 1U M 4*5.4 C264,C273 2 1511508000 CAP MC CP 50V 10P J C0G 0603 C656,C657 2 1511512000 CAP MC CP 50V 18P J C0G 0603 C401,C402 2 1511514000 CAP MC CP 50V 22P J C0G 0603 C403,C605,C606,C609,C614 5 1511516000 CAP MC CP 50V 27P J C0G 0603 C953,C954 2 1512445000 CAP MC CP 50V 1KP K X7R 0603 C255,C258,C601,C613 4 1512448000 CAP MC CP 50V 3.9KP K X7R 0603 C633 1 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C254,C982 2 1517657000 CAP MC CP 50V .047U Z Y5V 0603 C602,C603,C604,C610,C611,C612 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C251,C259,C265,C267,C268,C270 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C271,C276,C277,C278,C404,C405 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C406,C407,C408,C409,C410,C411 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C412,C413,C414,C415,C416,C417 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C418,C419,C420,C421,C422,C423 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C424,C425,C426,C427,C501,C502 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C503,C504,C505,C506,C507,C508 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C509,C510,C607,C608,C615,C616 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C617,C618,C619,C620,C621,C622 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C623,C624,C625,C626,C627,C628 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C629,C631,C632,C635,C636,C637 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C639,C640,C641,C642,C643,C644 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C645,C646,C647,C648,C649,C650 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C651,C951,C952,C955,C956,C957 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C958,C959,C961,C962,C963,C964 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C965,C966,C967,C968,C969,C970 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C971,C973,C975,C977,C979 5 1517690000 CAP MC CP 50V .039U Z Y5V 0603 C634 1 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C253,C274 2 15A7691100 CAP MC CP 10V 10U Z Y5V 0805 C281 1 2023515800 DIO SBD 5A 40V DO-201AD D252 1 2038125208 DIO ZEN 0.5W 3.32-3.53V LLDS(M D401,D603,D604,D605,D606,D609 6 2038125402 DIO ZEN 0.5W 4.94-5.20V LLDS(M D602,D608 2 2038126702 DIO ZEN 0.5W 16.82-17.7V LLDS( D253 1 2045207003 DIO SW 0.215A 75V SOT-23 D601,D607 2 2105220004 TR 40V 0.2A SOT-23 100-300 Q252,Q259,Q260,Q261,Q262 5 2105220005 TR 40V 0.6A SOT-23 80 Q256 1 2115220002 TR -40V -0.2A SOT-23 100-300 Q401,Q402 2 2115220004 TR -40V -0.6A SOT-23 100 Q257 1 2435026000 FET -55V -11A 0.175ohm TO-252A Q258 1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201b BOM

Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

512

#N/A

513

E-IC-0401-2925

514

#N/A

515

#N/A

516

#N/A

517

#N/A

518

#N/A

519

#N/A

520

#N/A

521

#N/A

522

#N/A

523

E-IC-0401-1932

524

#N/A

525

#N/A

526

#N/A

527

#N/A

528

#N/A

529

#N/A

530

#N/A

531

#N/A

532

#N/A

533

#N/A

534

#N/A

535

#N/A

536

#N/A

537

#N/A

538

E-IC-0401-2942

539

E-IC-0401-1834

540

#N/A

541

#N/A

542

#N/A

543

#N/A

544

#N/A

545

#N/A

546

#N/A

547

#N/A

548

#N/A

549

#N/A

550

#N/A

551

#N/A

552

#N/A

553

#N/A

554

#N/A

555

#N/A

556

#N/A

557

#N/A

558

#N/A

559

#N/A

560

#N/A

561

#N/A

562

M-CV-0830-2317

563

#N/A

564

#N/A

565

#N/A

566

#N/A

567

#N/A

568

#N/A

569

#N/A

570

#N/A

571

#N/A

572

#N/A

573

#N/A

574

#N/A

575

M-MS-0808-5165

576

#N/A

577

#N/A

578

#N/A

579

#N/A

580

#N/A

581

#N/A

582

#N/A

583

#N/A

584

#N/A

2436011000 FET -30V -8.8A 0.02ohm SO-8 Q263 1 2500058010 IC REGU LDO 0.8A 3.3V SOT-223 IC254 1 2500058037 IC REGU LDO 0.8A 3.3V SOT-223 IC253,IC254,IC955 3 2500058741 IC REGU 3.3V 1A SOT-223 IC254,IC955 2 2500082637 IC REGU LDO 2.5V 5A TO-252 IC252 1 2500088136 IC VOL DETECTOR 4.4V SOT-23 IC402 1 2500224136 IC REGU 3.3V 0.4A SOT-89 IC255 1 2510019129 IC PWM SOP-16P IC251 1 2530147153 IC PANEL LINK RECEIVER TQFP-10 IC609 1 2530207213 IC IMAGE PROCESSOR PBGA-256B IC401 1 2530208043 IC 205MSPS ANALOG INTERFACE MQ IC608 1 2540170021 IC LVDS I/F TSSOP-56P IC501,IC502 2 2540279103 IC DUAL USB HIGH-SIDE POWER SW IC952,IC953 2 2540368172 IC USB HUB CONTROLLER QFN-56P IC951 1 2600042308 IC HEX INVERTER SO-14 IC602,IC607 2 2600062607 IC OCTAL BUFFER 3-S SSOP-20P IC405 1 2600062608 IC OCTAL BUFFER 3-S SSOP-20P IC405 1 2600071007 IC ANALOG CMOS SO-14PIN IC603 1 2600071008 IC QUAD ANALOG SWITCH SOIC-14 IC603 1 2600071009 IC ANALOG CMOS S014 IC603 1 2600071011 IC QUAD ANALOG MULTIPLEXER SOI IC603 1 2600071013 IC QUAD ANALOG MULTIPLEXER SOI IC603 1 2600071034 IC QUAD ANALOG MULTIPLEXER SO- IC603 1 2600071042 IC QUAD ANALOG MULTIPLEXER SO- IC603 1 2600088009 IC HEX INVERTER SOIC-14 IC602,IC607 2 2610015107 IC 2 CHANNEL ANALOGUE SO16 IC604 1 2610049742 IC CMOS 2K EEPROM SOIC-8P IC601,IC605,IC606 3 2610188137 IC EEPROM 256*8BIT SOIC-8PIN IC403 1 2610188542 IC EEPROM 16K SOIC-8P IC403 1 2610501360 IC FLASH MEMORY 90nS TSOP-48P IC404 1 2610501923 IC F-MEM 8M TOP 70nS TSOP-48P IC404 1 2640981601 IC 2610509112+5015007200 IC954 1 2610509112 IC EEPROM 512*8 SO-8P IC954 1 5015007200 SOFTWARE L20CBW USB2.0 VID:054 IC954 1 2640981901 IC 2610538142+5015007200 IC954 1 2610538142 IC EEPROM 512*8 SO-8PIN IC954 1 5015007200 SOFTWARE L20CBW USB2.0 VID:054 IC954 1 2816706710 CHOKE SMT 22UH M L253 1 3429010300 CLIP C1020R-H DR10 T=0.3 1 3940111300 FRAME TINNED COPPER RH125 1 4040410100 CU DCU C1201R H W=22 T=0.3 1.35 3520461200 PML FOR SIQ127 ETC 1 3200106700 LABEL PAPER T:0.1MM LB-1206 0.004 3500631800 EMBOSSED PLASTIC CHIP CARRIER 0.004 3510425000 TRAY PAPER 366*346*75 0.002 3511031000 CARTON 366*180*386 0.001 3511204200 ANGLE PAPER BOARD 170*55*55*5. 0.003 3520130300 PREVENT OXIDIZATION 1.7g 0.004 3520146300 COVER TAPE FOR REEL 0.028 3520148800 3520148700+3520146600 ASSY 0.004 3520146600 COVER REEL 13" 0.004 3520148700 PLASTIC REEL W=24 0.002 3520214800 AIR BUBBLE BAG 0.002 3520802600 EMBOSSED PLASTIC CHIP CARRIER 0.027 4011451200 WIRE CU 0.3 2UEWN NAT MW-80 1.4 4011451203 WIRE CU 0.3 2UEWN NAT MW-80 1.4 4011451205 WIRE CU 0.3 2UEWN NAT MW-80 1.4 4011451207 WIRE CU 0.3 2UEWN NAT MW-80 1.4 4011451300 WIRE CU 0.3 2UEWN RED MW-80 1.4 4020132500 EPOXY ADHESIVE EP382 0.2 4020140700 ADHESIVE EPOXY EP399 KS 0.01 4020209600 SOLDER FLUX YS-120 0.01 4020209700 SOLVENT THINNER YS-08 0.01 4020500500 INK BLACK 0.05 4090004200 SOLDER BAR 95/5 0.3 4162230300 CORE FERI DR10*7 F4D F:5 B:5.5 1 4166280300 CORE FERI C 12*10.85*6.8 F4D 1 2816721510 CHOKE SMT 10uH K L254 1 2816721580 CHOKE CD 10uH K SMD L254 1 3521064700 PML FOR SI65 1 3200106700 LABEL PAPER T:0.1MM LB-1206 0.001 3220100100 TAPE W=10 MY9Y 4P 0.001 3500600800 COVER SHEET 0.001

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201b BOM

Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

585

#N/A

586

#N/A

587

#N/A

588

#N/A

589

#N/A

590

#N/A

591

M-CV-0830-2317

592

#N/A

593

#N/A

594

#N/A

595

M-WR-0828-0576

596

M-WR-0828-0577

597

M-WR-0828-0578

598

M-MS-0808-5150

599

M-MS-0808-5151

600

M-MS-0808-5165

601

M-MS-0808-5169

602

#N/A

603

#N/A

604

#N/A

605

#N/A

606

#N/A

607

#N/A

608

#N/A

609

#N/A

610

#N/A

611

#N/A

612

#N/A

613

#N/A

614

#N/A

615

#N/A

616

#N/A

617

#N/A

618

#N/A

619

M-CV-0830-2317

620

#N/A

621

#N/A

622

#N/A

623

#N/A

624

#N/A

625

#N/A

626

#N/A

627

#N/A

628

#N/A

629

#N/A

630

#N/A

631

#N/A

632

M-MS-0808-5165

633

#N/A

634

#N/A

635

#N/A

636

#N/A

637

#N/A

638

#N/A

639

#N/A

640

#N/A

641

#N/A

642

#N/A

643

#N/A

644

#N/A

645

#N/A

646

#N/A

647

#N/A

648

#N/A

649

#N/A

650

#N/A

651

M-LB-0813-0913

652

M-LB-0813-0914

653

M-LB-0813-0915

654

#N/A

3500607300 EMBOSSED CHIP CARRIER SI65 0.015 3510724300 BOX PAPER 366*346*59 0.001 3511031200 CARTON 378*396*142 0.001 3511204100 ANGLE PAPER BOARD 130*55*55*5 0.001 3520130300 PREVENT OXIDIZATION 1.7g 0.001 3520147000 REEL ASSY 13" W=16 A=330 0.001 3520146600 COVER REEL 13" 0.001 3520146800 PLASTIC REEL W=16 A=330 0.001 3520147500 COVER TAPE W=13.05HEAR-PRESSUR 0.014 3520214800 AIR BUBBLE BAG 0.001 4011550003 WIRE CU .35 2UEWN MW-28 NAT 0.35 4011550007 WIRE CU .35 2UEWN NAT MW28 0.35 4011550009 WIRE CU .35 2UEWN MW-28 NAT 0.35 4020201200 THINNER OF FLUX A83 ADDITIVE 0.01 4020204800 FLUX A83 ALPHA 0.01 4020500500 INK BLACK 0.05 4090003700 SOLDER BAR 50/50 0.3 4162440200 CORE FERI DRM5.8*4.5 RB K17 2. 1 4162440700 CORE DR5.8*4.5 B=2.2 M5D U=450 1 4162440900 CORE FERI DR5.8*4.5 B:2.2 F4D 1 2816727410 CHOKE SMT 22uH M 3.6A L253 1 2816727480 CHOKE SMT 22uH M 3.6A L253 1 3429010300 CLIP C1020R-H DR10 T=0.3 1 3940111300 FRAME TINNED COPPER RH125 1 4040410100 CU DCU C1201R H W=22 T=0.3 1.35 3520461200 PML FOR SIQ127 ETC 1 3200106700 LABEL PAPER T:0.1MM LB-1206 0.004 3500631800 EMBOSSED PLASTIC CHIP CARRIER 0.004 3510425000 TRAY PAPER 366*346*75 0.002 3511031000 CARTON 366*180*386 0.001 3511204200 ANGLE PAPER BOARD 170*55*55*5. 0.003 3520130300 PREVENT OXIDIZATION 1.7g 0.004 3520146300 COVER TAPE FOR REEL 0.028 3520148800 3520148700+3520146600 ASSY 0.004 3520146600 COVER REEL 13" 0.004 3520148700 PLASTIC REEL W=24 0.002 3520214800 AIR BUBBLE BAG 0.002 3520802600 EMBOSSED PLASTIC CHIP CARRIER 0.027 4011451200 WIRE CU 0.3 2UEWN NAT MW-80 1.4 4011451203 WIRE CU 0.3 2UEWN NAT MW-80 1.4 4011451205 WIRE CU 0.3 2UEWN NAT MW-80 1.4 4011451207 WIRE CU 0.3 2UEWN NAT MW-80 1.4 4011451300 WIRE CU 0.3 2UEWN RED MW-80 1.4 4020132500 EPOXY ADHESIVE EP382 0.2 4020140700 ADHESIVE EPOXY EP399 KS 0.01 4020209600 SOLDER FLUX YS-120 0.01 4020209700 SOLVENT THINNER YS-08 0.01 4020500500 INK BLACK 0.05 4090004200 SOLDER BAR 95/5 0.3 4162230300 CORE FERI DR10*7 F4D F:5 B:5.5 1 4166280300 CORE FERI C 12*10.85*6.8 F4D 1 2921095612 CORE BEAD 100MHZ 60 OHM 0.3A 0 FB601 1 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB251,FB252,FB255,FB257,FB258 5 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB259,FB260,FB261,FB262,FB401 5 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB951,FB952,FB953,FB954,FB955 5 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB956,FB957 2 2970036603 PWB M0 L4 FR-4 170*119 (I/F BD 1 3000750026 SWITCH ROLL BALL 4P P2.54 1 3070337534 WAFER 2.0mm 7P R-ANGLE CN252 1 3071400334 HEADER NYLON66 94V-0 4P P2.5 CN251 1 3072241500 CONN USB PB DOUBLE A TYPE CN951,CN952 2 3072241600 CONN USB PB B TYPE CN953 1 3075308757 CONN D-SUB 15P R/A PC99 W/O SC CN601 1 3075316343 CONN DVI-D 29P P1.905 R CN602 1 3075415766 CONN FFC/FPC BOTTOM 30P P1.0 S CN501 1 3075415866 CONN FFC/FPC BOTTOM 8P P1.0 SM CN402 1 3202005900 LABEL SERIAL 42*11 SONY FOR STICK ON I/F BD. FOR DET 1 3202009100 LABEL REISTRATION 40*16 STICK ON I/F BD 1 3202215900 LABEL MCU 11*11 POLYESTER 50# STICK ON IC301 0.125 X149001008 CAP AL CP 16V 220U M 6.3*8 C266,C280 2

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201s BOM Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

B-PS-0204-0021

E-L-0407-1587

E-L-0407-1588

B-KB-0207-0034

A-PC-0106-0193

M-MS-0808-8555

A-VC-0101-0324

A-VC-0101-0336

M-MS-0808-8885

A-PC-0106-0229

M-SCW-0824-0772

M-SCW-0824-0690

M-SCW-0824-0775

M-SCW-0824-0776

M-SCW-0824-0777

M-SCW-0824-0784

M-SCW-0824-0732

M-SCW-0824-0413

M-MS-0808-8040

M-LB-0813-0785

M-LB-0813-0712

M-MS-0808-8556

M-MS-0808-8758

#N/A

M-LB-0813-0384

M-LB-0813-0551

M-LB-0813-0696

M-LB-0813-0850

M-LB-0813-0900

M-LB-0813-0714

M-MS-0808-8624

M-MS-0808-8883

M-MS-0808-7810

M-MS-0808-7811

#N/A

M-MS-0808-8557

M-MS-0808-8583

#N/A

M-MS-0808-0016

M-MS-0808-8627

C-BC-0302-0352

#N/A

PL-NB-0707-1075

M-CV-0830-2458

#N/A

C-FP-0301-0399

M-MS-0808-8559

#N/A

C-FP-0301-0266

#N/A

C-BS-0303-0387

M-SCW-0824-0773

M-SCW-0824-0781

M-SCW-0824-0778

M-SCW-0824-0782

M-SCW-0824-0783

993027602 POWER 90-264VAC 18V 3.33A COMP 1 2921021404 CORE BEAD 40*6.5*10 W5H+TAPE FOR FFC CABLE, REV:0 1 2921021437 CORE BEAD 40*6.5*10 A5 +TAPE FOR FFC CABLE 1 3000725100 SWITCH MEMBRANE PET 100*9 VP18 1 3070000501 AC POWER CORD L1800 BLACK EURO 1 3080323801 CABLE USB 2.0 A_B L1800 BLACK 1 3080421500 CABLE DVI-D/DVI-D L1800 BLK OD 1 3080423500 CABLE D-SUB/D-SUB L1800 BLACK 1 3080515002 CABLE FFC ASSY 30P P1.0 L340 T PANEL TO I/F CN501 1 3090119001 AC POWER CORD L1830 BLACK US 1 3100130800 SCREW M M3*0.5*8 FPH C S20C ZN SIDE BKT+BACK CABINET 4 3105051501 SCREW M #4-40*7 HEXH #4-40*3 S DVI*2;D-SUB*2 4 3105123700 SCREW M M4*0.7*10 FF C S18C ZN 4 3105221000 SCREW M M3*0.5*6 FF C S18C ZN SIDE BKT+PANEL*4,SIDE BKT

R&L+PANEL BKT*2 3105225300 SCREW M M3*0.5*4 FF C S18C ZN I/V BD 2 3105225300 SCREW M M3*0.5*4 FF C S18C ZN F/B+PANELSIDE BKT 4 3109010700 SCREW T M3*0.5*7 PAN C S+P S20 SOCKET GROUNDING WIRE 1 3109010900 SCREW T M3*0.5*4 BIND C S18C Z IV SHIELD+PANEL BKT*1,IF

SHIELD+PANEL BKT*3 3109011400 SCREW T M3*0.5*6 BIND C S18C Z I/F BD*4 4 3110250000 WASHER SPRING SWRT FOR CN602*2,CN601*2 4 3200158900 LABEL STICKER OD10 WHT HI-POT PANEL BKTNEAR AC SOCKET 1 3200449700 LABEL WARING AIR SHIPPING FOR TUBE 0.125 3200649100 NAME PLATE VSC 3-BIRD LOGO AL FRONT BEZEL 1 3200651100 NAME PLATE VIEWSONIC ABS 41 82 BACK CABINET 1 4020371607 PLASTIC ABS 94HB 41 D-180 4 4020371608 PLASTIC ABS 94HB 41 HF-380 4 4020371609 PLASTIC ABS 94HB 41 SD-0150 4 4020371614 PLASTIC ABS 94HB 41 PA-707 4 3200712700 LABEL CONTROL 100*90 STICK ON PALLET FOR 16SET/PALLET 0.125 3200712700 LABEL CONTROL 100*90 STICK ON PALLET FOR 32SET/PALLET 0.063 3200744000 LABEL BAR CODE 55*15 VSC-G 1 3200753101 LABEL BAR CODE 76*121 VIEWSONI 1 3201954300 LABEL ID 100*50 VSC VP201S CABINET BACK 1 3202011000 LABEL SERIES PANEL 42*11 T0.05 FOR STICK ON TRAVEL CARD. FOR DET 1 3202310700 LABEL HV WARNING 100*25 FOR I/F SHIELD CAN 1 3211030700 MYLAR FILM 430*330 T.1 L20CBR0 F/B ,REV:03 1 3220502410 TAPE W=60 #10 3M CABLE FFC& PANEL BKT 0.145 3220605633 TAPE W=45 #7290 NITTO FOR F/B 0.128 3221101900 TAPE W=76 PP47 50M 4P 0.8 3222400310 TAPE W=16 #897 3M POWER SWITCH "ON" POSITION,REV:01 0.03 3240055600 CONDUCTIVE TAPE AL W50*L55 112 TAPE BETWEEN IF BD SHIELD CAN & IV SHIELD CAN(EMI) 1 3240160800 SPONGE EVA 5.8*5 T.5 BLK F/B LIGHT LEAKGE 1 3240970900 RUBBER PAD 22*4 T3 BLK STICK ON BKT CONN BOTTOM 1 3241127301 INSULATOR PC 130*118.5 T.5 POWER BD 1 3241127400 INSULATOR PC 231*13 T.5 PANEL BKT 1 3360245401 CABINET BACK ABS 41 S0LRA1AT 1 4020371607 PLASTIC ABS 94HB 41 D-180 520 4020371608 PLASTIC ABS 94HB 41 HF-380 520 4020371609 PLASTIC ABS 94HB 41 SD-0150 520 4020371614 PLASTIC ABS 94HB 41 PA-707 520 3360627100 POWER KNOB POM 901U 5140 S8LFB 1.5GRM 1 3361207400 COVER VESA ABS 41S8LBB1LS 1 4020371607 PLASTIC ABS 94HB 41 D-180 64 4020371608 PLASTIC ABS 94HB 41 HF-380 64 4020371609 PLASTIC ABS 94HB 41 SD-0150 64 4020371614 PLASTIC ABS 94HB 41 PA-707 64 3368197900 F/B ASSY L20CBR05ADB S0LFA1AT 1 3360506800 LED LENS ABS 1865-12 S8LRB1LS 1 4020370614 PLASTIC ABS 94HB 1865-12 PA-75 0.1 3361081600 F/B ABS 5140 VP201S S0LFA1AT 1 4020372907 PLASTIC ABS 94HB 5140 D-180 160 4020372908 PLASTIC ABS 94HB 5140 HF-380 160 4020372909 PLASTIC ABS 94HB 5140 SD-0150 160 4020372914 PLASTIC ABS 94HB 5140 PA-757 160 3368991400 STAND ASSY L20CBR05ADB S8LBB1L 1 3105034400 SCREW M M3*0.5*6 FLAT C S20C Z BKT FOOT1+BKT BASE2 6 3105127100 SCREW M M4*0.7*12 FF C S18C ZN BKT BASE1+HINGE 4 3105229400 SCREW M M3*0.5*10 FF C S18C ZN BKT BASE1+HINGE 1 3105280200 SCREW M M3*0.5*4 FF C S18C ZN COVER HINGE2+HINGE 2 3105280400 SCREW M M3*0.5*4 FLAT C S20C Z FOR BKT STAND FOOT1+BKT STAND FOOT2 4 3105280400 SCREW M M3*0.5*4 FLAT C S20C Z FOR BKT STAND FOOT2+BKT STAND BASE2 4

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201s BOM Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

M-SCW-0824-0779

M-SCW-0824-0780

PL-PD-0714-0100

PL-PD-0714-0101

M-CV-0830-2472

#N/A

M-CV-0830-2459

#N/A

M-CV-0830-2461

#N/A

M-CV-0830-2462

#N/A

M-CV-0830-2463

#N/A

100

#N/A

101

#N/A

102

#N/A

103

M-CV-0830-2464

104

#N/A

105

#N/A

106

#N/A

107

#N/A

108

M-MS-0808-8632

109

M-MS-0808-8633

110

M-MS-0808-8634

111

M-MS-0808-8635

112

M-MS-0808-8636

113

M-MS-0808-8639

114

M-WR-0828-0739

115

M-BK-0805-0061

116

M-MS-0808-8561

117

M-MS-0808-8563

118

M-MS-0808-8630

119

M-MS-0808-8631

120

M-MS-0808-8637

121

M-MS-0808-8638

122

M-MS-0808-8640

123

M-MS-0808-8641

124

M-MS-0808-8641

125

M-MS-0808-8642

126

M-MS-0808-8643

127

M-MS-0808-8646

128

P-FM-0602-0591

129

P-FM-0602-0592

130

M-MS-0808-8762

131

#N/A

132

M-MS-0808-5131

133

M-MS-0808-5131

134

#N/A

135

#N/A

136

#N/A

137

P-BX-0601-0877

138

M-MS-0808-5135

139

M-MS-0808-7820

140

PL-SP-0723-0002

141

#N/A

142

#N/A

143

#N/A

3109017700 SCREW T M3*2.7*7.5 FF C S18C Z BASE BOT &BKT BASE1 2 3109017700 SCREW T M3*2.7*7.5 FF C S18C Z STAND FRONT COVER &HINGE 2 3109019100 SCREW T M3*2.7*7.2 FLAT C S18C COVER HINGE1 & HINGE 4 3109019100 SCREW T M3*2.7*7.2 FLAT C S18C BASE BOT &BKT BASE FOOT1 2 3240957000 RUBBER PAD OD20 T4 BLACK FOR BASE3 BKT 4 3240968900 RUBBER PAD 20*20 T3 BLK FOR BASE3 BKT 1 3360245300 COVER BOTTOM ABS 41 S0LBA1AT 1 4020371607 PLASTIC ABS 94HB 41 D-180 209 4020371608 PLASTIC ABS 94HB 41 HF-380 209 4020371609 PLASTIC ABS 94HB 41 SD-0150 209 4020371614 PLASTIC ABS 94HB 41 PA-707 209 3361207500 COVER STAND FRONT ABS 41 S8LBB BKT BASE 1 4020371607 PLASTIC ABS 94HB 41 D-180 49 4020371608 PLASTIC ABS 94HB 41 HF-380 49 4020371609 PLASTIC ABS 94HB 41 SD-0150 49 4020371614 PLASTIC ABS 94HB 41 PA-707 49 3361207700 COVER STAND REAR ABS 41 S8LBB1 1 4020371607 PLASTIC ABS 94HB 41 D-180 37 4020371608 PLASTIC ABS 94HB 41 HF-380 37 4020371609 PLASTIC ABS 94HB 41 SD-0150 37 4020371614 PLASTIC ABS 94HB 41 PA-707 37 3361207800 COVER BASE ABS 41 S8LBB1LS 1 4020371607 PLASTIC ABS 94HB 41 D-180 20 4020371608 PLASTIC ABS 94HB 41 HF-380 20 4020371609 PLASTIC ABS 94HB 41 SD-0150 20 4020371614 PLASTIC ABS 94HB 41 PA-707 20 3361207900 COVER HINGE1 ABS 41 S8LBB1LS 1 4020371607 PLASTIC ABS 94HB 41 D-180 30 4020371608 PLASTIC ABS 94HB 41 HF-380 30 4020371609 PLASTIC ABS 94HB 41 SD-0150 30 4020371614 PLASTIC ABS 94HB 41 PA-707 30 3361208000 COVER HINGE2 ABS 41 S8LBB1LS 1 4020371607 PLASTIC ABS 94HB 41 D-180 7.5 4020371608 PLASTIC ABS 94HB 41 HF-380 7.5 4020371609 PLASTIC ABS 94HB 41 SD-0150 7.5 4020371614 PLASTIC ABS 94HB 41 PA-707 7.5 3460150701 BRACKET BASE2 SECC 173*190.4 T 1 3460150801 BRACKET BASE FOOT1 SECC 195.3* 2 3460150901 BRACKET BASE FOOT2 SECC 195.3* 2 3460151001 BRACKET BASE3 SECC 173*190.4 T 1 3460151101 BRACKET BASE1 SECC 173*190.4 T 1 3461752201 HINGE SECC 312.5*51.82 L20CBW0 REV:03 1 3470308700 WIRE SADDLE NYLON66 94V2 41 COVER BASE BOTTOM 3 3460144800 BRACKET CONN SECC 41.7*30 T0.6 CABLE FFC ASSY 1 3460146100 BRACKET VESA SECC 110*20 T1 1 3460146300 BRACKET KEYLOCK SECC 20.4*16.4 1 3460150100 BRACKET PANEL SIDE-R SECC 325* 1 3460150200 BRACKET PANEL SIDE-L SECC 325* 1 3461226402 SHIELD CAN IF SPTH 298.9*150.1 1 3461226500 SHIELD CAN INV SPTH 210*73.8*1 1 3463000700 CONDUCTIVE AL 15*25 T0.06 IF BD SHIELD CAN TO PANEL(EMI) 1 3463001100 CONDUCTIVE AL 25*60 T0.06 3075415843 FFC CABLE(EMI) 1 3463001100 CONDUCTIVE AL 25*60 T0.06 PANEL BKT+PANEL&PANEL BOTTOM SIDE(EMI) 2 3463002000 CONDUCTIVE AL 50*100 T.06 FOR STICK WIRE OF PANEL & PANEL BRACKET 2 3472851200 CONDUCTIVE SPONGE 30*8.5*10 3071518343 CN951,CN952(EMI) 1 3472855100 CONDUCTIVE SPONGE 10*10*12 30722052XX CN953(EMI) 1 3500105500 END BLOCK-TOP EPS L20CBW05AAW 1 3500105600 END BLOCK-BOTTOM EPS L20CBW05A 1 3500937501 PE BAG 300*200*0.06T FOR PACKING POWER/USB/D-SUB/DVI CABLE 1 3500939901 PE BAG 740*580*.06T CLEAR 3% FOR SPARE PARTS 1 3510382900 ANGLE PAPER 2070*55*55 FOR 16 SETS/PALLET 0.25 3510382900 ANGLE PAPER 2070*55*55 FOR 32SETS/PALLET 0.125 3510449200 CAP PAPER 1130*1390*120 FOR 32SETS/PALLET 0.032 3510449300 CAP PAPER 1130*700*120 FOR 16SETS/PALLET 0.063 3511346200 SLEEVE PAPER 128*125 FOR DCGP only,For packing CD-ROM ,REV:00 1 3512244600 CARTON 552*337*489 VSC VP201S 3% SPARE PARTS 1 3520082400 PE FILM t=0.02mm W=500 0.04 3520130500 DRYER 15G 80*60 PUT IN CARTON,REV:00 2 3520142700 PLASTIC STRIP W=12 T.5 BLACK BY SEA 1 3524009400 PALLET FUMIGATION 1120*1380*12 FOR 32SETS/PALLET DCGP USE 0.032 3524009500 PALLET FUMIGATION 1120*690*120 FOR DCGP USE 2PCS/40' 0.063 3524009600 PALLET WOOD 1120*1380*120 FOR 32SETS/PALLET DET USE 0.032

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201s BOM Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

144

#N/A

145

A-CD-0001

146

A-CD-VP201-02

147

M-MS-0808-8580

148

A-CD-VP201

149

M-MS-0808-8884

150

M-MS-0808-8396

151

M-MS-0808-9172

152

M-BK-0805-0001

153

M-MS-0808-8628

154

#N/A

155

B-SB-0221-0529

156

#N/A

157

#N/A

158

#N/A

159

#N/A

160

#N/A

161

#N/A

162

#N/A

163

#N/A

164

#N/A

165

#N/A

166

#N/A

167

#N/A

168

#N/A

169

#N/A

170

#N/A

171

#N/A

172

E-R-0405-7028

173

E-R-0405-7034

174

E-R-0405-7037

175

#N/A

176

#N/A

177

#N/A

178

#N/A

179

#N/A

180

#N/A

181

E-R-0405-7041

182

E-R-0405-7050

183

E-R-0405-7050

184

E-R-0405-6686

185

#N/A

186

#N/A

187

#N/A

188

#N/A

189

#N/A

190

#N/A

191

#N/A

192

#N/A

193

#N/A

194

#N/A

195

E-C-0404-4882

196

E-C-0404-4496

197

#N/A

198

#N/A

199

E-C-0404-4865

200

E-C-0404-4865

201

#N/A

202

E-C-0404-4868

203

#N/A

204

#N/A

205

#N/A

206

#N/A

207

#N/A

208

#N/A

209

#N/A

210

#N/A

211

#N/A

212

#N/A

213

#N/A

214

#N/A

215

#N/A

3524009700 PALLET WOOD 1120*690*120 FOR 16SETS/PALLET DET USE 0.063 3532064200 PORTRAIT CD ASSY PUT IN MANUAL PACKING ASSY;REV:00 1 3532040100 CD-ROM VSC VSPP010920 V7.0 PUT IN CD JACKET 1 5012032900 ENVELOPE FOR CD VSC PORTRAIT W 1 3532070800 CD-ROM VSC A-CD-VP201S 1 3532070900 MANUAL PACKING ASSY VSC VP201S 1 3520094201 PE BAG 260*155*0.1T 1 5011092600 MANUAL QUICK START GUIDE VP201 1 3790193603 OTHER ASSY PANEL BKT L20CBR05A 1 3460149900 BRACKET IF&POWER SECC 95*39.2 1 3460150003 BRACKET PANEL SECC 433.4*216.3 1 4900505280 DC-AC INVERTER 20" LG PANEL 1 1160204527 CAP CD 3KV 5P D CH S7.5 C41,CY1,CY2,CY3,CY4,CY5 6 1401522114 CAP AL LD 35V 220U M 10*12.5 T C46,C47 2 3240256100 INSULATOR FR-60 T.25 94V-0 FOR INSULATOR 1 3522191900 PML FOR 4900505280 PML 1 3500304600 EPE PAD 500*370*3 0.008 3510251400 CORRUGATED PAPER 535*415*5.6 0.008 3511713100 CELLS 368*243*20 188*61*14 0.2 3813509100 PWB ASSY FOR DAC-18B013 A PWB ASSY 1 313202000 RES CH 1/4W 2K J 1206 R44 1 313272000 RES CH 1/4W 2.7K J 1206 R34 1 341021300 RES CH 1/10W 47 F 0603 R41 1 341026300 RES CH 1/10W 100 F 0603 R40 1 341059300 RES CH 1/10W 10K F 0603 R13,R45 2 341066300 RES CH 1/10W 20K F 0603 R46 1 341067100 RES CH 1/8W 22K F 0805 R64,R65,R66,R67 4 341067300 RES CH 1/10W 22K F 0603 R12,R24,R28,R32,R4,R8 6 341071300 RES CH 1/10W 33K F 0603 R68,R70 2 341077300 RES CH 1/10W 47K F 0603 R63 1 341079300 RES CH 1/10W 51K F 0603 R35,R37,R49,R57 4 341082300 RES CH 1/10W 68K F 0603 R36,R56 2 341084300 RES CH 1/10W 82K F 0603 R53 1 341087300 RES CH 1/10W 100K F 0603 R18,R51,R55,R61,R62,R79 6 341092300 RES CH 1/10W 150K F 0603 R52 1 341095300 RES CH 1/10W 221K F 0603 R17 1 341139300 RES CH 1/10W 910 F 0603 R11,R23,R27,R3,R31,R7 6 343000300 RES CH 1/10W ZERO J 0603 J3,R14,R42,R47,R50 5 343104300 RES CH 1/10W 100K J 0603 R1,R19,R20,R21,R25,R29 6 343104300 RES CH 1/10W 100K J 0603 R38,R39,R5,R78,R9 5 343105300 RES CH 1/10W 1M J 0603 R10,R2,R22,R26,R30,R6 6 343394300 RES CH 1/10W 390K J 0603 R54 1 343561300 RES CH 1/10W 560 J 0603 R72,R73,R74,R75,R76,R77 6 343564300 RES CH 1/10W 560K J 0603 R15 1 343824300 RES CH 1/10W 820K J 0603 R69,R71 2 869010302 FUSE F/SMD 2A 63V 1206 F1,F2 2 869010303 FUSE F/SMD 2A 63V 1206 F1,F2 2 1511458229 CAP MC CP 50V .1U J X7R 1206 C20 1 1511532000 CAP MC CP 50V 120P J C0G 0603 C50 1 1512438000 CAP MC CP 50V 220P K X7R 0603 C8 1 1512446000 CAP MC CP 50V 2.2KP K X7R 0603 C36,C44 2 1512452000 CAP MC CP 50V 6.8KP K X7R 0603 C14,C30,C32,C34,C37,C39,C42,C6 8 1512454100 CAP MC CP 50V .01U K X7R 0805 C31,C33,C35,C38,C40,C43 6 1512456000 CAP MC CP 50V .022U K X7R 0603 C18,C19,C21,C22,C23 5 1512458200 CAP MC CP 50V .1U K X7R 1206 C48,C49 2 1542458000 CAP MC CP 16V .1U K X7R 0603 C1,C10,C11,C12,C13, 5 1542458000 CAP MC CP 16V .1U K X7R 0603 C17,C2,C3,C4,C9 5 1542467100 CAP MC CP 16V 1U K X7R 0805 C5 1 1552458100 CAP MC CP 25V .1U K X7R 0805 C45 1 1552467200 CAP MC CP 25V 1U K X7R 1206 C16,C7 2 15A2467031 CAP MC CP 10V 1U K X7R 0603 C15 1 15A2491300 CAP MC CP 10V 10U K X7R 1210 C25,C28 2 2038125601 DIO ZEN 0.5W 7.07-7.45V MINIME ZD2,ZD3,ZD4,ZD5 4 2038125601 DIO ZEN 0.5W 7.07-7.45V LLDS(M ZD2,ZD3,ZD4,ZD5 4 2038125704 DIO ZEN 0.5W 7.78-8.19V MINIME ZD1 1 2038125704 DIO ZEN 0.5W 7.78-8.19V LLDS(M ZD1 1 2038126201 DIO ZEN 0.5W 12.55-13.21V MINI ZD6 1 2038126201 DIO ZEN 0.5W 12.55-13.21V LLDS ZD6 1 2045207002 DIO SW 0.2A 70V SOT-23 SE. D10,D11,D12,D13,D14,D15 6 2045207002 DIO SW 0.2A 70V SOT-23 SE. D16,D17,D18,D7,D8,D9 6 2045207002 DIO SW 0.3A 75V SOT-23 SE. D10,D11,D12,D13,D14,D15 6 2045207002 DIO SW 0.3A 75V SOT-23 SE. D16,D17,D18,D7,D8,D9 6

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201s BOM Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

216

#N/A

217

#N/A

218

#N/A

219

#N/A

220

#N/A

221

#N/A

222

#N/A

223

#N/A

224

#N/A

225

#N/A

226

#N/A

227

#N/A

228

#N/A

229

#N/A

230

#N/A

231

#N/A

232

#N/A

233

#N/A

234

#N/A

235

#N/A

236

#N/A

237

#N/A

238

#N/A

239

#N/A

240

#N/A

241

#N/A

242

#N/A

243

#N/A

244

#N/A

245

#N/A

246

#N/A

247

#N/A

248

#N/A

249

M-MS-0808-5150

250

M-MS-0808-5151

251

M-MS-0808-5165

252

M-MS-0808-5169

253

#N/A

254

E-L-0407-1550

255

#N/A

256

#N/A

257

#N/A

258

#N/A

259

#N/A

260

#N/A

261

#N/A

262

#N/A

263

#N/A

264

#N/A

265

#N/A

266

#N/A

267

#N/A

268

#N/A

269

#N/A

270

#N/A

271

#N/A

272

M-MS-0808-5150

273

M-MS-0808-5151

274

M-MS-0808-5165

275

M-MS-0808-5169

276

#N/A

277

E-L-0407-1550

278

#N/A

279

#N/A

280

#N/A

281

#N/A

282

#N/A

283

#N/A

284

#N/A

285

#N/A

286

#N/A

287

#N/A

2045207002 DIO SW 0.215A 70V SOT-23 SE. D10,D11,D12,D13,D14,D15 6 2045207002 DIO SW 0.215A 70V SOT-23 SE. D16,D17,D18,D7,D8,D9 6 2048107501 DIO SW 0.2A 75V LL-34(MINIMELF D1,D2,D3,D4,D5,D6 6 2048107501 DIO SW 0.15A 75V MINIMELF D1,D2,D3,D4,D5,D6 6 2048107501 DIO SW 0.15A 75V MINIMELF D1,D2,D3,D4,D5,D6 6 2105220005 TR 40V 0.6A SOT-23 80 Q12 1 2105220005 TR 40V 1.0A SOT-23 80 Q12 1 2425225000 FET 60V 0.115A 7.5ohm SOT-23 Q1,Q2,Q3,Q4,Q5,Q6,Q7 7 2425225000 FET 60V 0.115A 7.5ohm SOT-23 Q8,Q9,Q10,Q11,Q17,Q18 6 2425225000 FET 60V 0.115A 5ohm SOT-23 Q1,Q2,Q3,Q4,Q5,Q6,Q7 7 2425225000 FET 60V 0.115A 5ohm SOT-23 Q8,Q9,Q10,Q11,Q17,Q18 6 2425225000 FET 60V 0.115A 7.5ohm SOT-23 Q1,Q2,Q3,Q4,Q5,Q6,Q7 7 2425225000 FET 60V 0.115A 7.5ohm SOT-23 Q8,Q9,Q10,Q11,Q17,Q18 6 2426010002 FET 30V 7A 0.022ohm SO-8 N+P Q13,Q14,Q15,Q16 4 2426010002 FET 30V 7A 0.028ohm SO-8 N+P Q13,Q14,Q15,Q16 4 251030130F IC DUAL CCFL INVERTER CONTROLL IC1 1 2801978900 X'FMR INVERTER UI-11.7 00A-235 T1 1 3184630000 BOBBIN BASE LCP EFD11.7 1 3220102010 TAPE W=3 #1350F-1 3M 0.008 3220310224 TAPE W=3 CT-280 YAHUA 0.008 3220703611 TAPE W=16 KA180 4P 0.064 3220703622 TAPE W=16 PB-416F CHYUN YIH 0.064 3220704710 TAPE W=16 #92 3M 0.064 3224004600 MYLAR PE W=6 T=0.001 0.001 3520456400 PML FOR INVERTER 1 3500221500 PAD EPE 330*240*5 0.012 3510058100 CARTON 391*301*260 0.001 3510142200 PAPER PAD 365*270*5 0.002 3520386000 TRAY PET 365*270*0.5 0.012 4011170007 WIRE CU .2 2UEWN NAT 130C 0.24 4011170009 WIRE CU .2 2UEWN NAT 0.24 4011290101 WIRE CU 0.03 IEC317 G3 NAT(3KV 0.56 4020148900 EPOXY ADHESIVE K1401-11 0.04 4020201200 THINNER OF FLUX A83 ADDITIVE 0.016 4020204800 FLUX A83 ALPHA 0.008 4020500500 INK BLACK 0.008 4090003700 SOLDER BAR 50/50 0.01 4090006400 SOLDER BAR SN5/PB95 0.13 4133015300 CORE FERI UI1222 P4 UI=2500 1 2801978900 X'FMR INVERTER UI-11.7 00A-235 T2 1 3184630000 BOBBIN BASE LCP EFD11.7 1 3220102010 TAPE W=3 #1350F-1 3M 0.008 3220310224 TAPE W=3 CT-280 YAHUA 0.008 3220703611 TAPE W=16 KA180 4P 0.064 3220703622 TAPE W=16 PB-416F CHYUN YIH 0.064 3220704710 TAPE W=16 #92 3M 0.064 3224004600 MYLAR PE W=6 T=0.001 0.001 3520456400 PML FOR INVERTER 1 3500221500 PAD EPE 330*240*5 0.012 3510058100 CARTON 391*301*260 0.001 3510142200 PAPER PAD 365*270*5 0.002 3520386000 TRAY PET 365*270*0.5 0.012 4011170007 WIRE CU .2 2UEWN NAT 130C 0.24 4011170009 WIRE CU .2 2UEWN NAT 0.24 4011290101 WIRE CU 0.03 IEC317 G3 NAT(3KV 0.56 4020148900 EPOXY ADHESIVE K1401-11 0.04 4020201200 THINNER OF FLUX A83 ADDITIVE 0.016 4020204800 FLUX A83 ALPHA 0.008 4020500500 INK BLACK 0.008 4090003700 SOLDER BAR 50/50 0.01 4090006400 SOLDER BAR SN5/PB95 0.13 4133015300 CORE FERI UI1222 P4 UI=2500 1 2801978900 X'FMR INVERTER UI-11.7 00A-235 T3 1 3184630000 BOBBIN BASE LCP EFD11.7 1 3220102010 TAPE W=3 #1350F-1 3M 0.008 3220310224 TAPE W=3 CT-280 YAHUA 0.008 3220703611 TAPE W=16 KA180 4P 0.064 3220703622 TAPE W=16 PB-416F CHYUN YIH 0.064 3220704710 TAPE W=16 #92 3M 0.064 3224004600 MYLAR PE W=6 T=0.001 0.001 3520456400 PML FOR INVERTER 1 3500221500 PAD EPE 330*240*5 0.012

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201s BOM Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

288

#N/A

289

#N/A

290

#N/A

291

#N/A

292

#N/A

293

#N/A

294

#N/A

295

M-MS-0808-5150

296

M-MS-0808-5151

297

M-MS-0808-5165

298

M-MS-0808-5169

299

#N/A

300

E-L-0407-1550

301

#N/A

302

#N/A

303

#N/A

304

#N/A

305

#N/A

306

#N/A

307

#N/A

308

#N/A

309

#N/A

310

#N/A

311

#N/A

312

#N/A

313

#N/A

314

#N/A

315

#N/A

316

#N/A

317

#N/A

318

M-MS-0808-5150

319

M-MS-0808-5151

320

M-MS-0808-5165

321

M-MS-0808-5169

322

#N/A

323

E-L-0407-1550

324

#N/A

325

#N/A

326

#N/A

327

#N/A

328

#N/A

329

#N/A

330

#N/A

331

#N/A

332

#N/A

333

#N/A

334

#N/A

335

#N/A

336

#N/A

337

#N/A

338

#N/A

339

#N/A

340

#N/A

341

M-MS-0808-5150

342

M-MS-0808-5151

343

M-MS-0808-5165

344

M-MS-0808-5169

345

#N/A

346

E-L-0407-1550

347

#N/A

348

#N/A

349

#N/A

350

#N/A

351

#N/A

352

#N/A

353

#N/A

354

#N/A

355

#N/A

356

#N/A

357

#N/A

358

#N/A

359

#N/A

3510058100 CARTON 391*301*260 0.001 3510142200 PAPER PAD 365*270*5 0.002 3520386000 TRAY PET 365*270*0.5 0.012 4011170007 WIRE CU .2 2UEWN NAT 130C 0.24 4011170009 WIRE CU .2 2UEWN NAT 0.24 4011290101 WIRE CU 0.03 IEC317 G3 NAT(3KV 0.56 4020148900 EPOXY ADHESIVE K1401-11 0.04 4020201200 THINNER OF FLUX A83 ADDITIVE 0.016 4020204800 FLUX A83 ALPHA 0.008 4020500500 INK BLACK 0.008 4090003700 SOLDER BAR 50/50 0.01 4090006400 SOLDER BAR SN5/PB95 0.13 4133015300 CORE FERI UI1222 P4 UI=2500 1 2801978900 X'FMR INVERTER UI-11.7 00A-235 T4 1 3184630000 BOBBIN BASE LCP EFD11.7 1 3220102010 TAPE W=3 #1350F-1 3M 0.008 3220310224 TAPE W=3 CT-280 YAHUA 0.008 3220703611 TAPE W=16 KA180 4P 0.064 3220703622 TAPE W=16 PB-416F CHYUN YIH 0.064 3220704710 TAPE W=16 #92 3M 0.064 3224004600 MYLAR PE W=6 T=0.001 0.001 3520456400 PML FOR INVERTER 1 3500221500 PAD EPE 330*240*5 0.012 3510058100 CARTON 391*301*260 0.001 3510142200 PAPER PAD 365*270*5 0.002 3520386000 TRAY PET 365*270*0.5 0.012 4011170007 WIRE CU .2 2UEWN NAT 130C 0.24 4011170009 WIRE CU .2 2UEWN NAT 0.24 4011290101 WIRE CU 0.03 IEC317 G3 NAT(3KV 0.56 4020148900 EPOXY ADHESIVE K1401-11 0.04 4020201200 THINNER OF FLUX A83 ADDITIVE 0.016 4020204800 FLUX A83 ALPHA 0.008 4020500500 INK BLACK 0.008 4090003700 SOLDER BAR 50/50 0.01 4090006400 SOLDER BAR SN5/PB95 0.13 4133015300 CORE FERI UI1222 P4 UI=2500 1 2801978900 X'FMR INVERTER UI-11.7 00A-235 T5 1 3184630000 BOBBIN BASE LCP EFD11.7 1 3220102010 TAPE W=3 #1350F-1 3M 0.008 3220310224 TAPE W=3 CT-280 YAHUA 0.008 3220703611 TAPE W=16 KA180 4P 0.064 3220703622 TAPE W=16 PB-416F CHYUN YIH 0.064 3220704710 TAPE W=16 #92 3M 0.064 3224004600 MYLAR PE W=6 T=0.001 0.001 3520456400 PML FOR INVERTER 1 3500221500 PAD EPE 330*240*5 0.012 3510058100 CARTON 391*301*260 0.001 3510142200 PAPER PAD 365*270*5 0.002 3520386000 TRAY PET 365*270*0.5 0.012 4011170007 WIRE CU .2 2UEWN NAT 130C 0.24 4011170009 WIRE CU .2 2UEWN NAT 0.24 4011290101 WIRE CU 0.03 IEC317 G3 NAT(3KV 0.56 4020148900 EPOXY ADHESIVE K1401-11 0.04 4020201200 THINNER OF FLUX A83 ADDITIVE 0.016 4020204800 FLUX A83 ALPHA 0.008 4020500500 INK BLACK 0.008 4090003700 SOLDER BAR 50/50 0.01 4090006400 SOLDER BAR SN5/PB95 0.13 4133015300 CORE FERI UI1222 P4 UI=2500 1 2801978900 X'FMR INVERTER UI-11.7 00A-235 T6 1 3184630000 BOBBIN BASE LCP EFD11.7 1 3220102010 TAPE W=3 #1350F-1 3M 0.008 3220310224 TAPE W=3 CT-280 YAHUA 0.008 3220703611 TAPE W=16 KA180 4P 0.064 3220703622 TAPE W=16 PB-416F CHYUN YIH 0.064 3220704710 TAPE W=16 #92 3M 0.064 3224004600 MYLAR PE W=6 T=0.001 0.001 3520456400 PML FOR INVERTER 1 3500221500 PAD EPE 330*240*5 0.012 3510058100 CARTON 391*301*260 0.001 3510142200 PAPER PAD 365*270*5 0.002 3520386000 TRAY PET 365*270*0.5 0.012

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201s BOM Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

360

#N/A

361

#N/A

362

#N/A

363

#N/A

364

M-MS-0808-5150

365

M-MS-0808-5151

366

M-MS-0808-5165

367

M-MS-0808-5169

368

#N/A

369

E-L-0407-1550

370

#N/A

371

#N/A

372

#N/A

373

#N/A

374

#N/A

375

#N/A

376

#N/A

377

#N/A

378

M-LCD-0829-0163

379

B-IF-0222-0039

380

#N/A

381

#N/A

382

#N/A

383

E-R-0405-7041

384

E-R-0405-7049

385

E-R-0405-6684

386

E-R-0405-6684

387

E-R-0405-6684

388

E-R-0405-6684

389

E-R-0405-6684

390

E-R-0405-7054

391

E-R-0405-6685

392

E-R-0405-6685

393

E-R-0405-6685

394

E-R-0405-6685

395

E-R-0405-6685

396

E-R-0405-7050

397

#N/A

398

#N/A

399

#N/A

400

E-R-0405-7042

401

E-R-0405-7042

402

E-R-0405-6687

403

#N/A

404

#N/A

405

#N/A

406

E-R-0405-7057

407

E-R-0405-7057

408

E-R-0405-7057

409

E-R-0405-7043

410

E-R-0405-6690

411

E-R-0405-7033

412

E-R-0405-7031

413

E-R-0405-7031

414

E-R-0405-7036

415

#N/A

416

#N/A

417

E-R-0405-6691

418

#N/A

419

E-R-0405-6693

420

#N/A

421

#N/A

422

#N/A 619900305 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP406,RP407,RP408,RP409,RP410 5

423

#N/A

424

#N/A

425

#N/A

426

#N/A

427

#N/A

428

#N/A

429

#N/A

430

#N/A

431

#N/A

4011170007 WIRE CU .2 2UEWN NAT 130C 0.24 4011170009 WIRE CU .2 2UEWN NAT 0.24 4011290101 WIRE CU 0.03 IEC317 G3 NAT(3KV 0.56 4020148900 EPOXY ADHESIVE K1401-11 0.04 4020201200 THINNER OF FLUX A83 ADDITIVE 0.016 4020204800 FLUX A83 ALPHA 0.008 4020500500 INK BLACK 0.008 4090003700 SOLDER BAR 50/50 0.01 4090006400 SOLDER BAR SN5/PB95 0.13 4133015300 CORE FERI UI1222 P4 UI=2500 1 2994721100 PWB D 0 L2 I1 E1 FR4 188*60*1. PWB 1 3070074731 HEADER BOX 94V0 9-5P P2.0 R SM CN2,CN4 2 3070074751 HEADER BOX 94V0 9-5P P2.0 R SM CN2,CN4 2 3070074766 HEADER BOX 94V0 9-5P P2.0 R SM CN2,CN4 2 3070075000 HEADER NY66 94V0 2PIN CN3,CN5 2 3070075166 HEADER NYLON46 94V0 2PIN SMD CN3,CN5 2 3076790051 HEADER HOUSING 94V0 2P P3.5 R CN3,CN5 2 3861270000 CABLE ASSY 1007 #26 7HOLES DAC CN1 1 5052000150 LCD 20.1" TFT PANEL UXGA LVDS LG 1 5600110078 LCD I/F BD ASSY L20CBW 05AAW 1 341052300 RES CH 1/10W 4.7K F 0603 R260,R261 2 341059300 RES CH 1/10W 10K F 0603 R273 1 341070300 RES CH 1/10W 30K F 0603 R272 1 343000300 RES CH 1/10W ZERO J 0603 C256,R412,R417,R431 4 343100300 RES CH 1/10W 10 J 0603 R266 1 343101100 RES CH 1/8W 100 J 0805 R265 1 343101300 RES CH 1/10W 100 J 0603 R438,R439,R440,R441,R442,R604 6 343101300 RES CH 1/10W 100 J 0603 R605,R606,R608,R609,R618,R619 6 343101300 RES CH 1/10W 100 J 0603 R620,R621,R622,R630,R643,R650 6 343101300 RES CH 1/10W 100 J 0603 R621,R622,R630,R643,R650 5 343102300 RES CH 1/10W 1K J 0603 R419,R422 2 343103100 RES CH 1/8W 10K J 0805 R613,R627 2 343103300 RES CH 1/10W 10K J 0603 R256,R257,R262,R274,R275 5 343103300 RES CH 1/10W 10K J 0603 R278,R281,R406,R443,R444,R445 6 343103300 RES CH 1/10W 10K J 0603 R446,R447,R450,R614,R615,R628 6 343103300 RES CH 1/10W 10K J 0603 R629,R635,R960,R962,R964,R966 6 343104300 RES CH 1/10W 100K J 0603 R951,R957 2 343152300 RES CH 1/10W 1.5K J 0603 R953 1 343153300 RES CH 1/10W 15K J 0603 R952,R954,R955,R956 4 343220100 RES CH 1/8W 22 J 0805 R271 1 343220300 RES CH 1/10W 22 J 0603 R423,R424,R425,R426,R646,R647 6 343220300 RES CH 1/10W 22 J 0603 R648,R649 2 343222300 RES CH 1/10W 2.2K J 0603 R277,R611,R612,R623,R631 5 343223300 RES CH 1/10W 22K J 0603 R283,R285 2 343270300 RES CH 1/10W 27 J 0603 R430 1 343332100 RES CH 1/8W 3.3K J 0805 R421 1 343332300 RES CH 1/10W 3.3K J 0603 R282,R284,R403,R404,R407,R408 6 343332300 RES CH 1/10W 3.3K J 0603 R409,R410,R413,R415,427,R428 6 343332300 RES CH 1/10W 3.3K J 0603 R453,R634 2 343392300 RES CH 1/10W 3.9K J 0603 R254 1 343470300 RES CH 1/10W 47 J 0603 R607,R610,R616,R617 4 343471300 RES CH 1/10W 470 J 0603 R401,R402 2 343472300 RES CH 1/10W 4.7K J 0603 R448,R449,R637,R638,R639,R640 6 343472300 RES CH 1/10W 4.7K J 0603 R641,R642,R276 3 343511300 RES CH 1/10W 510 J 0603 R636 1 343561100 RES CH 1/8W 560 J 0805 R405 1 343561300 RES CH 1/10W 560 J 0603 R451,R452 2 343562300 RES CH 1/10W 5.6K J 0603 R255 1 343681300 RES CH 1/10W 680 J 0603 R436,R437 2 343750100 RES CH 1/8W 75 J 0805 R601,R602,R603,R624,R625,R626 6 343821100 RES CH 1/8W 820 J 0805 R267 1 619900305 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP401,RP402,RP403,RP404,RP405 5

619900305 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP411,RP412,RP601,RP602,RP603 5 619900305 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP604,RP605,RP606,RP607,RP608 5 619900305 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP609,RP610,RP611,RP612,RP613 5 619900305 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP614,RP615,,RP616,RP617,RP618 5 619900305 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP619,RP620,RP621,RP622,RP623 5 619900305 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP624,RP625 2 619900312 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP401,RP402,RP403,RP404,RP405 5 619900312 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP406,RP407,RP408,RP409,RP410 5 619900312 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP411,RP412,RP601,RP602,RP603 5

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201s BOM Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

432

#N/A

433

#N/A

434

#N/A

435

#N/A

436

#N/A

437

#N/A

438

M-LCD-0826-0129

439

#N/A

440

#N/A

441

#N/A

442

#N/A

443

#N/A

444

#N/A

445

#N/A

446

#N/A

447

#N/A

448

#N/A

449

#N/A

450

#N/A

451

#N/A

452

#N/A

453

#N/A

454

#N/A

455

#N/A

456

#N/A

457

#N/A

458

#N/A

459

#N/A

460

#N/A

461

#N/A

462

#N/A

463

E-C-0404-4878

464

#N/A

465

E-C-0404-4876

466

#N/A

467

#N/A

468

#N/A

469

E-C-0404-4497

470

E-C-0404-4497

471

E-C-0404-4497

472

E-C-0404-4497

473

E-C-0404-4497

474

E-C-0404-4497

475

E-C-0404-4497

476

E-C-0404-4497

477

E-C-0404-4497

478

E-C-0404-4497

479

E-C-0404-4497

480

E-C-0404-4497

481

E-C-0404-4497

482

E-C-0404-4497

483

E-C-0404-4497

484

E-C-0404-4497

485

E-C-0404-4497

486

#N/A

487

#N/A

488

#N/A

489

#N/A

490

#N/A

491

#N/A

492

#N/A

493

#N/A

494

#N/A

495

#N/A

496

#N/A

497

#N/A

498

#N/A

499

#N/A

500

E-IC-0401-2925

501

#N/A

502

#N/A

503

#N/A

619900312 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP604,RP605,RP606,RP607,RP608 5 619900312 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP609,RP610,RP611,RP612,RP613 5 619900312 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP614,RP615,,RP616,RP617,RP618 5 619900312 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP619,RP620,RP621,RP622,RP623 5 619900312 RES ARRAY 47 J SMD 4*2 3.2*1.6 RP624,RP625 2 730060412 CRYSTAL 14.318MHZ+-30PPM AT-49 X401 1 730180212 CRYSTAL 24MHZ +-30PPM 30PF 49U X951 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA401 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA402 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA403 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA404 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA405 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA604 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA605 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA606 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA607 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA608 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA613 1 920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA617 1 1490247012 CAP AL CP 6.3V 47U M 5*5.5 C269,C630 2 1491010215 CAP AL CP 10V 1KU M 10*10 C263 1 1491015113 CAP AL CP 10V 150U M 6.3*5.8 C972,C974,C976,C978 4 1491222012 CAP AL CP 16V 22U M 5*5.5 C272,C960 2 1491222113 CAP AL CP 16V 220U M 6.3*7.7 C266,C280 2 1491447014 CAP AL CP 25V 47U M 8*5.4 C275,C279,C428 3 1491447115 CAP AL CP 25V 470U M 10*10 C260,C262 2 1491522810 CAP AL CP 35V 2.2U M 3*5.4 C980 1 1491610811 CAP AL CP 50V 1U M 4*5.7 C264,C273 2 1491610811 CAP AL CP 50V 1U M 4*5.4 C264,C273 2 1511508000 CAP MC CP 50V 10P J C0G 0603 C656,C657 2 1511512000 CAP MC CP 50V 18P J C0G 0603 C401,C402 2 1511514000 CAP MC CP 50V 22P J C0G 0603 C403,C605,C606,C609,C614 5 1511516000 CAP MC CP 50V 27P J C0G 0603 C953,C954 2 1512445000 CAP MC CP 50V 1KP K X7R 0603 C255,C258,C601,C613 4 1512448000 CAP MC CP 50V 3.9KP K X7R 0603 C633 1 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C254,C982 2 1517657000 CAP MC CP 50V .047U Z Y5V 0603 C602,C603,C604,C610,C611,C612 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C251,C259,C265,C267,C268,C270 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C271,C276,C277,C278,C404,C405 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C406,C407,C408,C409,C410,C411 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C412,C413,C414,C415,C416,C417 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C418,C419,C420,C421,C422,C423 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C424,C425,C426,C427,C501,C502 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C503,C504,C505,C506,C507,C508 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C509,C510,C607,C608,C615,C616 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C617,C618,C619,C620,C621,C622 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C623,C624,C625,C626,C627,C628 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C629,C631,C632,C635,C636,C637 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C639,C640,C641,C642,C643,C644 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C645,C646,C647,C648,C649,C650 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C651,C951,C952,C955,C956,C957 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C958,C959,C961,C962,C963,C964 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C965,C966,C967,C968,C969,C970 6 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C971,C973,C975,C977,C979 5 1517690000 CAP MC CP 50V .039U Z Y5V 0603 C634 1 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C253,C274 2 15A7691100 CAP MC CP 10V 10U Z Y5V 0805 C281 1 2023515800 DIO SBD 5A 40V DO-201AD D252 1 2038125208 DIO ZEN 0.5W 3.32-3.53V LLDS(M D401,D603,D604,D605,D606,D609 6 2038125402 DIO ZEN 0.5W 4.94-5.20V LLDS(M D602,D608 2 2038126702 DIO ZEN 0.5W 16.82-17.7V LLDS( D253 1 2045207003 DIO SW 0.215A 75V SOT-23 D601,D607 2 2105220004 TR 40V 0.2A SOT-23 100-300 Q252,Q259,Q260,Q261,Q262 5 2105220005 TR 40V 0.6A SOT-23 80 Q256 1 2115220002 TR -40V -0.2A SOT-23 100-300 Q401,Q402 2 2115220004 TR -40V -0.6A SOT-23 100 Q257 1 2435026000 FET -55V -11A 0.175ohm TO-252A Q258 1 2436011000 FET -30V -8.8A 0.02ohm SO-8 Q263 1 2500058010 IC REGU LDO 0.8A 3.3V SOT-223 IC254 1 2500058037 IC REGU LDO 0.8A 3.3V SOT-223 IC253,IC254,IC955 3 2500058741 IC REGU 3.3V 1A SOT-223 IC254,IC955 2 2500082637 IC REGU LDO 2.5V 5A TO-252 IC252 1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201s BOM Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

504

#N/A

505

#N/A

506

#N/A

507

#N/A

508

#N/A

509

#N/A

510

E-IC-0401-1932

511

#N/A

512

#N/A

513

#N/A

514

#N/A

515

#N/A

516

#N/A

517

#N/A

518

#N/A

519

#N/A

520

#N/A

521

#N/A

522

#N/A

523

#N/A

524

#N/A

525

E-IC-0401-2942

526

E-IC-0401-1834

527

#N/A

528

#N/A

529

#N/A

530

#N/A

531

#N/A

532

#N/A

533

#N/A

534

#N/A

535

#N/A

536

#N/A

537

#N/A

538

#N/A

539

#N/A

540

#N/A

541

#N/A

542

#N/A

543

#N/A

544

#N/A

545

#N/A

546

#N/A

547

#N/A

548

#N/A

549

M-CV-0830-2317

550

#N/A

551

#N/A

552

#N/A

553

#N/A

554

#N/A

555

#N/A

556

#N/A

557

#N/A

558

#N/A

559

#N/A

560

#N/A

561

#N/A

562

M-MS-0808-5165

563

#N/A

564

#N/A

565

#N/A

566

#N/A

567

#N/A

568

#N/A

569

#N/A

570

#N/A

571

#N/A

572

#N/A

573

#N/A

574

#N/A

575

#N/A

2500088136 IC VOL DETECTOR 4.4V SOT-23 IC402 1 2500224136 IC REGU 3.3V 0.4A SOT-89 IC255 1 2510019129 IC PWM SOP-16P IC251 1 2530147153 IC PANEL LINK RECEIVER TQFP-10 IC609 1 2530207213 IC IMAGE PROCESSOR PBGA-256B IC401 1 2530208043 IC 205MSPS ANALOG INTERFACE MQ IC608 1 2540170021 IC LVDS I/F TSSOP-56P IC501,IC502 2 2540279103 IC DUAL USB HIGH-SIDE POWER SW IC952,IC953 2 2540368172 IC USB HUB CONTROLLER QFN-56P IC951 1 2600042308 IC HEX INVERTER SO-14 IC602,IC607 2 2600062607 IC OCTAL BUFFER 3-S SSOP-20P IC405 1 2600062608 IC OCTAL BUFFER 3-S SSOP-20P IC405 1 2600071007 IC ANALOG CMOS SO-14PIN IC603 1 2600071008 IC QUAD ANALOG SWITCH SOIC-14 IC603 1 2600071009 IC ANALOG CMOS S014 IC603 1 2600071011 IC QUAD ANALOG MULTIPLEXER SOI IC603 1 2600071013 IC QUAD ANALOG MULTIPLEXER SOI IC603 1 2600071034 IC QUAD ANALOG MULTIPLEXER SO- IC603 1 2600071042 IC QUAD ANALOG MULTIPLEXER SO- IC603 1 2600088009 IC HEX INVERTER SOIC-14 IC602,IC607 2 2610015107 IC 2 CHANNEL ANALOGUE SO16 IC604 1 2610049742 IC CMOS 2K EEPROM SOIC-8P IC601,IC605,IC606 3 2610188137 IC EEPROM 256*8BIT SOIC-8PIN IC403 1 2610188542 IC EEPROM 16K SOIC-8P IC403 1 2610501360 IC FLASH MEMORY 90nS TSOP-48P IC404 1 2610501923 IC F-MEM 8M TOP 70nS TSOP-48P IC404 1 2640981601 IC 2610509112+5015007200 IC954 1 2610509112 IC EEPROM 512*8 SO-8P IC954 1 5015007200 SOFTWARE L20CBW USB2.0 VID:054 IC954 1 2640981901 IC 2610538142+5015007200 IC954 1 2610538142 IC EEPROM 512*8 SO-8PIN IC954 1 5015007200 SOFTWARE L20CBW USB2.0 VID:054 IC954 1 2816706710 CHOKE SMT 22UH M L253 1 3429010300 CLIP C1020R-H DR10 T=0.3 1 3940111300 FRAME TINNED COPPER RH125 1 4040410100 CU DCU C1201R H W=22 T=0.3 1.35 3520461200 PML FOR SIQ127 ETC 1 3200106700 LABEL PAPER T:0.1MM LB-1206 0.004 3500631800 EMBOSSED PLASTIC CHIP CARRIER 0.004 3510425000 TRAY PAPER 366*346*75 0.002 3511031000 CARTON 366*180*386 0.001 3511204200 ANGLE PAPER BOARD 170*55*55*5. 0.003 3520130300 PREVENT OXIDIZATION 1.7g 0.004 3520146300 COVER TAPE FOR REEL 0.028 3520148800 3520148700+3520146600 ASSY 0.004 3520146600 COVER REEL 13" 0.004 3520148700 PLASTIC REEL W=24 0.002 3520214800 AIR BUBBLE BAG 0.002 3520802600 EMBOSSED PLASTIC CHIP CARRIER 0.027 4011451200 WIRE CU 0.3 2UEWN NAT MW-80 1.4 4011451203 WIRE CU 0.3 2UEWN NAT MW-80 1.4 4011451205 WIRE CU 0.3 2UEWN NAT MW-80 1.4 4011451207 WIRE CU 0.3 2UEWN NAT MW-80 1.4 4011451300 WIRE CU 0.3 2UEWN RED MW-80 1.4 4020132500 EPOXY ADHESIVE EP382 0.2 4020140700 ADHESIVE EPOXY EP399 KS 0.01 4020209600 SOLDER FLUX YS-120 0.01 4020209700 SOLVENT THINNER YS-08 0.01 4020500500 INK BLACK 0.05 4090004200 SOLDER BAR 95/5 0.3 4162230300 CORE FERI DR10*7 F4D F:5 B:5.5 1 4166280300 CORE FERI C 12*10.85*6.8 F4D 1 2816721510 CHOKE SMT 10uH K L254 1 2816721580 CHOKE CD 10uH K SMD L254 1 3521064700 PML FOR SI65 1 3200106700 LABEL PAPER T:0.1MM LB-1206 0.001 3220100100 TAPE W=10 MY9Y 4P 0.001 3500600800 COVER SHEET 0.001 3500607300 EMBOSSED CHIP CARRIER SI65 0.015 3510724300 BOX PAPER 366*346*59 0.001 3511031200 CARTON 378*396*142 0.001 3511204100 ANGLE PAPER BOARD 130*55*55*5 0.001

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201s BOM Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

576

#N/A

577

#N/A

578

M-CV-0830-2317

579

#N/A

580

#N/A

581

#N/A

582

M-WR-0828-0576

583

M-WR-0828-0577

584

M-WR-0828-0578

585

M-MS-0808-5150

586

M-MS-0808-5151

587

M-MS-0808-5165

588

M-MS-0808-5169

589

#N/A

590

#N/A

591

#N/A

592

#N/A

593

#N/A

594

#N/A

595

#N/A

596

#N/A

597

#N/A

598

#N/A

599

#N/A

600

#N/A

601

#N/A

602

#N/A

603

#N/A

604

#N/A

605

#N/A

606

M-CV-0830-2317

607

#N/A

608

#N/A

609

#N/A

610

#N/A

611

#N/A

612

#N/A

613

#N/A

614

#N/A

615

#N/A

616

#N/A

617

#N/A

618

#N/A

619

M-MS-0808-5165

620

#N/A

621

#N/A

622

#N/A

623

#N/A

624

#N/A

625

#N/A

626

#N/A

627

#N/A

628

#N/A

629

#N/A

630

#N/A

631

#N/A

632

#N/A

633

#N/A

634

#N/A

635

#N/A

636

#N/A

637

#N/A

638

M-LB-0813-0913

639

M-LB-0813-0914

640

M-LB-0813-0915

641

#N/A

642

#N/A

3520130300 PREVENT OXIDIZATION 1.7g 0.001 3520147000 REEL ASSY 13" W=16 A=330 0.001 3520146600 COVER REEL 13" 0.001 3520146800 PLASTIC REEL W=16 A=330 0.001 3520147500 COVER TAPE W=13.05HEAR-PRESSUR 0.014 3520214800 AIR BUBBLE BAG 0.001 4011550003 WIRE CU .35 2UEWN MW-28 NAT 0.35 4011550007 WIRE CU .35 2UEWN NAT MW28 0.35 4011550009 WIRE CU .35 2UEWN MW-28 NAT 0.35 4020201200 THINNER OF FLUX A83 ADDITIVE 0.01 4020204800 FLUX A83 ALPHA 0.01 4020500500 INK BLACK 0.05 4090003700 SOLDER BAR 50/50 0.3 4162440200 CORE FERI DRM5.8*4.5 RB K17 2. 1 4162440700 CORE DR5.8*4.5 B=2.2 M5D U=450 1 4162440900 CORE FERI DR5.8*4.5 B:2.2 F4D 1 2816727410 CHOKE SMT 22uH M 3.6A L253 1 2816727480 CHOKE SMT 22uH M 3.6A L253 1 3429010300 CLIP C1020R-H DR10 T=0.3 1 3940111300 FRAME TINNED COPPER RH125 1 4040410100 CU DCU C1201R H W=22 T=0.3 1.35 3520461200 PML FOR SIQ127 ETC 1 3200106700 LABEL PAPER T:0.1MM LB-1206 0.004 3500631800 EMBOSSED PLASTIC CHIP CARRIER 0.004 3510425000 TRAY PAPER 366*346*75 0.002 3511031000 CARTON 366*180*386 0.001 3511204200 ANGLE PAPER BOARD 170*55*55*5. 0.003 3520130300 PREVENT OXIDIZATION 1.7g 0.004 3520146300 COVER TAPE FOR REEL 0.028 3520148800 3520148700+3520146600 ASSY 0.004 3520146600 COVER REEL 13" 0.004 3520148700 PLASTIC REEL W=24 0.002 3520214800 AIR BUBBLE BAG 0.002 3520802600 EMBOSSED PLASTIC CHIP CARRIER 0.027 4011451200 WIRE CU 0.3 2UEWN NAT MW-80 1.4 4011451203 WIRE CU 0.3 2UEWN NAT MW-80 1.4 4011451205 WIRE CU 0.3 2UEWN NAT MW-80 1.4 4011451207 WIRE CU 0.3 2UEWN NAT MW-80 1.4 4011451300 WIRE CU 0.3 2UEWN RED MW-80 1.4 4020132500 EPOXY ADHESIVE EP382 0.2 4020140700 ADHESIVE EPOXY EP399 KS 0.01 4020209600 SOLDER FLUX YS-120 0.01 4020209700 SOLVENT THINNER YS-08 0.01 4020500500 INK BLACK 0.05 4090004200 SOLDER BAR 95/5 0.3 4162230300 CORE FERI DR10*7 F4D F:5 B:5.5 1 4166280300 CORE FERI C 12*10.85*6.8 F4D 1 2921095612 CORE BEAD 100MHZ 60 OHM 0.3A 0 FB601 1 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB251,FB252,FB255,FB257,FB258 5 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB259,FB260,FB261,FB262,FB401 5 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB951,FB952,FB953,FB954,FB955 5 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB956,FB957 2 2970036603 PWB M0 L4 FR-4 170*119 (I/F BD 1 3000750026 SWITCH ROLL BALL 4P P2.54 1 3070337534 HEADER NY66 94V0 7P P2.0 R BRO CN252 1 3071400334 HEADER NYLON66 94V-0 4P P2.5 CN251 1 3072241500 CONN USB PB DOUBLE A TYPE CN951,CN952,REV:01 2 3072241600 CONN USB PB B TYPE CN953 1 3075308757 CONN D-SUB 15P R/A PC99 W/O SC CN601 1 3075316343 CONN DVI-D 29P P1.905 R CN602 1 3075415766 CONN FFC/FPC BOTTOM 30P P1.0 S CN501 1 3075415866 CONN FFC/FPC BOTTOM 8P P1.0 SM CN402 1 3202005900 LABEL SERIAL 42*11 SONY FOR STICK ON I/F BD. FOR DET 1 3202009100 LABEL REISTRATION 40*16 STICK ON I/F BD 1 3202215900 LABEL MCU 11*11 POLYESTER 50# STICK ON IC301 0.125 X149001008 CAP AL CP 16V 220U M 6.3*8 C266 1 X149001008 CAP AL CP 16V 220U M 6.3*8 C280 1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

8. Exploded Diagram And Spare Parts List

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

VP201b Exploded Parts List

Item ViewSonic P/N Ref. P/N Description QTY

M-MS-0808-8556

C-FP-3361081600

M-MS-0808-8559

PL-NB-0707-0192

M-MS-0808-8630 M-MS-0808-8631

M-MS-0808-8638

M-MS-0808-0016

M-MS-0808-8627

C-BC-0302-0020

M-MS-0808-8563

M-CV-0830-2443

M-CV-0830-2441

M-MS-0808-8635

M-MS-0808-8632

M-MS-0808-8636

M-MS-0808-8634

M-MS-0808-8633

PL-PD-0714-0100

PL-PD-0714-0101

M-CV-0830-2445

M-MS-0808-8573

M-MS-0808-8572

M-CV-0830-2444

M-CV-0830-2442

M-CV-0830-2440

M-MS-0808-8622

M-CV-0830-2439

M-MS-0808-8561

M-MS-0808-8637

M-MS-0808-8568

B-KB-0207-0034

M-SCW-0824-0776

M-SCW-0824-0784

M-SCW-0824-0775

M-SCW-0824-0413

M-SCW-0824-0772

M-SCW-0824-0732

M-SCW-0824-0776

M-SCW-0824-0777

M-SCW-0824-0773

M-SCW-0824-0781

M-SCW-0824-0778

M-SCW-0824-0782

M-SCW-0824-0783

M-SCW-0824-0779

M-SCW-0824-0780

B-SB-0221-0529

B-IF-0222-0007

A-AD-0114-0189

ViewSonic Corporation Confidential

3200649100 NAME PLATE VSC 3-BIRD LOGO AL 11.07*7.92 1

33361077403 F/B ABS MIDNIGHT GRAY-2 VP201B 1

3360506800 LED LENS ABS 1865-12 S8LRB1LS 1 3360624900 POWER KNOB POM M270 MIDNIGHT GRAY 1 3460150100 BRACKE PANEL SIDE-R SECC 310*30*26 T.8 1 3460150200 BRACKET PANEL SIDE-L 1 3461226500 SHIELD CAN INV SPTH 202*83.3*38.1 T.3 1 3241127301 INSULATOR PC 130*118.5 T.5 1 3241127400 INSULATOR PC 231*13 T.5 1 3360243103 CABINET BACK ABS VP201b 1 3460146300 BRACKET KEYLOCK SECC 20.4*16.45*4.9 T.6 1 3361204901 COVER STAND FRONT ABS MIDNIGHT GRAY-2 1 3361205401 COVER HINGE2 ABS MIDNIGHT GRAY-2 1 3460151001 BRACKET BASE3 SECC OD139.01*163.3 T2 1 3460150701 BRACKET BASE2 SECC OD139*163.3 T2 1 3460151101 BRACKET BASE1 SECC 164*139 T2 1 3460150901 BRACKET BASE FOOT2 SECC 159.8*29.1 T2 2 3460150801 BRACKET BASE2 FOOT1 SECC OD182*59.9 T2 2 3240957000 RUBBER PAD OD20 T4 BLACK 4 3240968900 RUBBER PAD 20*20 T3 BLK 1 3361207000 COVER STAND BOTTOM 1 3470307501 WIRE SADDLE NYLON66 MIDNIGHT GRAY 3 3461752001 HINGE SECC 312.5*51.82 L18JBW05ABB 1 3361205101 COVER STAND REAR ABS MIDNIGHT GRAY-2 1 3362010801 COVER VESA ABS MIDNIGHT GRAY-2 S8LRB1LS 1 3361205300 COVER HINGE1 ABS MIDNIGHT GRAY S8LBB1LS 1 3200649200 NAME PLATE VIEWSONIC ABS 82.83*34.98 1 3361205201 COVER BASE ABS MIDNIGHT GRAY-2 S8LBB1LS 1 3460146100 BRACKET VESA SECC 110*20 T1 1 3461226402 SHIELD CAN IF SPTH 299*150*41.5 T.3 1 3460146901 BRACKET PANEL SECC 380*230 T.8 1 3000725100 SWITCH MEMBRANE PET 100*9 VP181-2 1 3105221000 SCREW M M3*0.5*6 FF C S18C ZN 3109010700 SCREW T M3*0.5*7 PAN C S+P S20 3105123700 SCREW M M4*0.7*10 FF C S18C ZN 3109011400 SCREW T M3*0.5*6 BIND C S18C ZN 3100130800 SCREW M M3*0.5.8 FPH C SC20C ZN 3109010900 SCREW T M3*0.5*4 BIND C S18C ZN 3105221000 SCREW M M3*0.5*6 FF C S18C ZN 3105225300 SCREW M M3*0.5*4 FF C S18C ZN 3105034400 SCREW M M3*0.5*6 FLAT C S20C Z 3105127100 SCREW M M4*0.7*12 FF C S18C ZN 3105229400 SCREW M M3*0.5*10 FF C S18C ZN 3105280200 SCREW M M3*0.5*4 FF C S18C ZN 3105280400 SCREW M M3*0.5*4 FLAT C S20C Z 3105280400 SCREW M M3*0.5*4 FLAT C S20C Z 3109017700 SCREW T M3*2.7*7.5 FF C S18C Z 3109017700 SCREW T M3*2.7*7.5 FF C S18C Z 3109019100 SCREW T M3*2.7*7.2 FLAT C S18C 3109019100 SCREW T M3*2.7*7.2 FLAT C S18C 4900505280 DC-AC INVERTER 20" LG PANEL 5600110113 LCD I/F BD ASSY L20CBW 05ABB

993027602 POWER 90-264VAC 18V 3.33A

4 1 2 4 4 3 2 2 6 4 1 2 8 4 2 2 4 4 1 1 1

Do Not Copy VP201b/s-1

VP201s Exploded Parts List

Item ViewSonic P/N Ref. P/N Description Q'ty

M-MS-0808-8556

C-FP-0301-0398

M-MS-0808-8559

PL-NB-0707-0145

M-MS-0808-8630 M-MS-0808-8631

M-MS-0808-8638

M-MS-0808-0016

M-MS-0808-8627

C-BC-0302-0352

M-MS-0808-8563

M-CV-0830-2459

M-CV-0830-2464

M-MS-0808-8635

M-MS-0808-8632

M-MS-0808-8636

M-MS-0808-8634

M-MS-0808-8633

PL-PD-0714-0100

PL-PD-0714-0101

M-CV-0830-2472

M-WR-0828-0739

M-MS-0808-8572

M-CV-0830-2461

M-CV-0830-2458

M-CV-0830-2463

M-MS-0808-8622

M-CV-0830-2462

M-MS-0808-8561

M-MS-0808-8637

M-MS-0808-8568

B-KB-0207-0034

M-SCW-0824-0776

M-SCW-0824-0784

M-SCW-0824-0775

M-SCW-0824-0413

M-SCW-0824-0772

M-SCW-0824-0732

M-SCW-0824-0776

M-SCW-0824-0777

M-SCW-0824-0773

M-SCW-0824-0781

M-SCW-0824-0778

M-SCW-0824-0782

M-SCW-0824-0783

M-SCW-0824-0779

M-SCW-0824-0780

B-SB-0221-0529

B-IF-0222-0007

A-AD-0114-0189

ViewSonic Corporation Confidential

3200649100 NAME PLATE VSC 3-BIRD LOGO AL 11.07*7.92 1 3361081600 F/B ABS VP201s 1 3360506800 LED LENS ABS 1865-12 S8LRB1LS 1 3360627100 POWER KNOB POM M270 MIDNIGHT GRAY 1 3460150100 BRACKET PANEL SIDE-R SECC 325*30*25 T.8 1 3460150200 BRACKET PANEL SIDE-L SECC 325*30*25 T.8 1 3461226500 SHIELD CAN INV SPTH 202*83.3*38.1 T.3 1 3241127301 INSULATOR PC 130*118.5 T.5 1 3241127400 INSULATOR PC 231*13 T.5 1 3360245401 CABINET BACK ABS VP201s 1 3460146300 BRACKET KEYLOCK SECC 20.4*16.45*4.9 T.6 1 3361207500 COVER STAND FRONT ABS 1 3361208000 COVER HINGE2 ABS 1 3460151001 BRACKET BASE3 SECC OD139.01*163.3 T2 1 3460150701 BRACKET BASE2 SECC OD139*163.3 T2 1 3460151101 BRACKET BASE1 SECC 164*139 T2 1 3460150901 BRACKET BASE FOOT2 SECC 159.8*29.1 T2 2 3460150801 BRACKET BASE2 FOOT1 SECC OD182*59.9 T2 2 3240957000 RUBBER PAD OD20 T4 BLACK 4 3240968900 RUBBER PAD 20*20 T3 BLK 1 3360245300 COVER STAND BOTTOM 1 3470308700 WIRE SADDLE NYLON66 COLOR41 3 3461752001 HINGE SECC 312.5*51.82 L18JBW05ABB 1 3361207700 COVER STAND REAR ABS 1 3361207400 COVER VESA ABS 41 1 3361207900 COVER HINGE1 ABS 1 3200649200 NAME PLATE VIEWSONIC ABS 82.83*34.98 1 3361207800 COVER BASE ABS S8LBB1LS 1 3460146100 BRACKET VESA SECC 110*20 T1 1 3461226402 SHIELD CAN IF SPTH 299*150*41.5 T.3 1 3460146901 BRACKET PANEL SECC 380*230 T.8 1 3000725100 SWITCH MEMBRANE PET 100*9 VP181-2 1 3105221000 SCREW M M3*0.5*6 FF C S18C ZN 3109010700 SCREW T M3*0.5*7 PAN C S+P S20 3105123700 SCREW M M4*0.7*10 FF C S18C ZN 3109011400 SCREW T M3*0.5*6 BIND C S18C ZN 3100130800 SCREW M M3*0.5.8 FPH C SC20C ZN 3109010900 SCREW T M3*0.5*4 BIND C S18C ZN 3105221000 SCREW M M3*0.5*6 FF C S18C ZN 3105225300 SCREW M M3*0.5*4 FF C S18C ZN 3105034400 SCREW M M3*0.5*6 FLAT C S20C Z 3105127100 SCREW M M4*0.7*12 FF C S18C ZN 3105229400 SCREW M M3*0.5*10 FF C S18C ZN 3105280200 SCREW M M3*0.5*4 FF C S18C ZN 3105280400 SCREW M M3*0.5*4 FLAT C S20C Z 3105280400 SCREW M M3*0.5*4 FLAT C S20C Z 3109017700 SCREW T M3*2.7*7.5 FF C S18C Z 3109017700 SCREW T M3*2.7*7.5 FF C S18C Z 3109019100 SCREW T M3*2.7*7.2 FLAT C S18C 3109019100 SCREW T M3*2.7*7.2 FLAT C S18C 4900505280 DC-AC INVERTER 20" LG PANEL 5600110113 LCD I/F BD ASSY L20CBW 05ADB

993027602 POWER 90-264VAC 18V 3.33A

4 1 2 4 4 3 2 2 6 4 1 2 8 4 2 2 4 4 1 1 1

Do Not Copy VP201b/s-1

9. Block Diagram

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

10. Schematic Diagrams

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

11. PCB Layout Diagrams

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

*Readers Response*

Dear Readers:

Thank you in advance for your feedback on our Service Manual,which allows continuous improvement

of our products. We would appreciate your completion of the Assessment Matrix below, for return to

ViewSonic Corporation.

Assessment

A.What do you think about the content after reading VP201b/s-1 Service Manual?

Precautions And Safety Notices

2. Specification

Front Panel Function Control Description

4. Circuit Description

Adjusting Procedure

6. Trouble Shooting Flow Chart

7. Recommended Spare Parts List

8. Exploded Diagram and Spare Parts List

9. Block Diagram

10. Schematic Diagrams

11. PCB Layout Diagrams

tinU riaF daB

B.Are you satisfied with the VP201b/s-1 service manual?

metI tnellecxE dooG riaF daB

dooGtnellecxE

Service Manual Content

Service Manual Layout

The form and listing

C.Do you have any other opinion or suggestion about this service manual?

Readers basic data:

Name: Title:

Company: Add.:

Tel: E-mail:

After completing this form, please return it to ViewSonic Quality Assurance

1-909-839-7943. (marc.maupin@viewsonic.com)

You may also e-mail any suggestions to the Director, Quality Systems & Processes

Fax:

in the USA at facsimile

ViewSonic Corporation Confidential

Do Not Copy VP201b/s-1

ViewSonic VP201b-1, VP201s-1, VLCDS26064-2W, VLCDS26064-4W Service manual

Specifications and Main Features

Frequently Asked Questions

User Manual
