ViewSonic VP191 User Manual

Page 1
VP191 LCD Display VP191b
User Guide
Guide de l’utilisateur
Bedienungsanleitung
Guía del usuario
Guida dell’utente
Guia do Usuário
Användarhandbok
Full 19.0" Diagonal Viewable Screen
Käyttöopas
Page 2
Contents
Product Registration ............................................. 2
For Your Records ................................................. 2
Getting Started
Package Contents ................................................ 3
Precautions .......................................................... 3
Quick Installation .................................................. 4
Landscape/Portrait Modes ................................... 5
To Raise and Lower the display ...........................5
Installation of Wall Mount (Optional) .................... 6
Using the LCD Display
Setting the Timing Mode ...................................... 7
OSD and Power Lock Settings............................. 7
Adjusting the Screen Image ................................. 8
Main Menu Controls ............................................ 10
Other Information
Specifications ..................................................... 14
Troubleshooting.................................................. 15
Customer Support .............................................. 16
Cleaning the LCD Display .................................. 17
Limited Warranty ................................................ 18
Appendix
Safety Guidelines ............................................... 19
Compliance Information for U.S.A...................... 20
CE Conformity for Europe .................................. 20
12/12/02 A
ViewSonic VP191/VP191b 1
Page 3
Copyright © ViewSonic Corporation, 2002. All rights reserved.
Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.
Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic Corporation.
VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC are trademarks of VESA.
NERGY STAR
E
As an E
NERGY STAR
E
®
is a registered trademark of the U.S. Environmental Protection Agency (EPA).
NERGY STAR
®
guidelines for energy efficiency.
®
partner, ViewSonic Corporation has determined that this product meets the
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this mate­rial, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Internet at:
www.viewsonic.com.
The ViewSonic Wizard CD-ROM also provides an opportunity for you to print the registration form, which you may mail or fax to ViewSonic.
For Your Records
®
Product Name: Model Number: Document Number: Serial Number: Purchase Date:
ViewSonic VP191/VP191b VLCDS25973-1W/2W A-CD-VP191/A-CD-VP191b ______________ ______________
Product disposal at end of product life
ViewSonic is concerned about the preservation of our environment. Please dispose of this product properly at the end of its useful life. Your local waste disposal company may provide information about proper disposal.
ViewSonic VP191/VP191b 2
Page 4
Getting Started
Congratulations on your purchase of a ViewSonic® LCD display.
Important!
needs.
Save the original box and all packing material for future shipping
NOTE:
The word “Windows” in this user guide refers to the following Microsoft operating systems: Windows ‘95, Windows NT, Windows ‘98, Windows 2000, Windows Me (Millennium), and Windows XP.
Package Contents
Yo u r LCD display package includes:
LCD display
Power cords
Video cables (VGA and DVI)
ViewSonicWizard CD-ROM
Perfect Portrait software CD-ROM
NOTE:
The CD jacket contains the Quick Start Guide, and the CD includes the User Guide PDF files and INF/ICM display optimization files. The INF file ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic that you install both files.
TM
recommends
Precautions
• Sit at least 18" from your LCD display.
Avoid touching the screen.
difficult to remove.
Never remove the rear cover.
LCD display contains high-voltage parts. You may be seriously injured if you touch them.
• Avoid exposing your LCD display to direct sunlight or another heat source. Orient your LCD display away from direct sunlight to reduce glare.
• Always handle your LCD display with care when moving it.
Skin oils are
Your
• Place your LCD display in a well­ventilated area. Do not place anything on your LCD display that prevents heat dissipation.
• Ensure the area around the LCD display is clean and free of moisture.
• Do not place heavy objects on the LCD display, video cable, or power cord.
• If smoke, abnormal noise, or strange odor is present, immediately switch the LCD display off and call your dealer or ViewSonic. It is dangerous to continue using the LCD display.
ViewSonic VP191/VP191b 3
Page 5
Quick Installation
1 Connect power cord and AC/DC
adapter
2 Connect video cable
• Make sure both the LCD display and computer are turned OFF
• Remove rear panel covers if necessary
• Connect the video cable from the LCD
display to the computer
Macintosh users:
require a Macintosh adapter. Attach the adapter to the computer and plug the video cable into the adapter.
To order a ViewSonic contact ViewSonic
Models older than G3
®
Macintosh adapter,
Customer Support
.
3 Turn ON LCD Display and
computer
Turn ON the LCD display, then turn ON the computer. This sequence (LCD display before computer) is important.
NOTE:
message asking them to install the INF file. This is on the CD.
Windows users may receive a
4 Insert the ViewSonic Wizard CD
into the computer’s CD drive.
Follow the on-screen instructions. If your computer does not have a CD-ROM
drive, see “Customer Support.”
4 Wizard CD (continued)
(1) Wait for the CD-ROM to auto-start.
NOTE:
double-click on the CD-ROM icon in the Windows Explorer, then double-click on
viewsonic.exe.
(2) Follow the on-screen instructions.
If the CD-ROM does not auto-start:
5 Windows users: Set the timing
mode (resolution and refresh rate)
Example:
For instructions on changing the resolution and refresh rate, see the graphic card’s user guide.
Installation is complete. Enjoy your new ViewSonic, LCD display.
To be best prepared for any future customer service needs: print this user guide and write the serial number in page 2. (See back of LCD display.)
You can register your product online at the website for your region. See the Customer Support table in this guide.
The ViewSonic Wizard CD-ROM also provides an opportunity for you to print the registration form which you may mail or fax to ViewSonic.
1280 x 1024 @ 60 Hz.
“For Your Records”
on
D-SUB 2
Power cord
AC outlet (wall socket)
DVI-D
D-SUB 1
AC IN
Power Switch
Computer power cord
ViewSonic VP191/VP191b 4
Page 6
Landscape/Portrait Modes
The VP191/VP191b ViewPanel can operate in either Landscape or Portrait mode. Follow the instructions that accompany the Perfect Portrait software.
Note: Before using the portrait display mode, first install the Perfect
Portrait your VP191/VP191b ViewPanel.
Perfect Portrait software is compatible with most PCI and AGP graphics (video) cards.
For information about compatible graphics cards and approved hardware configurations, go to the
Landscape
Portrait
ViewSonic website, http:// www.viewsonic.com
To switch from Landscape (default) to Portrait mode, do the following:
From the front, gently raise the ViewPanel to allow more clearance.
1 2 Pull the bottom of the ViewPanel outward and away from the base.
Manually rotate the VP191/VP191b clockwise 90 degrees as shown above.
3
TM
software included with
To Raise and Lower the display
You can easily raise and lower the display panel (the head) manually. As you face the front of the display, take hold of each side of the head and pull up or down. The panel should move easily.
ViewSonic VP191/VP191b 5
Page 7
Installation of Wall Mount (Optional)
To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to the instructions that come with the base mounting kit. To convert your ViewPanel from a desk-mounted to a wall-mounted display, do the following:
Disconnect Power.
1 2 Lay the ViewPanel face down on
a towel or blanket. Pull the back plate away from the
3
head of the ViewPanel. Let the plate hang on the neck of the ViewPanel as shown on the left. Notice the four screws.
Remove the four screws from the
4
back plate.
Remove four
screws
5 Attach the mounting bracket
from the VESA compatible wall­mounting kit (100 mm x 100 mm distance).
Attach the ViewPanel to the wall,
6
following the instructions in the wall-mounting kit.
ViewSonic VP191/VP191b 6
Page 8
Using the LCD Display
Setting the Timing Mode
Setting the timing mode is important for maximizing the quality of the screen image and minimizing eye strain. The
resolution
example 75 Hz). After setting the timing mode, use the OnView to adjust the screen image. For the best picture quality set your LCD display timing mode to:
VESA 1280 x 1024 @ 60Hz.
To set the Timing Mode:
(example 1280 x 1024) and
refresh rate
timing mode
(or vertical frequency;
consists of the
®
controls
Set the resolution: Right-click on the Windows desktop >
1
Settings
Set the refresh rate: See your graphic card's user guide for instructions.
2
WARNING:
maximum refresh rate of 75Hz; doing so may result in permanent damage to your LCD display .
> set the resolution.
Do not set the graphics card in your computer to exceed the
Properties
>
OSD and Power Lock Settings
OSD Lock:
buttons are pressed the message
OSD Unlock:
Power Button Lock:
seconds. If the power button is pressed the message will display for 5 seconds. With or without this setting, after a power failure, your LCD display’s power will automatically turn ON when power is restored.
Press and hold [1] and the up arrow ▲ for 10 seconds. If any
OSD Locked
Press and hold [1] and the up arrow
Press and hold [1] and the down arrow
will display for 5 seconds.
again for 10 seconds.
for 10
Power Button Locked
Power Button Unlock:
Press and hold [1] and the down arrow
Page 9

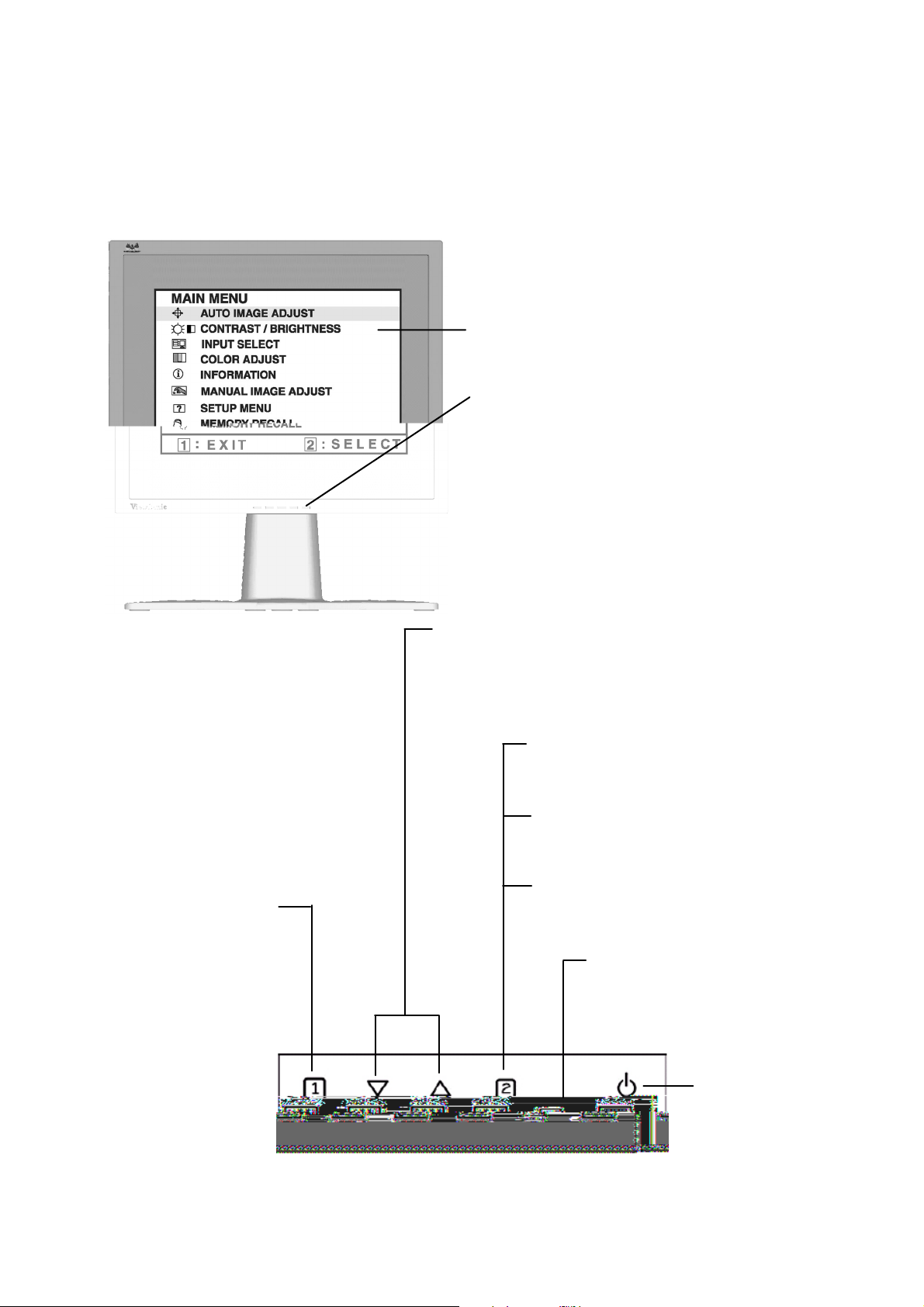

Adjusting the Screen Image
Use the buttons on the front control panel to display and adjust the OnView® controls which display on the screen. The OnView controls are explained at the top of the next page and are defined in “Main Menu Controls” on page 9.
Main Menu with OnView controls
Front Control Panel shown below in detail
Displays the Main Menu or exits the control screen and saves adjustments.
Scrolls through menu options and adjusts the displayed control.
Also a shortcut to display the Contrast adjustment control screen.
Displays the control screen for the highlighted control.
Also toggles between two controls on some screens.
Also a shortcut to toggle analog and digital connection.
Power light Green = ON Orange = Power
Saving
Powe r On/Off
ViewSonic VP191/VP191b 8
Page 10

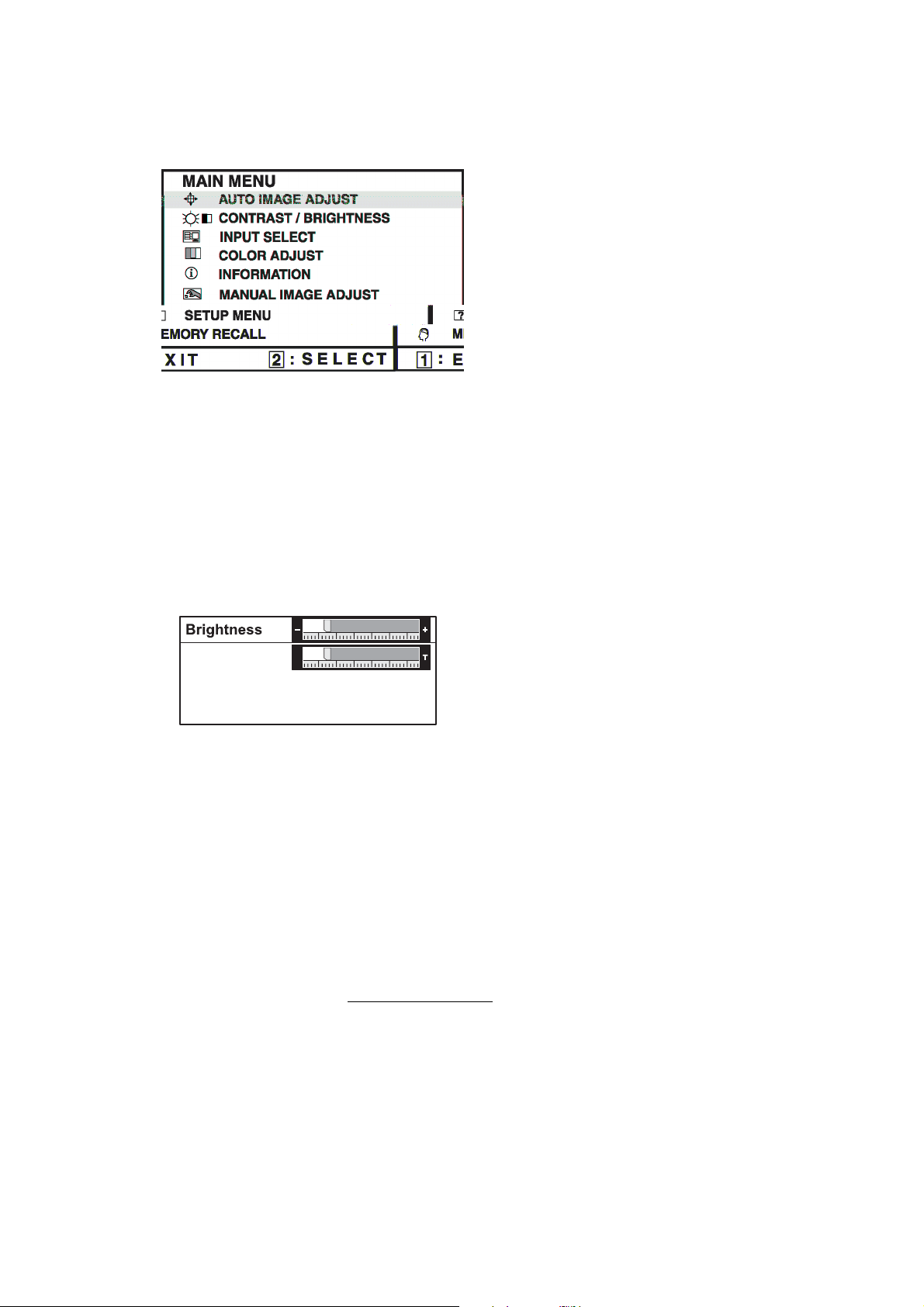

Do the following to adjust the screen image:
To display the Main Menu, press button [1].
1
NOTE:
All OnView menus and adjustment screens disappear automatically after about 15 seconds. This is adjustable through the OSD timeout setting in the setup menu.
2
To select a control you want to adjust, press ▲ or ▼ to scroll up or down the Main Menu.
3
After the control is selected, press button [2]. A control screen like the one shown below appears.
4
To adjust the control, press the up ▲ or down ▼ buttons.
5
To save the adjustments and exit the menu, press button [1]
twice
.
The following tips may help you optimize your display:
Adjust your computer's graphic card so that it outputs a video signal 1280 x
1024 @ 60Hz to the LCD display. (Look for instructions on "changing the refresh rate" in your graphic card's user guide.)
If necessary, make small adjustments using H POSITION and V POSITION
until the screen image is completely visible
. (The black border around the edge of the screen should barely touch the illuminated "active area" of the LCD display.)
ViewSonic VP191/VP191b 9
Page 11

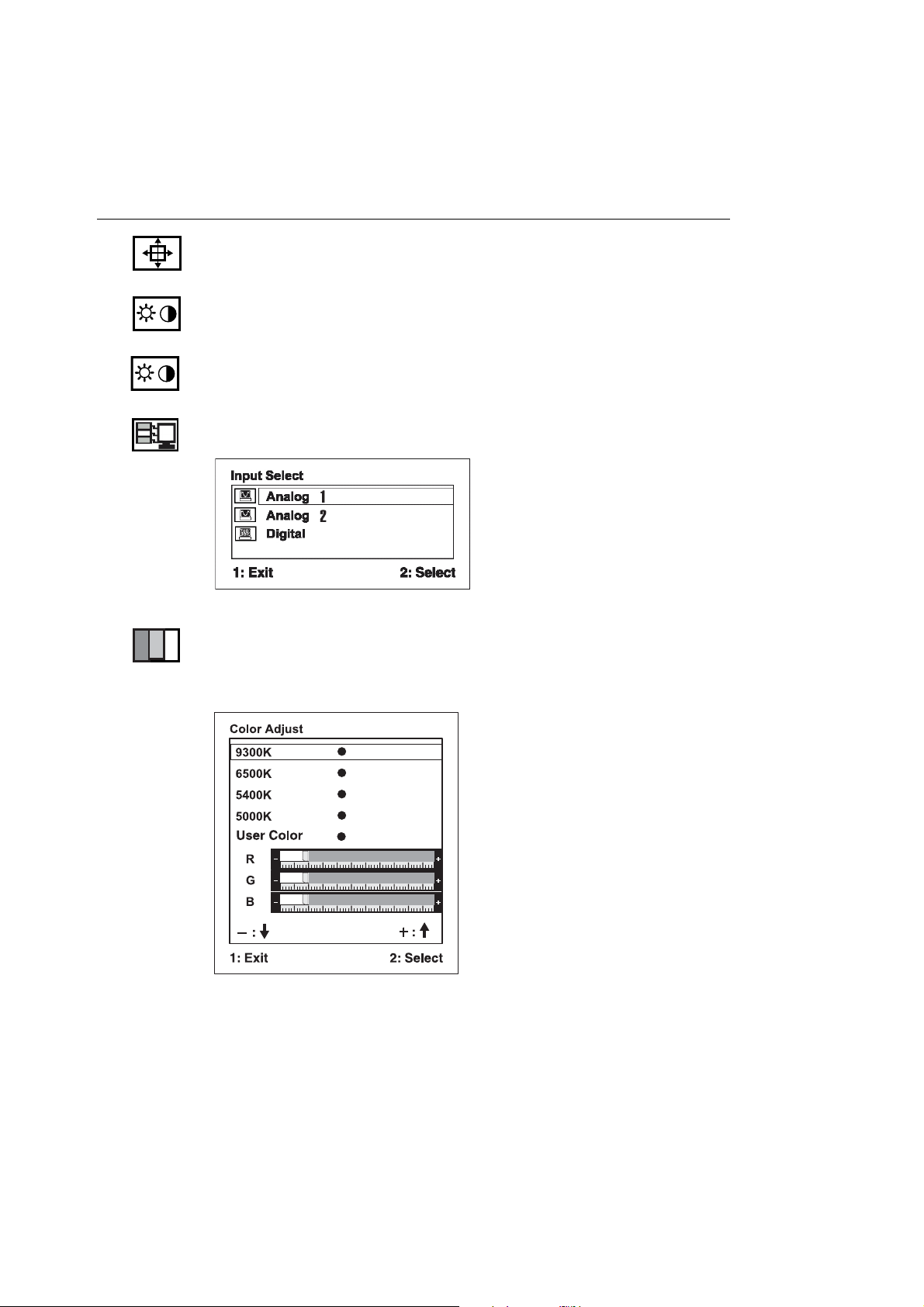

Main Menu Controls
Adjust the menu items shown below by using the up ▲ and down ▼ buttons.
Control Explanation
Auto Image Adjust
automatically.
Contrast
(black level) and the foreground (white level).
Brightness
Input Select
computer connected to the VP191/VP191b.
Color Adjust
color temperatures and green (G), and blue (B) separately. The factory setting for this product is 6500K (6500 Kelvin).
adjusts the difference between the image background
adjusts background black level of the screen image.
toggles between inputs if you have more than one
provides several color adjustment modes: preset
sizes and centers the screen image
RGB
which allows you to adjust red (R),
9300K
in most office settings with fluorescent lighting).
6500K
richer red.
5400K
5000K
color.
— Adds blue to the screen image for cooler white (used
— Adds red to the screen image for warmer white and
— Adds green to the screen image for a darker color.
— Adds blue and green to the screen image for a darker
ViewSonic VP191/VP191b 10
Page 12
Control Explanation
User Color
and blue (B)
1
To select color (R, G or B) press button [2].
2
To adjust selected color, press ▲ or ▼.
Important
— Individual adjustments for red (R), green (G),
.
: If you select RECALL from the Main Menu when the product is set to a Preset Timing Mode, colors return to the 6500K factory preset.
Information
displays the timing mode (video signal input) coming from the graphics card in your computer, the LCD model number, the serial number, and the ViewSonic website URL. See your graphic card’s user guide for instructions on changing the resolution and refresh rate (vertical frequency).
NOTE:
VESA 1280 x 1024 @ 60Hz (recommended) means that the resolution is 1280 x 1024 and the refresh rate is 60 Hertz.
Manual Image Adjust Sub-menu
H. Size (Horizontal Size)
H./V. Position (Horizontal/Vertical Position)
adjusts the width of the screen image.
image left or right and up or down.
moves the screen
ViewSonic VP191/VP191b 11
Page 13
Control Explanation
Fine Tune
sharpens the focus by aligning the text and/or graphic
characters.
NOTE:
Sharpness
Try Auto Image Adjust first.
adjusts the clarity and focus of the screen image.

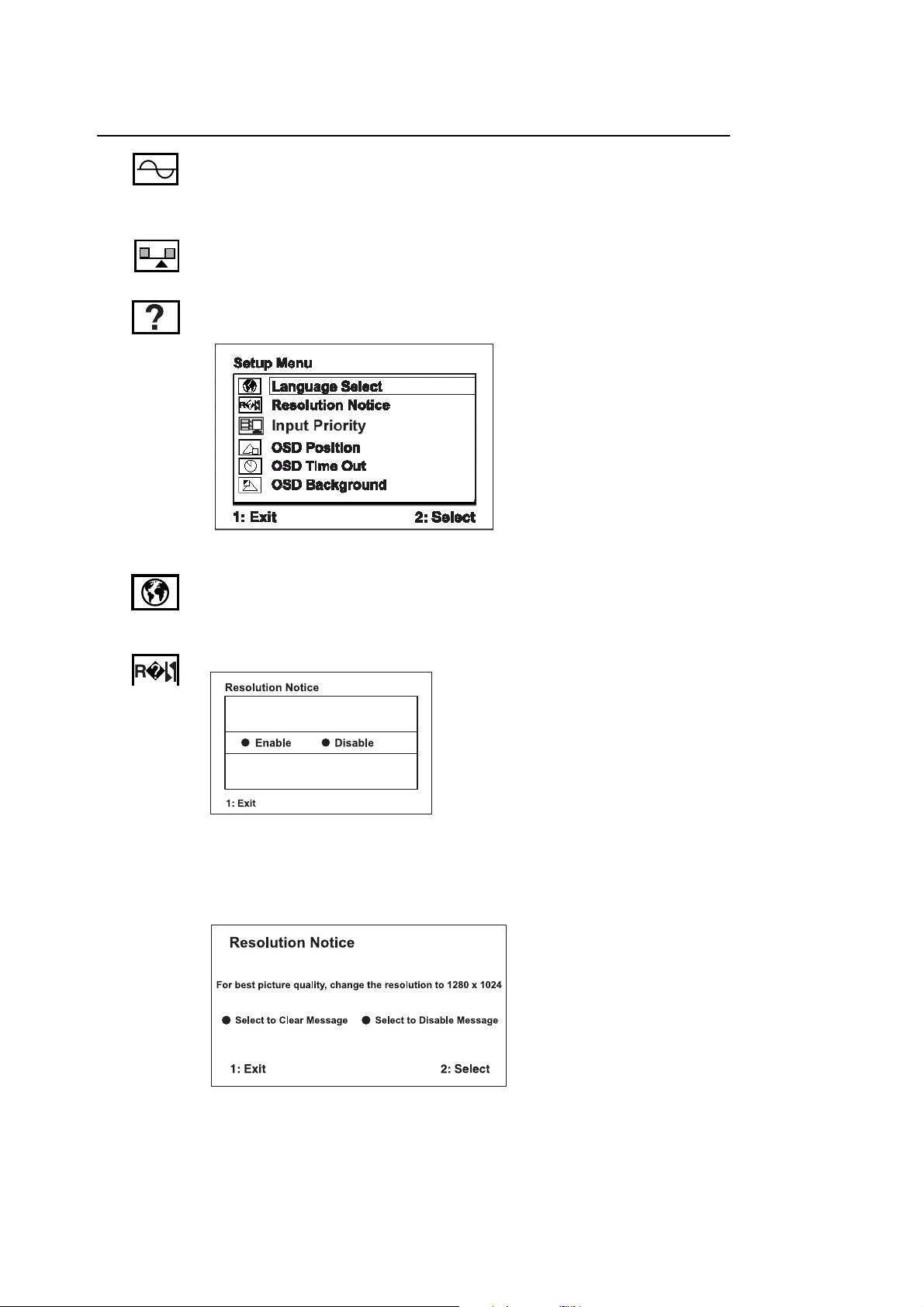

Setup menu displays the menu shown below:
Language
allows you to choose the language used in the menus
and control screens.
Resolution Notice
allows you to enable or disable this notice.
If you enable the Resolution Notice shown above and your computer is set at a resolution other than 1280 x 1024, the following screen appears.
ViewSonic VP191/VP191b 12
Page 14
Control Explanation
Input Priority
If multiple computers will be connected to the display, this function can be used to select which computer has priority Depending on the selected Input Priority, the display will do a one time detection for available inputs when first powered on.
For example: If the Input Priority setting is D-SUB=>D-SUB2=>DVI, then the first priority will be given to D-SUB1 when the display turns on. If there is no video signal on D-SUB1, then the next priority will be given to D-SUB-2, etc… In the case of only one signal being present at the three inputs, then the display will automatically detect and display that signal.
The Input Priority setting can also be disabled. In this case, the input will return to the last setting when the display is first turned on. The user will need to control all the port settings manually under this condition. Inputs can be switched quickly by pressing the "Up" arrow button on the front panel controls.
OSD Position
allows you to move the on-screen display menus
and control screens.
OSD Timeout
sets the length of time the on-screen display screen is displayed. For example, with a “30 second” setting, if a control is not pushed within 30 seconds, the display screen disappears.
OSD Background
allows you to turn the On-Screen Display
background On or Off.
Memory Recall
returns the adjustments back to factory settings if the display is operating in a factory Preset Timing Mode listed in the Specifications of this manual.
ViewSonic VP191/VP191b 13
Page 15
Other Information
Specifications
LCD
Input signal
Compatibility
Resolution
Power
Display area
Operating conditions
Storage conditions
Ty p e
Color Filter Glass surface
Video Sync RGB analog (0.7/1.0 Vp-p, 75 ohms)
PC Macintosh
Recommended and supported
Voltage 100-240 VAC, 50/60 Hz (auto switch)
Full Scan 376.3mm (H) x 301.1mm (V)
Temperature Humidity Altitude
Temperature Humidity Altitude
1
19" (full 19" viewable diagonal area), TFT (Thin Film Transistor), Active Matrix SXGA LCD,
0.294 mm pixel pitch RGB vertical stripe Anti-Glare
Composite Sync, Separate Sync, Sync on Green
:30-82 kHz, fv:50-85 Hz
f
h
Up to 1280 x 1024 Non-interlaced Power Macintosh
1280 x 1024 @ 60, 70, 72, 75 Hz 1024 x 768 @ 60, 70, 72, 75, 85 Hz 800 x 600 @ 56, 60, 72, 75, 85 Hz 640 x 480 @ 60, 75, 85 Hz 720 x 400 @ 70 Hz
14.8" (H) x 11.85" (V)
32° F to + 104° F (0° C to + 40° C) 10% to 90% (no condensation) To 10,000 feet
-4° F to + 140° F (-20° C to + 60° C) 10% to 90% (no condensation) To 40,000 feet
up to 1280 x 1024
Dimensions
Weight
Physical (LCD display only)
Net 16.5 lb (7.5 kg) LCD display only
Regulations
Power saving modes
Preset Timing Mode
Warning:
result in permanent damage to the LCD display.
1
Macintosh computers older than G3 require a ViewSonic®, Macintosh adapter. To order an adapter,
contact ViewSonic.
Do not set the graphics card in your computer to exceed these refresh rates; doing so may
On Normal (green LED)
Active Off <2W (orange LED)
(pre-adjusted to VESA® 1280 x 1024 @ 60 Hz)
416.0 mm (W) x 460.0 mm (H) x 238.0 mm (D)
16.4" (W) x 18.1" (H) x 9.4" (D)
UL, FCC-B, NEMKO, SEMKO, DEMKO, FIMKO, TCO’99(VP191), TCO'95(VP191b),PCT (BZ02),TUV/GS, BSMI, B-Mark, S-Mark, PSB, CCC, VCCI, C-Tick
NERGY
E
®
, c-UL, Ic-B, CE, MPRII,
ViewSonic VP191/VP191b 14
Page 16
Troubleshooting
No power
Make sure power button (or switch) is ON.
Make sure A/C power cord is securely connected to the LCD display.
Plug another electrical device (like a radio) into the power outlet to verify that the outlet is supplying proper voltage.
Power is ON but no screen image
Make sure the video cable supplied with the LCD display is tightly secured to the video output port on the back of the computer. If the other end of the video cable is not attached permanently to the LCD display, tightly secure it to the LCD display.
Adjust brightness and contrast.
If you are using an Macintosh older than G3, you need a Macintosh adapter.
Wrong or abnormal colors
If any colors (red, green, or blue) are missing, check the video cable to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection.
Connect the LCD display to another computer.
If you have an older graphics card, contact ViewSonic for a non-DDC adapter.
Control buttons do not work
Press only one button at a time.
ViewSonic VP191/VP191b 15
Page 17
Customer Support
For technical support or product service, see the table below or contact your reseller.
NOTE:
Country/ Region
United States
Canada
United Kingdom viewsoniceurope.com T: 0800 833 648
Europe, Middle East, Baltic countries, and North Africa
Australia and New Zealand
You will need the product serial number.
Web site T = Telephone
F = FAX
viewsonic.com/ support
viewsonic.com/ support
viewsoniceurope.com Contact your
viewsonic.com.au T: +61 2 9929 3955
T: (800) 688-6688 F: (909) 468-1202
T: (800) 688-6688 F: (909) 468-1202
F: (01293) 643910
reseller
F: +61 2 9929 8393
Email
service.us@ viewsonic.com
service.ca@ viewsonic.com
service.eu@ viewsoniceurope.com
service.eu@ viewsoniceurope.com
service.au@ viewsonic.com
Singapore/India and Southeast Asia
Other Asia/Pacific countries
South Africa viewsonic.com/asia T: 886 2 2246 3456
viewsonic.com.sg T: 65 273 4018
F: 65 273 1566
viewsonic.com.tw T: 886 2 2246 3456
F: 886 2 8242 3668
F: 886 2 8242 3668
service.sg@ viewsonic.com
service.ap@ viewsonic.com
service.ap@ viewsonic.com
ViewSonic VP191/VP191b 16
Page 18
Cleaning the LCD Display
MAKE SURE THE LCD DISPLAY IS TURNED OFF.
NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE.
To clean the screen:
Wipe the screen with a clean, soft, lint-free cloth. This removes dust and
1
other particles. If still not clean, apply a small amount of non-ammonia, non-alcohol based
2
glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.
To clean the case:
Use a soft, dry cloth.
1
If still not clean, apply a small amount of a non-ammonia, non-alcohol
2
based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.
Disclaimer
ViewSonic does not recommend the use of any ammonia or alcohol-based cleaners on the LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display display. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.
ViewSonic VP191/VP191b 17
Page 19
Limited Warranty
VIEWSONIC LCD DISPLAY
What the warranty covers:
®
ViewSonic
warranty period. If a product proves to be defective in material or workmanship during the warranty period, product or parts may include remanufactured or refurbished parts or components.
How long the warranty is effective: ViewSonic
three (3) years for all labor from the date of the first consumer purchase.
Who the warranty protects:
This warranty is valid only for the first consumer purchaser.
What the warranty does not cover:
1. Any product on which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from: a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product
b. Repair or attempted repair by anyone not authorized by c. Any damage of the product due to shipment. d. Removal or installation of the product. e. Causes external to the product, such as electrical power fluctuations or failure. f. Use of supplies or parts not meeting g. Normal wear and tear. h. Any other cause which does not relate to a product defect.
3. Removal, installation, and set-up service charges.
How to get service:
1. For information about receiving service under warranty, contact You will need to provide your product's serial number.
2. To obtain service under warranty, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
3. Take or ship the product freight prepaid in the original container to an authorized service center or
4. For additional information or the name of the nearest
ViewSonic
Limitation of implied warranties:
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Exclusion of damages:
VIEWSONIC'S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. VIEWSONIC SHALL NOT BE LIABLE FOR:
1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.
3. ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.
Effect of state law:
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.
Sales outside the U.S.A. and Canada:
For warranty information and service on contact
ViewSonic LCD Warranty (V3.0) Release Date: 01-29-2002
warrants its products to be free from defects in material and workmanship during the
ViewSonic
LCD displays are warranted for three (3) years for all parts including the light source and
modification, or failure to follow instructions supplied with the product.
ViewSonic
will, at its sole option, repair or replace the product with a like product. Replacement
.
ViewSonic Customer Support
ViewSonic
service center, contact
ViewSonic
.
or your local
.
ViewSonic
ViewSonic
ViewSonic
products sold outside of the U.S.A. and Canada,
dealer.
ViewSonic
’s specifications.
ViewSonic
.
ViewSonic VP191/VP191b 18
Page 20
Appendix
Safety Guidelines
CAUTION:
CAUTION:
certified for the individual country. Some examples are listed below:
The socket-outlet should be installed near the equipment and should be easily accessible.
Use a power cable that is properly grounded. Always use the appropriate AC cord that is
USA.................UL
Canada.............CSA
Germany..........VDE
Switzerland ..... SEV
Britain .............BASE/BS
Japan ...............Electric Appliance Control Act
IMPORTANT NOTICE CONCERNING POWER CORD SELECTION
The power cord set for this unit has been enclosed and has been selected according to the country of destination and must be used to prevent electric shock. Use the following guidelines if it is necessary to replace the original cord set, or if the cord set is not enclosed. The female receptacle of the cord set must meet IEC-60320 requirements and may look like (Figure A1 below):
Figure A1
Figure A2
For the United States and Canada
In the United States and Canada the male plug is a NEMA5-15 style (Figure A2), UL Listed, and CSA Labeled. For units which are mounted on a desk or table, type SVT or SJT cord sets may be used. For units which sit on the floor, only SJT type cord sets may be used. The cord set must be selected according to the current rating for your unit. Please consult the table below for the selection criteria for power cords used in the United States and Canada.
Cord Type Size of Conductors in Cord Maximum Current Rating of Unit
SJT 18 AWG
16 AWG 14 AWG
SVT 18 AWG
17 AWG
10 Amps 12 Amps 12 Amps
10 Amps 12 Amps
For European Countries
In Europe you must use a cord set which is appropriate for the receptacles in your country. The cord set is HAR­Certified, and a special mark that will appear on the outer sheath, or on the insulation of one of the inner conductors.
AC PLUG CORD PRECAUTIONS FOR THE UNITED KINGDOM
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET THEN THE PLUG SHOULD BE CUT OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO AN APPROPRIATE SOCKET.
If a new plug is to be fitted, please observe the wiring code as shown below.
If in any doubt, please consult a qualified electrician.
WARNING:
IMPORTANT:
If the coloured wires of the mains lead of this appliance do not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the Earth symbol or coloured GREEN or GREEN-AND-YELLOW.
The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.
If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you have purchased the product.
THIS APPLIANCE MUST BE EARTHED.
The wires in this mains lead are coloured in accordance with the following code:
Green-and-Yellow: Earth Blue: Neutral Brown: Live
ViewSonic VP191/VP191b 19
Page 21
Compliance Information for U.S.A.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resi­dential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer­ence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Warning
To assure continued FCC compliance, the user must use grounded power supply cord and the provided
Page 22
ViewSonic Corporation
Loading...
