Service Manual

ViewSonic VP181b/s-2

Model No.VLCDS26063-2W

VLCDS26063-3W

18” Color TFT LCD Display

ViewSonic

(VP181b/s-2_SM_682 - Rev. 1a – 05 2003)



381 Brea Canyon Road, Walnut, California 91789 USA - (800) 888-8583

Copyright reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of ViewSonic Corporation.

Disclaimer

ViewSonic makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranty of merchantability or fitness for any particular purpose. Further, ViewSonic reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of ViewSonic to notify any person of such revision or changes.

Trademarks

Optiquest is a registered trademark of ViewSonic Corporation. ViewSonic is a registered trademark of ViewSonic Corporation. All other trademarks used within this document are the property of their respective owners.

Revision History

Revision Date Description Of Changes Approval

1a 28/05/03 Initial Release DCN- 3385 F. Fan

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2

TABLE OF CONTENT

1. Precautions and Safety Notices........................................................................................... 1

2. Specifications........................................................................................................................ 2

3. Front Panel Function Control Description .........................................................................19

4. Circuit Description............................................................................................................... 27

5. Adjusting Procedure............................................................................................................31

6. Troubleshooting Flow Chart................................................................................................ 34

7. Mechanical Assembly...........................................................................................................41

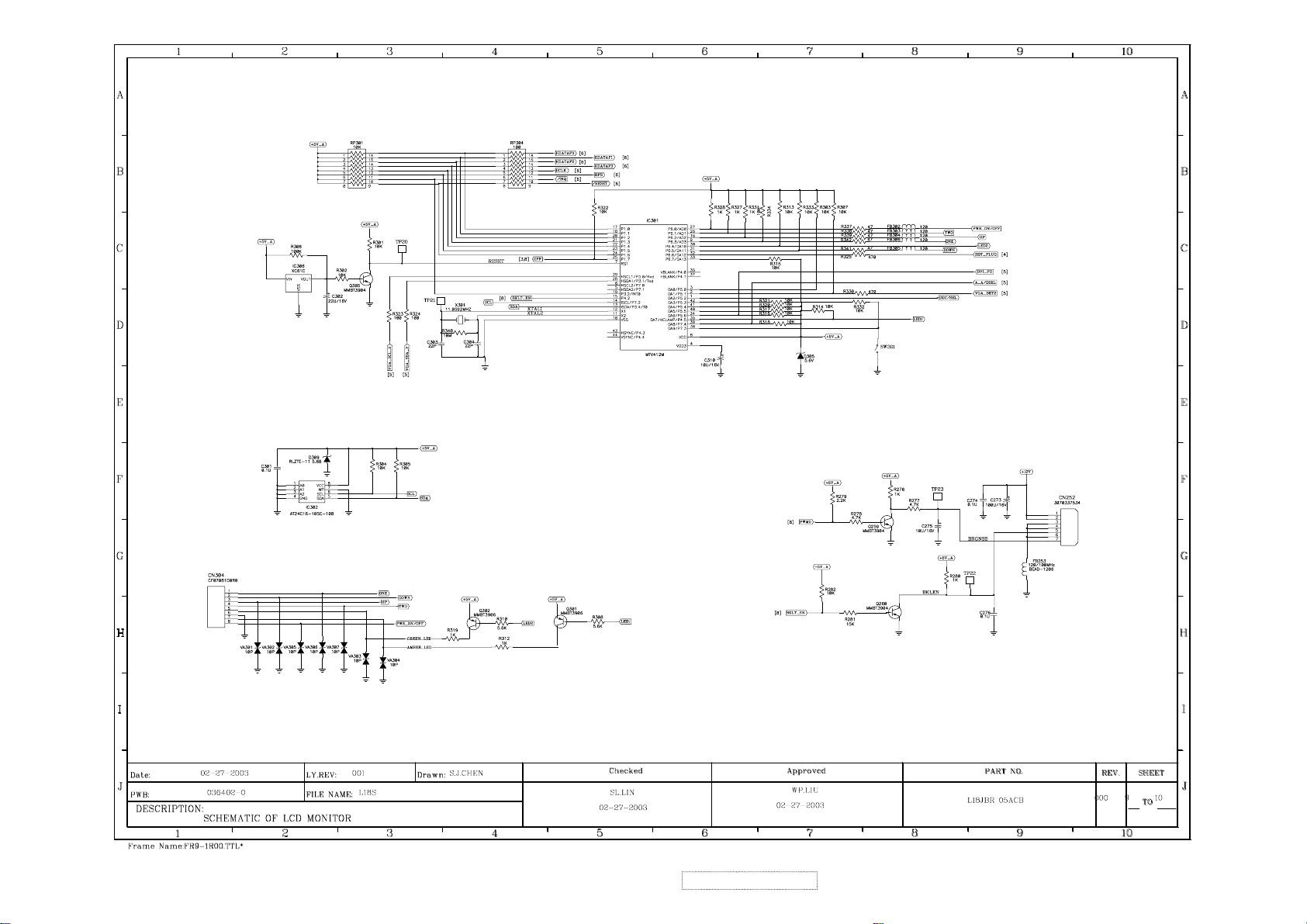

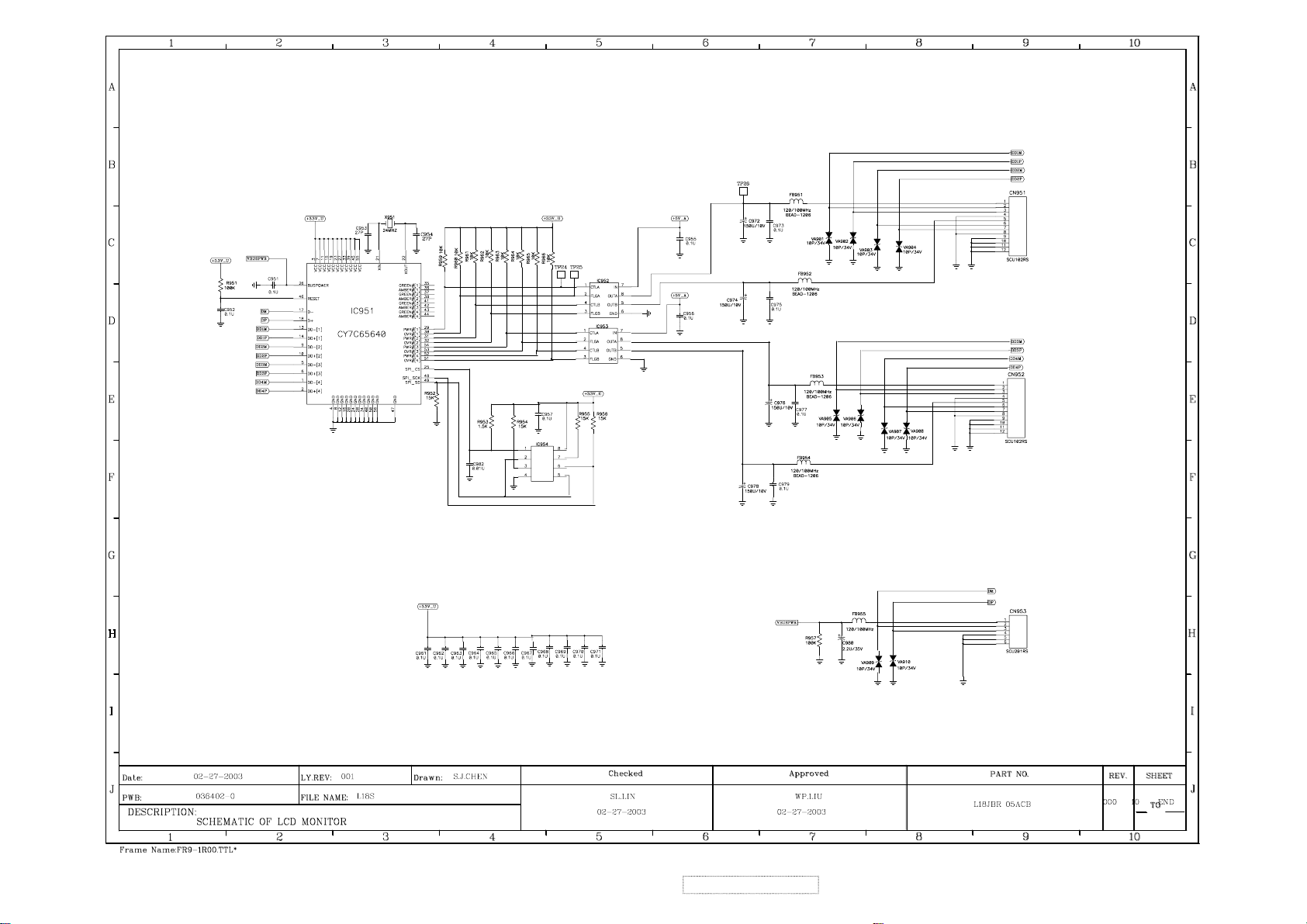

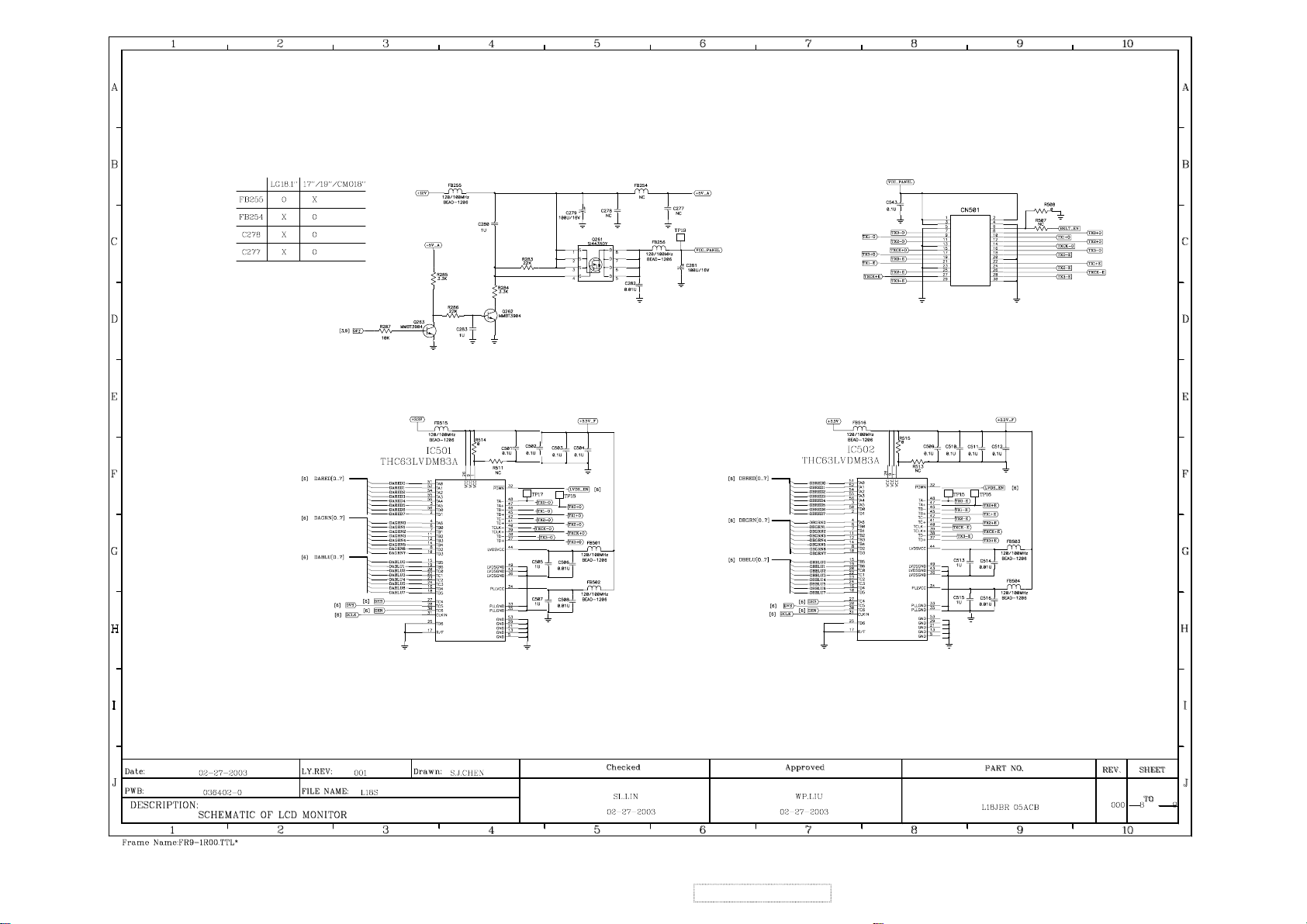

8. Schematic Diagram................................................................................................................ 47

9. PCB Layout.............................................................................................................................57

10. Recommended Spare Parts List..............................................................................................59

11. Electrical Parts List............................................................................................................. 62

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2

1. Precautions and Safety Notices

Prior to using this manual, please ensure that you have carefully followed all the procedures outlined in the user manual for this

product.

• Read all of these instructions.

• Save these instructions for later use.

• Follow all warnings and instructions marked on the product.

• Do not use this product near water.

• This display should be installed on a solid horizontal base.

• When cleaning, use only a neutral detergent cleaner with a soft damp cloth. Do not spray with liquid or aerosol cleaners.

• Do not expose this display to direct sunlight or heat. Hot air may cause damage to the cabinet and other parts.

• Adequate ventilation must be maintained to ensure reliable and continued operation and to protect the display from

overheating. Do not block ventilation slots and openings with objects or install the display in a place where ventilation may

be hindered.

• Do not install this display near a motor or transformer where strong magnetism is generated. Images on the display will

become distorted and the color irregular.

• Do not allow metal pieces or objects of any kind fall into the display from ventilation holes.

Slots and openings in the cabinet and the back or bottom are provided for ventilation, to ensure reliable operation of the product

and to protect it from overheating, those openings must not be blocked or covered. The openings should never be blocked by

placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or

heat register. This product should not be placed in a built-in installation unless proper ventilation is provided.

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2

2. Specifications

2.1. Scope

The following specifications are applicable to the VP181b/s-2 18.1inch color LCD monitor.

General Description (Quick Reference)

LCD LG 18.1” SXGA TFT MVA

Size

Effective Display Size

Pixel Pitch

Resolution

Brightness

Contrast Ratio

Color

Viewing Angle

Surface treatment

Input Signals RGB

Digital

Input connector Video input

USB up stream port x 1

USB down stream port x 4

Main IC GM5020

Display colors 16,777,216

Preset Timings SXGA/60Hz, 75Hz, 85Hz

XGA/60Hz, 70Hz, 75Hz, 85Hz

SVGA/56Hz, 60Hz, 72Hz, 75Hz, 85Hz

VGA/60Hz, 72Hz, 75Hz, 85Hz

Dos-text/70Hz

Synchronization Horizontal

Vertical

Non-interlaced

Resolution Horizontal

Vertical

Active Display

Area

Horizontal

Vertical

(Active display area is dependent upon signal timings)

18.1 inches diagonal

359.04mm x 287.232mm (typical)

0.280mm x 0.280mm

1280 x 1024 dot (SXGA)

250cd/m

(typ.), 200min

350:1(typ.), 200min

16,777,216

Up 80° Down 80° (type)

Left 80° Right 80° (type)

Anti-Glare /3H Analog 0.7Vp-p/75Ω Positive Polarity

Separate sync TTL level

Composite sync

Sync-On-Green

TMDS.

mini D-sub 15pin x 1 ( analog )

DVI-I x 1 (analog + digital)

30KHz to 92KHz (Automatically)

50Hz to 85Hz (Automatically)

Max Pixel Rated 165MHz

1280 dots

1024 lines

359.04 mm (typical)

287.232 mm (typical)

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2

Power supply

rating

AC adapter input AC 90V~264V 50/60Hz

AC Power

Consumption

Current Rating AC input

Dimensions 399.4(W) x 327.6(H) x 70.2(D) mm

Weight(net) 5.0Kg (Without stand base)

Environmental

Conditions

Accessories AC power cord-UL

Regulatory

Standards

OSD Language English, French, German, Spanish, Finnish, Italian, Japanese, Traditional Chinese,

Others Tilt Angle 20° up /5° down

70W(Max.)

Less than 5W

DC input

Operation Temperature

Operating Humidity

Storage Temperature

Storage Humidity

AC power cord-Schuko

Analog VGA cable

DVI-D cable

USB cable

Viewsonic CD-Wizard

VS User Guide

Portrait Software on CDROM

UL, CSA or cUL, CB Report, CE, FCC-B, TUV/Ergo

(which covers ISO13406-2 and MPRIII), TUV/GS, CCC, GOST-R

PCBC (B Mark), SEMKO, DEMKO, FIMKO, NEMKO, BSMI, VCCI, PSB (Singapore

Safety), TCO’03 (for VP181s-2), TCO’99 (for VP181b-2), NOM and Argentina IRAM

(thru TUV).

Simplified Chinese

Height Adjust 110 mm

Swivel +

Rotate 0° ~ 90°

Power Saving System

VESA DDC2B compatible

45°

On mode

Active Off mode

1.5A @AC 100~240V

5.0A @DC 12.0V

410(W) x 453.8(H) x 250.2(D) mm (with stand base)

8.0Kg (With stand base) 0 to 50℃ (panel surface)

10 to 90% (no condensation)

-20 to 60℃

5 to 90% (no condensation)

1.8m

English

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2

2.2. Electrical Characteristics

2.2.1 Power Supply

2.2.1.1 AC Input (AC Adapter)

Input Voltage AC 90~264V

Frequency 47/63Hz

Power Consumption:

70W (max) on mode

less than 5W power save mode

Current Rating 1.5A @ AC100~240V

2.2.2 LCD

LCD LG panel (TFT-IPS)

Effective display size 359.04(H) x 287.232(V) mm (typ)

Pixel number 1280 x 1024 pixels

Color filter arrangement R.G.B. vertical stripe

Display method TFT, normally black

Drive method Active matrix (TFT) – IPS

Pixel pitch 0.280(H) x 0.280(V) mm

Dot number 1280 x 1024 x 3dots

Backlight Edge-lighting type with 6 CCFLs

Brightness 200cd/m

Contrast ratio 200 : 1 (min)

Display color 16,777,216

Typical viewing angle Up 80° / down 80° / right 80° / left 80° (min)

Response time 30msec

18.1” / 46cm diagonal

(Cold Cathode Fluorescent Tube)

(min: center / all white)

2.2.3 Interface Signals

2.2.3.1 RGB Video Signals

2.2.3.1.1 Separate Sync. Signals

2.2.3.1.2 Sync on Green, Composite Sync

2.2.3.2 TMDS digital Signals

2.2.3.2.1 Video type

DVI 1.0 compliant

ViewSonic Corporation

Analog R,G,B 0 – 0.7Vp-p Signal Level 75Ω± 5%

Sync Level TTL level

Sync Polarity independent

Confidential – Do Not Cop y

VP181b/s-2

2.2.3.3 Input Signal Connectors

2.2.3.3.1 Analog RGB Video Input: 15pin mini D-sub

PIN No. Separate Sync

1 RED

2 GREEN

3 BLUE

4 GROUND

5 GROUND

6 GROUND

7 GROUND

8 GROUND

9 +5V

10 GROUND

11 N.C

12 SDA

13 H. Sync

14 V. Sync

15 SCL

5 1

2.2.3.3.2 Digital TMDS DVI-D Connector

24 pins DVI-D connector pin assignment

Pin No. Signal Name Description

1 RX2- TMDS negative differential input, channel 2

2 RX2+ TMDS positive differential input, channel 2

3 GND Logic Ground

4 Reserved 4 Reserved. No connection

5 Reserved 5 Reserved. No connection

6 DDC-CLK DDC2B Clock

7 DDC-DAT DDC2B Data

8 Reserved 8 Reserved. No connection

9 RX1 TMDS negative differential input, channel 1

10 RX1+ TMDS positive differential input, channel 1

11 GND Logic Ground

12 Reserved 12 Reserved. No connection

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2

13 Reserved 13 Reserved. No connection

14 VCCX Power

15 GND Logic Ground

16 SENS SENSE Pin, Pull High

17 RX0- TMDS negative differential input, channel 0

18 RX0+ TMDS positive differential input, channel 0

19 GND Logic Ground

20 Reserved 20 Reserved. No connection

21 Reserved 21 Reserved. No connection

22 GND Logic Ground

23 RXC+ TMDS positive differential input, reference clock

24 RXC- TMDS negative differential input, reference clock

C1 Analog Red Analog Red signal

C2 Analog Green Analog Green signal

C3 Analog Blue Analog Blue signal

C4 Analog Horizontal sync Horizontal sync. Signal for analog interface

C5 Analog Ground Common ground for analog signals.

2.2.3.3.3 USB up stream port x 1 USB down stream port x 4

2.2.3.4 Signal Timing

2.2.3.4.1 User Timing mode memory.

Always do auto image adjust after timing mode change.

2.2.3.4.2 Timing mode change

Maximum time for mode change with auto image adjust 7 sec.

2.2.3.4.3 Signal timing t able

The factory test input video signal is defined as the following table:

Preset No. H. Sync

Frequency

MOD [1]

MOD [2]

MOD [3]

MOD [4]

MOD [5]

MOD [6]

MOD [7]

MOD [8]

MOD [9]

MOD [10]

MOD [11]

MOD [12]

MOD [13]

31.468±1.0KHz 70.0±1.0Hz

31.468±1.0KHz 59.94±1.0Hz

35.01±1.0KHz 66.67±1.0Hz

37.86±1.0KHz 72.81±1.0Hz

37.5±1.0KHz 75.0±1.0Hz

43.27±1.0KHz 85.0±1.0Hz

35.16±1.0KHz 56.25±1.0Hz

37.88±1.0KHz 60.32±1.0Hz

38.077±1.0KHz 72.19±1.0Hz

46.875±1.0KHz 75.0±1.0Hz

53.67±1.0KHz 85.0±1.0Hz

49.72±1.0KHz 74.5±1.0Hz

V. S yn c

Frequency

SYNC. POL.

H-Sync. V-Sync.

+ - 640 x 350(70) Text mode

- + 720 x 400(70) Dos test

- - 640 x 480(60) VESA STANDARD

- - 640 x 480(66) MAC

- - 640 x 480(72) VESA STANDARD

- - 640 x 480(75) VESA STANDARD

- - 640 x 480(85) VESA STANDARD

+ + 800 x 600(56) VESA STANDARD

+ + 800 x 600(60) VESA STANDARD

+ + 800 x 600(72) VESA STANDARD

+ + 800 x 600(75) VESA STANDARD

+ + 800 x 600(85) VESA STANDARD

- - 832 x 624(75) MAC

Video Mode Description

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2

MOD [14]

MOD [15]

MOD [16]

MOD [17]

MOD [18]

MOD [19]

MOD [20]

MOD [21]

MOD [22]

48.363±1.0KHz 60.0±1.0Hz

58.09±1.0KHz 72.08±1.0Hz

60.023±1.0KHz 75.0±1.0Hz

68.67±1.0KHz 85.0±1.0Hz

63.981±1.0KHz 60.02±1.0Hz

79.976±1.0KHz 75.0±1.0Hz

56.478±1.0KHz 70.07±1.0Hz

45.0±1.0KHz 60.00±1.0Hz

91.146±1.0KHz 85.02±1.0Hz

2.2.4 Luminance Control

Analog signal (6500K)

Over 200cd/m

(@ Cont/Bright max)

Digital signal (6500K)

Over 200cd m

(@ Cont/Bright max)

2.2.5 Synchronization

Horizontal 30 to 92KHz

Vertical 50 to 85Hz Non-interlaced

Maximum 85Hz @ 1280 x 1024 mode

Recommended 60Hz @ 1280 x 1024 mode

- - 1024 x 768(60) VESA STANDARD

- - 1024 x 768(72) VESA STANDARD

+ + 1024 x 768(75) VESA STANDARD

+ + 1024 x 768(85) VESA STANDARD

+ + 1280 x 1024(60) VESA STANDARD

+ + 1280 x 1024(75) VESA STANDARD

- - 1024 x 768(70) VESA STANDARD

- - 1280 x 720(60) 720P

+ + 1280 x 1024(85) VESA STANDARD

2.2.6 Display Characteristics

2.2.6.1 Picture size

Horizontal width 359.04 mm (typical)

Vertical width 287.232 mm (typical)

2.2.6.2 Optical Characteristics

General qualities: The following data was measured by BM7 of TOPCON data are panel optical data, for

analog signal there are +/- 5% tolerance.

Item Code Conditions Min. Typ. Max. Unit

Contrast CR White/Black at Image Center 200 350

White Brightness L VMAX Whole White 200 250

min

Uniformity of

Brightness

Response at 25

degree

Viewing Angle

Right

Left

Down

Tpd

All white → All Black

All Black →All white

ΘR

ΘL

ΦH

ΦL

max

Center CR > 10

Luminance control All White (digital signal or analog 6500K)

Brightness at center of display surface

60 80

≧ 200 (cont / bright backlight

max)

――

―

Cd/m

Degree

cd / m

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2 s

These characteristics were measured under the following conditions:

Temperature ：77 ± 6°F, 25 ± 5°C

Viewing angle ：AU = 0° , AR =0°

Warm Up time ：minimum 30 minutes

Measuring instrument ：TOPCON BM-7 Luminance Meter

Measuring distance ：500mmn

Measuring angle ：2°

500mm

BM-7

2 Degree

Note 1: Contrast ratio is defined as the following formula.

Contrast ratio =

Note 2: Viewing angle is measured as follows:

Normal

=0=0

 L=90

6 o'clock

 L=90

L

L

’

H

R

black""atpixelsall withBrightness

2 o'cloc

 H=90

’

 R=90

white""atpixelsall with)(LuminanceBrightness

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2 s

Note 3: Definition of response time is as follows:

Response time is measured when the display data is changed from white to black.

White(TFT OFF )

Whit e

Optical Response

Note 4: Judge points for brightness uniformity

Brightness uniformity is judged at nine (9) points on display area:

128 512 896

(9)

(8)

(7)

Black(TFT ON) White(TFT OFF )

100 90



(6)

(3)

min

384

670

BUNI =

max

Bmax：Maximum Brightness Bmin：Minimum Brightness

2.2.6.3 LCD Panel

Mechanical

Active Area (mm) 359.04 x 287.232

Pixel pitch (mm) 0.280

Mass typical (g) 3100

Panel dimensions (W x D x H) mm 389 x 317 x 27mm (typ)

Resolution 1280 x 1024

Surface Treatment with Haze value Anti-glare, 3H

Panel Model number LM181E06-A4M5

Panel Interfaces Dual LVDS

(5)

(2)

(4)

(1)

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2 s

Optical performance

Contrast ratio

Luminance of white (center) 250 nits Typical

White Uniformity 70% (9 points measurement)

Chromaticity values (red, green, blue) center Red : Rx = 0.633, Ry =0.340

Color temperature CCT = 6500 K => Wx = 0.313, Wy = 0.329

Colors True 8 bits (16.7M)

Viewing Angle H, V (CR > 10) 160(typ)

Film Not used wide viewing film

Response time ms

Number of Back Light (CCFL) 6 – Edge type back light

Backlight (hrs) 40,000 hours minimum, 50,000 hours typical

2.2.7 Power Management

Unit will enter power saving mode under the following conditions:

Power Management condition and status

350：1 Typical 200：1 Minimum

200 nits Minimum

Green : Gx = 0.295, Gy = 0.600

Blue : Bx = 0.141, By = 0.096

Typical Tr = 15ms；Tf = 15ms Maximum Tr = 25ms；Tf = 25ms

State

On Pulses Pulses Active On On Green

Stand-by No Pulses Pulses

Suspend Pulses No Pulses

Off No Pulses No Pulses

Complete N/A N/A N/A Off

2.2.8 Full Scan Capability

When the input display mode is not 1280 x 1024, the image area is changed as follows:

Flex Scan Mode

Expansion 1 640 x 350 2 2.93 1280 x 1024

Expansion 2 640 x 400 2 2.56 1280 x 1024

Expansion 3 640 x 480 2 2.13 1280 x 1024

Expansion 4 720 x 400 1.78 2.56 1280 x 1024

Expansion 5 800 x600 1.6 1.71 1280 x 1024

Expansion 6 832 x 624 1.54 1.64 1280 x 1024

Expansion 7 1024 x 768 1.25 1.33 1280 x 1024

Expansion 8 1152 x 864 1.11 1.19 1280 x 1024

Standard 1280 x1024 1 1 1280 x 1024

Horizontal Vertical Video

Input display Expanded Rate

Mode Resolution Horizontal Vertical

Signals

Blanking

Power

Supply

Vid eo

Circuit

Off Off

Expanded

Resolution

LCD LED

Amber

Off

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2 s

2.3. Mechanical Characteristics

2.3.1 Dimensions

339.4(W) x 327.6(H) x 70.2(D) mm

410(W) x 453.8(H) x 250.2 (D) mm (with stand base)

2.3.2 Weight (with stand base)

Net：8.0Kg

2.4. Packaging

2.4.1 Carton Box (with stand base)

Dimensions：523(W) x 455(H) x 298(D) mm Color ：4-Color printing box Material ：BC-FLUTE or Equivalent, double wall

2.5. Environmental Characteristics

2.5.1 Operating Conditions

Tem perature ：0Through+40℃ Humidity ：20% to 90% (39 degree welt bulb) Altitude ：0- 3,000 meter

2.5.2 Non-operating Conditions

Tem perature ：-20 Through +60℃ Humidity ：21% to 90% (39 degree welt bulb) Altitude ：0- 12,000 meter

2.6. Factory setting

2.6.1 OSD

Brightness 100% (based on 0-100%)

Contrast 70% (based on 0-100%)

Auto Tune Executed

Color Temperature 6500K

OSD Timeout 15 sec

Language English

OSD position Center

2.6.2 Power Switch

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2 s

Appendix I Preset Signal Timings

H-Video

Horizontal

V-Video

Vertical

H active

H front H back

H pulse

H total

V active

V front

V pulse

V total

V back

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2 s

Analog timing mode table

1 2 3 4 5 6 7

Signal name symbol TEXT mode TEXT mode VGA MAC-II VESA-VGA VESA-VGA VESA-VGA

H-frequency (kHz) 31.468 31.469 31.468 35.001 37.5 37.862 43.269

V-frequency (Hz) 70.087 70.087 59.941 66.667 75 72.807 85.005

Pixel rate (MHz) 25.175 28.322 25.175 30.240 31.5 31.501 36.000

H-sync Ths 96 108 96 64 64 40 56

H-back porch Thb 48 54 48 96 120 128 80

Count num (H-total) Thd 800 900 800 864 840 832 832

H- front porch Thf 16 18 16 64 16 24 56

V-sync Tvs 2 2 2 3 3 3 3

V-back porch Tvb 60 35 33 39 16 28 25

Count num (V-total) Tvd 449 449 525 525 500 520 509

V-front porch Tvf 37 12 10 3 1 9 1

H-sync. Polarity Positive Negative Negative Negative Negative Negative Negative

V-sync Polarity Negative Positive Negative Negative Negative Negative Negative

H-resolution (dots) 640 720 640 640 640 640 640

V-resolution (lines) 350 400 480 480 480 480 480

8 9 10 11 12 13 14

Signal name Symbol IBM-8514A SVGA SVGA SVGA SVGA MAC 16" XGA

H-frequency (kHz) 35.156 37.879 48.077 46.875 53.674 49.725 48.363

V-frequency (Hz) 56.250 60.317 72.188 75.000 85.061 74.5 60.004

Pixel rate (MHz) 36.000 40.000 50.000 49.500 56.250 57.283 65.000

H-sync Ths 72 128 120 80 64 64 136

H-back porch Thb 128 88 64 160 152 224 160

Count num (H-total) Thd 1024 1056 1040 1056 1048 1152 1344

H- front porch Thf 24 40 56 16 32 32 24

V-sync Tvs 2 4 6 3 3 3 6

V-back porch Tvb 22 23 23 21 27 39 29

Count num (V-total) Tvd 625 628 666 625 631 667 806

V-front porch Tvf 1 1 37 1 1 1 3

H-sync. Polarity Positive Positive Positive Positive Positive Negative Negative

V-sync Polarity Positive Positive Positive Positive Positive Negative Negative

H-resolution (dots) 800 800 800 800 800 832 1024

V-resolution (lines) 600 600 600 600 600 624 768

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b s

15 16 17 18 19 20 21 22

Signal name Symbol XGA XGA XGA XGA SXGA 720P SXGA VESA

H-frequency (kHz) 56.476 58.099 60.023 68.677 63.981 45.000 79.976 91.146

V-frequency (Hz) 70.069 72.082 75.029 84.997 60.02 60.00 75.025 85.024

Pixel rate (MHz) 75.000 78.084 78.750 94.500 108 74.250 135 157.5

H-sync Ths 136 136 96 96 112 144 40 160

H-back porch Thb 144 160 176 208 248 248 270 224

Count num

(H-total)

H- front porch Thf 24 24 16 48 48 16 60 64

V-sync Tvs 6 6 3 3 3 3 5 3

V-back porch Tvb 29 29 28 36 38 38 20 44

Count num

(V-total)

V-front porch Tvf 3 3 1 1 1 1 5 1

H-sync. Polarity Negative Negative Positive Positive Positive Negative Positive Positive

V-sync Polarity Negative Negative Positive Positive Positive Negative Positive Positive

H-resolution (dots) 1024 1024 1024 1024 1280 1280 1280 1280

V-resolution (lines) 768 768 768 768 1024 720 1024 1024

Thd 1328 1344 1312 1376 1688 1688 1658 1728

Tvd 806 806 800 808 1066 1066 750 1072

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b s

Digital Timing mode table

1 2 3 4 5 6 7

Signal name symbol TEXT mode TEXT mode VGA VGA VESA-VGA VESA-VGA VESA-VGA

H-frequency (kHz) 31.468 31.469 31.468 31.468 37.5 37.862 43.269

V-frequency (Hz) 70.087 70.087 70.087 59.941 75 72.807 85.005

Pixel rate (MHz) 25.175 28.322 25.175 25.175 31.5 31.501 36.000

H-sync Ths 96 108 96 96 64 40 56

H-back porch Thb 48 54 48 48 120 128 80

Count num (H-total) Thd 800 900 800 800 840 832 832

H- front porch Thf 16 18 16 16 16 24 56

V-sync Tvs 2 2 2 2 3 3 3

V-back porch Tvb 60 35 35 33 16 28 25

Count num (V-total) Tvd 449 449 449 525 500 520 509

V-front porch Tvf 37 12 12 10 1 9 1

H-sync. Polarity Positive Negative Negative Negative Negative Negative Negative

V-sync Polarity Negative Positive Positive Negative Negative Negative Negative

H-resolution (dots) 640 720 640 640 640 640 640

V-resolution (lines) 350 400 400 480 480 480 480

8 9 10 11 12 13 14

Signal name Symbol IBM-8514A SVGA SVGA SVGA SVGA XGA XGA

H-frequency (kHz) 35.156 37.879 48.077 46.875 53.674 48.363 56.476

V-frequency (Hz) 56.250 60.317 72.188 75.000 85.061 60.004 70.069

Pixel rate (MHz) 36.000 40.000 50.000 49.500 56.250 65.000 75.000

H-sync Ths 72 128 120 80 64 136 136

H-back porch Thb 128 88 64 160 152 160 144

Count num (H-total) Thd 1024 1056 1040 1056 1048 1344 1328

H- front porch Thf 24 40 56 16 32 24 24

V-sync Tvs 2 4 6 3 3 6 6

V-back porch Tvb 22 23 23 21 27 29 29

Count num (V-total) Tvd 625 628 666 625 631 806 806

V-front porch Tvf 1 1 37 1 1 3 3

H-sync. Polarity Positive Positive Positive Positive Positive Negative Negative

V-sync Polarity Positive Positive Positive Positive Positive Negative Negative

H-resolution (dots) 800 800 800 800 800 1024 1024

V-resolution (lines) 600 600 600 600 600 768 768

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b s

15 16 17 18 19

Signal name Symbol XGA XGA XGA SXGA HD-720P

H-frequency (kHz) 58.099 60.023 68.677 63.981 45.000

V-frequency (Hz) 72.082 75.029 84.997 60.02 60.00

Pixel rate (MHz) 78.084 78.750 94.500 108 74.250

H-sync Ths 136 96 96 112 40

H-back porch Thb 160 176 208 248 270

Count num (H-total) Thd 1344 1312 1376 1688 1658

H- front porch Thf 24 16 48 48 60

V-sync Tvs 6 3 3 3 5

V-back porch Tvb 29 28 36 38 20

Count num (V-total) Tvd 806 800 808 1066 750

V-front porch Tvf 3 1 1 1 5

H-sync. Polarity Negative Positive Positive Positive Negative

V-sync Polarity Negative Positive Positive Positive Negative

H-resolution (dots) 1024 1024 1024 1280 1280

V-resolution (lines) 768 768 768 1024 720

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b s

Appendix II EDID Code

VP181b-2

Analog

128 Bytes of EDID code:

0 1 2 3 4 5 6 7 8 9

0 00 FF FF FF FF FF FF 00 5A 63

10 11 67 01 01 01 01 01 0c 01 03

20 0E 24 1D 78 2A 0A 25 A2 57 4B

30 99 24 18 50 54 BF EF 80 81 80

40 81 99 81 59 81 40 71 4F 61 59

50 45 59 31 59 30 2A 00 98 51 00

60 2A 40 30 70 13 00 67 1F 11 00

70 00 1E 00 00 00 FF 00 41 31 5A

80 30 32 30 31 30 30 30 30 31 0A

90 00 00 00 FD 00 32 55 1E 5C 10

100 00 0A 20 20 20 20 20 20 00 00

110 00 FC 00 56 50 31 38 31 62 2D

120 32 0A 20 20 20 20 00 5C

Digital

128 Bytes of EDID code:

0 1 2 3 4 5 6 7 8 9

0 00 FF FF FF FF FF FF 00 5A 63

10 11 67 01 01 01 01 01 0C 01 03

20 80 24 1D 78 2A 0A 25 A2 57 4B

30 99 24 18 50 54 BF EF 80 81 80

40 81 99 81 59 81 40 71 4F 61 59

50 31 59 31 0A 30 2A 00 98 51 00

60 2A 40 30 70 13 00 67 1F 11 00

70 00 1E 00 00 00 FF 00 41 31 5A

80 30 32 30 31 30 30 30 30 31 0A

90 00 00 00 FD 00 32 55 1E 5C 10

100 00 0A 20 20 20 20 20 20 00 00

110 00 FC 00 56 50 31 38 31 62 2D

120 32 0A 20 20 20 20 00 4D

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b s

VP181S-2

Analog

128 Bytes of EDID code:

0 1 2 3 4 5 6 7 8 9

0 00 FF FF FF FF FF FF 00 5A 63

10 16 B8 01 01 01 01 01 0D 01 03

20 0E 24 1D 78 2A 0A 25 A2 57 4B

30 99 24 18 50 54 BF EF 80 81 80

40 81 99 81 59 81 40 71 4F 61 59

50 45 59 31 59 30 2A 00 98 51 00

60 2A 40 30 70 13 00 67 1F 11 00

70 00 1E 00 00 00 FF 00 41 32 52

80 30 33 30 31 30 30 30 30 31 0A

90 00 00 00 FD 00 32 55 1E 5C 10

100 00 0A 20 20 20 20 20 20 00 00

110 00 FC 00 56 50 31 38 31 73 0A

120 20 20 20 20 20 20 00 19

Digital

128 Bytes of EDID code:

0 1 2 3 4 5 6 7 8 9

0 00 FF FF FF FF FF FF 00 5A 63

10 16 B8 01 01 01 01 01 0D 01 03

20 80 24 1D 78 2A 0A 25 A2 57 4B

30 99 24 18 50 54 BF EF 80 81 80

40 81 99 81 59 81 40 71 4F 61 59

50 31 59 31 0A 30 2A 00 98 51 00

60 2A 40 30 70 13 00 67 1F 11 00

70 00 1E 00 00 00 FF 00 41 32 52

80 30 33 30 31 30 30 30 30 31 0A

90 00 00 00 FD 00 32 55 1E 5C 10

100 00 0A 20 20 20 20 20 20 00 00

110 00 FC 00 56 50 31 38 31 73 0A

120 20 20 20 20 20 20 00 0A

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b s

3. Front Panel Function Control Description

3.1. User control functions

Control buttons:

1. Press power button to power on whole LCD monitor set. Led on the power button will turn to green.

2. Press “2” button while no OSD will toggle the digital input port and analog input port to display.

3. Press “up” and “down” button simultaneously will reset the contrast and brightness to default value.

4. Press “1” button will enter OSD main menu.

3.2 Short Cuts Function from the button(s)

[ 1 ] Main Menu

[ 2 ] Select next input

(Sequence: D-SUBĺDVI-AĺDVI-D)

[ Down ] or [ Up ] arrow To immediately activate Contrast menu. It

should be change to Brightness OSD by push

button [ 2 ].

[ Down ] or [ Up ] arrow Recall Contrast or Brightness while in the

Contrast or Brightness adjustment, or recall

both of Contrast and Brightness when the OSD

is not open.

[ 1 ] + [ 2 ] Toggle 720x400 and 640x400 mode when input

720x400 or 640x400 mode.

[ 1 ] + [ Down ] + [ Up ] White Balance.

[ 1 ] + [ Down ]

[ 1 ] + [ Up ]

ViewSonic Corporation

* Execute the function after the key buttons

been pushed by 5 sec.

* Color Adjust icon show on the center of

screen when adjusting white balance.

* Not show on user’s guide

Press for 10 sec to lock Power Button.

Press for 10 sec to lock OSD.

Confidential – Do Not Cop y

VP181b/s-2b s

3.3 OSD operation flow

The following steps show how to access the Main Menu, Submenus, and controls within each Submenu. Details on the

controls follow the steps listed below.

Note: Any OSD setting will only save after user totally exits the OSD menu.

1. Press the [1] button to display the Main Menu shown below.

2. Press the [▼] or [▲] button to scroll to the desired menu option.

3. Press the [2] button to select the menu option.

4. Press the [▼] or [▲] button to select submenu option.

5. After making adjustments, press the [1] button to exit the screen. You must exit the OSD to save the settings.

Auto Image Adjust

Press the [2] button to perform the autoadjust .

Note: Auto Image Adjust works with most common video card. If using the function does not work properly on the display,

Lower the video refresh rate to 60 Hz and try again. (See computer or graphic card user guide to adjust refresh rate.)

The panel may be manually tuned using the horizontal and vertical phase controls shown below.

Contrast

[▲] increase contrast, [▼] decrease contrast.

Shortcut: Before displaying the OnView menu, press the [▼] or [▲] button to adjust. Press button [2] to toggle between

brightness and contrast.

adjust foreground white level of screen image.

automatically sizes, centers, and fine tunes the video signal to eliminate waviness and distortion.

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b s

Brightness

[▲] increase brightness, [▼] decrease brightness.

adjusts backlight brightness level of screen image.

Input Select

Color Adjust

Color Adust

saturation. Press button [2] to select the preset color. Press button [▼] or [▲] to fine tune the color response.

9300K—Adds blue to screen image for cooler white (used in most office settings with fluorescent lighting).

6500K—Adds red to screen image for warmer white and richer red.

5400K—Adds green to screen image for a darker color.

5000K—Adds blue and green to screen image for a darker color.

press [▼] or [▲] button to select Input Source.

provides four preset color adjustment: 9300K, 6500K, 5400K, 5000K for improved brightness and color

User color

2. Press button [2] to set adjustment and select next color to adjust.

—Individual adjustments for red (R), green (G), blue(B).

. To adjust selected color, press [▼] or [▲].

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b s

Information

Manual Image Adjust

H/V Position Press the [2] button to select H-Position or V-Position.

H-Position

[▼] move screen image to left, [▲] moves screen image to right.

Press the [2] button to toggle between H. or V. Position.

moves screen image left or right.

V-Po sitio n

[▼] move screen image down, [▲] moves screen image up.

moves screen image up or down.

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

H-Size adjusts the width of screen image. [▼] decreases

Width of screen image, [▲] increases width of image.

Fine tune

Sharpness adjusts the clarity of a non-SXGA (1280 x 1024) RGB signal Press [▼]or [▲]toadjust.

Scaling

Setup Menu

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Language Select allows the user to choose from available languages.

Resolution Notice press the [2] button to select the Enable or Disable the Resolution Notice.

Input Priority

OSD Position press the [2] button to select the OSD H-Position or OSD V-Position.

OSD H-Position

[▼] moves OSD left, [▲] moves the OSD right.

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

OSD V-Position [▼] moves OSD down, [▲] moves the OSD up.

OSD Timeout

OSD Background

OSD pivot

sets the length of time the OnScreen Display screen is displayed before exiting.

Memory Recall

Returns the adjustments back to factory settings (only if the display is operating in a factory preset mode).

Press the [2] button to select the Memory Recall menu option.

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Note:

OSD Controls

Auto Image Adjust*, Contrast/Brightness, Input Select, Color Adjust [9300K, 6500K(default), 5400, 5000, R, G, B],

Information [Resolution, Model Number, Serial Number], Manual Image Adjust [H. Size*, H. Position*, V.

Position*, Fine Tune*, Sharpness, Scaling], Setup Menu [Language, Resolution Notice, Input Priority, OSD

Position, OSD Timeout, OSD Background, OSD Pivot], Memory Recall

* These functions are not available in Digital Mode.

Memory Recall is to recall the following functions to factory setting: Contrast, Brightness, H Size, H/V Position,

Color Temperature @ 6500K, OSD Position, Sharpness, & OSD Timeout.

OSD Auto Save

The OSD shall save new settings when it is turned off by the user or when it times out. There shall not be a

separate save.

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

4. Circuit Description

4.1 Interface Board

4.1.1 Power supply (DC/DC Converter)

IC251 BA9741F is a two-channel switching regulator controller that uses a PWM method for DC to DC step-down

conversion. It converts 12V DC into regulated and stable output voltages of 5V and 3.3V

4.1.2 DDC data select:

IC602 stores DVI-A analog DDC data, IC604 stores DVI-D digit DDC data. IC601 is a triple 2-chanel analog

multiplexer / demultiplexer. IC601 pin10 & 11 set “Hi” selects IC604 DDC data, IC601 pin10 & 11 set “Lo” selects

IC602 DDC data.

4.1.3 DVI-A, D-sub select:

IC603 is an input video selection for DVI-A or D-SUB. Pin 6 set “Hi” selects D-SUB input, pin 6 set “Lo” selects

DVI-A input.

4.1.4 Image Processor

IC401(gm5020) is an all-in-one image processor for displays with a dual (analog and digital) interface supporting

resolutions up to SXGA. It provides integrated ADC/PLL and a DVI compliant TMDS receiver, a high quality

zoom and shrink scaling, an on-screen display (OSD) controller, a microprocessor and many other functions in a

single

device. This high level of integration enables simple, flexible, cost effective solutions featuring fewer

required components.

respectively.

The gm5020 chip has three ADC’s (analog-to-digital converters), one for each color (red, green, and blue) and

supports digital separate sync (HSYNC/VSYNC), digital composite sync, and analog composite sync (also known

as sync-on-green, or SOG). All sync types are supported without the need for external sync separation / extraction

circuits.

he gm5020 features four clock inputs. All additional clocks are internal clocks derived from one or more of these

four, using Direct Digital Synthesis (DDS).

TCLK is generated using an external crystal (recommended) or an external clock oscillator.

(1) Input Clock (TCLK). The external connection to the oscillator is via the TCLK and XTAL pads. A 14.3MHz

crystal source is recommended, as internal PLL and logic circuits derive the required clock frequencies from

this single source by default. Other crystal frequencies may be used, but require custom bootstrapping and

programming. In lieu of using a crystal oscillator, XTAL can be driven by a single-ended TTL/CMOS input

clock (e.g. for testing of the IC) – the TCLK pin should be grounded through a 2.7K pull down resistor to

maintain the correct duty cycle for the clock.

(2) TMDS Differential Input Clock (RC+ and RC-)

(3) Video clock (VCLK) input pin

(4) Host Interface transfer clock (HCLK for 6-Wire nibble; SCL for 2-wire serial)

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

The gm5020 has an input format measurement block (the IFM) providing the capability of measuring the horizontal

and vertical timing parameters of the input video source. This information may be used to determine the video format

and to detect a change in the input format. It is also capable of detecting the field type of interlaced formats.

The IFM features a host programmable reset, separate from the regular gm5020 soft reset. This reset disables the IFM,

reducing power consumption. The IFM is capable of operating while gm5020 is running in power down mode.

Horizontal measurements are measured in terms of the selected IFM_CLK (either T_CLK or R_CLK/4), while vertical

measurements are measured in terms of HSYNC pulses.

The gm5020 OSD controller supports both character-mapped and bitmapped modes. A user programmable palette of

256 true colors (255 colors, + 1 transparent) is available.

In character mapped mode, a maximum of four colors per character are available.

In 8-bit bitmapped mode, any pixel can be assigned any one of 256 user-defined true colors.

In 4-bit bitmapped mode. Any pixel can be assigned any one of 16 user-defined true colors (15 colors plus one

transparent).

The gm5020 incorporates an embedded microprocessor, or OCM (On-Chip Microprocessor). This processor is

intended to simplify the gm5020 system software implementation by providing embedded macro functions such as

OSD menu configurations. It is not intended to replace the system microprocessor.

An arbitration mechanism handles the register access requests from the OCM and the system micro.

4.1.5 LVDS Transmitter

IC501, 502 (SN75LVDS83) Flat Link transmitter contains four 7-bit parallel-load serial-out shift registers, a clock

synthesizer, and five low-voltage differential-signaling (LVDS) line drivers in a single integrated circuit. These

functions allow 28 bits of single-ended low-voltage TTL (LVTTL) data to be synchronously transmitted over five

balanced-pair conductors for receipt by a compatible receiver.

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

When transmitting, data bits D0 through D27 are each loaded into registers upon the edge of the input clock signal

(CLKIN). The rising or falling edge of the clock can be selected by way of the clock select (CLKSEL) terminal. The

frequency of CLKIN is multiplied seven times and then used to unload the data registers in 7-bit slices and serially.

The four serial streams and a phase-locked clock (CLKOUT) are then output to LVDS output drivers. The frequency

of CLKOUT is the same as the input clock, CLKIN.

The SN75LVDS83 requires no external components and little or no control. The data bus appears the same at the input

to the transmitter and output of the receiver with the data transmission transparent to the user. The only user intervention

is the possible use of the shutdown/clear (SHTDN) active-low input to inhibit the clock and shut off the LVDS output

drivers for lower power consumption. A low-level signal on SHTDN clears all internal registers to a low level.

4.1.6 DDC 1/2 B

IC602, IC604 & IC605 can continuously transmit its extended identifications, “EDID” using DDC1 communication channel.

In addition, the monitor can respond to a request for EDID, or complete VDIF, to be transmitted using DDC2, level B

commands. Pin6 SCL is clock input for DDC 2B, pin5 SDA for data input, and pin7 VCLK is clock input for DDC1.

In DDC1 data transfer (UNI-directional mode), the VCLK input pin is used as an input clock for data transmission and

SDA output pin is used as serial data line the SCL pin will hold high. The DDC2B node (BI-directional mode) BUS

consists of two wires. SCL is for the data transmission clock and SDA is for the data line.

4.1.7 Frame store interface

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

IC503, IC504 & IC505 are three 1M*16 devices. The external frame buffer provides the storage required for the frame

rate conversion process. Generally, 32 bits is sufficient for XGA and 48 bits is sufficient for SXGA.

4.1.8 Micro-controller

The IC301 is a micro-controller, it plays a major role in the digital control of the LCD monitor. IC301 acts as a key

control, DPMS power saving control, auto-detect controller, and controller of IC401 to do image processing.

Pin25 enable VCC for panel

Pin7 receive HI signal from IC306 pin3 to reset.

Pin27,26,16,9,31 make key function operate when press key button

Pin13,14 communicate with IC302 (EEPROM) by I2C

Pin28,29 do ISP (In-system program).

P39 controls the DVI-A or D-SUB selection

P30,35 controls LED (amber and green) on/off.

4.1.9 USB HUB controller

IC951 is a high speed USB HUB controller, this single-chip device incorporates one upstream and four downstream

USB transceivers. IC951 CY7C65640 includes interface signals for external port power switches. The power

switching and over-current detection of downstream ports is managed by control pins connected to an external power

switch device by IC952 & IC953.

IC954 is an EEPROM VID & PID configured.

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

5. Adjusting Procedure

5.1 Preparation of Manual Alignment

5.1.1 The Alignment procedure is performed after unit has been completely Assembled and before set inspection.

5.1.2 Display should be burned-in for 30 min before alignment.

5.1.3 Measuring equipment used

Pre-programmed Chroma2226 or equivalent products.

Color meter – Minolta CA210 or equivalent products.

210 mm

CA210

5.1.4 Method to enter/exit factory mode

5.1.4.1 Press “2” and “down” key and power on to set the monitor to the burn-in mode.

5.1.4.2 Press “1” key and power on to set the monitor to the factory mode.

5.1.4.3 To ensure the monitor is under factory mode, check following OSD image display on the screen.

Otherwise, Repeat the procedure to enter factory mode.

5.1.4.3 Under factory mode, press “power” key. The monitor will exit factory mode and return to normal mode.

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

5.1.5 Method to enter/exit manual color alignment menu

Under factory mode, select color temp manual. It will display the following color

temperature adjust menu.

Use “UP” and “DOWN” to move cursor between items “9300”, “6500”, “5400” and “5000”. Press “2” to select which

color temperature is to be adjusted. It will show the following menu.

Use “2” key to switch R, G, B driver, and the “UP” or “DOWN” keys to adjust the R. G. B value corresponding to the selected

item.

5.2 Color Temperature Alignment

Before manual adjusting the color temperature, Set OSD contrast 70%, brightness 100% (Factory default), enter into factory

mode and select “COLOR TEMP MANUAL” item.

5.2.1 9300°K Alignment

5.2.1.1 Use “UP” or “DOWN” key to move cursor to 9300 color temperature. Then press “2” key to select 9300

color temperature adjustment.

5.2.1.2 Use “2” to move cursor to R-Driver or G-Driver or B-Driver and then press “UP” or “DOWN” key to

adjust it to meet the following chromaticity spec.

CCT(typ.) = 9300°K (x = 0.283 , y = 0.298) Y  150cd/m

CCT(max) = 10250°K CCT(min) = 8500°K

5.2.1.3 Press “1” to EXIT 9300 color temperature adjustment and do another color temperature adjustment.

When exit factory mode OSD menu, the above result R. G. B gain will automatically be saved.

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

5.2.2 6500°K Alignment

5.2.2.1 USE “UP” or “DOWN” key to move cursor to 6500 color temperature. Then press “2” key to select

6500 color temperature adjustment.

5.2.2.2 USE “ 2” to move cursor to R-Driver or G-Driver or B-Driver and then press “UP” or “DOWN” key to

adjust it to meet the following chromaticity spec.

CCT(typ.) = 6500°K (x = 0.313 , y = 0.329) Y  200cd/m

CCT(max) = 6950°K CCT(min) = 6100°K

5.2.2.3 Press “1” to EXIT 6500 color temperature adjustment and do another color temperature adjustment.

When EXIT factory mode OSD menu, the above result R. G. B gain will automatically be saved.

5.2.3 5400°K Alignment

5.2.3.1 USE “UP” or “DOWN” key to move cursor to 5400 color temperature. Then press “2” key to select

5400 color temperature adjustment.

5.2.3.2 USE “2” to move cursor to R-Driver or G-Driver or B-Driver and then press “UP” or “DOWN” key to

adjust it to meet the following chromaticity spec.

CCT(typ.) = 5400°K (x = 0.335 , y = 0.350) Y  180cd/m

CCT(max) = 5915°K CCT(min) = 4935°K

5.2.3.3 Press “1” to EXIT 5400 color temperature adjustment and do another color temperature adjustment.

When EXIT factory mode OSD menu, the above result R. G. B. gain will automatically be saved.

5.2.4 5000°K Alignment

5.2.4.1 USE “UP” or “DOWN” key to move cursor to 5000 color temperature. Then press “2” key to select

5000 color temperature adjustment.

5.2.4.2 USE “2” to move cursor to R-Driver or G-Driver or B-Driver and then press “UP” or “DOWN” key to

adjust it to meet the following chromaticity spec.

CCT(typ.) = 5000°K (x = 0.346 , y = 0.359) Y  180cd/m

CCT(max) = 5350°K CCT(min) = 4700°K

5.2.4.3 Press “1” to EXIT 5000 color temperature adjustment and do another color temperature adjustment.

When EXIT factory mode OSD menu, the above result R. G. B. gain will automatically be saved.

5.3 Method to EXIT Burn-in mode

5.3.1 Press “UP” and “DOWN” key and power on to EXIT Burn-in mode.

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

6. Troubleshooting Flow Chart

6.1 Figure of Waveform

Fig. 1 IC603, pin 17 Fig. 2 FB251, +12V Fig. 3 L255, +5V

Fig. 4 L251, +3.4V Fig. 5 IC252, output 2.5V Fig. 6 IC251, pin 1

Fig. 7 IC401, L2 Fig. 8 IC401, K1 Fig. 9 IC401, P3

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Fig. 10 FB514, DCLK Fig. 11 IC401, P1 Fig. 12 IC401, M1

Fig. 13 X401, OSC Fig. 14 P537, FSCLK Fig. 15 IC502, Pin 48

Fig. 16 IC502, Pin 47 Fig. 17 IC501, Pin 48 Fig. 18 IC501, Pin 47

Fig. 19 FB256, VCC-Panel Fig. 20 IC301, Pin 7 Fig. 21 X301, OSC

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Fig. 22 CN252, Pin 5 Fig. 23 C275, Brightness Fig. 24 IC952 Pin 1USB active

Fig. 25 IC952 Pin 2 USB active Fig. 26 IC952 Pin 8 USB active

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

6.2 No Display on Screen (Screen is black, LED is off)

Check that the cable is fully connected between the

power board and interface board

Check that C268 positive is at 5V.

Yes

Check CN252 pin1 is 12V,

pin5 is 5V

Yes

Check that the voltage level of CN251 is

approximately 12V

Yes

IC251 failure FB251, FB252 failure Power board failure

Check IC301 pin15 failureInverter failure

NoNo

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

6.3 No Display on Screen (LED is green)

Is the backlight lit?

Yes

Check that the cable is fully connected to CN501

Yes

Check IC501, IC502

Yes

Check Q261 pin4 is low voltage

Yes

Check Q261 pin5, 6, 7, 8 is about 12V

Failure point

The cable is disconnected

Failure point

1. IC501, IC502 failure

2. IC401 failure

Q261 failure

Check that the cable is fully connected between the inverter and interface board

Yes

Check CN252 pin1 is 12V, pin5 is 5V

Yes

Inverter failure

Failure point

The cable is disconnected

IC301 pin15 failure

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

6.4 No power on

Check that CN251 pin1 is approximately 12V

Yes

Check that FB251, FB252 is 12V

Yes

Check that C268 positive is at 5V, C269 positive is at 3.3V

Failure point

1. Power board failure

2. Disconnected between CN251 and power board

Failure point

FB251, FB252 failure

Failure point

1. Q252, D252 failure

2. Q251, D251 failure

3. IC251 failure

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

6.5 Show “No Signal” on screen

(Test pattern: 32 gray 1280x1024 60Hz)

Check the signal level of R619, R621, R623.

Yes No

Check the Hsync and Vsync Failure point

6.6 Keypad cannot work

1. IC603 failure

2. Signal cable is disconnected.

Check that the cable is fully connected between the interface board and key board

Yes No

Failure point

1. IC301 pin27, 26, 16, 9, 31 failure

2. TACT switch failure

ViewSonic Corporation

Failure point

The cable is disconnected

Confidential – Do Not Cop y

VP181b/s-2b/s

7. Mechanical Assembly

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

VP181b-2 Exploded Parts List

Item ViewSonic P/N Ref. P/N Description Q'ty

1 M-MS-0808-8556 3200649100 NAME PLATE VSC 3-BIRD LOGO AL 1 2 C-FP-0301-0334 3361075302 F/B ABS MIDNIGHT GRAY-2 VP181B 1 3 M-MS-0808-8559 3360506800 LED LENS ABS 1865-12 S8LRB1LS 1 4 PL-NB-0707-0192 3360624900 POWER KNOB POM M270 MIDNIGHT G 1 5 M-MS-0808-8760 3460145900 BRACKE PANEL SIDE SECC 310*30* 2 6 M-MS-0808-8571 3461225601 SHIELD CAN IV SECC 218.6*61.3 1 7 M-MS-0808-8761 3460146200 BRACKET D-SUB SECC 239*36.5*3. 1 8 M-MS-0808-8558 3241126900 INSULATOR PC T.3 227*10 1

9 C-BC-0302-0498 3360241401 CABINET BACK ABS MIDNIGHT GRAY 1 10 M-MS-0808-8563 3460146300 BRACKET KEYLOCK SECC 20.4*16.4 1 11 M-CV-0830-2443 3361204901 COVER STAND FRONT ABS MIDNIGHT 1 12 M-CV-0830-2441 3361205401 COVER HINGE2 ABS MIDNIGHT GRAY 1 13 M-MS-0808-8569 3460149101 BRACKET BASE3 SECC OD139.01*16 1 14 M-MS-0808-8565 3460146501 BRACKET BASE2 SECC OD139*163.3 1 15 M-MS-0808-8564 3460146401 BRACKET BASE1 SECC 164*139 T2 1 16 M-MS-0808-8567 3460146701 BRACKET BASE FOOT2 SECC 159.8* 2 17 M-MS-0808-8566 3460146601 BRACKET BASE2 FOOT1 SECC OD182 2 18 PL-PD-0714-0100 3240957000 RUBBER PAD OD20 T4 BLACK 4 19 PL-PD-0714-0101 3240968900 RUBBER PAD 20*20 T3 BLK 1 20 M-CV-0830-2437 3361205000 COVER STAND BOTTOM ABS MIDNIGH 1 21 M-MS-0808-8573 3470307501 WIRE SADDLE NYLON66 94V2 MIDNI 3 22 M-MS-0808-8572 3461752001 HINGE SECC 312.5*51.82 L18JBW0 1 23 M-CV-0830-2444 3361205101 COVER STAND REAR ABS MIDNIGHT 1 24 M-CV-0830-2442 3362010801 COVER VESA ABS MIDNIGHT GRAY-2 1 25 M-CV-0830-2440 3361205300 COVER HINGE1 ABS MIDNIGHT GRAY 1 26 M-MS-0808-8622 3200649200 NAME PLATE VIEWSONIC ABS 82.83 1 27 M-CV-0830-2439 3361205201 COVER BASE ABS MIDNIGHT GRAY-2 1 28 M-MS-0808-8561 3460146100 BRACKET VESA SECC 110*20 T1 1 29 M-MS-0808-8570 3461225501 SHIELD CAN I/F&POWER SPTH 265.7*152.1 1 30 M-MS-0808-8568 3460146901 BRACKET PANEL SECC 380*230 T.8 1 31 B-KB-0207-0034 3000725100 SWITCH MEMBRANE PET 100*9 VP18 1 32 M-SCW-0824-0772 3100130800 SCREW M M3*0.5*8 FPH C S20C ZN 4 33 M-SCW-0824-0690 3105051501 SCREW M #4-40*7 HEXH #4-40*3 S 4 34 M-SCW-0824-0774 3105120600 SCREW M M4*0.7*8 PAN C S+P S10 1 35 M-SCW-0824-0775 3105123700 SCREW M M4*0.7*10 FF C S18C ZN 4 36 M-SCW-0824-0776 3105221000 SCREW M M3*0.5*6 FF C S18C ZN 8 37 M-SCW-0824-0777 3105225300 SCREW M M3*0.5*4 FF C S18C ZN 2 38 M-SCW-0824-0777 3105225300 SCREW M M3*0.5*4 FF C S18C ZN 4 39 M-SCW-0824-0777 3105225300 SCREW M M3*0.5*4 FF C S18C ZN 5 40 M-SCW-0824-0773 3105034400 SCREW M M3*0.5*6 FLAT C S20C Z 6 41 M-SCW-0824-0781 3105127100 SCREW M M4*0.7*12 FF C S18C ZN 4 42 M-SCW-0824-0778 3105229400 SCREW M M3*0.5*10 FF C S18C ZN 1 43 M-SCW-0824-0782 3105280200 SCREW M M3*0.5*4 FF C S18C ZN 2 44 M-SCW-0824-0783 3105280400 SCREW M M3*0.5*4 FLAT C S20C Z 8 45 M-SCW-0824-0783 3105280400 SCREW M M3*0.5*4 FLAT C S20C Z 4 46 M-SCW-0824-0779 3109017700 SCREW T M3*2.7*7.5 FF C S18C Z 2 47 M-SCW-0824-0779 3109017700 SCREW T M3*2.7*7.5 FF C S18C Z 2 48 M-SCW-0824-0780 3109019100 SCREW T M3*2.7*7.2 FLAT C S18C 4 49 M-SCW-0824-0780 3109019100 SCREW T M3*2.7*7.2 FLAT C S18C 4 50 B-IF-0222-0038 5600110087 LCD I/F BD ASSY L18JBW 05ABB 1 51 A-AD-0114-0186 0993027302 POWER 90-264VAC 12V 4.22A COMPUTER USE 1 52 B-SB-0221-0542 4900505780 DC-AC INVERTER 18" FOR LG PANEL 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

VP181s-2 Exploded Parts List

Item ViewSonic P/N Ref. P/N Description Q'ty

1 M-MS-0808-8556 3200649100 NAME PLATE VSC 3-BIRD LOGO AL 2 C-FP-0301-0359 3361080600 F/B ABS SILVER VP181S-1 S8LFB1 1 3 M-MS-0808-8559 3360506800 LED LENS ABS 1865-12 S8LRB1LS 4 PL-NB-0707-0200 3360626400 POWER KNOB POM M270 SILVER S8L 1 5 M-MS-0808-8760 3460145900 BRACKE PANEL SIDE SECC 310*30* 2 6 M-MS-0808-8571 3461225601 SHIELD CAN IV SECC 218.6*61.3 1 7 M-MS-0808-8761 3460146200 BRACKET D-SUB SECC 239*36.5*3. 1 8 M-MS-0808-8558 3241126900 INSULATOR PC T.3 227*10

9 C-BC-0302-0513 3360244600 CABINET BACK ABS 41 S8LRB1LS 10 M-MS-0808-8563 3460146300 BRACKET KEYLOCK SECC 20.4*16.4 1 11 M-CV-0830-2459 3361207500 COVER STAND FRONT ABS 41 S8LBB 1 12 M-CV-0830-2464 3361208000 COVER HINGE2 ABS 41 S8LBB1LS 1 13 M-MS-0808-8569 3460149101 BRACKET BASE3 SECC OD139.01*16 1 14 M-MS-0808-8565 3460146501 BRACKET BASE2 SECC OD139*163.3 1 15 M-MS-0808-8564 3460146401 BRACKET BASE1 SECC 164*139 T2 1 16 M-MS-0808-8567 3460146701 BRACKET BASE FOOT2 SECC 159.8* 2 17 M-MS-0808-8566 3460146601 BRACKET BASE2 FOOT1 SECC OD182 2 18 PL-PD-0714-0100 3240957000 RUBBER PAD OD20 T4 BLACK 4 19 PL-PD-0714-0101 3240968900 RUBBER PAD 20*20 T3 BLK 1 20 M-CV-0830-2460 3361207600 COVER STAND BOTTOM ABS 41 S8LB 1 21 3470307501 WIRE SADDLE NYLON66 MIDNIGHT GRAY 3 22 M-MS-0808-8572 3461752001 HINGE SECC 312.5*51.82 L18JBW0 1 23 M-CV-0830-2461 3361207700 COVER STAND REAR ABS 41 S8LBB1 1 24 M-CV-0830-2458 3361207400 COVER VESA ABS 41S8LBB1LS 25 M-CV-0830-2463 3361207900 COVER HINGE1 ABS 41 S8LBB1LS 1 26 M-MS-0808-8758 3200651100 NAME PLATE VIEWSONIC ABS 41 82 27 M-CV-0830-2462 3361207800 COVER BASE ABS 41 S8LBB1LS 1 28 M-MS-0808-8561 3460146100 BRACKET VESA SECC 110*20 T1 1 29 M-MS-0808-8570 3461225501 SHIELD CAN I/F&POWER SPTH 265. 1 30 M-MS-0808-8568 3460146901 BRACKET PANEL SECC 380*230 T.8 1 31 B-KB-0207-0034 3000725100 SWITCH MEMBRANE PET 100*9 VP18 32 M-SCW-0824-0772 3100130800 SCREW M M3*0.5*8 FPH C S20C ZN 33 M-SCW-0824-0690 3105051501 SCREW M #4-40*7 HEXH #4-40*3 S 34 M-SCW-0824-0774 3105120600 SCREW M M4*0.7*8 PAN C S+P S10 35 M-SCW-0824-0775 3105123700 SCREW M M4*0.7*10 FF C S18C ZN 36 M-SCW-0824-0776 3105221000 SCREW M M3*0.5*6 FF C S18C ZN 37 M-SCW-0824-0777 3105225300 SCREW M M3*0.5*4 FF C S18C ZN 38 M-SCW-0824-0777 3105225300 SCREW M M3*0.5*4 FF C S18C ZN 39 M-SCW-0824-0777 3105225300 SCREW M M3*0.5*4 FF C S18C ZN 40 M-SCW-0824-0773 3105034400 SCREW M M3*0.5*6 FLAT C S20C Z 6 41 M-SCW-0824-0781 3105127100 SCREW M M4*0.7*12 FF C S18C ZN 4 42 M-SCW-0824-0778 3105229400 SCREW M M3*0.5*10 FF C S18C ZN 1 43 M-SCW-0824-0782 3105280200 SCREW M M3*0.5*4 FF C S18C ZN 2 44 M-SCW-0824-0783 3105280400 SCREW M M3*0.5*4 FLAT C S20C Z 8 45 M-SCW-0824-0783 3105280400 SCREW M M3*0.5*4 FLAT C S20C Z 4 46 M-SCW-0824-0779 3109017700 SCREW T M3*2.7*7.5 FF C S18C Z 2 47 M-SCW-0824-0779 3109017700 SCREW T M3*2.7*7.5 FF C S18C Z 2 48 M-SCW-0824-0780 3109019100 SCREW T M3*2.7*7.2 FLAT C S18C 4 49 M-SCW-0824-0780 3109019100 SCREW T M3*2.7*7.2 FLAT C S18C 4 50 B-IF-0222-0038 5600110087 LCD I/F BD ASSY L18JBW 05ABB 1 51 A-AD-0114-0186 0993027302 52 B-SB-0221-0542 4900505780 DC-AC INVERTER 18" FOR LG PANE 1

POWER 90-264VAC 12V 4.22A COMP 1

1 1

1 4 4 1 4 8

4 5

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

8. Schematic Diagram

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

ViewSonic Corporation

Confidential – Do Not Copy

VP181b/s-2b/s

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

ViewSonic Corporation

Confidential – Do Not Copy

VP181b/s-2b/s

ViewSonic Corporation

Confidential – Do Not Copy

VP181b/s-2b/s

9. PCB Layout

ViewSonic Corporation

Confidential – Do Not Copy

VP181b/s-2b/s

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

10. Recommended Spare Parts List

VP181b-2 Recommended Spare Parts List

Item ViewSonic P/N Ref. P/N Description

1 A-AD-0114-0186 0993027302 POWER 90-264VAC 12V 4.22A COMP 2 B-KB-0207-0034 3000725100 SWITCH MEMBRANE PET 100*9 VP18 3 A-PC-0106-0193 3070000501 AC POWER CORD L1800 BLACK EURO 4 M-MS-0808-8555 3080323801 CABLE USB 2.0 A_B L1800 BLACK 5 A-VC-0101-0322 3080414200 CABLE D-SUB/D-SUB L1800 BLACK 6 A-VC-0101-0323 3080421001 CABLE D-SUB/D-SUB L1800 BLK OD 7 A-VC-0101-0324 3080421500 CABLE DVI-D/DVI-D L1800 BLK OD 8 A-PC-0106-0229 3090119001 AC POWER CORD L1830 BLACK US

9 M-SCW-0824-0772 3100130800 SCREW M M3*0.5*8 FPH C S20C ZN 10 M-SCW-0824-0773 3105034400 SCREW M M3*0.5*6 FLAT C S20C Z 11 M-SCW-0824-0690 3105051501 SCREW M #4-40*7 HEXH #4-40*3 S 12 M-SCW-0824-0774 3105120600 SCREW M M4*0.7*8 PAN C S+P S10 13 M-SCW-0824-0775 3105123700 SCREW M M4*0.7*10 FF C S18C ZN 14 M-SCW-0824-0775 3105123700 SCREW M M4*0.7*10 FF C S18C ZN 15 M-SCW-0824-0776 3105221000 SCREW M M3*0.5*6 FF C S18C ZN 16 M-SCW-0824-0777 3105225300 SCREW M M3*0.5*4 FF C S18C ZN 17 M-SCW-0824-0778 3105229400 SCREW M M3*0.5*10 FF C S18C ZN 18 M-SCW-0824-0779 3109017700 SCREW T M3*2.7*7.5 FF C S18C Z 19 M-SCW-0824-0779 3109017700 SCREW T M3*2.7*7.5 FF C S18C Z 20 M-SCW-0824-0780 3109019100 SCREW T M3*2.7*7.2 FLAT C S18C 21 M-SCW-0824-0780 3109019100 SCREW T M3*2.7*7.2 FLAT C S18C 22 M-MS-0808-8040 3110250000 WASHER SPRING SWRT 23 M-LB-0813-0785 3200158900 LABEL STICKER OD10 WHT HI-POT 24 M-LB-0813-0712 3200449700 LABEL WARING 25 M-MS-0808-8556 3200649100 NAME PLATE VSC 3-BIRD LOGO AL 26 M-MS-0808-8581 3200649201 NAME PLATE VIEWSONIC ABS 82.83 27 M-LB-0813-0384 3200712700 LABEL CONTROL 100*90 28 M-LB-0813-0551 3200744000 LABEL BAR CODE 55*15 VSC-G 29 M-LB-0813-0696 3200753101 LABEL BAR CODE 76*121 VIEWSONI 30 M-LB-0813-0759 3200930800 LABEL VER. CONTROL 20*20 VIEWS 31 M-LB-0813-0789 3201948800 LABEL ID 100*50 VSC VP181B-2 32 M-LB-0813-0714 3202310700 LABEL HV WARNING 100*25 33 M-MS-0808-8584 3211025700 MYLAR 380*305 T.2 34 M-MS-0808-7811 3221101900 TAPE W=76 PP47 50M 4P 35 M-MS-0808-8582 3240055300 CONDUCTIVE TAPE AL W25*L140 AL 36 M-MS-0808-8557 3240055600 CONDUCTIVE TAPE AL W50*L55 112 37 M-MS-0808-8583 3240160800 SPONGE EVA 5.8*5 T.5 BLK 38 M-MS-0808-6372 3240941800 RUBBER PAD 25L*10W*2T BLACK 39 PL-PD-0714-0098 3240967300 RUBBER PAD OD20 T3 BLK 40 PL-PD-0714-0099 3240967700 RUBBER PAD 12*4 T1.6 BLK 41 M-MS-0808-8558 3241126900 INSULATOR PC T.3 227*10 42 C-BC-0302-0498 3360241401 CABINET BACK ABS MIDNIGHT GRAY 43 M-MS-0808-8559 3360506800 LED LENS ABS 1865-12 S8LRB1LS 44 PL-NB-0707-0192 3360624900 POWER KNOB POM M270 MIDNIGHT G 45 C-FP-0301-0334 3361075302 F/B ABS MIDNIGHT GRAY VP181B-2 46 M-CV-0830-2436 3361204900 COVER STAND FRONT ABS MIDNIGHT 47 M-CV-0830-2437 3361205000 COVER STAND BOTTOM ABS MIDNIGH 48 M-CV-0830-2438 3361205100 COVER STAND REAR ABS MIDNIGHT 49 M-CV-0830-2439 3361205201 COVER BASE ABS MIDNIGHT GRAY S 50 M-CV-0830-2440 3361205300 COVER HINGE1 ABS MIDNIGHT GRAY 51 M-CV-0830-2441 3361205401 COVER HINGE2 ABS MIDNIGHT GRAY 52 M-CV-0830-2442 3362010801 COVER VESA ABS MIDNIGHT GRAY S 53 C-FP-0301-0335 3368191102 F/B ASSY L18JBW05ABB S8LFB1LS 54 C-BS-0303-0362 3368990202 STAND ASSY L18JBW05ABB S8LBB1L 55 M-MS-0808-8560 3460145901 BRACKE PANEL SIDE SECC 310*30* 56 M-MS-0808-8561 3460146100 BRACKET VESA SECC 110*20 T1 57 M-MS-0808-8562 3460146201 BRACKET D-SUB SECC 239*36.5*3. 58 M-MS-0808-8563 3460146300 BRACKET KEYLOCK SECC 20.4*16.4 59 M-MS-0808-8564 3460146401 BRACKET BASE1 SECC 164*139 T2 60 M-MS-0808-8565 3460146501 BRACKET BASE2 SECC OD139*163.3 61 M-MS-0808-8566 3460146601 BRACKET BASE2 FOOT1 SECC OD182 62 M-MS-0808-8567 3460146701 BRACKET BASE FOOT2 SECC 159.8* 63 M-MS-0808-8568 3460146901 BRACKET PANEL SECC 380*230 T.8 64 M-MS-0808-8569 3460149101 BRACKET BASE3 SECC OD139.01*16 65 M-MS-0808-8570 3461225501 SHIELD CAN I/F&POWER SPTH 265. 66 M-MS-0808-8571 3461225601 SHIELD CAN IV SECC 218.6*61.3 67 M-MS-0808-8572 3461752001 HINGE SECC 312.5*51.82 L18JBW0 68 M-MS-0808-8573 3470307501 WIRE SADDLE NYLON66 MIDNIGHT G 69 M-MS-0808-8576 3472854000 CONDUCTIVE SPONGE 55*5.5*10 77 70 M-MS-0808-8574 3472853801 CONDUCTIVE SPONGE 30*5.5*3 71 M-MS-0808-8575 3472853900 CONDUCTIVE SPONGE 10*10*10 72 P-FM-0602-0585 3500104400 END BLOCK-R EPS L18JBW05AAW 73 P-FM-0602-0586 3500104500 END BLOCK-L EPS L18JBW05AAW 74 M-MS-0808-7674 3500932401 PE BAG 500*640 T=0.06 CLEAN 75 M-MS-0808-8577 3500937500 PE BAG 300*200*0.06T 76 P-BX-0601-0803 3512237900 CARTON 523*308*462 VSC VP181B77 M-MS-0808-8396 3520094201 PE BAG 260*155*0.1T 78 79 M-MS-0808-8578 3532064400 MANUAL PACKING ASSY VSC VP181B 80 A-CD-VP181B-2 3532064500 CD-ROM VSC A-CD-VP181B-2 81 M-WR-0828-0729 3670196000 WIRE WITH HOUSING 20276 #30 L1 82 M-WR-0828-0730 3670704700 WIRE WITH HOUSING 1007 #28 L15 83 B-SB-0221-0526 4900504980 DC-AC INVERTER 18" FOR LG PANE 84 M-MS-0808-8579 5011089500 MANUAL QUICK START GUIDE VSC V 85 M-MS-0808-8580 5012032900 ENVELOPE FOR CD VSC PORTRAIT W 86 M-LCD-0826-0161 5051801050 LCD 18.1" TFT PANEL XGA 87 B-IF-0222-0038 5600110074 LCD I/F BD ASSY L18JBW 05AAW

3532040100 CD-ROM VSC G90F-3

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

VP181s-2 Recommended Spare Parts

Item ViewSonic P/N Reference Description

1 A-AD-0114-0186 2 B-KB-0207-0034 3 A-PC-0106-0193 4 M-MS-0808-8555 5 A-VC-0101-0324 6 A-VC-0101-0336 7 A-PC-0106-0229 8 M-SCW-0824-0772

9 M-SCW-0824-0773 10 M-SCW-0824-0690 11 M-SCW-0824-0774 12 M-SCW-0824-0775 13 M-SCW-0824-0781 14 M-SCW-0824-0776 15 M-SCW-0824-0777 16 M-SCW-0824-0778 17 M-SCW-0824-0782 18 M-SCW-0824-0783 19 M-SCW-0824-0779 20 M-SCW-0824-0780 21 M-MS-0808-8040 22 M-LB-0813-0785 23 M-MS-0808-8556 24 M-MS-0808-8758 25 M-LB-0813-0551 26 M-LB-0813-0696 27 M-LB-0813-0836 28 M-LB-0813-0714 29 M-MS-0808-8584 30 M-MS-0808-8202 31 M-MS-0808-7810 32 M-MS-0808-8582 33 M-MS-0808-8759 34 M-MS-0808-8583 35 M-MS-0808-6372 36 PL-PD-0714-0100 37 PL-PD-0714-0101 38 M-MS-0808-8558 39 C-BC-0302-0513 40 M-MS-0808-8559 41 PL-NB-0707-0200 42 C-FP-0301-0359 43 M-CV-0830-2458 44 M-CV-0830-2459 45 M-CV-0830-2460 46 M-CV-0830-2461 47 M-CV-0830-2462 48 M-CV-0830-2463 49 M-CV-0830-2464 50 C-FP-0301-0360 51 C-BS-0303-0373 52 M-MS-0808-8760 53 M-MS-0808-8561 54 M-MS-0808-8761 55 M-MS-0808-8563 56 M-MS-0808-8564 57 M-MS-0808-8565 58 M-MS-0808-8566 59 M-MS-0808-8567 60 M-MS-0808-8568 61 M-MS-0808-8569 62 M-MS-0808-8570 63 M-MS-0808-8571 64 M-MS-0808-8572 65 M-MS-0808-8641 66 M-WR-0828-0739 67 M-MS-0808-8574 68 M-MS-0808-8575 69 M-MS-0808-8576 70 P-FM-0602-0585 71 P-FM-0602-0586 72 M-MS-0808-7674

0993027302 POWER 90-264VAC 12V 4.22A COMP 3000725100 SWITCH MEMBRANE PET 100*9 VP18 3070000501 AC POWER CORD L1800 BLACK EURO 3080323801 CABLE USB 2.0 A_B L1800 BLACK 3080421500 CABLE DVI-D/DVI-D L1800 BLK OD 3080423500 CABLE D-SUB/D-SUB L1800 BLACK 3090119001 AC POWER CORD L1830 BLACK US 3100130800 SCREW M M3*0.5*8 FPH C S20C ZN 3105034400 SCREW M M3*0.5*6 FLAT C S20C Z 3105051501 SCREW M #4-40*7 HEXH #4-40*3 S 3105120600 SCREW M M4*0.7*8 PAN C S+P S10 3105123700 SCREW M M4*0.7*10 FF C S18C ZN 3105127100 SCREW M M4*0.7*12 FF C S18C ZN 3105221000 SCREW M M3*0.5*6 FF C S18C ZN 3105225300 SCREW M M3*0.5*4 FF C S18C ZN 3105229400 SCREW M M3*0.5*10 FF C S18C ZN 3105280200 SCREW M M3*0.5*4 FF C S18C ZN 3105280400 SCREW M M3*0.5*4 FLAT C S20C Z 3109017700 SCREW T M3*2.7*7.5 FF C S18C Z 3109019100 SCREW T M3*2.7*7.2 FLAT C S18C 3110250000 WASHER SPRING SWRT 3200158900 LABEL STICKER OD10 WHT HI-POT 3200649100 NAME PLATE VSC 3-BIRD LOGO AL 3200651100 NAME PLATE VIEWSONIC ABS 41 82 3200744000 LABEL BAR CODE 55*15 VSC-G 3200753101 LABEL BAR CODE 76*121 VIEWSONIC 3201951600 LABEL ID 100*50 VSC VP181S-1 3202310700 LABEL HV WARNING 100*25 3211025700 MYLAR 380*305 T.1 3220133600 TAPE W=10 #1350F-1 3M 3220605633 TAPE W=45 #7290 NITTO 3240055300 CONDUCTIVE TAPE AL W25*L140 AL 3240055400 CONDUCTIVE TAPE AL W25*L80 AL3240160800 SPONGE EVA 5.8*5 T.5 BLK 3240941800 RUBBER PAD 25L*10W*2T BLACK 3240957000 RUBBER PAD OD20 T4 BLACK 3240968900 RUBBER PAD 20*20 T3 BLK 3241126900 INSULATOR PC T.3 227*10 3360244600 CABINET BACK ABS 41 S8LRB1LS 3360506800 LED LENS ABS 1865-12 S8LRB1LS 3360626400 POWER KNOB POM M270 SILVER S8L 3361080600 F/B ABS SILVER VP181S-1 S8LFB1 3361207400 COVER VESA ABS 41S8LBB1LS 3361207500 COVER STAND FRONT ABS 41 S8LBB 3361207600 COVER STAND BOTTOM ABS 41 S8LB 3361207700 COVER STAND REAR ABS 41 S8LBB1 3361207800 COVER BASE ABS 41 S8LBB1LS 3361207900 COVER HINGE1 ABS 41 S8LBB1LS 3361208000 COVER HINGE2 ABS 41 S8LBB1LS 3368196600 F/B ASSY L18JBW05ADB S8LFB1LS 3368991000 STAND ASSY L18JBW05ABB S8LBB1L 3460145900 BRACKET PANEL SIDE SECC 310*30* 3460146100 BRACKET VESA SECC 110*20 T1 3460146200 BRACKET D-SUB SECC 239*36.5*3. 3460146300 BRACKET KEYLOCK SECC 20.4*16.4 3460146401 BRACKET BASE1 SECC 164*139 T2 3460146501 BRACKET BASE2 SECC OD139*163.3 3460146601 BRACKET BASE2 FOOT1 SECC OD182 3460146701 BRACKET BASE FOOT2 SECC 159.8* 3460146901 BRACKET PANEL SECC 380*230 T.8 3460149101 BRACKET BASE3 SECC OD139.01*16 3461225501 SHIELD CAN I/F&POWER SPTH 265. 3461225601 SHIELD CAN IV SECC 218.6*61.3 3461752001 HINGE SECC 312.5*51.82 L18JBW0 3463001100 CONDUCTIVE AL 25*60 T0.06 3470308700 WIRE SADDLE NYLON66 41 3472853801 CONDUCTIVE SPONGE 30*5.5*3 3472853900 CONDUCTIVE SPONGE 10*10*10 3472854000 CONDUCTIVE SPONGE 55*5.5*15 3500104400 END BLOCK-R EPS L18JBW05AAW 3500104500 END BLOCK-L EPS L18JBW05AAW 3500932401 PE BAG 500*640 T=0.06 CLEAN

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Reference Description

73 M-MS-0808-8762 74 P-BX-0601-0837 75 M-MS-0808-5135 76 M-MS-0808-8396 77 A-CD-VP181S-2 78 A-CD-0001 79 M-MS-0808-8763 80 A-CD-VP181S 81 M-WR-0828-0729 82 M-WR-0828-0730 83 B-SB-0221-0542 84 M-MS-0808-8764 85 M-MS-0808-8580 86 M-LCD-0826-0161 87 B-IF-0222-0041

3500937501 PE BAG 300*200*0.06T 3512241700 CARTON 523*308*462 VSC VP181S3520082400 PE FILM t=0.02mm W=500 3520094201 PE BAG 260*155*0.1T 3532040100 CD-ROM VSC VSPP010920 V7.0 3532064200 PORTRAIT CD ASSY 3532067300 MANUAL PACKING ASSY VSC VP181S 3532067400 CD-ROM VSC A-CD-VP181S-1VP181S 3670196000 WIRE WITH HOUSING 20276 #30 L1 3670704700 WIRE WITH HOUSING 1007 #28 L15 4900505780 DC-AC INVERTER 18" FOR LG PANE 5011090800 MANUAL QUICK START GUIDE VSC V 5012032900 ENVELOPE FOR CD VSC PORTRAIT W 5051801050 LCD 18.1" TFT PANEL XGA 5600110099 LCD I/F BD ASSY L18JBR 05ADB

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

11. Electrical Parts List

VP181b-2 BOM List

Item ViewSonic P/N Ref. P/N Description Location Q'ty

1 A-AD-0114-0186 0993027302 POWER 90-264VAC 12V 4.22A COMP 1 2 M-WR-0828-0729 3670196000 WIRE WITH HOUSING 20276 #30 L1 R01 1 3 M-WR-0828-0730 3670704700 WIRE WITH HOUSING 1007 #28 L15 R01 1 4 B-SB-0221-0542 4900505780 DC-AC INVERTER 18" FOR LG PANE CY01 1 5 0914740111 NTC R=470K OHM J B=5200+-7% CY02 1 6 0914740116 NTC R=470K J B=5200+-7% CY03 1 7 1160410332 CAP CD 3KV 15P J SL KI7.5 CY04 1 8 1160410332 CAP CD 3KV 15P J SL KI7.5 CY05 1

9 1160410332 CAP CD 3KV 15P J SL KI7.5 CY06 1 10 1160410332 CAP CD 3KV 15P J SL KI7.5 C33 1 11 1160410332 CAP CD 3KV 15P J SL KI7.5 C36 1 12 1160410332 CAP CD 3KV 15P J SL KI7.5 C33 1 13 14015221144 CAP AL LD 35V 220U M 10*12.5 T C36 1 14 14015221144 CAP AL LD 35V 220U M 10*12.5 T CN01 1 15 14015221146 CAP AL LD 35V 220U M 10*12.5 T CN01 1 16 14015221146 CAP AL LD 35V 220U M 10*12.5 T LABEL 1 17 3070420631 HEADER NYLON66 94V-0 7 PIN INSULATOR 1 18 3071324334 HEADER NY66 94V-0 7P P2.0 PML 1 19 3500304600 EPE PAD 500*370*3 PWB ASSY 1 20 3500722500 CELLS 370*245*23 FOR 12B084 A D07 1 21 3510251400 CORRUGATED PAPER 535*415*5.6 R13 1 22 3813509500 PWB ASSY FOR DAC-12B079 E R17 1 23 0313000000 RES CH 1/4W ZERO J 1206 R39 1 24 0341069300 RES CH 1/10W 27K F 0603 R12 1 25 0341070300 RES CH 1/10W 30K F 0603 R20 1 26 E-R-0405-7028 0341071300 RES CH 1/10W 33K F 0603 R02 1 27 E-R-0405-7034 0341077300 RES CH 1/10W 47K F 0603 R14 1 28 0341085300 RES CH 1/10W 91K F 0603 R41 1 29 0341087300 RES CH 1/10W 100K F 0603 R45 1 30 0341093300 RES CH 1/10W 180K F 0603 R22 1 31 0341113300 RES CH 1/10W 2K F 0603 R24 1 32 0341113300 RES CH 1/10W 2K F 0603 R26 1 33 E-R-0405-7038 0341421300 RES CH 1/10W 560 F 0603 R31 1 34 E-R-0405-7038 0341421300 RES CH 1/10W 560 F 0603 R33 1 35 E-R-0405-7038 0341421300 RES CH 1/10W 560 F 0603 R35 1 36 E-R-0405-7038 0341421300 RES CH 1/10W 560 F 0603 R10 1 37 E-R-0405-7038 0341421300 RES CH 1/10W 560 F 0603 R04 1 38 E-R-0405-7038 0341421300 RES CH 1/10W 560 F 0603 R15 1 39 0341485300 RES CH 1/10W 2M F 0603 R08 1 40 E-R-0405-7049 0343100300 RES CH 1/10W 10 J 0603 R42 1 41 E-R-0405-7049 0343100300 RES CH 1/10W 10 J 0603 R46 1 42 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R03 1 43 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R37 1 44 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R38 1 45 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R40 1 46 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R44 1 47 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R47 1 48 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R48 1 49 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R11 1 50 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R50 1 51 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R05 1 52 E-R-0405-7050 0343104300 RES CH 1/10W 100K J 0603 R06 1 53 E-R-0405-7050 0343104300 RES CH 1/10W 100K J 0603 R07 1 54 E-R-0405-6686 0343105300 RES CH 1/10W 1M J 0603 R19 1 55 E-R-0405-6686 0343105300 RES CH 1/10W 1M J 0603 R28 1 56 E-R-0405-6686 0343105300 RES CH 1/10W 1M J 0603 R29 1 57 E-R-0405-6686 0343105300 RES CH 1/10W 1M J 0603 R30 1 58 E-R-0405-6686 0343105300 RES CH 1/10W 1M J 0603 R18 1 59 E-R-0405-6686 0343105300 RES CH 1/10W 1M J 0603 R43 1 60 E-R-0405-6686 0343105300 RES CH 1/10W 1M J 0603 R09 1 61 0343200300 RES CH 1/10W 20 J 0603 R23 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

62 0343200300 RES CH 1/10W 20 J 0603 R25 1 63 E-R-0405-7042 0343220300 RES CH 1/10W 22 J 0603 R27 1 64 0343391300 RES CH 1/10W 390 J 0603 R32 1 65 0343391300 RES CH 1/10W 390 J 0603 R34 1 66 0343391300 RES CH 1/10W 390 J 0603 R36 1 67 0343391300 RES CH 1/10W 390 J 0603 R16 1 68 0343391300 RES CH 1/10W 390 J 0603 F01 1 69 0343391300 RES CH 1/10W 390 J 0603 F02 1 70 E-R-0405-7044 0343513300 RES CH 1/10W 51K J 0603 F01 1 71 0869010302 FUSE F/SMD 2A 63V 1206 F02 1 72 0869010302 FUSE F/SMD 2A 63V 1206 F01 1 73 0869010303 FUSE F/SMD 2A 63V 1206 F02 1 74 0869010303 FUSE F/SMD 2A 63V 1206 C12 1 75 0869030302 FUSE VF/SMD 2A 63V 1206 UL CSA C12 1 76 0869030302 FUSE VF/SMD 2A 63V 1206 UL CSA C06 1 77 1511538003 CAP MC CP 50V 220P J C0G 0603 C19 1 78 1511538004 CAP MC CP 50V 220P J C0G 0603 C38 1 79 E-C-0404-4882 1512452000 CAP MC CP 50V 6.8KP K X7R 0603 C05 1 80 E-C-0404-4871 1512466100 CAP MC CP 50V .033U K X7R 0805 C10 1 81 E-C-0404-4873 1512479000 CAP MC CP 50V 1.5KP K X7R 0603 C15 1 82 E-C-0404-4865 1542458000 CAP MC CP 16V .1U K X7R 0603 C08 1 83 E-C-0404-4865 1542458000 CAP MC CP 16V .1U K X7R 0603 C09 1 84 E-C-0404-4865 1542458000 CAP MC CP 16V .1U K X7R 0603 C01 1 85 1542464100 CAP MC CP 16V .47U K X7R 0805 C02 1 86 1542467100 CAP MC CP 16V 1U K X7R 0805 C39 1 87 E-C-0404-4867 1542491331 CAP MC CP 16V 10U K X7R 1210 C40 1 88 E-C-0404-4867 1542491331 CAP MC CP 16V 10U K X7R 1210 C11 1 89 E-C-0404-4867 1542491331 CAP MC CP 16V 10U K X7R 1210 C13 1 90 E-C-0404-4867 1542491331 CAP MC CP 16V 10U K X7R 1210 C03 1 91 1552454000 CAP MC CP 25V .01U K X7R 0603 C21 1 92 1552454000 CAP MC CP 25V .01U K X7R 0603 C22 1 93 E-C-0404-4868 1552458100 CAP MC CP 25V .1U K X7R 0805 C23 1 94 E-C-0404-4868 1552458100 CAP MC CP 25V .1U K X7R 0805 C24 1 95 E-C-0404-4868 1552458100 CAP MC CP 25V .1U K X7R 0805 C25 1 96 E-C-0404-4868 1552458100 CAP MC CP 25V .1U K X7R 0805 C04 1 97 E-C-0404-4868 1552458100 CAP MC CP 25V .1U K X7R 0805 ZD01 1 98 E-C-0404-4868 1552458100 CAP MC CP 25V .1U K X7R 0805 D14 1 99 15A2467031 CAP MC CP 10V 1U K X7R 0603 D15 1

100 20384034023 DIO ZEN 0.2W 5.49-5.73V UMD2(S D16 1 101 20452070021 DIO SW 0.2A 70V SOT-23 SE. D17 1 102 20452070021 DIO SW 0.2A 70V SOT-23 SE. D18 1 103 20452070021 DIO SW 0.2A 70V SOT-23 SE. D19 1 104 20452070021 DIO SW 0.2A 70V SOT-23 SE. D20 1 105 20452070021 DIO SW 0.2A 70V SOT-23 SE. D14 1 106 20452070021 DIO SW 0.2A 70V SOT-23 SE. D15 1 107 20452070021 DIO SW 0.2A 70V SOT-23 SE. D16 1 108 20452070023 DIO SW 0.3A 75V SOT-23 SE. D17 1 109 20452070023 DIO SW 0.3A 75V SOT-23 SE. D18 1 110 20452070023 DIO SW 0.3A 75V SOT-23 SE. D19 1 111 20452070023 DIO SW 0.3A 75V SOT-23 SE. D20 1 112 20452070023 DIO SW 0.3A 75V SOT-23 SE. D01 1 113 20452070023 DIO SW 0.3A 75V SOT-23 SE. D02 1 114 20452070023 DIO SW 0.3A 75V SOT-23 SE. D03 1 115 20481075011 DIO SW 0.2A 75V LL-34(MINIMELF D04 1 116 20481075011 DIO SW 0.2A 75V LL-34(MINIMELF D05 1 117 20481075011 DIO SW 0.2A 75V LL-34(MINIMELF D06 1 118 20481075011 DIO SW 0.2A 75V LL-34(MINIMELF D01 1 119 20481075011 DIO SW 0.2A 75V LL-34(MINIMELF D02 1 120 20481075011 DIO SW 0.2A 75V LL-34(MINIMELF D03 1 121 20481075013 DIO SW 0.15A 75V MINIMELF D04 1 122 20481075013 DIO SW 0.15A 75V MINIMELF D05 1 123 20481075013 DIO SW 0.15A 75V MINIMELF D06 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

124 20481075013 DIO SW 0.15A 75V MINIMELF D01 1 125 20481075013 DIO SW 0.15A 75V MINIMELF D02 1 126 20481075013 DIO SW 0.15A 75V MINIMELF D03 1 127 20481075013 DIO SW 0.15A 75V MINIMELF D04 1 128 20481075013 DIO SW 0.15A 75V MINIMELF D05 1 129 20481075013 DIO SW 0.15A 75V MINIMELF D06 1 130 20481075013 DIO SW 0.15A 75V MINIMELF D08 1 131 20481075013 DIO SW 0.15A 75V MINIMELF D09 1 132 20481075013 DIO SW 0.15A 75V MINIMELF D10 1 133 20484075000 DIO SW 0.2A 75V SOD-323 D11 1 134 20484075000 DIO SW 0.2A 75V SOD-323 D12 1 135 20484075000 DIO SW 0.2A 75V SOD-323 D13 1 136 20484075000 DIO SW 0.2A 75V SOD-323 D21 1 137 20484075000 DIO SW 0.2A 75V SOD-323 D08 1 138 20484075000 DIO SW 0.2A 75V SOD-323 D09 1 139 20484075000 DIO SW 0.2A 75V SOD-323 D10 1 140 20484075023 DIO SW 0.15A 75V SOD-323 D11 1 141 20484075023 DIO SW 0.15A 75V SOD-323 D12 1 142 20484075023 DIO SW 0.15A 75V SOD-323 D13 1 143 20484075023 DIO SW 0.15A 75V SOD-323 D21 1 144 20484075023 DIO SW 0.15A 75V SOD-323 D08 1 145 20484075023 DIO SW 0.15A 75V SOD-323 D09 1 146 20484075023 DIO SW 0.15A 75V SOD-323 D10 1 147 20484080003 DIO SW 0.1A 80V SOD-323 D11 1 148 20484080003 DIO SW 0.1A 80V SOD-323 D12 1 149 20484080003 DIO SW 0.1A 80V SOD-323 D13 1 150 20484080003 DIO SW 0.1A 80V SOD-323 D21 1 151 20484080003 DIO SW 0.1A 80V SOD-323 Q06 1 152 20484080003 DIO SW 0.1A 80V SOD-323 Q10 1 153 20484080003 DIO SW 0.1A 80V SOD-323 Q16 1 154 21052200050 TR 40V 0.6A SOT-23 80 Q06 1 155 21052200050 TR 40V 0.6A SOT-23 80 Q10 1 156 21052200050 TR 40V 0.6A SOT-23 80 Q16 1 157 21052200051 TR 40V 1.0A SOT-23 80 Q07 1 158 21052200051 TR 40V 1.0A SOT-23 80 Q07 1 159 21052200051 TR 40V 1.0A SOT-23 80 Q11 1 160 21052250013 TR 50V 0.03A SMT3 56 Q17 1 161 21052250060 TR 50V 0.1A 2-3F1A 70 Q11 1 162 21152200040 TR -40V -0.6A SOT-23 100 Q17 1 163 21152200040 TR -40V -0.6A SOT-23 100 Q09 1 164 21152200041 TR -40V -0.8A SOT-23 100 Q09 1 165 21152200041 TR -40V -0.8A SOT-23 100 Q01 1 166 21152250020 TR -50V -0.1A 2-3F1A 50 Q02 1 167 21152250023 TR -50V -0.5A CP 50 Q03 1 168 24252250001 FET 60V 0.115A 5ohm SOT-23 Q04 1 169 24252250001 FET 60V 0.115A 5ohm SOT-23 Q05 1 170 24252250001 FET 60V 0.115A 5ohm SOT-23 Q08 1 171 24252250001 FET 60V 0.115A 5ohm SOT-23 Q24 1 172 24252250001 FET 60V 0.115A 5ohm SOT-23 Q25 1 173 24252250001 FET 60V 0.115A 5ohm SOT-23 Q26 1 174 24252250001 FET 60V 0.115A 5ohm SOT-23 Q27 1 175 24252250001 FET 60V 0.115A 5ohm SOT-23 Q01 1 176 24252250001 FET 60V 0.115A 5ohm SOT-23 Q02 1 177 24252250001 FET 60V 0.115A 5ohm SOT-23 Q03 1 178 24252250003 FET 60V 0.115A 7.5ohm SOT-23 Q04 1 179 24252250003 FET 60V 0.115A 7.5ohm SOT-23 Q05 1 180 24252250003 FET 60V 0.115A 7.5ohm SOT-23 Q08 1 181 24252250003 FET 60V 0.115A 7.5ohm SOT-23 Q24 1 182 24252250003 FET 60V 0.115A 7.5ohm SOT-23 Q25 1 183 24252250003 FET 60V 0.115A 7.5ohm SOT-23 Q26 1 184 24252250003 FET 60V 0.115A 7.5ohm SOT-23 Q27 1 185 24252250003 FET 60V 0.115A 7.5ohm SOT-23 IC02 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

186 24252250003 FET 60V 0.115A 7.5ohm SOT-23 IC03 1 187 24252250003 FET 60V 0.115A 7.5ohm SOT-23 IC04 1 188 24260100020 FET 30V 7A 0.022ohm SO-8 N+P IC05 1 189 24260100020 FET 30V 7A 0.022ohm SO-8 N+P IC02 1 190 24260100020 FET 30V 7A 0.022ohm SO-8 N+P IC03 1 191 24260100020 FET 30V 7A 0.022ohm SO-8 N+P IC04 1 192 24260100021 FET 30V 7A 0.028ohm SO-8 N+P IC05 1 193 24260100021 FET 30V 7A 0.028ohm SO-8 N+P IC01 1 194 24260100021 FET 30V 7A 0.028ohm SO-8 N+P T01 1 195 E-IC-0401-2520 2510301154 IC PWM CCFL CONTROLLER SSOP-20 1 196 2801979400 X'FMR INVERTER 00A-3321 1 197 3184630000 BOBBIN BASE LCP EFD11.7 1 198 2801979400 X'FMR INVERTER 00A-3321 T02 1 199 2801979400 X'FMR INVERTER 00A-3321 T04 1 200 2801979400 X'FMR INVERTER 00A-3321 T05 1 201 2801979400 X'FMR INVERTER 00A-3321 T06 1 202 2817393200 INVERTER X'FMR UI-11.7 T01 1 203 2817393200 INVERTER X'FMR UI-11.7 T02 1 204 2817393200 INVERTER X'FMR UI-11.7 T03 1 205 2817393200 INVERTER X'FMR UI-11.7 T04 1 206 2817393200 INVERTER X'FMR UI-11.7 T05 1 207 2817393200 INVERTER X'FMR UI-11.7 T06 1 208 2994714601 PWB D 0 L2 I1/E1 FR4 179*40*1. PCB 1 209 3070075000 HEADER NY66 94V0 2PIN CN02 1 210 3070075000 HEADER NY66 94V0 2PIN CN03 1 211 3070075000 HEADER NY66 94V0 2PIN CN04 1 212 3070075000 HEADER NY66 94V0 2PIN CN05 1 213 3070075000 HEADER NY66 94V0 2PIN CN06 1 214 3070075000 HEADER NY66 94V0 2PIN CN07 1 215 3070075166 HEADER NYLON46 94V0 2PIN SMD CN02 1 216 3070075166 HEADER NYLON46 94V0 2PIN SMD CN03 1 217 3070075166 HEADER NYLON46 94V0 2PIN SMD CN04 1 218 3070075166 HEADER NYLON46 94V0 2PIN SMD CN05 1 219 3070075166 HEADER NYLON46 94V0 2PIN SMD CN06 1 220 3070075166 HEADER NYLON46 94V0 2PIN SMD CN07 1 221 3076790051 HEADER HOUSING 94V0 2P P3.5 R CN02 1 222 3076790051 HEADER HOUSING 94V0 2P P3.5 R CN03 1 223 3076790051 HEADER HOUSING 94V0 2P P3.5 R CN04 1 224 3076790051 HEADER HOUSING 94V0 2P P3.5 R CN05 1 225 3076790051 HEADER HOUSING 94V0 2P P3.5 R CN06 1 226 3076790051 HEADER HOUSING 94V0 2P P3.5 R CN07 1 227 3076790083 HEADER HOUSING 94V0 2P P3.5 R CN02 1 228 3076790083 HEADER HOUSING 94V0 2P P3.5 R CN03 1 229 3076790083 HEADER HOUSING 94V0 2P P3.5 R CN04 1 230 3076790083 HEADER HOUSING 94V0 2P P3.5 R CN05 1 231 3076790083 HEADER HOUSING 94V0 2P P3.5 R CN06 1 232 3076790083 HEADER HOUSING 94V0 2P P3.5 R CN07 1 233 E-R-0405-7040 X034005500 RES CH 1/10W 62K F 0603 R21 1 234 M-LCD-0826-0161 5051801050 LCD 18.1" TFT PANEL XGA 1 235 B-IF-0222-0038 5600110087 LCD I/F BD ASSY L18JBW 05ABB 1 236 0313151000 RES CH 1/4W 150 J 1206 R274 1 237 0313151000 RES CH 1/4W 150 J 1206 R275 1 238 0341052300 RES CH 1/10W 4.7K F 0603 R263 1 239 0341052300 RES CH 1/10W 4.7K F 0603 R264 1 240 0341052300 RES CH 1/10W 4.7K F 0603 R265 1 241 0341052300 RES CH 1/10W 4.7K F 0603 R266 1 242 0341059300 RES CH 1/10W 10K F 0603 R252 1 243 0341059300 RES CH 1/10W 10K F 0603 R254 1 244 0341070300 RES CH 1/10W 30K F 0603 R253 1 245 0341460300 RES CH 1/10W 16.5K F 0603 R251 1 246 E-R-0405-7041 0343000300 RES CH 1/10W ZERO J 0603 C257 1 247 E-R-0405-7041 0343000300 RES CH 1/10W ZERO J 0603 R508 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

248 E-R-0405-7041 0343000300 RES CH 1/10W ZERO J 0603 R514 1 249 E-R-0405-7041 0343000300 RES CH 1/10W ZERO J 0603 R515 1 250 E-R-0405-7041 0343000300 RES CH 1/10W ZERO J 0603 R633 1 251 E-R-0405-7041 0343000300 RES CH 1/10W ZERO J 0603 R661 1 252 E-R-0405-7049 0343100300 RES CH 1/10W 10 J 0603 R259 1 253 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R258 1 254 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R261 1 255 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R323 1 256 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R324 1 257 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R502 1 258 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R503 1 259 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R504 1 260 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R602 1 261 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R604 1 262 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R613 1 263 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R614 1 264 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R644 1 265 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R651 1 266 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R653 1 267 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R663 1 268 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R664 1 269 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R665 1 270 0343102100 RES CH 1/8W 1K J 0805 R257 1 271 0343102100 RES CH 1/8W 1K J 0805 R260 1 272 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R276 1 273 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R280 1 274 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R312 1 275 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R319 1 276 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R327 1 277 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R328 1 278 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R331 1 279 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R401 1 280 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R262 1 281 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R272 1 282 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R273 1 283 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R282 1 284 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R287 1 285 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R301 1 286 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R302 1 287 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R303 1 288 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R304 1 289 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R305 1 290 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R307 1 291 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R313 1 292 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R314 1 293 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R315 1 294 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R316 1 295 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R317 1 296 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R318 1 297 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R320 1 298 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R321 1 299 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R322 1 300 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R332 1 301 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R333 1 302 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R334 1 303 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R535 1 304 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R536 1 305 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R603 1 306 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R605 1 307 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R615 1 308 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R625 1 309 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R626 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

310 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R627 1 311 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R628 1 312 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R639 1 313 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R640 1 314 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R959 1 315 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R960 1 316 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R961 1 317 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R962 1 318 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R963 1 319 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R964 1 320 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R965 1 321 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R966 1 322 E-R-0405-7050 0343104300 RES CH 1/10W 100K J 0603 R306 1 323 E-R-0405-7050 0343104300 RES CH 1/10W 100K J 0603 R951 1 324 E-R-0405-7050 0343104300 RES CH 1/10W 100K J 0603 R957 1 325 0343106300 RES CH 1/10W 10M J 0603 R340 1 326 0343151300 RES CH 1/10W 150 J 0603 R619 1 327 0343151300 RES CH 1/10W 150 J 0603 R620 1 328 0343151300 RES CH 1/10W 150 J 0603 R621 1 329 0343151300 RES CH 1/10W 150 J 0603 R622 1 330 0343151300 RES CH 1/10W 150 J 0603 R623 1 331 0343151300 RES CH 1/10W 150 J 0603 R624 1 332 0343152300 RES CH 1/10W 1.5K J 0603 R953 1 333 0343153300 RES CH 1/10W 15K J 0603 R281 1 334 0343153300 RES CH 1/10W 15K J 0603 R952 1 335 0343153300 RES CH 1/10W 15K J 0603 R954 1 336 0343153300 RES CH 1/10W 15K J 0603 R955 1 337 0343153300 RES CH 1/10W 15K J 0603 R956 1 338 0343220100 RES CH 1/8W 22 J 0805 R255 1 339 0343220100 RES CH 1/8W 22 J 0805 R256 1 340 E-R-0405-7042 0343220300 RES CH 1/10W 22 J 0603 R509 1 341 E-R-0405-6687 0343222300 RES CH 1/10W 2.2K J 0603 R279 1 342 E-R-0405-6687 0343222300 RES CH 1/10W 2.2K J 0603 R601 1 343 E-R-0405-6687 0343222300 RES CH 1/10W 2.2K J 0603 R606 1 344 E-R-0405-6687 0343222300 RES CH 1/10W 2.2K J 0603 R607 1 345 E-R-0405-6687 0343222300 RES CH 1/10W 2.2K J 0603 R609 1 346 0343223300 RES CH 1/10W 22K J 0603 R283 1 347 0343223300 RES CH 1/10W 22K J 0603 R286 1 348 0343223300 RES CH 1/10W 22K J 0603 R402 1 349 E-R-0405-7058 0343330300 RES CH 1/10W 33 J 0603 R537 1 350 E-R-0405-7057 0343332300 RES CH 1/10W 3.3K J 0603 R284 1 351 E-R-0405-7057 0343332300 RES CH 1/10W 3.3K J 0603 R285 1 352 E-R-0405-7043 0343392300 RES CH 1/10W 3.9K J 0603 R269 1 353 E-R-0405-7043 0343392300 RES CH 1/10W 3.9K J 0603 R270 1 354 E-R-0405-6690 0343470300 RES CH 1/10W 47 J 0603 R337 1 355 E-R-0405-6690 0343470300 RES CH 1/10W 47 J 0603 R338 1 356 E-R-0405-6690 0343470300 RES CH 1/10W 47 J 0603 R339 1 357 E-R-0405-6690 0343470300 RES CH 1/10W 47 J 0603 R341 1 358 E-R-0405-6690 0343470300 RES CH 1/10W 47 J 0603 R342 1 359 E-R-0405-6690 0343470300 RES CH 1/10W 47 J 0603 R629 1 360 E-R-0405-6690 0343470300 RES CH 1/10W 47 J 0603 R630 1 361 E-R-0405-7033 0343471300 RES CH 1/10W 470 J 0603 R325 1 362 E-R-0405-7033 0343471300 RES CH 1/10W 470 J 0603 R330 1 363 E-R-0405-7031 0343472300 RES CH 1/10W 4.7K J 0603 R277 1 364 E-R-0405-7031 0343472300 RES CH 1/10W 4.7K J 0603 R278 1 365 0343474300 RES CH 1/10W 470K J 0603 R646 1 366 E-R-0405-6691 0343562300 RES CH 1/10W 5.6K J 0603 R268 1 367 E-R-0405-6691 0343562300 RES CH 1/10W 5.6K J 0603 R271 1 368 E-R-0405-6691 0343562300 RES CH 1/10W 5.6K J 0603 R308 1 369 E-R-0405-6691 0343562300 RES CH 1/10W 5.6K J 0603 R310 1 370 0343565300 RES CH 1/10W 5.6M J 0603 R659 1 371 0343683300 RES CH 1/10W 68K J 0603 R645 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

372 0343750100 RES CH 1/8W 75 J 0805 R632 1 373 0343750100 RES CH 1/8W 75 J 0805 R634 1 374 0343750100 RES CH 1/8W 75 J 0805 R635 1 375 0343750100 RES CH 1/8W 75 J 0805 R636 1 376 0343750100 RES CH 1/8W 75 J 0805 R637 1 377 0343750100 RES CH 1/8W 75 J 0805 R638 1 378 0343750300 RES CH 1/10W 75 J 0603 R506 1 379 0619700305 RES ARRAY 10K J SMD8*2 4*1.6 RP301 1 380 0619700305 RES ARRAY 10K J SMD8*2 4*1.6 RP507 1 381 0619700705 RES ARRAY 100 J SMD 8*2 4*1.6 RP304 1 382 0619701505 RES ARRAY 10 J SMD8*2 4*1.6 RP501 1 383 0619701505 RES ARRAY 10 J SMD8*2 4*1.6 RP502 1 384 0619701505 RES ARRAY 10 J SMD8*2 4*1.6 RP503 1 385 0619701505 RES ARRAY 10 J SMD8*2 4*1.6 RP504 1 386 0619701505 RES ARRAY 10 J SMD8*2 4*1.6 RP505 1 387 0619701505 RES ARRAY 10 J SMD8*2 4*1.6 RP506 1 388 0619900705 RES ARRAY 10K J 8P4R 1206 RP508 1 389 0619900712 RES ARRAY 10K J 8P4R 1206 RP508 1 390 M-LCD-0826-0129 0730180212 CRYSTAL 24MHZ +-30PPM 30PF 49U X401 1 391 M-LCD-0826-0129 0730180212 CRYSTAL 24MHZ +-30PPM 30PF 49U X951 1 392 M-LCD-0826-0128 0730500212 CRYSTAL 11.0592MHZ 30PPM 16PF X301 1 393 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA301 1 394 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA302 1 395 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA303 1 396 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA304 1 397 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA305 1 398 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA306 1 399 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA307 1 400 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA605 1 401 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA608 1 402 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA609 1 403 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA610 1 404 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA613 1 405 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA614 1 406 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA615 1 407 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA616 1 408 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA617 1 409 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA618 1 410 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA619 1 411 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA620 1 412 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA621 1 413 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA622 1 414 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA601 1 415 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA602 1 416 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA603 1 417 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA604 1 418 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA606 1 419 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA607 1 420 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA611 1 421 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA612 1 422 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA901 1 423 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA902 1 424 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA903 1 425 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA904 1 426 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA905 1 427 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA906 1 428 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA907 1 429 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA908 1 430 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA909 1 431 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA910 1 432 14902470120 CAP AL CP 6.3V 47U M 5*5.7 C613 1 433 14902470120 CAP AL CP 6.3V 47U M 5*5.7 C637 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

434 14902470120 CAP AL CP 6.3V 47U M 5*5.7 C638 1 435 14902470120 CAP AL CP 6.3V 47U M 5*5.7 C639 1 436 14902470120 CAP AL CP 6.3V 47U M 5*5.7 C640 1 437 14902470120 CAP AL CP 6.3V 47U M 5*5.7 C641 1 438 14902470120 CAP AL CP 6.3V 47U M 5*5.7 C642 1 439 14902470120 CAP AL CP 6.3V 47U M 5*5.5 C613 1 440 14902470120 CAP AL CP 6.3V 47U M 5*5.5 C637 1 441 14902470120 CAP AL CP 6.3V 47U M 5*5.5 C638 1 442 14902470120 CAP AL CP 6.3V 47U M 5*5.5 C639 1 443 14902470120 CAP AL CP 6.3V 47U M 5*5.5 C640 1 444 14902470120 CAP AL CP 6.3V 47U M 5*5.5 C641 1 445 14902470120 CAP AL CP 6.3V 47U M 5*5.5 C642 1 446 14902470123 CAP AL CP 6.3V 47U M 5*5.4 C613 1 447 14902470123 CAP AL CP 6.3V 47U M 5*5.4 C637 1 448 14902470123 CAP AL CP 6.3V 47U M 5*5.4 C638 1 449 14902470123 CAP AL CP 6.3V 47U M 5*5.4 C639 1 450 14902470123 CAP AL CP 6.3V 47U M 5*5.4 C640 1 451 14902470123 CAP AL CP 6.3V 47U M 5*5.4 C641 1 452 14902470123 CAP AL CP 6.3V 47U M 5*5.4 C642 1 453 14910102153 CAP AL CP 10V 1KU M 10*10 C253 1 454 14910102153 CAP AL CP 10V 1KU M 10*10 C254 1 455 14910151133 CAP AL CP 10V 150U M 6.3*5.8 C268 1 456 14910151133 CAP AL CP 10V 150U M 6.3*5.8 C269 1 457 14910151133 CAP AL CP 10V 150U M 6.3*5.8 C972 1 458 14910151133 CAP AL CP 10V 150U M 6.3*5.8 C974 1 459 14910151133 CAP AL CP 10V 150U M 6.3*5.8 C976 1 460 14910151133 CAP AL CP 10V 150U M 6.3*5.8 C978 1 461 14912100103 CAP AL CP 16V 10U M 3*5.4 C275 1 462 14912100103 CAP AL CP 16V 10U M 3*5.4 C310 1 463 14912101133 CAP AL CP 16V 100U M 6.3*5.4 C273 1 464 14912101133 CAP AL CP 16V 100U M 6.3*5.4 C279 1 465 14912101133 CAP AL CP 16V 100U M 6.3*5.4 C281 1 466 14912101133 CAP AL CP 16V 100U M 6.3*5.4 C409 1 467 14912101133 CAP AL CP 16V 100U M 6.3*5.4 C440 1 468 14912220120 CAP AL CP 16V 22U M 5*5.5 C272 1 469 14912220120 CAP AL CP 16V 22U M 5*5.5 C302 1 470 14912220120 CAP AL CP 16V 22U M 5*5.5 C518 1 471 14912220120 CAP AL CP 16V 22U M 5*5.5 C525 1 472 14912220120 CAP AL CP 16V 22U M 5*5.5 C532 1 473 14912220120 CAP AL CP 16V 22U M 5*5.5 C620 1 474 14912220123 CAP AL CP 16V 22U M 5*5.4 C272 1 475 14912220123 CAP AL CP 16V 22U M 5*5.4 C302 1 476 14912220123 CAP AL CP 16V 22U M 5*5.4 C518 1 477 14912220123 CAP AL CP 16V 22U M 5*5.4 C525 1 478 14912220123 CAP AL CP 16V 22U M 5*5.4 C532 1 479 14912220123 CAP AL CP 16V 22U M 5*5.4 C620 1 480 14912221133 CAP AL CP 16V 220U M 6.3*7.7 C266 1 481 14912470130 CAP AL CP 16V 47U M 6.3*5.8 C418 1 482 14912470130 CAP AL CP 16V 47U M 6.3*5.5 C418 1 483 14912470133 CAP AL CP 16V 47U M 6.3*5.4 C418 1 484 14912471140 CAP AL CP 16V 470U M 8*10.5 C251 1 485 14912471143 CAP AL CP 16V 470U M 8*10 C251 1 486 14915228103 CAP AL CP 35V 2.2U M 3*5.4 C980 1 487 E-C-0404-4878 1511514000 CAP MC CP 50V 22P J C0G 0603 C303 1 488 E-C-0404-4878 1511514000 CAP MC CP 50V 22P J C0G 0603 C304 1 489 E-C-0404-4878 1511514000 CAP MC CP 50V 22P J C0G 0603 C517 1 490 E-C-0404-4878 1511514000 CAP MC CP 50V 22P J C0G 0603 C604 1 491 E-C-0404-4878 1511514000 CAP MC CP 50V 22P J C0G 0603 C618 1 492 1511516000 CAP MC CP 50V 27P J C0G 0603 C953 1 493 1511516000 CAP MC CP 50V 27P J C0G 0603 C954 1 494 E-C-0404-4495 1511522000 CAP MC CP 50V 47P J C0G 0603 C539 1 495 1512438000 CAP MC CP 50V 220P K X7R 0603 C522 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

496 1512438000 CAP MC CP 50V 220P K X7R 0603 C523 1 497 1512438000 CAP MC CP 50V 220P K X7R 0603 C524 1 498 1512438000 CAP MC CP 50V 220P K X7R 0603 C529 1 499 1512438000 CAP MC CP 50V 220P K X7R 0603 C530 1 500 1512438000 CAP MC CP 50V 220P K X7R 0603 C531 1 501 1512438000 CAP MC CP 50V 220P K X7R 0603 C536 1 502 1512438000 CAP MC CP 50V 220P K X7R 0603 C537 1 503 1512438000 CAP MC CP 50V 220P K X7R 0603 C538 1 504 1512442000 CAP MC CP 50V 470P K X7R 0603 C615 1 505 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C256 1 506 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C258 1 507 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C260 1 508 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C405 1 509 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C408 1 510 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C432 1 511 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C436 1 512 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C463 1 513 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C465 1 514 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C467 1 515 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C468 1 516 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C475 1 517 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C478 1 518 E-C-0404-4881 1514504000 CAP MC CP 50V 5P C C0G 0603 C469 1 519 E-C-0404-4881 1514504000 CAP MC CP 50V 5P C C0G 0603 C470 1 520 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C259 1 521 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C282 1 522 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C404 1 523 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C407 1 524 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C411 1 525 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C413 1 526 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C415 1 527 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C417 1 528 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C421 1 529 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C422 1 530 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C462 1 531 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C464 1 532 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C466 1 533 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C474 1 534 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C477 1 535 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C506 1 536 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C508 1 537 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C514 1 538 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C516 1 539 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C605 1 540 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C606 1 541 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C607 1 542 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C608 1 543 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C609 1 544 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C610 1 545 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C612 1 546 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C982 1 547 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C255 1 548 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C263 1 549 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C265 1 550 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C270 1 551 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C271 1 552 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C274 1 553 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C276 1 554 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C301 1 555 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C403 1 556 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C406 1 557 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C410 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

558 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C412 1 559 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C414 1 560 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C416 1 561 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C419 1 562 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C420 1 563 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C423 1 564 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C424 1 565 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C425 1 566 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C426 1 567 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C427 1 568 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C428 1 569 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C429 1 570 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C430 1 571 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C431 1 572 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C433 1 573 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C434 1 574 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C435 1 575 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C438 1 576 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C439 1 577 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C441 1 578 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C442 1 579 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C443 1 580 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C444 1 581 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C445 1 582 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C446 1 583 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C447 1 584 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C448 1 585 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C450 1 586 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C451 1 587 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C452 1 588 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C454 1 589 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C455 1 590 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C456 1 591 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C457 1 592 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C458 1 593 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C461 1 594 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C473 1 595 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C476 1 596 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C479 1 597 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C501 1 598 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C502 1 599 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C503 1 600 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C504 1 601 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C509 1 602 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C510 1 603 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C511 1 604 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C512 1 605 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C519 1 606 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C520 1 607 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C521 1 608 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C526 1 609 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C527 1 610 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C528 1 611 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C533 1 612 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C534 1 613 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C535 1 614 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C540 1 615 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C541 1 616 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C542 1 617 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C543 1 618 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C601 1 619 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C602 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

620 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C603 1 621 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C611 1 622 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C621 1 623 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C622 1 624 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C951 1 625 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C952 1 626 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C955 1 627 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C956 1 628 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C957 1 629 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C961 1 630 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C962 1 631 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C963 1 632 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C964 1 633 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C965 1 634 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C966 1 635 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C967 1 636 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C968 1 637 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C969 1 638 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C970 1 639 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C971 1 640 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C973 1 641 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C975 1 642 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C977 1 643 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C979 1 644 1517667200 CAP MC CP 50V 1U Z Y5V 1206 C264 1 645 1517667200 CAP MC CP 50V 1U Z Y5V 1206 C267 1 646 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C261 1 647 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C262 1 648 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C280 1 649 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C283 1 650 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C402 1 651 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C460 1 652 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C472 1 653 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C505 1 654 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C507 1 655 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C513 1 656 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C515 1 657 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C616 1 658 20235108010 DIO SBD 3A 40V DO-201AD D251 1 659 20235158002 DIO SBD 5A 40V DO-201AD D252 1 660 20381254023 DIO ZEN 0.5W 4.94-5.20V LLDS(M D604 1 661 20381254083 DIO ZEN 0.5W 5.45-5.73V LLDS(M D305 1 662 20381254083 DIO ZEN 0.5W 5.45-5.73V LLDS(M D309 1 663 20381254083 DIO ZEN 0.5W 5.45-5.73V LLDS(M D601 1 664 20381254083 DIO ZEN 0.5W 5.45-5.73V LLDS(M D615 1 665 20381254083 DIO ZEN 0.5W 5.45-5.73V LLDS(M D626 1 666 20452070030 DIO SW 0.215A 75V SOT-23 D602 1 667 20452070030 DIO SW 0.215A 75V SOT-23 D608 1 668 21052200040 TR 40V 0.2A SOT-23 100-300 Q258 1 669 21052200040 TR 40V 0.2A SOT-23 100-300 Q259 1 670 21052200040 TR 40V 0.2A SOT-23 100-300 Q260 1 671 21052200040 TR 40V 0.2A SOT-23 100-300 Q262 1 672 21052200040 TR 40V 0.2A SOT-23 100-300 Q263 1 673 21052200040 TR 40V 0.2A SOT-23 100-300 Q305 1 674 21052200040 TR 40V 0.2A SOT-23 100-300 Q602 1 675 21052200050 TR 40V 0.6A SOT-23 80 Q253 1 676 21052200050 TR 40V 0.6A SOT-23 80 Q255 1 677 21152200020 TR -40V -0.2A SOT-23 100-300 Q301 1 678 21152200020 TR -40V -0.2A SOT-23 100-300 Q302 1 679 21152200040 TR -40V -0.6A SOT-23 100 Q254 1 680 21152200040 TR -40V -0.6A SOT-23 100 Q256 1 681 24350260001 FET -55V -11A 0.175ohm TO-252A Q251 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

682 24350260001 FET -55V -11A 0.175ohm TO-252A Q252 1 683 24360110001 FET -30V -8.8A 0.02ohm SO-8 Q261 1 684 24360110001 FET -30V -8.8A 0.02ohm SO-8 Q601 1 685 24360110003 FET -30V -8.0A 0.02ohm SO-8 Q261 1 686 24360110003 FET -30V -8.0A 0.02ohm SO-8 Q601 1 687 2500080610 IC REGU 3A ADJ D2PAK IC252 1 688 2500088636 IC VOL DETECTOR 4.4V SOT-23 IC306 1 689 2510019129 IC PWM SOP-16P IC251 1 690 2530134038 IC VIDEO SIGNAL SWITCH SOP-24P IC603 1 691 E-IC-0401-2147 2530192127 IC GRAPHICS PROCESSING 160MHZ IC401 1 692 E-IC-0401-1932 2540170021 IC LVDS I/F TSSOP-56P IC501 1 693 E-IC-0401-1932 2540170021 IC LVDS I/F TSSOP-56P IC502 1 694 2540279103 IC DUAL USB HIGH-SIDE POWER SW IC952 1 695 2540279103 IC DUAL USB HIGH-SIDE POWER SW IC953 1 696 2540368172 IC USB HUB CONTROLLER QFN-56P IC951 1 697 2600056007 IC MULTIPLEXERS SO-16PIN IC601 1 698 2610049742 IC CMOS 2K EEPROM SOIC-8P IC602 1 699 2610049742 IC CMOS 2K EEPROM SOIC-8P IC604 1 700 2610049742 IC CMOS 2K EEPROM SOIC-8P IC605 1 701 2610188137 IC EEPROM 256*8BIT SOIC-8PIN IC302 1 702 2610269222 IC SDRAM 512K*16*2B TSOP50 IC503 1 703 2610269222 IC SDRAM 512K*16*2B TSOP50 IC504 1 704 2610269222 IC SDRAM 512K*16*2B TSOP50 IC505 1 705 E-IC-0401-2518 2610269414 IC SDRAM 512K*16*2B 6nS TSOP50 IC503 1 706 E-IC-0401-2518 2610269414 IC SDRAM 512K*16*2B 6nS TSOP50 IC504 1 707 E-IC-0401-2518 2610269414 IC SDRAM 512K*16*2B 6nS TSOP50 IC505 1 708 2610527042 IC EEPROM 16K SO-8P IC302 1 709 261055700G IC 8-BIT MICROCONTROLLER PLCC- IC301 1 710 2640981501 IC 2610509112+5015007100 IC954 1 711 2610509112 IC EEPROM 512*8 SO-8P IC954 1 712 5015007100 SOFTWARE L18JBW USB2.0 VID:054 IC954 1 713 2640981801 IC 2610538142+5015007100 IC954 1 714 2610538142 IC EEPROM 512*8 SO-8PIN IC954 1 715 5015007100 SOFTWARE L18JBW USB2.0 VID:054 IC954 1 716 2816309810 CHOKE CD 47uH K SMT L601 1 717 2816309880 CHOKE CD 47uH K SMT L601 1 718 2816364480 CHOKE SMT 33uH M L251 1 719 2816364480 CHOKE SMT 33uH M L255 1 720 2816706700 CHOKE SMT 22UH M SMD L252 1 721 2816706700 CHOKE SMT 22UH M SMD L254 1 722 2816706710 CHOKE SMT 22UH M L252 1 723 2816706710 CHOKE SMT 22UH M L254 1 724 2816721510 CHOKE SMT 10uH K L253 1 725 2816721580 CHOKE CD 10uH K SMD L253 1 726 2921093612 CORE BEAD 100MHZ 120 OHM 0.2A FB302 1 727 2921093612 CORE BEAD 100MHZ 120 OHM 0.2A FB303 1 728 2921093612 CORE BEAD 100MHZ 120 OHM 0.2A FB304 1 729 2921093612 CORE BEAD 100MHZ 120 OHM 0.2A FB305 1 730 2921093612 CORE BEAD 100MHZ 120 OHM 0.2A FB306 1 731 2921093812 CORE BEAD 100MHZ 30 OHM 0.25A FB514 1 732 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB251 1 733 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB252 1 734 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB253 1 735 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB255 1 736 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB256 1 737 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB401 1 738 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB402 1 739 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB405 1 740 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB410 1 741 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB411 1 742 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB412 1 743 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB501 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

744 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB502 1 745 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB503 1 746 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB504 1 747 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB505 1 748 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB506 1 749 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB507 1 750 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB515 1 751 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB516 1 752 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB601 1 753 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB951 1 754 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB952 1 755 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB953 1 756 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB954 1 757 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB955 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

VP181s-2 BOM List

Item ViewSonic P/N Ref. P/N Description Location Q'ty

1 A-AD-0114-0186 0993027302 POWER 90-264VAC 12V 4.22A COMP 1

2 M-WR-0828-0729 3670196000 WIRE WITH HOUSING 20276 #30 L1 R01 1

3 M-WR-0828-0730 3670704700 WIRE WITH HOUSING 1007 #28 L15 R01 1

4 B-SB-0221-0542 4900505780 DC-AC INVERTER 18" FOR LG PANE CY01 1

5 0914740111 NTC R=470K OHM J B=5200+-7% CY02 1

6 0914740116 NTC R=470K J B=5200+-7% CY03 1

7 1160410332 CAP CD 3KV 15P J SL KI7.5 CY04 1

8 1160410332 CAP CD 3KV 15P J SL KI7.5 CY05 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

125 20481075013 DIO SW 0.15A 75V MINIMELF D02 1 126 20481075013 DIO SW 0.15A 75V MINIMELF D03 1 127 20481075013 DIO SW 0.15A 75V MINIMELF D04 1 128 20481075013 DIO SW 0.15A 75V MINIMELF D05 1 129 20481075013 DIO SW 0.15A 75V MINIMELF D06 1 130 20481075013 DIO SW 0.15A 75V MINIMELF D08 1 131 20481075013 DIO SW 0.15A 75V MINIMELF D09 1 132 20481075013 DIO SW 0.15A 75V MINIMELF D10 1 133 20484075000 DIO SW 0.2A 75V SOD-323 D11 1 134 20484075000 DIO SW 0.2A 75V SOD-323 D12 1 135 20484075000 DIO SW 0.2A 75V SOD-323 D13 1 136 20484075000 DIO SW 0.2A 75V SOD-323 D21 1 137 20484075000 DIO SW 0.2A 75V SOD-323 D08 1 138 20484075000 DIO SW 0.2A 75V SOD-323 D09 1 139 20484075000 DIO SW 0.2A 75V SOD-323 D10 1 140 20484075023 DIO SW 0.15A 75V SOD-323 D11 1 141 20484075023 DIO SW 0.15A 75V SOD-323 D12 1 142 20484075023 DIO SW 0.15A 75V SOD-323 D13 1 143 20484075023 DIO SW 0.15A 75V SOD-323 D21 1 144 20484075023 DIO SW 0.15A 75V SOD-323 D08 1 145 20484075023 DIO SW 0.15A 75V SOD-323 D09 1 146 20484075023 DIO SW 0.15A 75V SOD-323 D10 1 147 20484080003 DIO SW 0.1A 80V SOD-323 D11 1 148 20484080003 DIO SW 0.1A 80V SOD-323 D12 1 149 20484080003 DIO SW 0.1A 80V SOD-323 D13 1 150 20484080003 DIO SW 0.1A 80V SOD-323 D21 1 151 20484080003 DIO SW 0.1A 80V SOD-323 Q06 1 152 20484080003 DIO SW 0.1A 80V SOD-323 Q10 1 153 20484080003 DIO SW 0.1A 80V SOD-323 Q16 1 154 21052200050 TR 40V 0.6A SOT-23 80 Q06 1 155 21052200050 TR 40V 0.6A SOT-23 80 Q10 1 156 21052200050 TR 40V 0.6A SOT-23 80 Q16 1 157 21052200051 TR 40V 1.0A SOT-23 80 Q07 1 158 21052200051 TR 40V 1.0A SOT-23 80 Q07 1 159 21052200051 TR 40V 1.0A SOT-23 80 Q11 1 160 21052250013 TR 50V 0.03A SMT3 56 Q17 1 161 21052250060 TR 50V 0.1A 2-3F1A 70 Q11 1 162 21152200040 TR -40V -0.6A SOT-23 100 Q17 1 163 21152200040 TR -40V -0.6A SOT-23 100 Q09 1 164 21152200041 TR -40V -0.8A SOT-23 100 Q09 1 165 21152200041 TR -40V -0.8A SOT-23 100 Q01 1 166 21152250020 TR -50V -0.1A 2-3F1A 50 Q02 1 167 21152250023 TR -50V -0.5A CP 50 Q03 1 168 24252250001 FET 60V 0.115A 5ohm SOT-23 Q04 1 169 24252250001 FET 60V 0.115A 5ohm SOT-23 Q05 1 170 24252250001 FET 60V 0.115A 5ohm SOT-23 Q08 1 171 24252250001 FET 60V 0.115A 5ohm SOT-23 Q24 1 172 24252250001 FET 60V 0.115A 5ohm SOT-23 Q25 1 173 24252250001 FET 60V 0.115A 5ohm SOT-23 Q26 1 174 24252250001 FET 60V 0.115A 5ohm SOT-23 Q27 1 175 24252250001 FET 60V 0.115A 5ohm SOT-23 Q01 1 176 24252250001 FET 60V 0.115A 5ohm SOT-23 Q02 1 177 24252250001 FET 60V 0.115A 5ohm SOT-23 Q03 1 178 24252250003 FET 60V 0.115A 7.5ohm SOT-23 Q04 1 179 24252250003 FET 60V 0.115A 7.5ohm SOT-23 Q05 1 180 24252250003 FET 60V 0.115A 7.5ohm SOT-23 Q08 1 181 24252250003 FET 60V 0.115A 7.5ohm SOT-23 Q24 1 182 24252250003 FET 60V 0.115A 7.5ohm SOT-23 Q25 1 183 24252250003 FET 60V 0.115A 7.5ohm SOT-23 Q26 1 184 24252250003 FET 60V 0.115A 7.5ohm SOT-23 Q27 1 185 24252250003 FET 60V 0.115A 7.5ohm SOT-23 IC02 1 186 24252250003 FET 60V 0.115A 7.5ohm SOT-23 IC03 1 187 24252250003 FET 60V 0.115A 7.5ohm SOT-23 IC04 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

188 24260100020 FET 30V 7A 0.022ohm SO-8 N+P IC05 1 189 24260100020 FET 30V 7A 0.022ohm SO-8 N+P IC02 1 190 24260100020 FET 30V 7A 0.022ohm SO-8 N+P IC03 1 191 24260100020 FET 30V 7A 0.022ohm SO-8 N+P IC04 1 192 24260100021 FET 30V 7A 0.028ohm SO-8 N+P IC05 1 193 24260100021 FET 30V 7A 0.028ohm SO-8 N+P IC01 1 194 24260100021 FET 30V 7A 0.028ohm SO-8 N+P T01 1 195 E-IC-0401-2520 2510301154 IC PWM CCFL CONTROLLER SSOP-20 1 196 2801979400 X'FMR INVERTER 00A-3321 1 197 3184630000 BOBBIN BASE LCP EFD11.7 1 198 2801979400 X'FMR INVERTER 00A-3321 T02 1 199 2801979400 X'FMR INVERTER 00A-3321 T04 1 200 2801979400 X'FMR INVERTER 00A-3321 T05 1 201 2801979400 X'FMR INVERTER 00A-3321 T06 1 202 2817393200 INVERTER X'FMR UI-11.7 T01 1 203 2817393200 INVERTER X'FMR UI-11.7 T02 1 204 2817393200 INVERTER X'FMR UI-11.7 T03 1 205 2817393200 INVERTER X'FMR UI-11.7 T04 1 206 2817393200 INVERTER X'FMR UI-11.7 T05 1 207 2817393200 INVERTER X'FMR UI-11.7 T06 1 208 2994714601 PWB D 0 L2 I1/E1 FR4 179*40*1. PCB 1 209 3070075000 HEADER NY66 94V0 2PIN CN02 1 210 3070075000 HEADER NY66 94V0 2PIN CN03 1 211 3070075000 HEADER NY66 94V0 2PIN CN04 1 212 3070075000 HEADER NY66 94V0 2PIN CN05 1 213 3070075000 HEADER NY66 94V0 2PIN CN06 1 214 3070075000 HEADER NY66 94V0 2PIN CN07 1 215 3070075166 HEADER NYLON46 94V0 2PIN SMD CN02 1 216 3070075166 HEADER NYLON46 94V0 2PIN SMD CN03 1 217 3070075166 HEADER NYLON46 94V0 2PIN SMD CN04 1 218 3070075166 HEADER NYLON46 94V0 2PIN SMD CN05 1 219 3070075166 HEADER NYLON46 94V0 2PIN SMD CN06 1 220 3070075166 HEADER NYLON46 94V0 2PIN SMD CN07 1 221 3076790051 HEADER HOUSING 94V0 2P P3.5 R CN02 1 222 3076790051 HEADER HOUSING 94V0 2P P3.5 R CN03 1 223 3076790051 HEADER HOUSING 94V0 2P P3.5 R CN04 1 224 3076790051 HEADER HOUSING 94V0 2P P3.5 R CN05 1 225 3076790051 HEADER HOUSING 94V0 2P P3.5 R CN06 1 226 3076790051 HEADER HOUSING 94V0 2P P3.5 R CN07 1 227 3076790083 HEADER HOUSING 94V0 2P P3.5 R CN02 1 228 3076790083 HEADER HOUSING 94V0 2P P3.5 R CN03 1 229 3076790083 HEADER HOUSING 94V0 2P P3.5 R CN04 1 230 3076790083 HEADER HOUSING 94V0 2P P3.5 R CN05 1 231 3076790083 HEADER HOUSING 94V0 2P P3.5 R CN06 1 232 3076790083 HEADER HOUSING 94V0 2P P3.5 R CN07 1 233 E-R-0405-7040 X034005500 RES CH 1/10W 62K F 0603 R21 1 234 M-LCD-0826-0161 5051801050 LCD 18.1" TFT PANEL XGA 1 235 5600110087 LCD I/F BD ASSY L18JBW 05ABB 1 236 0313151000 RES CH 1/4W 150 J 1206 R274 1 237 0313151000 RES CH 1/4W 150 J 1206 R275 1 238 0341052300 RES CH 1/10W 4.7K F 0603 R263 1 239 0341052300 RES CH 1/10W 4.7K F 0603 R264 1 240 0341052300 RES CH 1/10W 4.7K F 0603 R265 1 241 0341052300 RES CH 1/10W 4.7K F 0603 R266 1 242 0341059300 RES CH 1/10W 10K F 0603 R252 1 243 0341059300 RES CH 1/10W 10K F 0603 R254 1 244 0341070300 RES CH 1/10W 30K F 0603 R253 1 245 0341460300 RES CH 1/10W 16.5K F 0603 R251 1 246 E-R-0405-7041 0343000300 RES CH 1/10W ZERO J 0603 C257 1 247 E-R-0405-7041 0343000300 RES CH 1/10W ZERO J 0603 R508 1 248 E-R-0405-7041 0343000300 RES CH 1/10W ZERO J 0603 R514 1 249 E-R-0405-7041 0343000300 RES CH 1/10W ZERO J 0603 R515 1 250 E-R-0405-7041 0343000300 RES CH 1/10W ZERO J 0603 R633 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

251 E-R-0405-7041 0343000300 RES CH 1/10W ZERO J 0603 R661 1 252 E-R-0405-7049 0343100300 RES CH 1/10W 10 J 0603 R259 1 253 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R258 1 254 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R261 1 255 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R323 1 256 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R324 1 257 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R502 1 258 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R503 1 259 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R504 1 260 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R602 1 261 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R604 1 262 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R613 1 263 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R614 1 264 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R644 1 265 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R651 1 266 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R653 1 267 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R663 1 268 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R664 1 269 E-R-0405-6684 0343101300 RES CH 1/10W 100 J 0603 R665 1 270 0343102100 RES CH 1/8W 1K J 0805 R257 1 271 0343102100 RES CH 1/8W 1K J 0805 R260 1 272 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R276 1 273 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R280 1 274 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R312 1 275 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R319 1 276 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R327 1 277 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R328 1 278 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R331 1 279 E-R-0405-7054 0343102300 RES CH 1/10W 1K J 0603 R401 1 280 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R262 1 281 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R272 1 282 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R273 1 283 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R282 1 284 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R287 1 285 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R301 1 286 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R302 1 287 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R303 1 288 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R304 1 289 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R305 1 290 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R307 1 291 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R313 1 292 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R314 1 293 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R315 1 294 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R316 1 295 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R317 1 296 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R318 1 297 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R320 1 298 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R321 1 299 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R322 1 300 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R332 1 301 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R333 1 302 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R334 1 303 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R535 1 304 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R536 1 305 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R603 1 306 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R605 1 307 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R615 1 308 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R625 1 309 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R626 1 310 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R627 1 311 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R628 1 312 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R639 1 313 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R640 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

314 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R959 1 315 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R960 1 316 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R961 1 317 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R962 1 318 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R963 1 319 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R964 1 320 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R965 1 321 E-R-0405-6685 0343103300 RES CH 1/10W 10K J 0603 R966 1 322 E-R-0405-7050 0343104300 RES CH 1/10W 100K J 0603 R306 1 323 E-R-0405-7050 0343104300 RES CH 1/10W 100K J 0603 R951 1 324 E-R-0405-7050 0343104300 RES CH 1/10W 100K J 0603 R957 1 325 0343106300 RES CH 1/10W 10M J 0603 R340 1 326 0343151300 RES CH 1/10W 150 J 0603 R619 1 327 0343151300 RES CH 1/10W 150 J 0603 R620 1 328 0343151300 RES CH 1/10W 150 J 0603 R621 1 329 0343151300 RES CH 1/10W 150 J 0603 R622 1 330 0343151300 RES CH 1/10W 150 J 0603 R623 1 331 0343151300 RES CH 1/10W 150 J 0603 R624 1 332 0343152300 RES CH 1/10W 1.5K J 0603 R953 1 333 0343153300 RES CH 1/10W 15K J 0603 R281 1 334 0343153300 RES CH 1/10W 15K J 0603 R952 1 335 0343153300 RES CH 1/10W 15K J 0603 R954 1 336 0343153300 RES CH 1/10W 15K J 0603 R955 1 337 0343153300 RES CH 1/10W 15K J 0603 R956 1 338 0343220100 RES CH 1/8W 22 J 0805 R255 1 339 0343220100 RES CH 1/8W 22 J 0805 R256 1 340 E-R-0405-7042 0343220300 RES CH 1/10W 22 J 0603 R509 1 341 E-R-0405-6687 0343222300 RES CH 1/10W 2.2K J 0603 R279 1 342 E-R-0405-6687 0343222300 RES CH 1/10W 2.2K J 0603 R601 1 343 E-R-0405-6687 0343222300 RES CH 1/10W 2.2K J 0603 R606 1 344 E-R-0405-6687 0343222300 RES CH 1/10W 2.2K J 0603 R607 1 345 E-R-0405-6687 0343222300 RES CH 1/10W 2.2K J 0603 R609 1 346 0343223300 RES CH 1/10W 22K J 0603 R283 1 347 0343223300 RES CH 1/10W 22K J 0603 R286 1 348 0343223300 RES CH 1/10W 22K J 0603 R402 1 349 E-R-0405-7058 0343330300 RES CH 1/10W 33 J 0603 R537 1 350 E-R-0405-7057 0343332300 RES CH 1/10W 3.3K J 0603 R284 1 351 E-R-0405-7057 0343332300 RES CH 1/10W 3.3K J 0603 R285 1 352 E-R-0405-7043 0343392300 RES CH 1/10W 3.9K J 0603 R269 1 353 E-R-0405-7043 0343392300 RES CH 1/10W 3.9K J 0603 R270 1 354 E-R-0405-6690 0343470300 RES CH 1/10W 47 J 0603 R337 1 355 E-R-0405-6690 0343470300 RES CH 1/10W 47 J 0603 R338 1 356 E-R-0405-6690 0343470300 RES CH 1/10W 47 J 0603 R339 1 357 E-R-0405-6690 0343470300 RES CH 1/10W 47 J 0603 R341 1 358 E-R-0405-6690 0343470300 RES CH 1/10W 47 J 0603 R342 1 359 E-R-0405-6690 0343470300 RES CH 1/10W 47 J 0603 R629 1 360 E-R-0405-6690 0343470300 RES CH 1/10W 47 J 0603 R630 1 361 E-R-0405-7033 0343471300 RES CH 1/10W 470 J 0603 R325 1 362 E-R-0405-7033 0343471300 RES CH 1/10W 470 J 0603 R330 1 363 E-R-0405-7031 0343472300 RES CH 1/10W 4.7K J 0603 R277 1 364 E-R-0405-7031 0343472300 RES CH 1/10W 4.7K J 0603 R278 1 365 0343474300 RES CH 1/10W 470K J 0603 R646 1 366 E-R-0405-6691 0343562300 RES CH 1/10W 5.6K J 0603 R268 1 367 E-R-0405-6691 0343562300 RES CH 1/10W 5.6K J 0603 R271 1 368 E-R-0405-6691 0343562300 RES CH 1/10W 5.6K J 0603 R308 1 369 E-R-0405-6691 0343562300 RES CH 1/10W 5.6K J 0603 R310 1 370 0343565300 RES CH 1/10W 5.6M J 0603 R659 1 371 0343683300 RES CH 1/10W 68K J 0603 R645 1 372 0343750100 RES CH 1/8W 75 J 0805 R632 1 373 0343750100 RES CH 1/8W 75 J 0805 R634 1 374 0343750100 RES CH 1/8W 75 J 0805 R635 1 375 0343750100 RES CH 1/8W 75 J 0805 R636 1 376 0343750100 RES CH 1/8W 75 J 0805 R637 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

377 0343750100 RES CH 1/8W 75 J 0805 R638 1 378 0343750300 RES CH 1/10W 75 J 0603 R506 1 379 0619700305 RES ARRAY 10K J SMD8*2 4*1.6 RP301 1 380 0619700305 RES ARRAY 10K J SMD8*2 4*1.6 RP507 1 381 0619700705 RES ARRAY 100 J SMD 8*2 4*1.6 RP304 1 382 0619701505 RES ARRAY 10 J SMD8*2 4*1.6 RP501 1 383 0619701505 RES ARRAY 10 J SMD8*2 4*1.6 RP502 1 384 0619701505 RES ARRAY 10 J SMD8*2 4*1.6 RP503 1 385 0619701505 RES ARRAY 10 J SMD8*2 4*1.6 RP504 1 386 0619701505 RES ARRAY 10 J SMD8*2 4*1.6 RP505 1 387 0619701505 RES ARRAY 10 J SMD8*2 4*1.6 RP506 1 388 0619900705 RES ARRAY 10K J 8P4R 1206 RP508 1 389 0619900712 RES ARRAY 10K J 8P4R 1206 RP508 1 390 0730180212 CRYSTAL 24MHZ +-30PPM 30PF 49U X401 1 391 0730180212 CRYSTAL 24MHZ +-30PPM 30PF 49U X951 1 392 0730500212 CRYSTAL 11.0592MHZ 30PPM 16PF X301 1 393 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA301 1 394 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA302 1 395 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA303 1 396 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA304 1 397 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA305 1 398 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA306 1 399 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA307 1 400 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA605 1 401 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA608 1 402 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA609 1 403 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA610 1 404 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA613 1 405 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA614 1 406 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA615 1 407 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA616 1 408 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA617 1 409 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA618 1 410 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA619 1 411 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA620 1 412 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA621 1 413 0920990061 VOLTAGE SUPPRESSOR 5V 10P M 06 VA622 1 414 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA601 1 415 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA602 1 416 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA603 1 417 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA604 1 418 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA606 1 419 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA607 1 420 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA611 1 421 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA612 1 422 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA901 1 423 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA902 1 424 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA903 1 425 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA904 1 426 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA905 1 427 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA906 1 428 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA907 1 429 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA908 1 430 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA909 1 431 0920990161 VOLTAGE SUPPRESSOR 5V 1P MAX 0 VA910 1 432 14902470120 CAP AL CP 6.3V 47U M 5*5.7 C613 1 433 14902470120 CAP AL CP 6.3V 47U M 5*5.7 C637 1 434 14902470120 CAP AL CP 6.3V 47U M 5*5.7 C638 1 435 14902470120 CAP AL CP 6.3V 47U M 5*5.7 C639 1 436 14902470120 CAP AL CP 6.3V 47U M 5*5.7 C640 1 437 14902470120 CAP AL CP 6.3V 47U M 5*5.7 C641 1 438 14902470120 CAP AL CP 6.3V 47U M 5*5.7 C642 1 439 14902470120 CAP AL CP 6.3V 47U M 5*5.5 C613 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

440 14902470120 CAP AL CP 6.3V 47U M 5*5.5 C637 1 441 14902470120 CAP AL CP 6.3V 47U M 5*5.5 C638 1 442 14902470120 CAP AL CP 6.3V 47U M 5*5.5 C639 1 443 14902470120 CAP AL CP 6.3V 47U M 5*5.5 C640 1 444 14902470120 CAP AL CP 6.3V 47U M 5*5.5 C641 1 445 14902470120 CAP AL CP 6.3V 47U M 5*5.5 C642 1 446 14902470123 CAP AL CP 6.3V 47U M 5*5.4 C613 1 447 14902470123 CAP AL CP 6.3V 47U M 5*5.4 C637 1 448 14902470123 CAP AL CP 6.3V 47U M 5*5.4 C638 1 449 14902470123 CAP AL CP 6.3V 47U M 5*5.4 C639 1 450 14902470123 CAP AL CP 6.3V 47U M 5*5.4 C640 1 451 14902470123 CAP AL CP 6.3V 47U M 5*5.4 C641 1 452 14902470123 CAP AL CP 6.3V 47U M 5*5.4 C642 1 453 14910102153 CAP AL CP 10V 1KU M 10*10 C253 1 454 14910102153 CAP AL CP 10V 1KU M 10*10 C254 1 455 14910151133 CAP AL CP 10V 150U M 6.3*5.8 C268 1 456 14910151133 CAP AL CP 10V 150U M 6.3*5.8 C269 1 457 14910151133 CAP AL CP 10V 150U M 6.3*5.8 C972 1 458 14910151133 CAP AL CP 10V 150U M 6.3*5.8 C974 1 459 14910151133 CAP AL CP 10V 150U M 6.3*5.8 C976 1 460 14910151133 CAP AL CP 10V 150U M 6.3*5.8 C978 1 461 14912100103 CAP AL CP 16V 10U M 3*5.4 C275 1 462 14912100103 CAP AL CP 16V 10U M 3*5.4 C310 1 463 14912101133 CAP AL CP 16V 100U M 6.3*5.4 C273 1 464 14912101133 CAP AL CP 16V 100U M 6.3*5.4 C279 1 465 14912101133 CAP AL CP 16V 100U M 6.3*5.4 C281 1 466 14912101133 CAP AL CP 16V 100U M 6.3*5.4 C409 1 467 14912101133 CAP AL CP 16V 100U M 6.3*5.4 C440 1 468 14912220120 CAP AL CP 16V 22U M 5*5.5 C272 1 469 14912220120 CAP AL CP 16V 22U M 5*5.5 C302 1 470 14912220120 CAP AL CP 16V 22U M 5*5.5 C518 1 471 14912220120 CAP AL CP 16V 22U M 5*5.5 C525 1 472 14912220120 CAP AL CP 16V 22U M 5*5.5 C532 1 473 14912220120 CAP AL CP 16V 22U M 5*5.5 C620 1 474 14912220123 CAP AL CP 16V 22U M 5*5.4 C272 1 475 14912220123 CAP AL CP 16V 22U M 5*5.4 C302 1 476 14912220123 CAP AL CP 16V 22U M 5*5.4 C518 1 477 14912220123 CAP AL CP 16V 22U M 5*5.4 C525 1 478 14912220123 CAP AL CP 16V 22U M 5*5.4 C532 1 479 14912220123 CAP AL CP 16V 22U M 5*5.4 C620 1 480 14912221133 CAP AL CP 16V 220U M 6.3*7.7 C266 1 481 14912470130 CAP AL CP 16V 47U M 6.3*5.8 C418 1 482 14912470130 CAP AL CP 16V 47U M 6.3*5.5 C418 1 483 14912470133 CAP AL CP 16V 47U M 6.3*5.4 C418 1 484 14912471140 CAP AL CP 16V 470U M 8*10.5 C251 1 485 14912471143 CAP AL CP 16V 470U M 8*10 C251 1 486 14915228103 CAP AL CP 35V 2.2U M 3*5.4 C980 1 487 E-C-0404-4878 1511514000 CAP MC CP 50V 22P J C0G 0603 C303 1 488 E-C-0404-4878 1511514000 CAP MC CP 50V 22P J C0G 0603 C304 1 489 E-C-0404-4878 1511514000 CAP MC CP 50V 22P J C0G 0603 C517 1 490 E-C-0404-4878 1511514000 CAP MC CP 50V 22P J C0G 0603 C604 1 491 E-C-0404-4878 1511514000 CAP MC CP 50V 22P J C0G 0603 C618 1 492 1511516000 CAP MC CP 50V 27P J C0G 0603 C953 1 493 1511516000 CAP MC CP 50V 27P J C0G 0603 C954 1 494 E-C-0404-4495 1511522000 CAP MC CP 50V 47P J C0G 0603 C539 1 495 1512438000 CAP MC CP 50V 220P K X7R 0603 C522 1 496 1512438000 CAP MC CP 50V 220P K X7R 0603 C523 1 497 1512438000 CAP MC CP 50V 220P K X7R 0603 C524 1 498 1512438000 CAP MC CP 50V 220P K X7R 0603 C529 1 499 1512438000 CAP MC CP 50V 220P K X7R 0603 C530 1 500 1512438000 CAP MC CP 50V 220P K X7R 0603 C531 1 501 1512438000 CAP MC CP 50V 220P K X7R 0603 C536 1 502 1512438000 CAP MC CP 50V 220P K X7R 0603 C537 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

503 1512438000 CAP MC CP 50V 220P K X7R 0603 C538 1 504 1512442000 CAP MC CP 50V 470P K X7R 0603 C615 1 505 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C256 1 506 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C258 1 507 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C260 1 508 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C405 1 509 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C408 1 510 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C432 1 511 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C436 1 512 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C463 1 513 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C465 1 514 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C467 1 515 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C468 1 516 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C475 1 517 E-C-0404-4876 1512445000 CAP MC CP 50V 1KP K X7R 0603 C478 1 518 E-C-0404-4881 1514504000 CAP MC CP 50V 5P C C0G 0603 C469 1 519 E-C-0404-4881 1514504000 CAP MC CP 50V 5P C C0G 0603 C470 1 520 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C259 1 521 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C282 1 522 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C404 1 523 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C407 1 524 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C411 1 525 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C413 1 526 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C415 1 527 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C417 1 528 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C421 1 529 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C422 1 530 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C462 1 531 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C464 1 532 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C466 1 533 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C474 1 534 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C477 1 535 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C506 1 536 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C508 1 537 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C514 1 538 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C516 1 539 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C605 1 540 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C606 1 541 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C607 1 542 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C608 1 543 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C609 1 544 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C610 1 545 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C612 1 546 1517654000 CAP MC CP 50V .01U Z Y5V 0603 C982 1 547 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C255 1 548 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C263 1 549 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C265 1 550 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C270 1 551 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C271 1 552 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C274 1 553 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C276 1 554 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C301 1 555 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C403 1 556 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C406 1 557 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C410 1 558 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C412 1 559 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C414 1 560 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C416 1 561 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C419 1 562 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C420 1 563 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C423 1 564 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C424 1 565 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C425 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

566 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C426 1 567 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C427 1 568 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C428 1 569 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C429 1 570 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C430 1 571 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C431 1 572 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C433 1 573 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C434 1 574 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C435 1 575 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C438 1 576 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C439 1 577 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C441 1 578 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C442 1 579 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C443 1 580 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C444 1 581 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C445 1 582 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C446 1 583 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C447 1 584 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C448 1 585 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C450 1 586 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C451 1 587 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C452 1 588 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C454 1 589 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C455 1 590 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C456 1 591 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C457 1 592 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C458 1 593 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C461 1 594 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C473 1 595 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C476 1 596 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C479 1 597 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C501 1 598 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C502 1 599 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C503 1 600 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C504 1 601 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C509 1 602 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C510 1 603 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C511 1 604 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C512 1 605 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C519 1 606 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C520 1 607 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C521 1 608 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C526 1 609 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C527 1 610 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C528 1 611 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C533 1 612 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C534 1 613 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C535 1 614 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C540 1 615 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C541 1 616 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C542 1 617 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C543 1 618 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C601 1 619 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C602 1 620 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C603 1 621 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C611 1 622 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C621 1 623 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C622 1 624 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C951 1 625 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C952 1 626 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C955 1 627 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C956 1 628 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C957 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

629 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C961 1 630 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C962 1 631 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C963 1 632 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C964 1 633 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C965 1 634 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C966 1 635 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C967 1 636 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C968 1 637 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C969 1 638 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C970 1 639 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C971 1 640 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C973 1 641 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C975 1 642 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C977 1 643 E-C-0404-4497 1517658000 CAP MC CP 50V .1U Z Y5V 0603 C979 1 644 1517667200 CAP MC CP 50V 1U Z Y5V 1206 C264 1 645 1517667200 CAP MC CP 50V 1U Z Y5V 1206 C267 1 646 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C261 1 647 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C262 1 648 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C280 1 649 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C283 1 650 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C402 1 651 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C460 1 652 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C472 1 653 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C505 1 654 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C507 1 655 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C513 1 656 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C515 1 657 1557667100 CAP MC CP 25V 1U Z Y5V 0805 C616 1 658 20235108010 DIO SBD 3A 40V DO-201AD D251 1 659 20235158002 DIO SBD 5A 40V DO-201AD D252 1 660 20381254023 DIO ZEN 0.5W 4.94-5.20V LLDS(M D604 1 661 20381254083 DIO ZEN 0.5W 5.45-5.73V LLDS(M D305 1 662 20381254083 DIO ZEN 0.5W 5.45-5.73V LLDS(M D309 1 663 20381254083 DIO ZEN 0.5W 5.45-5.73V LLDS(M D601 1 664 20381254083 DIO ZEN 0.5W 5.45-5.73V LLDS(M D615 1 665 20381254083 DIO ZEN 0.5W 5.45-5.73V LLDS(M D626 1 666 20452070030 DIO SW 0.215A 75V SOT-23 D602 1 667 20452070030 DIO SW 0.215A 75V SOT-23 D608 1 668 21052200040 TR 40V 0.2A SOT-23 100-300 Q258 1 669 21052200040 TR 40V 0.2A SOT-23 100-300 Q259 1 670 21052200040 TR 40V 0.2A SOT-23 100-300 Q260 1 671 21052200040 TR 40V 0.2A SOT-23 100-300 Q262 1 672 21052200040 TR 40V 0.2A SOT-23 100-300 Q263 1 673 21052200040 TR 40V 0.2A SOT-23 100-300 Q305 1 674 21052200040 TR 40V 0.2A SOT-23 100-300 Q602 1 675 21052200050 TR 40V 0.6A SOT-23 80 Q253 1 676 21052200050 TR 40V 0.6A SOT-23 80 Q255 1 677 21152200020 TR -40V -0.2A SOT-23 100-300 Q301 1 678 21152200020 TR -40V -0.2A SOT-23 100-300 Q302 1 679 21152200040 TR -40V -0.6A SOT-23 100 Q254 1 680 21152200040 TR -40V -0.6A SOT-23 100 Q256 1 681 24350260001 FET -55V -11A 0.175ohm TO-252A Q251 1 682 24350260001 FET -55V -11A 0.175ohm TO-252A Q252 1 683 24360110001 FET -30V -8.8A 0.02ohm SO-8 Q261 1 684 24360110001 FET -30V -8.8A 0.02ohm SO-8 Q601 1 685 24360110003 FET -30V -8.0A 0.02ohm SO-8 Q261 1 686 24360110003 FET -30V -8.0A 0.02ohm SO-8 Q601 1 687 2500080610 IC REGU 3A ADJ D2PAK IC252 1 688 2500088636 IC VOL DETECTOR 4.4V SOT-23 IC306 1 689 2510019129 IC PWM SOP-16P IC251 1 690 2530134038 IC VIDEO SIGNAL SWITCH SOP-24P IC603 1 691 E-IC-0401-2147 2530192127 IC GRAPHICS PROCESSING 160MHZ IC401 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

692 E-IC-0401-1932 2540170021 IC LVDS I/F TSSOP-56P IC501 1 693 E-IC-0401-1932 2540170021 IC LVDS I/F TSSOP-56P IC502 1 694 2540279103 IC DUAL USB HIGH-SIDE POWER SW IC952 1 695 2540279103 IC DUAL USB HIGH-SIDE POWER SW IC953 1 696 2540368172 IC USB HUB CONTROLLER QFN-56P IC951 1 697 2600056007 IC MULTIPLEXERS SO-16PIN IC601 1 698 2610049742 IC CMOS 2K EEPROM SOIC-8P IC602 1 699 2610049742 IC CMOS 2K EEPROM SOIC-8P IC604 1 700 2610049742 IC CMOS 2K EEPROM SOIC-8P IC605 1 701 E-IC-0401-1834 2610188137 IC EEPROM 256*8BIT SOIC-8PIN IC302 1 702 2610269222 IC SDRAM 512K*16*2B TSOP50 IC503 1 703 2610269222 IC SDRAM 512K*16*2B TSOP50 IC504 1 704 2610269222 IC SDRAM 512K*16*2B TSOP50 IC505 1 705 E-IC-0401-2518 2610269414 IC SDRAM 512K*16*2B 6nS TSOP50 IC503 1 706 E-IC-0401-2518 2610269414 IC SDRAM 512K*16*2B 6nS TSOP50 IC504 1 707 E-IC-0401-2518 2610269414 IC SDRAM 512K*16*2B 6nS TSOP50 IC505 1 708 2610527042 IC EEPROM 16K SO-8P IC302 1 709 261055700G IC 8-BIT MICROCONTROLLER PLCC- IC301 1 710 2640981501 IC 2610509112+5015007100 IC954 1 711 2610509112 IC EEPROM 512*8 SO-8P IC954 1 712 5015007100 SOFTWARE L18JBW USB2.0 VID:054 IC954 1 713 2640981801 IC 2610538142+5015007100 IC954 1 714 2610538142 IC EEPROM 512*8 SO-8PIN IC954 1 715 5015007100 SOFTWARE L18JBW USB2.0 VID:054 IC954 1 716 2816309810 CHOKE CD 47uH K SMT L601 1 717 2816309880 CHOKE CD 47uH K SMT L601 1 718 2816364480 CHOKE SMT 33uH M L251 1 719 2816364480 CHOKE SMT 33uH M L255 1 720 2816706700 CHOKE SMT 22UH M SMD L252 1 721 2816706700 CHOKE SMT 22UH M SMD L254 1 722 2816706710 CHOKE SMT 22UH M L252 1 723 2816706710 CHOKE SMT 22UH M L254 1 724 2816721510 CHOKE SMT 10uH K L253 1 725 2816721580 CHOKE CD 10uH K SMD L253 1 726 2921093612 CORE BEAD 100MHZ 120 OHM 0.2A FB302 1 727 2921093612 CORE BEAD 100MHZ 120 OHM 0.2A FB303 1 728 2921093612 CORE BEAD 100MHZ 120 OHM 0.2A FB304 1 729 2921093612 CORE BEAD 100MHZ 120 OHM 0.2A FB305 1 730 2921093612 CORE BEAD 100MHZ 120 OHM 0.2A FB306 1 731 2921093812 CORE BEAD 100MHZ 30 OHM 0.25A FB514 1 732 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB251 1 733 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB252 1 734 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB253 1 735 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB255 1 736 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB256 1 737 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB401 1 738 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB402 1 739 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB405 1 740 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB410 1 741 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB411 1 742 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB412 1 743 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB501 1 744 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB502 1 745 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB503 1 746 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB504 1 747 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB505 1 748 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB506 1 749 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB507 1 750 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB515 1 751 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB516 1 752 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB601 1 753 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB951 1 754 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB952 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

Item ViewSonic P/N Ref. P/N Description Location Q'ty

755 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB953 1 756 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB954 1 757 2921113212 CORE BEAD 100MHZ 120 OHM 4A 12 FB955 1

ViewSonic Corporation

Confidential – Do Not Cop y

VP181b/s-2b/s

**Reader's Response

Dear Readers,

Thank you in advance for your feedback on our Service Manual, which allows continuous improvement of our products. We would appreciate your completion of the Assessment Matrix below, for return to ViewSonic corporation.

Assessment

A. What do you think about the content after reading Service Manual?VP181bs-2

Unit Excellent Cood Fair Bad

1. Precautions and Safety Notices

2. Specification

3. Front Panel Function Control Description

4. Circuit Description

5. Adjusting Procedure

6. Trouble Shooting Flow Chart

7. Mechanical Assembly

8. Schematic Diagrams

9. PCB Layout

10. Recommended Spare Parts List

11. Electrical Parts List

B. Are you satisfied with the Service Manual?VP181bs-2

Unit Excellent Cood Fair Bad

1. Service Manual Content

2. Service Manual Layout

3. The form and listing

C. Do you have any other opinion or suggestion about this Service Manual?

Reader's basic data:

Name Title

Company

Add

Tel Fax

E-mail

After completing this form, please return it to ViewSonic Quality Assurance in the USA at facsimile 1-909-839-7943. You may also e-mail any suggestions to the Director, Quality Systems & Processes (marc.maupin@viewsonic.com)

ViewSonic VP181b-2, VP181s-2, VLCDS26063-2W, VLCDS26063-3W Service manual

Specifications and Main Features

Frequently Asked Questions

User Manual
